Descripción
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel X99
Chipset Description Intel X99 chipset is used
Audio chip Integrated with Realtek ALC1150 8-channel sound chip
Nic chip Onboard Intel I217LM/I210AT dual Gigabit NIC
Processor specification
CPU Type Core i7/Xeon E5-1 00/2 00v3
CPU slot LGA 2011-V3
Memory specification
Memory Type 8 x DDR4 DIMMs
The maximum memory capacity is 128GB
The memory support four-channel DDR4 + (OC) / 2933 + 3200 (OC) / 2800 (OC) / 2400 (OC) / 2133/1866/1600/1333/1066 MHZ memory
Storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 6 x PCI-E X16 video card slot
Storage ports 1 x M.2 ports, 10 x SATA III ports, 1 x eSATA ports

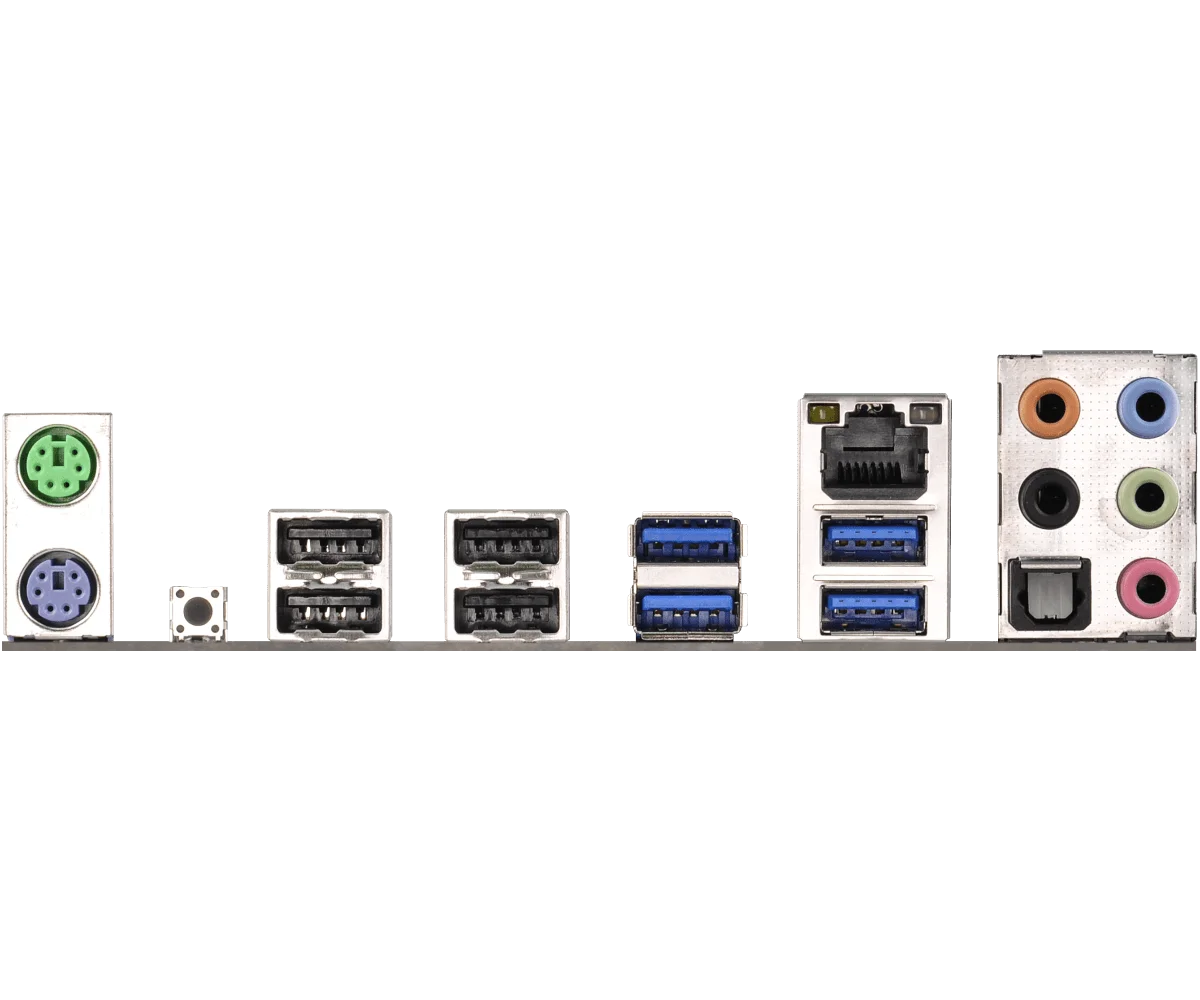

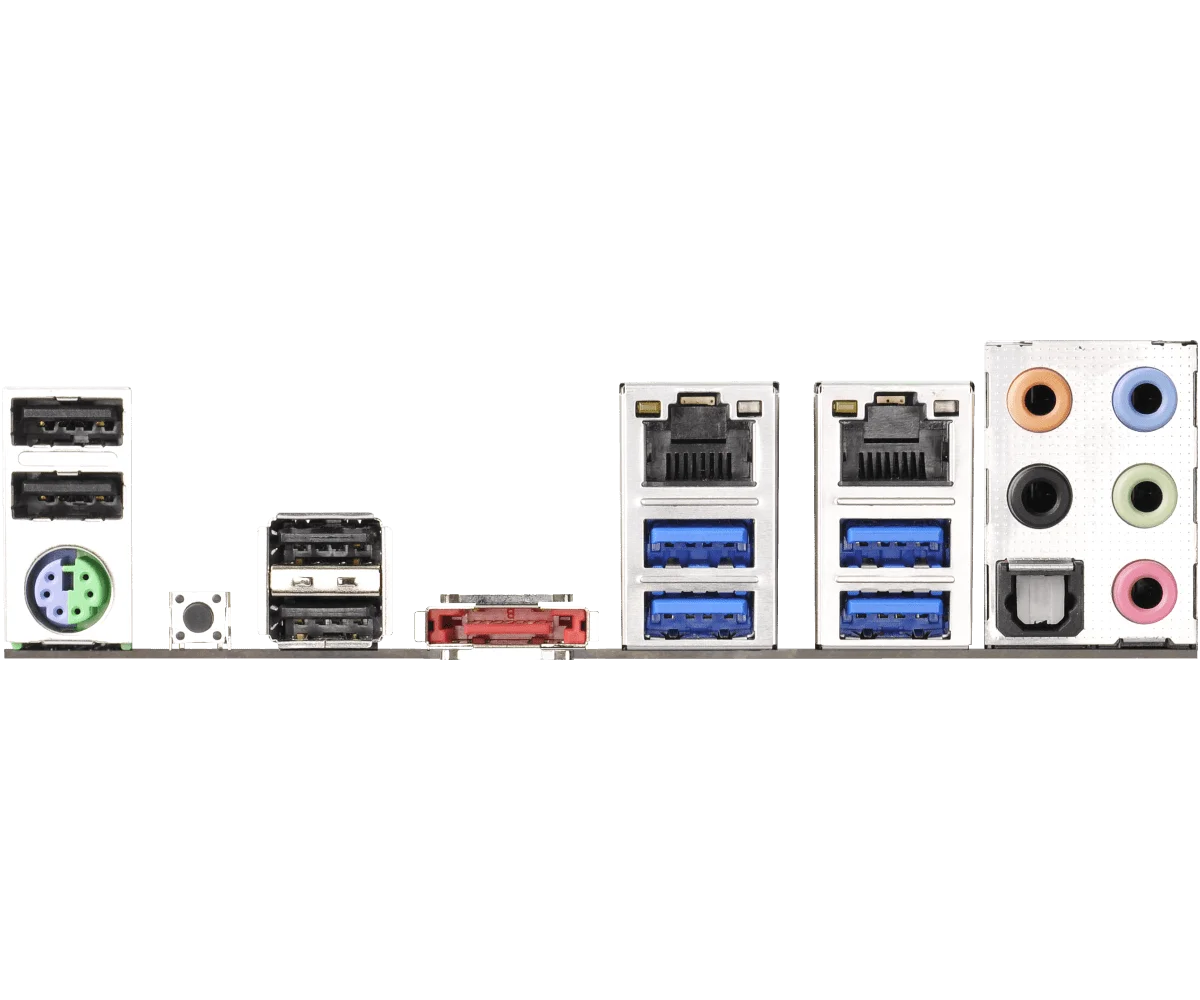

I/O interface
USB ports 4 x USB3.0 ports, 4 x USB2.0 ports
One 8-pin power port and one 24-pin power port
Other interfaces 2 x RJ45 network interface, audio interface, PS/2 key and mouse general interface
Plate cut
Main board type E-ATX board type
