PCIE Oculink SFF-8611 4I a U.2 SAS SFF-8639 de 90 grados con alimentación macho SATA 15P NVME para cable SSD

Product Overview

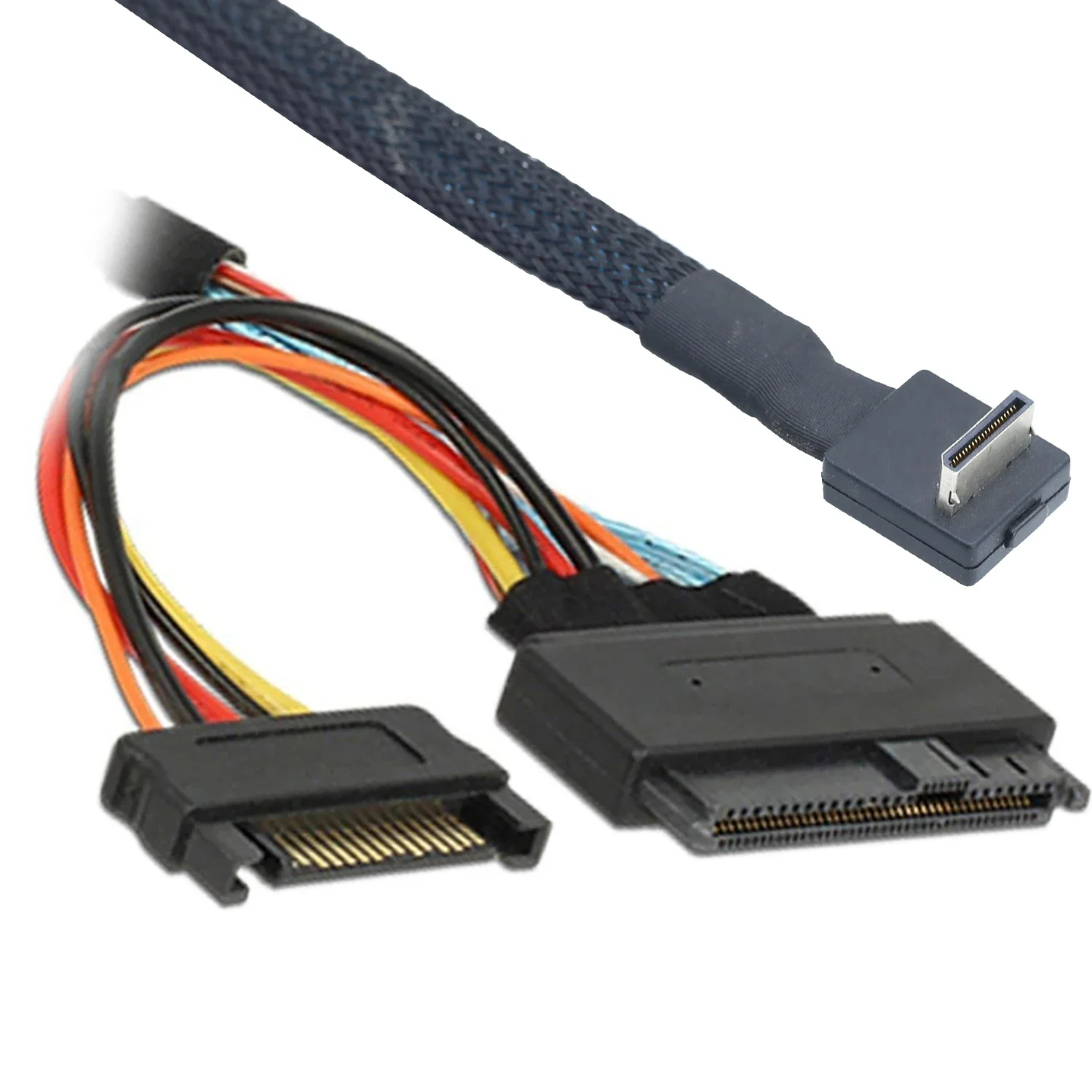

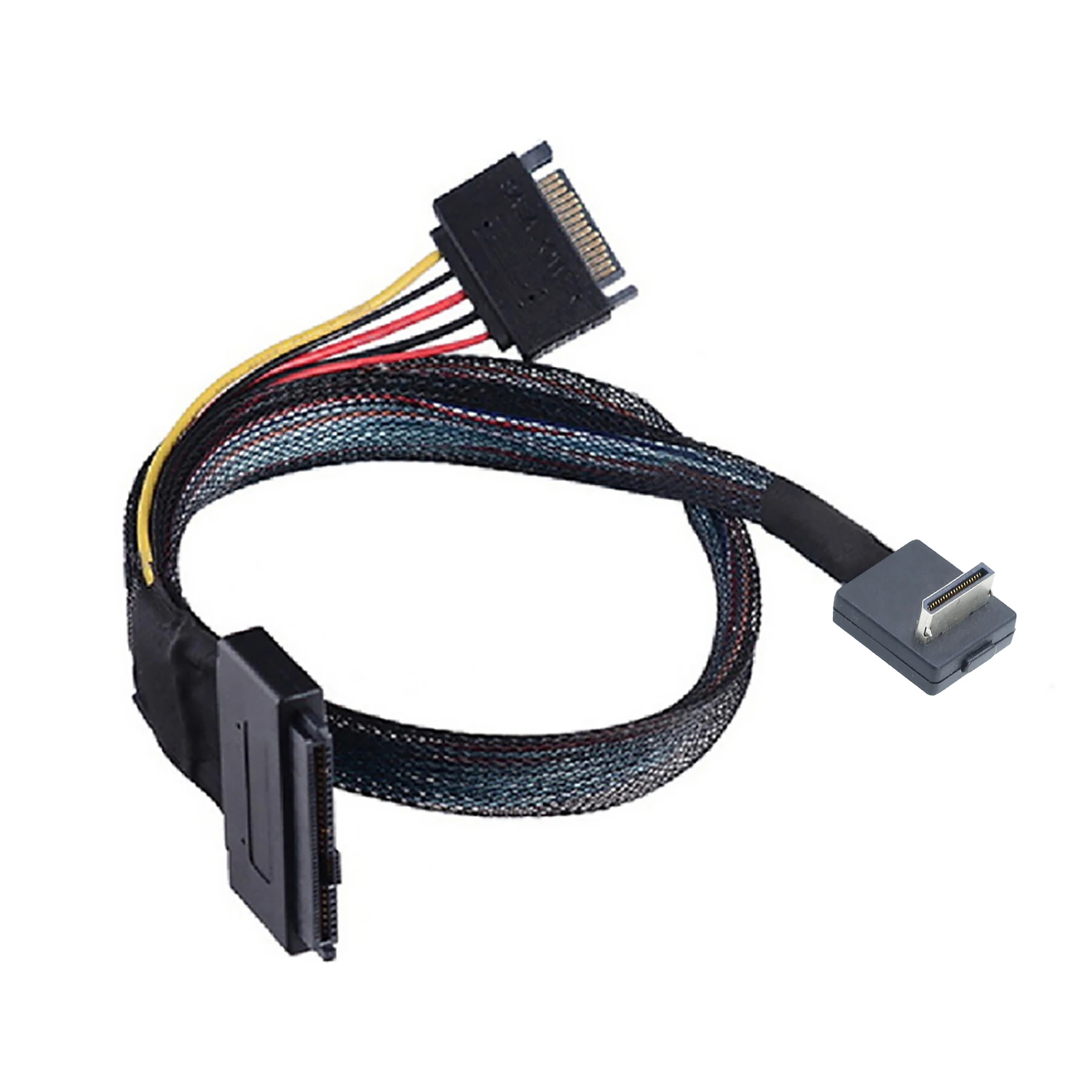

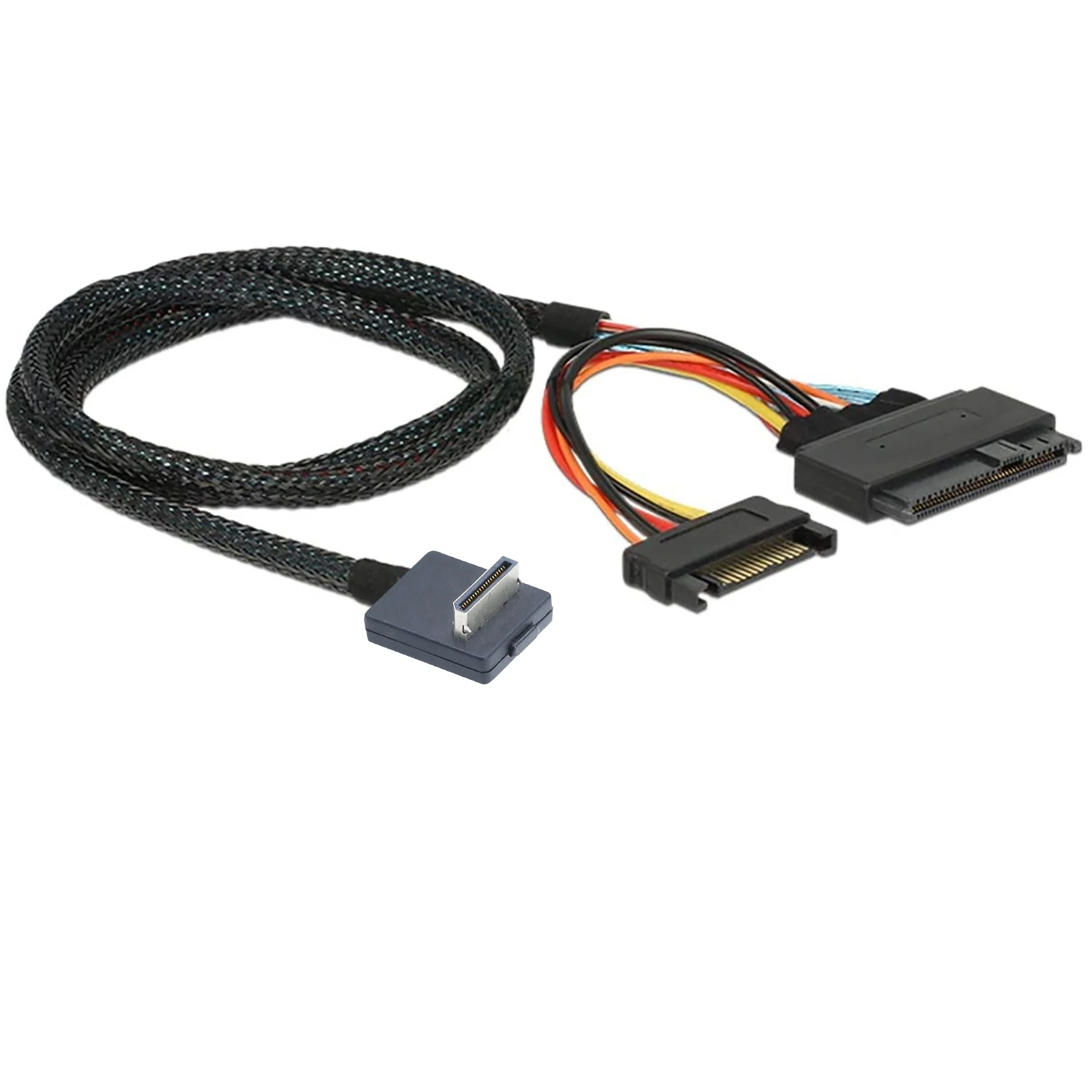

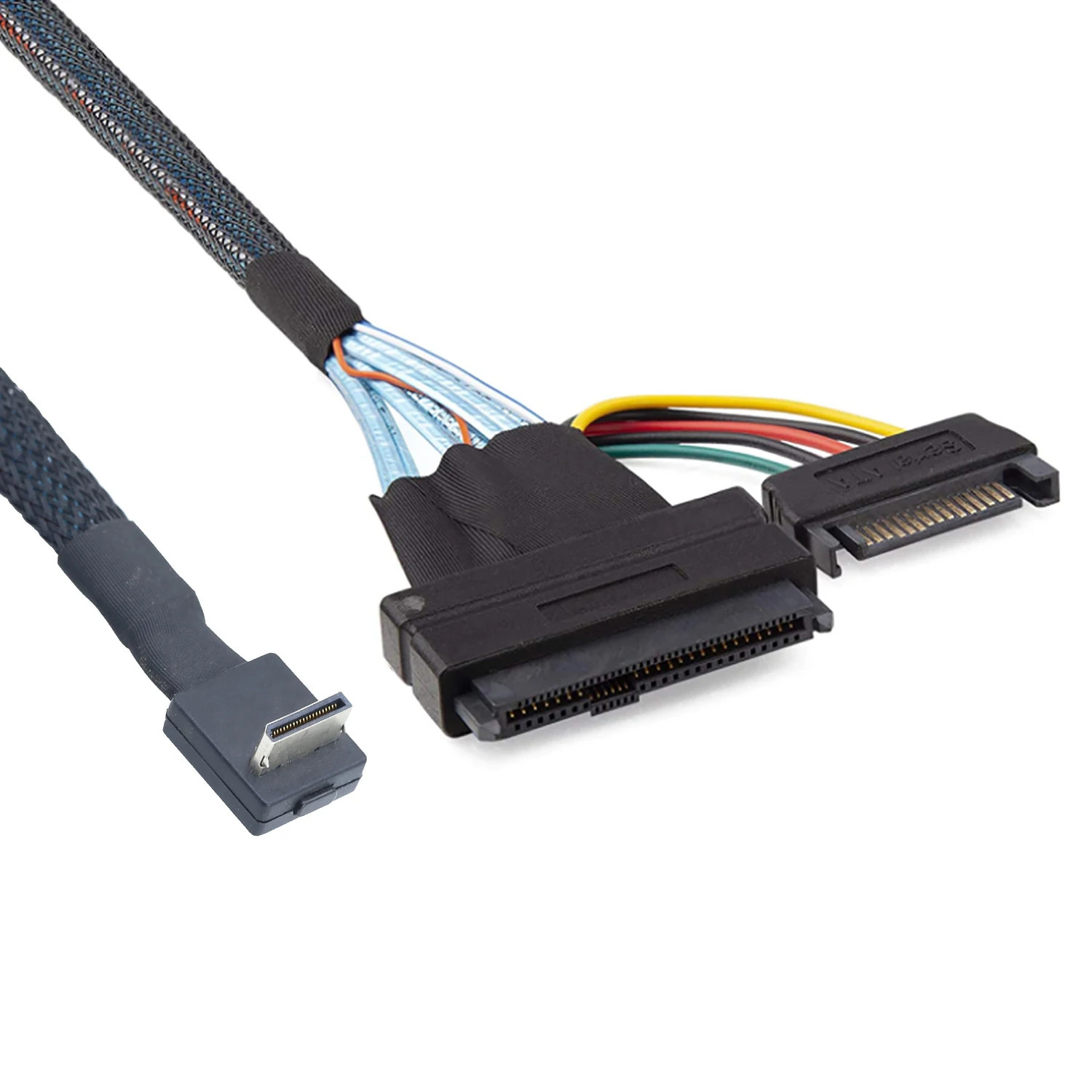

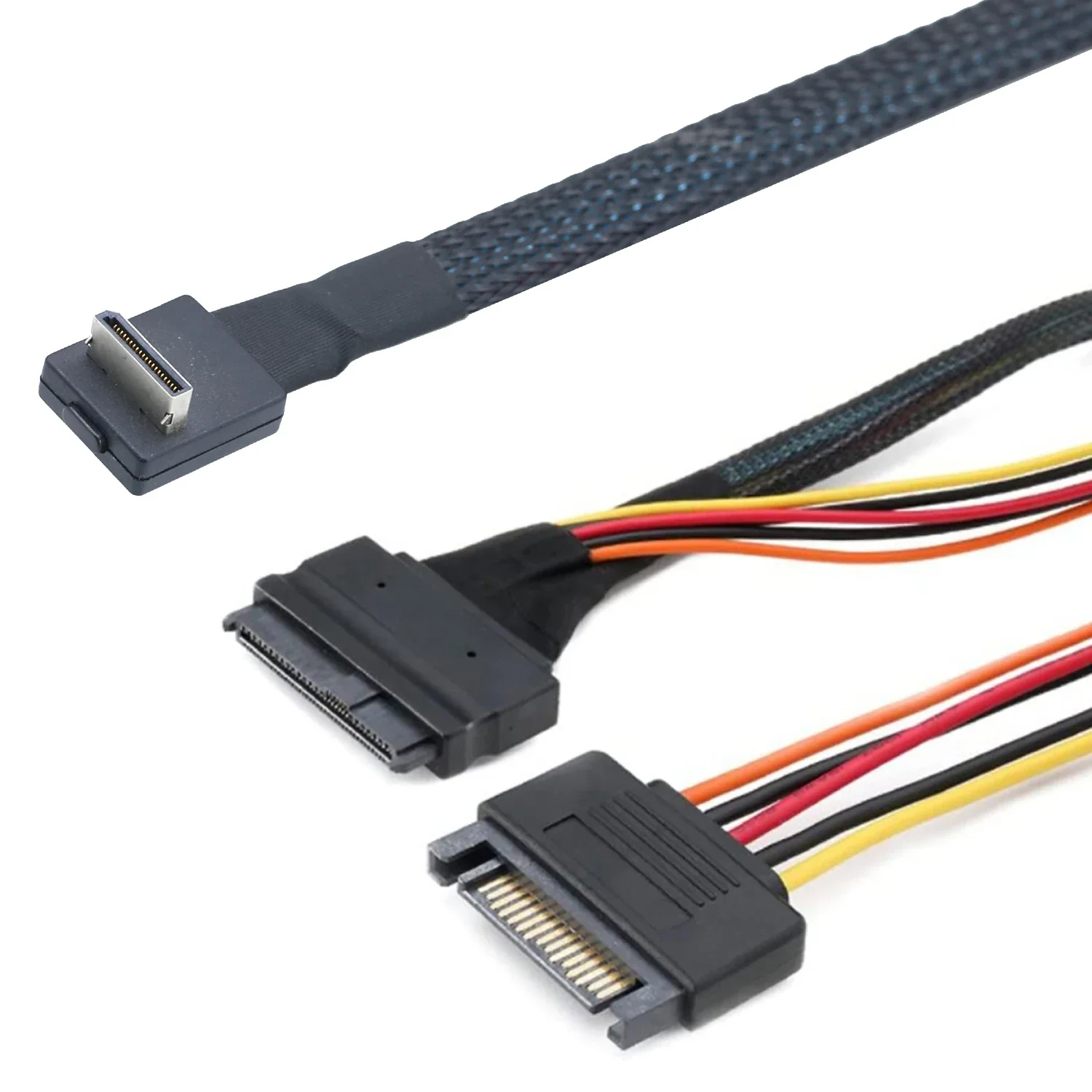

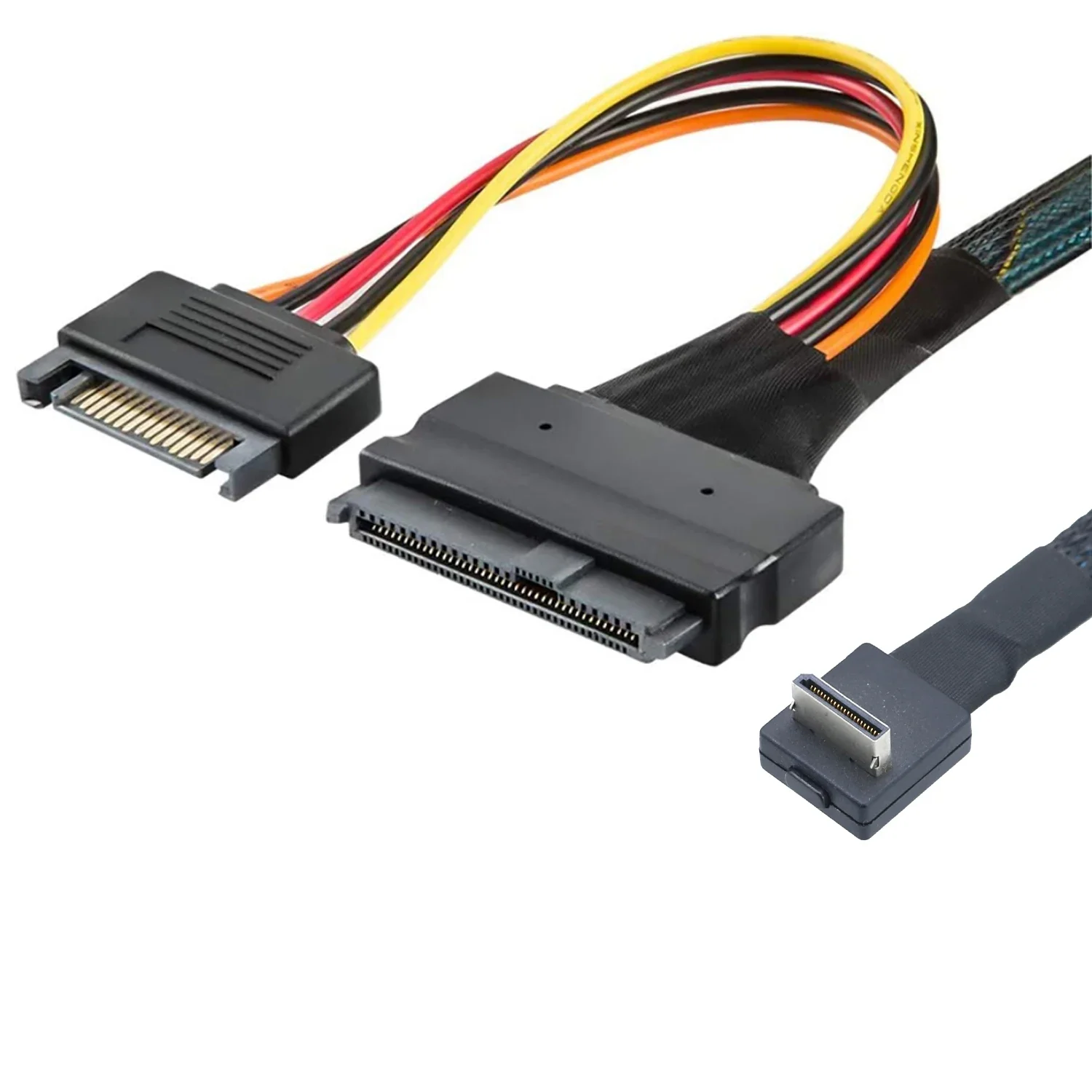

This adapter cable is used to convert the Oculink SFF-8611 4i interface (PCIe protocol) on the host side to a U.2 (SFF-8639) interface, and comes with a 15-pin SATA power connector that is compatible with NVMe/SAS/SATA devices. Adopts 90-degree right-angle design for space-saving and compact device installation.

Interface Specifications
Inputs:

Oculink SFF-86111 4i (4-channel PCIe 3.0/4.0, supports x4 links).

Outputs:

U.2 (SFF-8639): Supports PCIe NVMe/SAS protocol (e.g. enterprise SSD).

15-pin SATA power connector: Provides +3.3V/+5V/+12V power supply (power supply connection required).
