Descripción
Features
•Compatible with PCIe 2.0 specifications
•Compliant with Serial ATA Specification 3.1
•Built-in Two SFF8087 interfaces
•Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
•Supports Hot plug and Hot Swap.
•Supports Native Command Queue (NCQ)
•Supports AHCI 1.0 programming interface registers for the SATA controller
•Supports aggressive power management
•Supports error reporting ,recovery and correction
•Supports Message Signaled Interrupt (MSI)
•Supports Programmable transmitter signal levels
•Supports Port Multiplier FIS based switching or command based switching.
•Supports Partial and Slumber Power Management states
•Supports SATA Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
•Supports Staggered Spin-up
Note: Not Supported RAID on PM
System Requirement
•Computer system with one PCI-Express slot available
•Supports Windows® XP/Vista/7/8/8.1/10 Server 2003/2008 R2,2016,Linux 2.6.x and above
Package Content

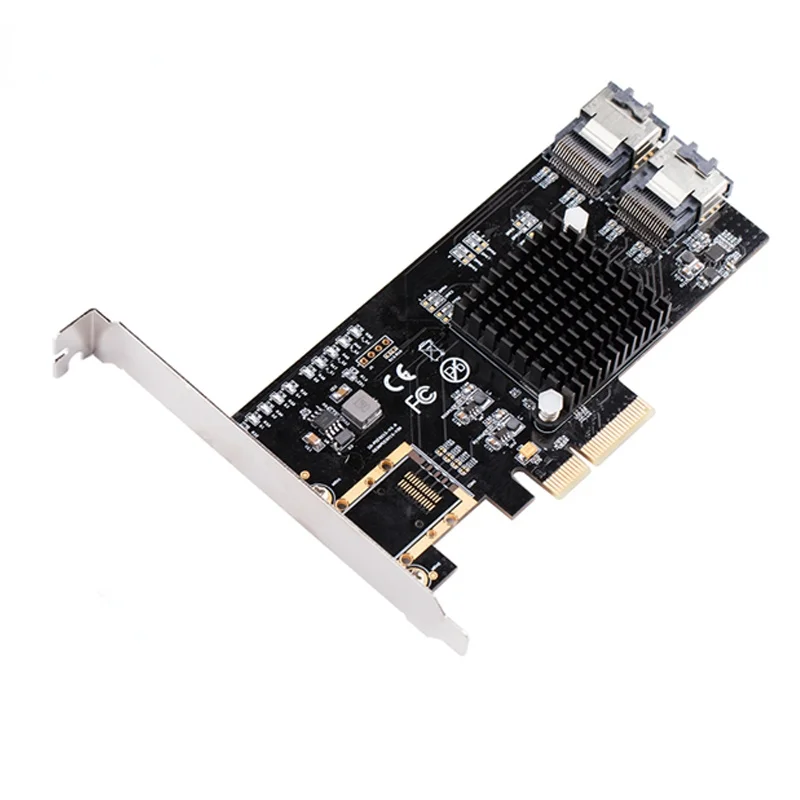

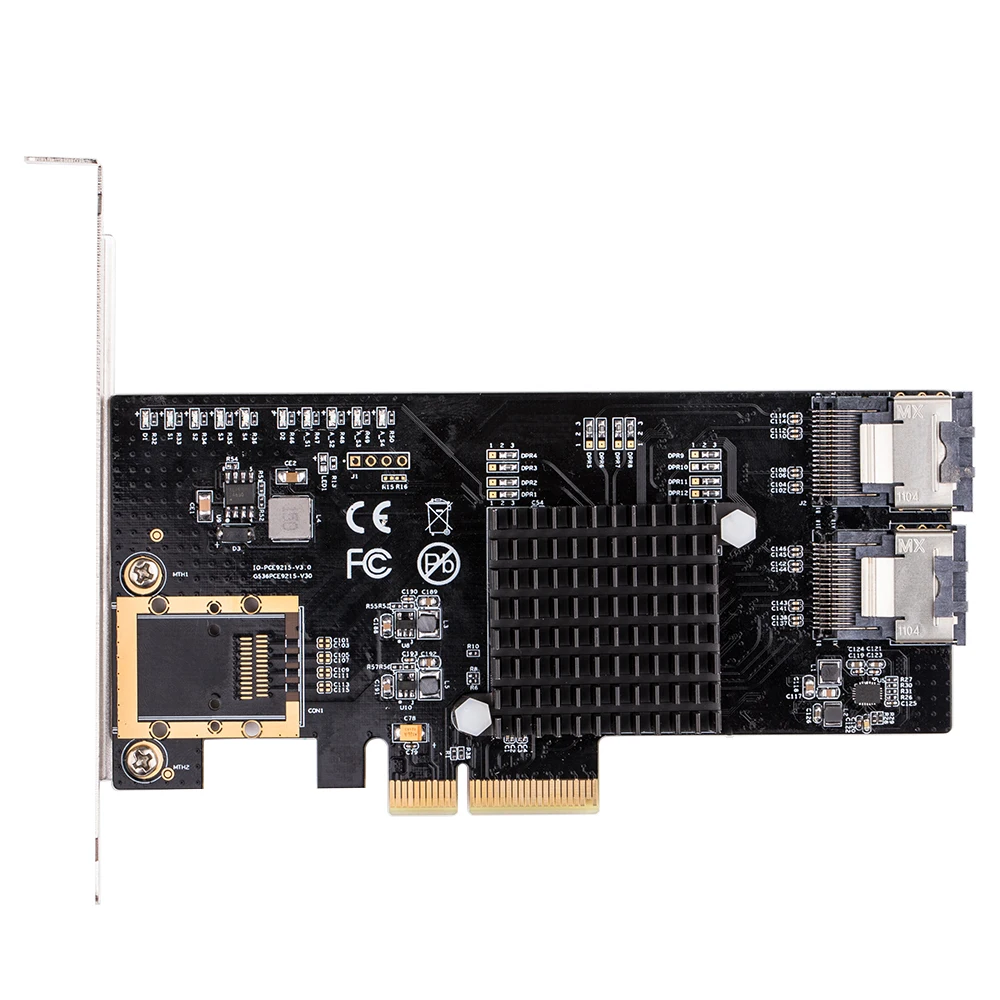

1 x PCI-Express to 8 Ports SATA with SFF8087 Card
1 x User Manual
1 x Software Driver CD
