Descripción

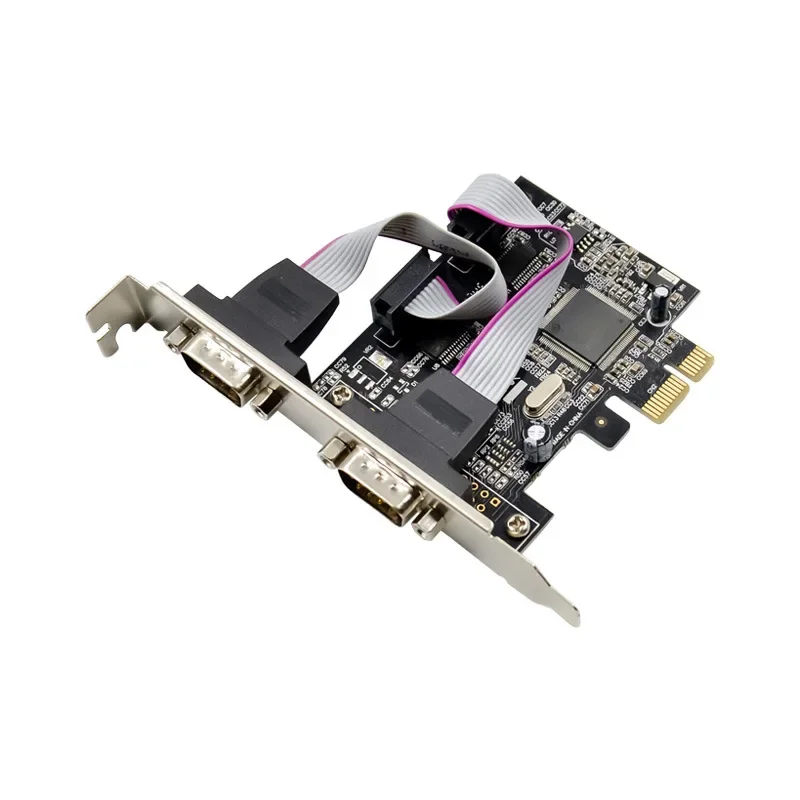

MCS9901CV-CC is a single-channel multi-function PCI Express I/O controller card. It supports two serial ports and one parallel port
And six GPIOs. MCS9901CV-CC also provides peripheral expansion options through a proprietary Cascade interface. Universal cascade interface allows
Interconnect with MCS9900, MCS9950 and other similar chips to expand peripheral ports.
• The serial port is compatible with RS232, RS422 and RS485 standards, and supports a throughput of 50bps to 16Mbps.
• The parallel port is compatible with IEEE 1284 and supports nibble, byte, SPP, ECP and EPP modes.
• All GPIO pins are programmable and can be used as input or output.
• Provide I²C interface, configure MCS9901CV-CC device options through external EEPROM.
• PCI Express
-Compliant with PCI Express basic specification, revision 1.1
-Single-channel (X1) PCI Express endpoint controller with integrated PHY
-Support automatic completion of configuration requests
-Support built-in flow control
-Support message TLP (error) generation
-Support integrated timeout processing for non-publishing requests
-Support traditional and MSI interrupts
-Support PCIe power management
• Serial port
-Two 16C450/550/extended 550/650/enhanced mode compatible UART
-Support RS232, RS422 and RS485 modes
-Bidirectional speed per port from 50 bps to 16 Mbps
-Full serial modem control
-Support hardware and software flow control
-Support 5, 6, 7, 8-bit serial format
-Support even number, odd number, none, space and mark parity
-Support custom baud rate by programming internal PLL or external clock
-Supports on-chip 256-byte deep FIFO, transmission and reception paths for each serial port
-Support remote wake-up and power management functions
-Serial port transceiver close support
-Support slow IrDA mode (up to 115200bps) on all serial ports
• System Requirements
Windows 98SE/ME/2000/XP/NT 4.0/Server 2003/Vista/
Win 7/Win8/Win 10, DOS, Linux
There is at least one PCI Express X1 slot available
Compatible equipment
Serial connection equipment, serial network/monitoring equipment, data acquisition system, POS terminal and industrial PC,
Application based on parallel/printer port, additional I/O card-serial/parallel, embedded system-for I/O expansion
Package
1 x MCS9901 PCI-E I/O card (standard long iron sheet)
1 x User Manual
1 x CD-driver
1 x Neutral kraft paper box
