Descripción
LOTO products help you solve the problems bellow:
1: As a junior hardware engineer, which oscilloscope to choose to get started?
2: Have to share an oscilloscope with your colleagues, any options do I have?
3: Need to carry a heavy oscilloscope to debug on site, what should I do?
4: Developing electronic projects at home, no oscilloscope is inconvenient, what should I do?
5: Traditional oscilloscopes are expensive, and many functions are not used. Need a powerful and inexpensive oscilloscope?
6: Traditional oscilloscopes are too clumsy to be customized and difficult to integrate into your project. How to solve it?

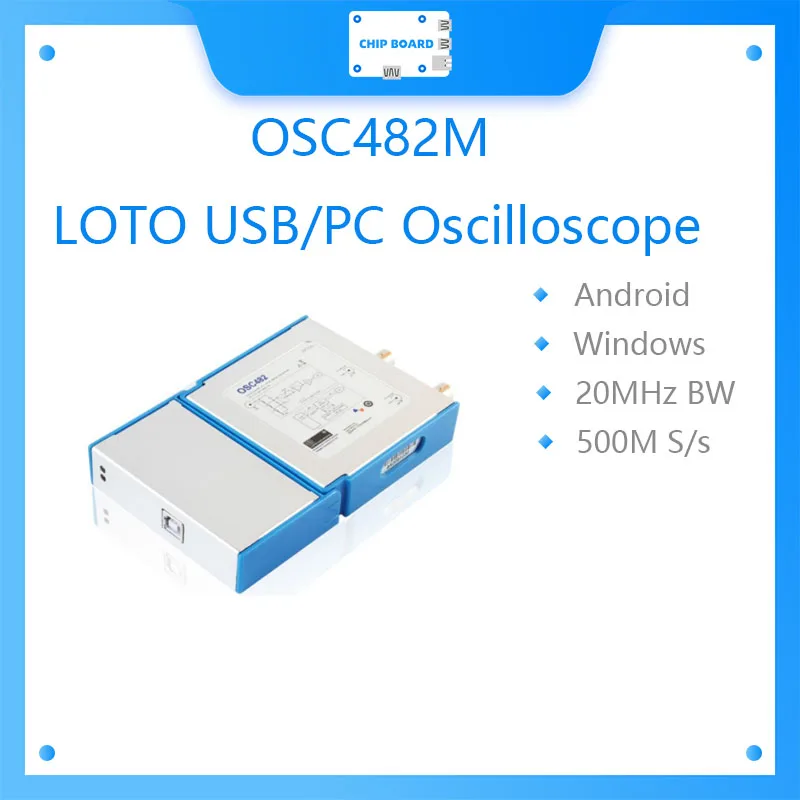

OSC482M offers you an oscilloscope alternative, cheap and easy-to use

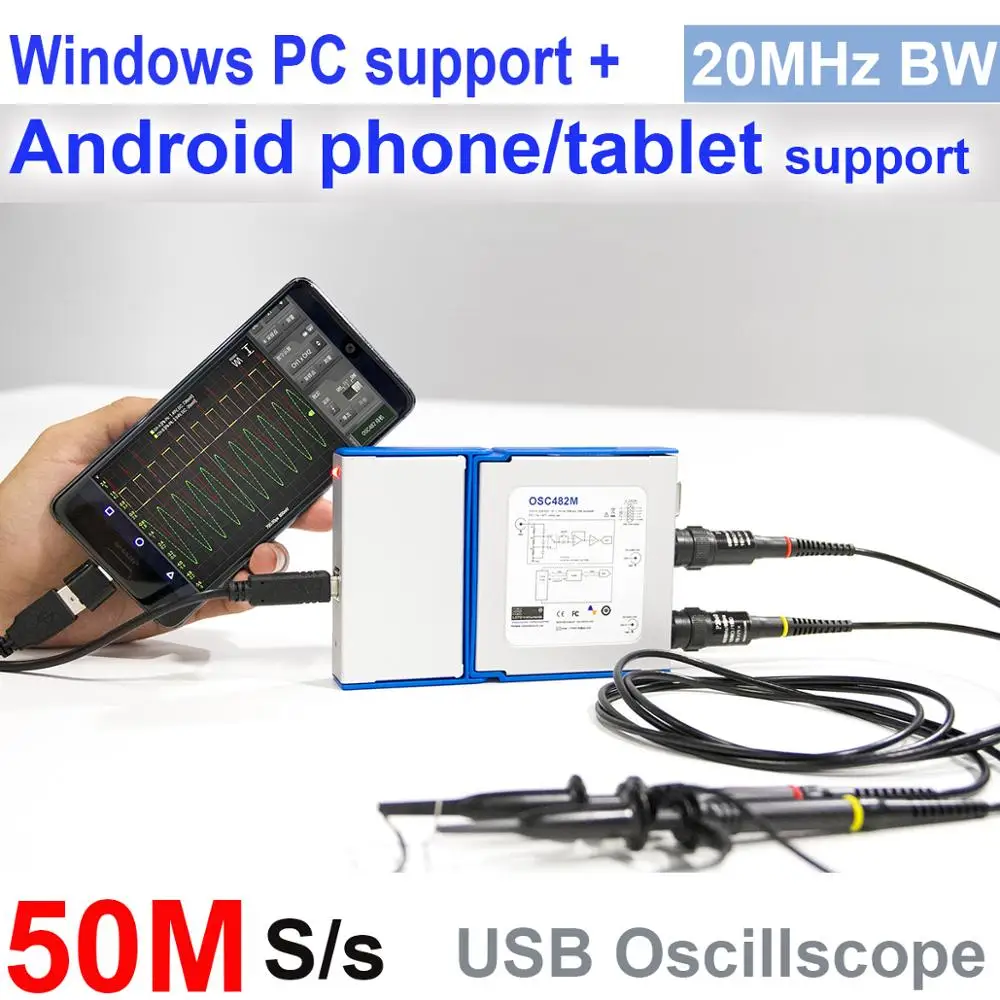

With OSC482M PC-based/smartphone-based oscilloscope, you can use it on a windows computer or an Android smartphone/tablet. Whenever you need an oscilloscope, you can just take it from pocket and plug to coumputer/smarphone by an USB cable, then you have a complete oscilloscope measuring system.

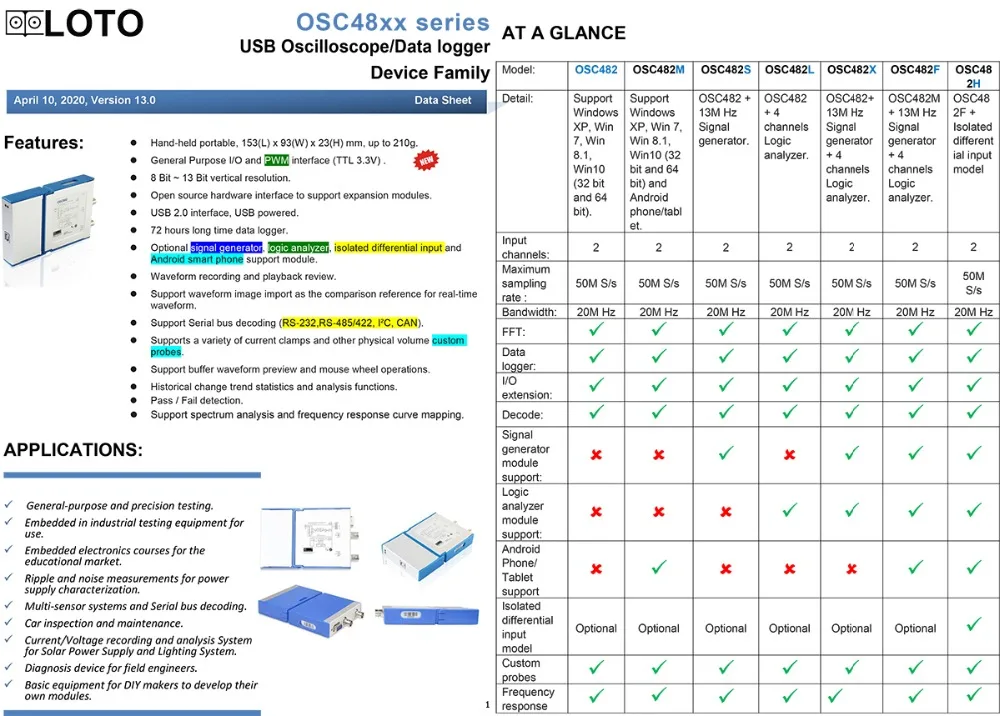

Besides the OSC482M, we have OSC482, which supports computers only, users could select at a lower price with same technical performance. If you need other configuration, we have more products for you to choose.

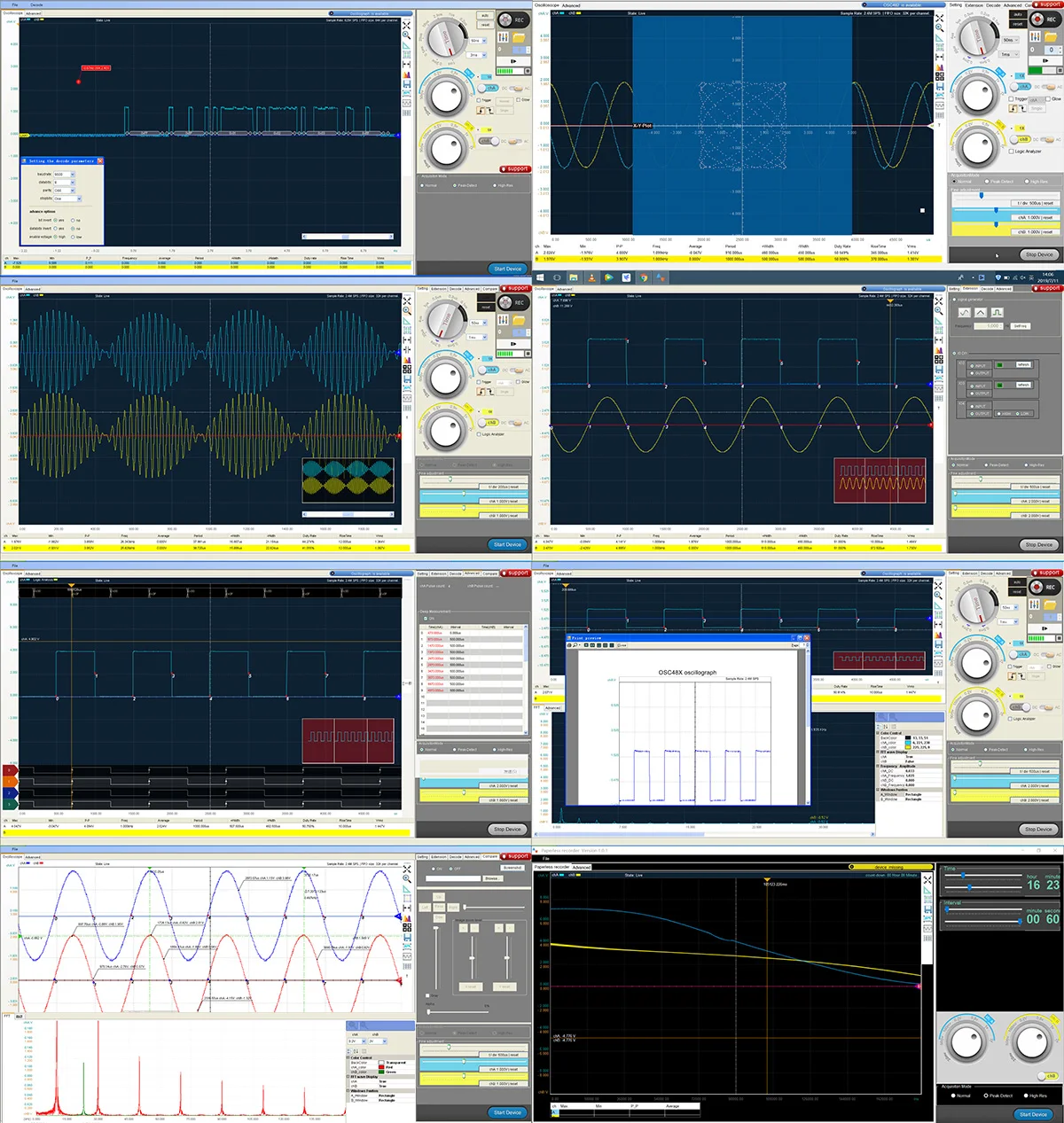

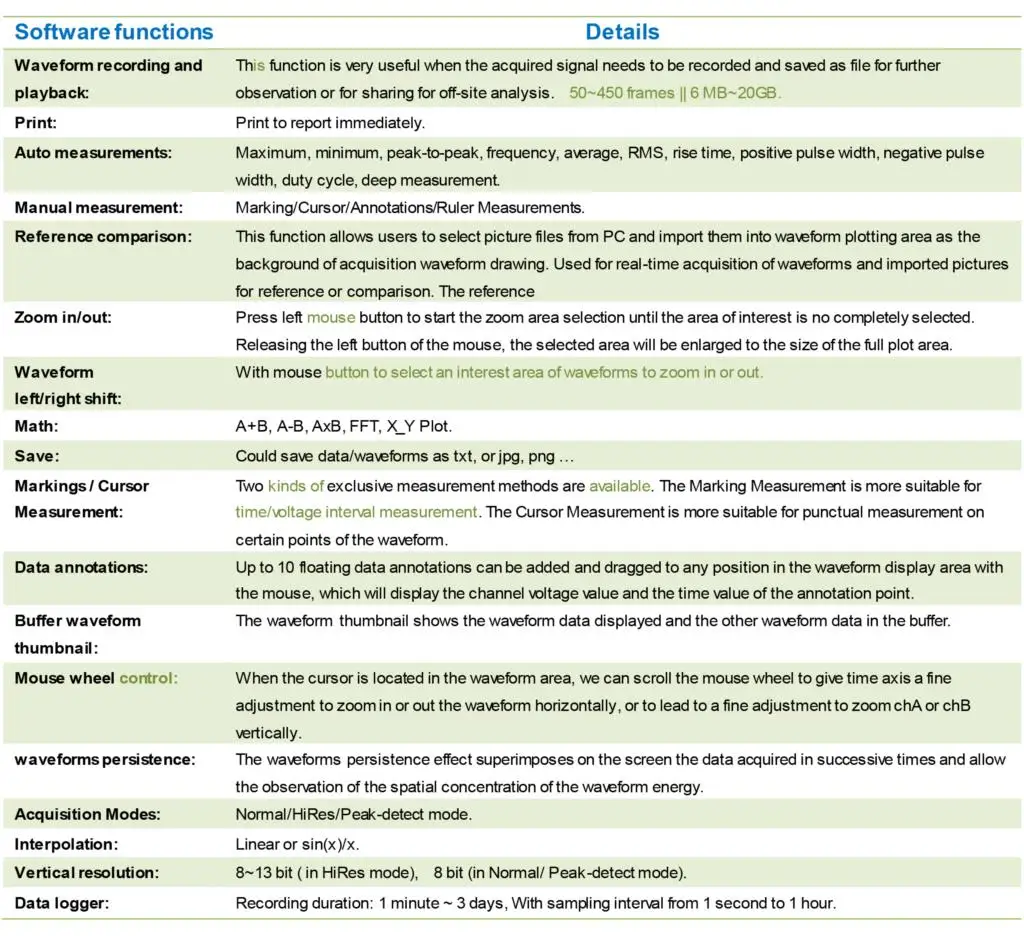

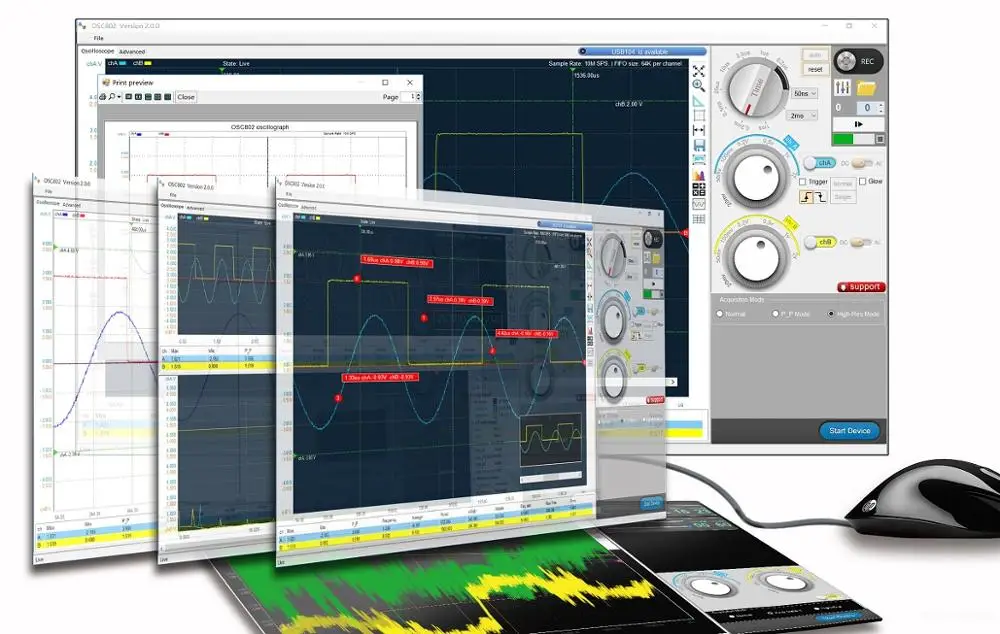

Let's have a look at the Software Application on Windows

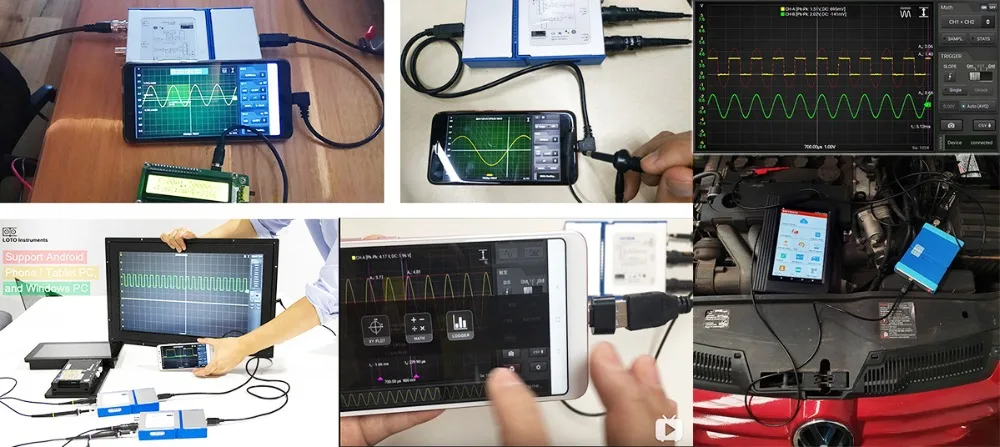

Application scenarios and applicable population

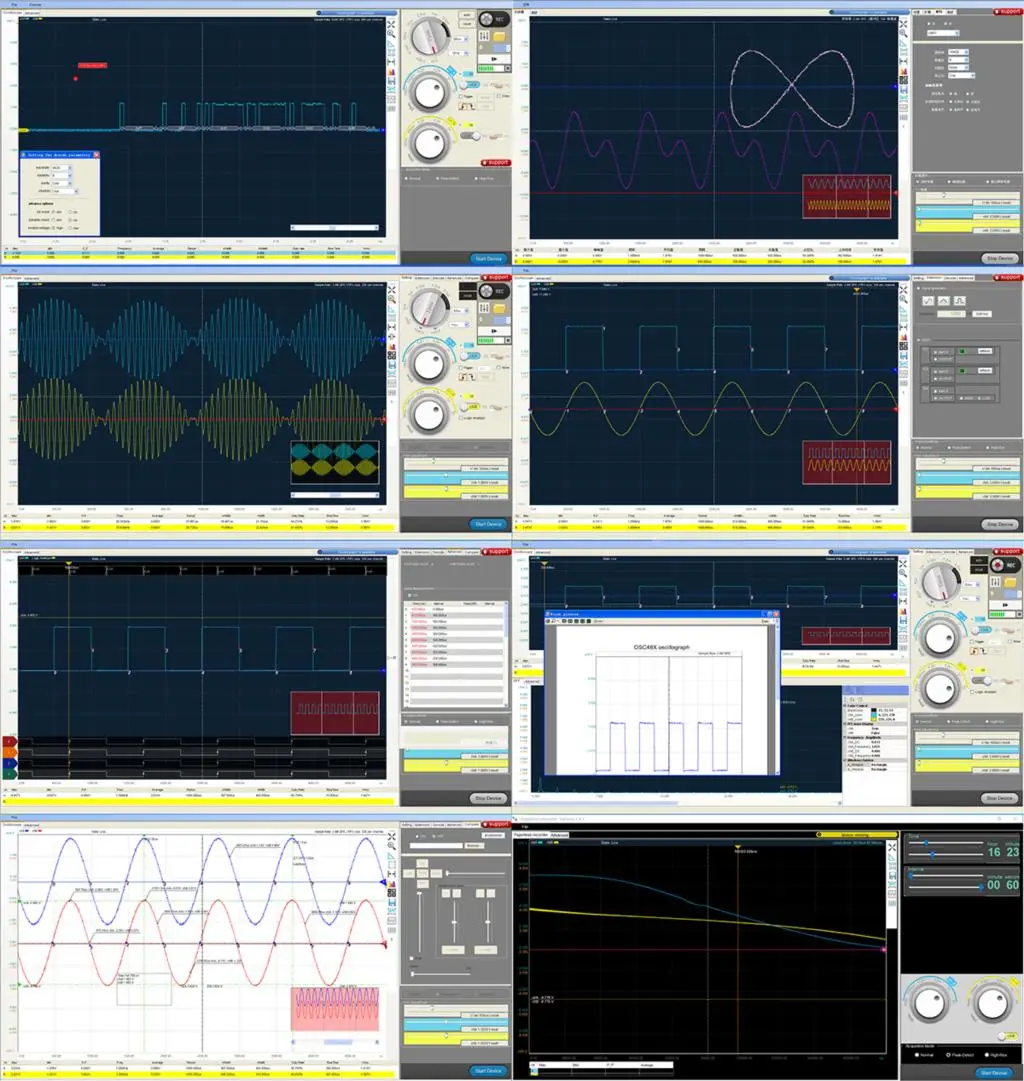

In the above picture, we will see serial port decoding, X_Y drawing, carrier amplification, multi-point automatic measurement, analog input and logic analysis, printing and FFT of the Windows Software Application, and the working scene of the data logger. This product is recommended for hardware circuit development and measurement, teaching equipment, on-site commissioning, encoder inspection, vehicle maintenance, automated inspection equipment, power ripple testing, solar system inspection.
It is developed for:
hardware engineer
Auto electronics
Electronic Geek
Field engineer
Colleage student

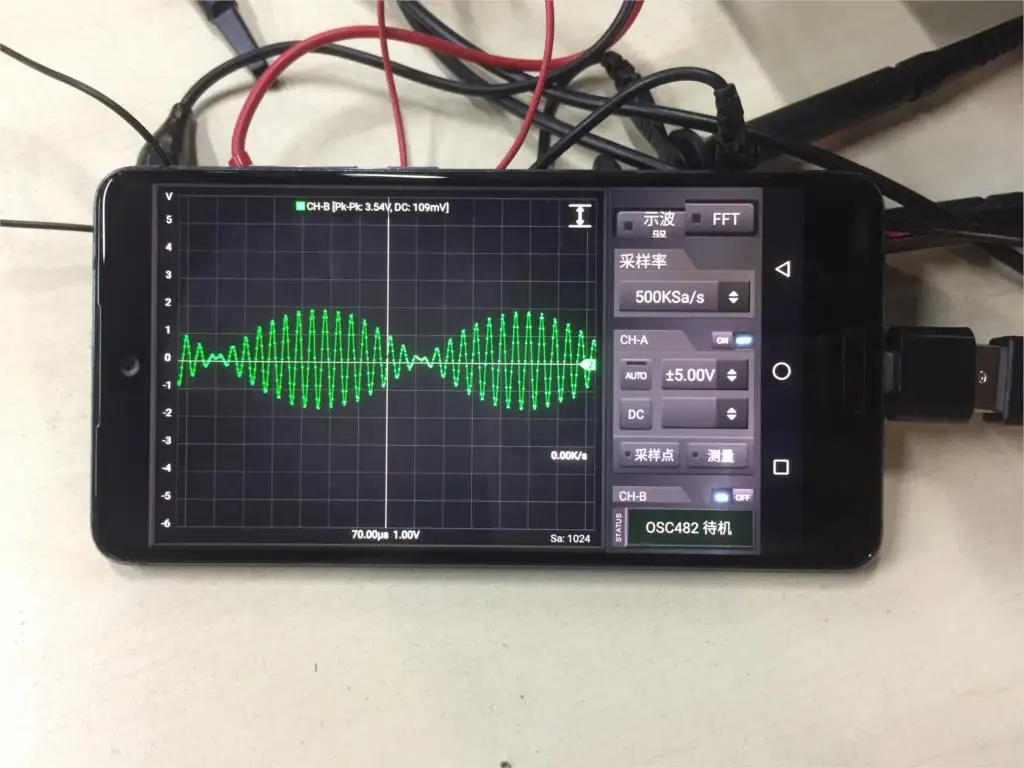

About Smart Phone/Tablet Support
OSC482M can’t support all kinds of Android devices. Customers may need to check their Android phone/Tablet with these requirements, or contact us to check the support list. Usually if an android phone supports OTG, it could support OSC482M.

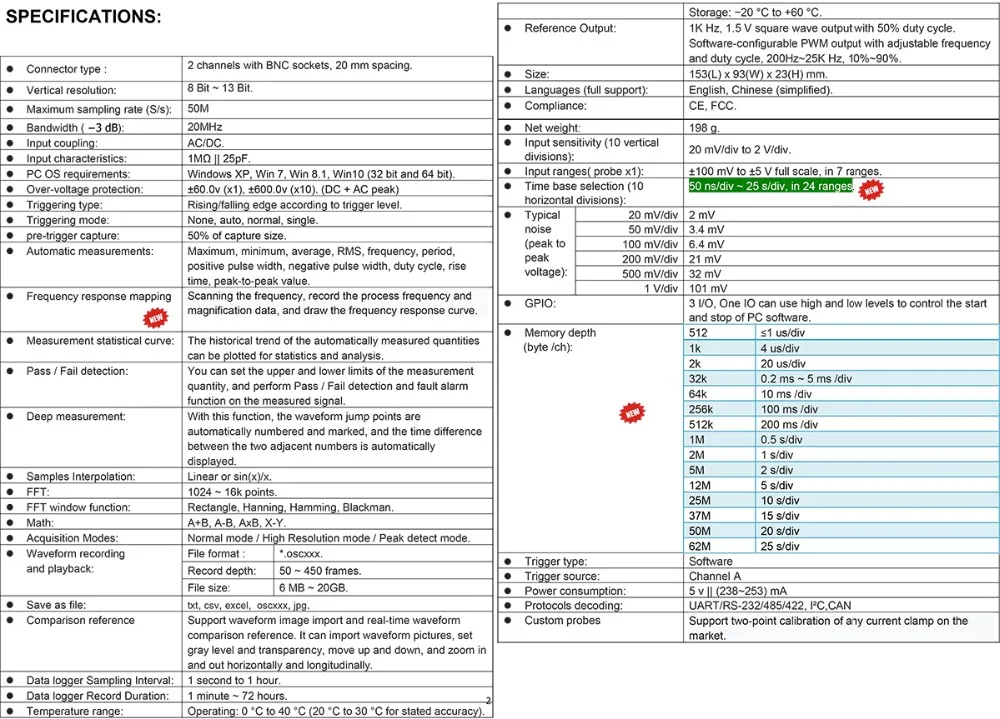

Hardware features and specificaitons
8~13 bit Vertical Resolution
Module Extensions

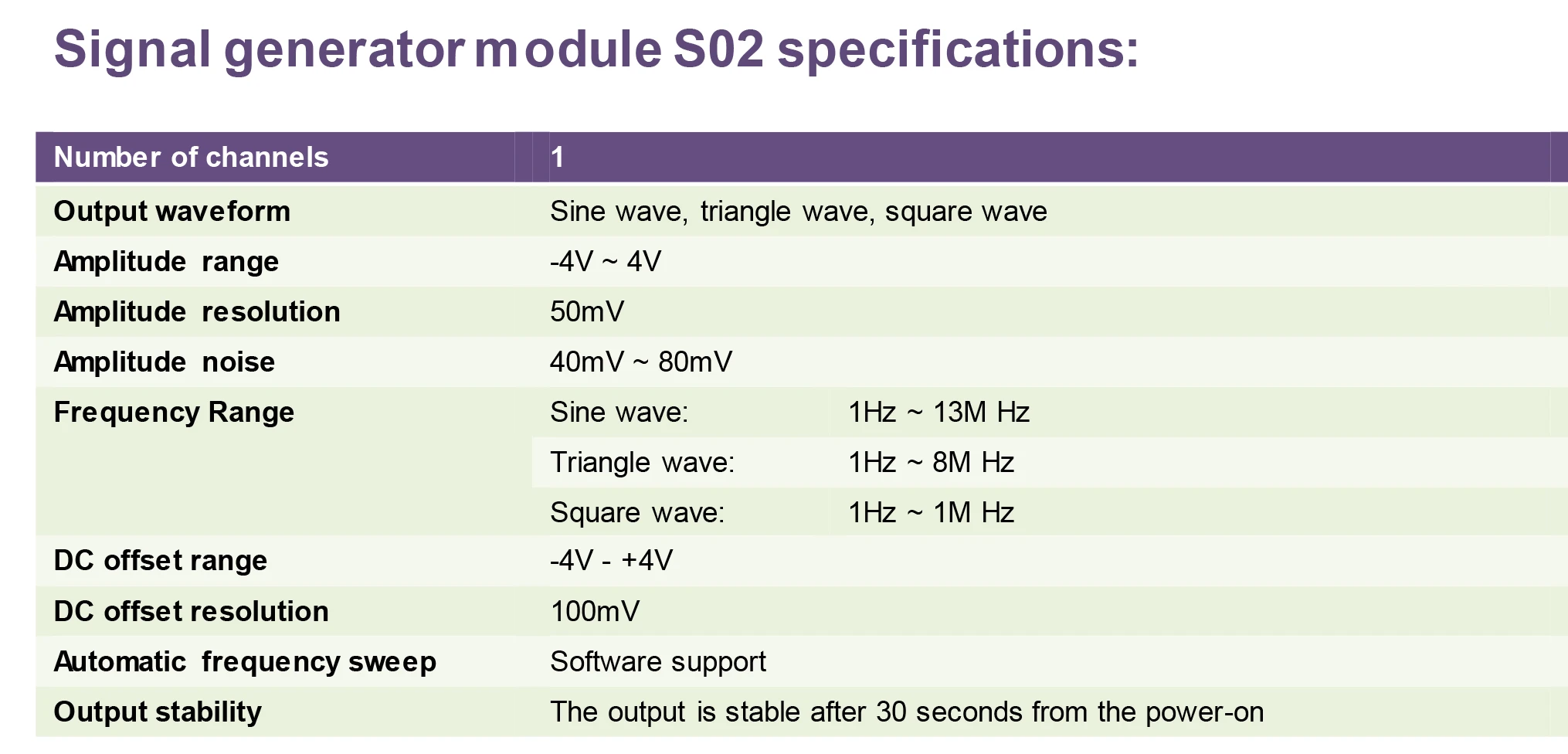

let's take a look at the product hardware interface for extensions: The open DE-15 hardware interface can provide digital power as well as analog power, GPIO ports and analog input channels as shown below. This interface an be used as a standard access for signal generator modules or logic analyzer modules. Although these two modules can be plug and play in frequent use, it is recommended to connect the module after the device is powered off.

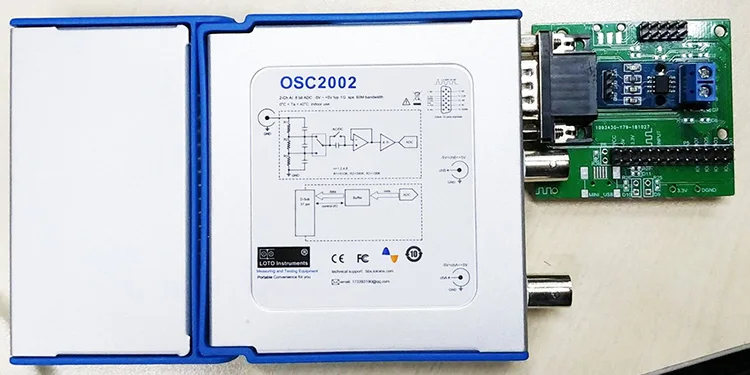

It can also be DIY a function module as shown in the figure below, and also access the device through the DE-15 interface.
Package List
Go ahead and let's take a look at the Package List:

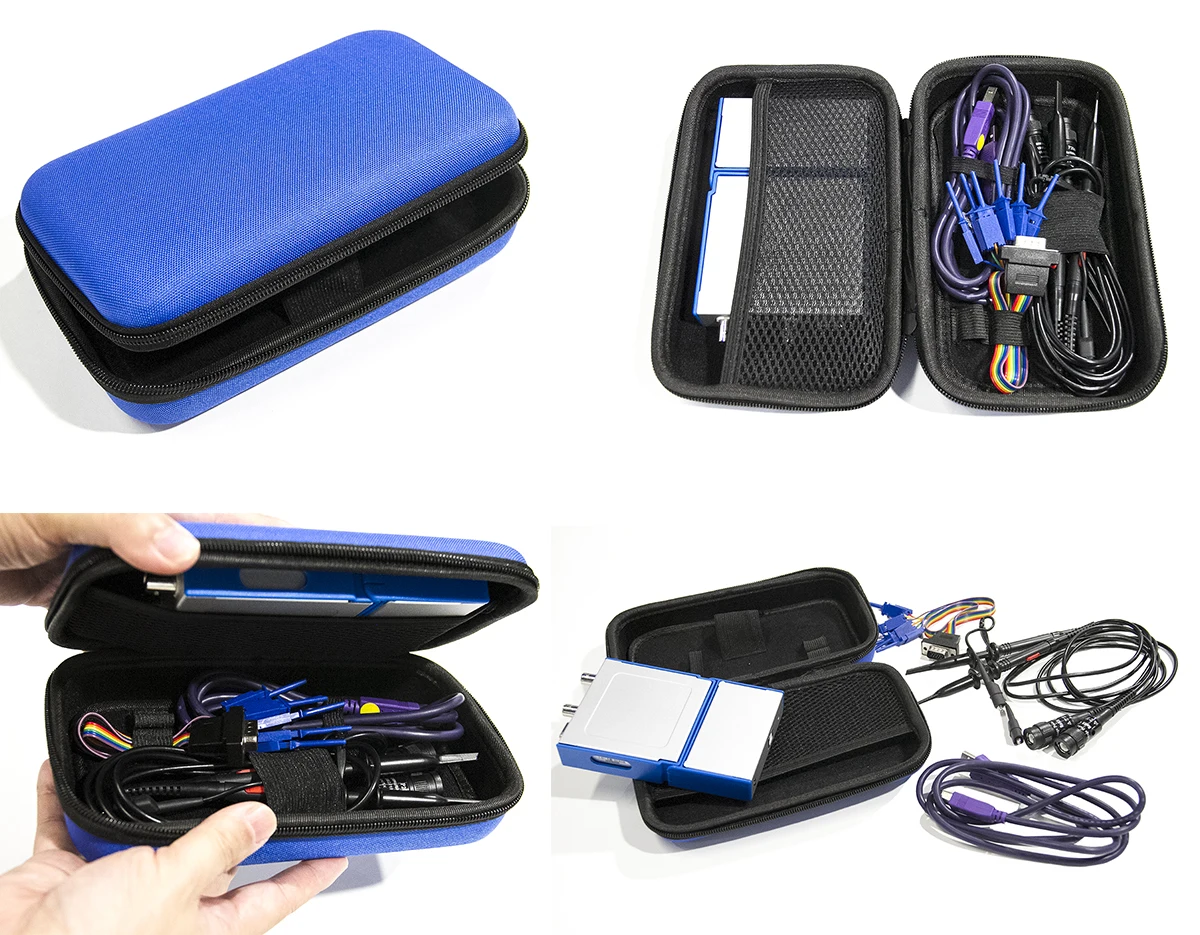

The picture above shows the uniform packaging appearance and the internal accessories, which vary according to the model chosen by the customer. Of course, you can also choose a carrying case to package and store the oscilloscope and its modules and accessories, as shown below, this carrying case need to be purchased separately.You can find its link in this shop.
The USB oscilloscope and the required accessories( including extension modules and standard accessories) may be different according to your different purchase:

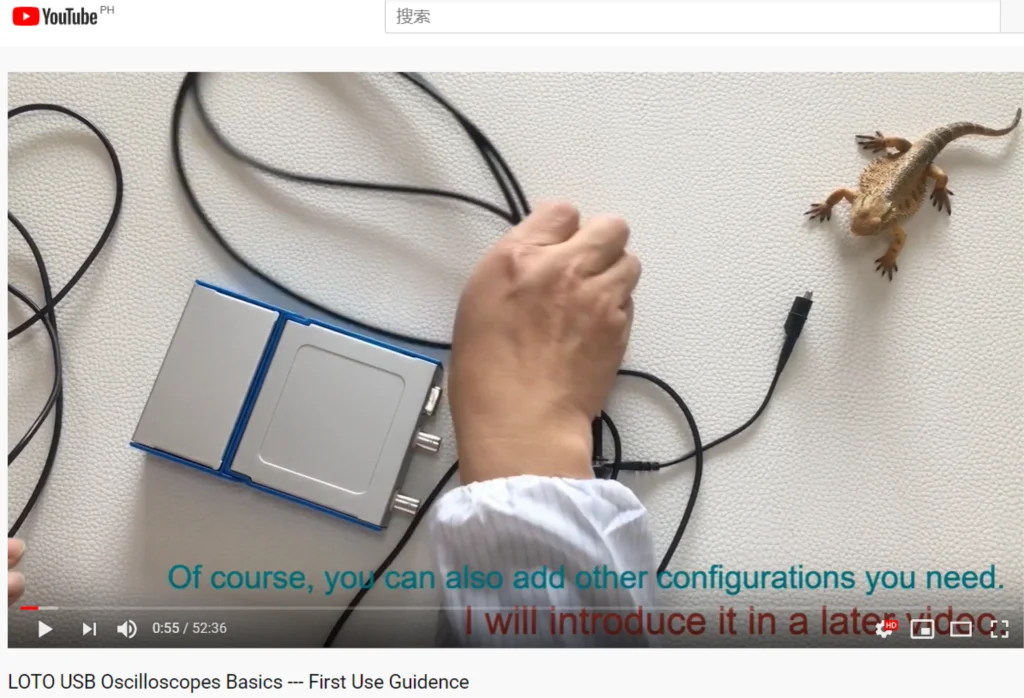

Official video instruction, answers all your questions.
FAQ
Q: what is the measuring rangeA: The scope could measure 5V(with probe on X1) and 50V(with probe on X10). If you need to measure higher voltage up to 500V, please purchase X100 probe separately.Q: how to contact technical support?A: Please send email to [email protected] Tech Dept will reply ASAP.Q: How long of warranty?A: 3-year warranty for all products.Software / Driver / Manual Download
Please down load for free, we will keep updating software.
bbs.lotoins.com/support.html
Technical Support
Please send email to [email protected] for any problem, we will reply as soon as possible.
Please send online note or send email to [email protected]. We promise to reply in 24 hours.
