NVME-carcasa de disco duro móvil, M.2 carcasa con adaptador USB, tipo A PCI-E M.2 NVME
10,15 €
11,8 €
Enlace proporcionado por:
Color:
NVME Case Enclosure M.2 SSD Case M.2 USB Adapter SSD M2 SSD BOX Enclosure USB 3.1 Type-A to PCI-E M.2 NVME Mobile Hard Disk Case
About Description:
Product model: NVMe HDD Enclosure

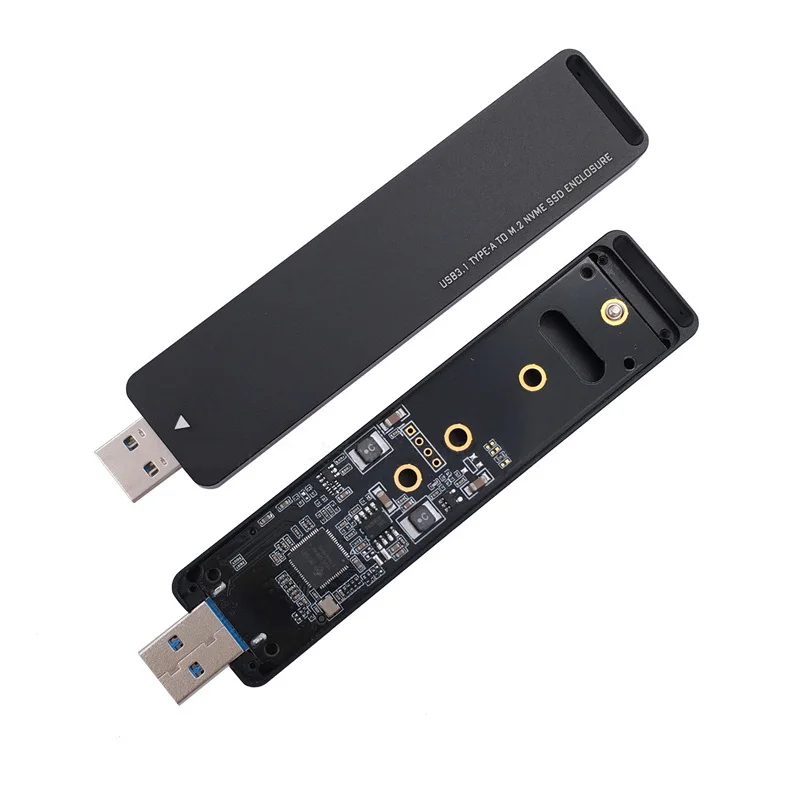

Main Chipset: Jmicron JMS583
Protocol: NVMe
Connector: USB3.1 TYPE-A
Case Color: Black
Interface: USB3.1 TO M.2 KEY-M

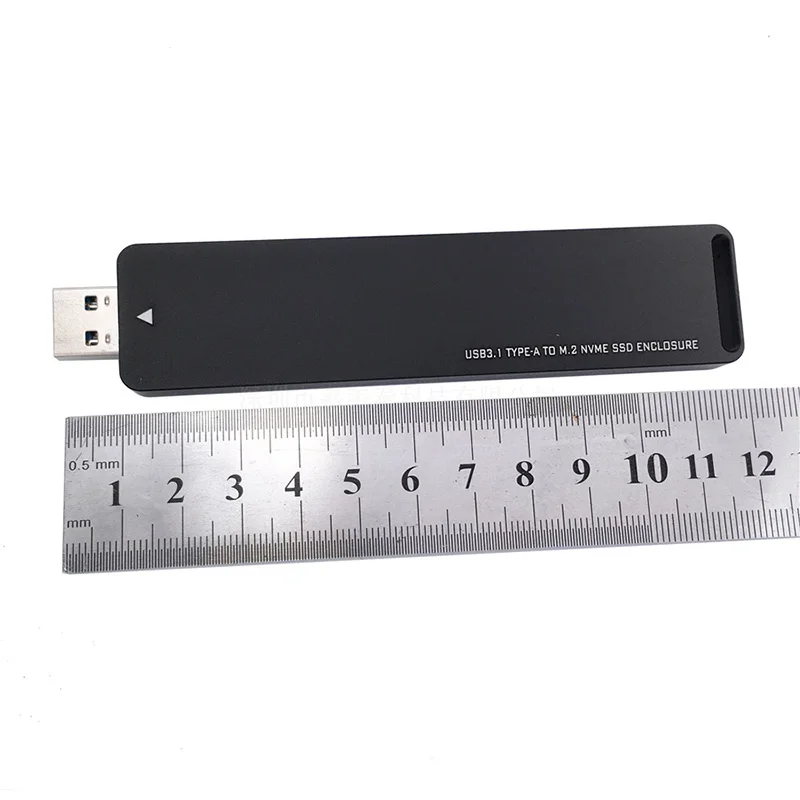

HDD Enclosure size: 108mm*25mm*8mm
Support: for 2230, 2242, 2260, 2280 m.2 ssd
Application : for 3D Game, 4K video ,HIFI Music, RAM Picture ect.
Support system: WinXP/Vista/Win7/Win8/WIN10 32-bit/64-bit MAC10.8 or higher
Features:
Supports TRIM to the SSD
Integrates with USB Type-Amultiplexer& configuration channel(CC)logic
Complies with PCI Express Base Specification Revision 3.1a
Complies with NVM Express 1.3
Complies with USB3.1 Gen 1 and Gen 2 Specification,USB Mass Storage Class,Bulk-only Transport Specification(Revision 1.0)
Complies with USB Attached SCSI Protocol(UASP)Specification(Revision 4)
Supports USB Super-Speed/High-Speed/Full-Speed Operation
Supports USB2.0/USB3.1 Gen 1/2 power saving mode
Supports external SPI NVRAM for Vendor VID/PID of USB2.0/USB3.1 Gen 1/2 device controller
Thirteen GPIOs for customization
Provides hardware controlled PWMs
Provides software utilities for downloading the upgraded firmware code under USB2.0/USB3.1 Gen1,2
Design for Windows 7,Windows 10 and MAC 10.10.5 or later version
Supports 25MHZ external crystal
Supports 3.3V I/O
Embedded 5V to 1.0V voltage regulator
Embedded 5V to 3.3V linear voltage regulator(LD0)
Note:
M-key connector, Only Supports for PCI-E based NVMe SSD, NOT suppport SATA protocol m.2 ssd.
If your Hard disk protocol is NVME M.2, it can use with this driver case.
You'll receive:

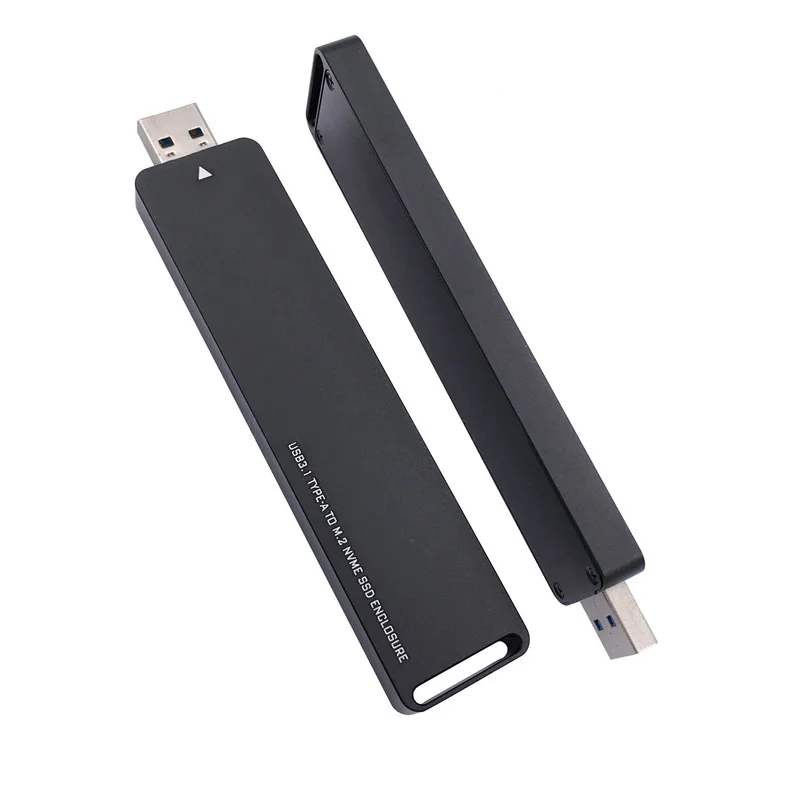

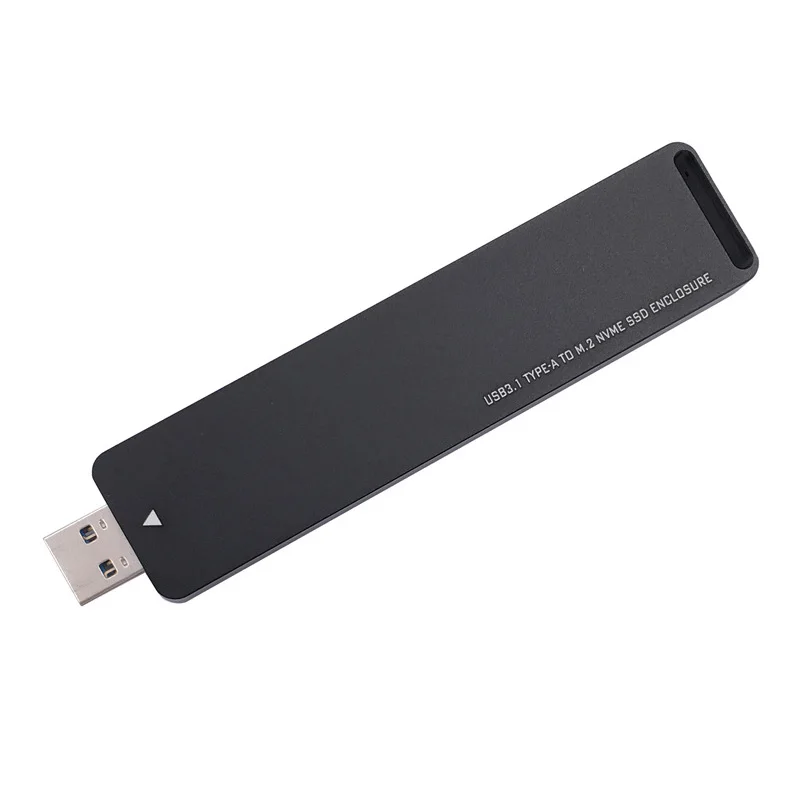

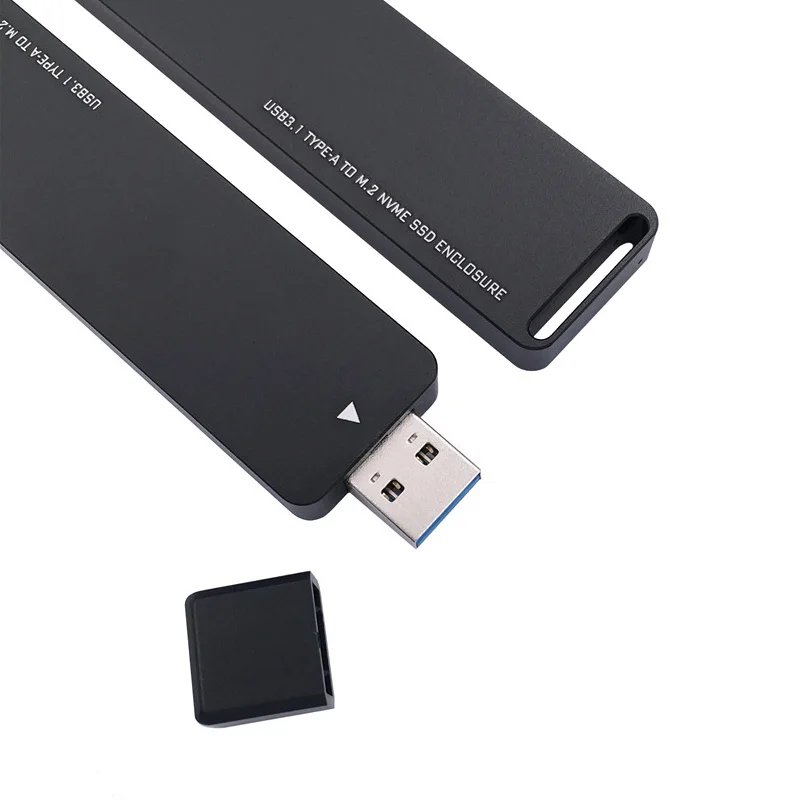

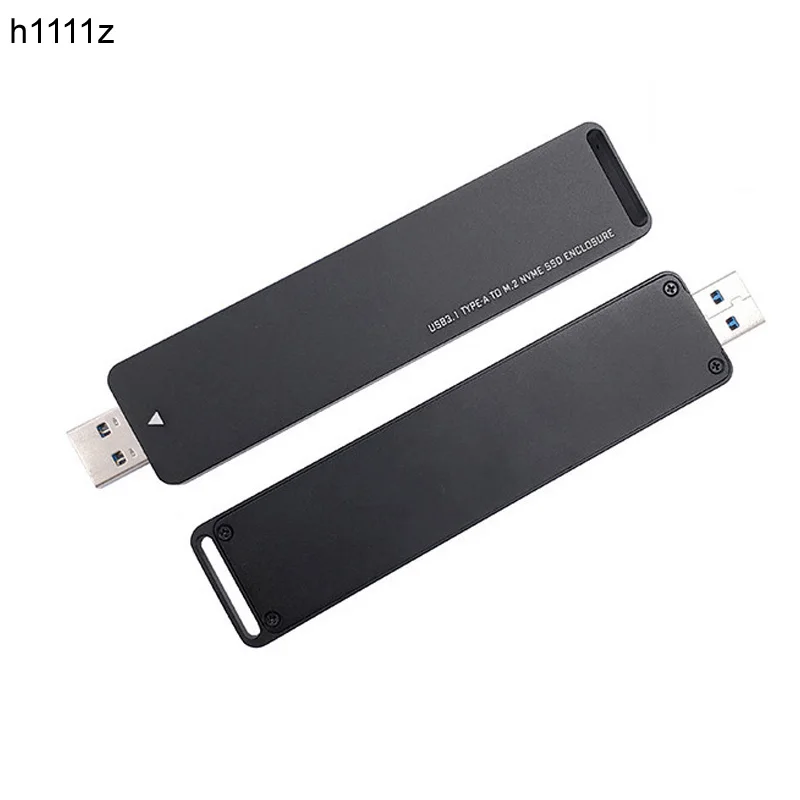

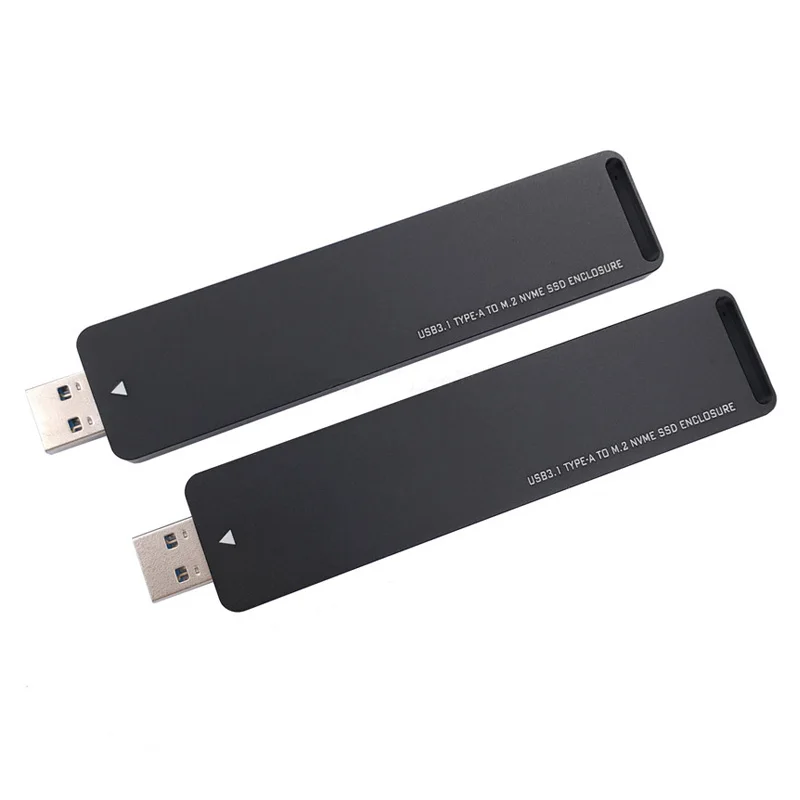

1 x USB3.1 Type A to NVME M.2 SSD Enclosure (With Case)
or

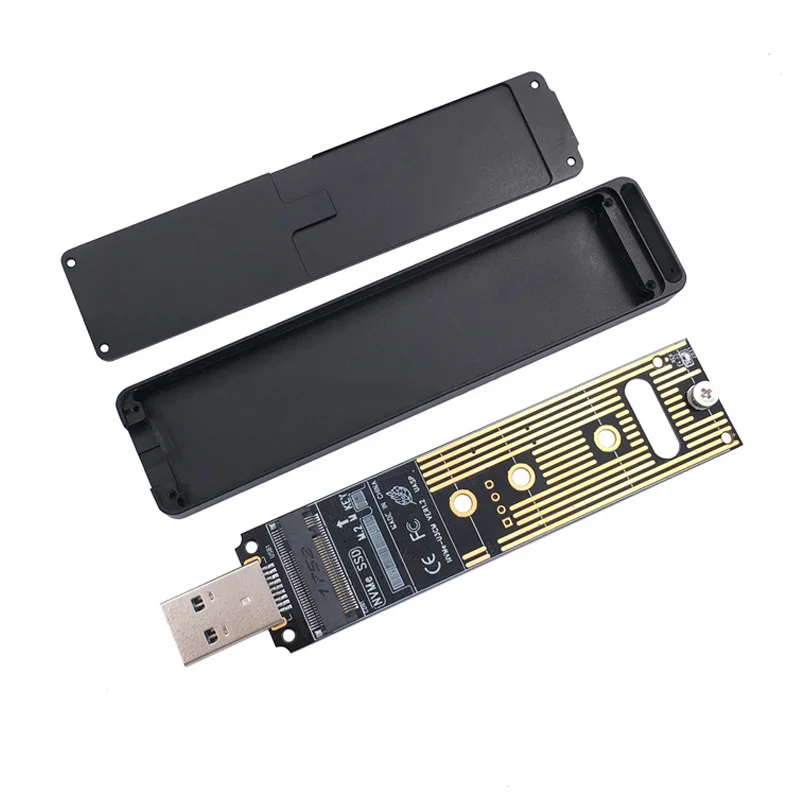

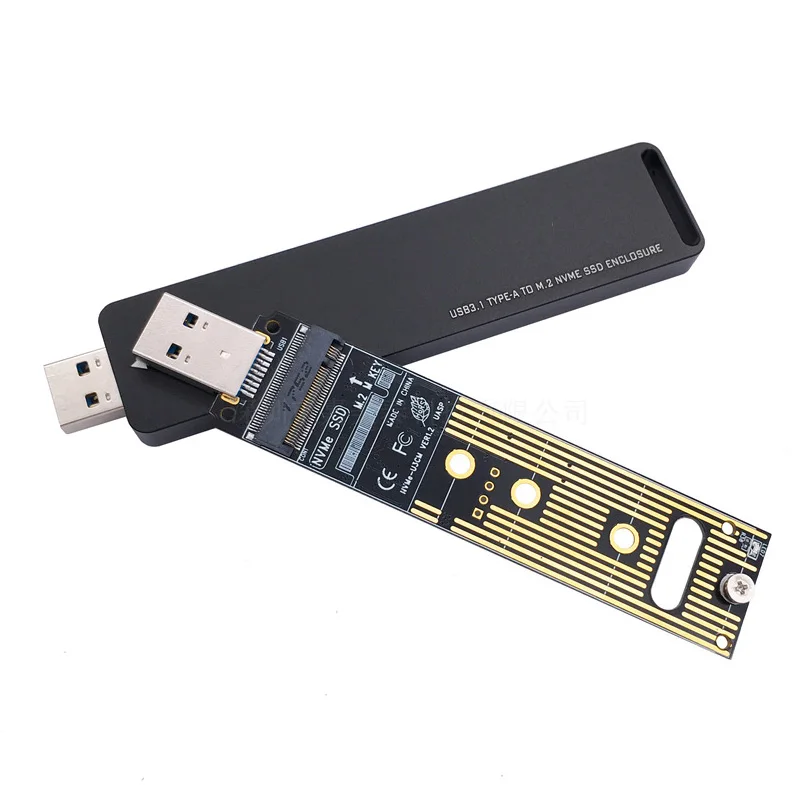

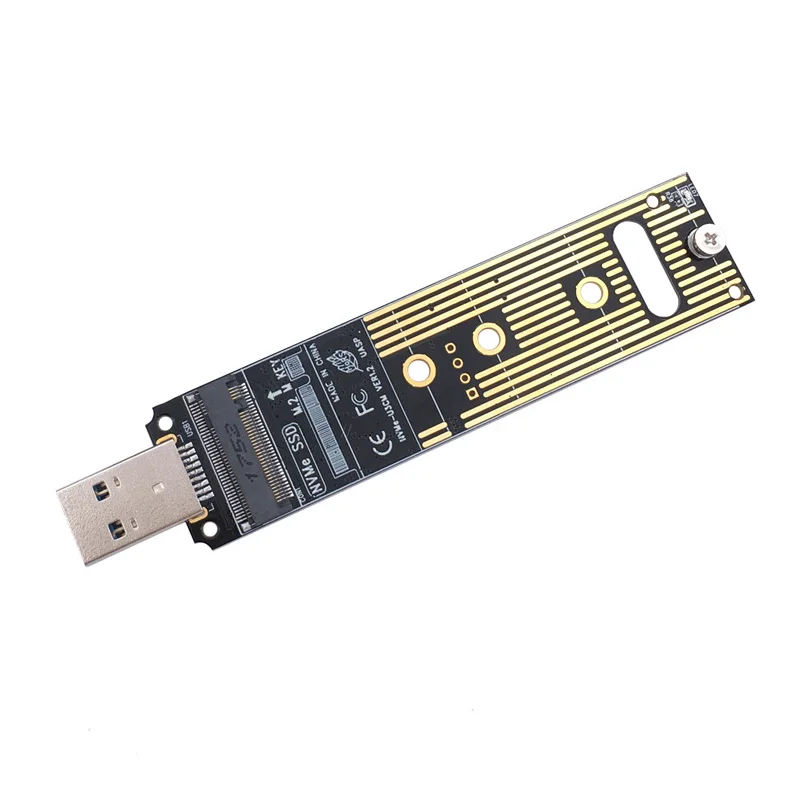

1 x USB3.1 Type A to NVME M.2 SSD Adapter (NO Case)
- Please check pictures for more details.
