Descripción
CPU
Supports Intel® Socket 1151 9th/8th generation Intel® Core™, Pentium® Gold and Celeron® processors
Support Intel® 14 nm processor
Support Intel® Turbo Boost 2.0 technology
*Please visit www.asus.com for the processor support list.
* Whether it supports Intel® Turbo Boost 2.0 technology depends on the processor type.
chipset
Support Intel® B365
RAM
Intel® B365 chip
4 x DIMM, support up to 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered memory
Support dual channel memory architecture
Support Intel® Extreme Memory Profile (XMP) technology
* Please visit www.asus.com or refer to the user manual for the memory qualified supplier support list (QVL).
* The maximum memory frequency supported depends on the processor.
** DDR4 2666MHz and higher memory modules will run up to 2666MHz on 8th generation Intel® six-core or higher processors.
Graphic display
Integrated graphics processor-supports Intel® HD integrated graphics
Support Multi-VGA output: HDMI/DVI-D/DisplayPort interface
-Support HDMI: display resolution up to 4096 x 2160 @ 30 Hz
-Support DVI-D output: display resolution up to 1920 x 1200 @ 60 Hz
-Support DisplayPort 1.2: display resolution up to 4096 x 2304 @ 60 Hz
Shared video memory up to: 1024 MB
Support Intel® InTru™ 3D, Quick Sync Video, Clear Video HD technology, Insider™
Support up to 3 independent displays
Multiple graphics display technology
Support AMD CrossFireX™ technology
Expansion slot
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (maximum x4 mode)
1 x PCIe 3.0/2.0 x1 expansion card slot
Storage function (depending on shipment)
Intel® B365 chip:
1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage devices (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage devices (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s ports, gray
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Technology
Network features
Intel® I219V, 1 x Gigabit LAN
TUF LANGuard network security protection
Sound effect
Realtek® ALC1200 8-channel high-definition audio codec
-Support: Audio interface detection (Jack-detection), custom front panel audio jack function
Audio function:
-Audio shielding technology: high-precision analog/digital separation does not interfere with each other
-Channel layered isolation design: layered wiring of left and right channels, bringing better audio signal quality
-High-quality Japanese audio capacitors: Let you enjoy clear and high-fidelity sound.
* Need to cooperate with the HD Audio module on the front panel of the chassis to support 8-channel audio output.
USB interface
Intel® B365 chip:
6 x USB 3.1 Gen 1 ports (4 @back, blue, 2 @front)
Intel® B365 chip:
6 x USB 2.0/1.1 ports (2 @back,, 4 @front)
other functions
ASUS TUF Guardian
-ASUS ESD Guard: Enhance the electrostatic protection of each motherboard interface
-ASUS Over-Voltage Protection: Protect the motherboard and other accessories from unstable power supply and poor quality power supply
-ASUS stainless steel moisture-proof I/O backplane interface: stronger durability, improved durability!
-ASUS DIGI+ digital power supply design: stable power supply provides accurate control
-ASUS Safe Slot core+ high-strength security slot: PCIe hardened slot
ASUS EPU intelligent energy-saving processor:
-EPU
ASUS OptiMem memory optimization design:
-Optimem memory optimization design (enhance DDR4 stability)
ASUS features:
-Ai Charger charging technology
-AI Suite 3 (Smart Butler 3rd Generation)
-PC Cleaner
ASUS silent cooling solution:
-American fanless design: PCH heat sink & MOS heat sink & M.2 heat sink solution
-ASUS Fan Xpert 2+
ASUS EZ DIY:
-ASUS CrashFree BIOS 3
-ASUS EZ Flash 3
ASUS Q-Design:
-ASUS Q-Slot
-ASUS Q-DIMM
Onboard M.2 (new generation transmission technology provides up to 32Gb/s data transmission speed)

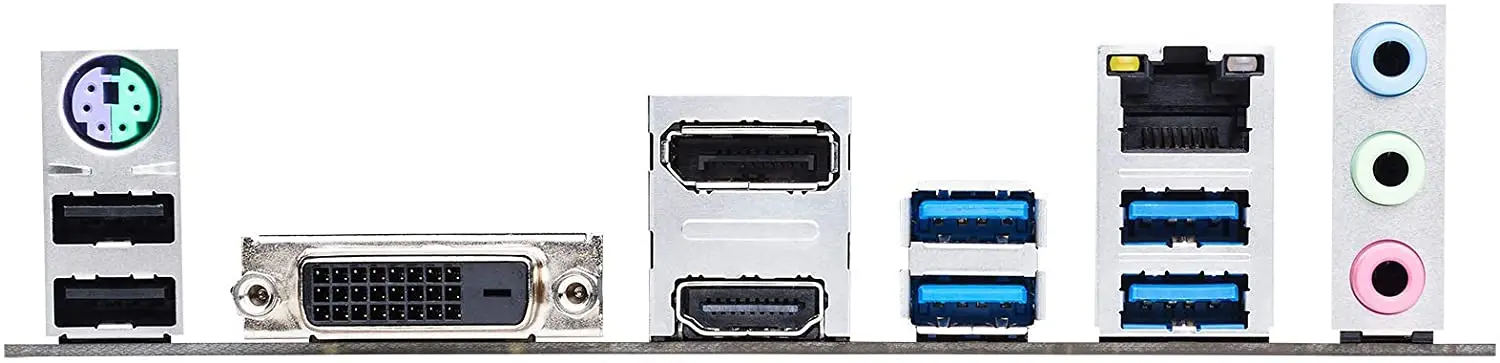

Backplane I/O interface
1 x PS/2 keyboard and mouse interface
1 x DVI-D port
1 x DisplayPort interface
1 x HDMI port
1 x LAN (RJ45) port
4 x USB 3.1 Gen 1 Type-A up to 5Gbps
2 x USB 2.0 ports
1 x 8-channel audio interface
Internal I/O interface
1 x USB 3.1 Gen 1 port, expandable to 2 sets of external USB 3.1 Gen 1 ports (19-pin, moss green)
2 x USB 2.0 ports can expand 4 sets of external USB 2.0 ports
1 x programmable RGB header
2 x M.2 Socket 3 slots, support M key, 2242/2260/2280 type storage devices
1 x serial port connection socket (COM)
1 x Aura RGB light strip header
6 x SATA 6Gb/s device connection sockets
1 x CPU fan power socket
2 x chassis fan connector
1 x S/PDIF_Out digital audio connector header
1 x 24-pin EATX motherboard power socket
1 x 8-pin EATX 12V power connector
1 x front panel audio interface (AAFP)
1 x Clear CMOS jumper
1 x system panel interface
