Color
RGB
Color de hoja
Compatibilidad con RGB
Color de la Hoja
Descripción
Product parameter
Size: 120X120X1 5MM
Installation hole spacing: 105X105MM
Connector: 4-PIN PWM
Axis: SSO2
Blade design: A series flow acceleration channel
Frame technology: AAO (Acoustic Optimization)
Speed (+ /- 10%): 1850 RPM
L.N.A. down speed (+/- 10%): 1400 RPM
Lower limit speed (PWM, +/-20%): 450 RPM
Airflow: 94,2 M3/H
L.N.A. Downstream: 70,8 M/H
Noise: 23,9 DB(A)
Noise under L.N.A.: 16,8 DB(A)
Static pressure: 1,53 MM HO
L.N.A. static pressure: 0,9 MM H2O
Maximum input power: 1,56 w
Input current upper limit: 0,13A
Voltage: 12V
PWM terminal voltage: 5V

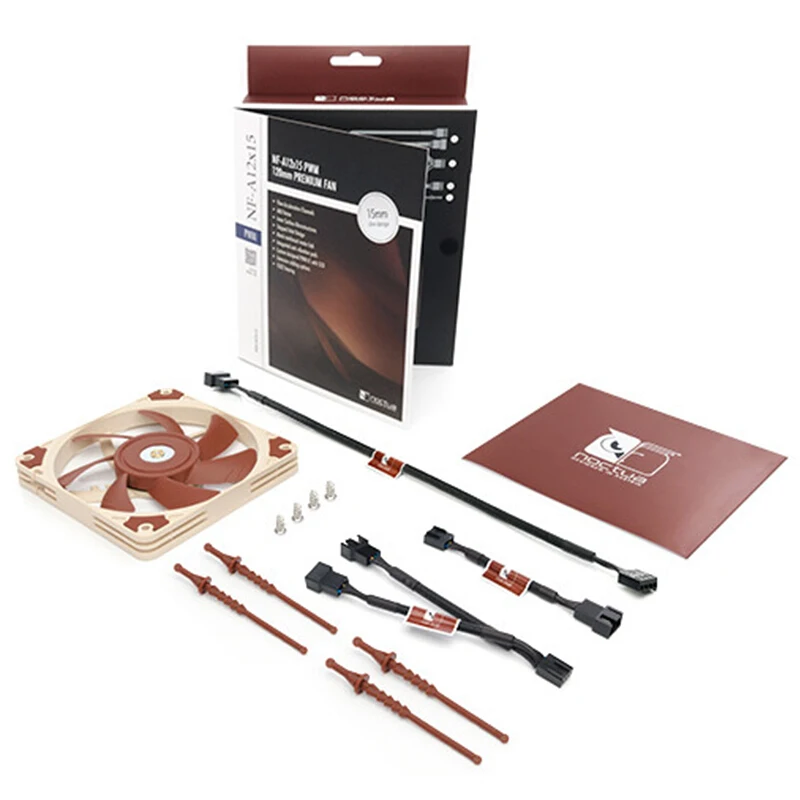

Accessories: Low noise adapter (L.N.A.)
4-PINY cable: 30CM extension cord
NA-SAV3 Damping Plastic Nail: Fan Screw

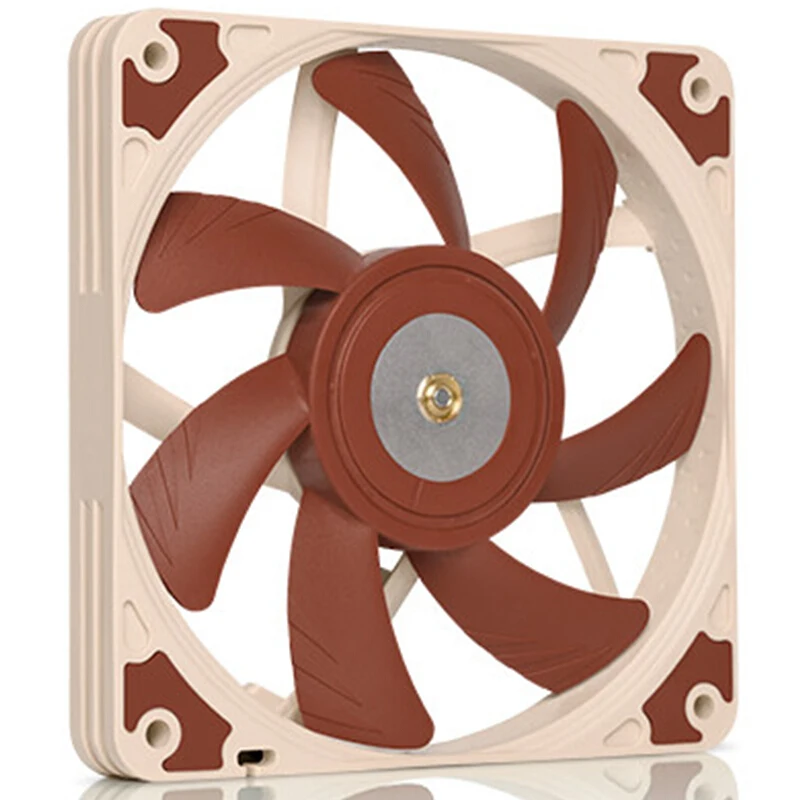

15MM thin design
The thickness of the NF-A12X15 is only 15MM, which is suitable for typical slender fan applications such as low-tower CPU coolers and can replace the standard 120X25MM fan to make a lot of space for the tower cooler or replace the PC chassis fan.
Enhanced metal motor hub
NF-A12X15 uses a reinforced metal motor hub, which is a measure usually applied in high-speed industrial fans to ensure the stability and long service life of NOCTUA fans.
Traffic acceleration channel
The characteristic of NF-A12X15 PWM blade is that air is sucked in by the side flow acceleration channel. By accelerating the air flow in the key outer blade area, it can reduce the flow separation on the suction side and achieve high efficiency and low vortex noise. ,
Integrated anti-vibration pad
The integrated anti-vibration pad made of soft silicone can effectively reduce the transmission of small vibrations when the fan rotates while maintaining full compatibility with all standard mounting systems and fan clips used on the radiator.
Opiniones de clientes
19 opinionesEs silencioso. Como es de 15T, encaja perfectamente en la parte superior de la carcasa Meshroom D V2.
