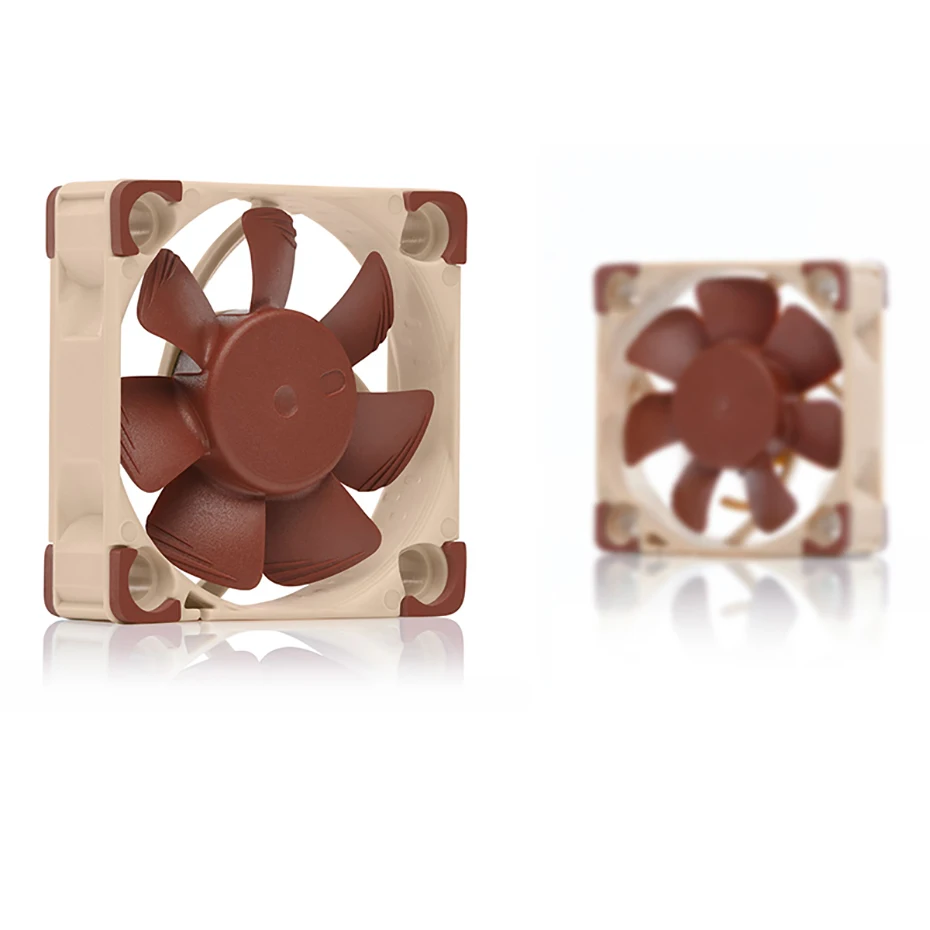

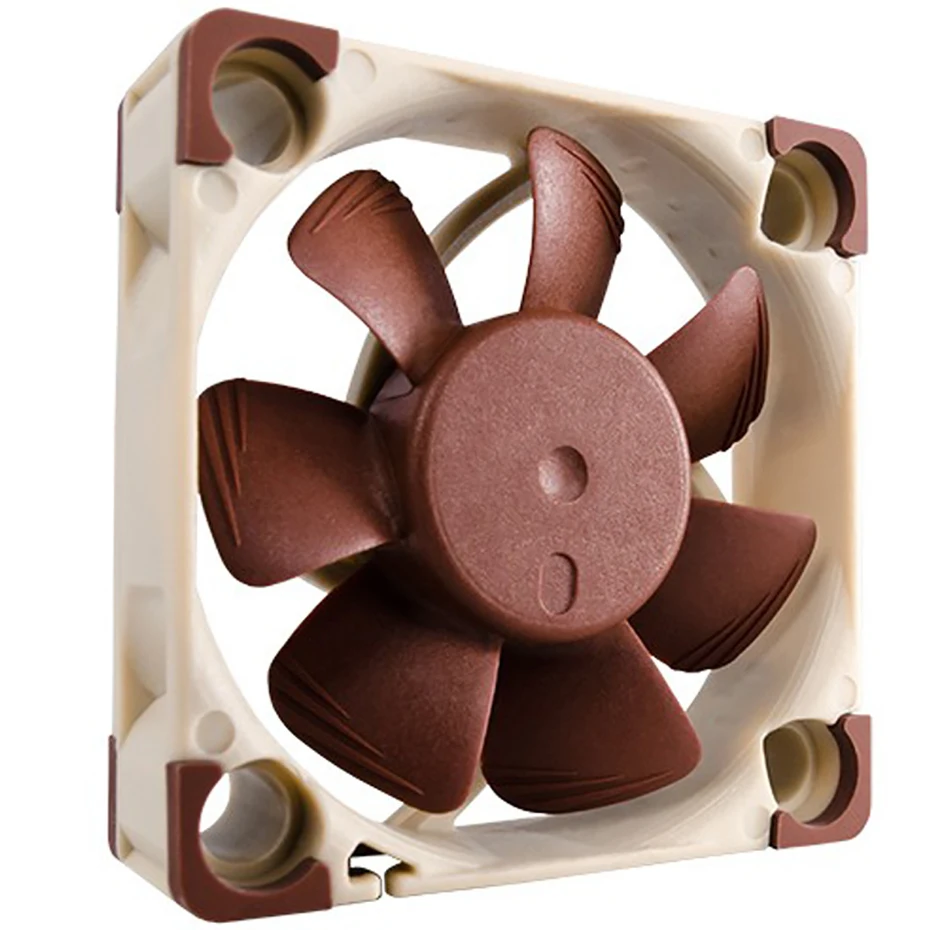

Noctua-ventilador de carcasa NF-A4x10 FLX de 40mm, enfriador pequeño silencioso, 5V, 12V, PWM, Control inteligente de temperatura, radiador de chasis

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x10 is an award-winning, premium-quality quiet fan in size 40x10mm. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor as well as an OmniJoin Adaptor Set for easy connection to proprietary fan headers. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

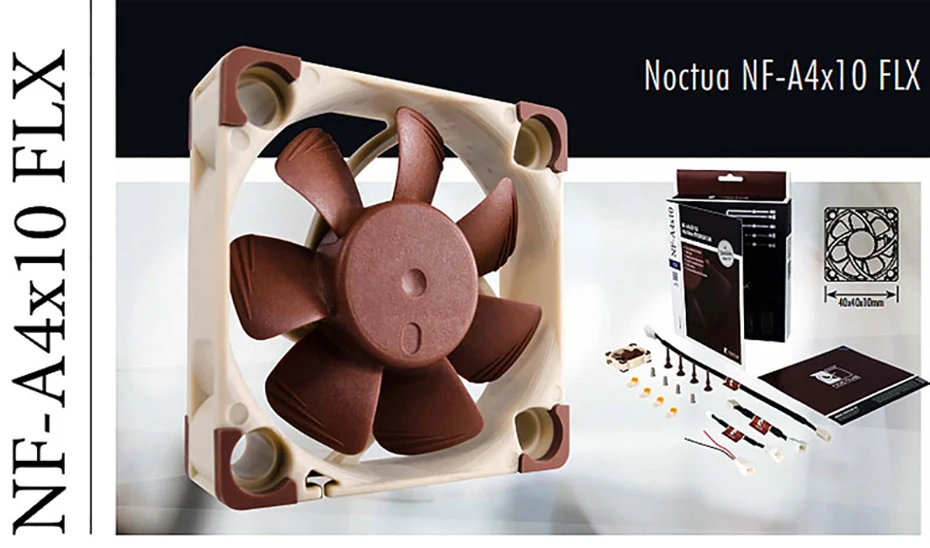

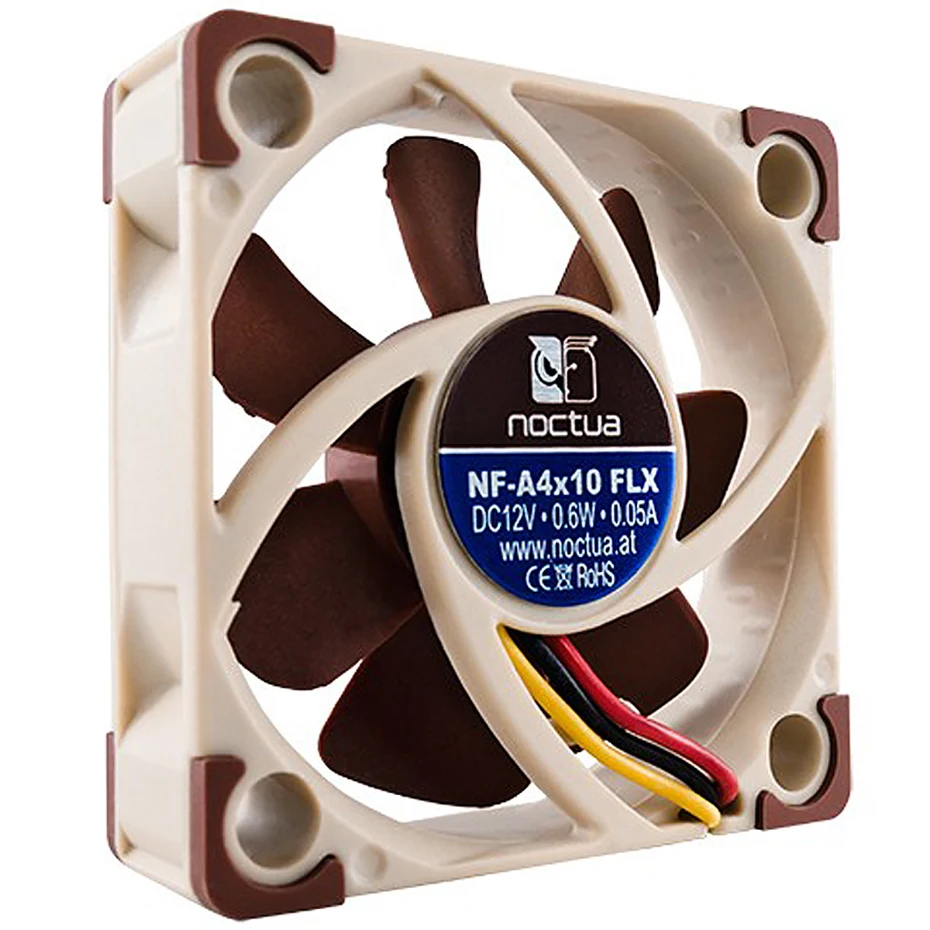

NF-A4x10 FLX

FAN Specification
Size ：40x40x10 mm
Mounting hole spacing ：32x32 mm
Connector & pin-configuration ：3-pin
Cable length ：20cm + 30cm NA-EC1 extension cable
Bearing ：SSO2
Blade geometry ：A-Series with Flow Acceleration Channels
Frame technology ：AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) ：4500 RPM
Rotational speed with L.N.A. (+/- 10%) ：3700 RPM
Airflow ：8,2 m⊃3;/h
Airflow with L.N.A. ：6,6 m⊃3;/h
Acoustical noise ：17,9 dB(A)
Acoustical noise with L.N.A. ：12,9 dB(A)
Static pressure ：1,78 mm H₂O
Static pressure with L.N.A. ：1,21 mm H₂O
Max. input power ：0,6 W
Max. input current ：0,05 A
Operating voltage ：12 V
MTTF ： 150.000 h

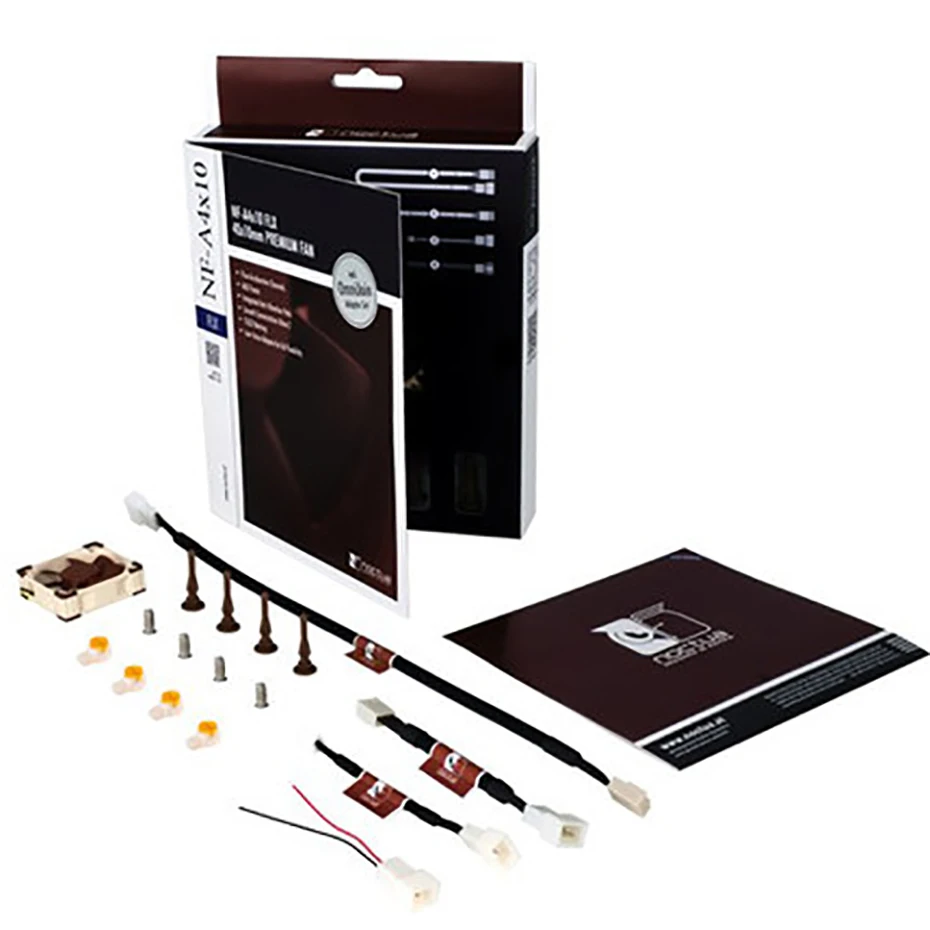

Scope of delivery ：Low-Noise Adaptor (L.N.A.)
3:2 Pin Adaptor
OmniJoin Adaptor Set
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws

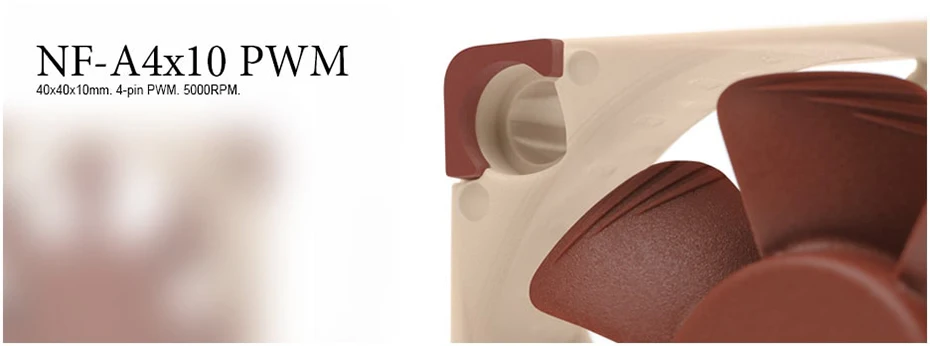

NF-A4x10 PWM

FAN Specification
Size ：40x40x10 mm
Mounting hole spacing ：32x32 mm
Connector & pin-configuration ：4-pin PWM
Cable length ：20cm + 30cm NA-EC1 extension cable
Bearing ：SSO2
Blade geometry ：A-Series with Flow Acceleration Channels
Frame technology ：AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) ：5000 RPM
Rotational speed with L.N.A. (+/- 10%) ：3700 RPM
Min. rotational speed (PWM, +/-20%) ：1000 RPM
Airflow ：8,9 m⊃3;/h
Airflow with L.N.A. ：6,6 m⊃3;/h
Acoustical noise ：19,6 dB(A)
Acoustical noise with L.N.A. ：12,9 dB(A)
Static pressure ：1,95 mm H₂O
Static pressure with L.N.A. ：1,21 mm H₂O
Max. input power ：0,48 W
Max. input current ：0,04 A
Operating voltage ：12 V
MTTF ： 150.000 h
Scope of delivery ：30cm Extension Cable
NA-AV3 anti-vibration mounts
OmniJoin Adaptor Set
4-pin y-cable
Low-Noise Adaptor (L.N.A.)
4 Fan Screws

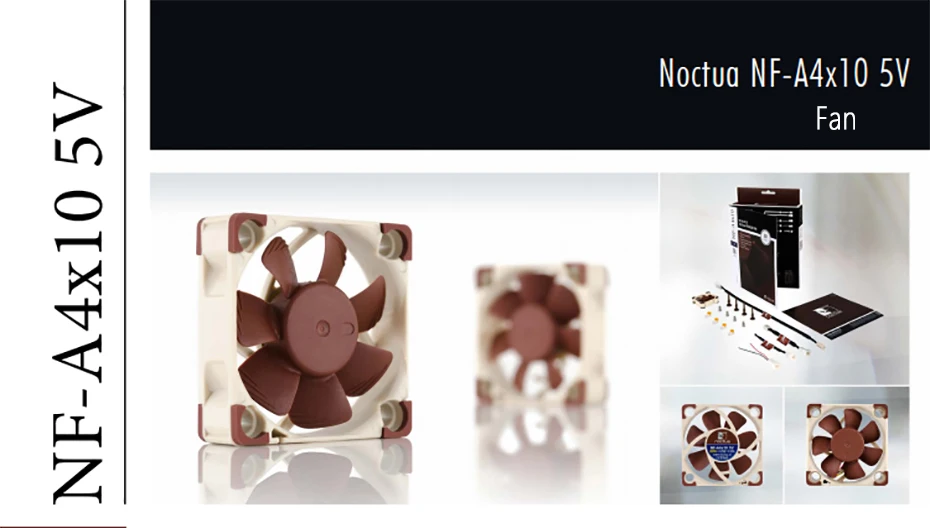

NF-A4x10 5V

FAN Specification
Size ：40x40x10 mm
Mounting hole spacing ：32x32 mm
Connector & pin-configuration ：3-pin
Cable length ：20cm + 30cm NA-EC1 extension cable
Bearing ：SSO2
Blade geometry ：A-Series with Flow Acceleration Channels
Frame technology ：AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) ：4500 RPM
Airflow 8,2 m⊃3;/h
Acoustical noise ：17,9 dB(A)
Static pressure ：1,78 mm H₂O
Max. input power ：0,25 W
Max. input current ：0,05 A
Operating voltage ：5 V
MTTF ： 150.000 h
Scope of delivery ：3:2 Pin Adaptor
OmniJoin Adaptor Set
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws

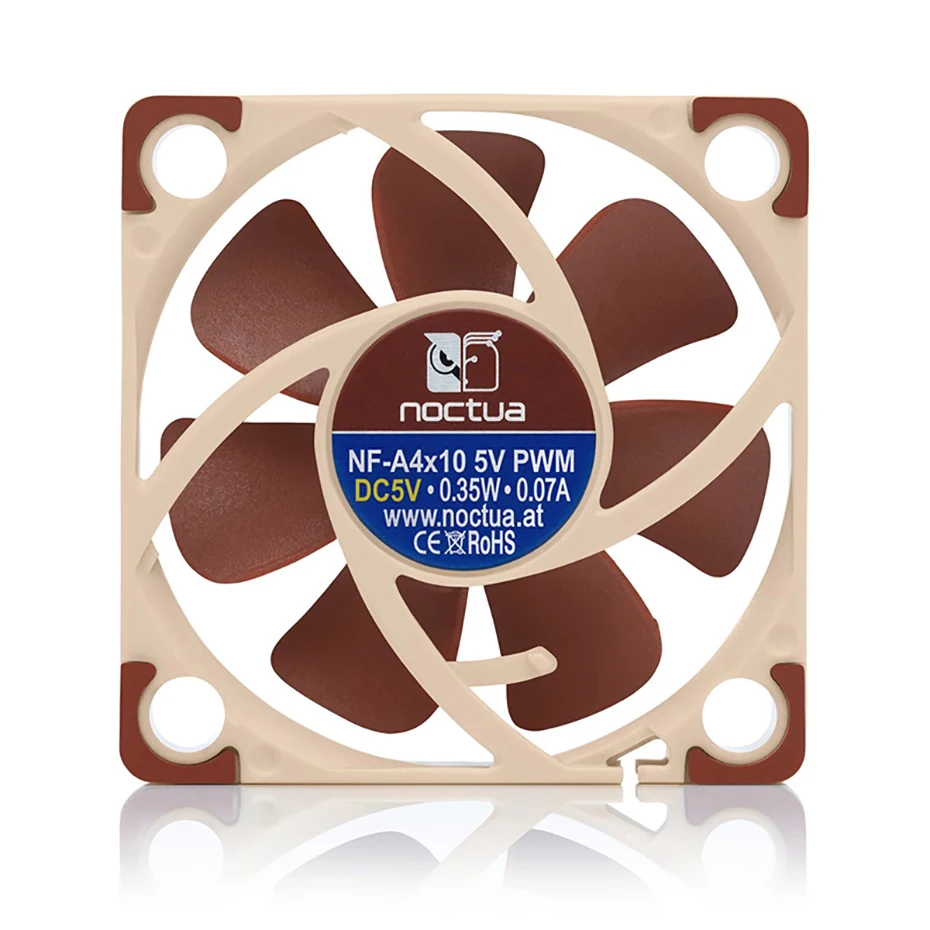

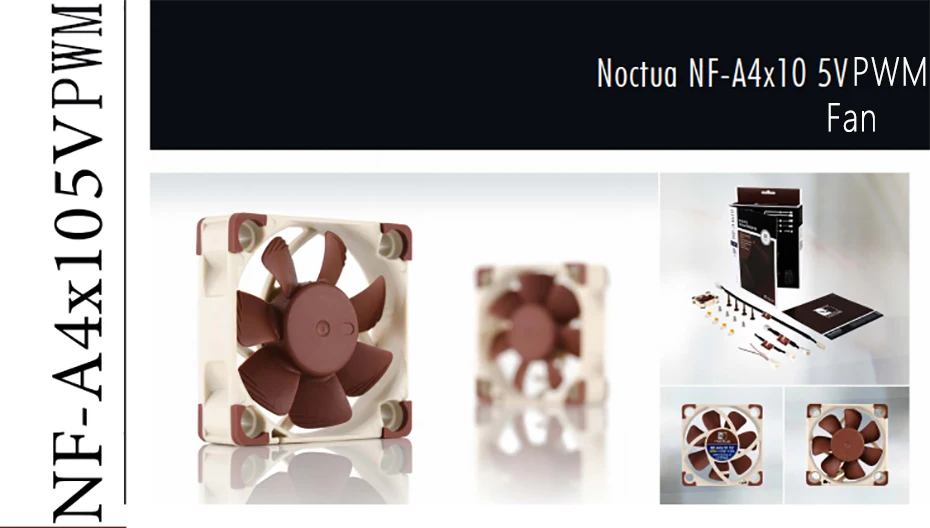

NF-A4x10 5V PWM

FAN Specification
Size ：40x40x10 mm
Mounting hole spacing ：32x32 mm
Connector & pin-configuration ：4-pin PWM
Cable length ：20cm + 30cm NA-EC1 extension cable
Bearing ：SSO2
Blade geometry ：A-Series with Flow Acceleration Channels
Frame technology ：AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) ：5000 RPM
Min. rotational speed (PWM, +/-20%) ：1000 RPM
Airflow ：8,9 m⊃3;/h
Acoustical noise ：19,6 dB(A)
Static pressure ：1,95 mm H₂O
Max. input power ：0,35 W
Max. input current ：0,07 A
Operating voltage ：5 V
MTTF ： 150.000 h
Scope of delivery ：30cm extension cable
NA-AV3 anti-vibration mounts
USB power adaptor cable
OmniJoin adaptor set
Fan screws
