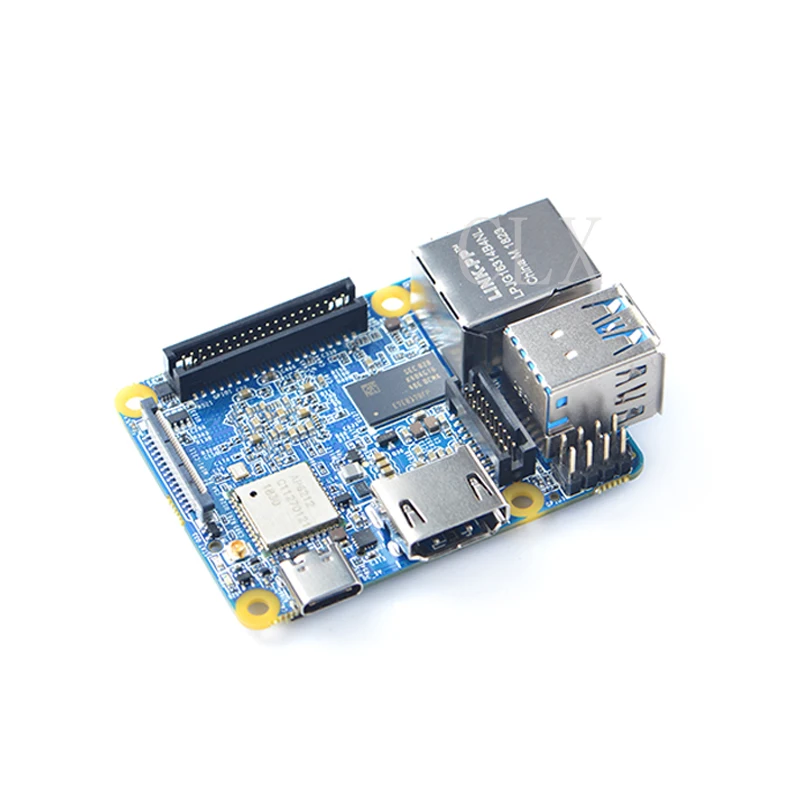

Introduction

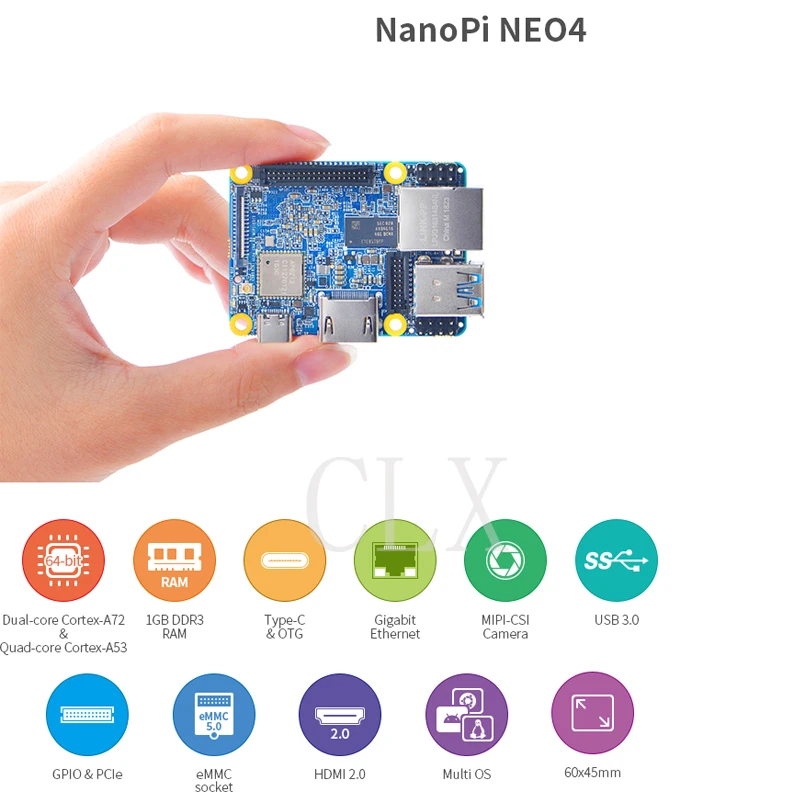

• The NanoPi NEO4 is an RK3399 SoC based ARM board. Its PCB size is only 60 x 45 mm and has rich hardware resources. These features make it a good platform for rapid product prototyping and various applications.

• NanoPi NEO4 has 1GB RAM, an onboard 2.4G wireless module, and rich hardware resources, such as USB3.0, USB2.0, PCIe, GbE, HDMI, MIPI-CSI, eMMC socket, SPI, GPIO, I2C, PWM, RTC, UART, etc.

• NanoPi NEO4 can be booted from either a TF card or an external eMMC module.

• The NanoPi NEO4 supports Ubuntu Desktop 18.04(64-bit), Lubuntu 16.04(32-bit), Ubuntu Core 18.04(64-bit) and Lubuntu Desktop with GPU and VPU acceleration. With these rich resources and powerful performance, it can be widely used in applications of machine learning, AI, deep learning, robots, industrial control, industrial cameras, advertisement machines, game machines, blockchain and etc.

Hardware Spec

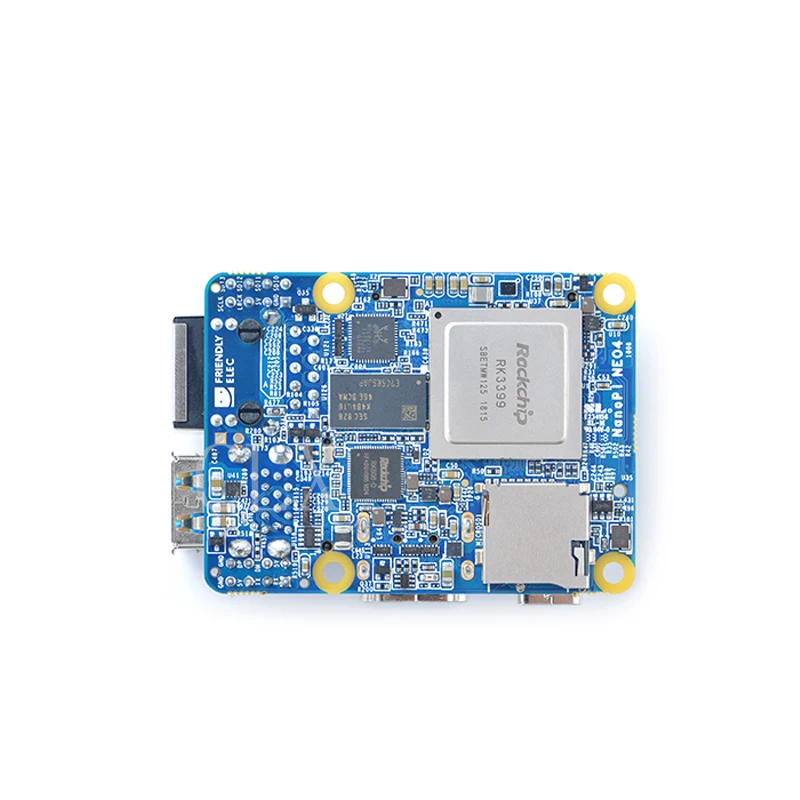

• SoC: Rockchip RK3399

  • CPU: big.LITTLE,Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53(up to 1.5GHz)

  • GPU: Mali-T864 GPU,supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC

  • VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc

• PMU: RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode

• RAM: 1GB DDR3-1866

• Flash: no Onboard eMMC, but has a eMMC socket

• Ethernet: Native Gigabit Ethernet

• Wi-Fi/BT: 802.11 b/g/n, Bluetooth 4.0 combo module

• Video Input: one 4-Lane MIPI-CSI, up to 13MP

• Video output: HDMI: HDMI 2.0a, supports 4K@60Hz,HDCP 1.4/2.2

• Audio Out: HDMI

• USB 3.0: 1x USB 3.0 Host Type-A

• USB 2.0: 2x USB 2.0 Host, one is Type-A, the other is 2.54mm header

• USB Type-C: Supports USB2.0 OTG and Power input

• microSD Slot x 1

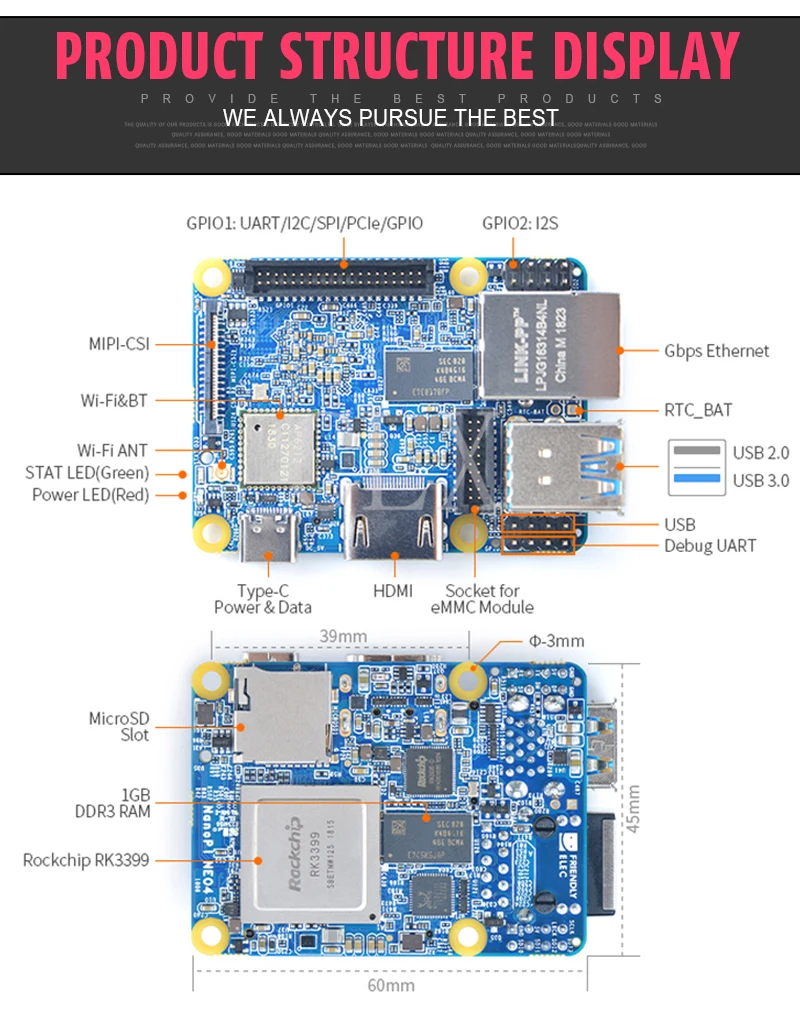

• GPIO1, 40Pin GPIO:

  • 2 X 3V I2C, 1x 3V UART/SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs

  • PCIe x2

  • PWM x1, PowerKey

• GPIO2:

  • 1 x 1.8V 8ch-I2S

• GPIO3:

  • debug uart, 3V level, 1500000bps

  • USB 2.0 x1

• LED: 1 x power LED and 1 x GPIO Controlled LED

• RTC Battery: 2 Pin 2.54mm pitch through-hole pads

• Power supply: 5V/3A

• PCB: 8 Layer, 60 mm x 45 mm

• Ambient Operating Temperature: -20℃ to 70℃
