Descripción

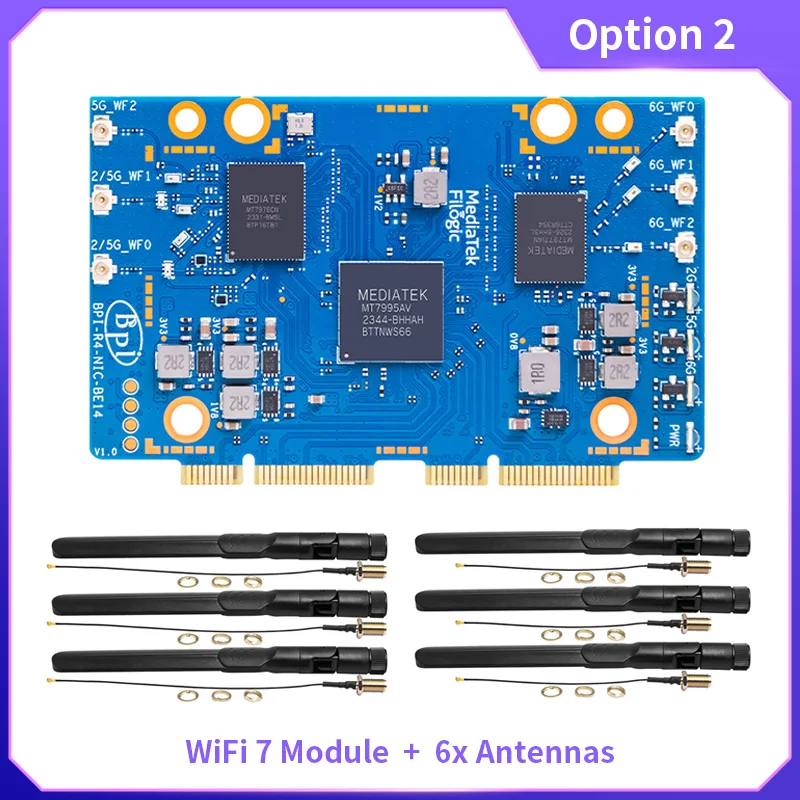

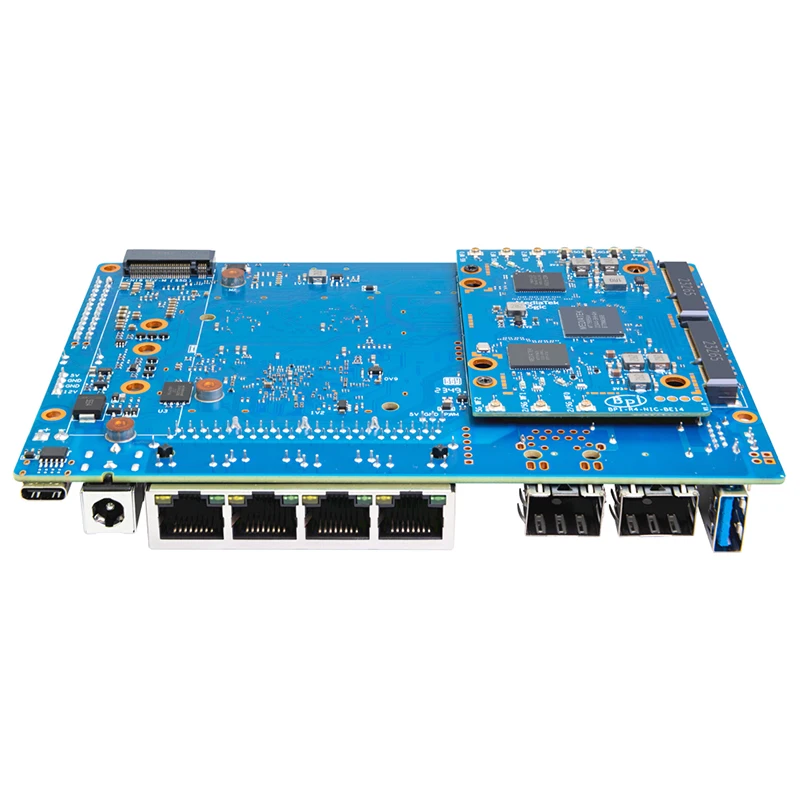

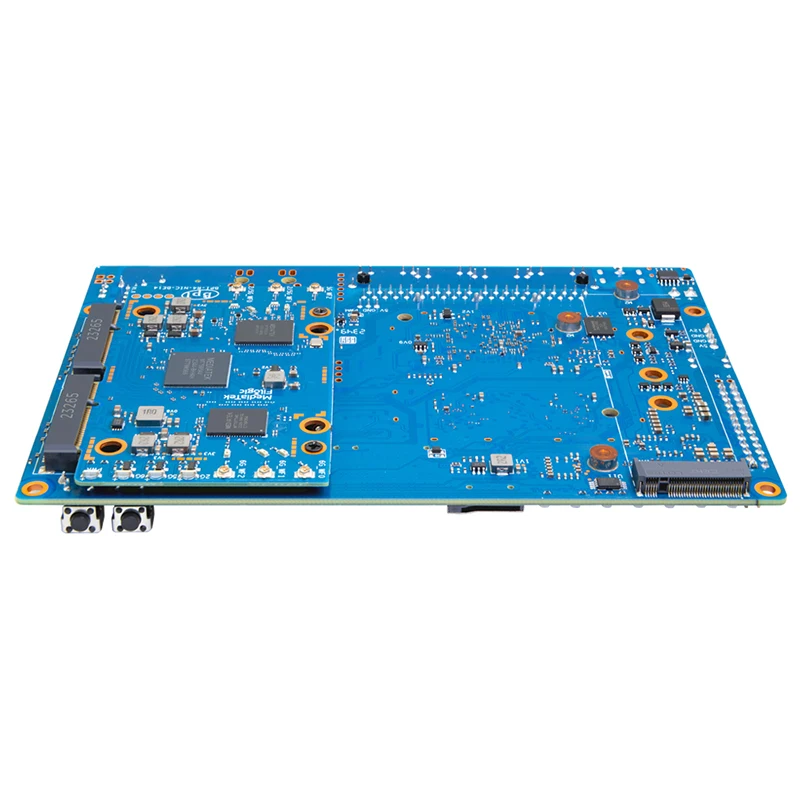

BPI-R4-NIC-BE14 WiFi 7 Module with MediaTek MT7995AV Optional Antennas 32-bit RISC-V MCU 2 PCIe 3.0 Interface for Banana Pi R4
Feature
1. MediaTek MT7995AV chipset
2. 32-bit RISC-V MCU for Wi-Fi protocols and Wi-Fi offload
3. Embedded SRAM and ROM
4. UART interface with hardware flow control
5. 2 PCIe 3.0 Interface, 2-lane
WLAN
Introduction

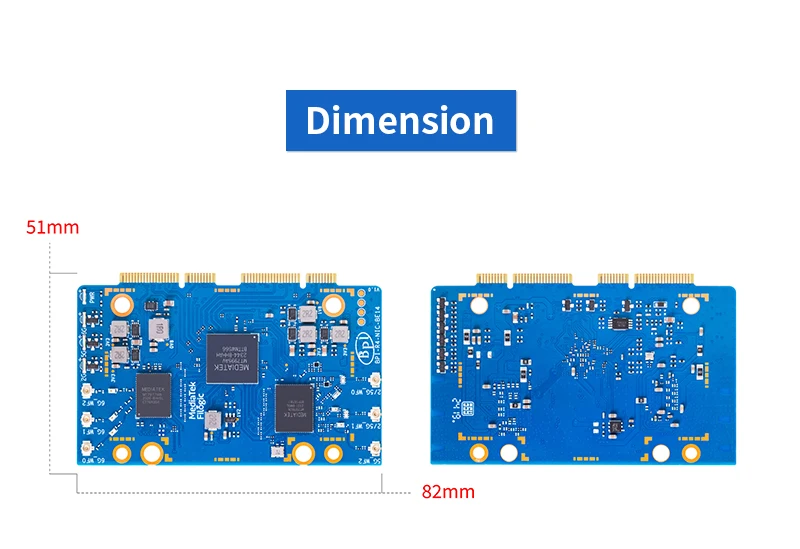

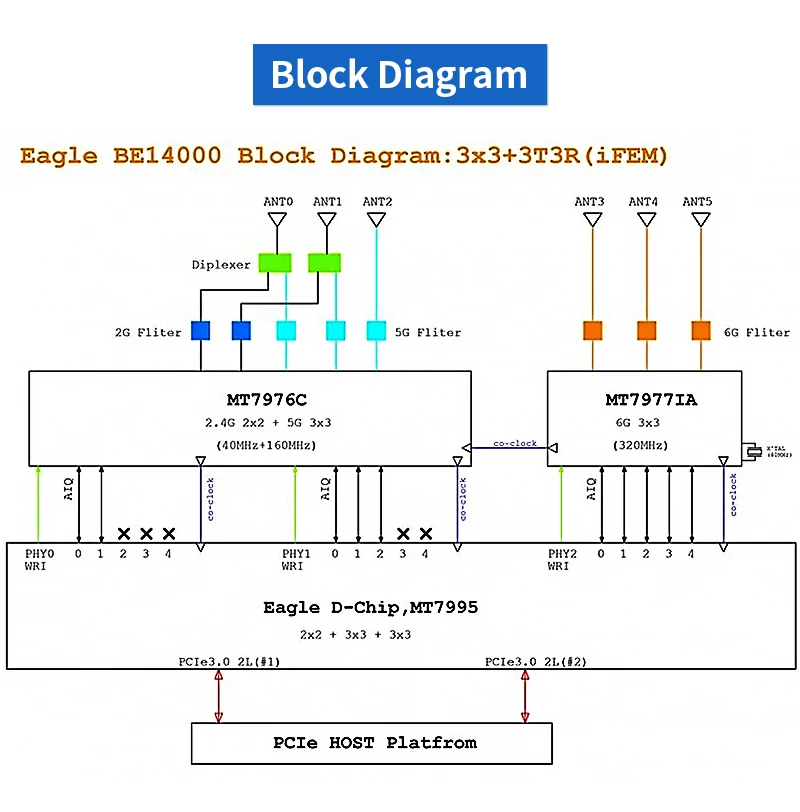

BPI-R4-NIC-BE14 is a 51x82mm WiFi7 module with MediaTek MT7995AV supports Wi-Fi7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant,2.4GHz 2x2, 5GHz 3x3 3ss, and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.
The optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7995AV is designed to support standard-based features in the areas of security, quality of service, and international regulations, giving end users the greatest performance at any time and in any circumstances.
WLAN
1. IEEE 802.11 a/b/g/n/ac/ax/be compliant
2. Frequency band 2.4GHz
Bandwidth: 20 and 40MHz
2T2R
3. Frequency band 5GHz
Bandwidth: 20, 40,80, and 160MHz
3T3R 3ss
4. Frequency band 6GHz
Bandwidth: 20, 40,80,160 and 320MHz
3T3R 3ss
5. Tr-Band Triple Concurrent (TBTC)
6. PHY rate :up to 13700 Mbps/9500 Mbps
7. MU-MIMO TX and RX
8. MU-OFDMA TX and RX
9. STBC, LDPC, TX beamformer and RX beamformee
10. Greenfield mode, mixed mode, and legacy mode
11. Security: WFA WPA, WPA2, WPA3 personal, WPS2.0
12. QoS: WFA WMM and WMM-PS

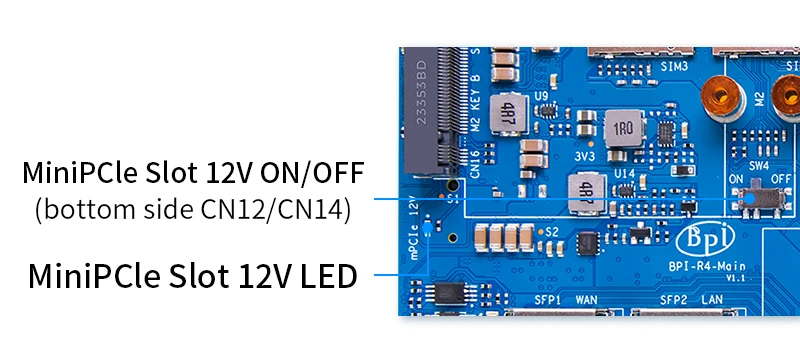

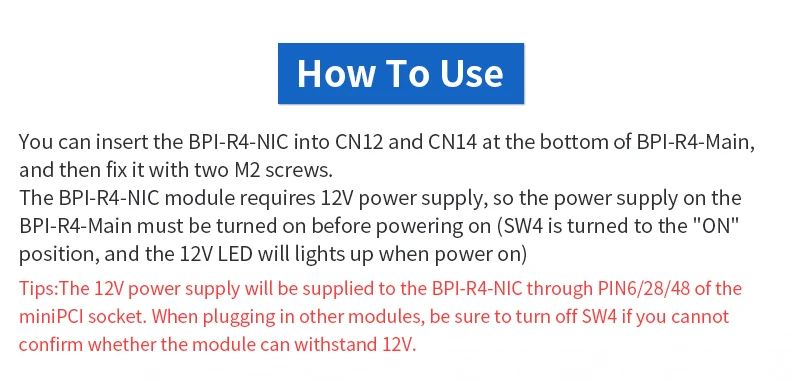

How to use
https://docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4#_wi_fi7_nic
