Descripción
If you have a greater demand for bulk purchases, pls contact us, we will provide even greater discounts
This product can be customized.

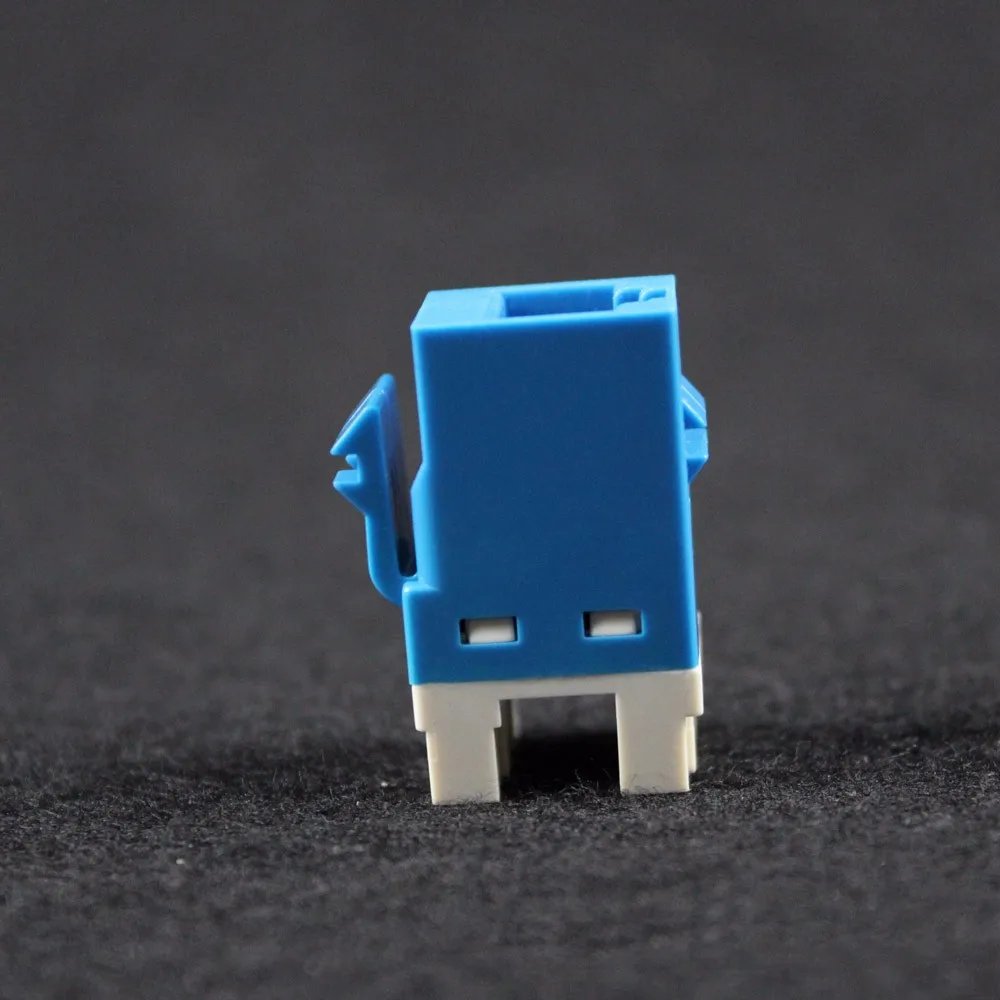

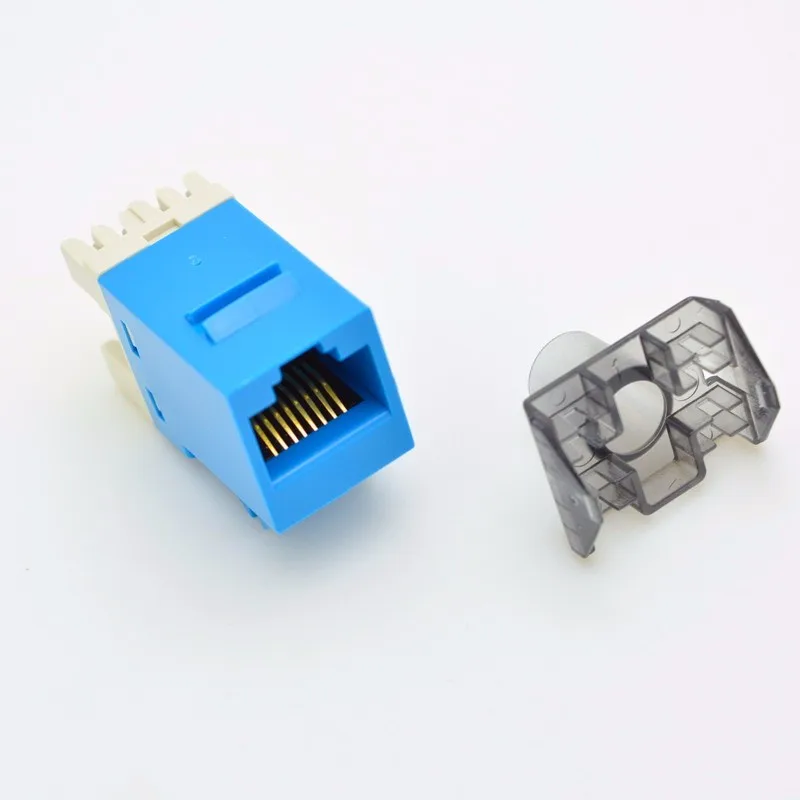

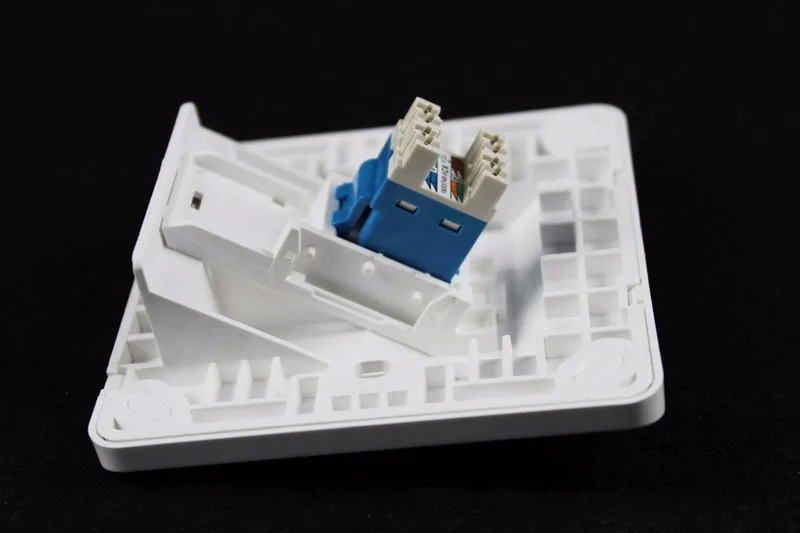

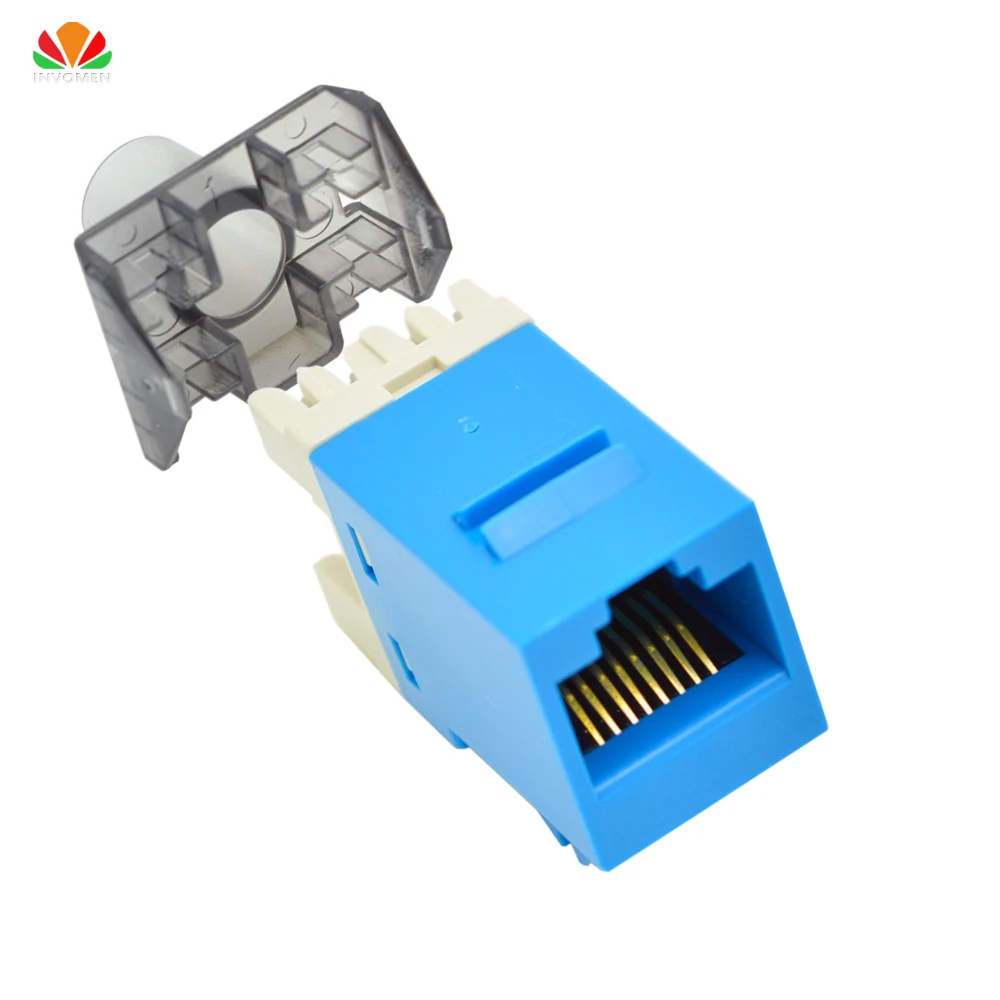

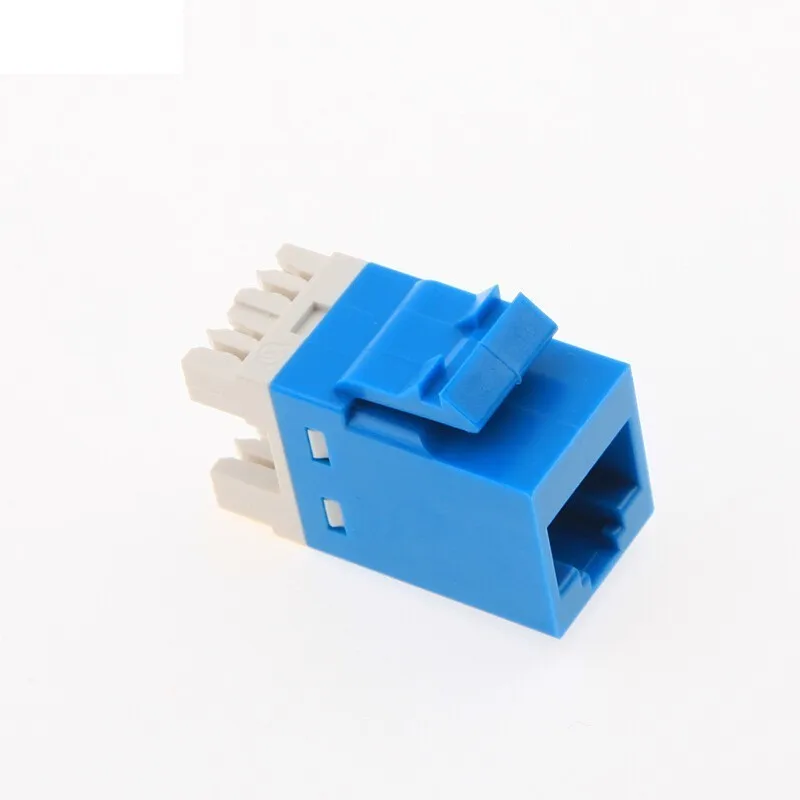

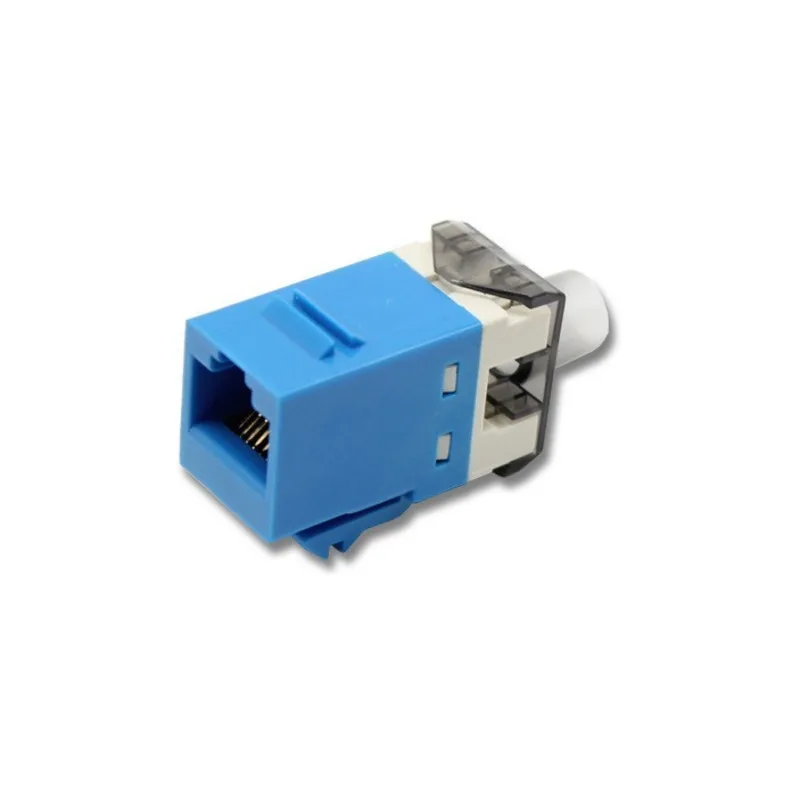

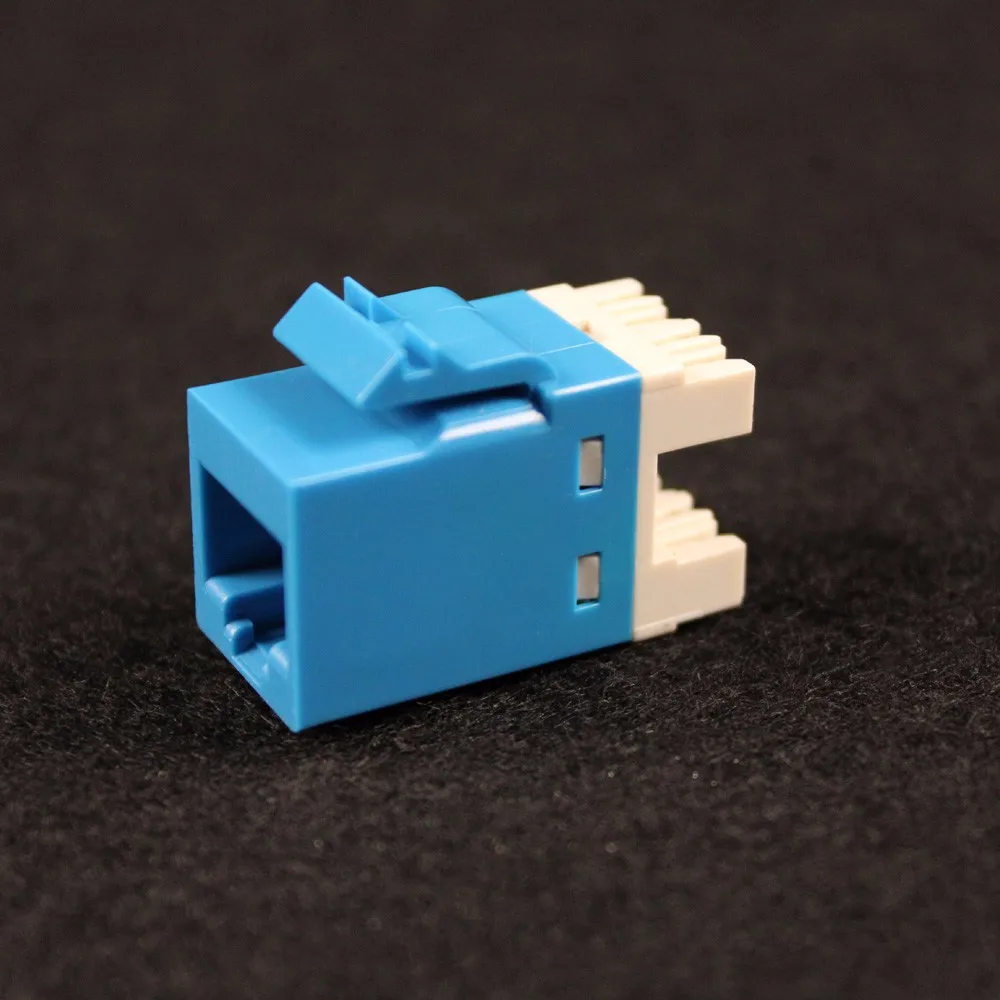

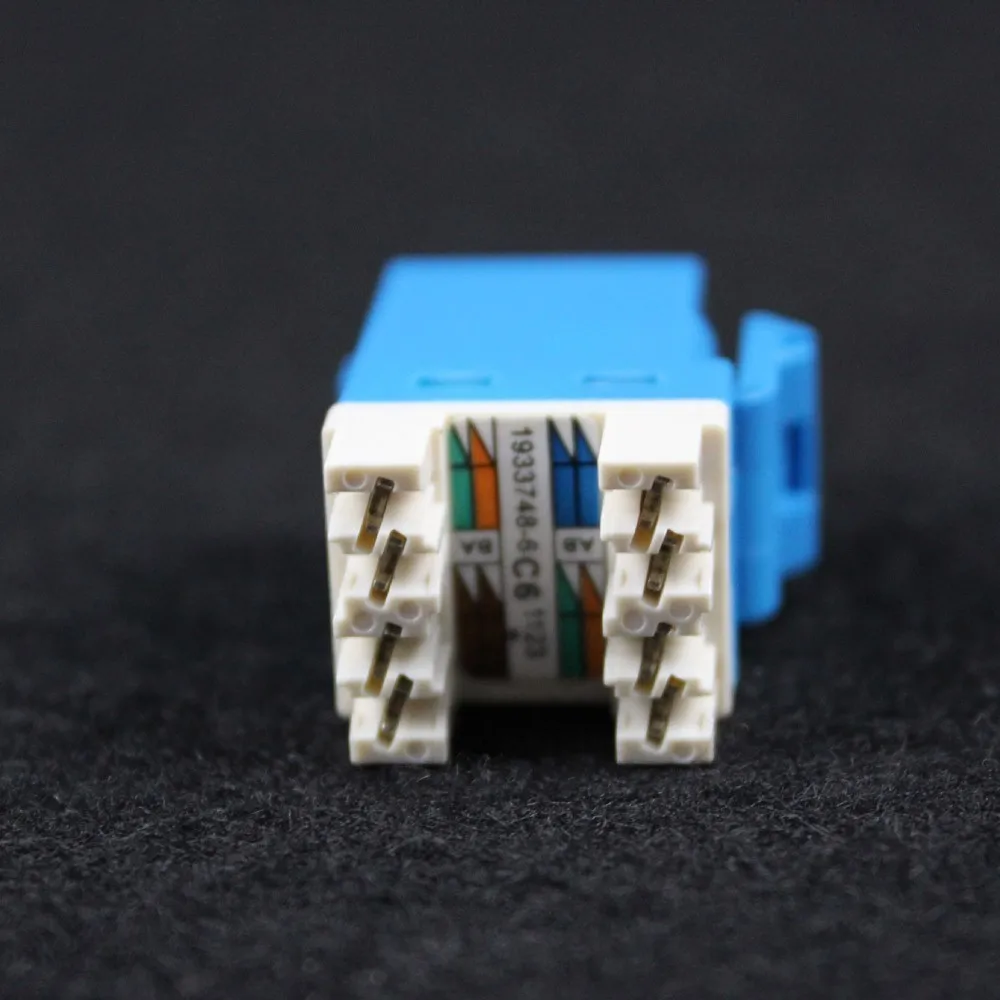

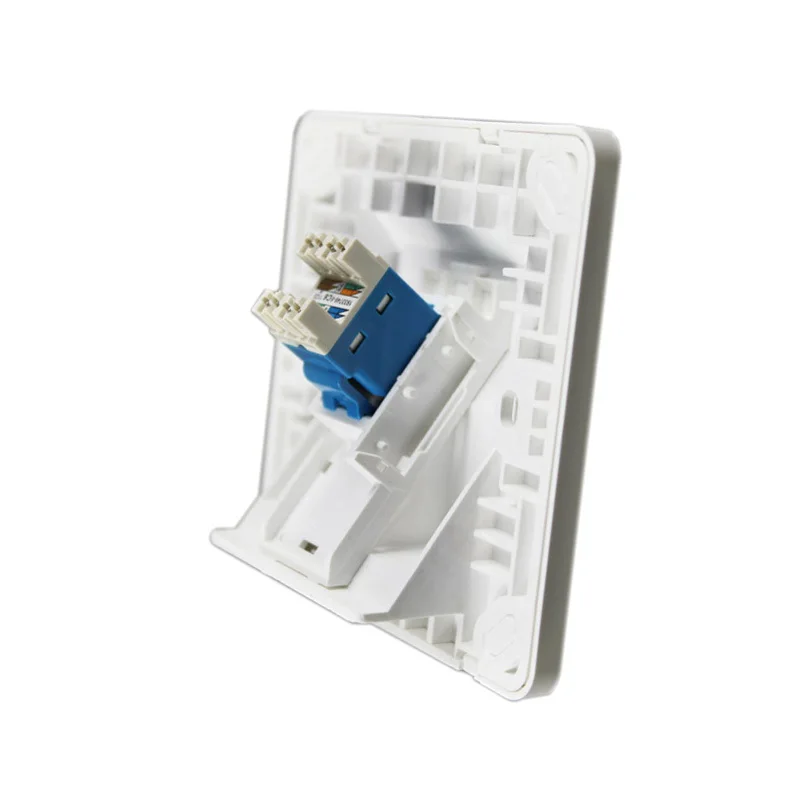

Product Name: CAT6 network module information module AMP style
High quality!best value!
Brand: INVOMEN
Model: LI-C6-UM0418TM
Specifications: 180 degrees wire
Material: Flame-retardant PC phosphor bronze contact with PCB
Technology: Assembly
Scope: network cabling weak building home improvement project
Product Features
Port RJ45 series lead in line with international standards; IDC: phosphor bronze material, tin, according to 22 ~ 26AWG solid wire; repetitions card line: 80 times; eight lines reed: phosphor bronze, gold plated 3Minch, 6Minch, 15Minch , 30Minch, 50Minch; plug and socket mating cycles: 1000; technical performance in line with TIA / EIA568 CAT6 standards.Electrical Performance1. Insulation resistance: not less than 500mΩ2. Compressive strength: DC1000V (AC750V) 50 ~ 60Hz1 minutes3. Contact resistance: less than 20mΩMechanical behaviorLife: insert pull repetition frequency less than 750 times less than 80 times the terminal snap cableworking environment1. Working temperature: -10 ~ 60 2. Operating temperature: 10 to 90%
