Descripción
DESCRIPTION

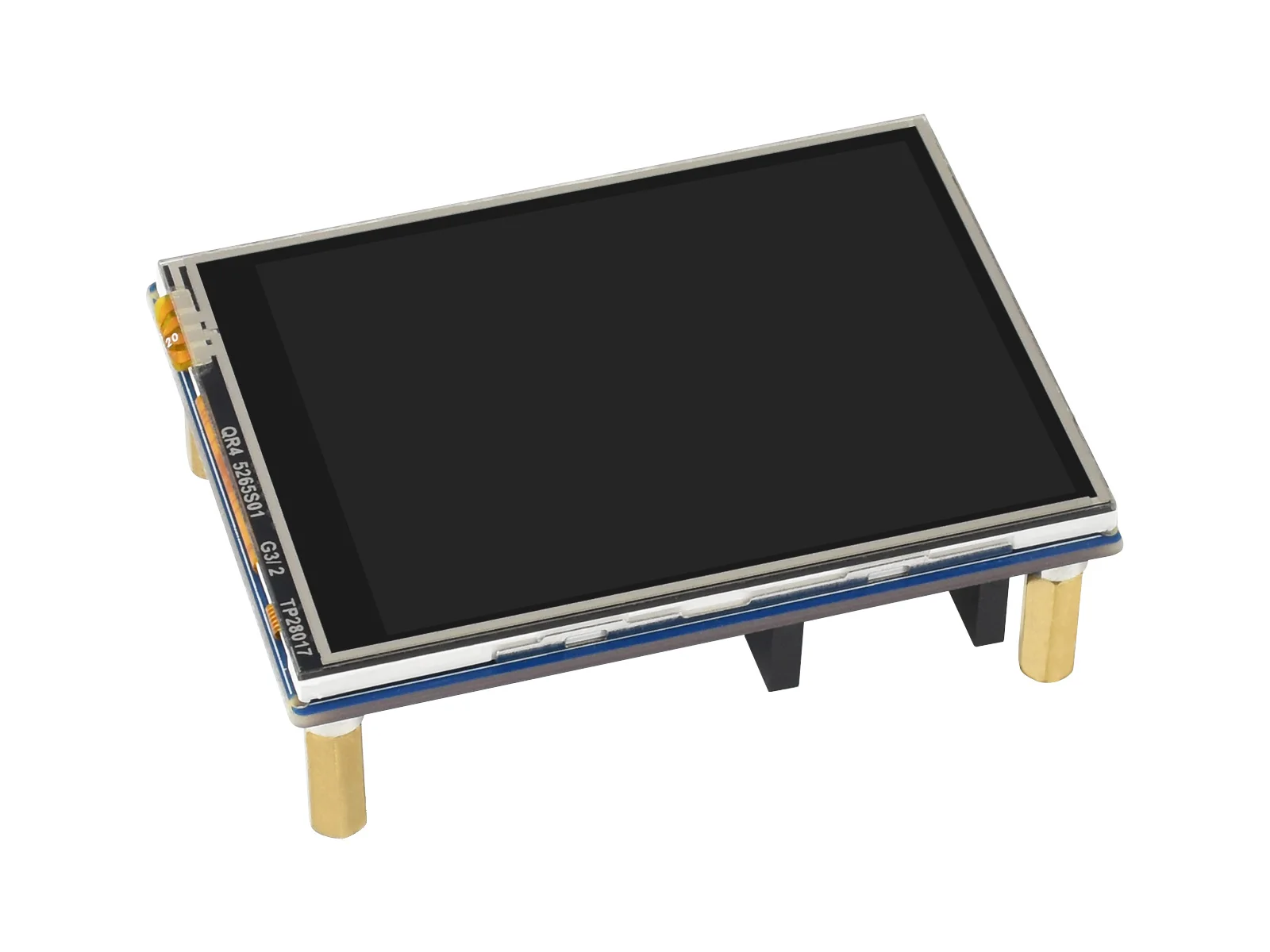

2.8inch Touch Display Module For Raspberry Pi Pico, 262K Colors, 320��240 Pixels, SPI Interface
Resistive Touch Controller XPT2046, ST7789 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Size
2.8"Resolution
320��240Display Color
262K ColorsDisplay Panel
IPSTouch Type
ResistiveInterface
SPIDriver/Controller
ST7789/XPT2046

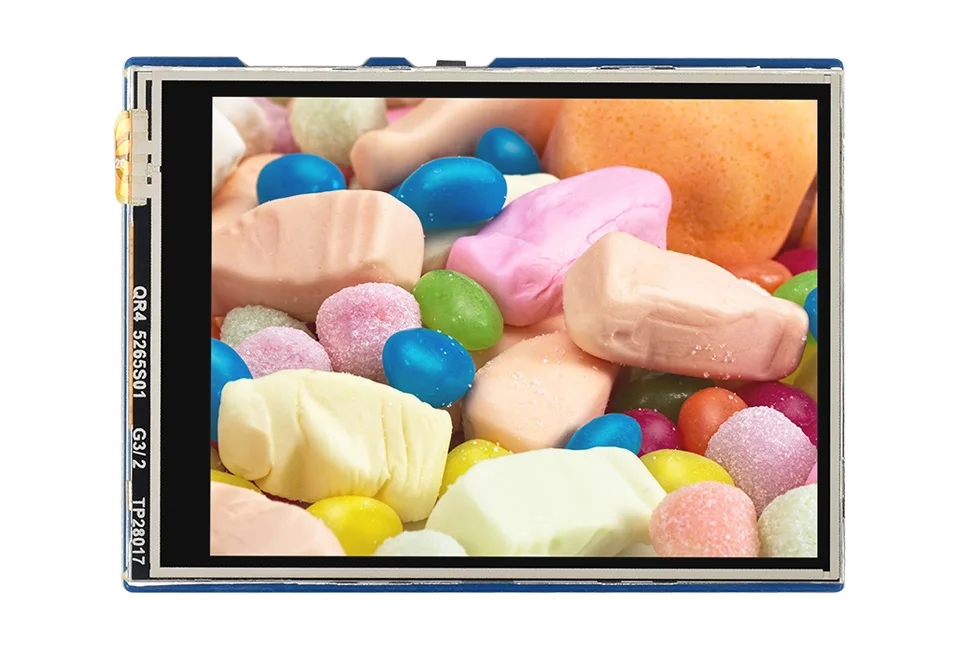

320��240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
MicroSD card slot for storing images and direct displaying them easily
Programmable backlight control, power saving
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
OPERATING VOLTAGE
5V
RESOLUTION
320��240 pixels
COMMUNICATION INTERFACE
SPI
DISPLAY SIZE
57.60 �� 43.20 mm
DISPLAY PANEL
IPS
PIXEL SIZE
0.18 �� 0.18 mm
DRIVER
ST7789

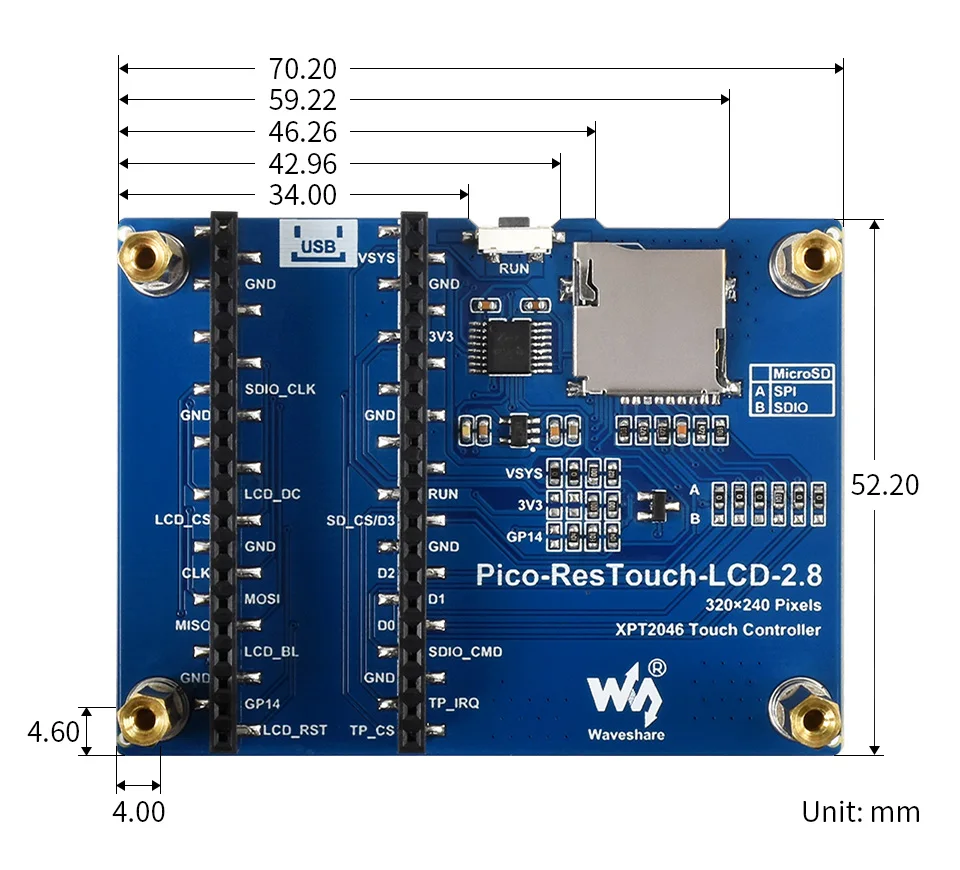

DIMENSIONS
70.20 �� 50.20 mm
TOUCH CONTROLLER
XPT2046

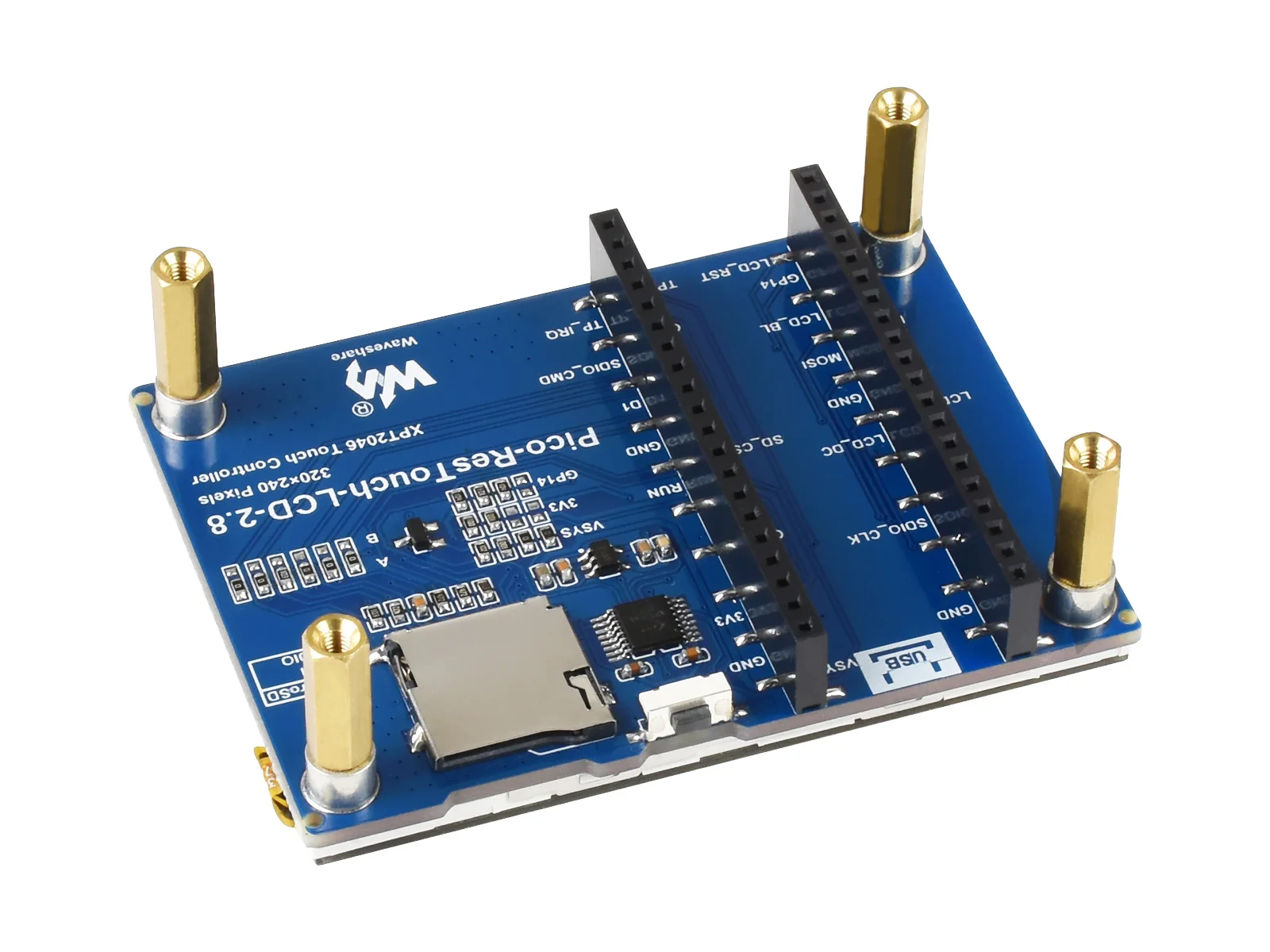

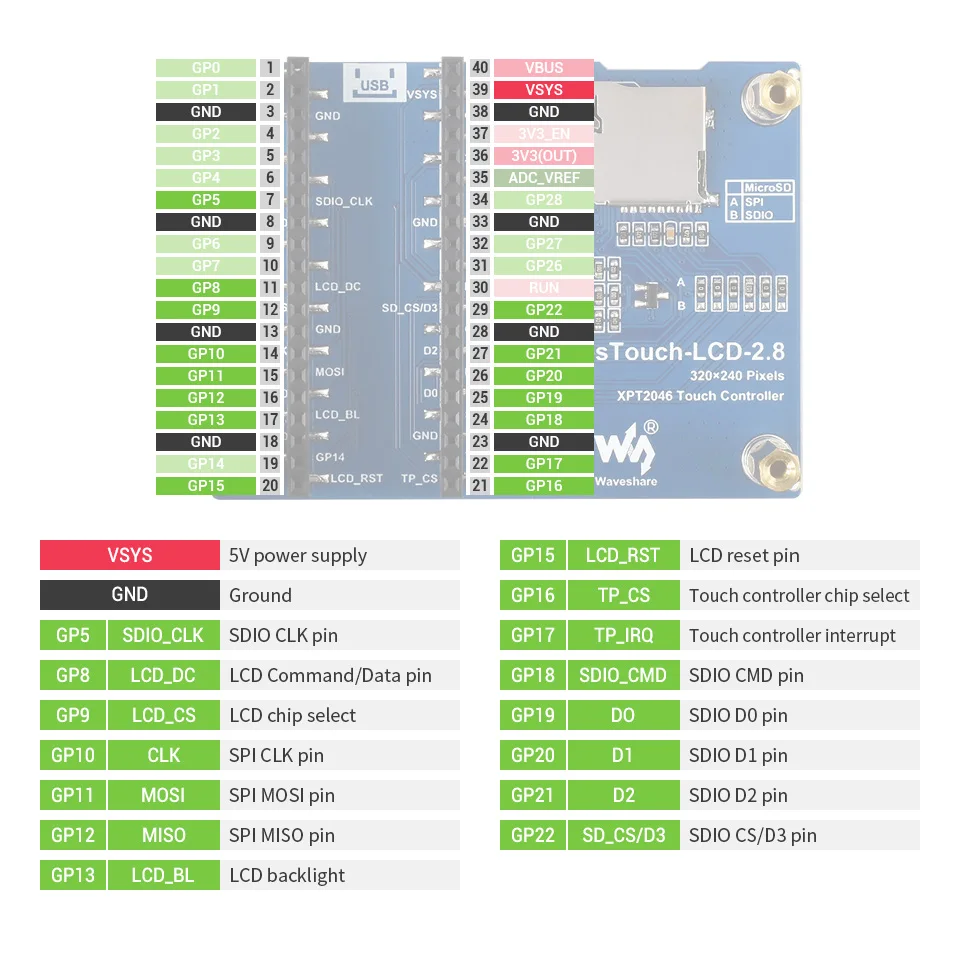

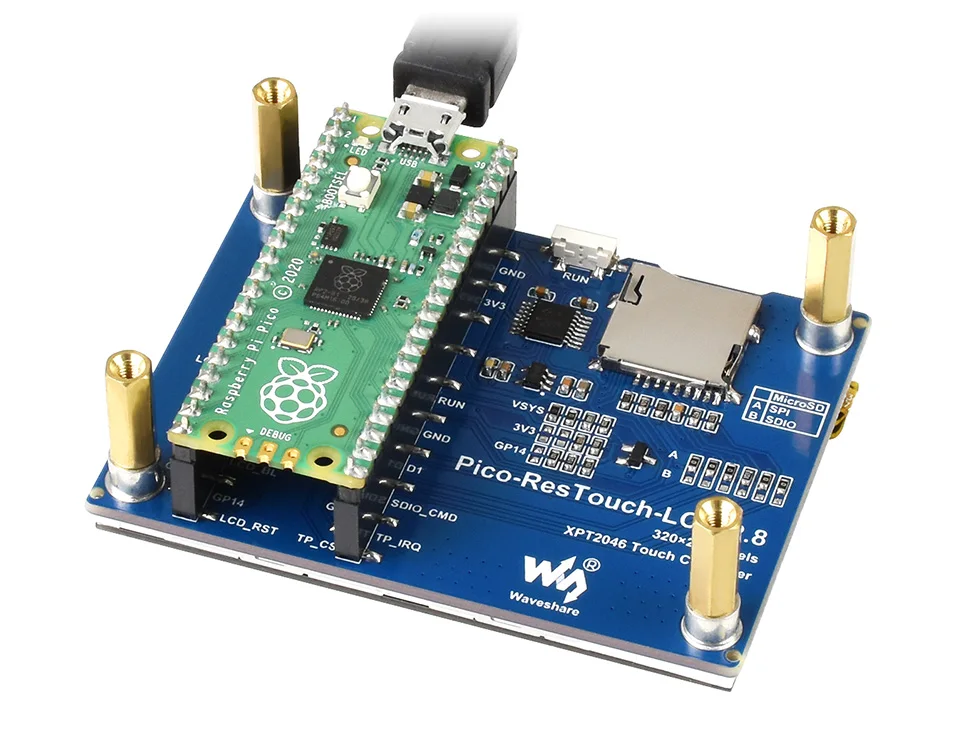

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Picois NOT included.

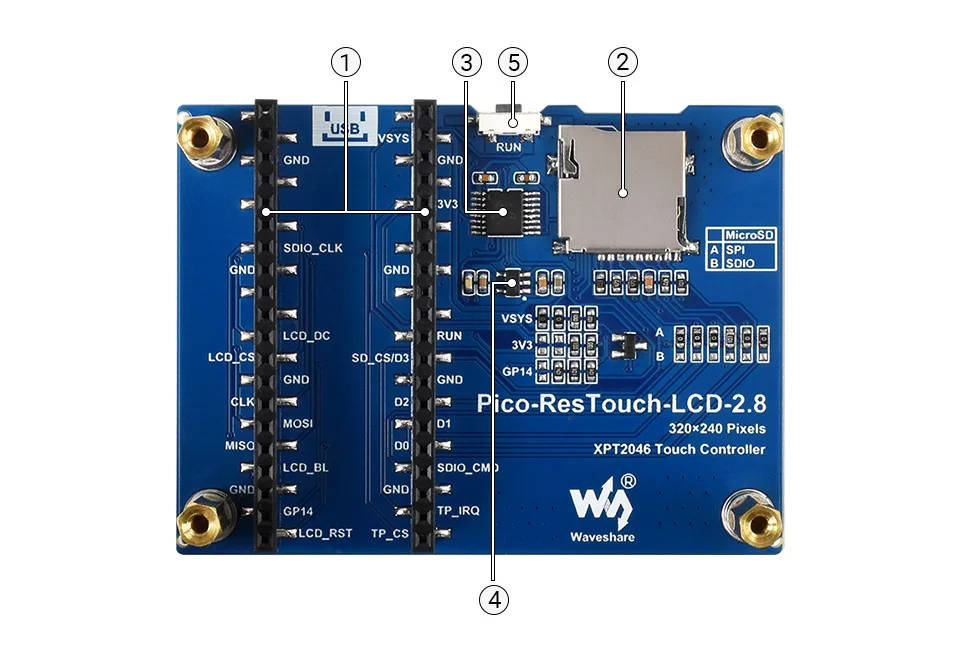

Rapsberry Pi Pico header
MicroSD card slot
3.XPT2046
resistive touch controller
4.RT9193-33
3.3V linear voltage regulator
5.Pico reset button
WIKI:www.waveshare.com/wiki/Pico-ResTouch-LCD-2.8
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
PART NUMBER
TYPE
DISPLAY COLOR
PIXELS
DISPLAY SIZE (MM)
BUS
DRIVER
DIMENSIONS (MM)
TOUCH
Pico-LCD-0.96
IPS
65K
160��80
21.70��10.80
SPI
ST7735S
52.00��25.00
Pico-LCD-1.14
IPS
65K
240��135
24.91��14.86
SPI
ST7789
52.00��25.00
Pico-LCD-1.3
IPS
65K
240��240
23.40��23.40
SPI
ST7789
52.00��26.50
Pico-LCD-1.8
TFT
65K
160��128
35.04��28.03
SPI
ST7735S
52.00��34.50
Pico-ResTouch-LCD-2.8
IPS
262K
320��240
57.60��43.20
SPI
ST7789
70.20��50.20
��

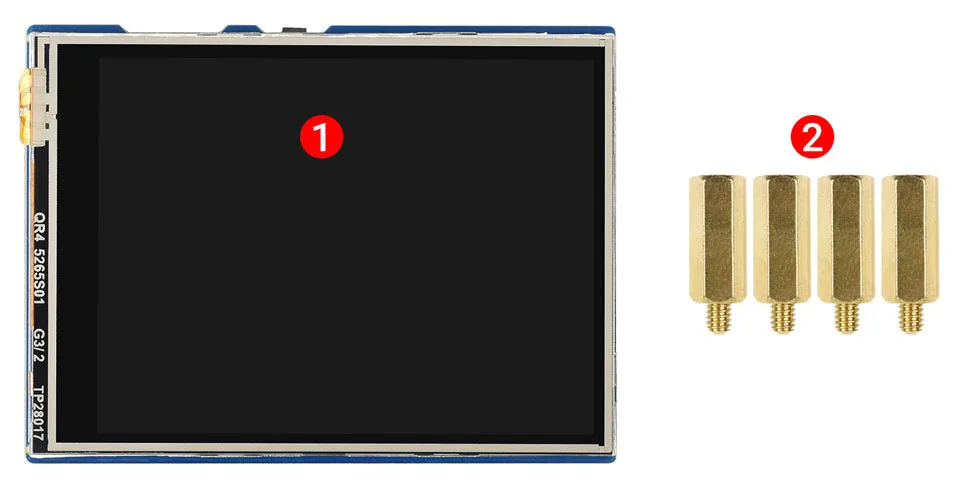

PACKAGE CONTENT
Weight:0.051 kg
Pico-ResTouch-LCD-2.8 x1
Standoffs pack x1
