Descripción

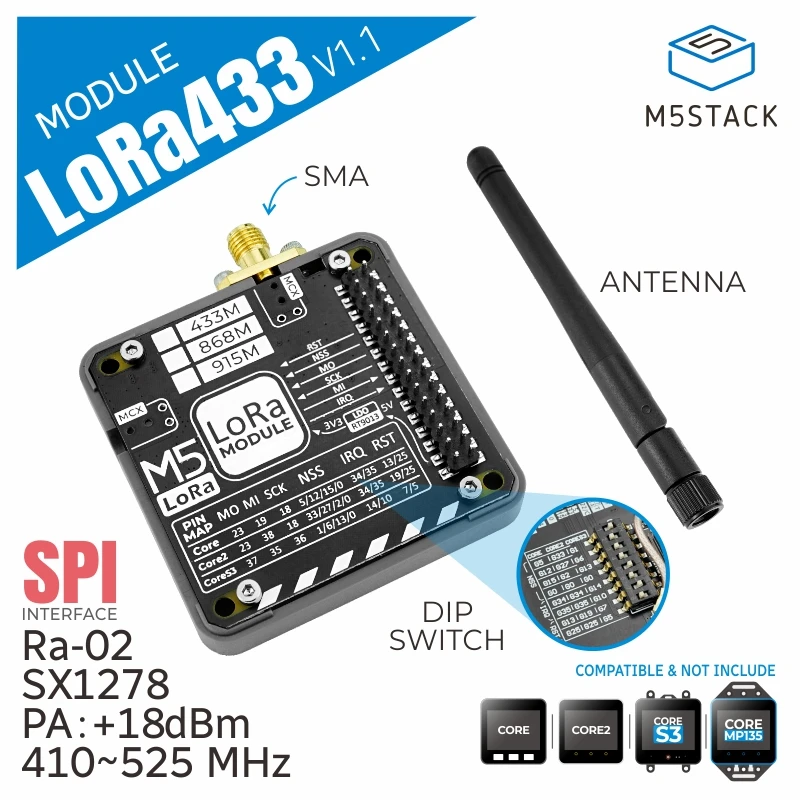

The LoRa433_V1.1 Module is a LoRa communication module within the M5Stack stacking module series, operating at a frequency of 433MHz and utilizing the Ra-02 module (chip SX1278) solution. This module comes standard with an external SMA antenna and also reserves two patch MCX antenna socket interfaces, allowing users to freely switch between different types of antennas according to their needs. Additionally, the module features a DIP switch, enabling users to flexibly switch between different communication pins, allowing for the use of multiple stacks simultaneously, offering more customization possibilities and flexibility. It is suitable for applications in remote monitoring, smart cities, home and industrial automation, and Internet of Things (IoT) devices.
Features
* Serial communication protocol: SPI
* Operating frequency:410MHz~525MHz
* Supports FSK,GFSK,MSK,GMSK,LoRa™ and OOK modulation modes
* Reception sensitivity: as low as -140 dBm
* Programmable bit rate up to 300Kbps

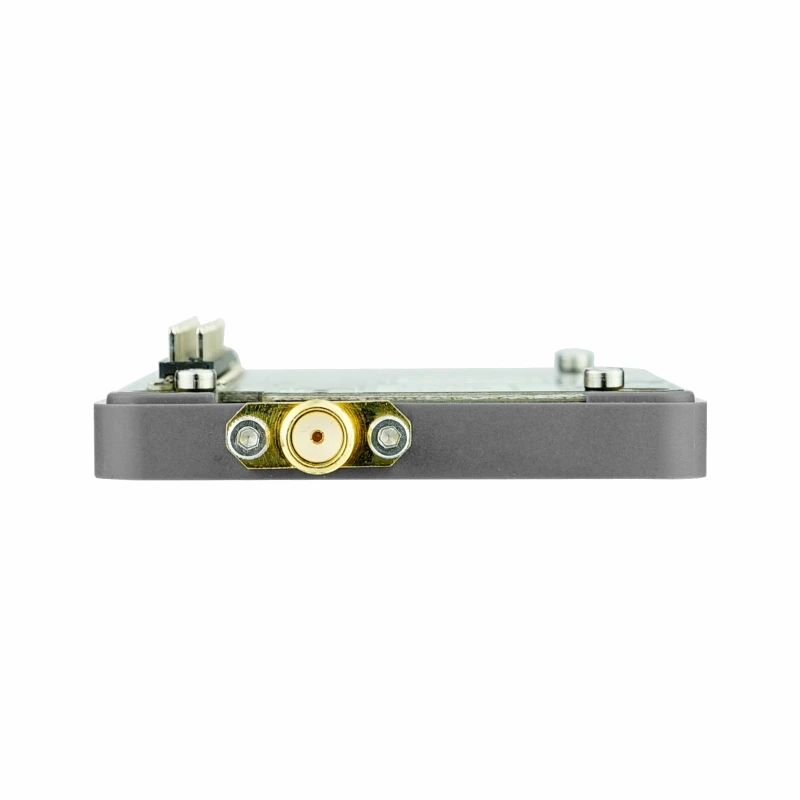

* External antenna interface

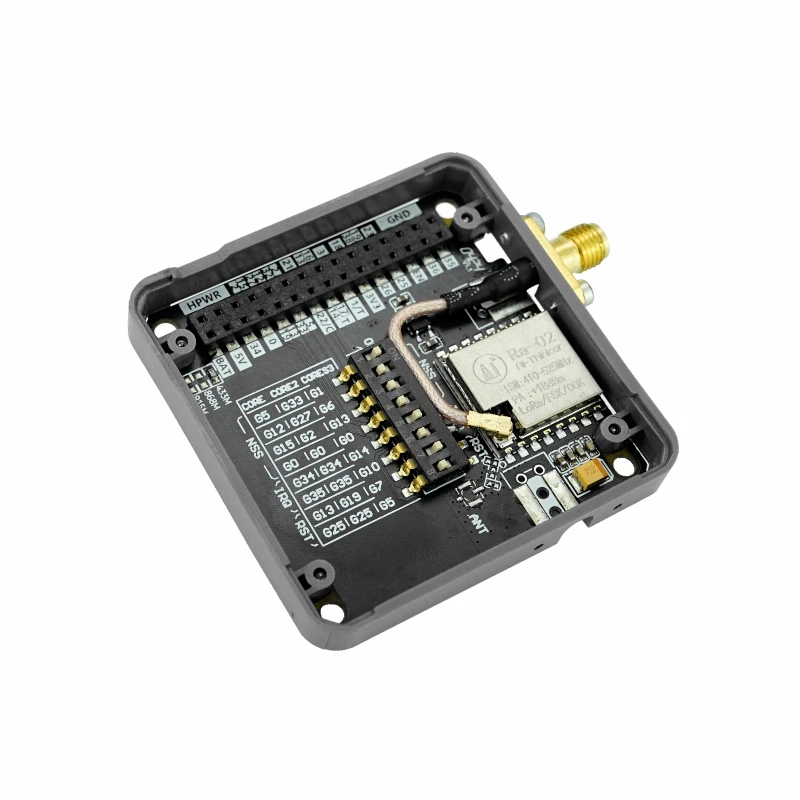

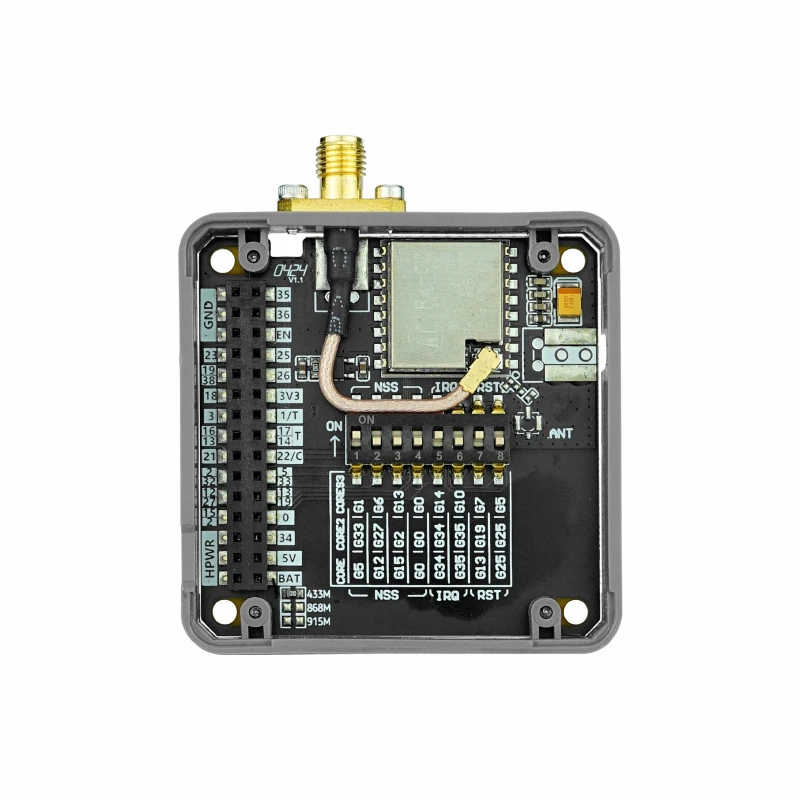

* Built-in dip switch toggle pin
* Development platform: Arduino, Micropython, UIFlow(Blockly)

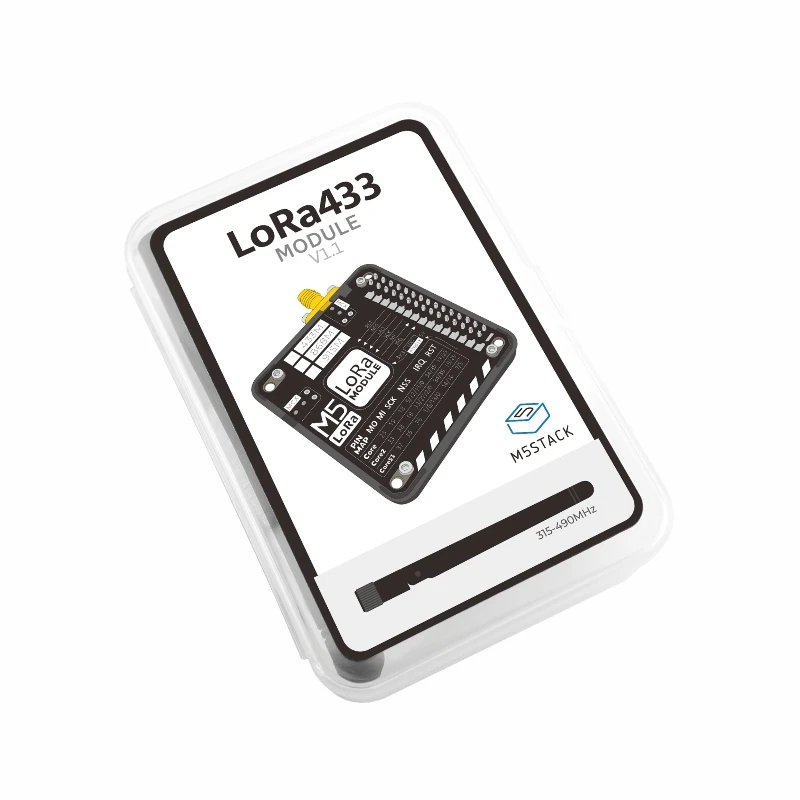

Includes
1x LoRa433_V1.1 Module
1x SMA External Antenna
Applications
* Remote Control
* Intelligent city
* Home and industrial automation
* Internet of Things (IoT) devices

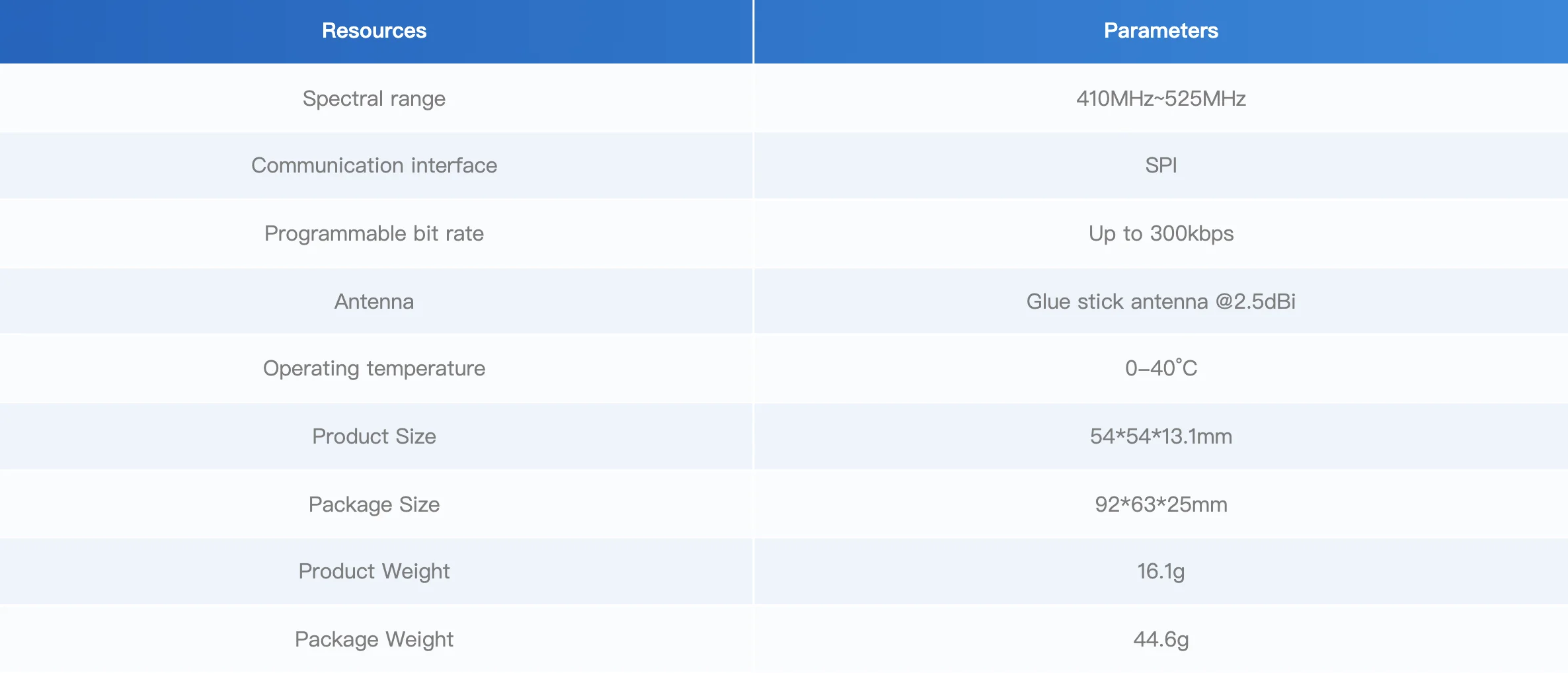

Specification

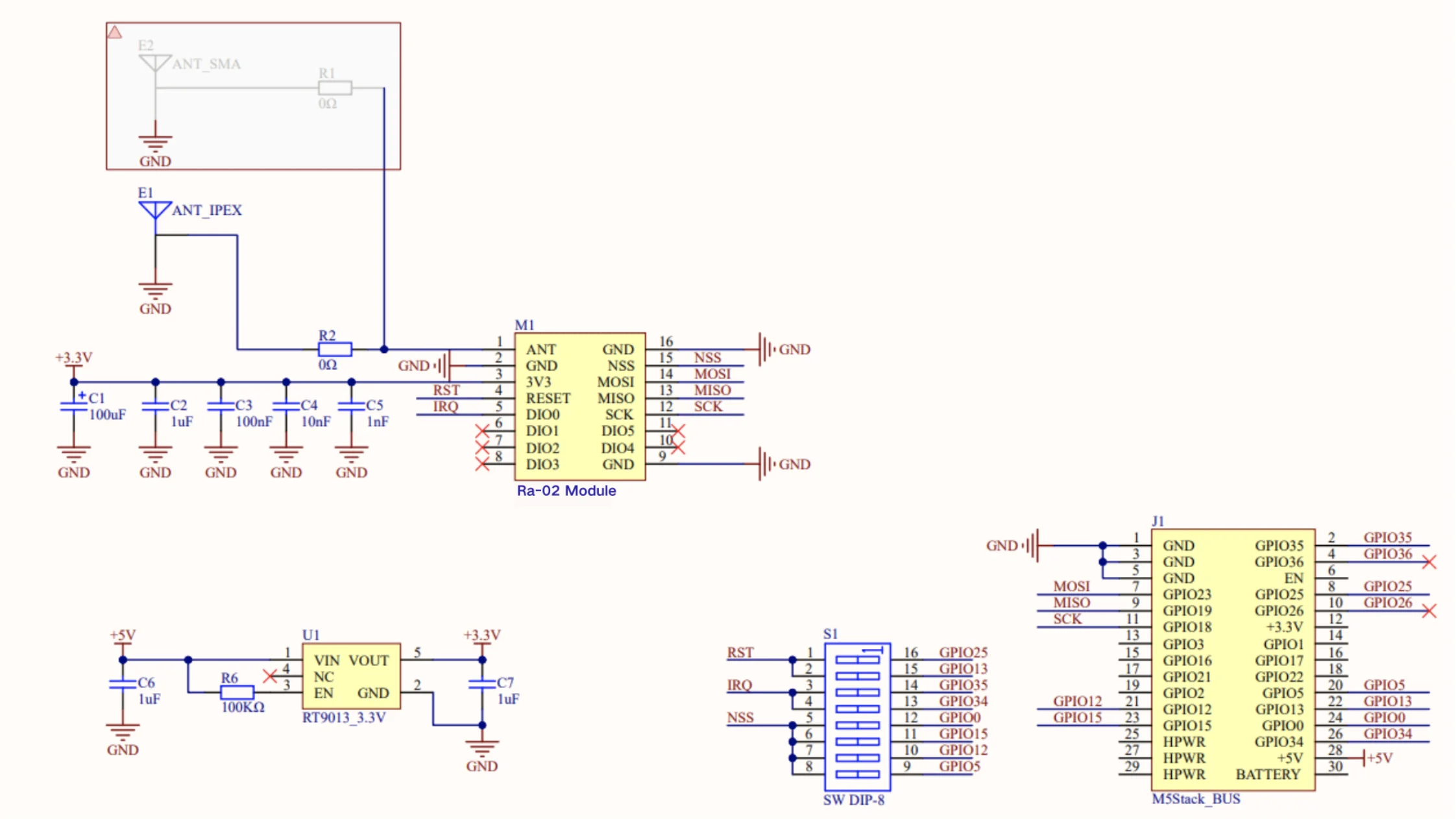

Schematic

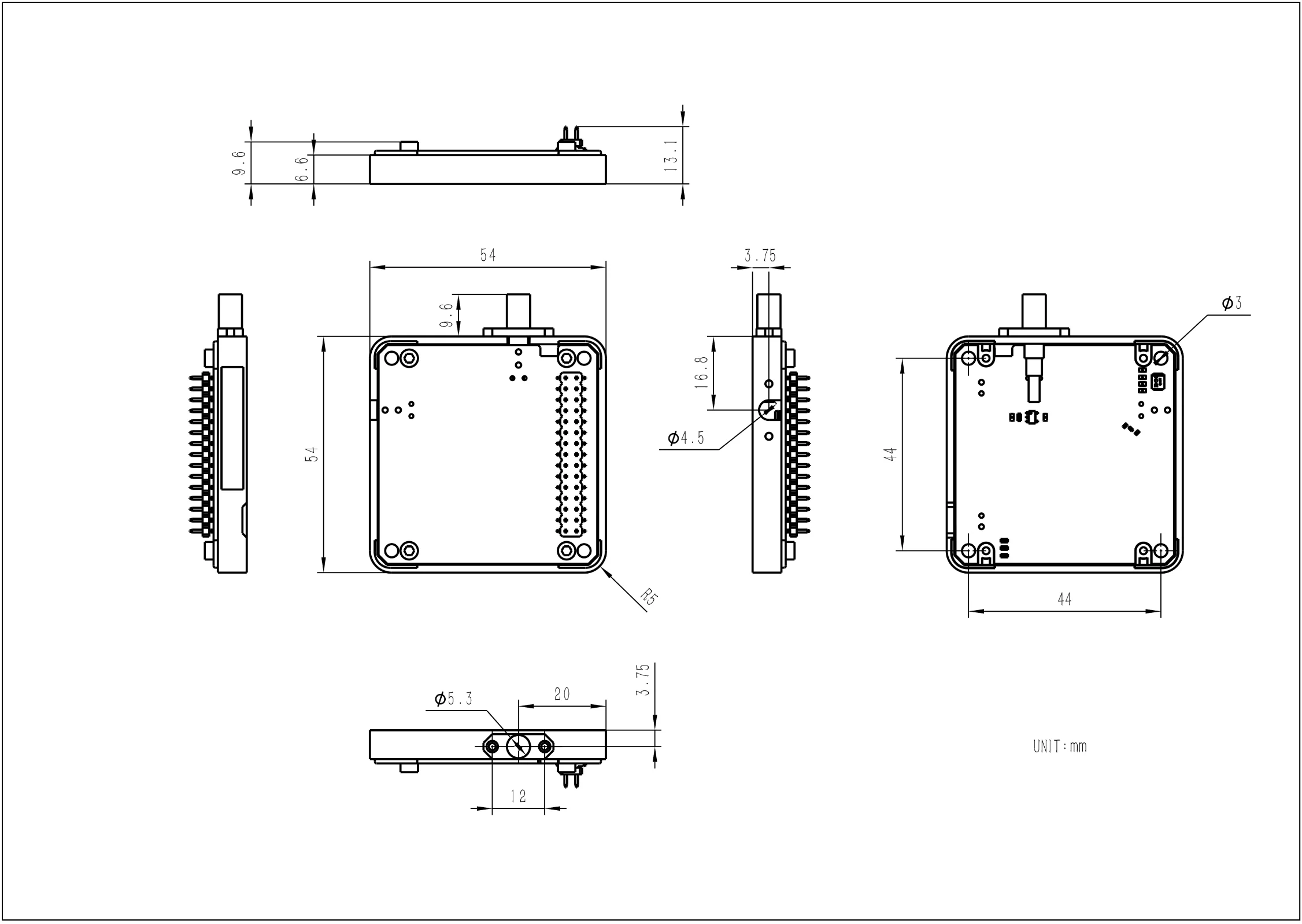

Module Size

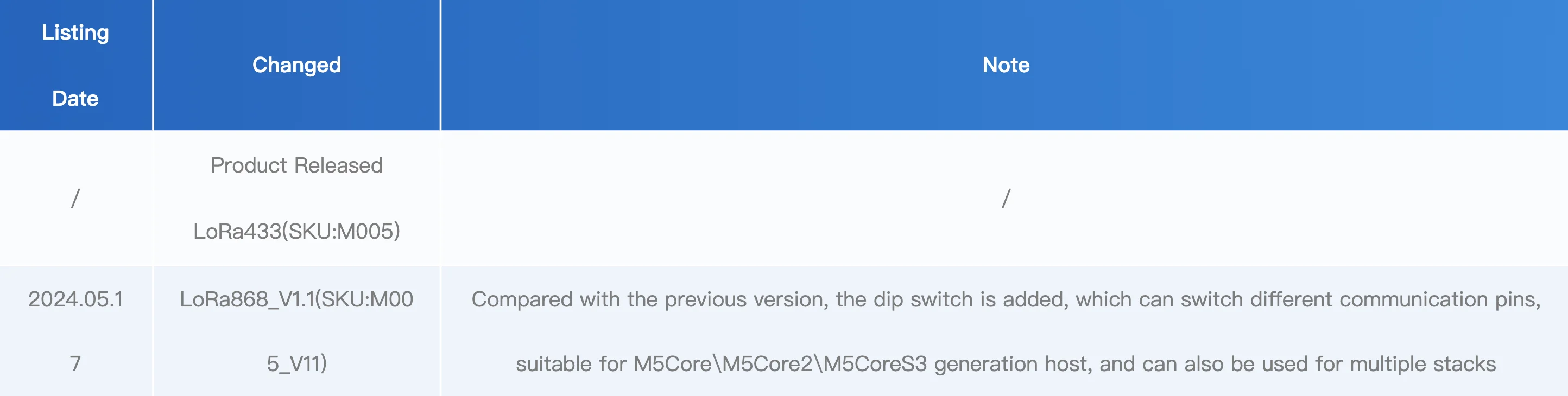

Version Change
