Descripción

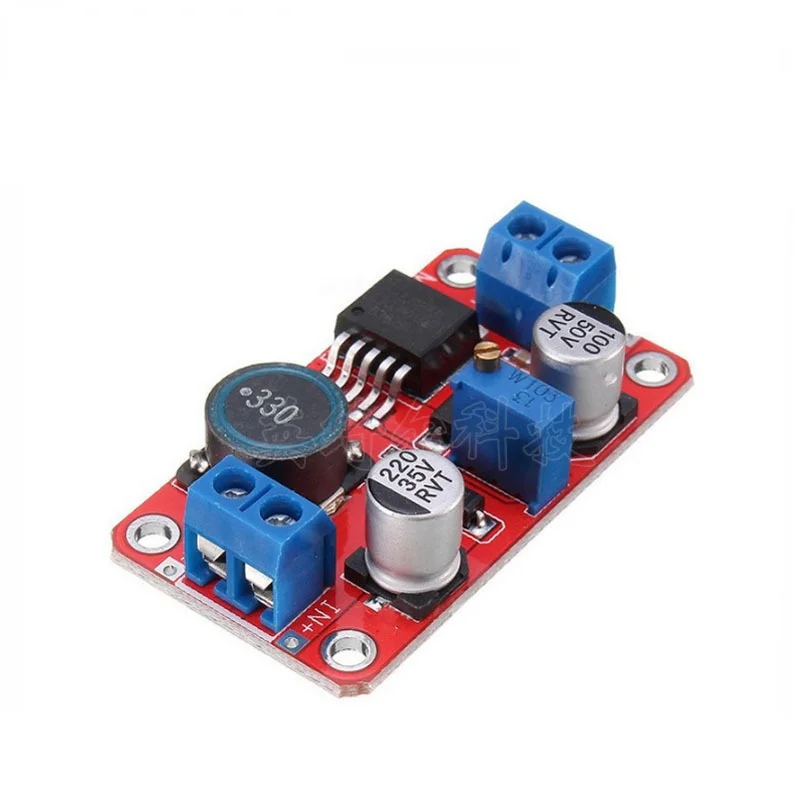

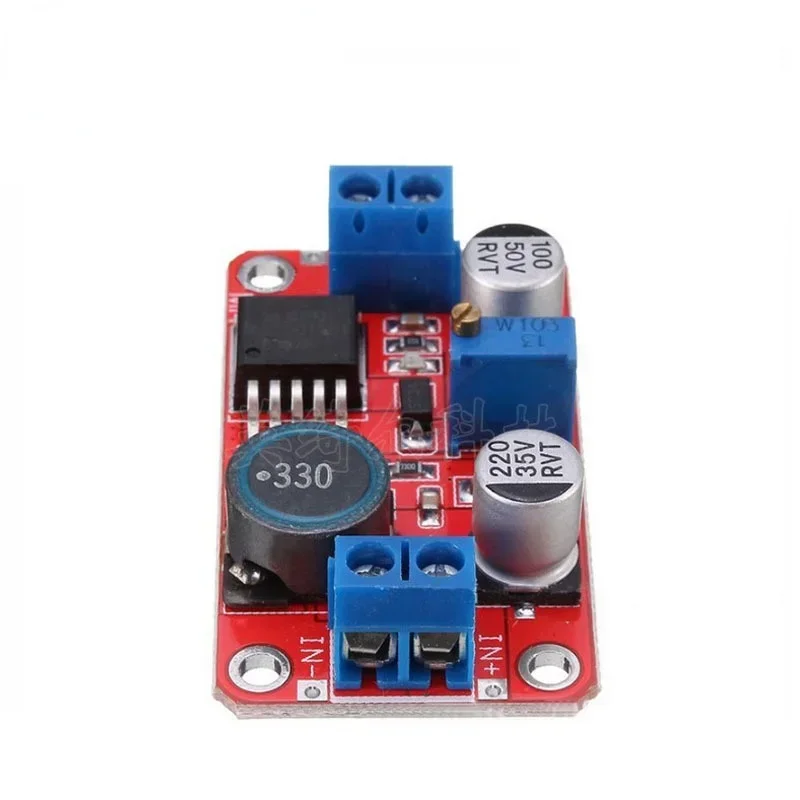

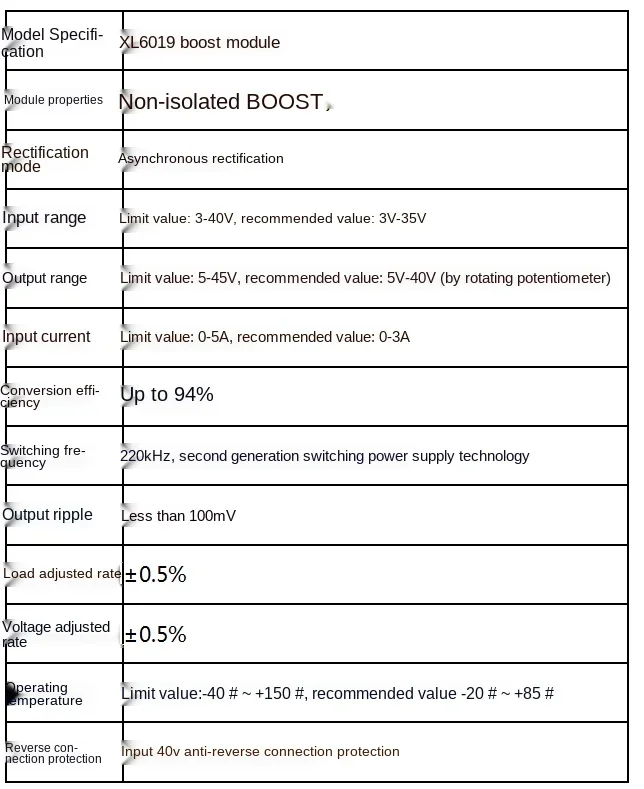

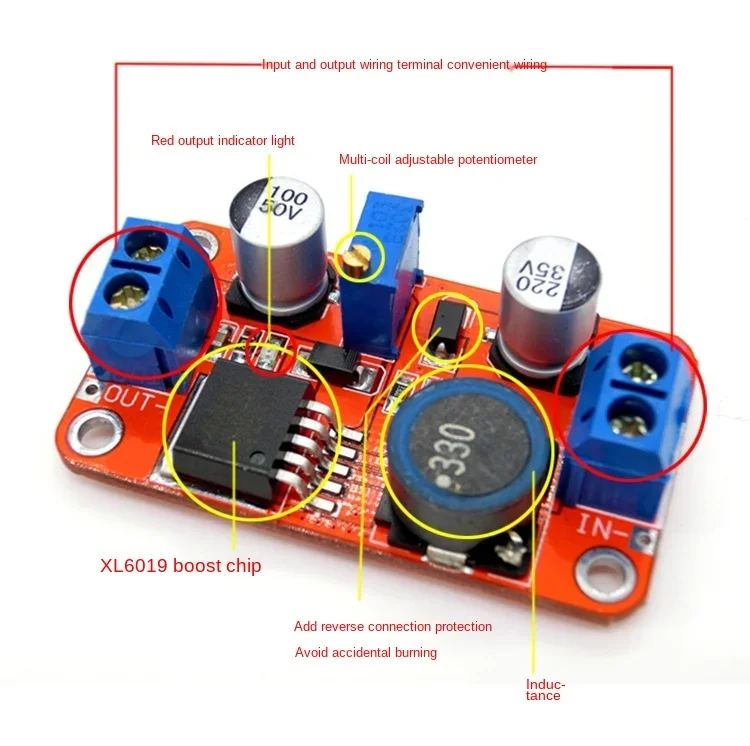

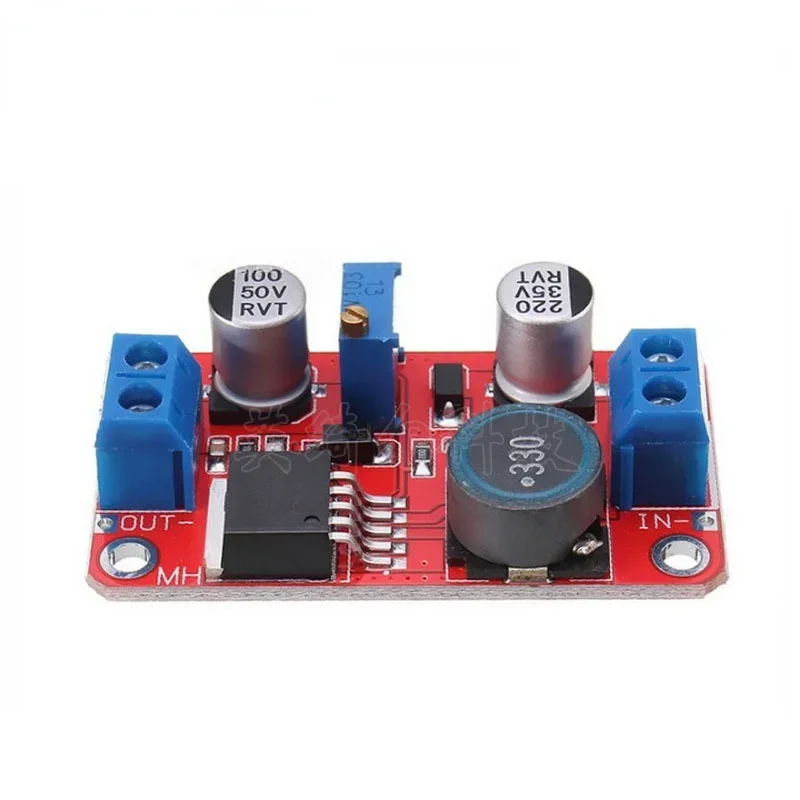

DC-DC Power Supply Module Boost Module Step-up Voltage Converter Voltage Regulator XL6019 Adjustable Output 1. The conventional BOOST fully integrated constant voltage output solution is adopted, and the internal MOSFET is integrated, with fewer peripheral components, and low system cost;
2. Wide voltage range input, the input voltage can reach 35V;
3. The output voltage is adjustable, and the high can support 40V;
4. Built-in over-temperature protection and over-current protection, a complete set of reliability protection circuits, high reliability;
5. The conversion efficiency of the system can reach more than 90%, which is convenient for thermal design;
6. TO263-5L standard package, suitable for boost applications within 30W.
To
To

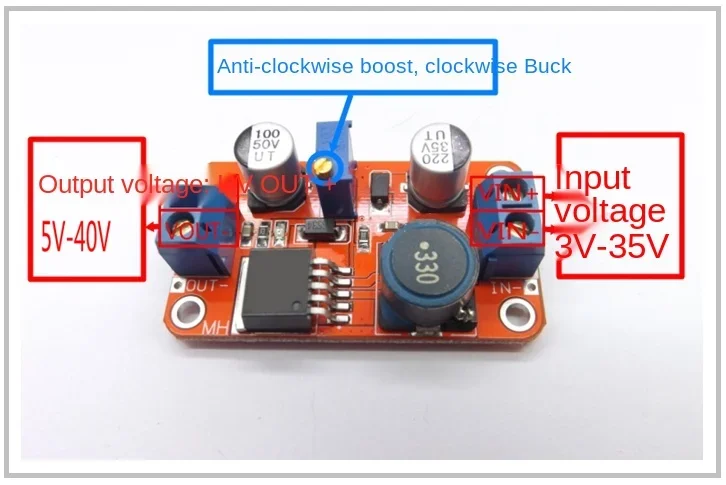

1. Connect the power supply (3-35V), the power indicator light is on, and the module is working normally.
2. Adjust the blue potentiometer knob (generally turn counterclockwise to boost, clockwise to buck) and use a multimeter to monitor the output voltage until it reaches the required voltage.
To
1. For long-term work, it is recommended to use the current within 2.5A, and add the scattered
Heater (output above 10W); because it is a boost module, in order to ensure stable output
Please keep a small 1.5V differential pressure.
To
1. Vehicle-mounted stabilized power supply, you can adjust the potentiometer by connecting the input terminal of this module to the power supply, and the output voltage can be adjusted between 5V-30V, and it can supply power for your mobile phone, MP3, MP4, PSP charging and many other devices , Very simple and convenient.
2. Supply power to electronic equipment. When the equipment needs 5V-35V power supply and the corresponding voltage power supply in the hand, this module can be used to conveniently adjust the voltage to the required voltage to solve the problem.
3. System working voltage test. This module can be used to debug the working voltage range of various voltage test systems when doing projects, which is very easy and convenient.
