【Note】
[] Do not include Raspberry Pi Compute Module 4 and Other motherboards
【Overview】

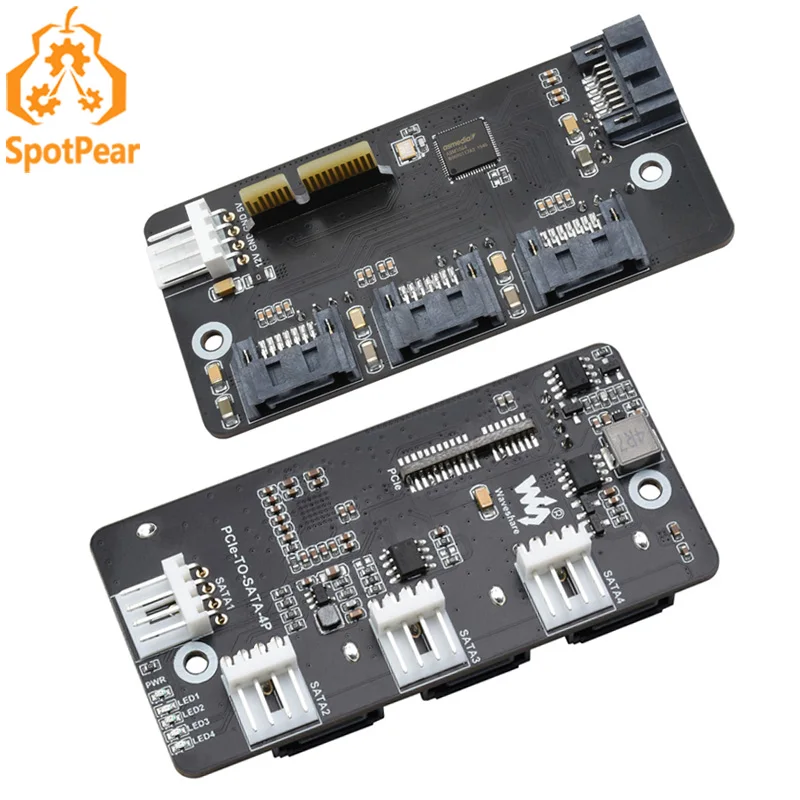

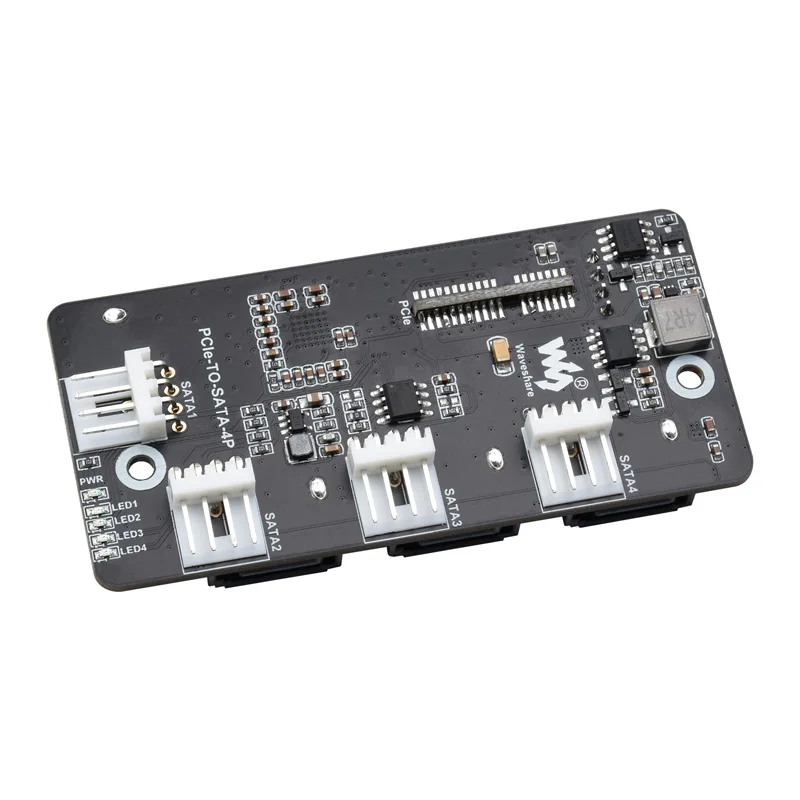

[] PCIe to 4-channel SATA expansion card supports PCIe Gen3 x1, the maximum speed of a single channel is 6Gbps.
【Features】
[] Onboard SATA host controller (AHCI) with upstream PCle Gen3 x1 and downstream four SATA Gen3 ports. It's a low latency, low cost and low power AHCI controller. With four SATA ports and cascaded port multipliers, it can enable users to build up various high-speed IO systems, including server, high-capacity system storage or surveillance platforms
[] Supports 1-ch PCI Express
[] Four power-saving modes of L0s/L1/L23/L3
[] Support L1 sub-state deep power saving mode
[] Supports SRIS, AER, LTR
[] Supports SATA LED
[] Supports NCQ & AHCI SPEC 1.4
[] Four SATA3.0 (6Gbps) ports
[] Supports the switching based on the port multiplier commands
[] Supports SATA Partial/Dormancy power management
【Supported Boards Introduction】
[] * for reference only, Compute Module 4 IO Board and Compute Module 4 PoE 4G Board are NOT included.

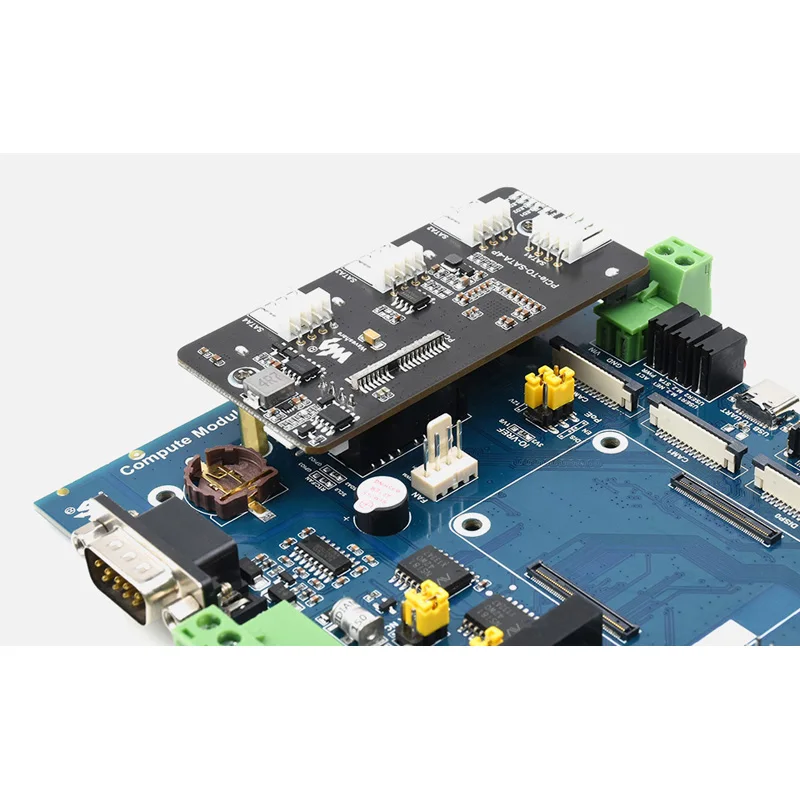

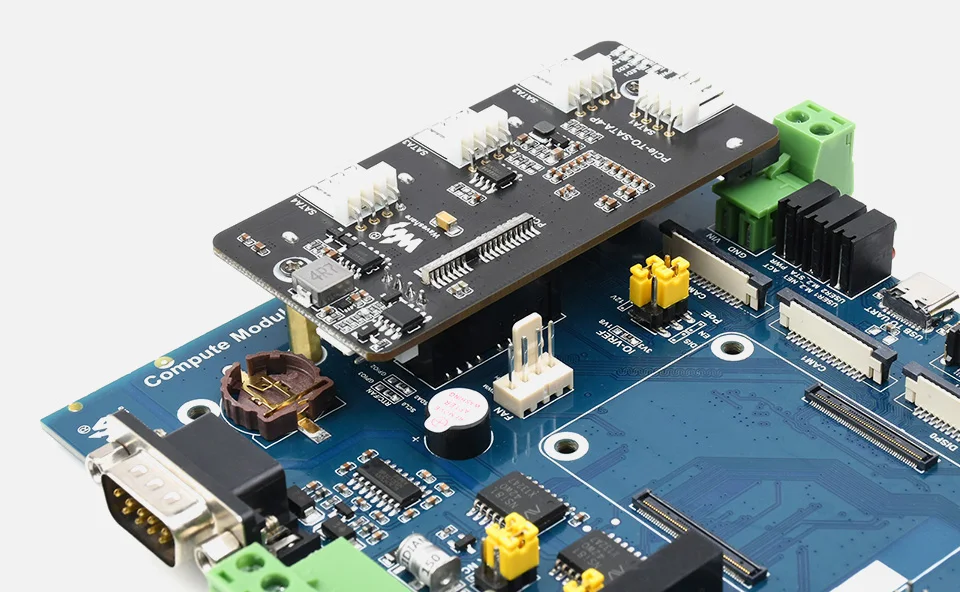

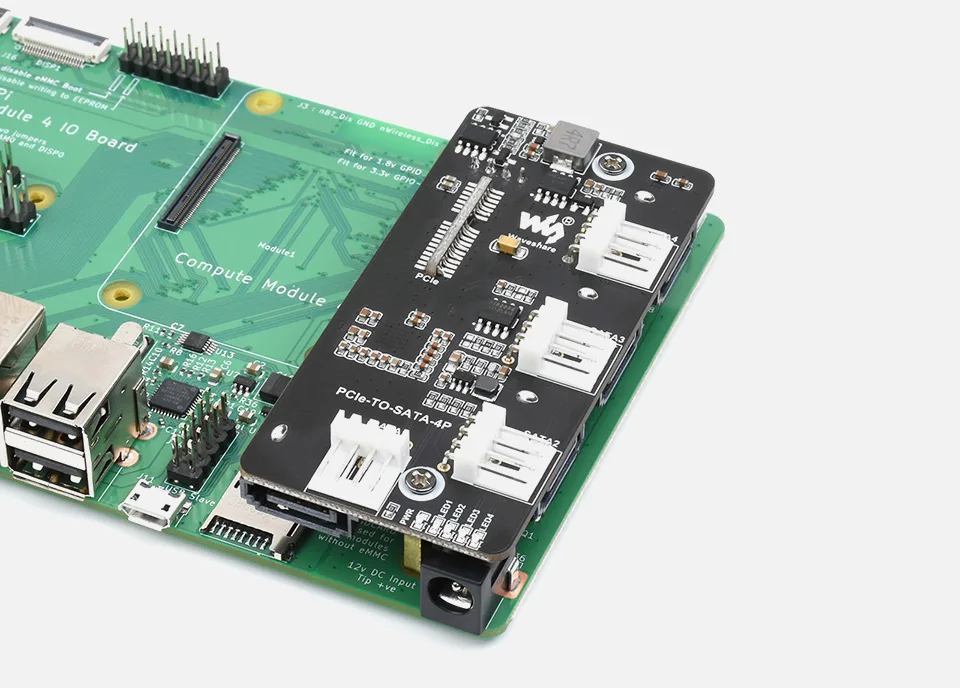

[] Working With Official CM4 IO Board
[]Working With CM4 IoT Industrial Control Base
【PCIe To 4-Ch High-Speed SATA 3.0】
[] Compliant With SATA3.0 (SATA Gen3) Standard, Each Channel Up To 6Gbps
[] Note: the module is PCIe Gen 3 interface but the Raspberry Pi CM4 is PCIe Gen 2 interface, the max speed is 5Gbps.

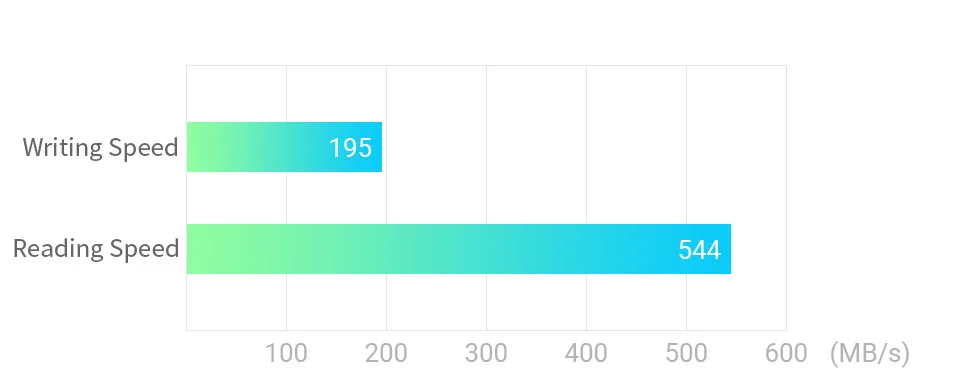

【Speed Test】
[] *the above data are from Waveshare Lab, for reference only.

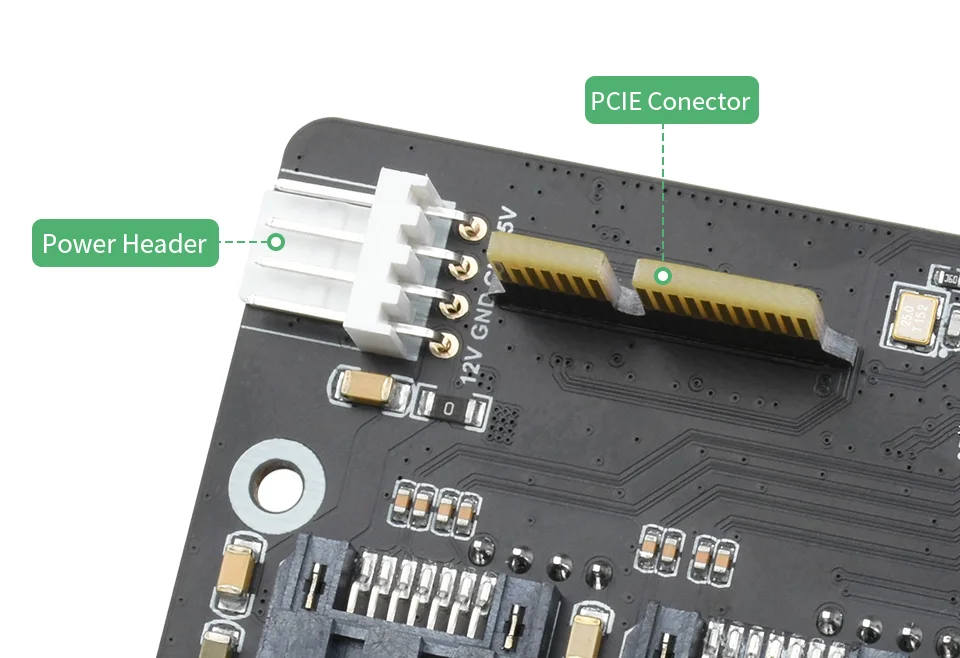

【Flexible Power Supply Option】
[] In Additional To The Power Supply From PCIe Interface, There's Also Power Header For External 5V/12V Input

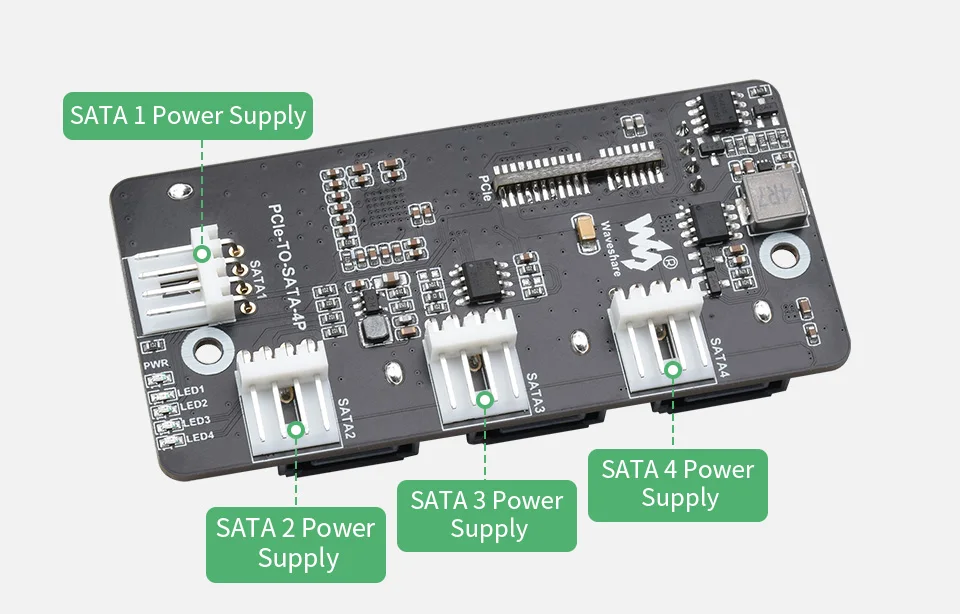

【Power Supply Interfacs For SATA】
[] Supports 5V/12V SATA Hard Disk, Not Support M.2 Interface
【High-Performance Controller】

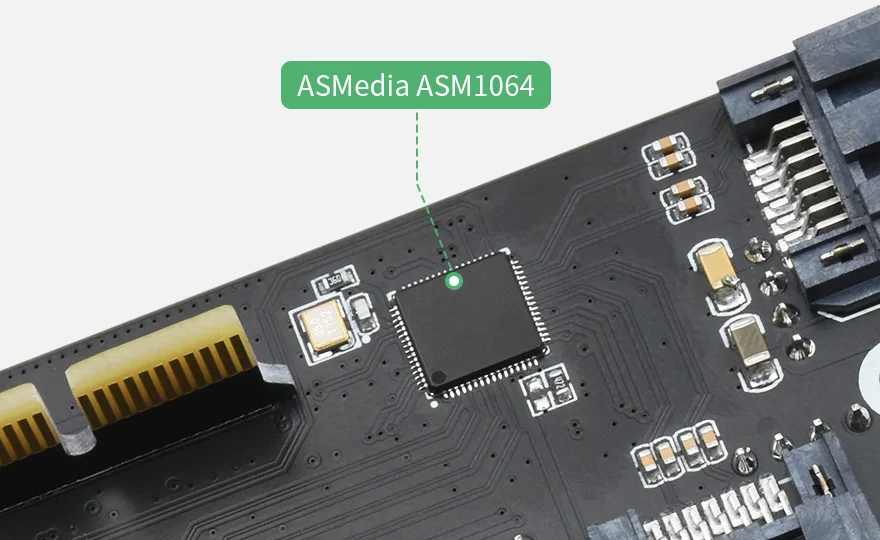

[] Equipped With ASUS Subsidiary Xiangshuo ASMedia ASM1064 Chip
[] Stable And High-Speed Transmission

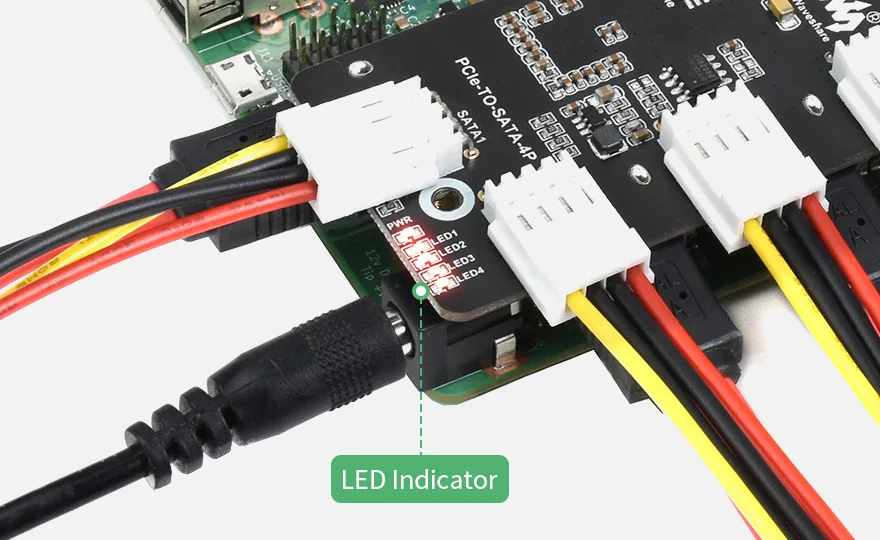

【LED Indicators】
[] Always On When Inserting The SATA Hard Disk, And Flashes When Reading And Writing Data

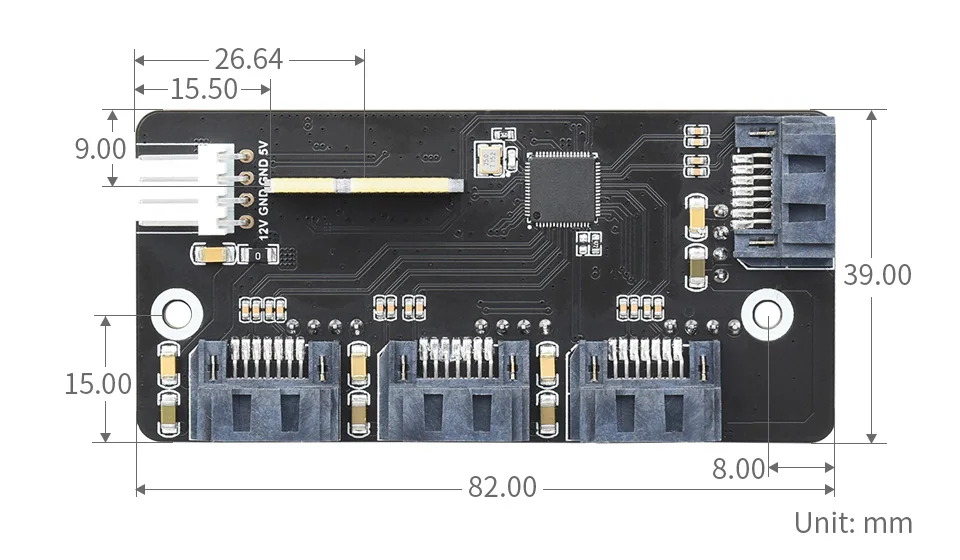

【Outline Dimensions】

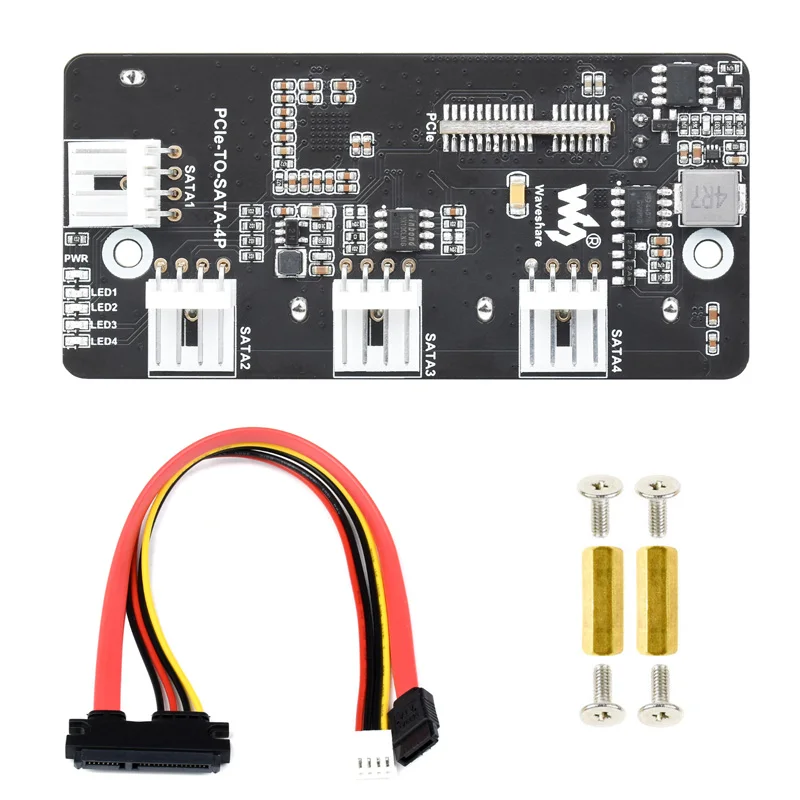

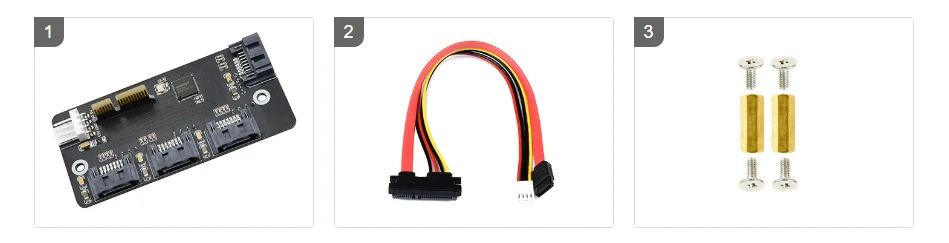

[] PCIe-TO-SATA-4P x1
[] SATA Adapter Cable x4
[] Screws pack x1
