Overview

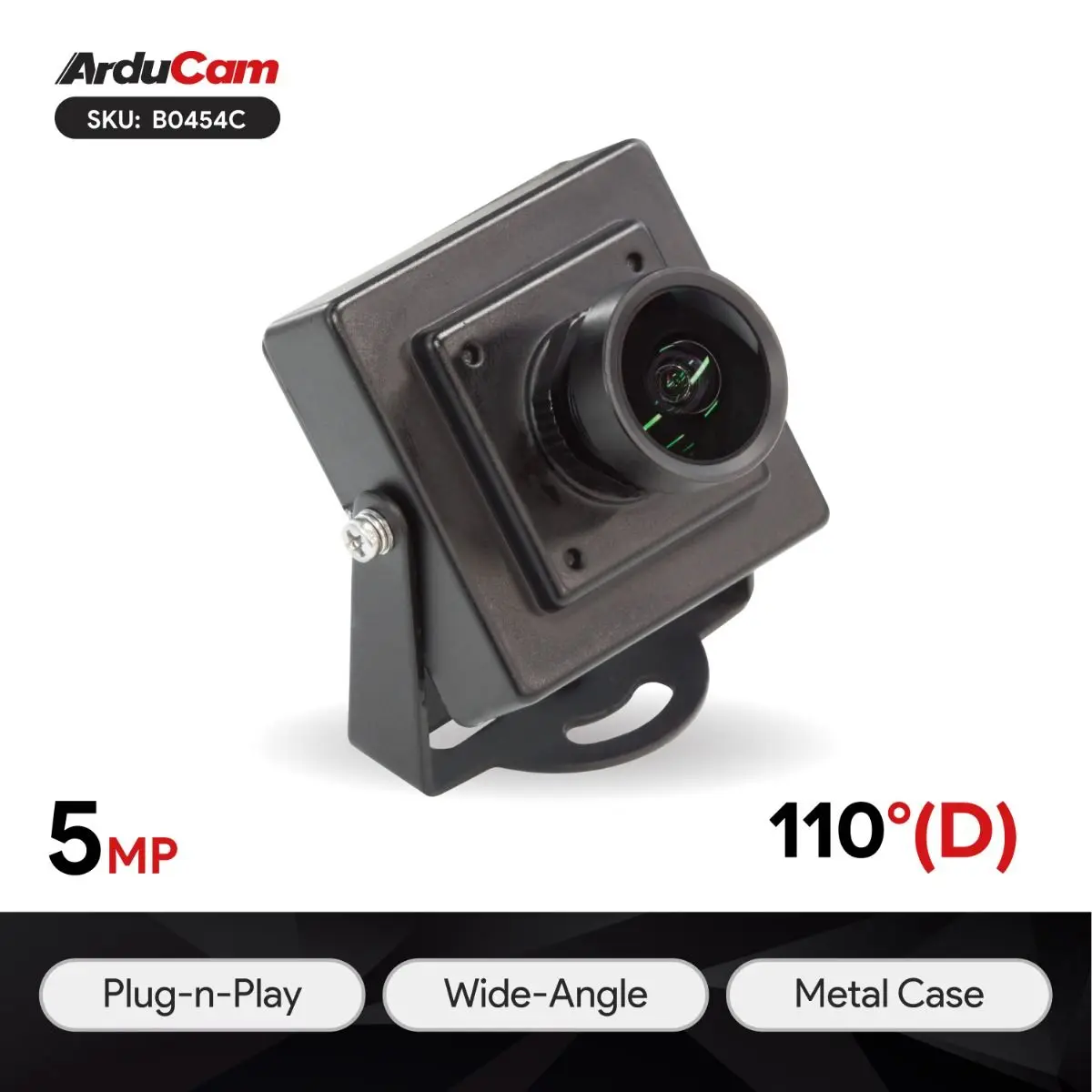

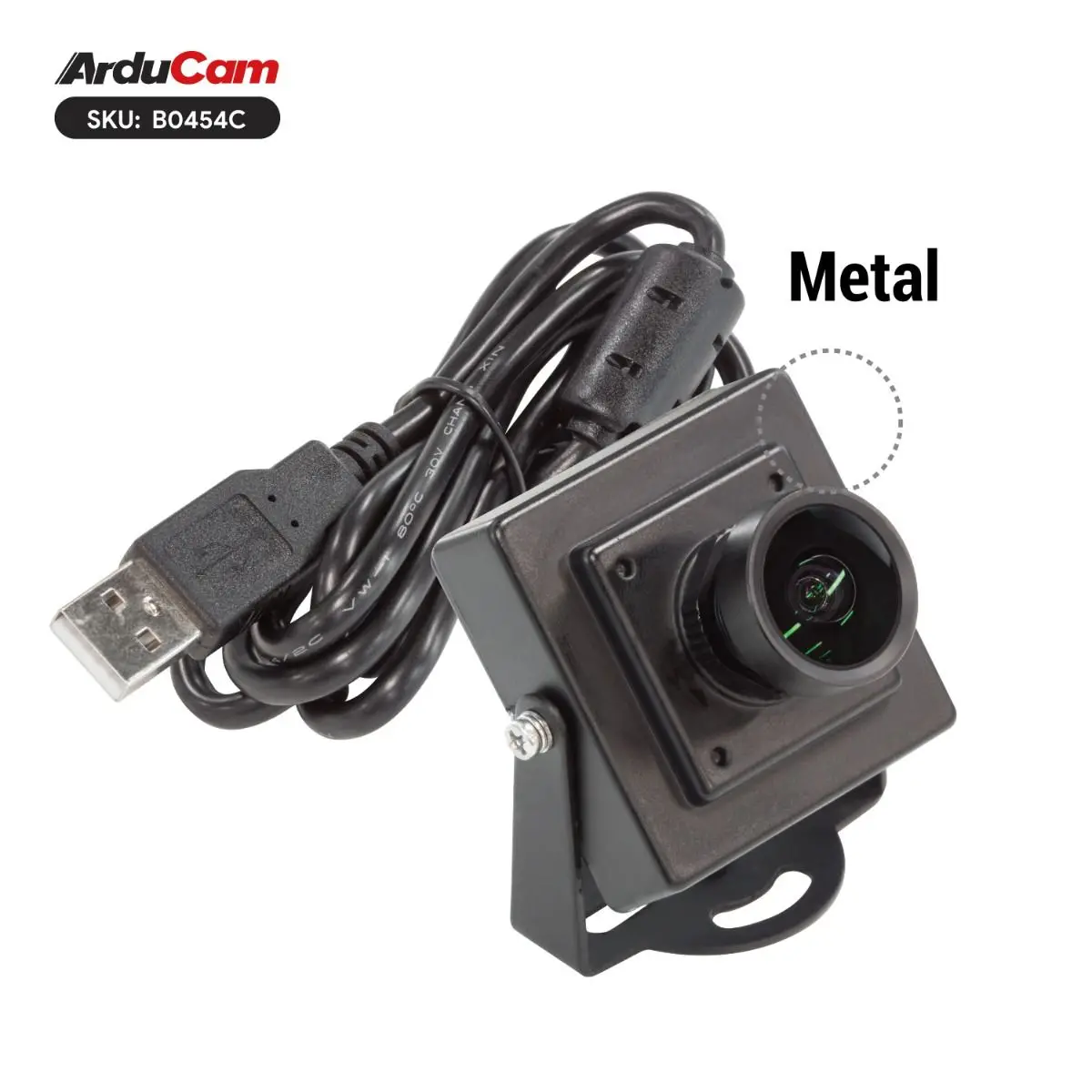

This camera is based on 5MP OV5648 USB Camera Module. The max resolution&frame rate is 2592(H)x1944(V)@30fps. Besides, we have equipped the camera with Manual Focus M12 Lens and an elegant metal camera enclosure. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 110°(D)x95°(H)x76°(V) M12 lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
Applications
Home video surveillance system
Live streaming
Videoconference
Monitoring 3D printer
Dashcam
Features
Ultra HD Resolution: This camera adopts the 5MP OV5648 Color COMS sensor for sharp images and accurate color reproduction.
Wide Angle: Assembled with a 95-degree horizontal view angle M12 lens with IR-cut filter, which provides a much wider Field of View compared to other lenses.
Frame Rates: MJPG15fps@2592*1944/2048*1536/1600*1200;30fps@1920*1080/1280*960/1280*720/1024*768/800*600/640*360/640*480; YUY22fps@2592*1944/2048*1536;5fps@1920*1080;7.5fps@1600*1200/1280*960;10fps@1280*720/1024*768;20fps@800*600;30fps@640*360/640*480
Plug-n-Play: UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: Highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision applications.
Specifications
SENSOR
OV5648
Resolution
5MP
Color Filter Type
Color
Shutter Type
Rolling shutter
Optical Size
1/4"
Output Format
MJPG/YUY2
Pixel Size
1.4um x 1.4um
Sensor Active Area
2592(H)x1944(V)
Frame Rate
MJPG15fps@2592*1944/2048*1536/1600*1200;30fps@1920*1080/1280*960/1280*720/1024*768/800*600/640*360/640*480; YUY22fps@2592*1944/2048*1536;5fps@1920*1080;7.5fps@1600*1200/1280*960;10fps@1280*720/1024*768;20fps@800*600;30fps@640*360/640*480
Focus Type
Manual Focus
FOV
110°(D)x95°(H)x76°(V)
Lens Mount
M12
F.NO
2.5±10%
E.F.L
2.1
IR Sensitivity
Integral IR-cut filter, visible light only
TV Distortion
20%
Interface
USB 2.0 device
Connector
S4B-ZR
UVC Complaint
No additional drivers required
Operating Voltage
DC 5V +/- 5%
Working Current
Max 300mA
Operating Temp.
-4°F-158°F(-20°C to 70°C)

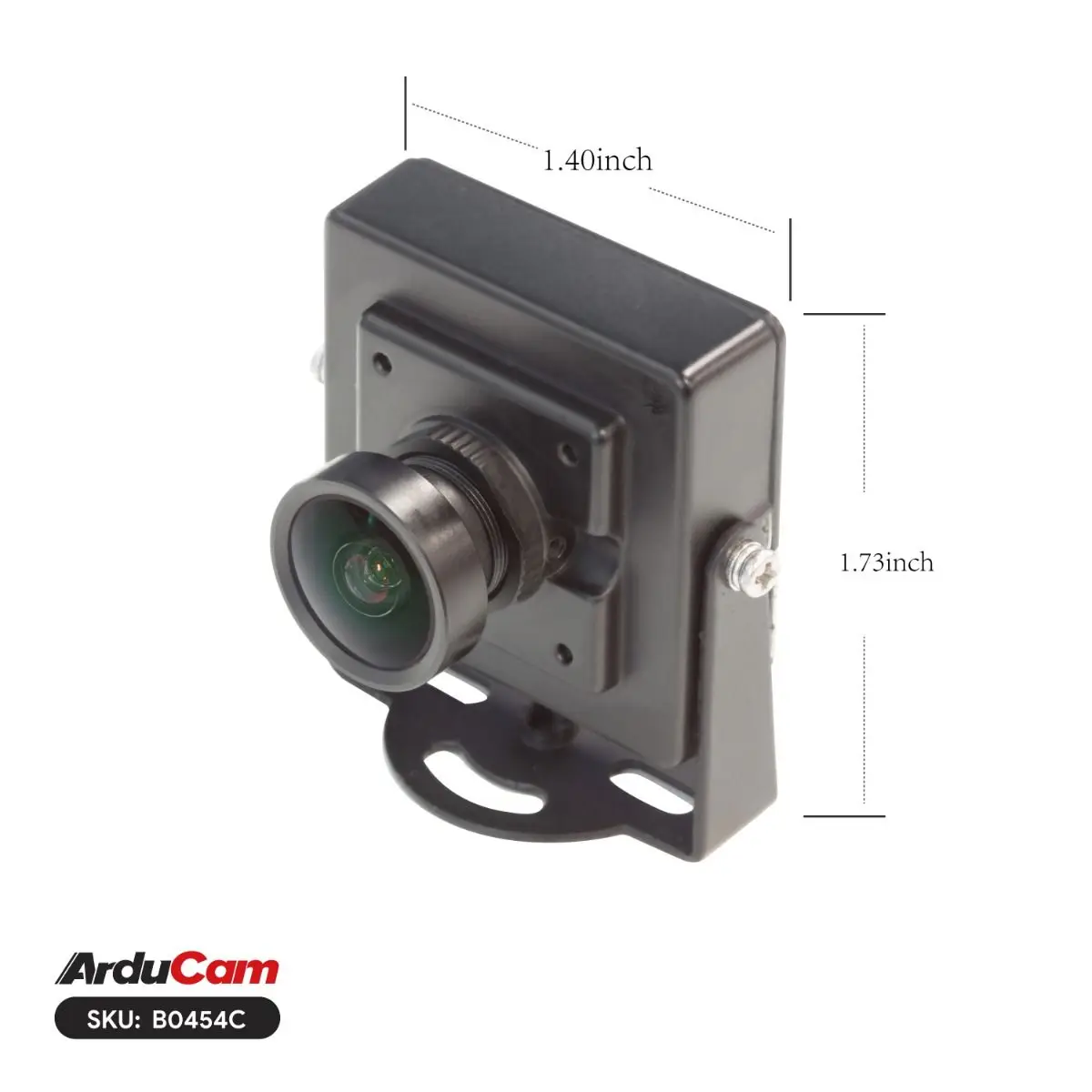

Camera Board Size
38mm x 38mm
Audio
Single Microphone
Supported OS
Windows, Linux, Android, and Mac OS
Sample Application
AMCap-Windows Camera application for Video and Still Capture
UVC Controls
Brightness, Contrast, Saturation, Sharpness, White Balance, Gain

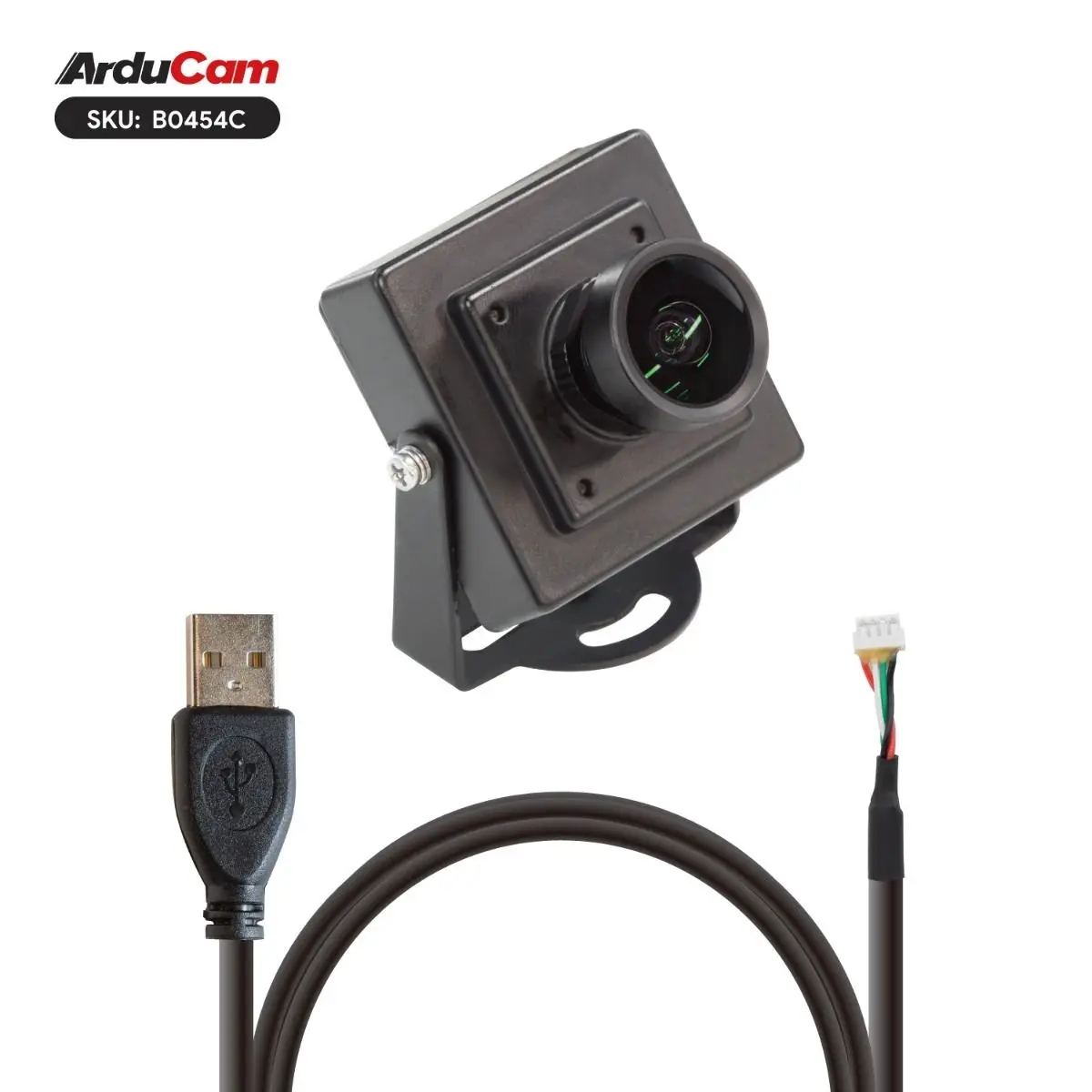

Package Including
1 x Arducam 5MP Wide Angle USB Camera Module
1 x USB Cable (1m)
1 x Quick start guide
