Longitud del Cable
Color
Descripción

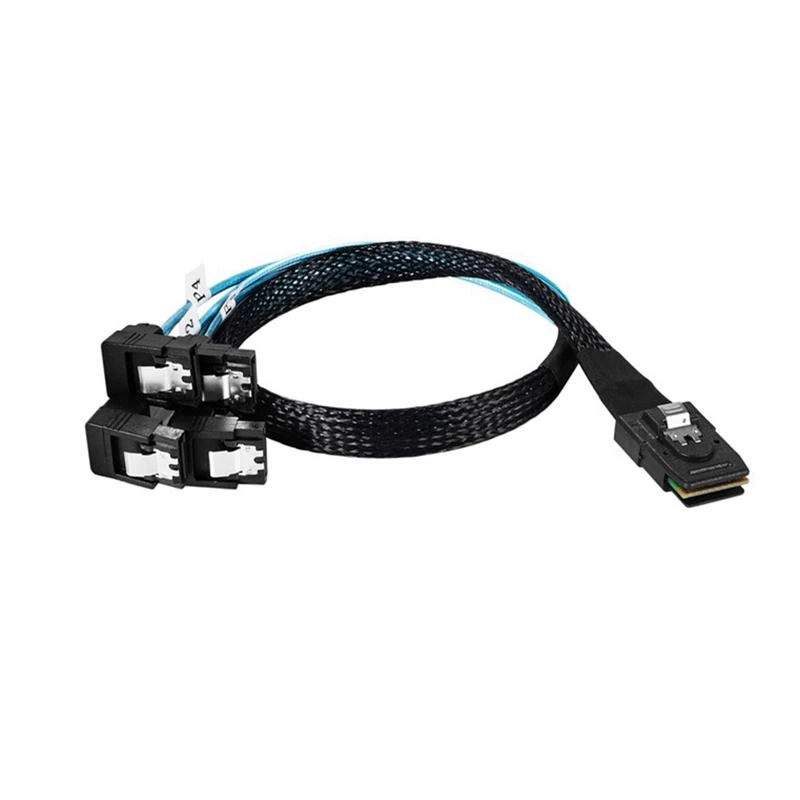

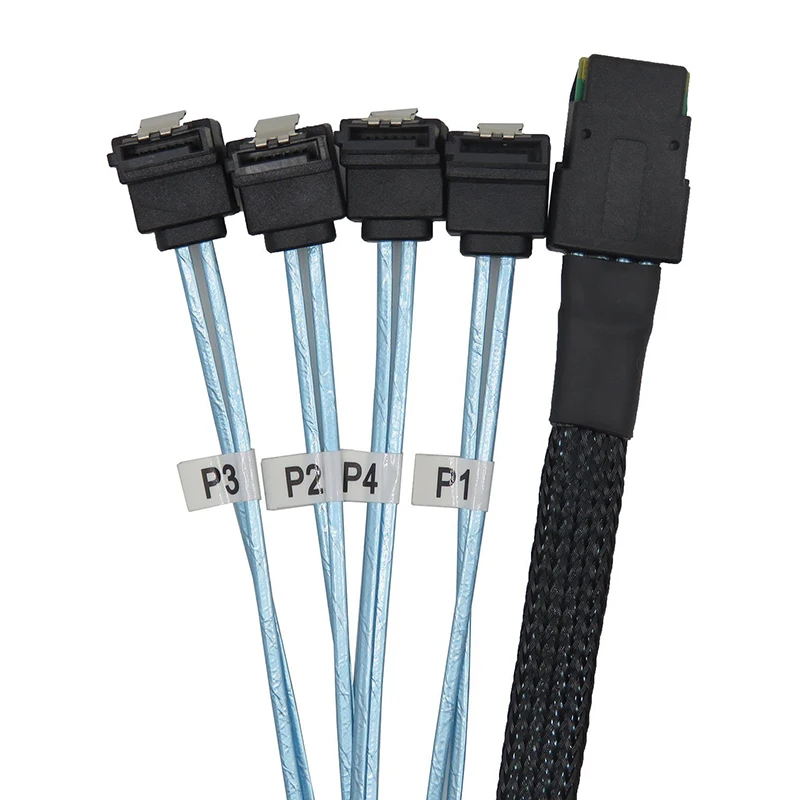

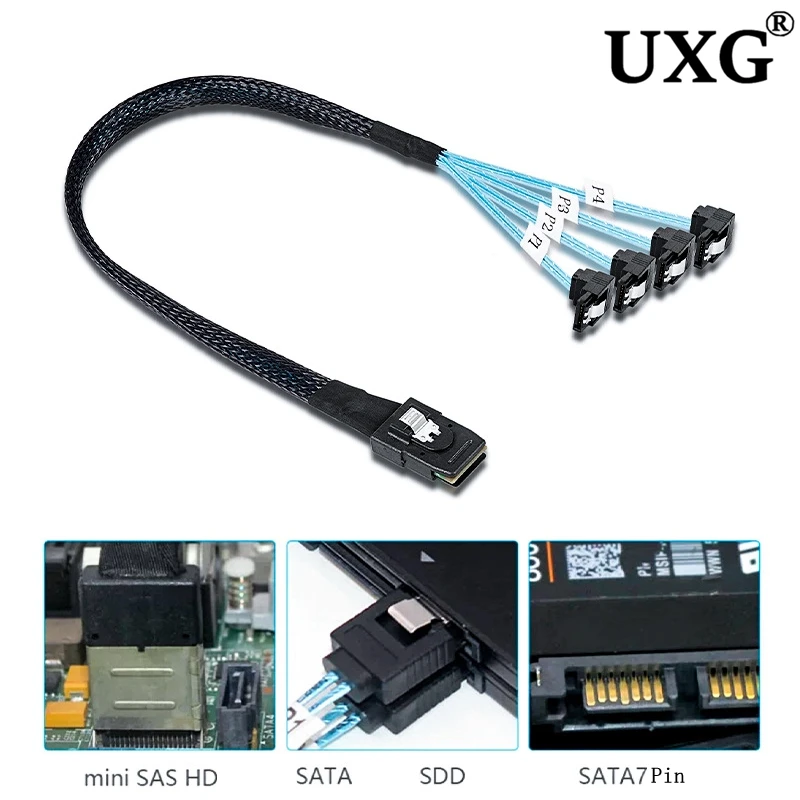

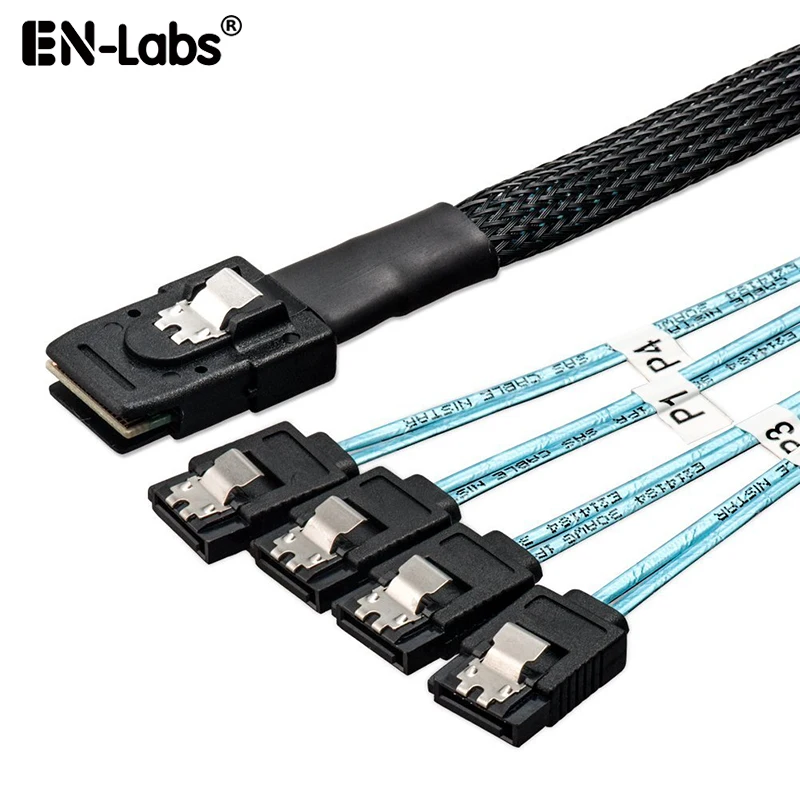

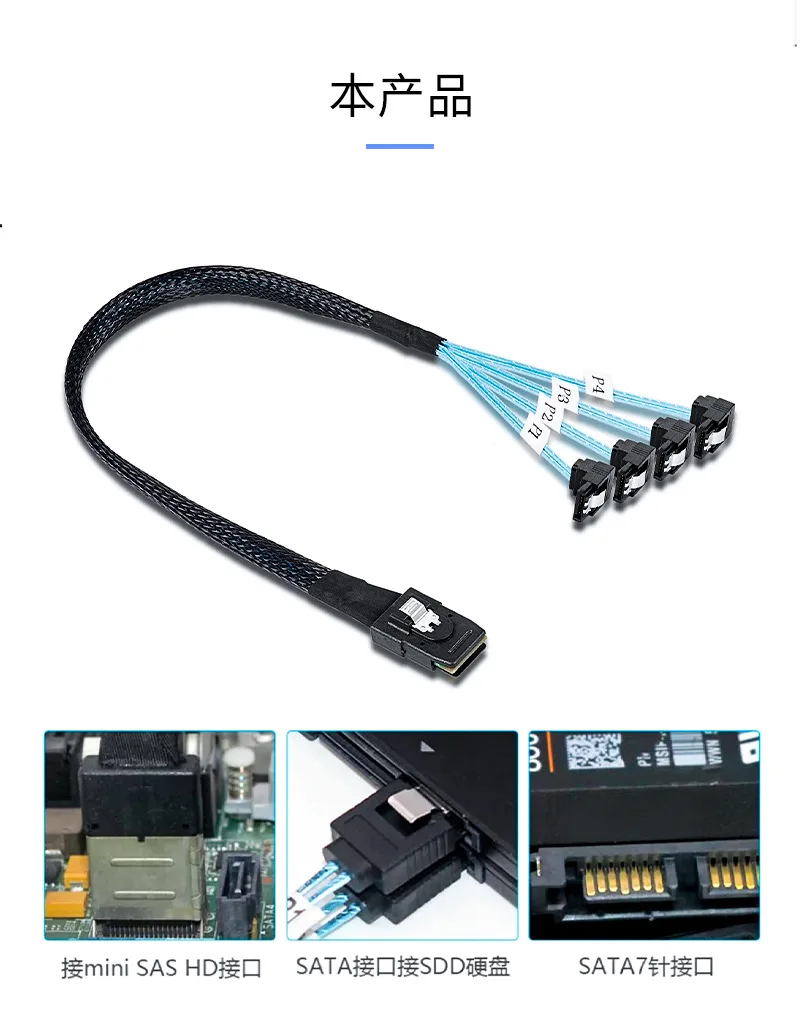

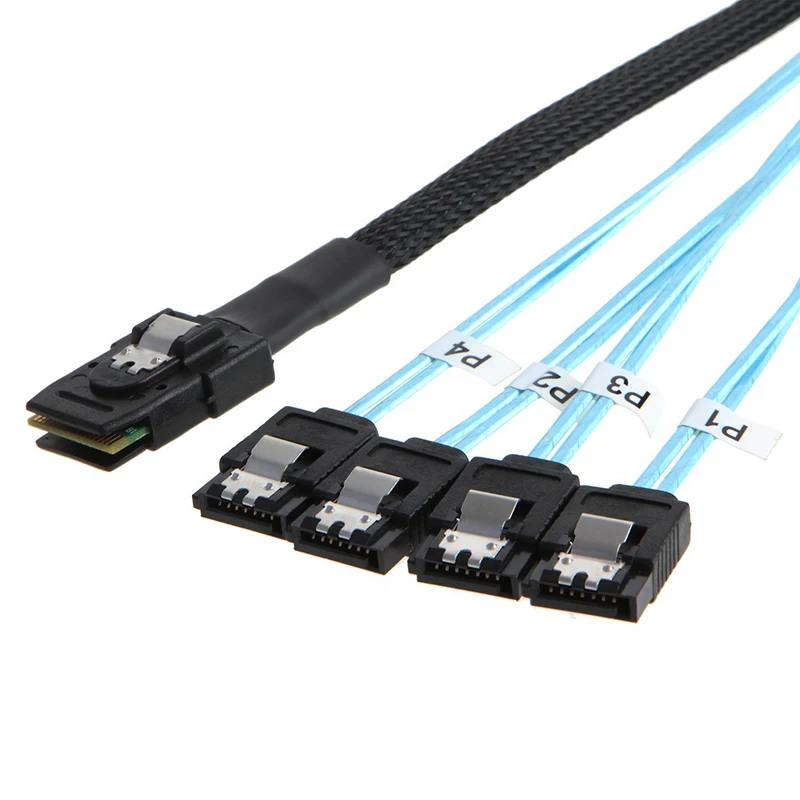

Internal Mini SAS SFF-8087 is a high-speed data storage interface designed for high-throughput and fast data access.
Connects a RAID or PCIe controller with an SFF-8087 port to 4 discrete SATA drives;
Mini
SAS to SATA adapter provides reliable internal connectivity between a
Serial attached SCSI controller card in a computer system and direct
attached storage devices with a SATA connector
Connect
up to 4 SATA drives to span RAID controller arrays and share
performance across two PCIe 2.0 x8 lanes with compatible host bus
adapters;
Supports up to 6Gbs data transfer rate per drive

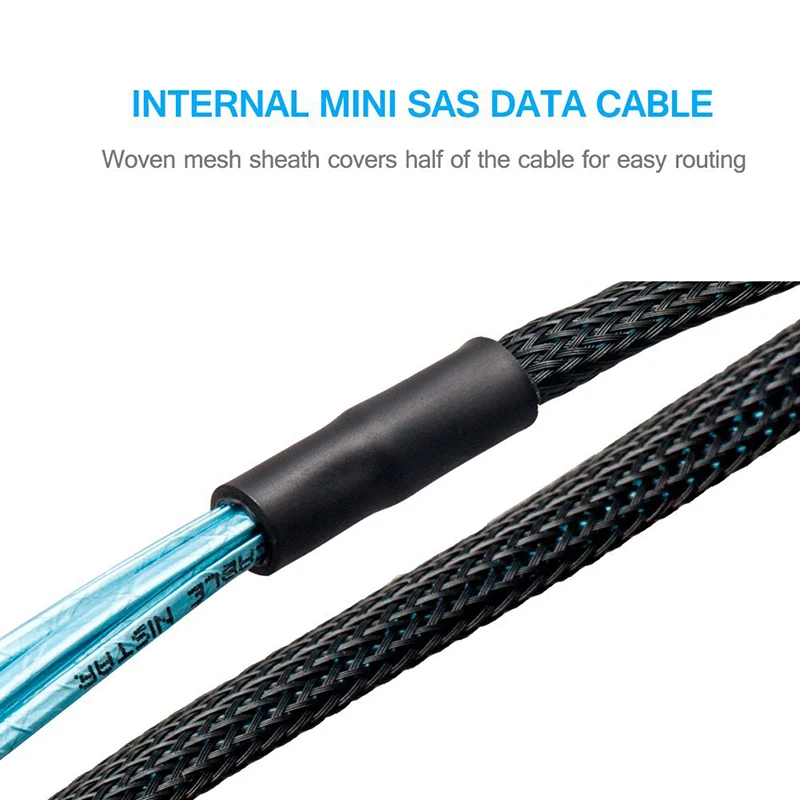

Woven mesh sheath covers half of the cable for easy routing;

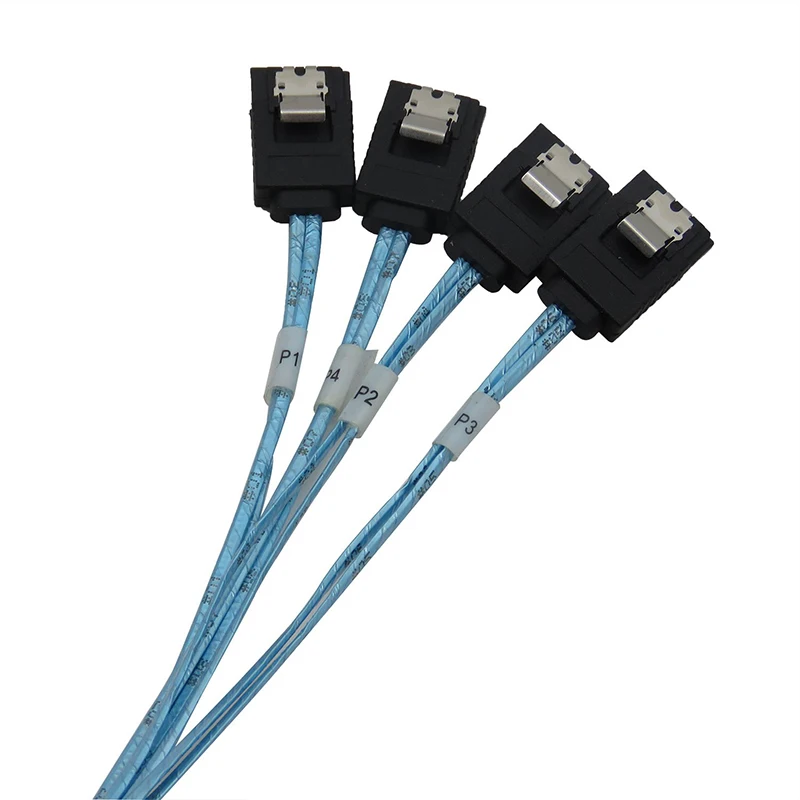

P1 to P4 markers provide easy ID after installation;

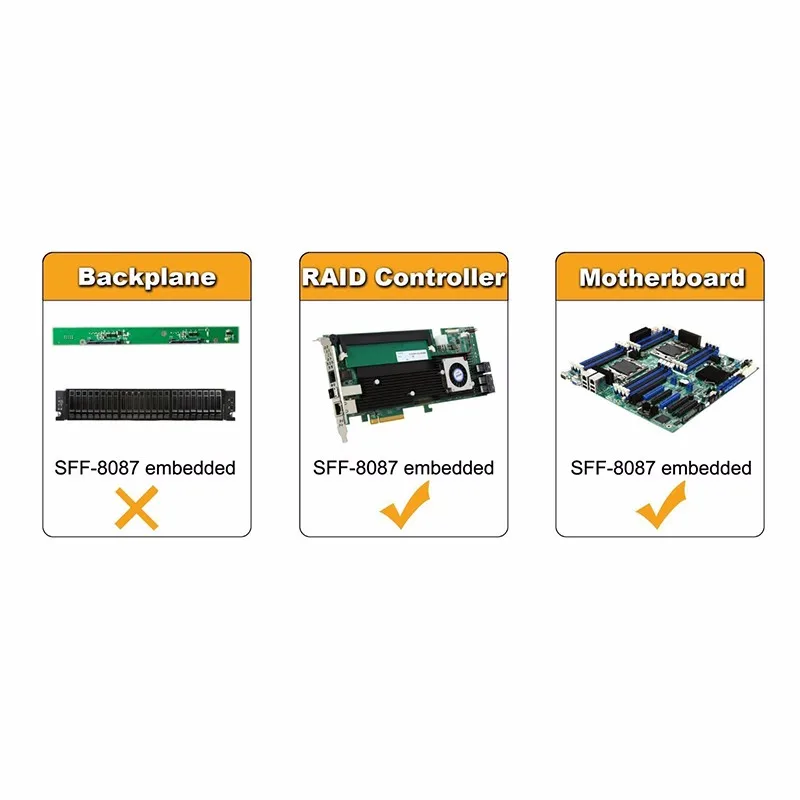

COMPATIBLE
with popular controller HBA cards such as 3Ware 9650SE-8LPML SATA2
Hardware RAID Controller Kit, Adaptec ASR-5805/512MB SAS RAID
Controller, Adaptec 2258200-R 5405 RAID, Adaptec 2258500-R 51645 RAID,
Dell 512MB PERC H700 Raid Controller, Dell Perc H200 Integrated Sas
Pci-e 2.0 Raid Controller, Dell PowerEdge 8-port 6GB/s PCIe x8 SAS SATA
RAID Controller PERC H310, HighPoint RocketRAID 2720SGL 8-Port SAS 6Gb/s
PCIe 2.0 x8 RAID HBA, HighPoint RocketRAID 620 2 SATA Port PCI-Express,
Intel Gigabit CT PCI-E Network Adapter, SAS9211-8I 8PORT Int 6GB
Sata+sas Pcie 2.0 HBA Card,
Specification

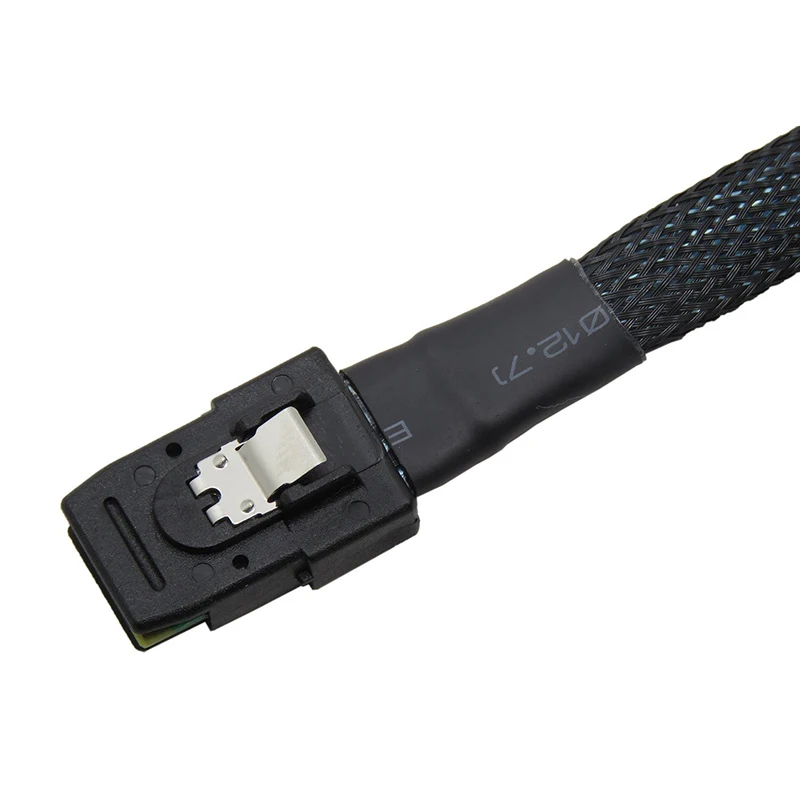

Side 1: Mini SAS 36Pin (SFF-8087) Male with Latch
Side 2:4x SATA 7Pin female with latch
Cable Length:0.5m / 1 M
Cable Color: Black+Blue

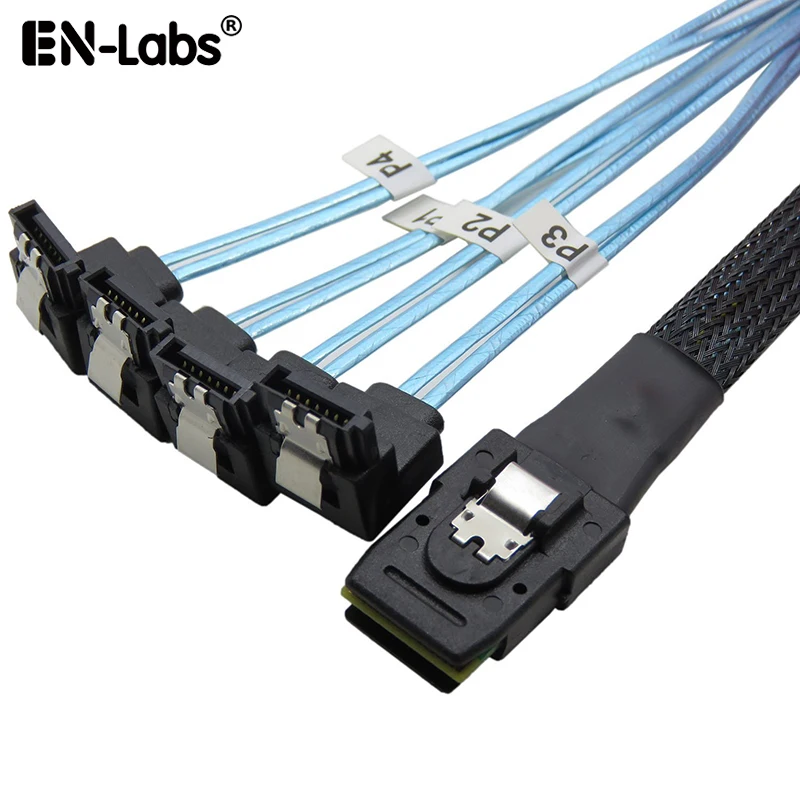

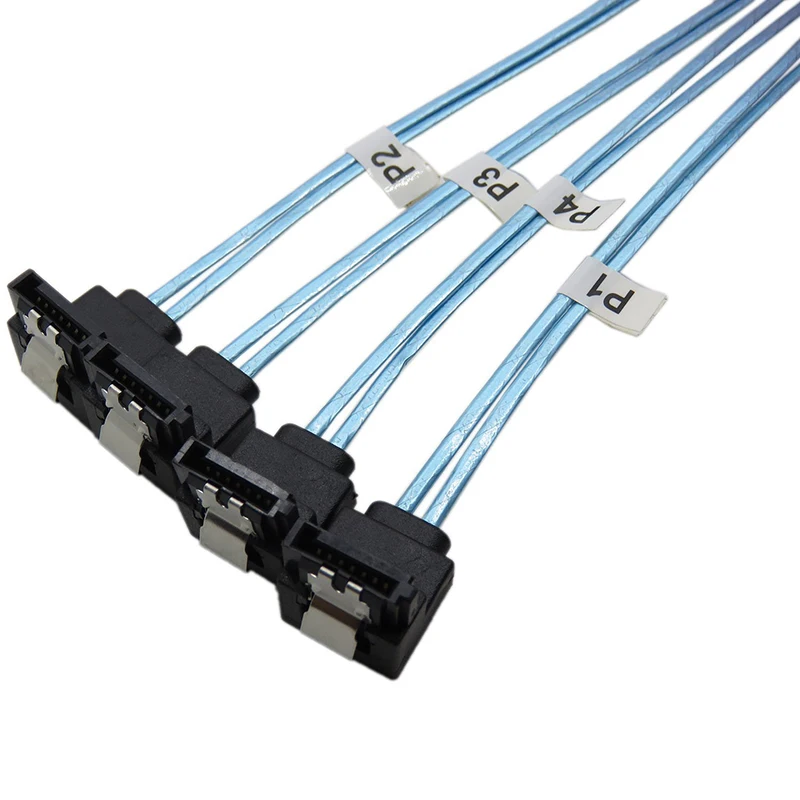

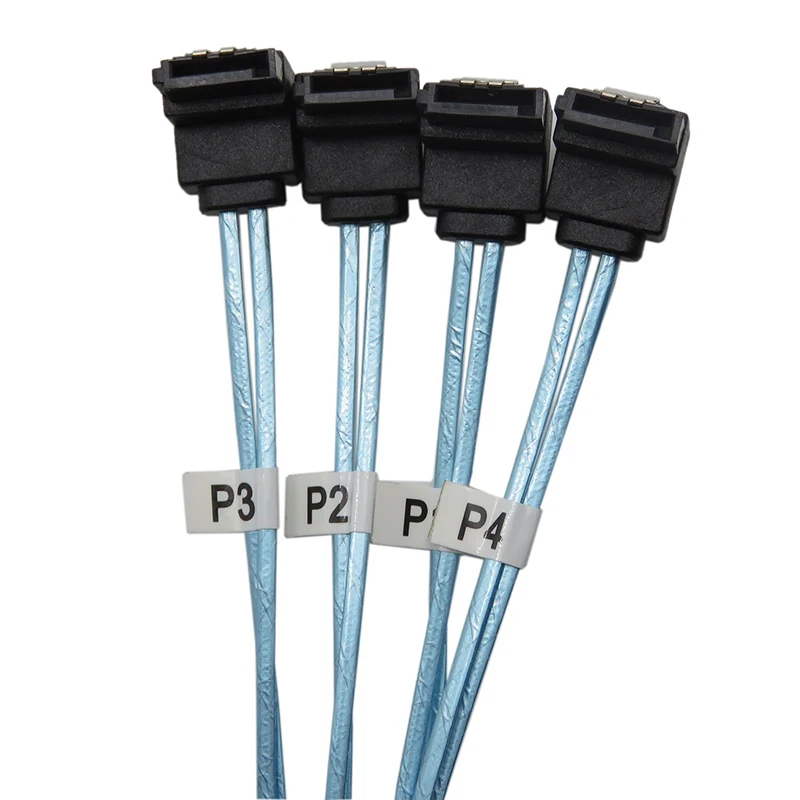

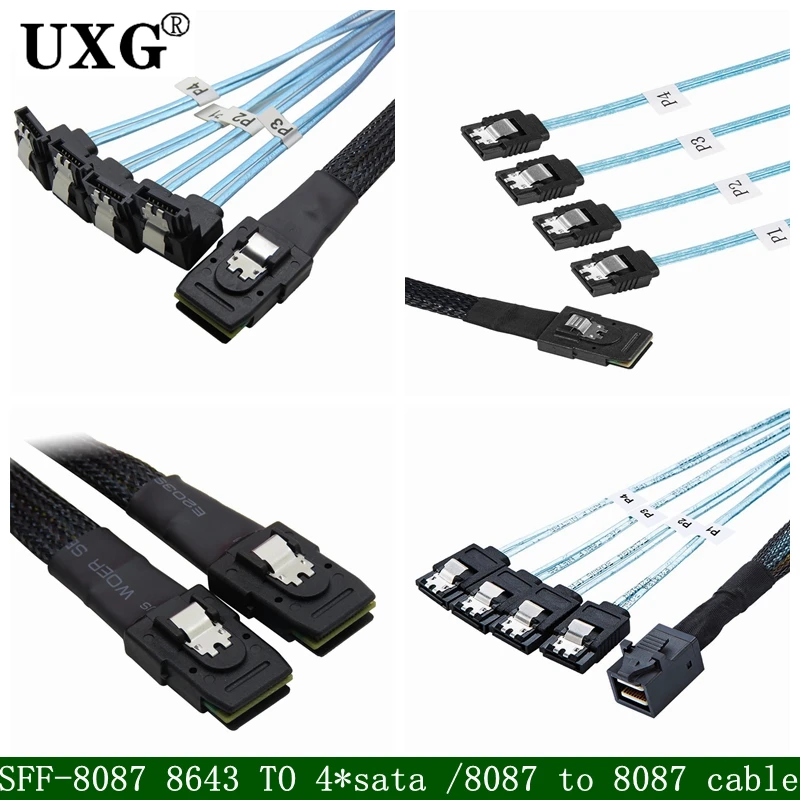

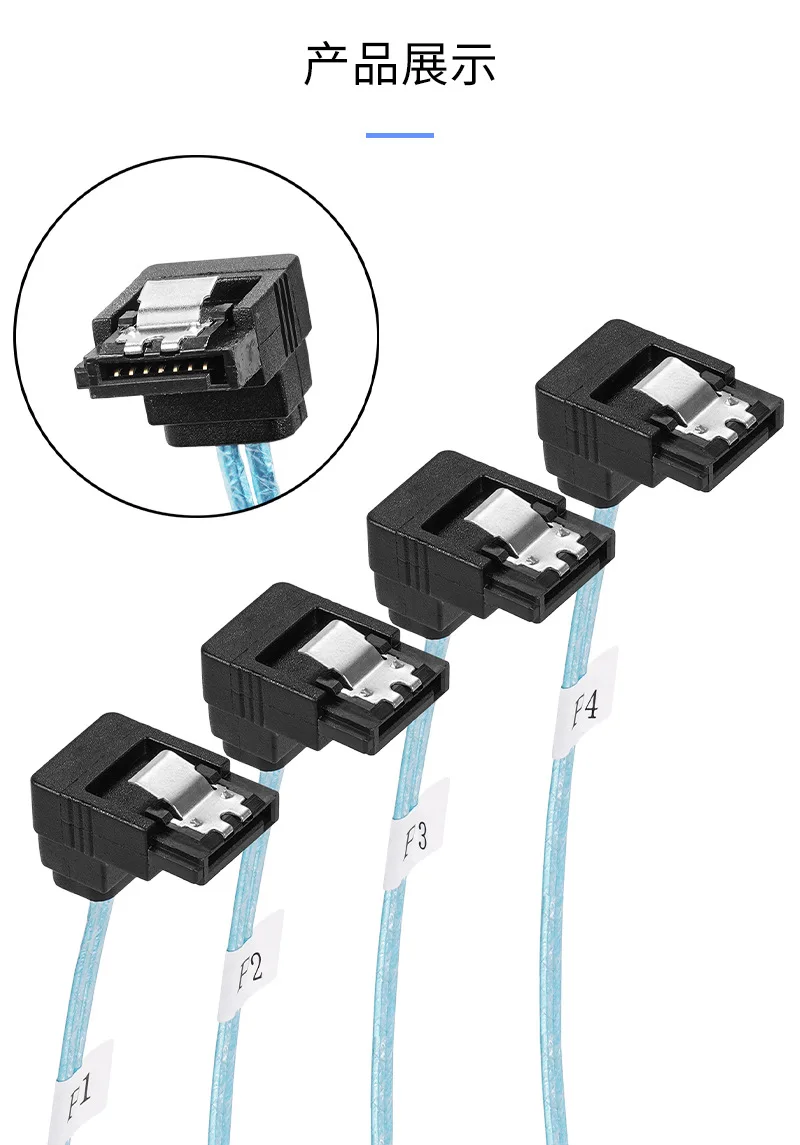

Type-2 Mini SAS SFF 8087 Host to 4xSATA targetBackplane( 90 degree)

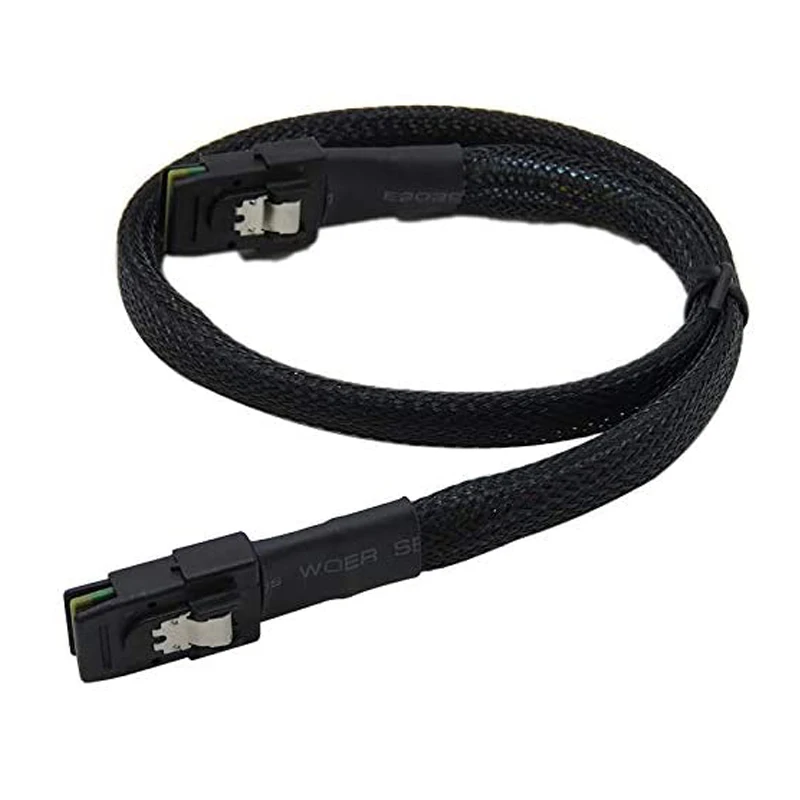

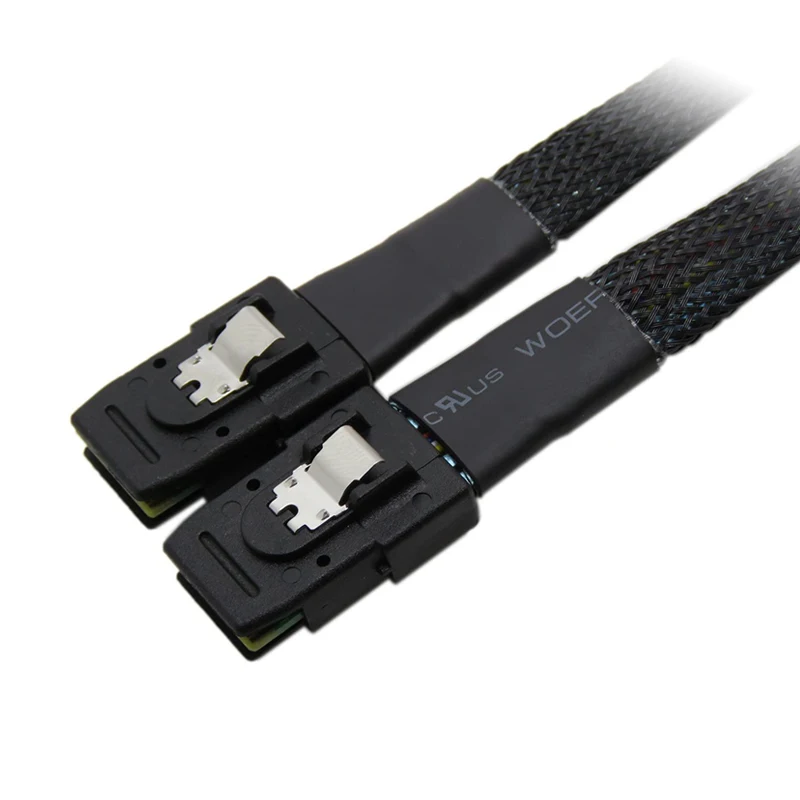

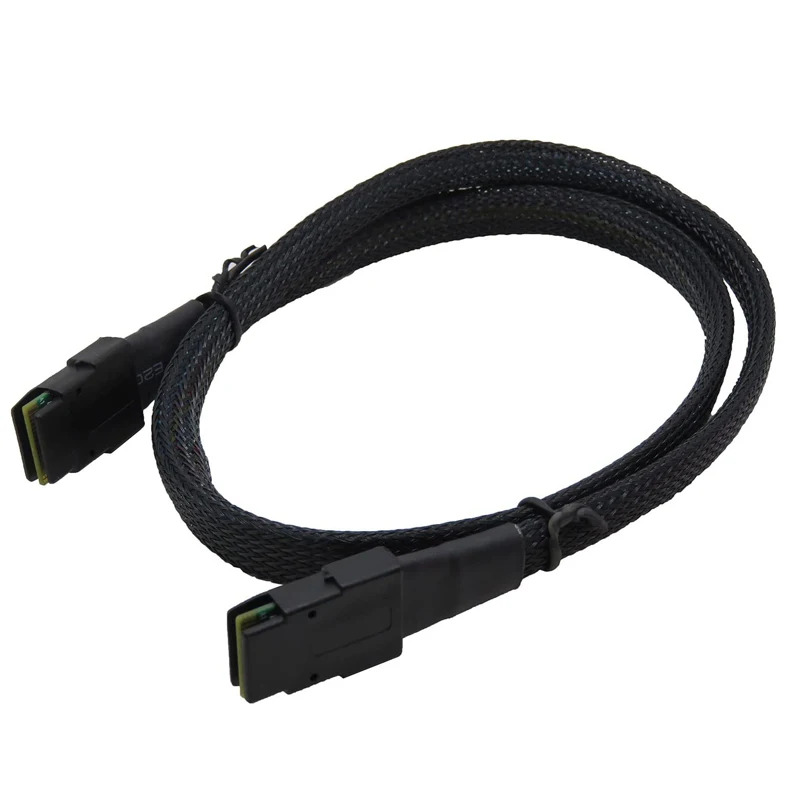

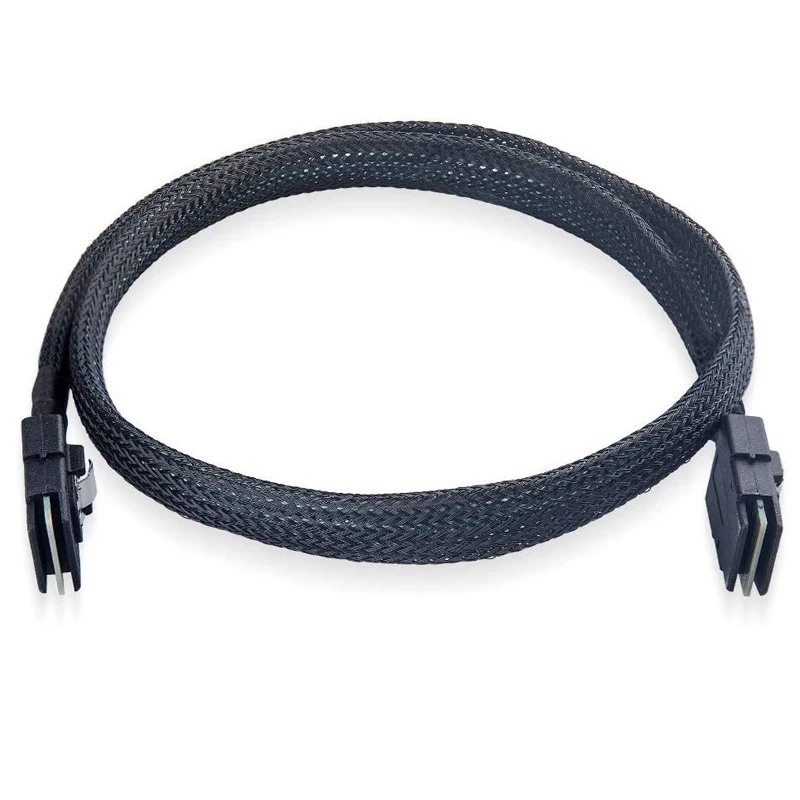

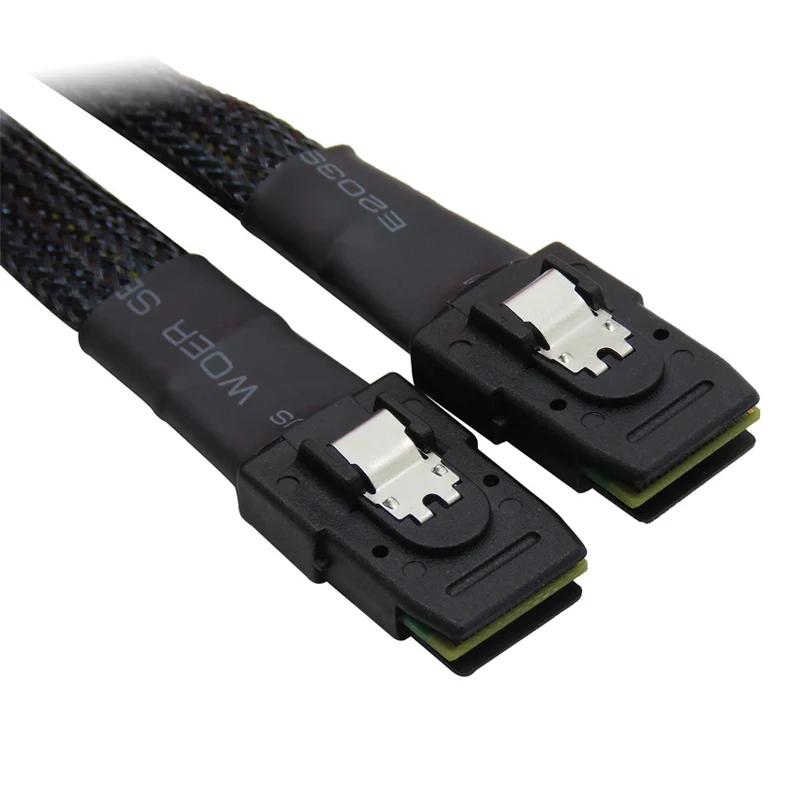

Type-3 Mini SAS SFF 8087 to SFF 8087 Male to Male Cableare designed to significantly reduce the cable size for storage systems
currently using SAS 4-lane (4x or 4-lanes of data) and are being widely
adopted for next-generation designs.
The 36-position internal miniSAS cable assemblies are available in custom lengths of 0.5 meter and 1 meter.
Specification:
Mini SAS SFF-8087 to Mini SAS SFF-8087 (36Pin)
Length: 0.5-Meter and 1 meter as optional
Application:
Servers
RAID systems
Storage systems
SAS/SATA HBA interfaces
Direct-attached storage (DAS)

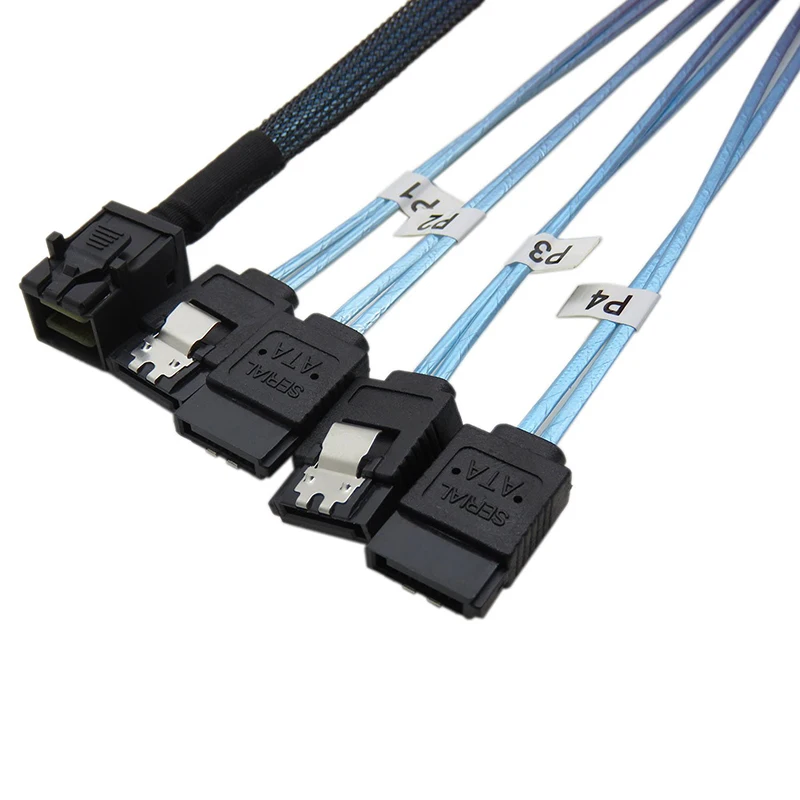

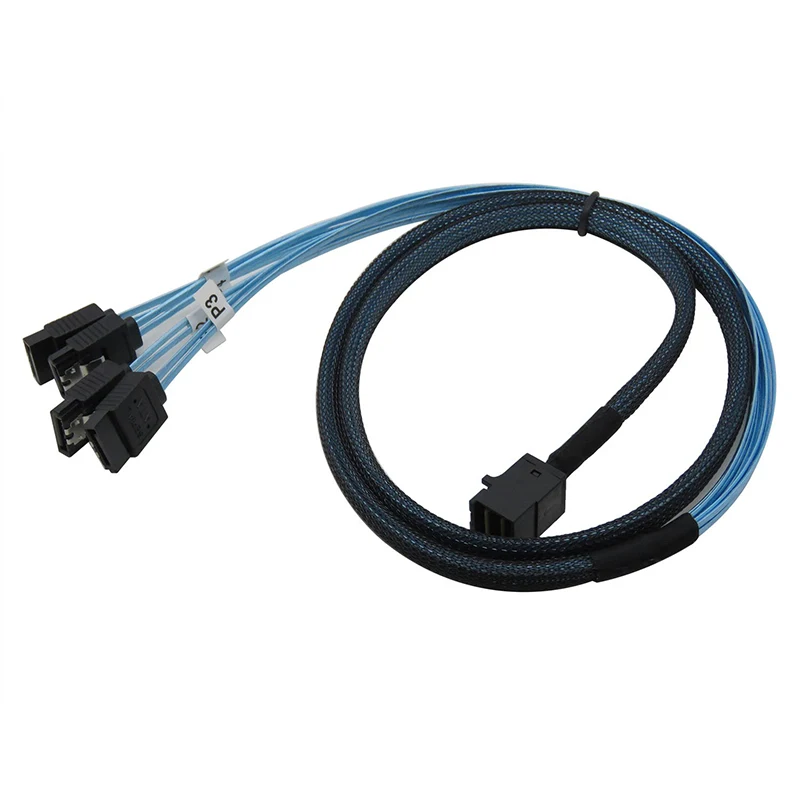

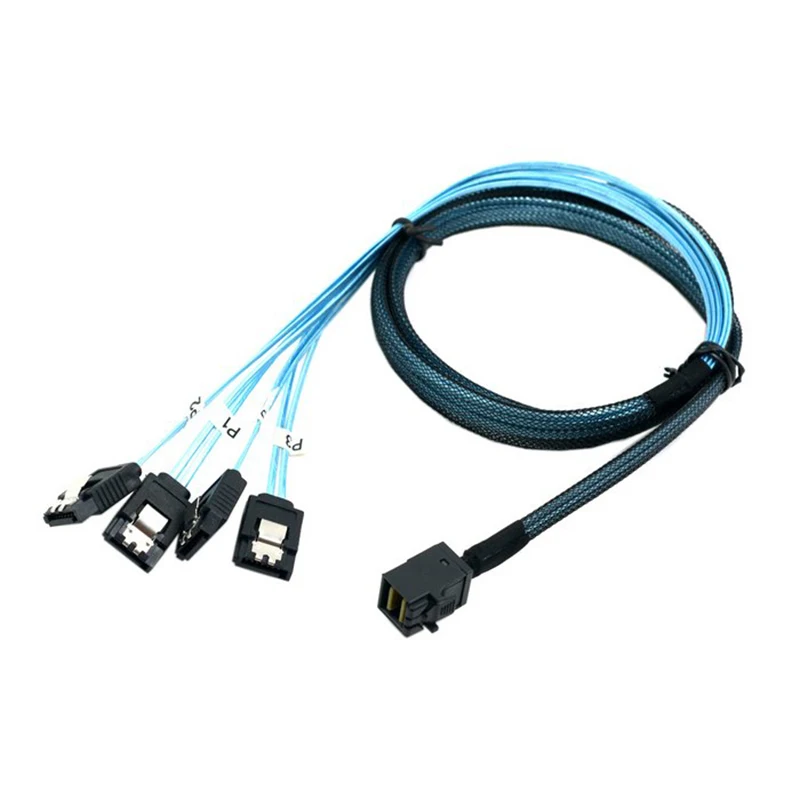

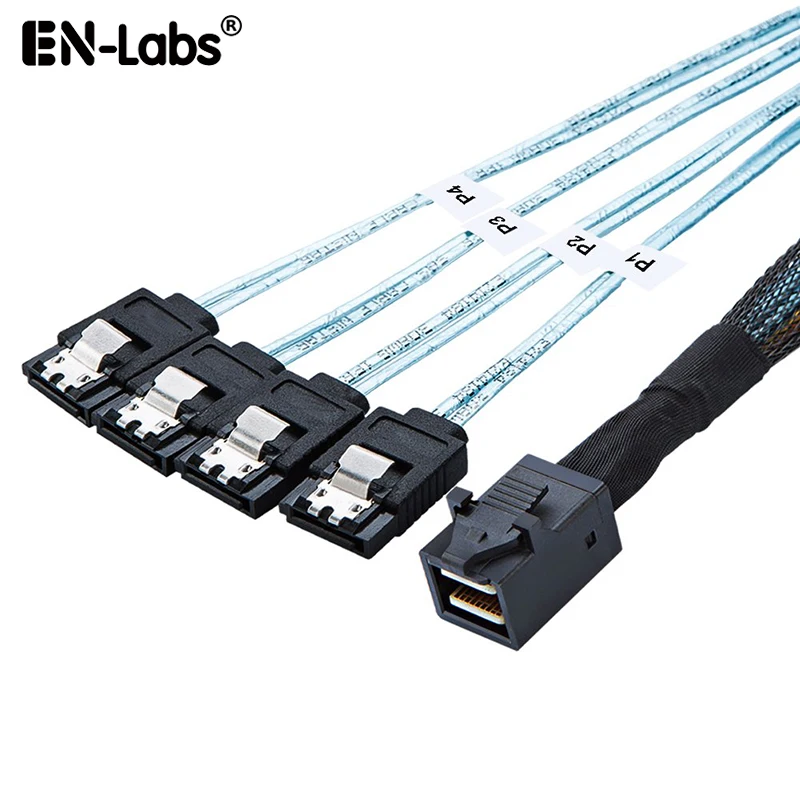

Type-4 HD Mini SAS SFF-8643 to 4x SATA Cable
Internal
HD Mini SAS cable is specifically designed to connect a 12 Gbps host or
RAID controller with SFF-8643 to 4 discrete SATA drives;
Mini SAS HD
to SATA adapter cable provides reliable internal connectivity between a
high density RAID controller card and direct attached storage devices
with a SATA plug Hybrid versions of HD MiniSAS cable with a 36 pin SFF
8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6
Gbps compatibility while migrating to a to 12 Gbps storage area network
system

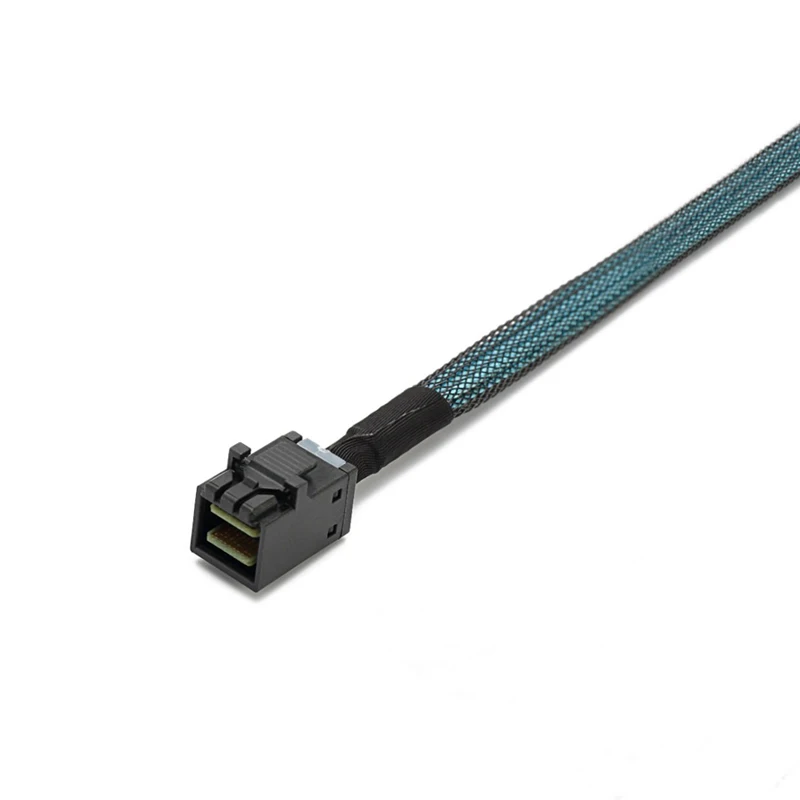

Forward HD Mini SAS cable has an internal SFF-8643 (HOST) HD
Mini-SAS 36 pin connector and 4 x SATA 7 pin (TARGET) drive connectors;

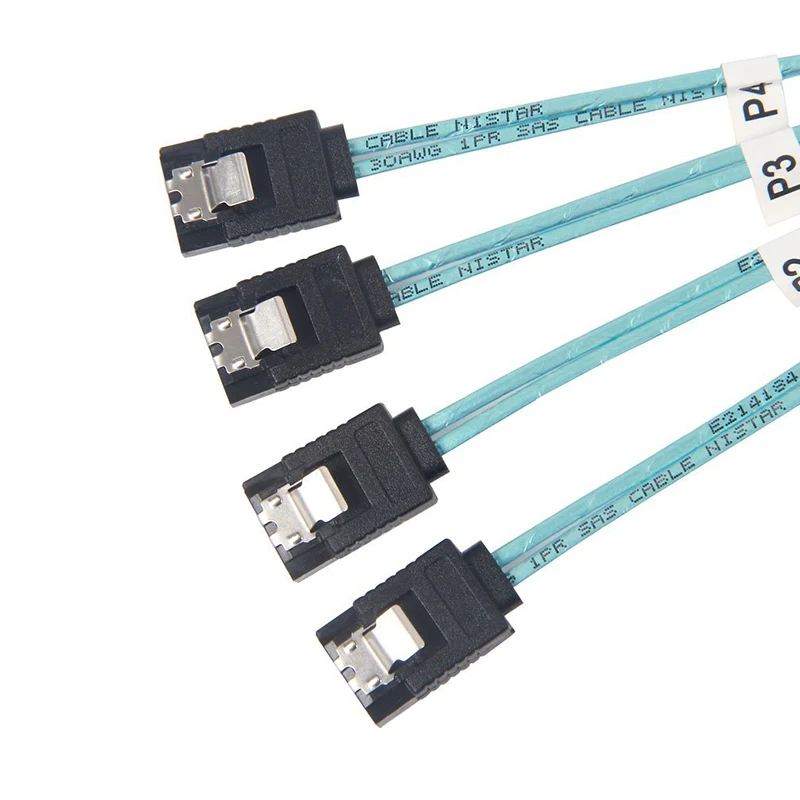

Target drive SATA connectors with stainless steel latches to provide a secure connection SFF 8643
Compatible
with the Adaptec RAID 71605 / 7895 Storage Controllers HD MiniSAS
breakout cable includes acetate cloth tape over slim ribbon cables for
strain relief to protect cables without rigidity;
Woven mesh sheath covers half of the cable for easy routing;

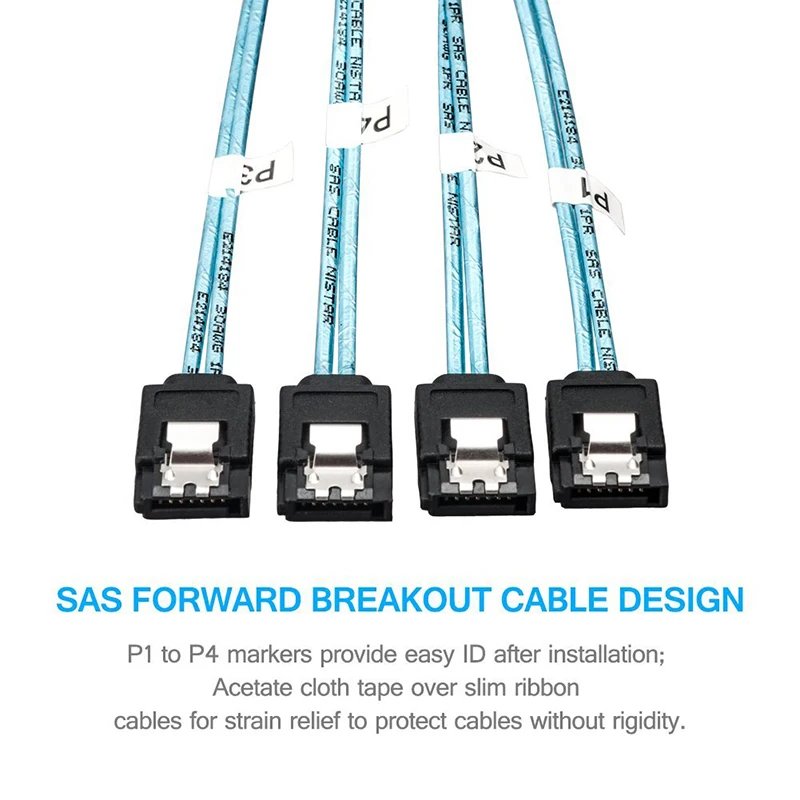

P1 to P4 markers provide easy ID after installation;
