MINI tarjeta serie PCI-E-RS232 chip de tarjeta de expansión de 9 pines COM 2 puertos XR17V352 EXAR 352 chip serie Industrial RS232 mini pcie db9

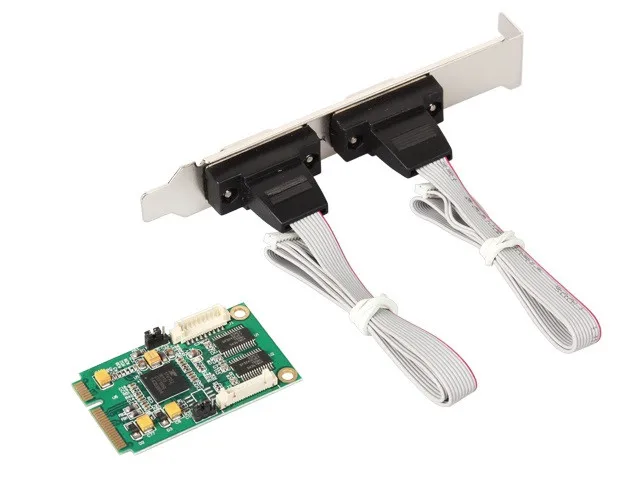

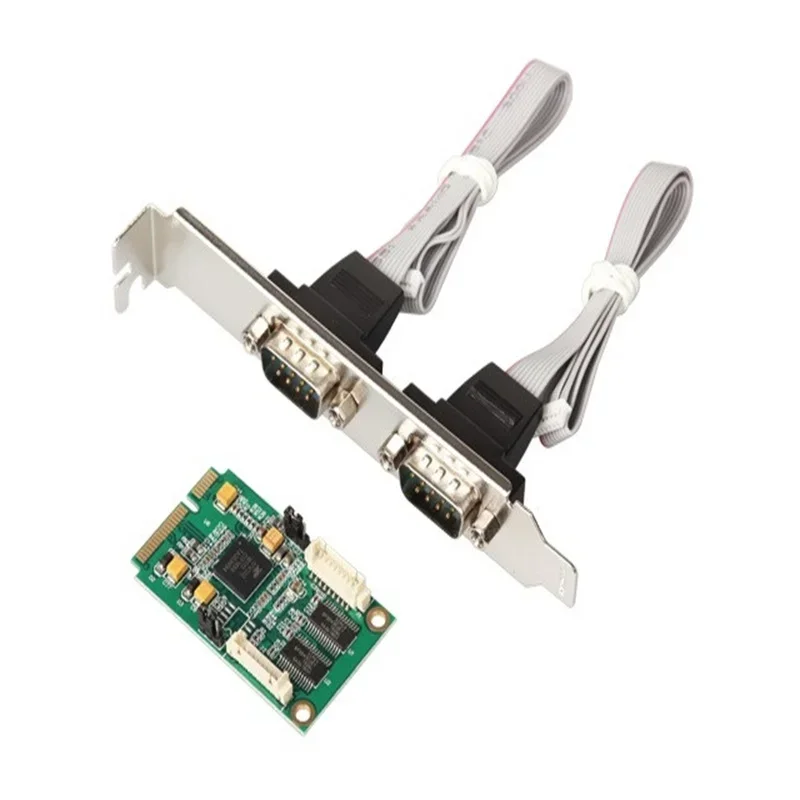

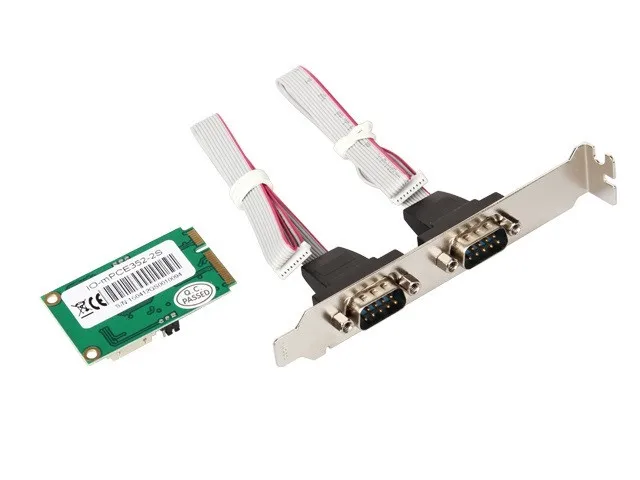

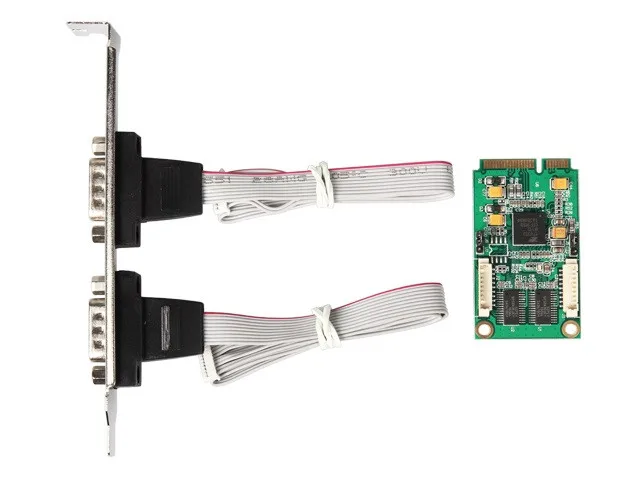

Mini PCI-Express I/O Card (2x RS-232)

Features

PCIe 2.0 Gen 1 compliant

15 KV ESD protection for all serial ports

Sleep mode with wake-up Indicator

Transmission media: twisted-pair cable or shielded cable

Direction control: Adopt the technology which automatically controls the data-flow direction,automatically distinguish and control the data-transmission direction;

UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none

Flow control none,hardware and xon/xoff

Extended operating temperature range; -40 to 85

Applications

Next generation Point-of-Sale Systems

Remote Access Servers

Storage Network Management

Factory Automation and Process Control

System Requirements

Windows® Server 2003, 2008, 2012

Windows® XP, Vista, 7, 8,8.1,10

Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer

A available mini PCI Express slot

Including:

mini PCIe Card X 1

RS232 cable X 2

Long Profile Bracket X1

Driver CD X 1
