Motherboard Function Details
PC Motherboard with Onboard CPU Kit
Dear buyers,
The CPU on the board is soldered (similar to that on laptop).
You don't need to buy an extra CPU for this motherboard.
It's such a high performance CPU that it can be used for gaming, video editing,office work, etc.
It's lower cost but good alternative to i5-12400 i7-10700 i7-10700K i9-9900KS .

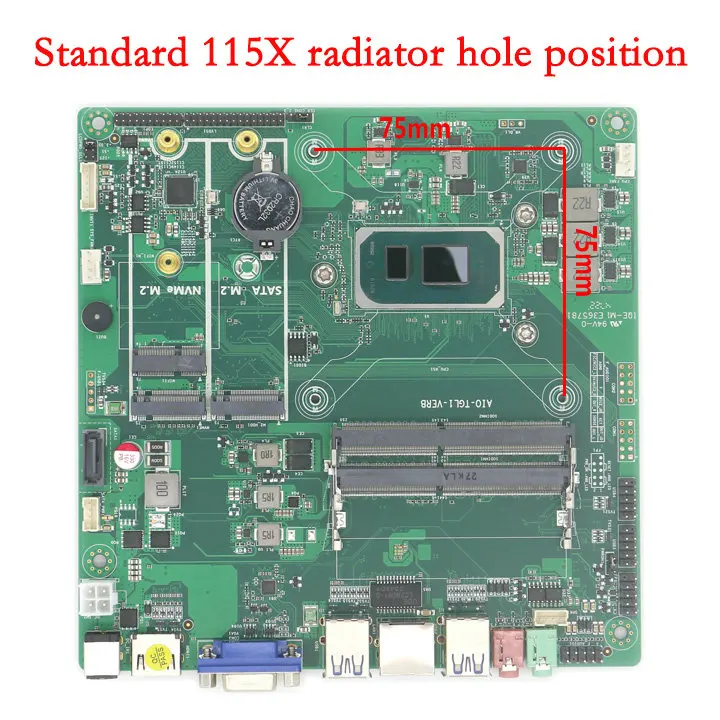

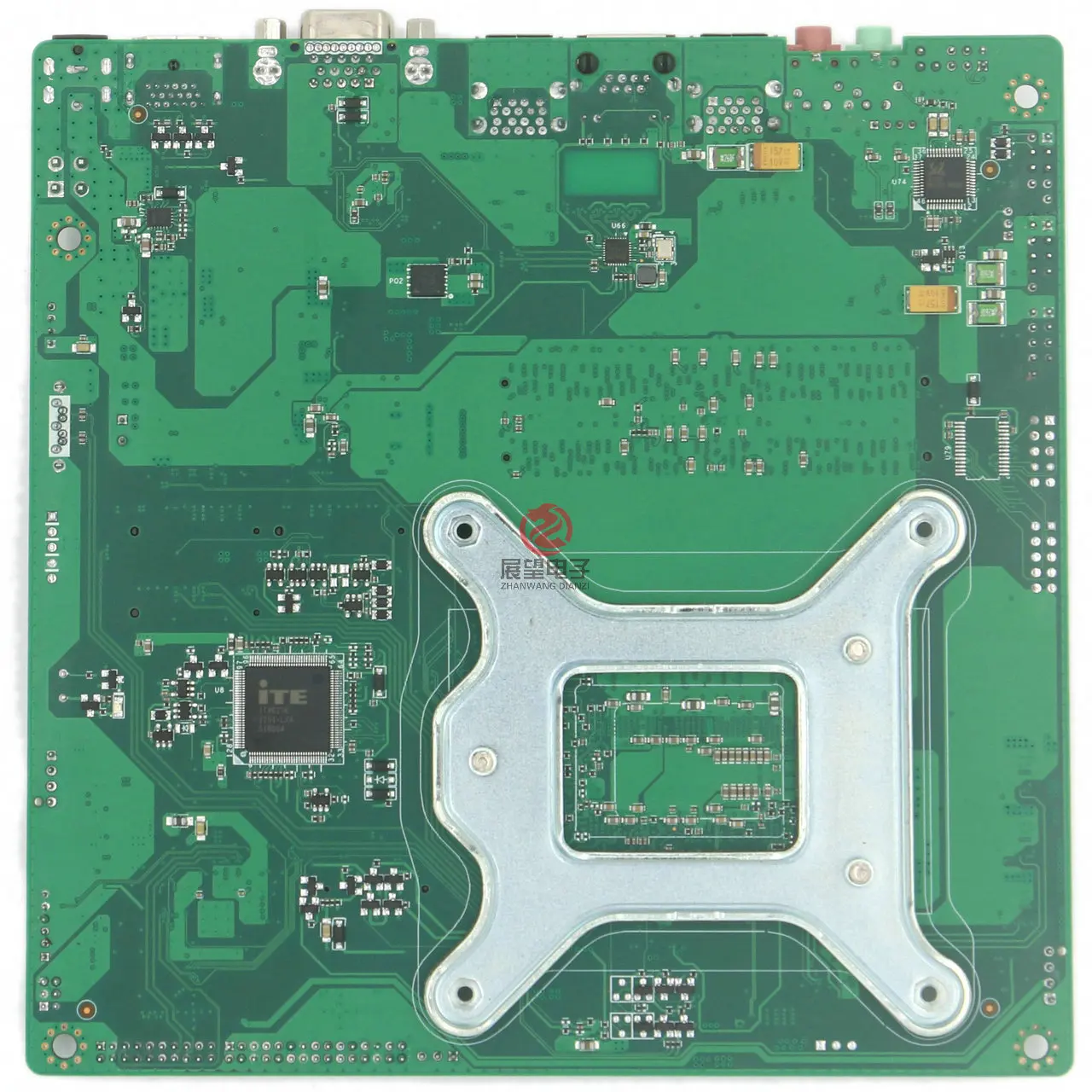

A regular CPU cooling fan for Intel LGA115X( LGA1150 LGA1151,LGA1155,LGA1156, LGA1200,LGA1366,LGA17XX) (6 heat-pipes) will also fit for this motherboard.
And Water-cooling or Air-cooling radiators are also fit. We suggest to use a 6 heat pipes or 120 water-cooling tubes to ensure the strong output of this motherboard.

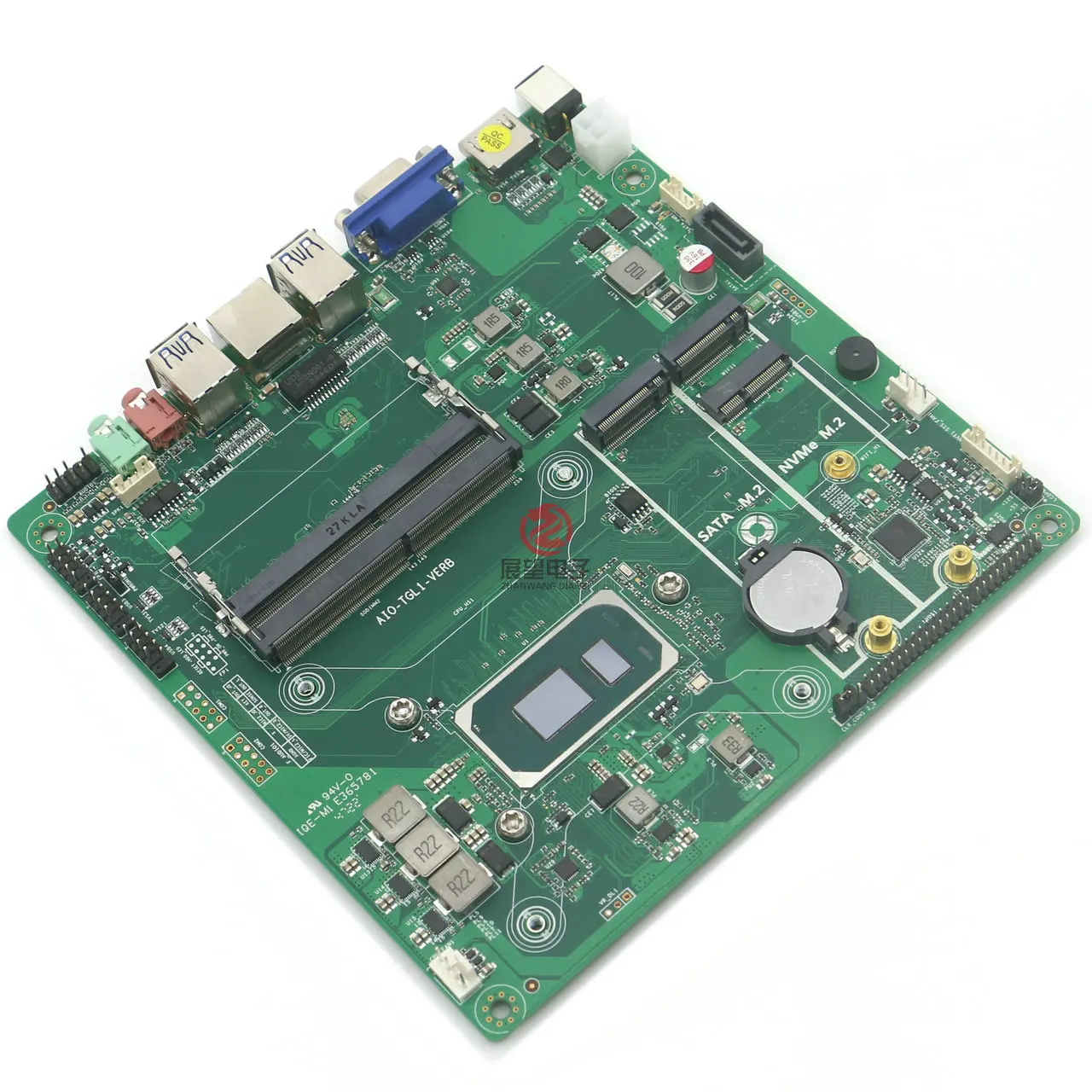

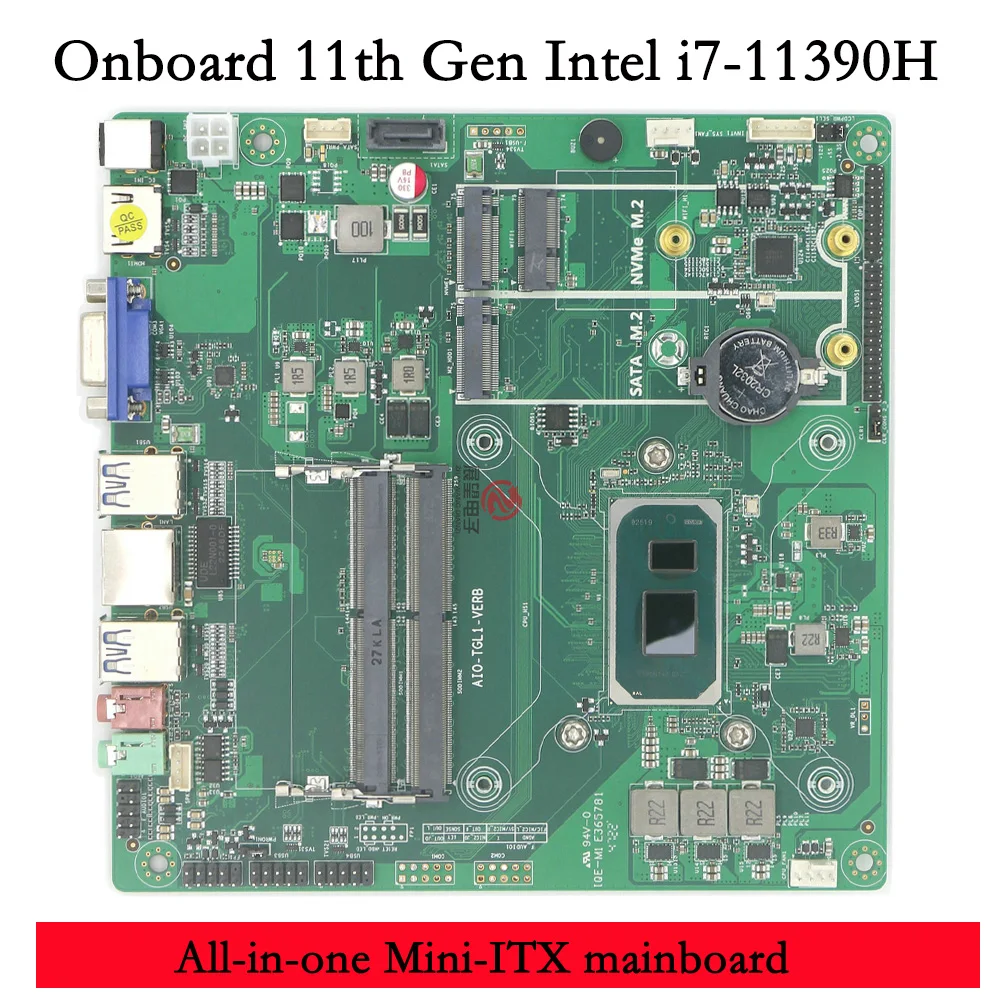

Mini-ITX 17*17CM motherboard, integrated Intel Core CPU
Support 2 SATA hard drives, one NVME M.2, one NVME SATA, support M.2 WIFI

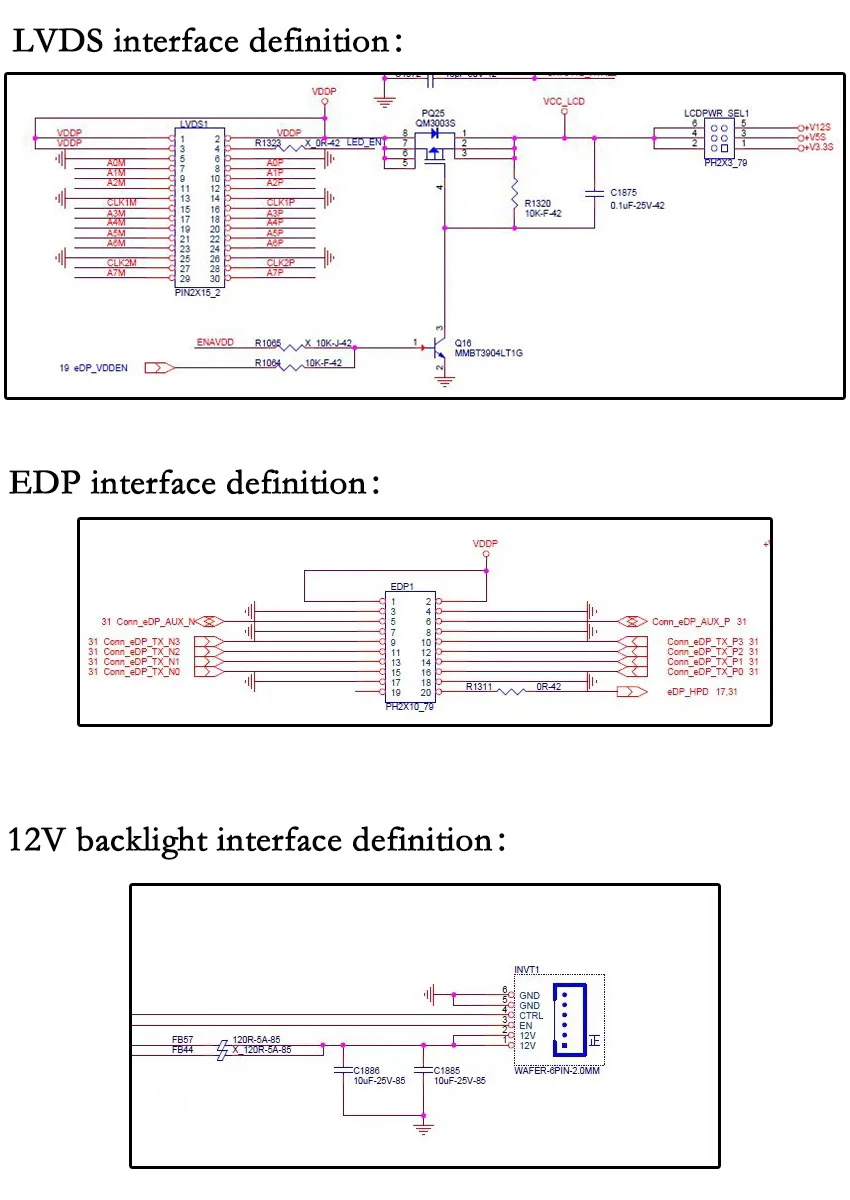

Onboard LVDS and EDP interface, with 12V backlight interface
17*17 standard size, can install all-in-one and ordinary mini-chassis

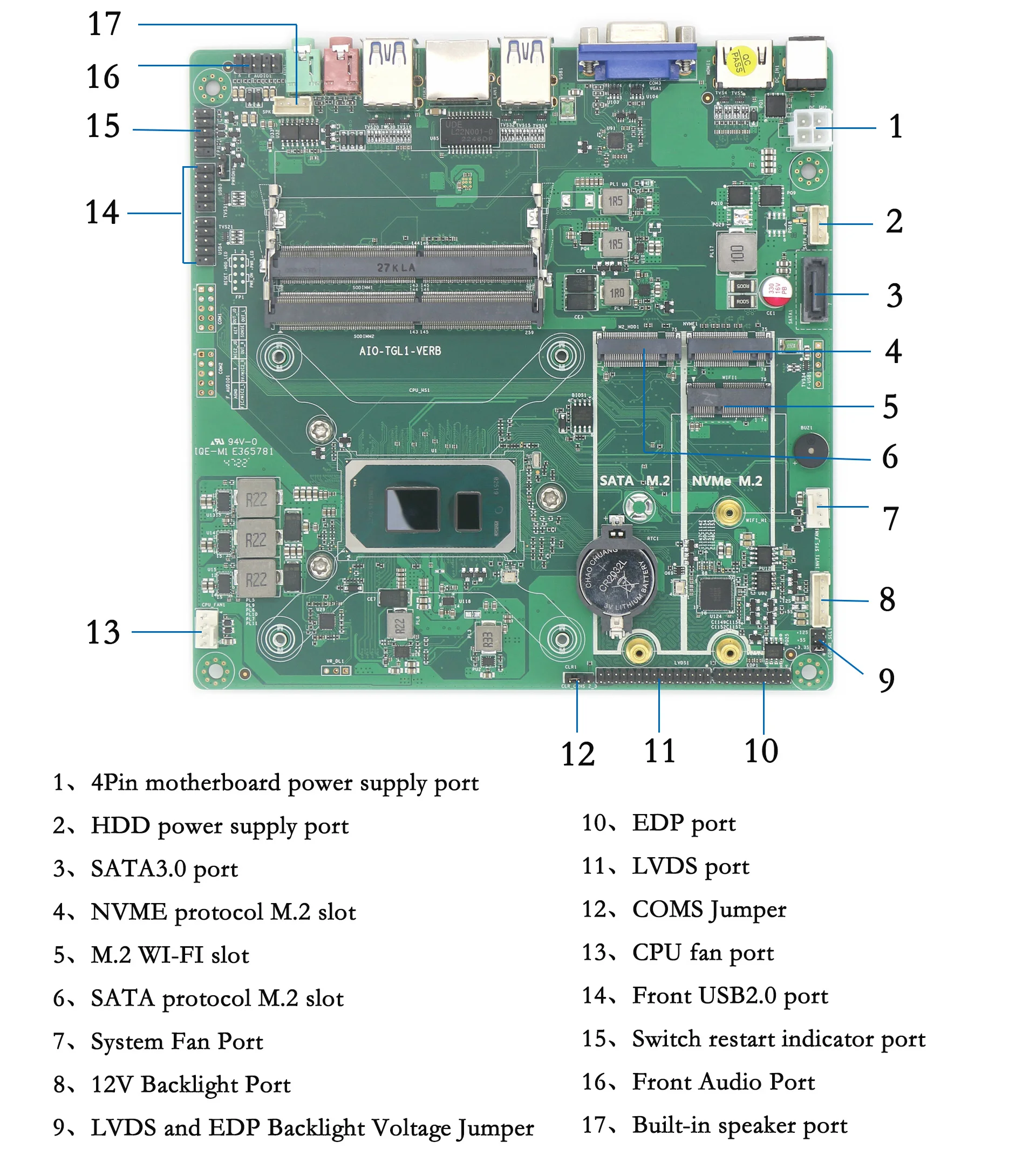

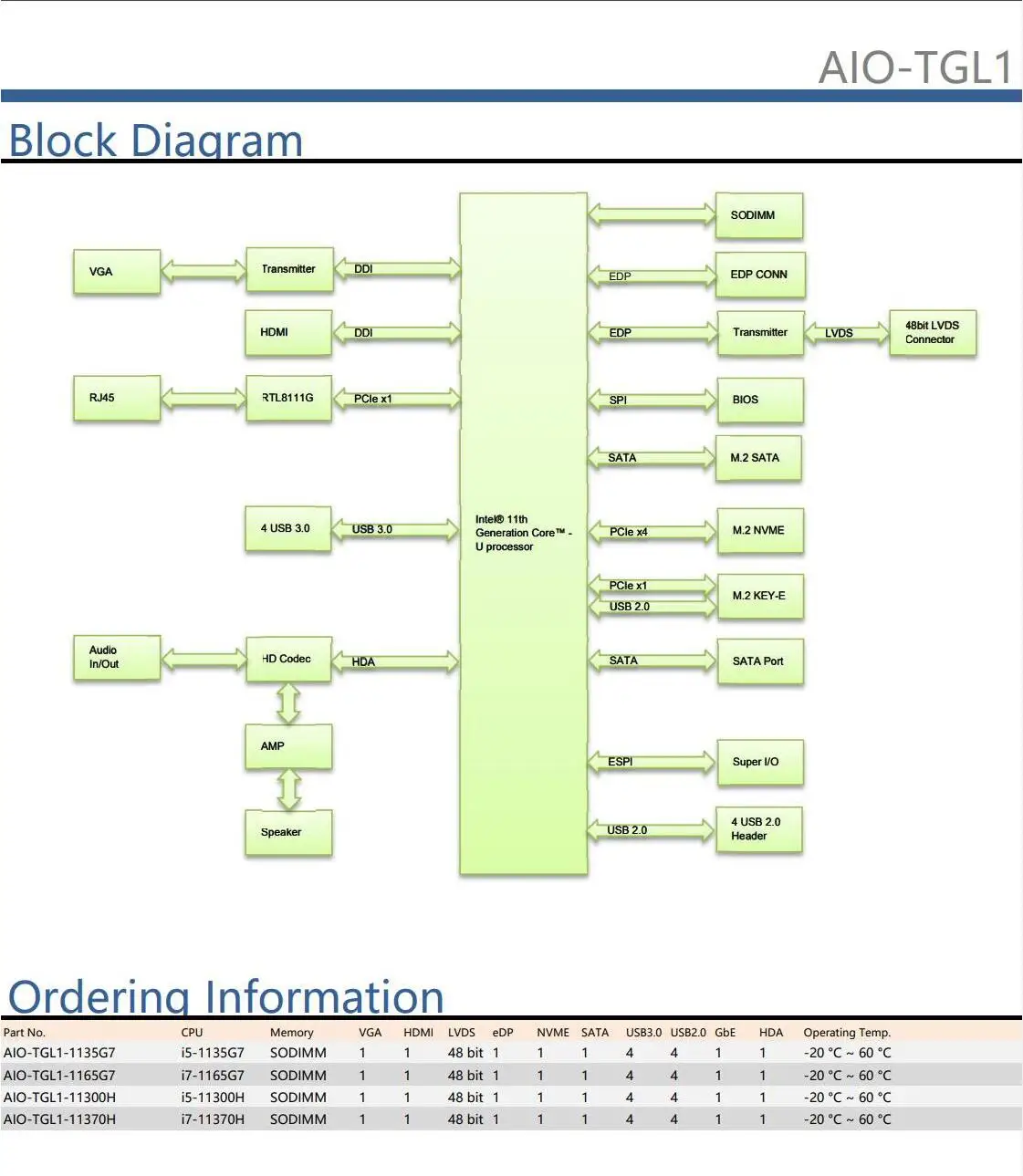

Motherboard Introduction:
motherboard specification standard mini itx case

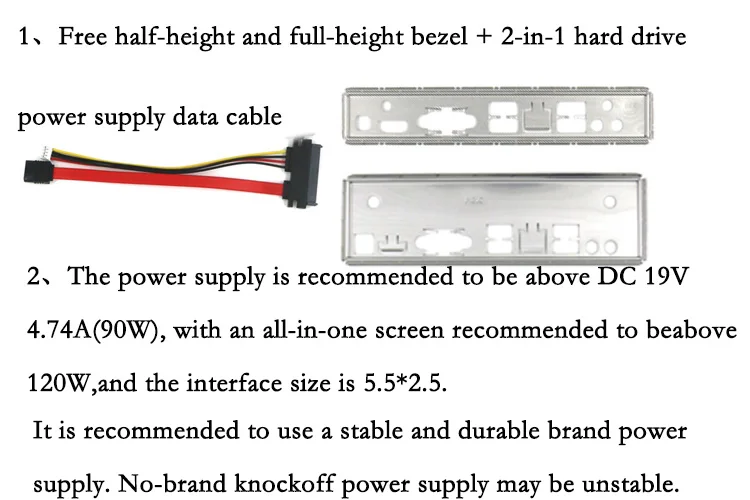

Due to international transportation, there is no CR2032 motherboard battery. Before installing the motherboard, please insert the battery
