Product Description:

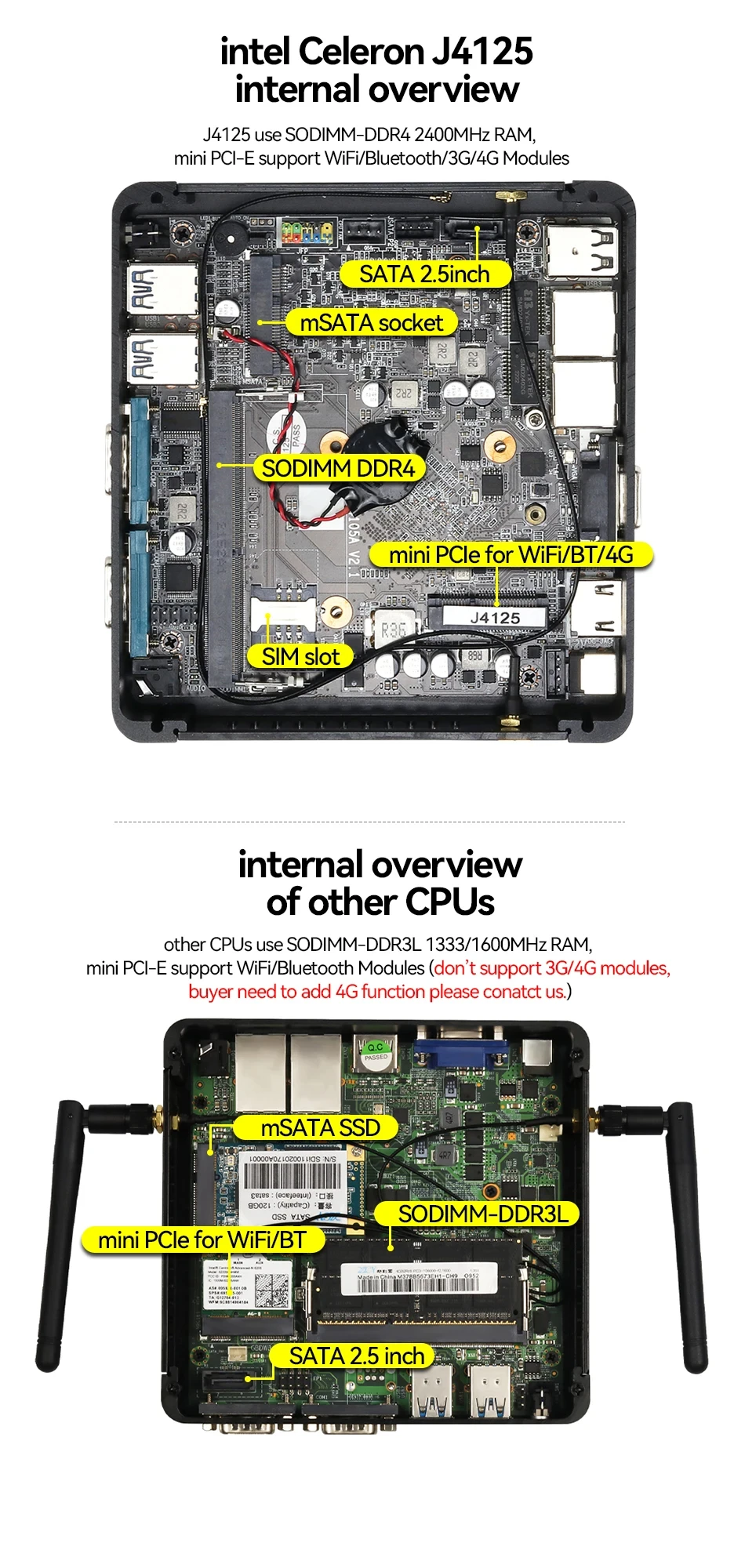

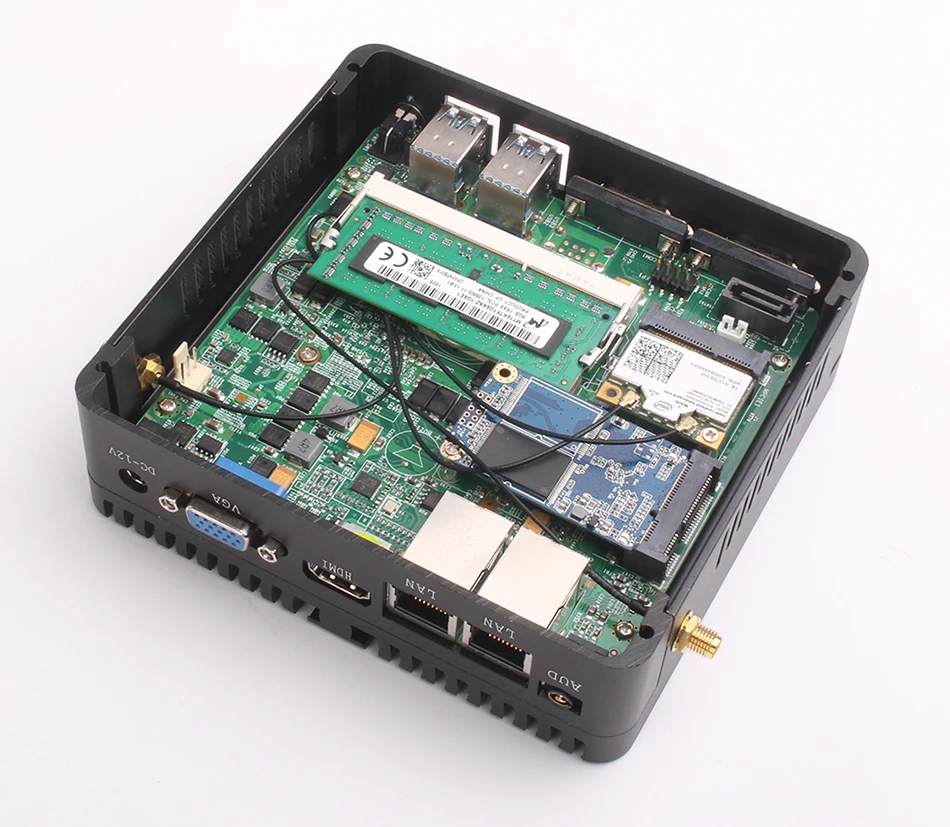

- Flexible RAM and storage, 1x memory slot, max support to 8GB; J6412 model supports one M.2 NVME/SATA SSD and one 2.5 inch HDD/SSD, other models support one mSATA SSD and one 2.5 inch SSD/HDD;

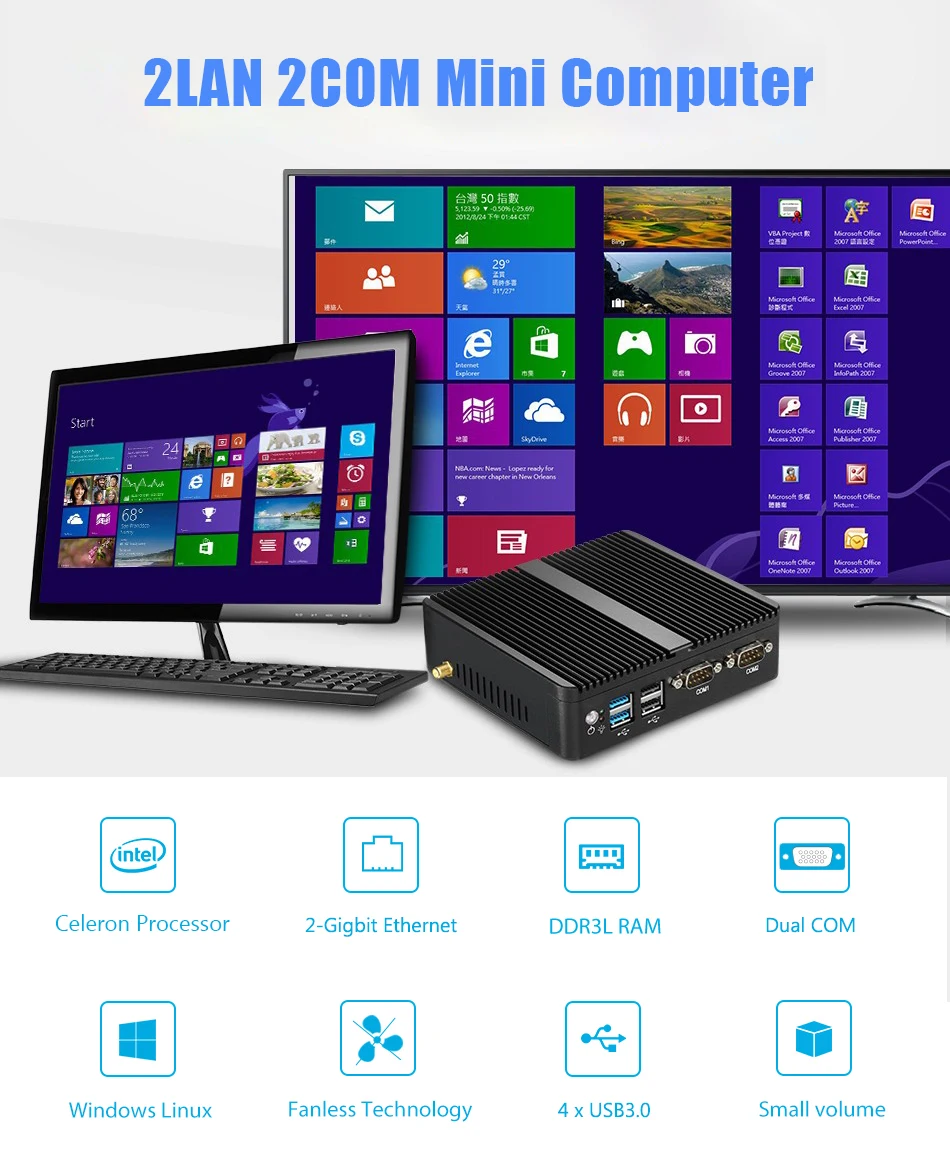

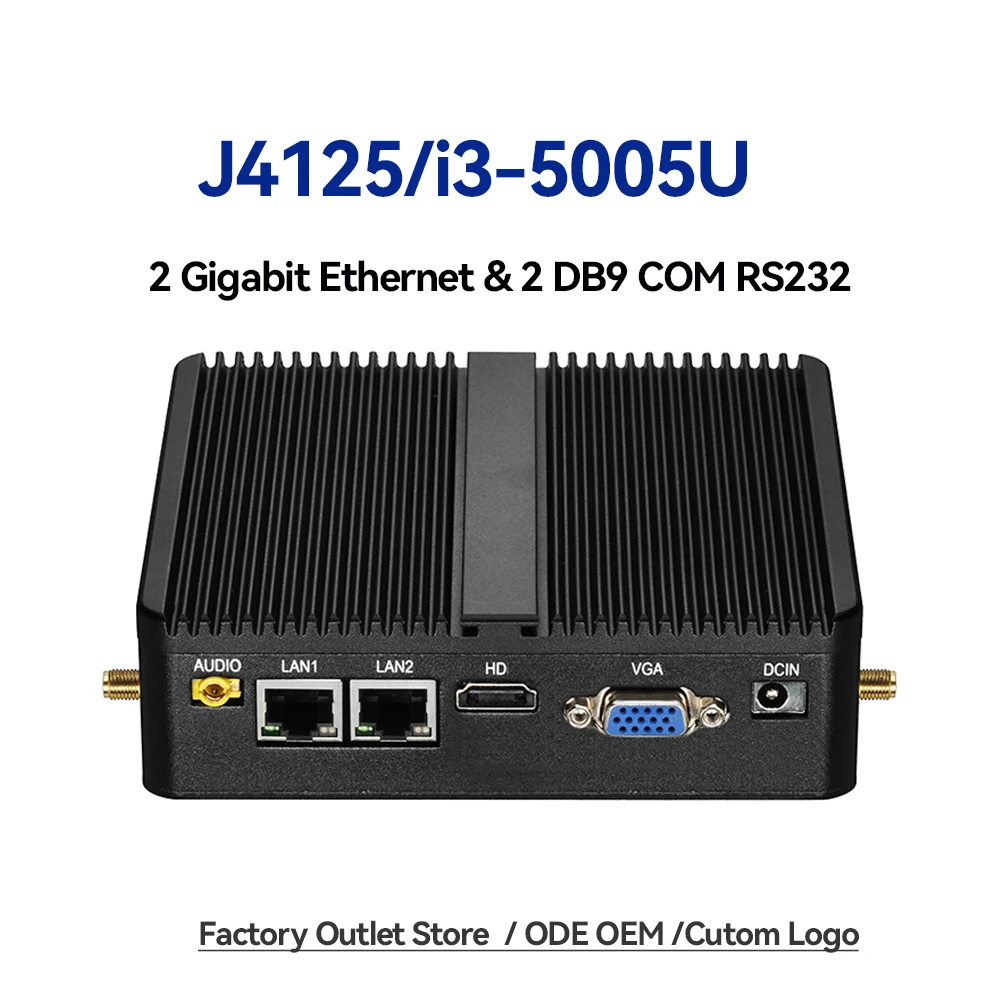

- 2x Realtek 8111E Gigabit Ethernet , support Wake on LAN, PXE boot.
- 2x COM serial ports, J6412 model two COM ports support adjust to RS485/RS232, other models two COM ports are RS232 mode.
- HDMI VGA support independent HD video output;
- Fanless aluminum metal case heat dissipation;

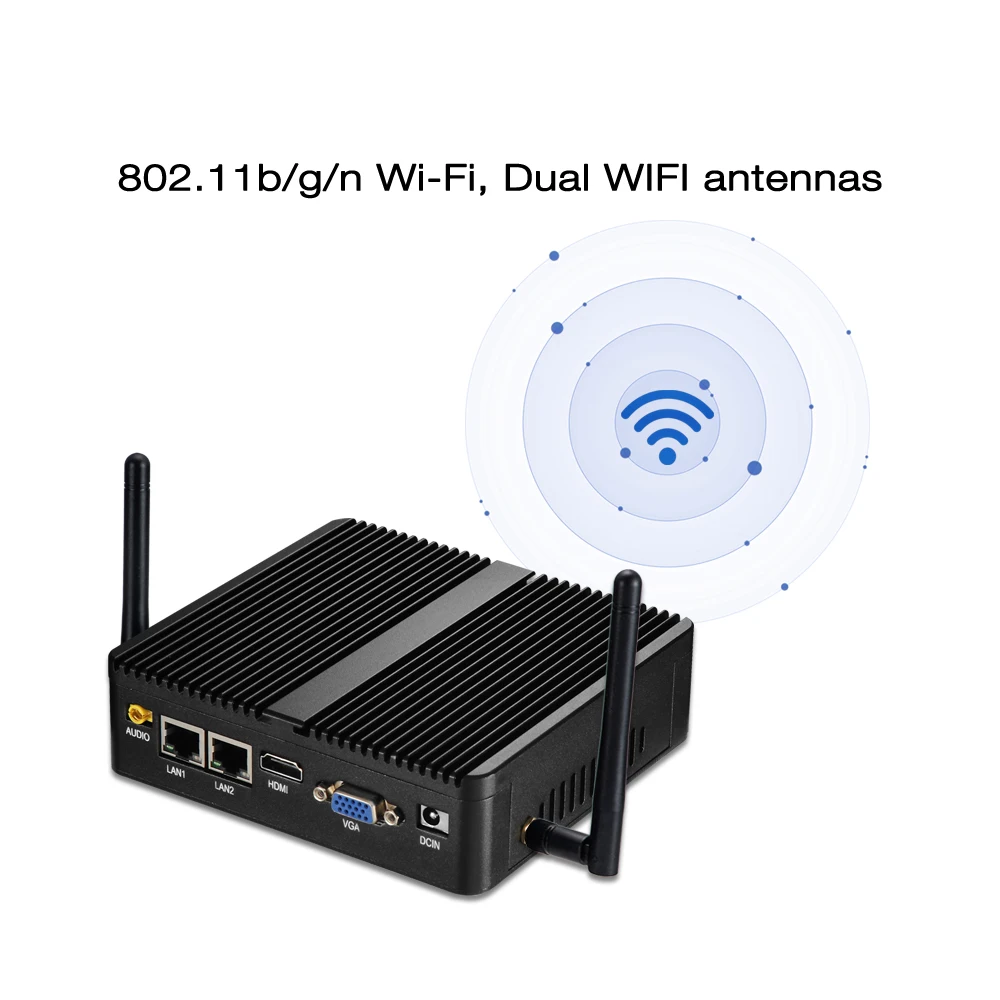

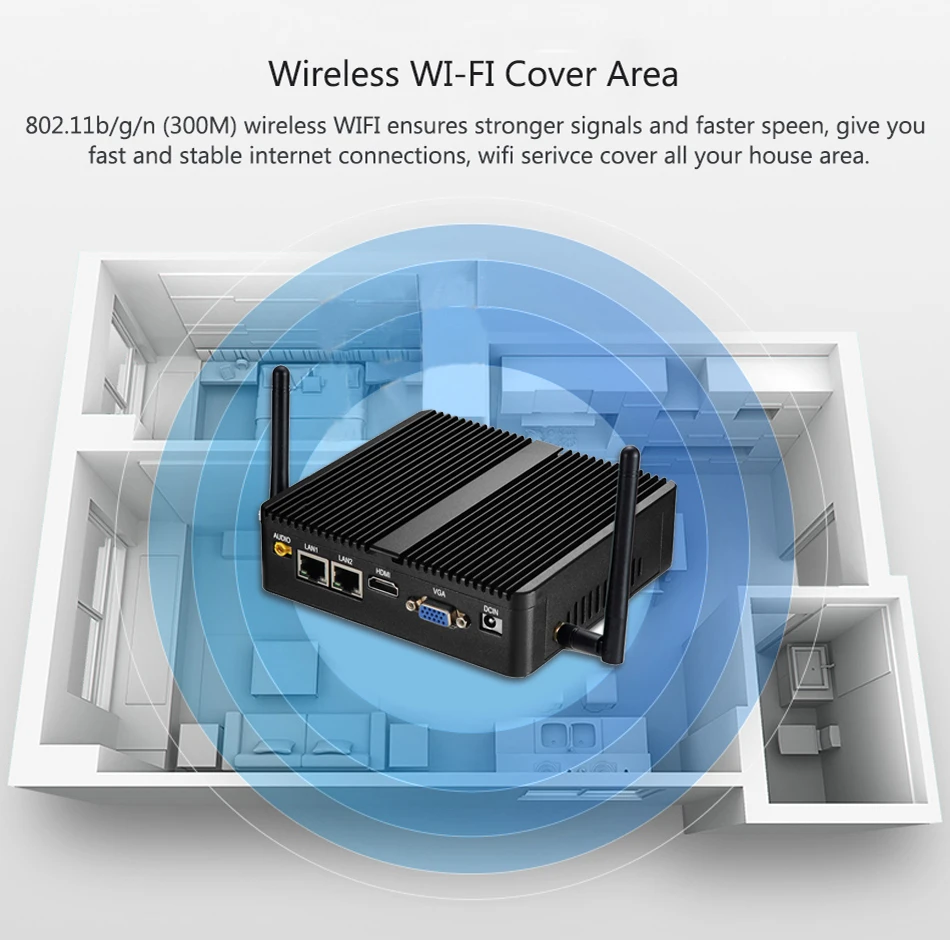

- 1x mini PCIE slot support expandsion of WiFi/4G LTE Modules;
- Support automatically power on after AC power restored;
Processors
Intel Celeron J4125, 4 cores 4 threads, 4M Cahce, 2.0GHz, up to 2.70GHz
Intel Celeron J6412, 4 cores 4 threads, 1.5M L2 Cache, 2.0GHz, up to 2.60GHz
Intel Core i3-5005U, 2 cores 4 threads, 3M Cache, 2.00GHz
Intel Core i3-4005U, 2 cores 4 threads, 3M Cahce, 1.70GHz
Intel Celeron N2830, 2 cores 2 threads, 2M Cahce, 2.16GHz up to 2.41GHz
Intel Celeron 2955U, 2 cores 2 threads, 2M Cahce, 1.40GHz
Intel Celeron 3205U, 2 cores 2 threads, 2M Cache, 1.50GHz
Intel Pentium 3805U, 2 cores 2 threads, 2M Cahce, 1.90GHz
Memory Types
J4125 J6412 processors use 1x SODIMM DDR4 RAM 2400MHz,
other processors use 1x SODIMM DDR3L1333/1600MHz
i3-5005U / J6412 max support to 1x 16GB RAM, others CPUs max support 1x 8GB RAM

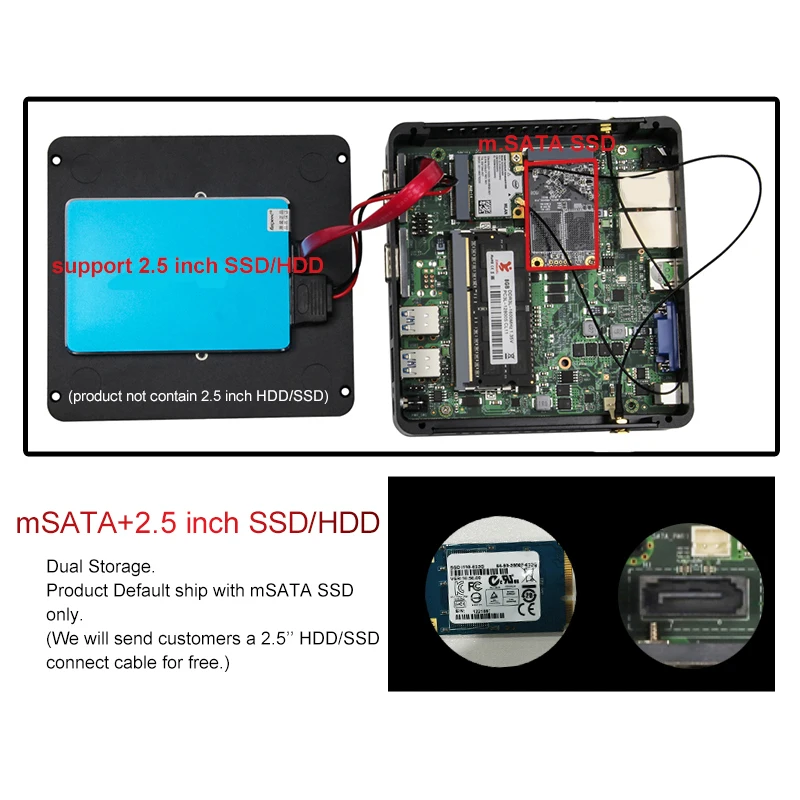

Hard Drive Types

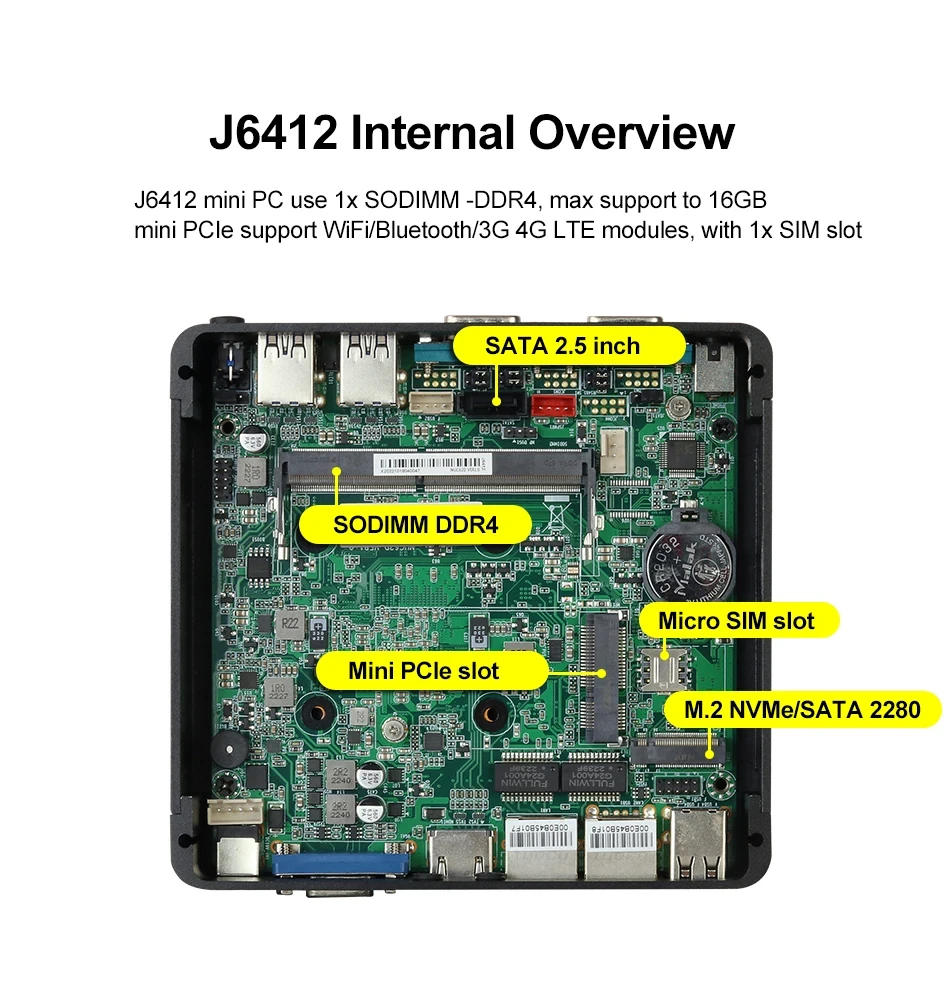

J6412 support 1x M.2 NVME/SATA 2280 SSD, 1x 2.5 inch HDD/SSD;
Other CPUs support 1x mSATA SSD, 1x 2.5 inch SATA HDD/SSD
Processor Graphics
J4125: Intel UHD Graphics 600
J6412: Intel UHD Graphics for 10th Gen Processor
N2830/2955U/3205U/3805U: Intel HD Graphics
i3-4005U: Intel HD Graphics 4400
i3-5005U: Intel HD Graphics 5500
Network Interfaces
2x GbE RJ45 Realtek 8111E, Support Wake on LAN, PXE boot
Expansion
1x Mini PCI-E slot,
J4125/J6412 model mini PCI-E support WiFi/Bluetooth/3G/4G modules, with SIM slot;
other CPUs 's mini PCI-E support WiFi/Bluetooth modules, without SIM slot.
OS Support
J6412 support windows 11, windows 10, Linux/Ubuntu/CentOS
J4125 support windows 10, Windows 8.1, Linux/Ubuntu/CentOS
i3-4005U/i3-5005U Celeron 2955U/3205U/N2830 Pentium 3805U support Windows 10, Windows 8.1, Windows 7, Linux/Ubuntu/Centos
more OS please contact us.

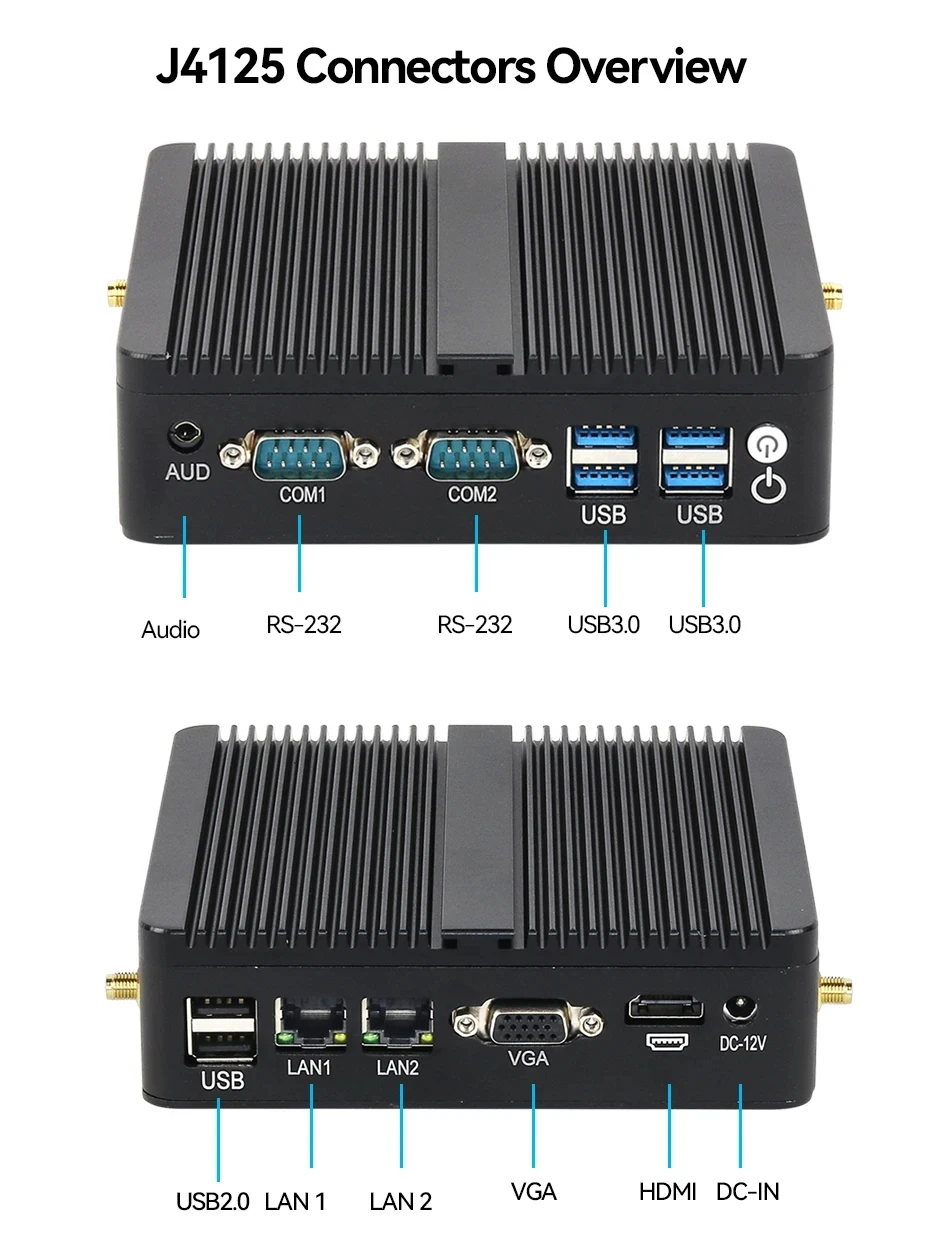

USB Ports
J4125 J6412: 4x USB3.0, 2x USB2.0

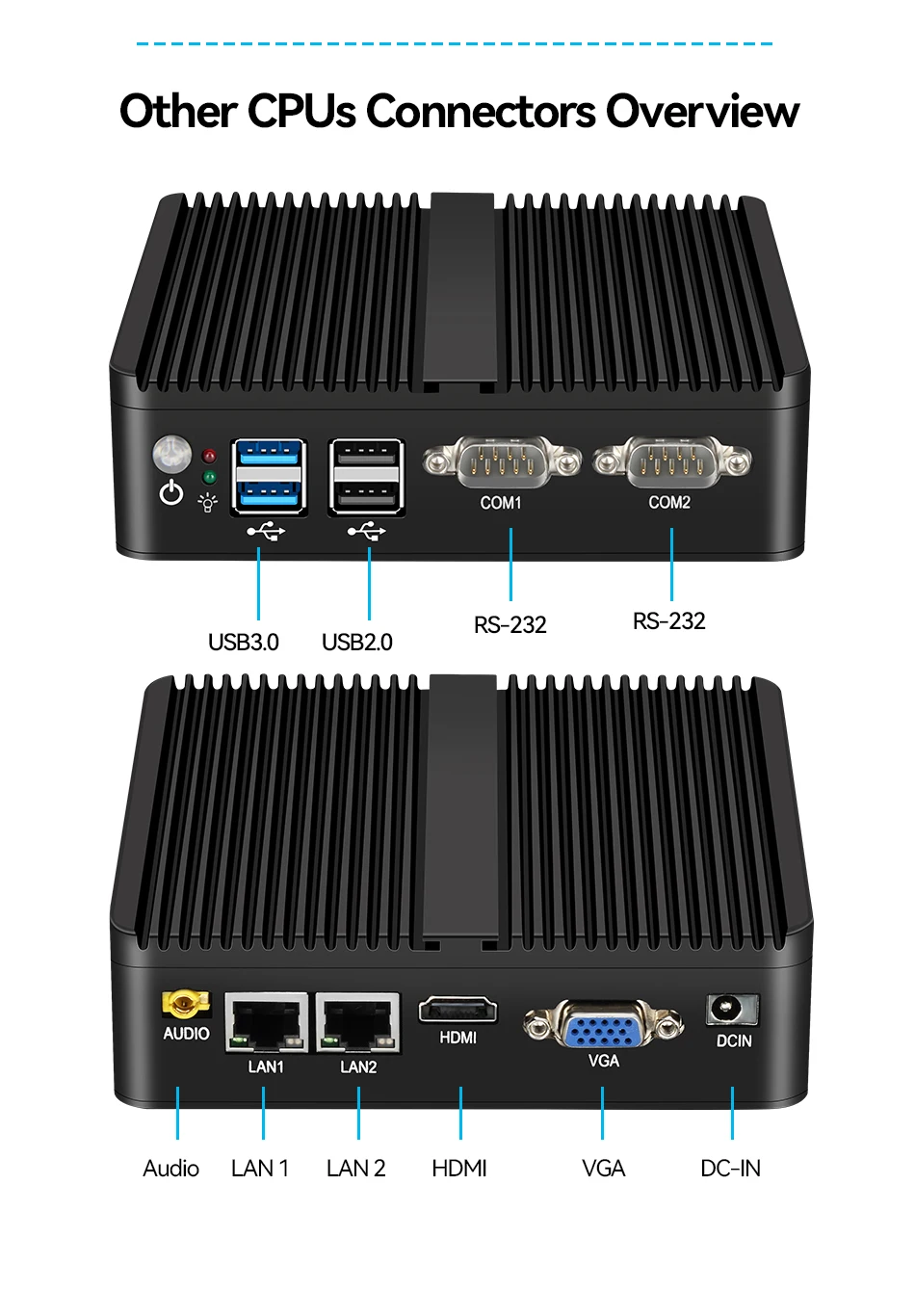

others CPUs: 2x USB3.0, 2x USB2.0

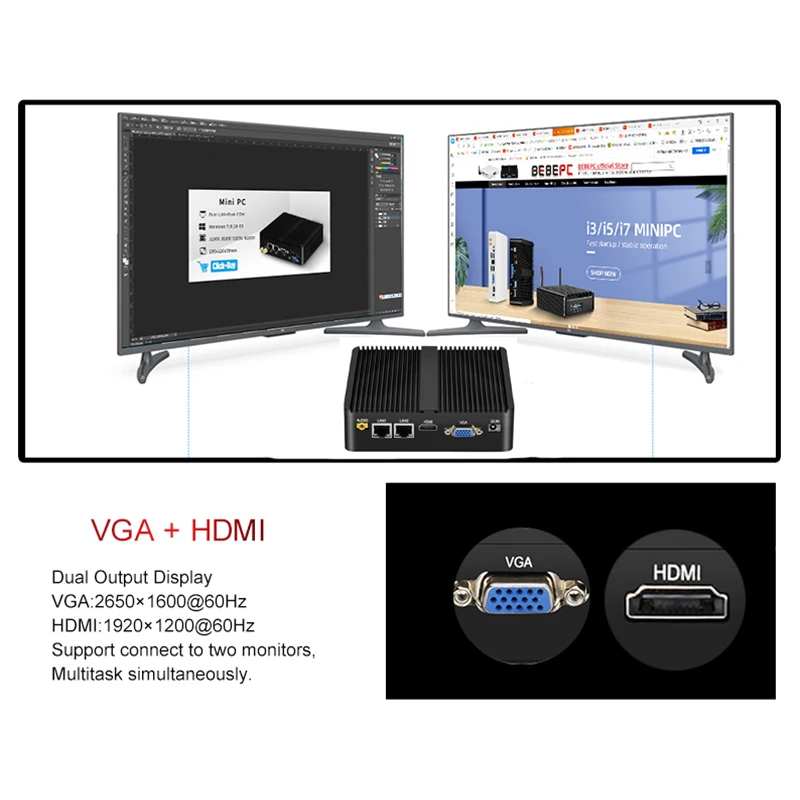

Display Port
1x VGA, 1x HDMI,
supports dual monitors independently video output

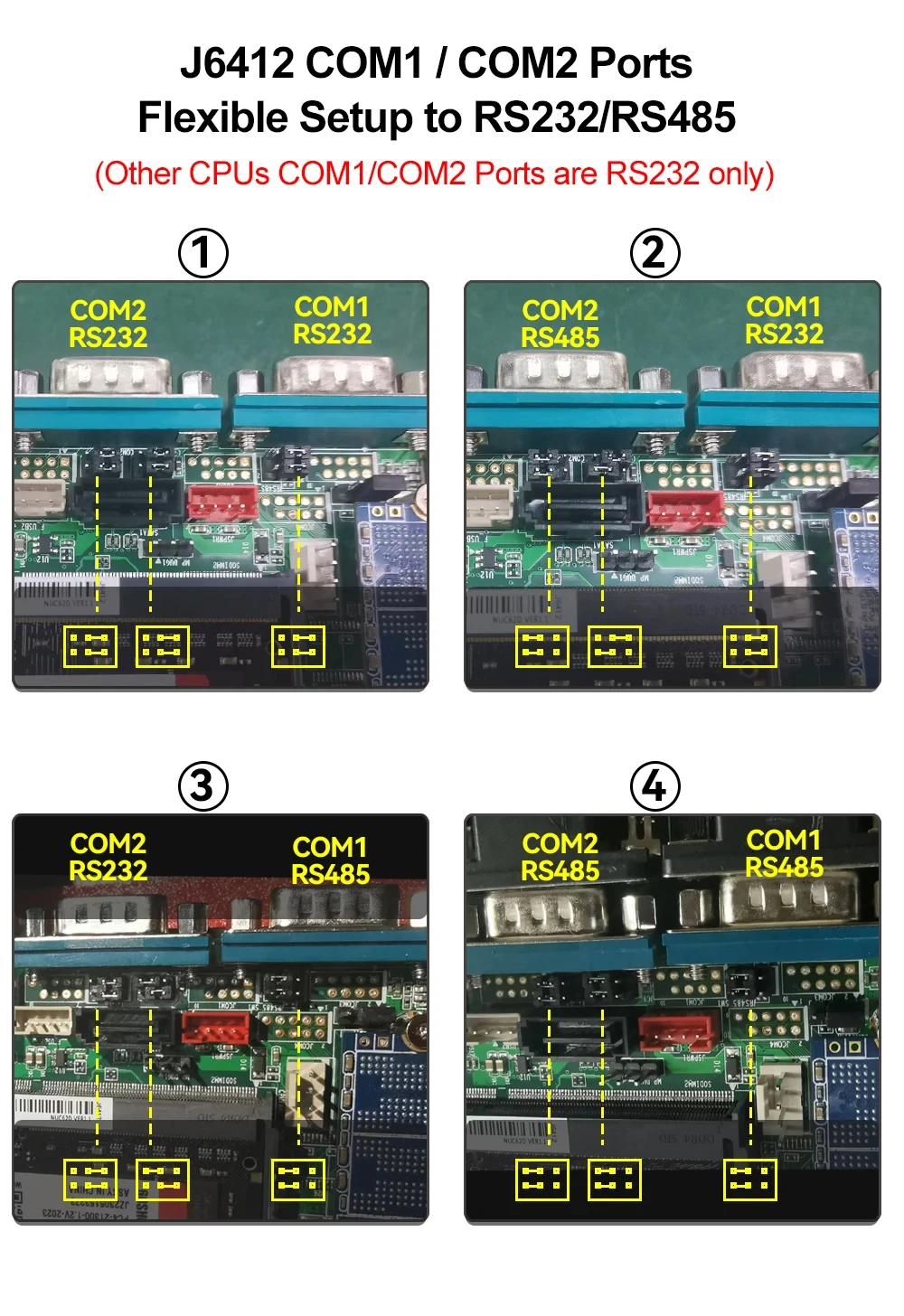

COM Ports

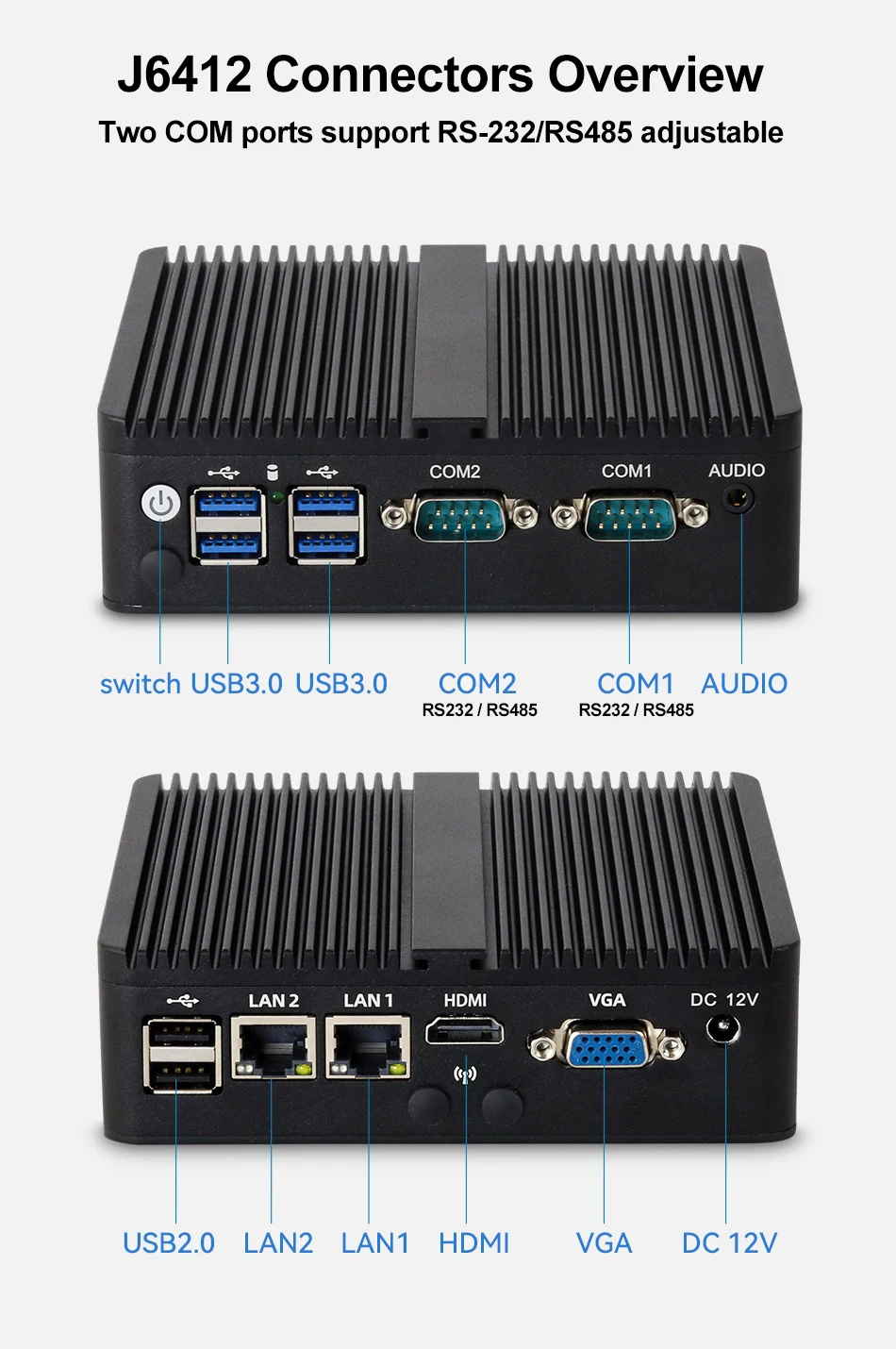

J6412 : 2x RS-232/RS-485, jumper free setting
Other CPUs : 2x RS-232
Audio Ports
Realtek RTL662/897 HD Audio, 3.5mm combo audio jack 2-in-1
Support MIC in, Line out
Construction
Fanless passive cooling
Case Materials
Aluminum Case
Dimension
135x124x40mm
Netweight
1.0Kg
Storage Temperature
﹣20℃to +60℃
Operating Temperature
﹣20℃to +60℃
RH
5%~90% @30℃, Non-condensing
Working Voltage
DC12V-3A/5A (customize working voltage please contct us)
Package List
1x Mini PC X30G
1x AC Adapter
1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )
1x SATA cables
1x User manual
Package list:
1x Mini PC
1x power adapter
2x WIFI antennas
1x SATA Power & data cable (send by stock)

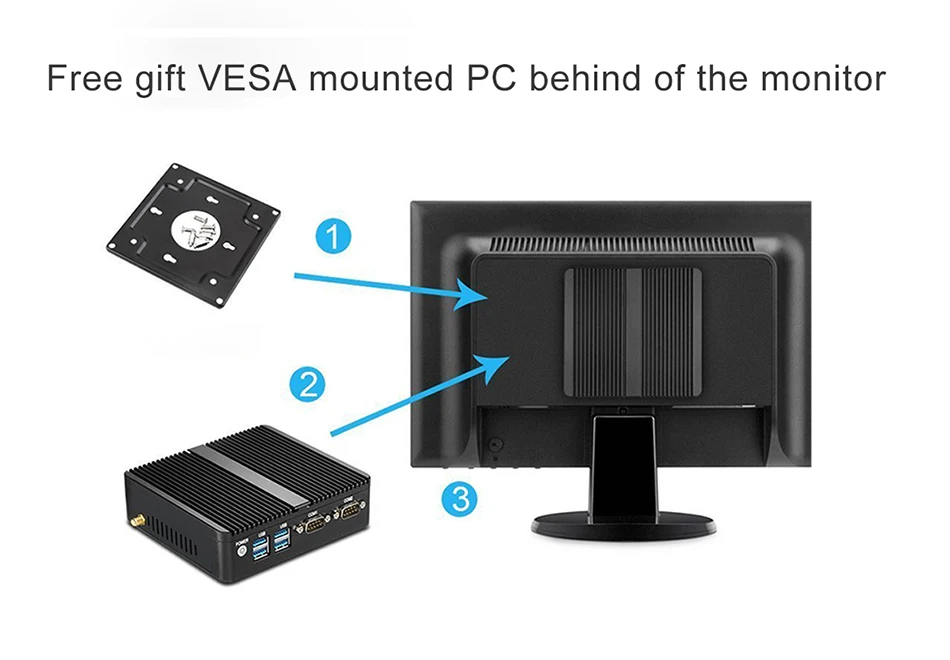

1x VESA mount
1x User Manual
