The new 24 Port Straight-through CAT6A Patch Panel! Please click on the image below to enter the purchase:
Quality choice, cost-effective, buy now, enjoy more discounts!

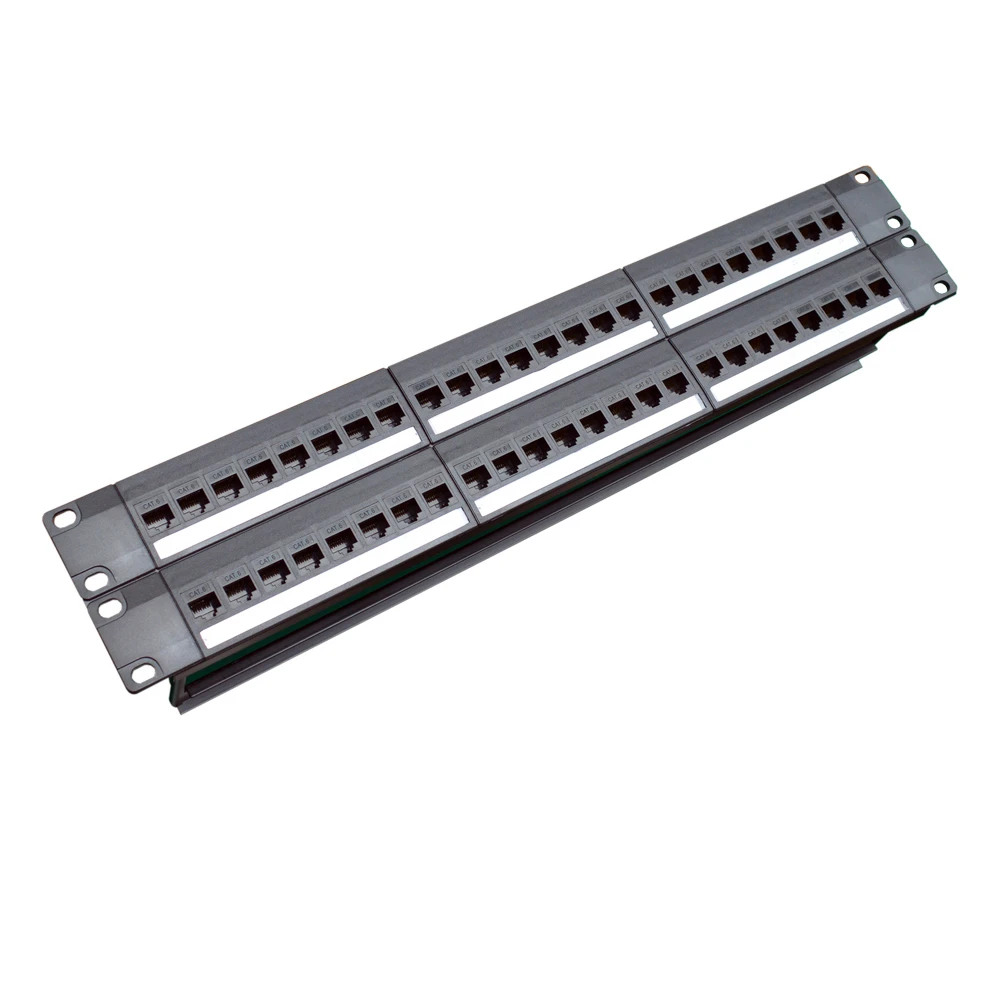

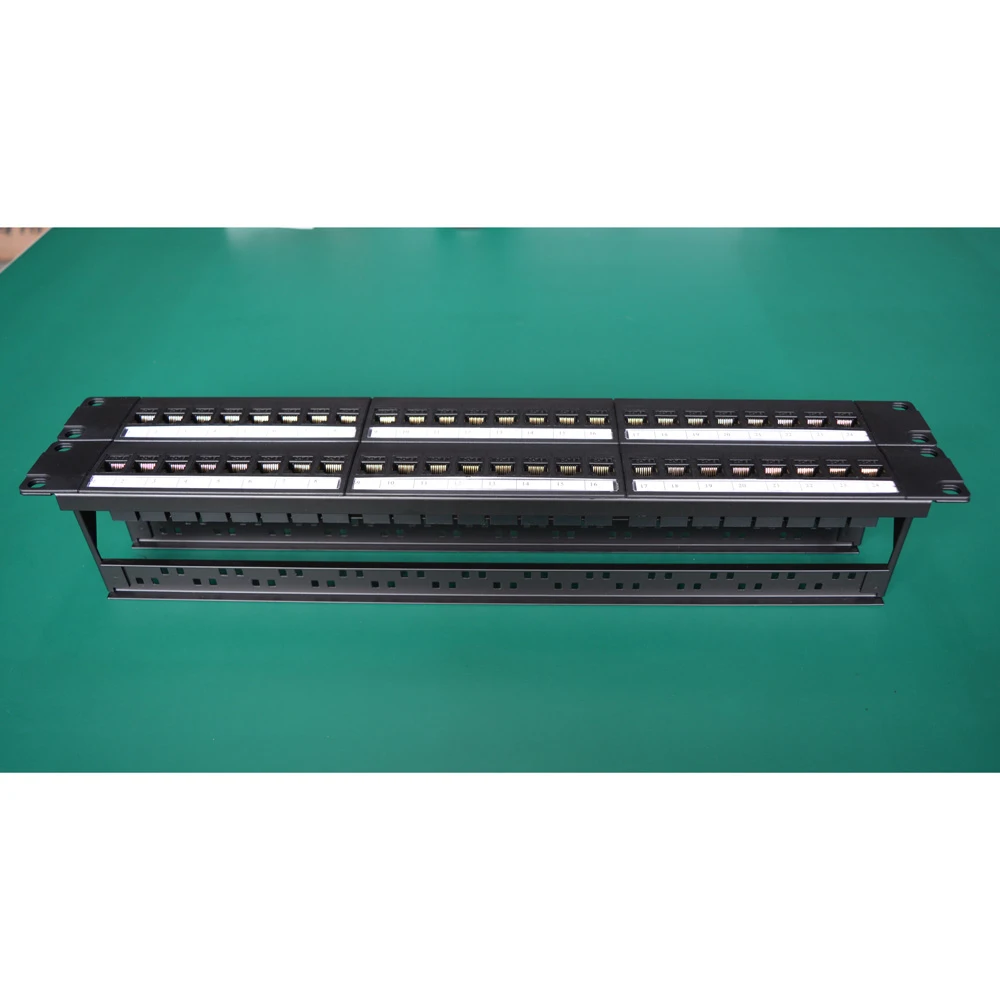

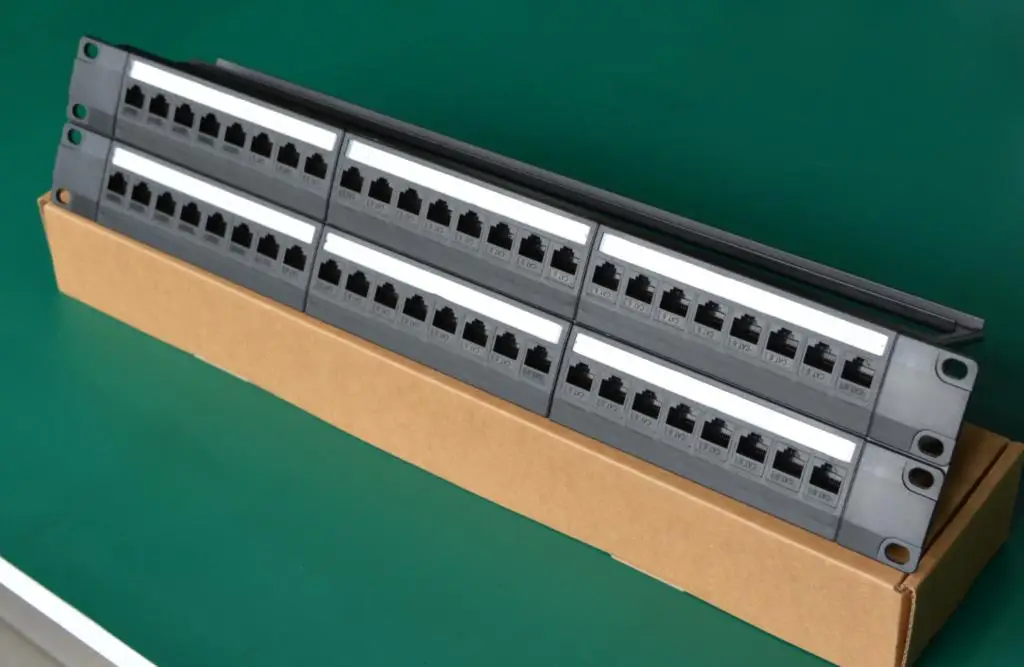

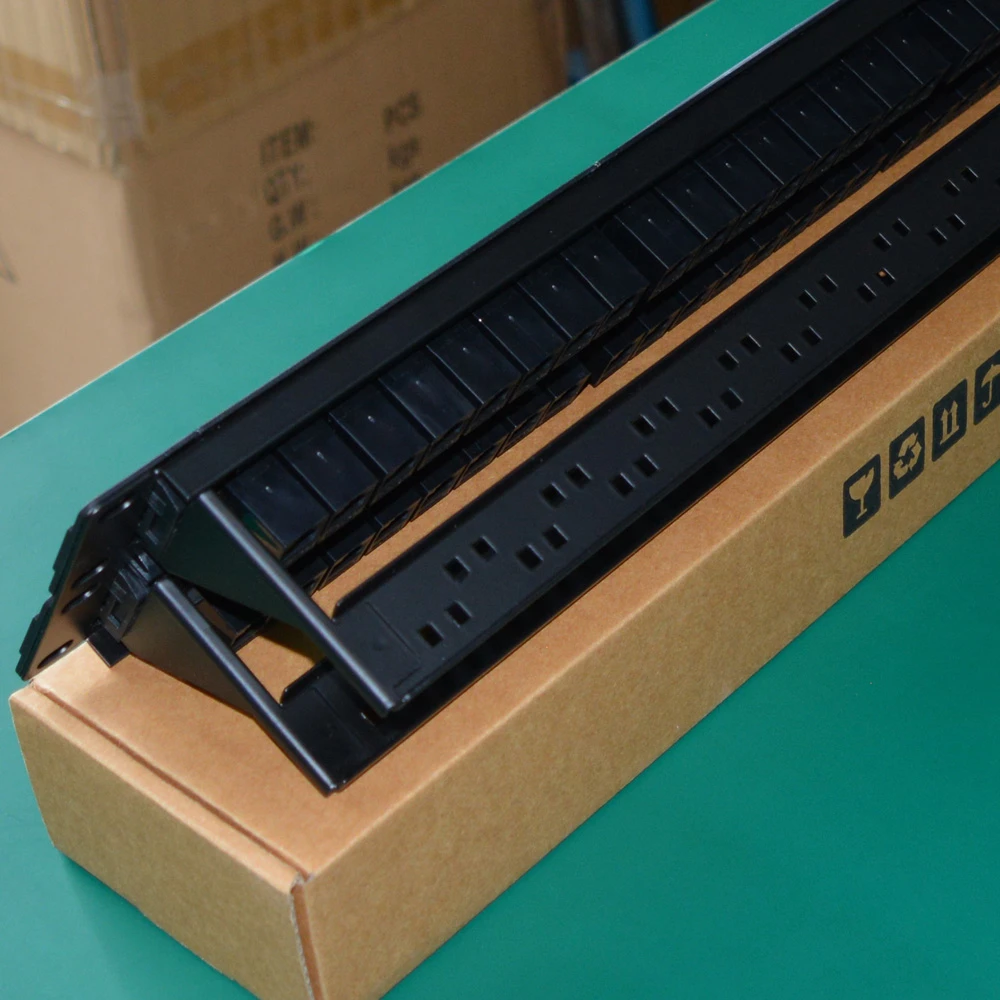

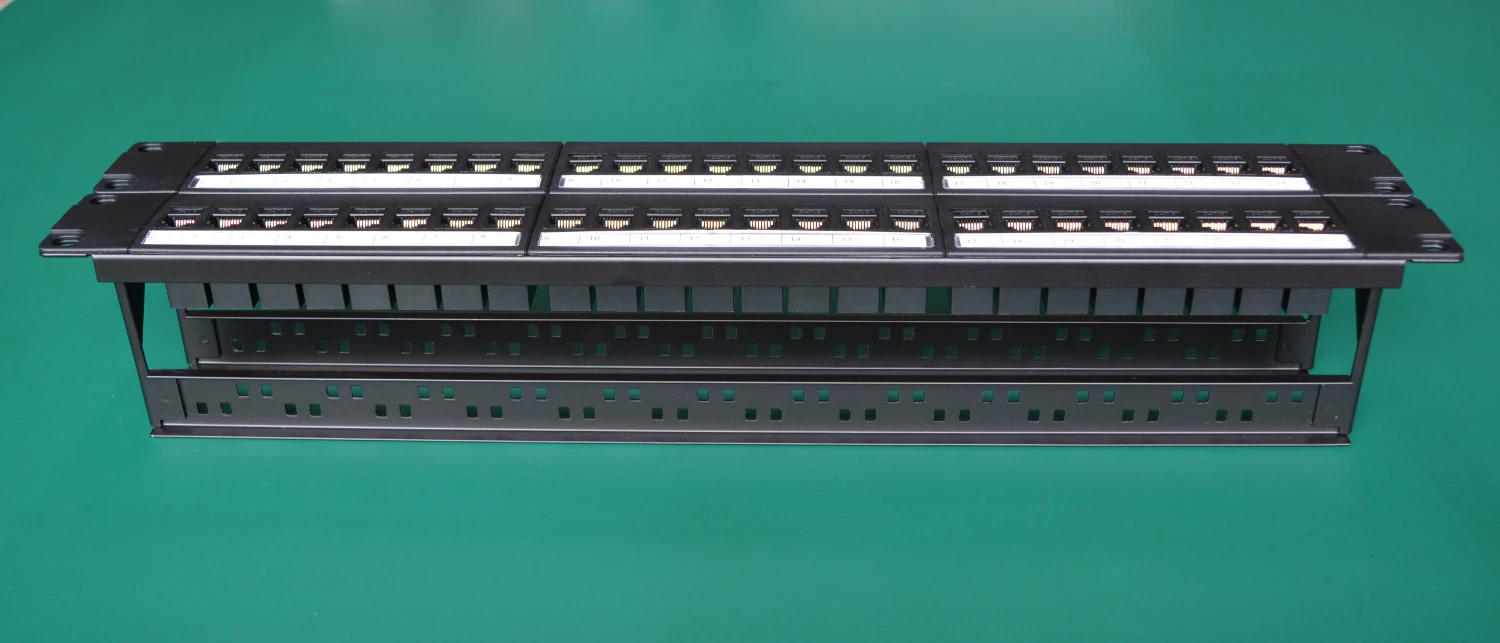

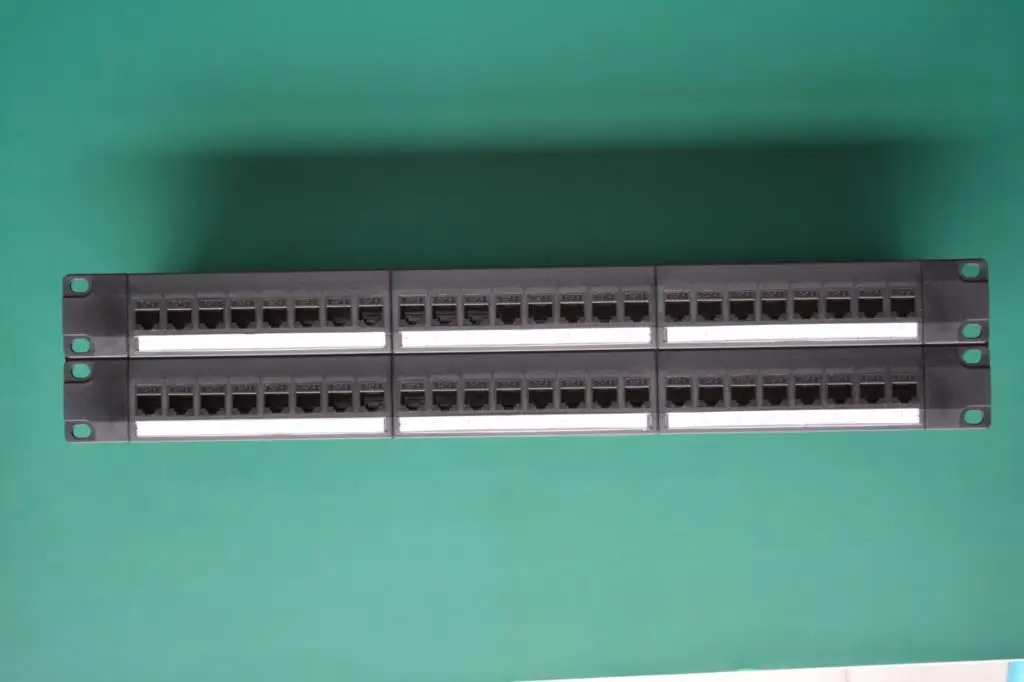

Unshielded 48-Port CAT6/CAT.6a Straight-through Modular Patch Panel
◆ Product Name: UTP CAT6 straight-through modular distribution frame
◆ Product Type: CAT6/CAT.6a 48-port patch panel, unshielded

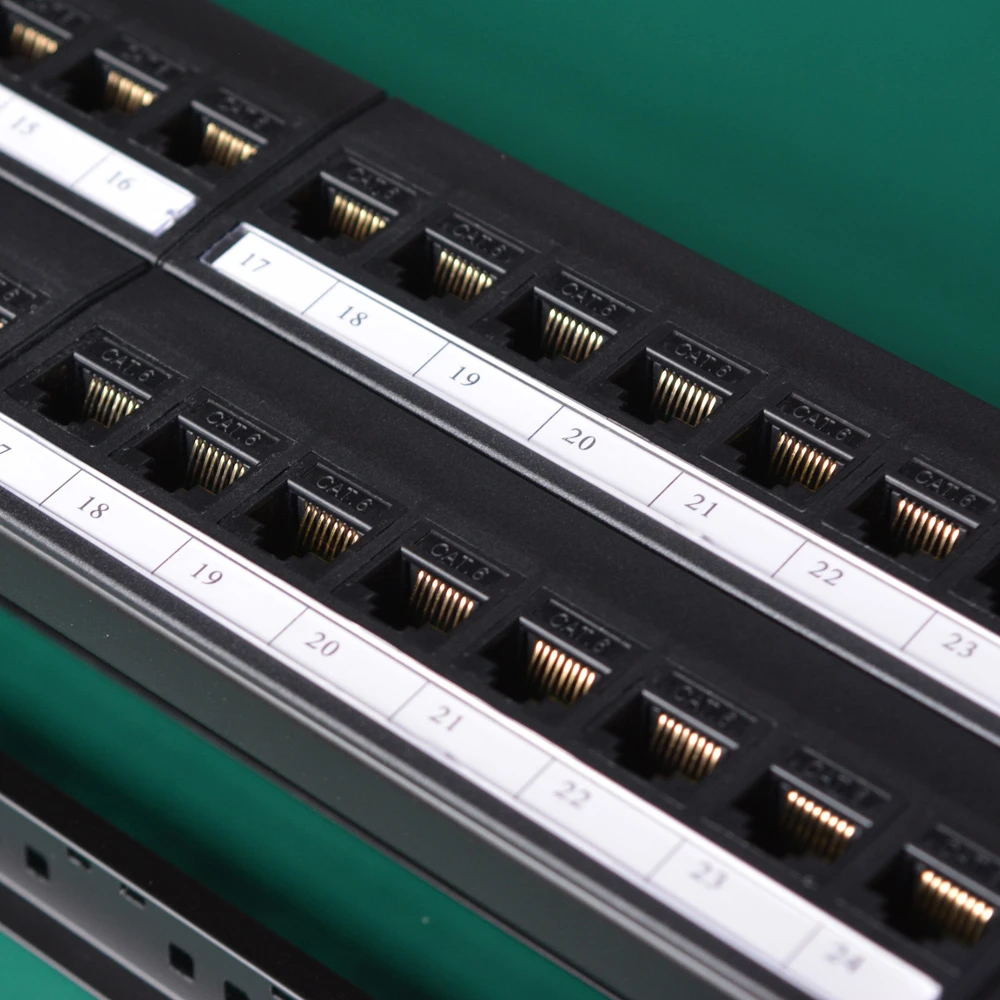

◆ Specifications: 19′′ mounting size, modular design, with 48pcs high performance gold-plated UTP CAT6/CAT.6a Keystone Jack
◆ Material: injection molded from high quality cold rolled steel, phosphor bronze and PC
◆ Color: Black
◆Main technical parameters
*IDC: Phosphor bronze, silver plated (20~50uiLZh), suitable for cables of 22, 23,24 and 26AWG (0.64, 0.5 and 0.4mm), with a life of not less than 250 times.

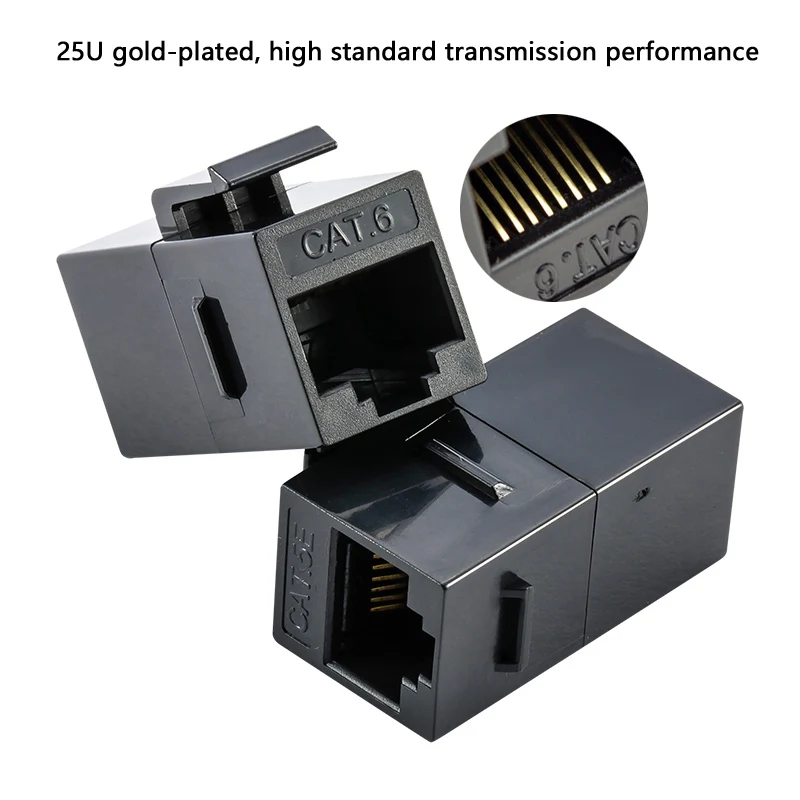

*8-line pin: phosphor bronze, gold-plated (20~50uiLZh), plug and socket can be re-plugged no less than 750 times
* Flame retardant: injection molded with PPO+PC to meet international standards
* Contact resistance: no more than 2.5mΩ under normal atmospheric pressure (without body resistance)
*Insulation resistance: not less than 1000MΩ under normal atmospheric pressure conditions
*Electrical strength: DC 1000V (AC, 700V) No breakdown and arcing in 1 minute
*Standard: Designed and manufactured according to international standard ISO/IEC11801; TIA/EIA568

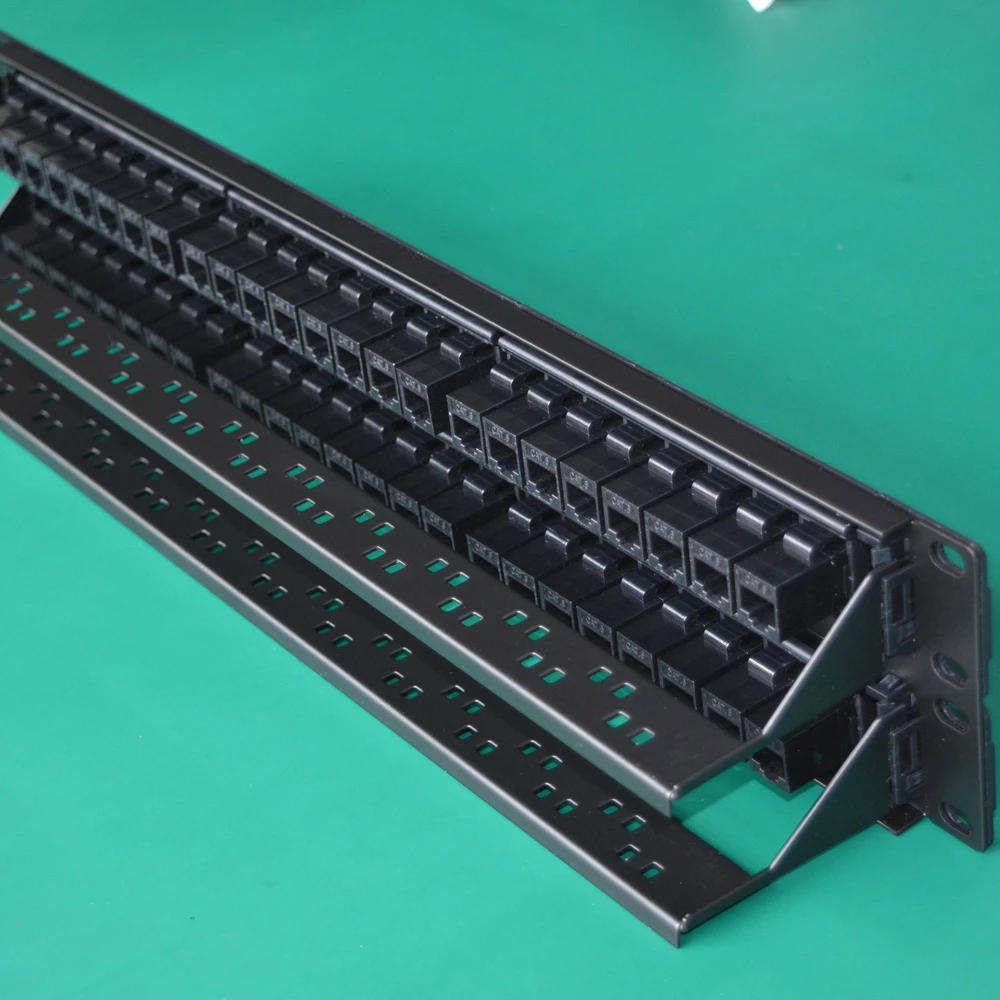

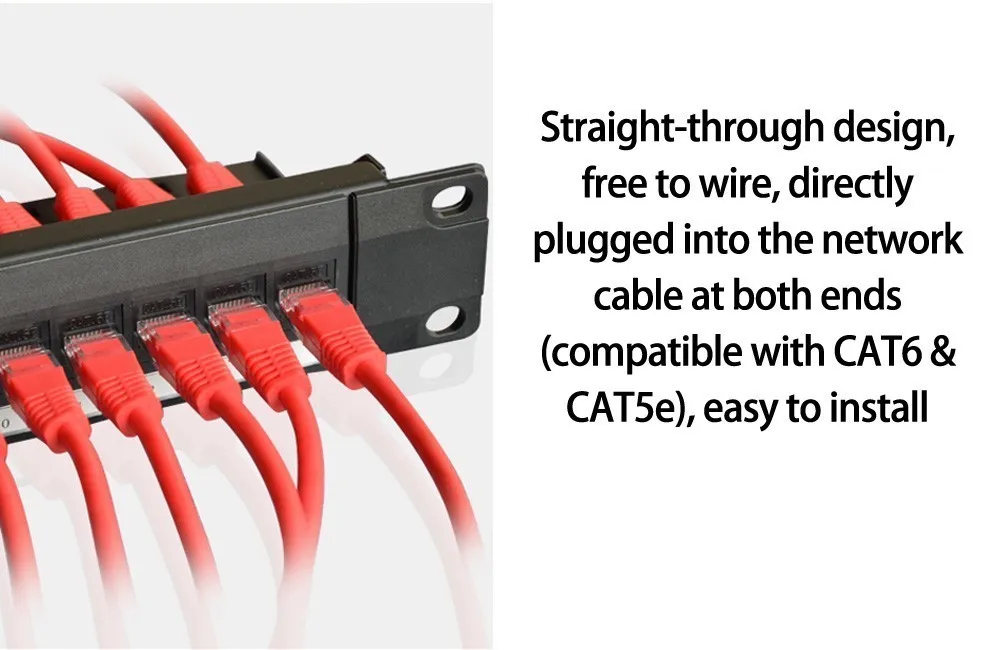

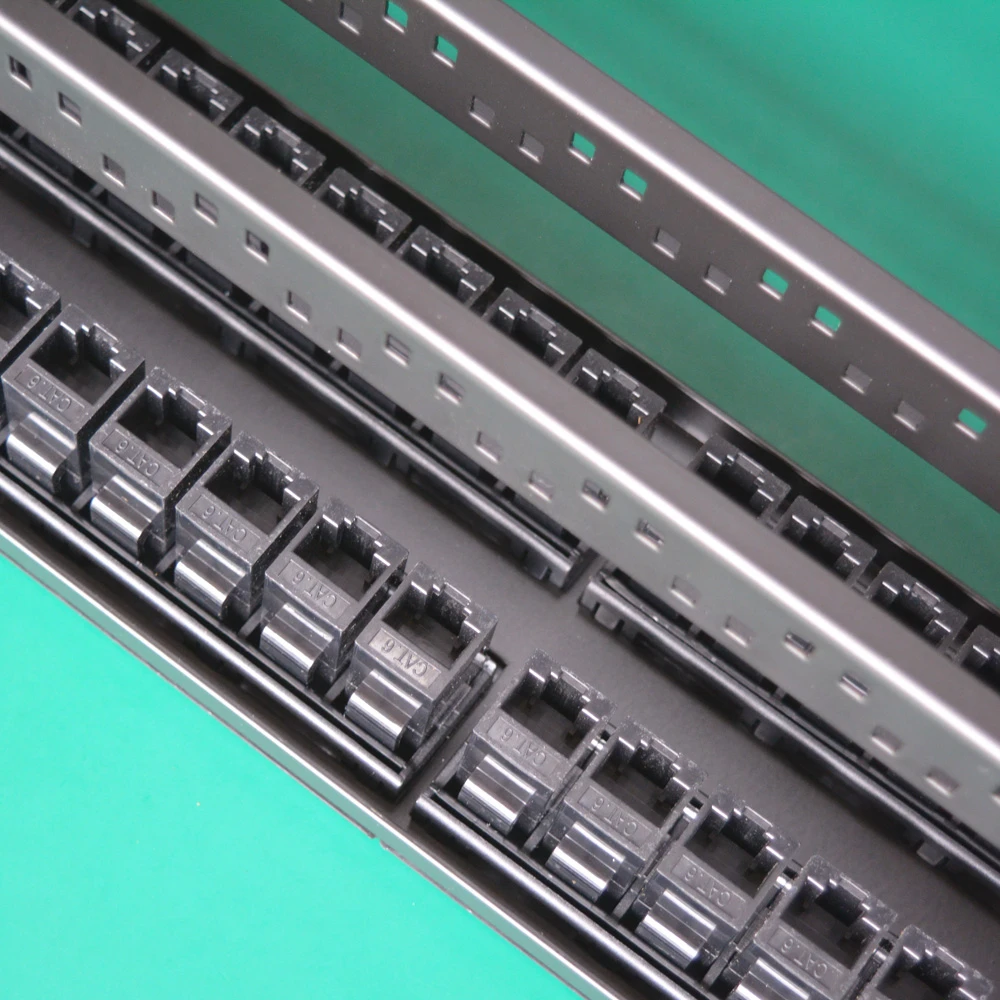

This modular patch panel, 48pcs Keystone Jack are straight-through modules free of wire, can be directly plugged into the network cable, easy to install and operate

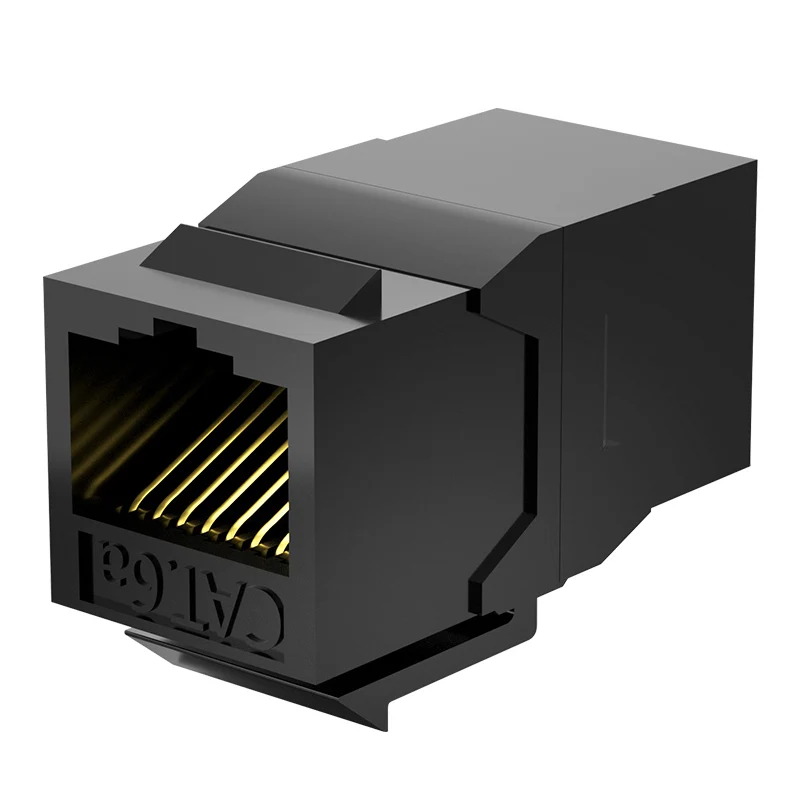

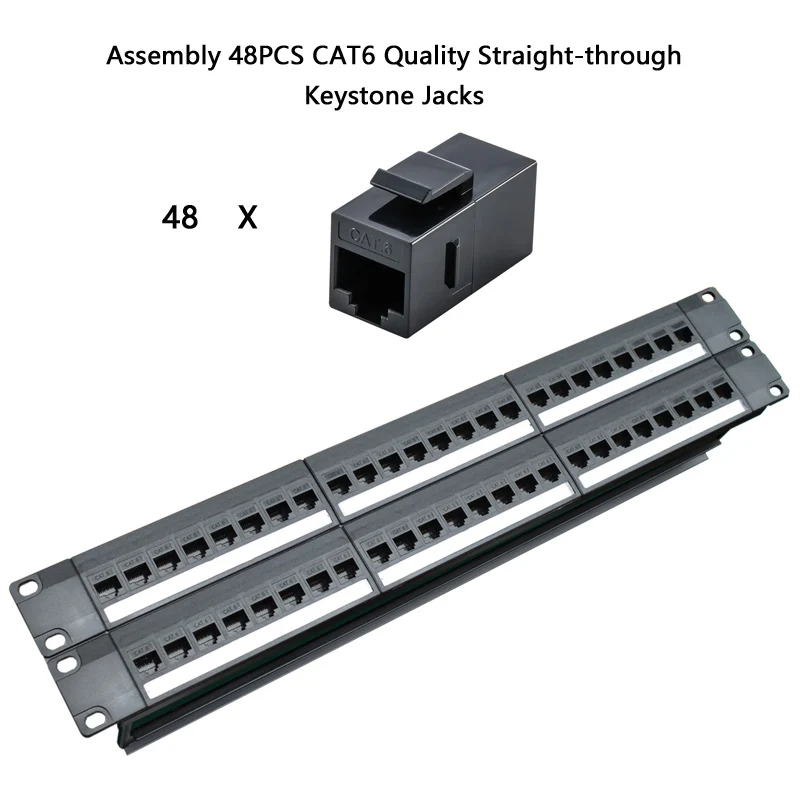

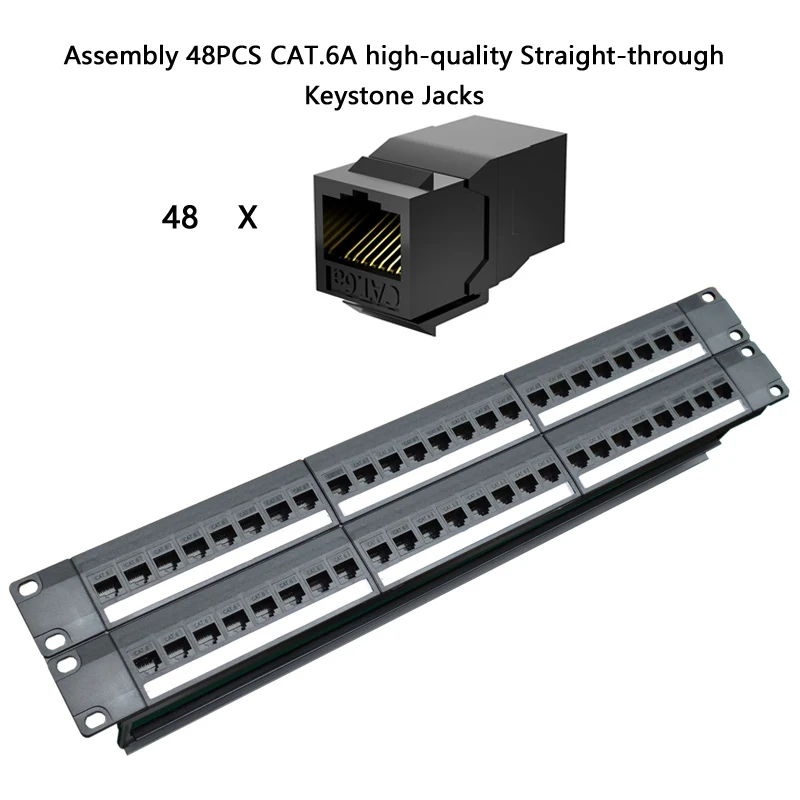

This product offers two purchase options, one is to install 48PCS straight-through CAT6 Keystone Jack style; the other is to install 48PCS straight-through CAT.6a Keystone Jack style, CAT.6a Keystone Jack has better performance and is compatible with CAT6 style.

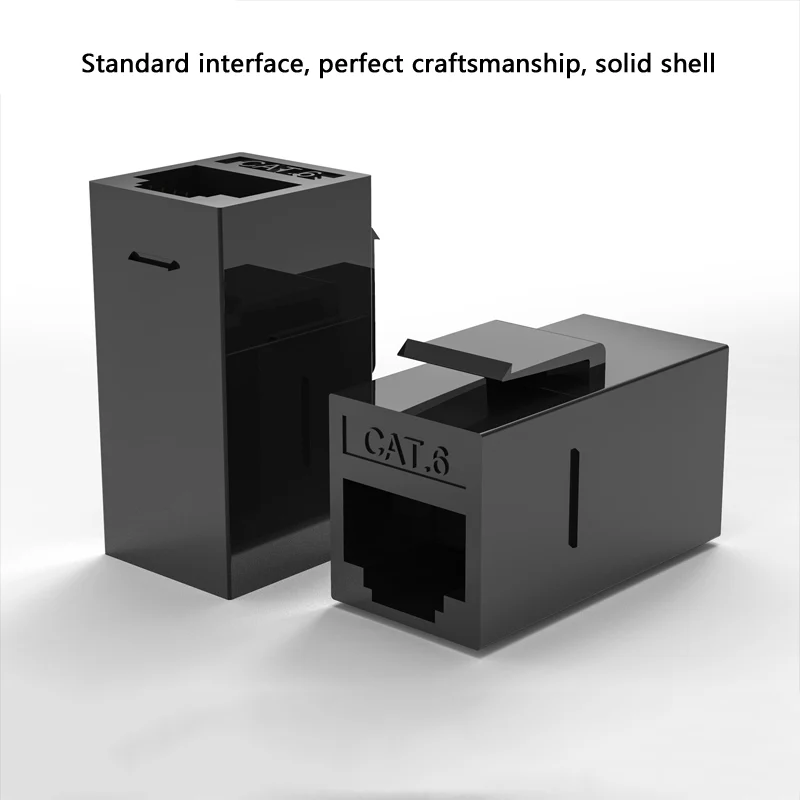

1. CAT6 Keystone Jack style

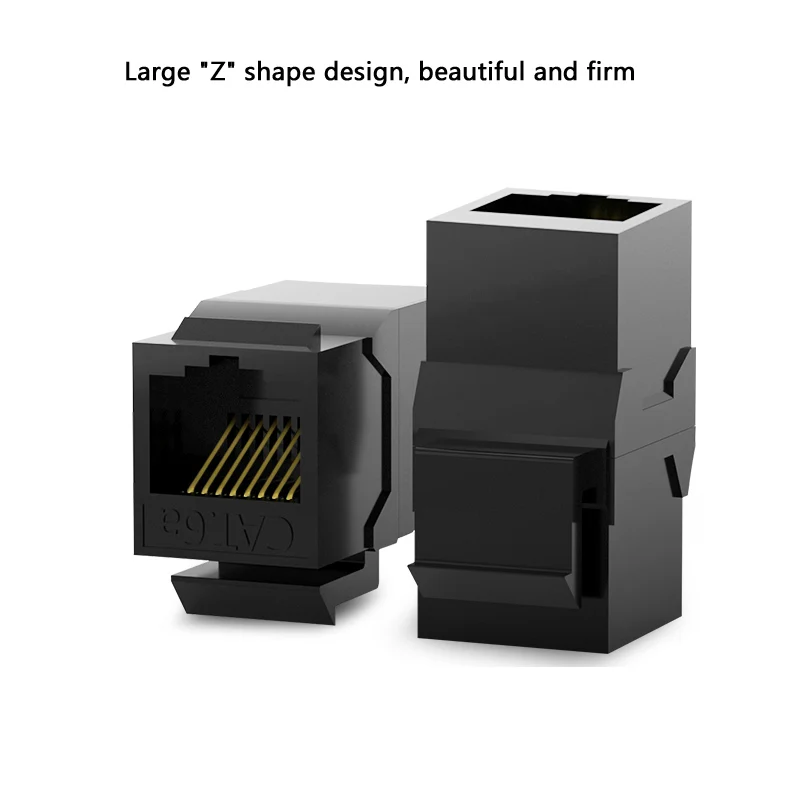

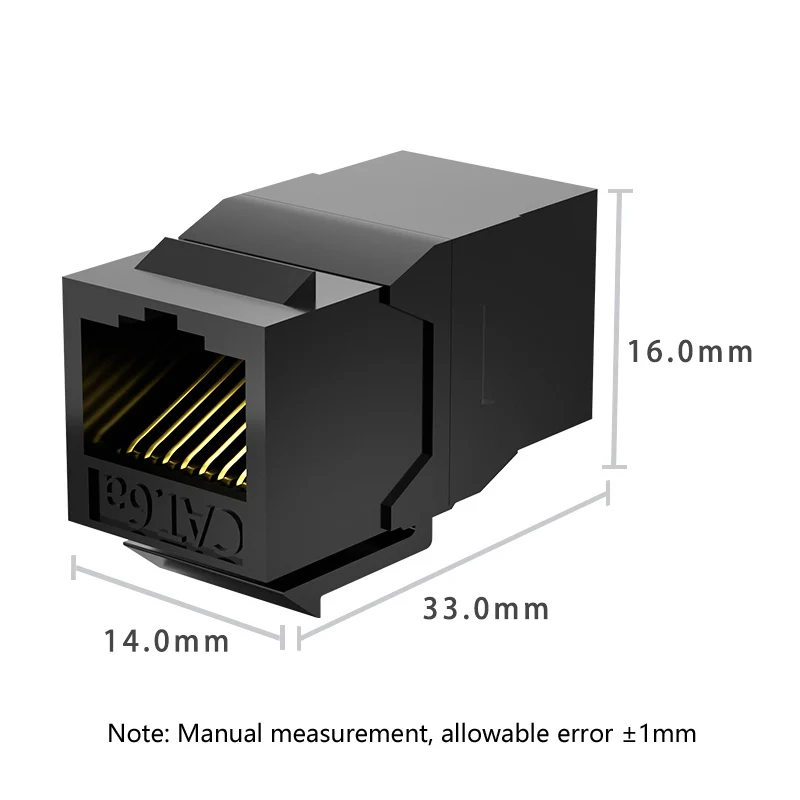

2. CAT.6a Keystone Jack style

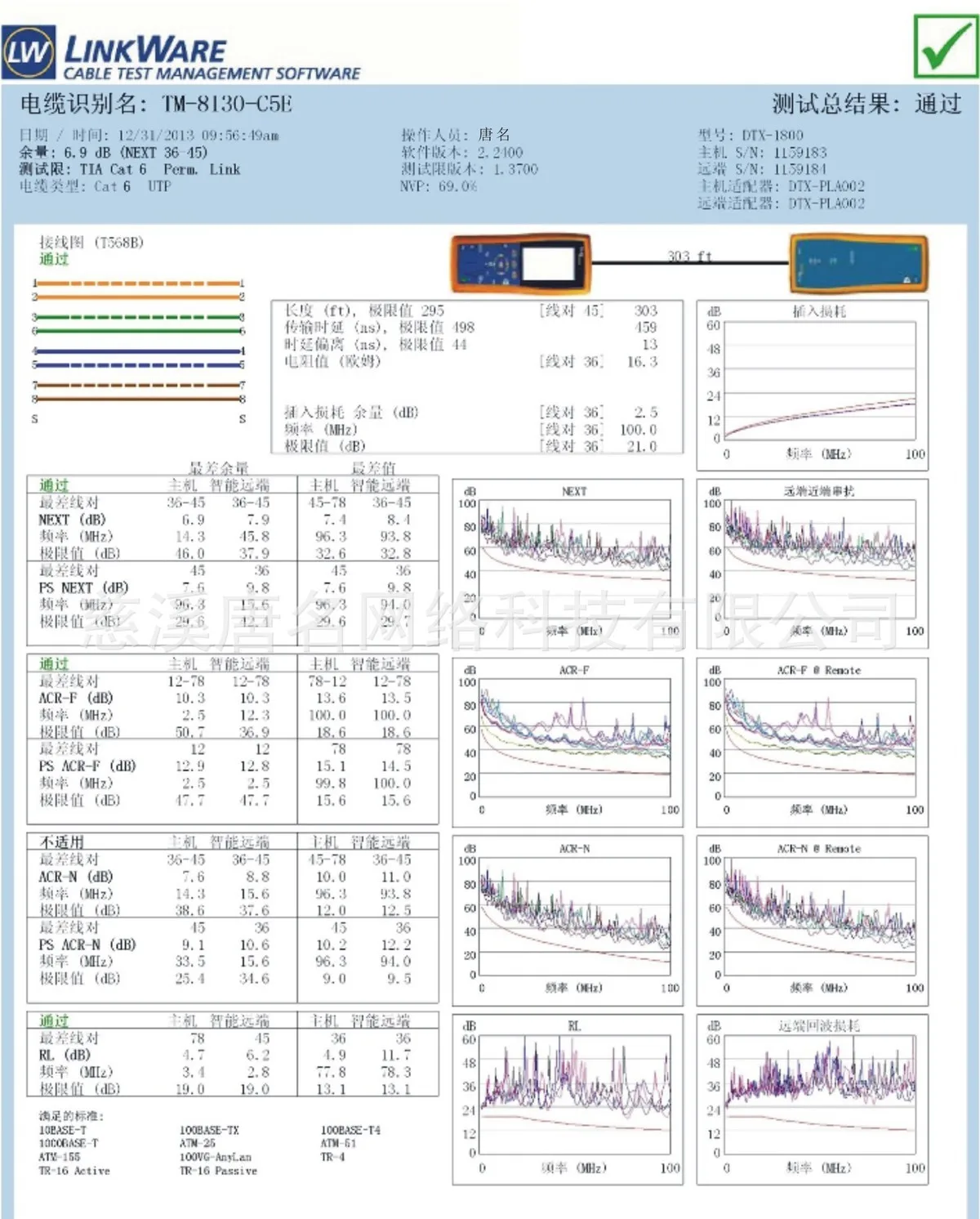

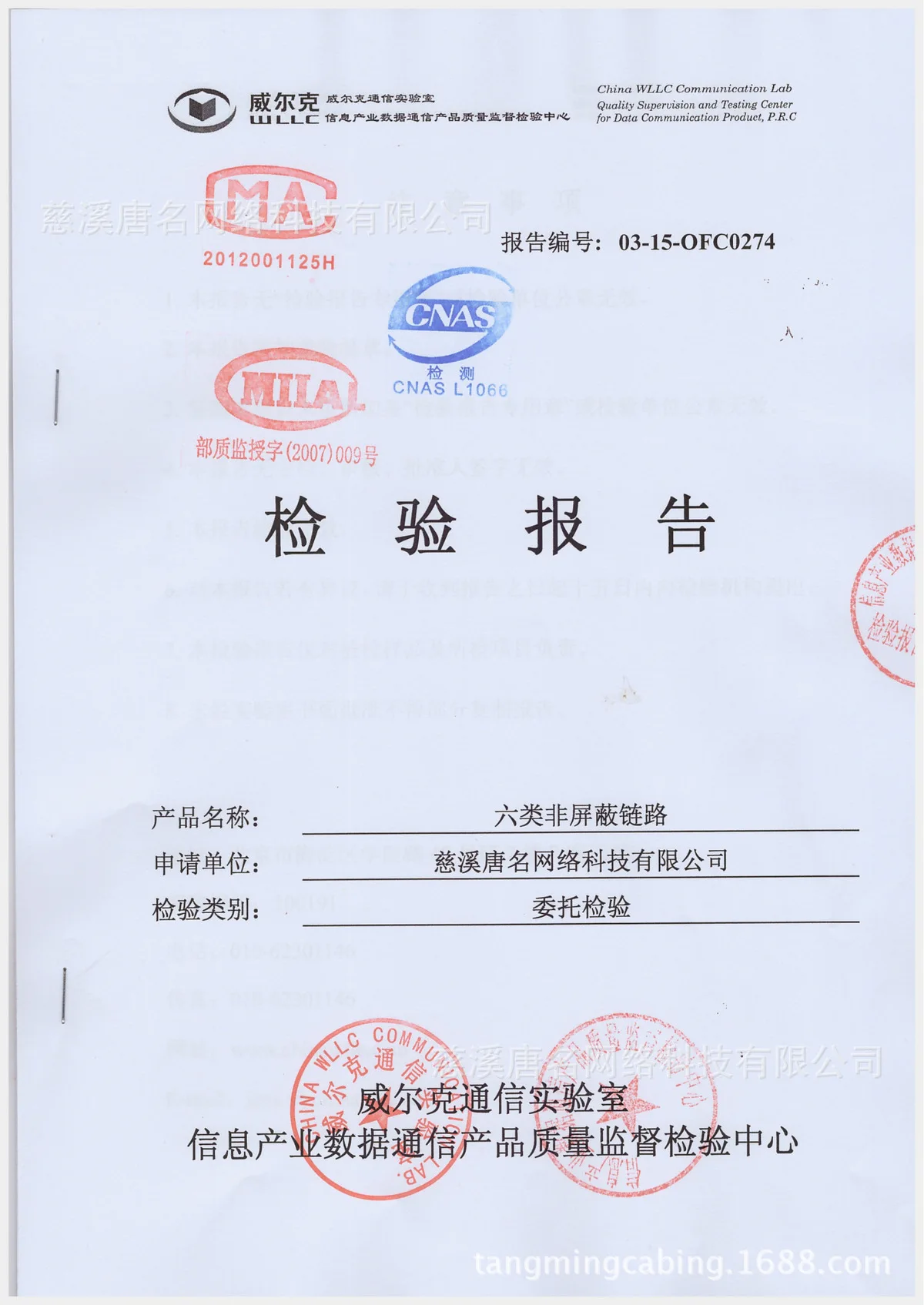

Passed CAT6 test, good performance
