Descripción
Features:
Support SATA M.2 and NVME M.2, WIFI M.2
High compatibility brings you a higher experience.
All solid-state capacitors, fine workmanship, professional and stable.
Specification:

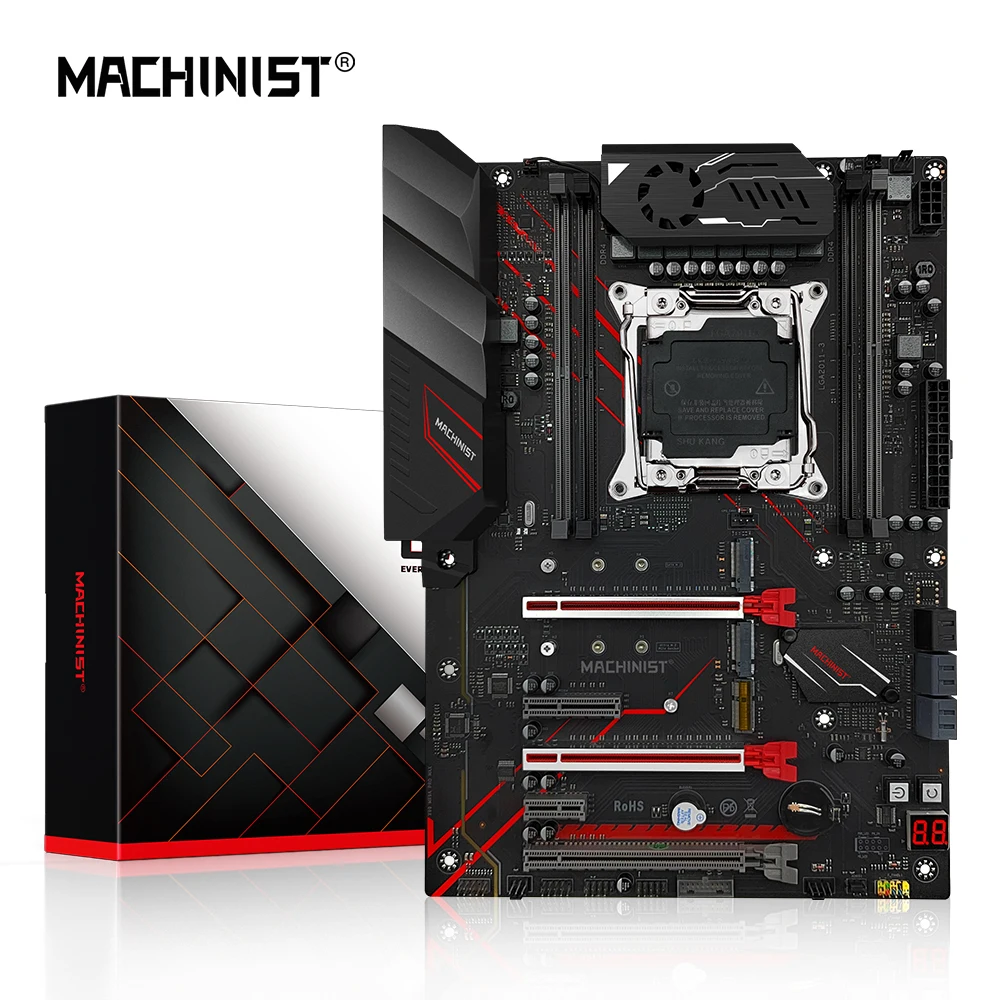

Machinist Design Type: E5-MR9A-PRO-MAX
Chipset: Q87 motherboard
Type: ATX
Graphics card slot: 3*pci-e x16
CPU Support: For Intel LGA Series 2011-3 Socket (E5 v3 & v4)
Four-channel compatible memory type: 2133/2400/2666/3000/3200/3600mhz Memory slot: ddr4*4
Memory capacity: 128gb
Network card type: Gigabit
Supported memory types: Desktop memory and ECC server
return to L/O:
USB Ports: 2 USB 3.0; 6 USB 2.0;
Audio: 1 0mic-in. line out, line in);
Ethernet: 1 realtek Gigabit network card;
ps/2: 1kb interface and 1ms interface;
Internal USB
2.0 connectors: 2 (one fusb can transfer two USB 2.0 ports);
USB 3.0: 2 (one fusb can transfer two usb 3.0 ports);
Serial port: 1 pin 2x5pin;
fans: 4 (1*cfan+-3*sfan);
Pieces: 5 (3 pieces x16; 1 piece x4; 1 piece x1);
sata ports: 6 (2 sata2. It doesn't matter. 4 sata3.0);
lan: atxpwr interface;
1 standard 1x8pin power socket; 1 standard 1x24pin power socket;
Audio: 1 pin 2x5pin;
Switch and reset: 2 independent buttons;
Jlpc: 1 pin 2x5 pin;
Diagnostic card: 1;
m.2 interface: 2 (1*pcib protocol+1*sata protocol);
Physics
Dimensions: 215mm x 303mm;
Motherboard weight (including packaging): about 1.4kg.
Notes: Notes:
1: The color of the bottom notch plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and updated.
2: Manual measurement, please allow 1-3mm difference.
3: Due to different monitors and different lighting, the pictures may not show the actual color of the goods. Thanks for your understanding.
4: This machine needs a strong power supply. Make sure you are strong enough to support this plan. (at least 500w power mark)
5: The battery in the motherboard photo will be taken out before shipping because the battery is disabled in CN Post and Custom.
For tax issues, if you can't solve it, please make sure you can solve your customs clearance problem, we do not recommend you to buy goods in this store. We are not responsible for responsibilities. Thanks for your understanding.
