Descripción

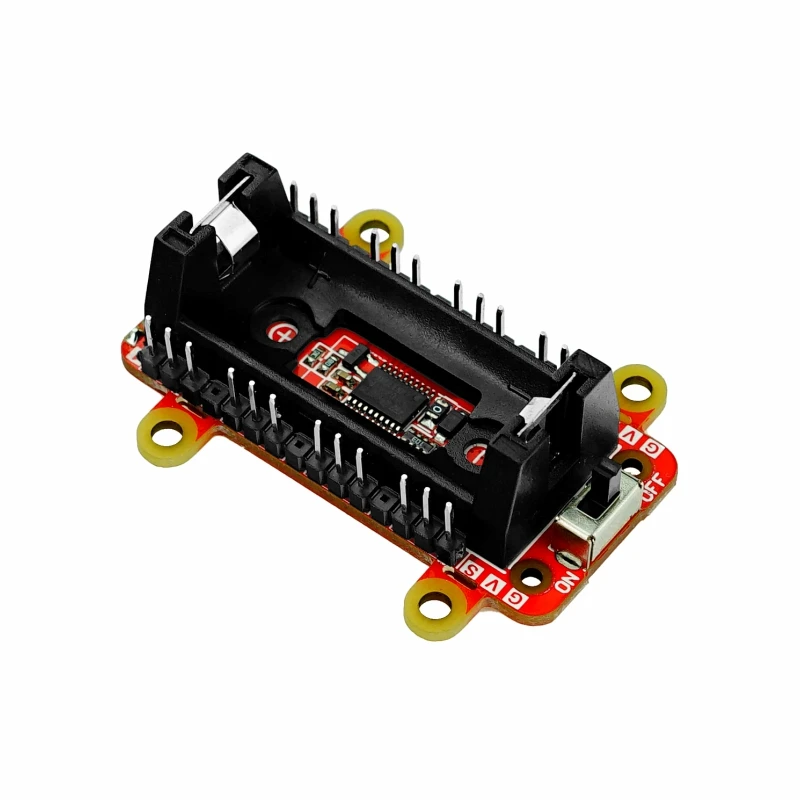

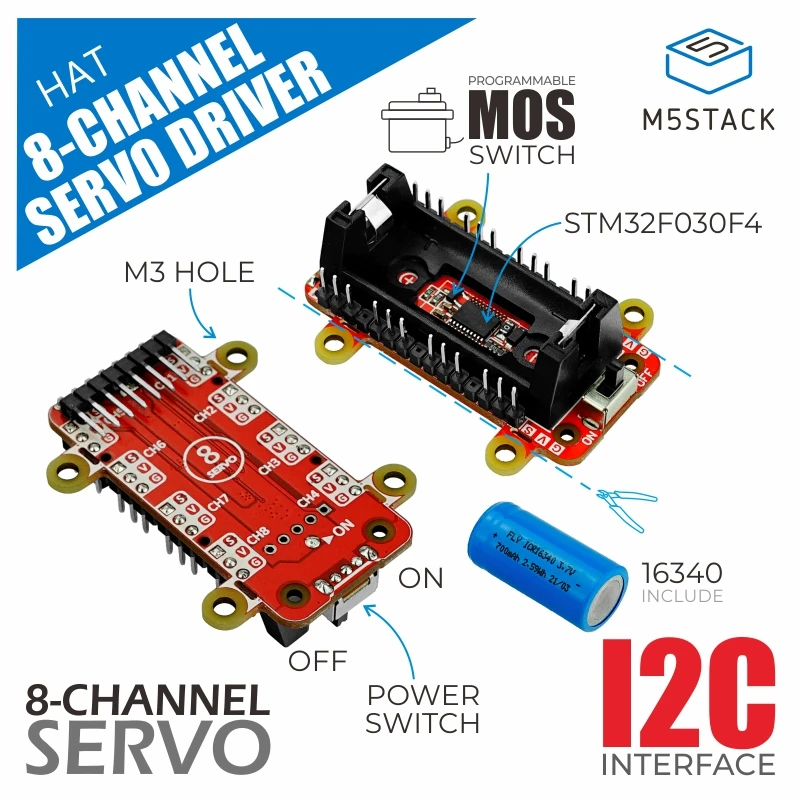

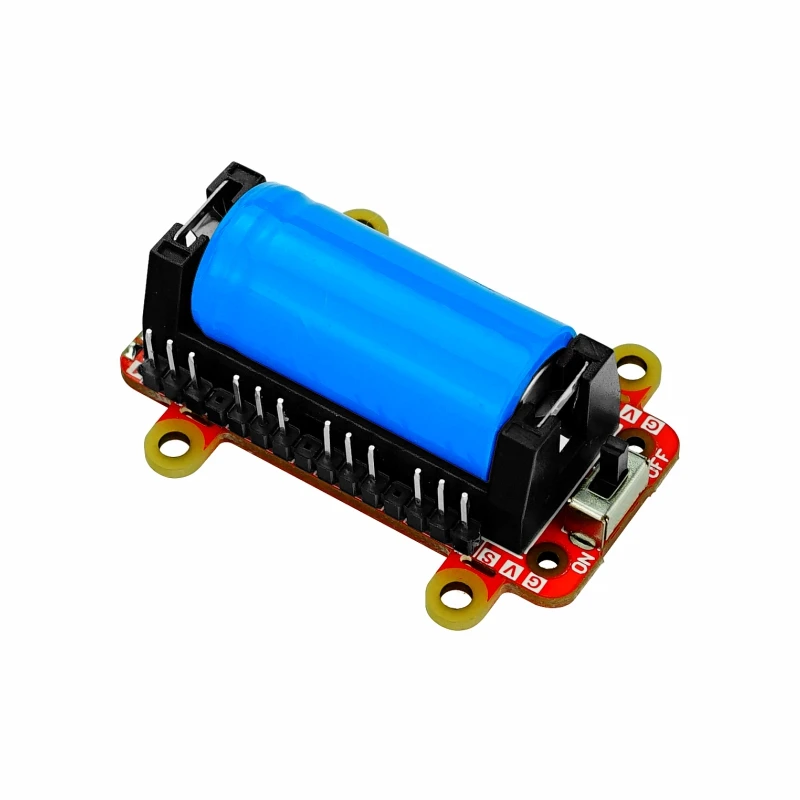

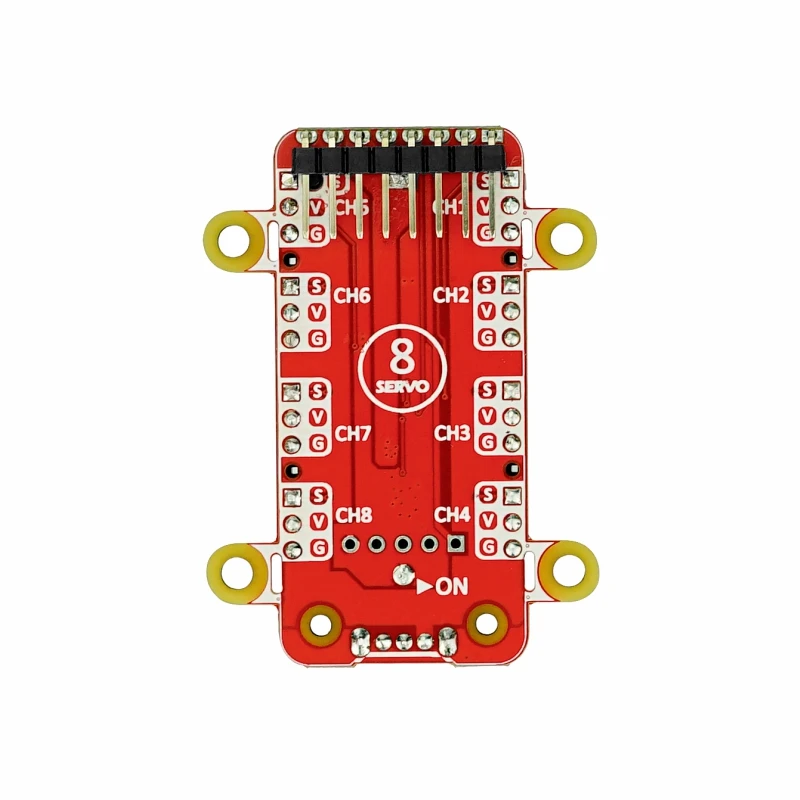

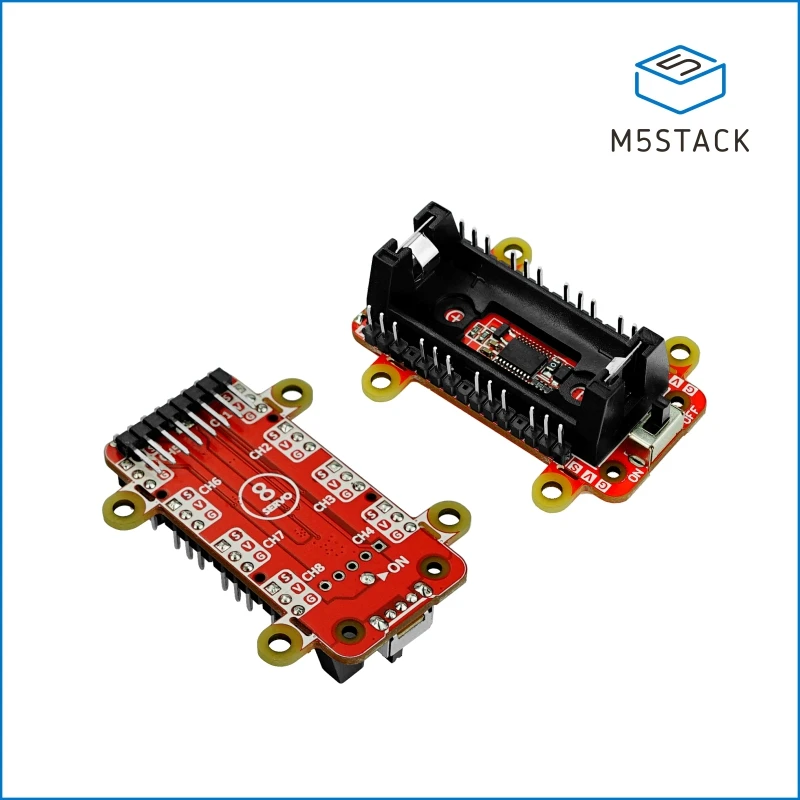

8Servos HAT v1.1 is an 8-channel servo driver module that works with the M5StickC/C Plus series. Adopt STM32F030F4 as main controller to drive servos with PWM (Pulse Width Modulation) signal. I2C communication. Embedded power management circuit to control servo ON/OFF with programming. With the rechargeable 16340 lithium battery (with the capacity of 700mAh), it can support Maximum 1.3A load. Applied for robotic and DIY projects.
Product Comparison
Product Features
- 8-channel servo driver
- Programmable servo power control
- 16340 lithium battery

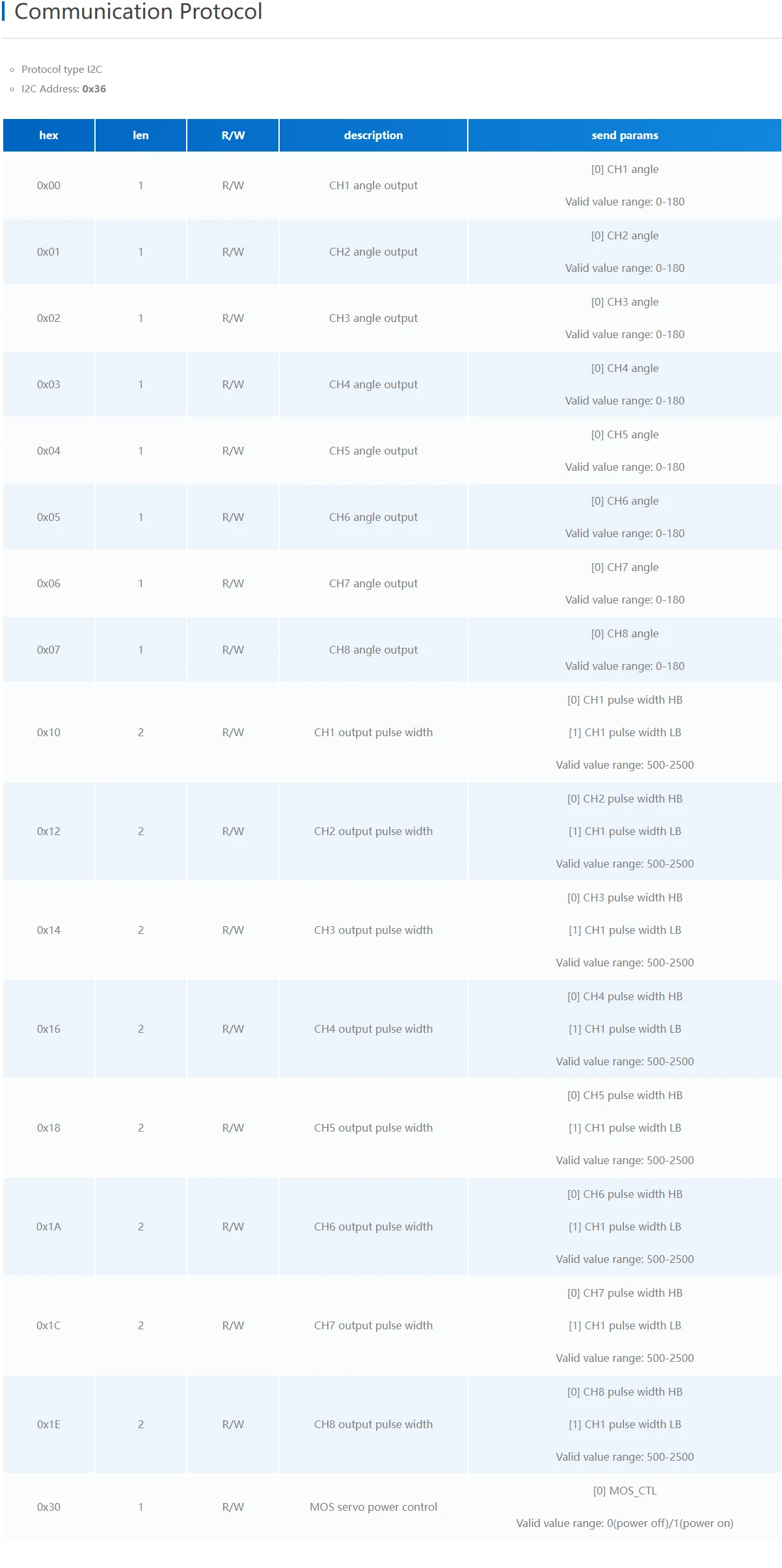

- I2C protocol control (0x36)
- Reverse Battery Protection
Included
- 1x 8Servos HAT v1.1
- 1x 16340 battery (700mAh)
Applications
- Servo controller
- Robot control
