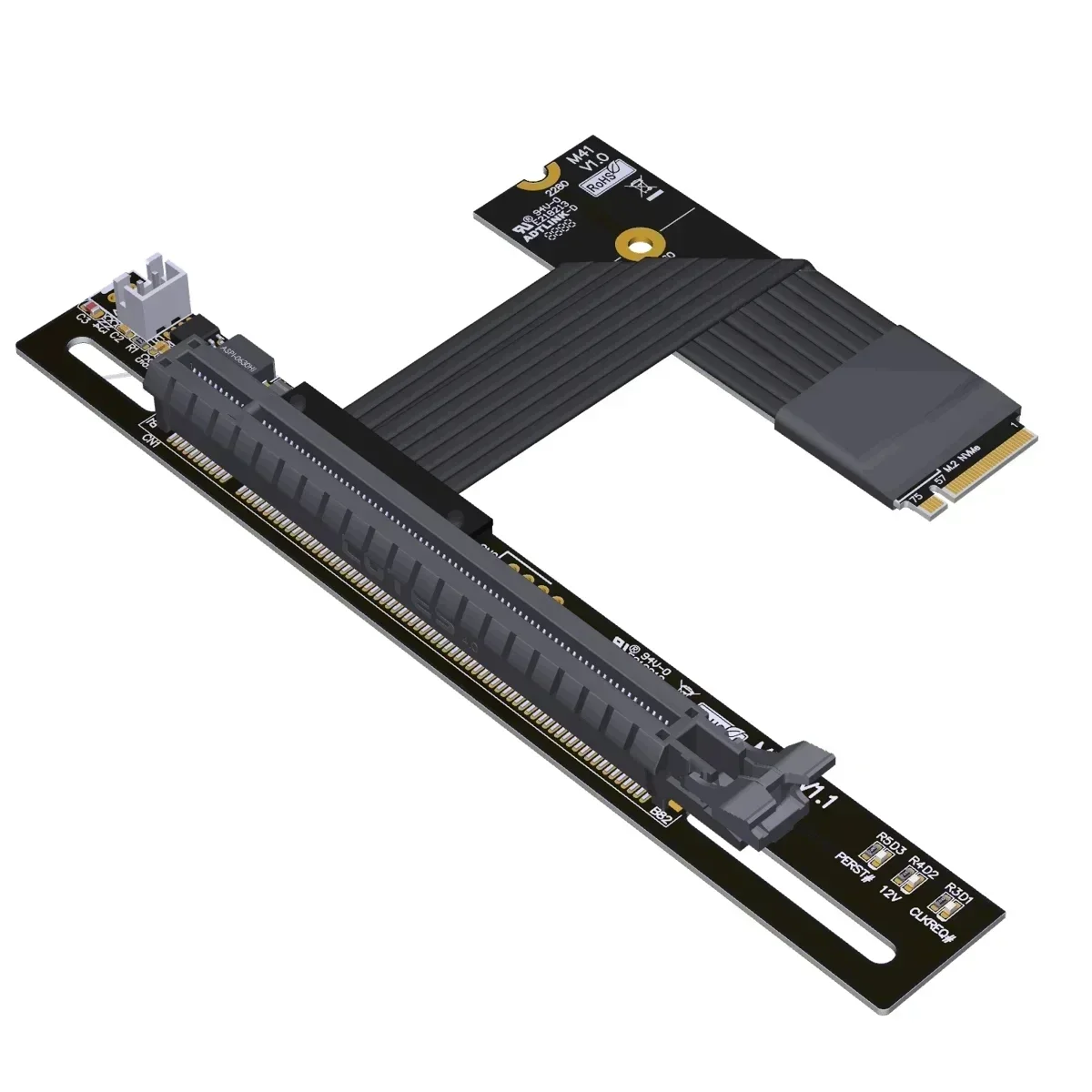

ADT-Link M.2 NVMe to PCI Express 4.0 x16 Extension Riser Cable
Brand name: ADT-LINK
Product name:M.2 NVMe to PCIe extension cable
Product model:M41-M34
Transferspeed:PCIe4.0 x16, gen4, 64G/bps (Max.)
Wire length:5 ~ 100 cm, the length can be customized
Application: for PCIe x16 Nvidia/AMD Graphics cards to M.2(ultra SSD, M-key) NVMe slot extension
Usage restrictions: PCIe 4.0 has high requirements on the equipment. As long as the extension cable is connected, the signal will be attenuated. This product does not guarantee the full speed of PCI-E 4.0. The equipment is aging. If the signal is poor or the environment is not good, please slow down to PCIe 3.0 or lower.

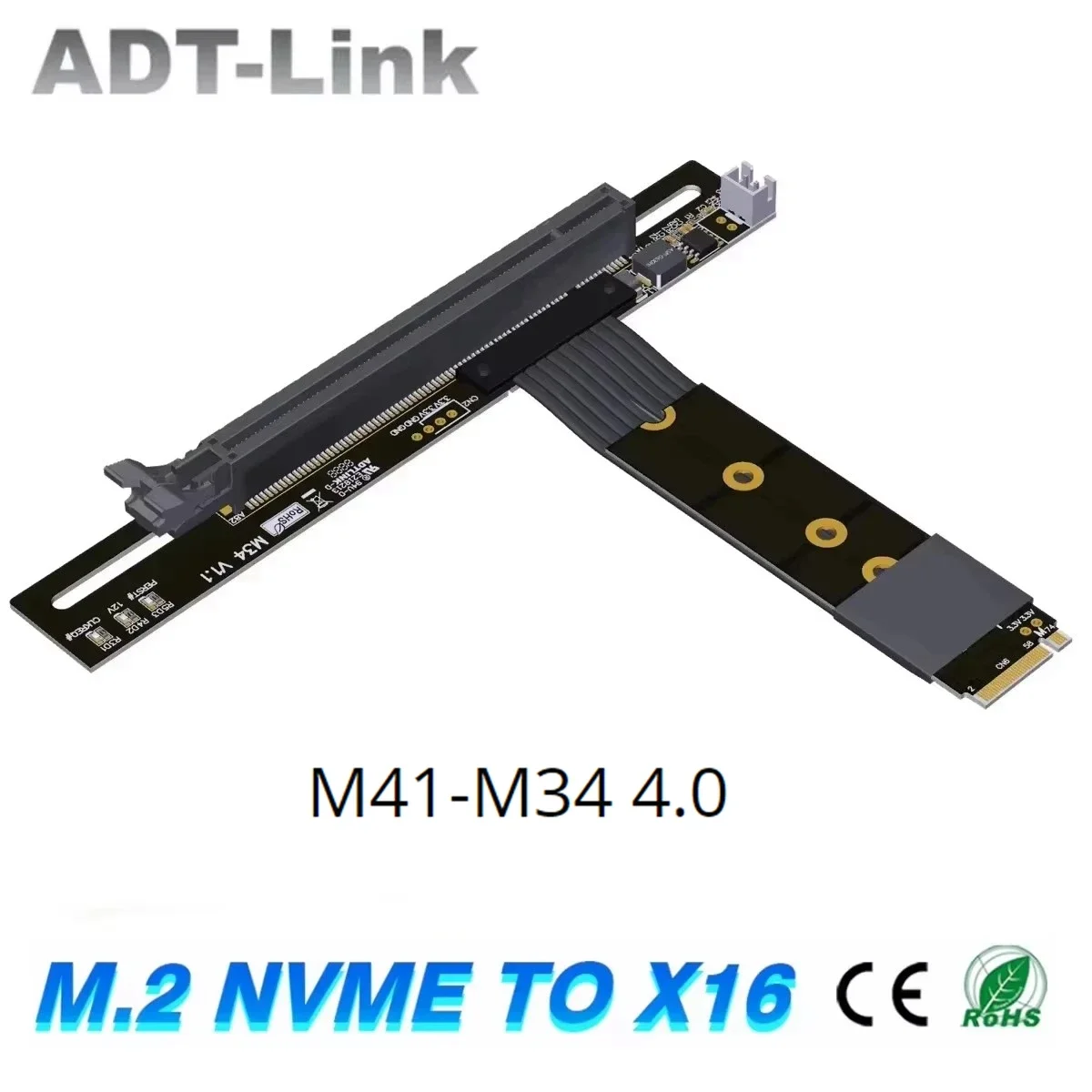

M43: M.2 NVMe to x16
UL: turn 90 degree upright right angle ; UF: turn 180 degree splint vertical
Cable length Description:

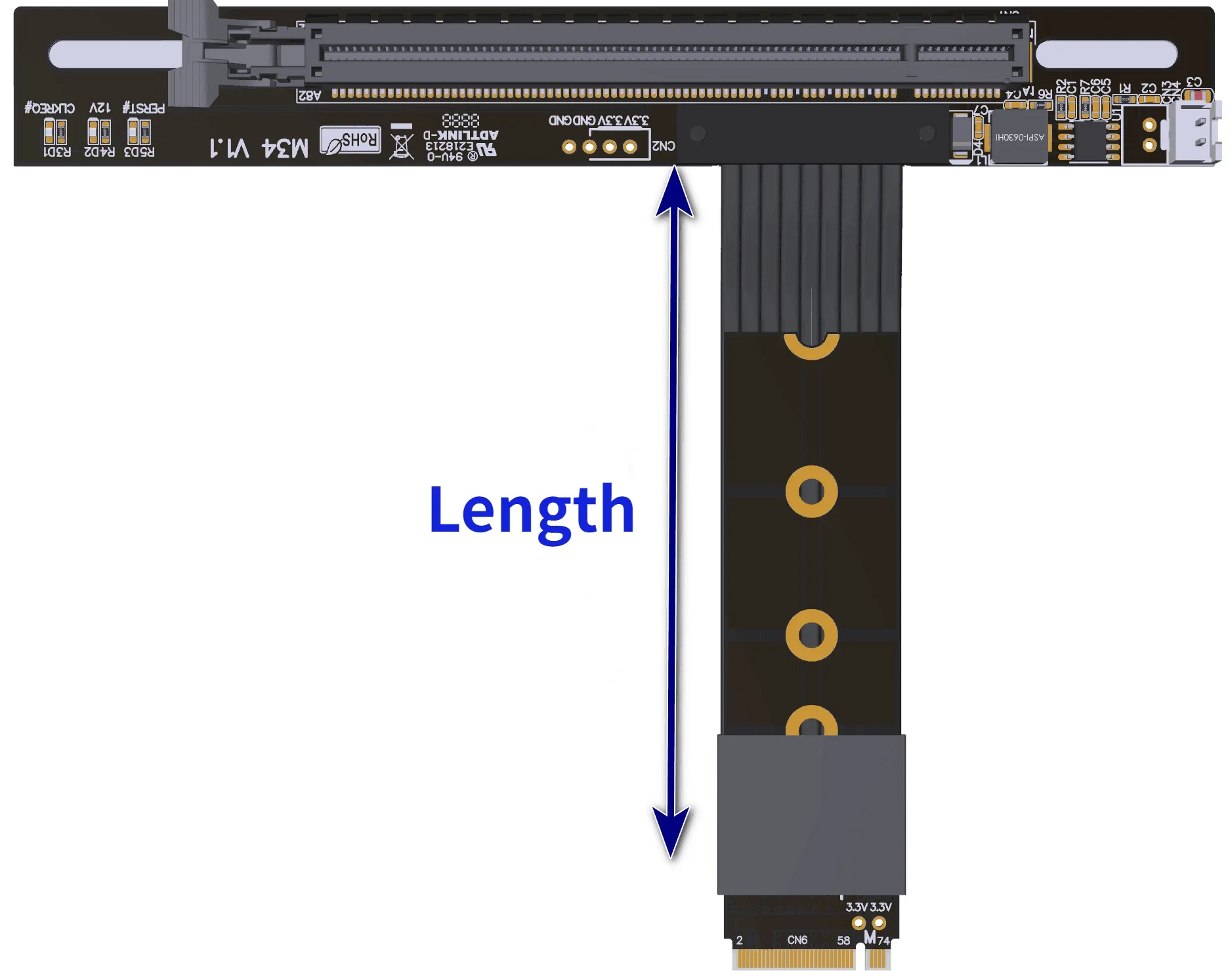

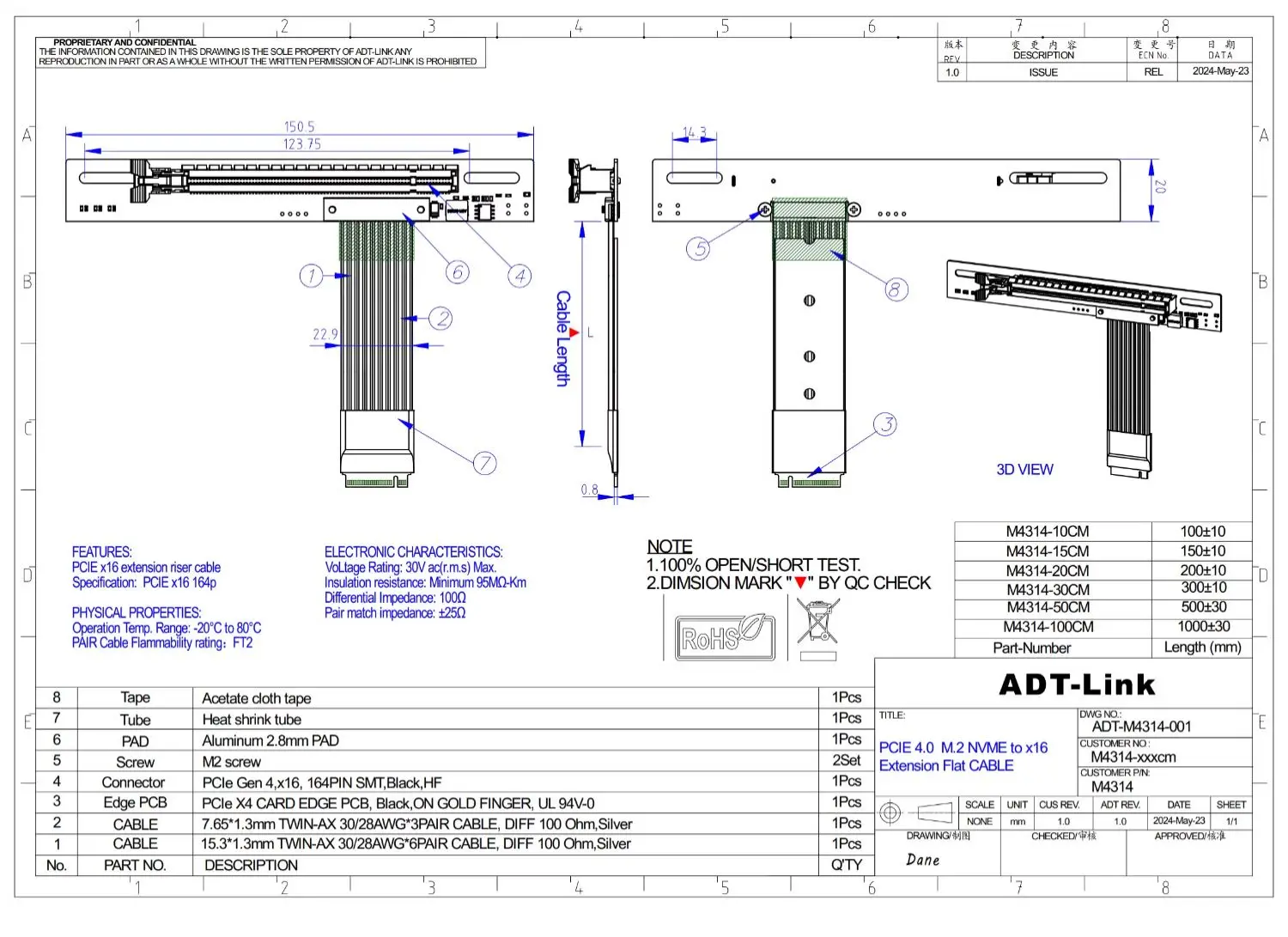

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.
Accessories description:

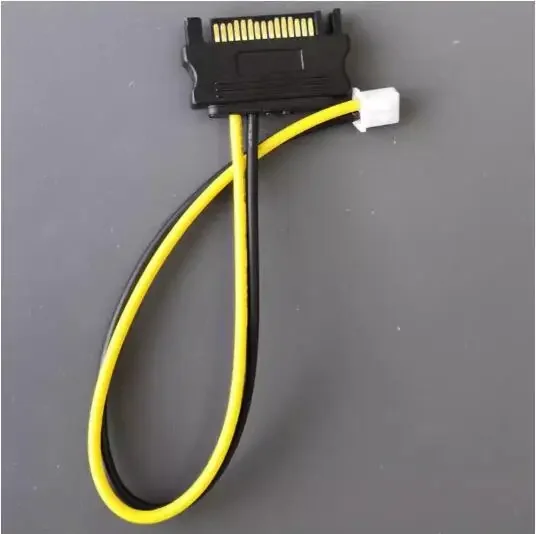

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

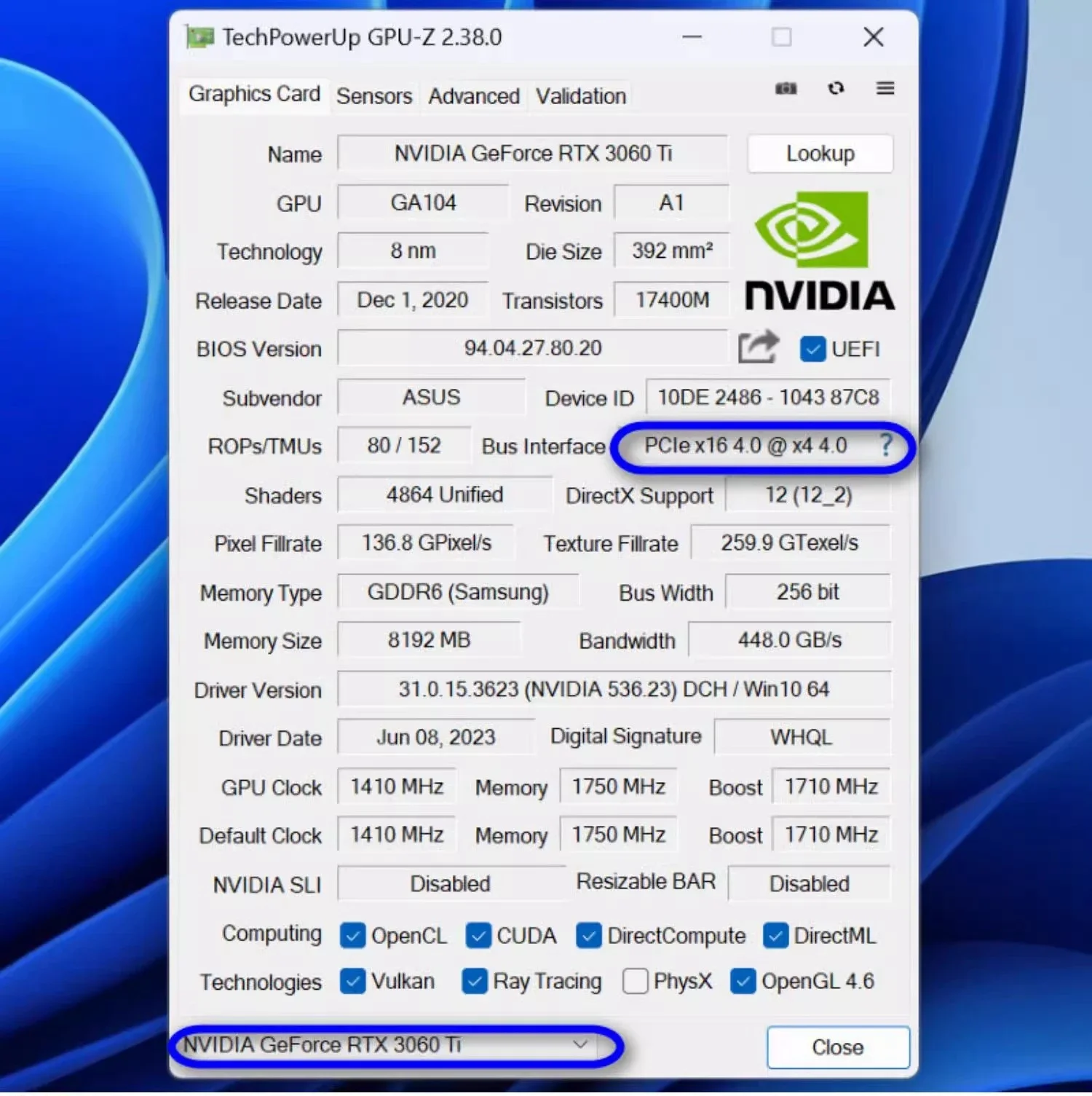

Open the GPU-Z software and click? After that, you can see the external graphics card information and the bandwidth used is @X4 4.0
How to solve the problem that the CLKREQ signal light of M41-M34 is not on?

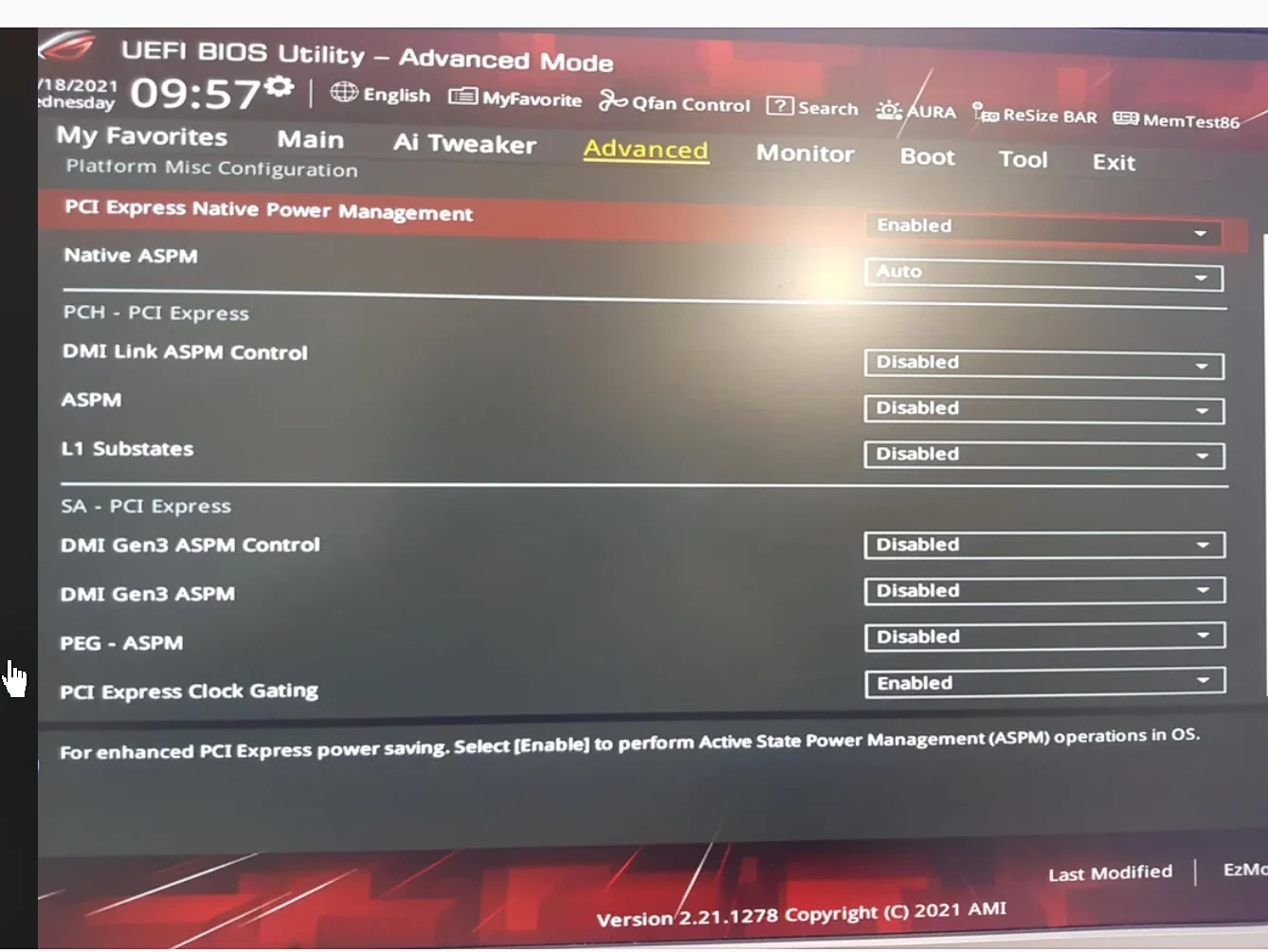

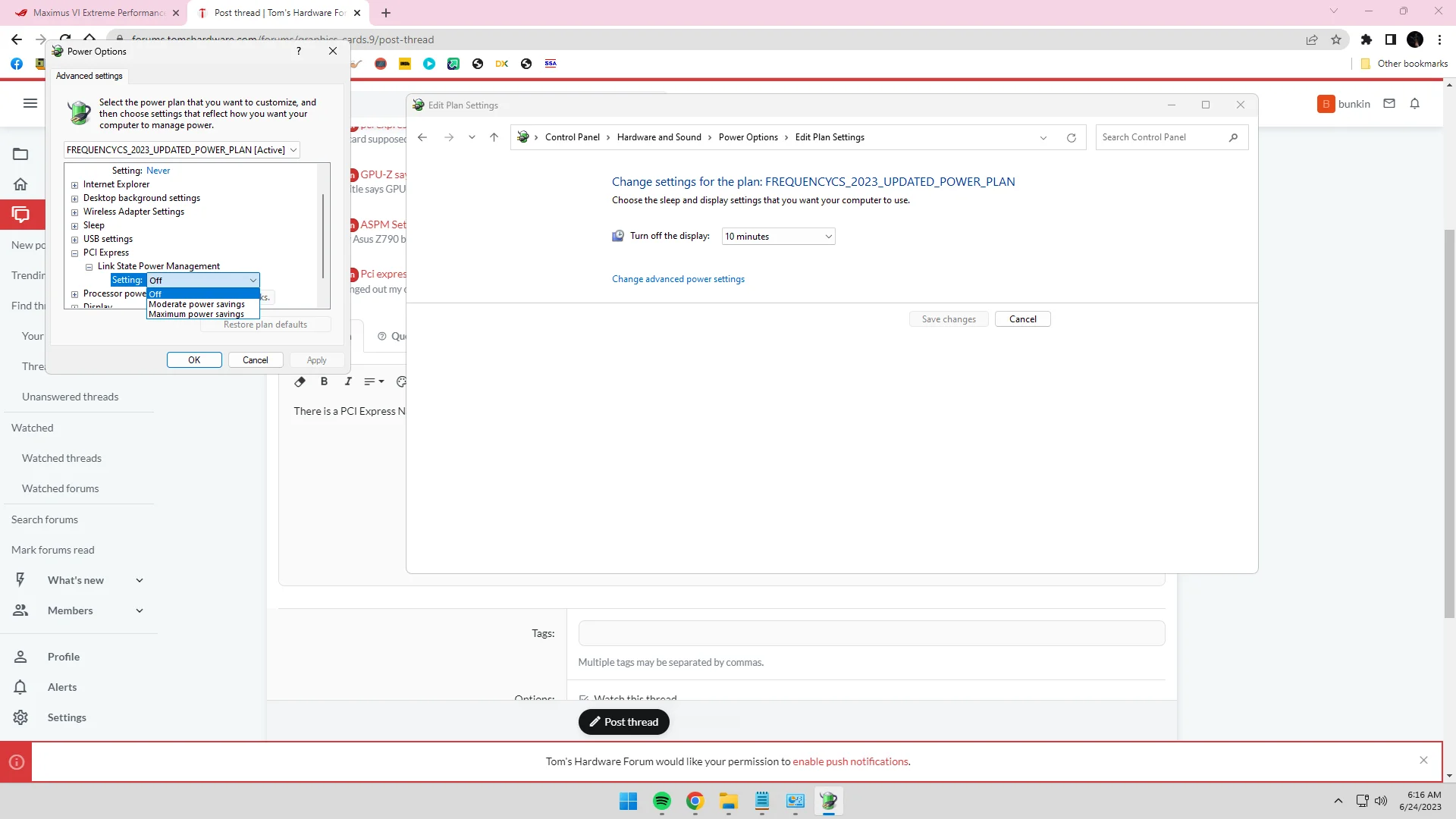

This is because there is a problem with the hardware design of the graphics card. Some parts of the graphics card 5 years ago do not support CLKREQ signals. If the CLKREQ signal light is not on, you can turn off the PCIE power saving function in the system or BIOS.
Q&A:
Is there any EMI shielding for Cable?
With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.1mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
Download:
To open 3D PDF files. Please usesoftware.
FTP: Los Angeles
3D files download
Schematic file download
Specification file download
FTP: Hong Kong
3D files download
Schematic file download
Specification file download
