【Overview】
[] LuckFox Pico MINI is a cost-effective Linux micro development board, based on the Rockchip RV1103 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, GPIO,UART,SPI, I2C, USB, etc., which is convenient for developing and debugging quickly.
【Specifications】
[] Processor : Cortex [email protected] + RISC-V
NPU : 0.5TOPS，Support int4、int8、int16
ISP : Input 4M @30fps (Max)
Memory : 64MB DDR2
USB : USB 2.0 Host/Device
Camera : MIPI CSI 2-lane
GPIO : 17 × GPIO pins
Default Storage :

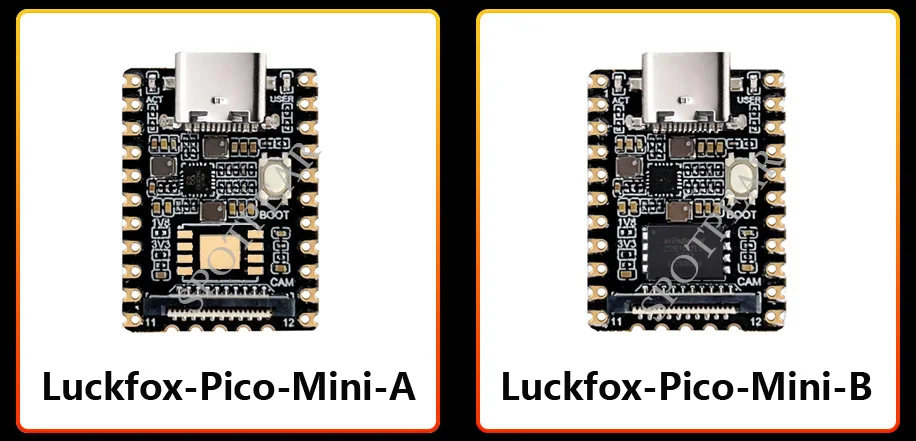

Luckfox Pico Mini A : Micro SD card (Not included)
Luckfox Pico Mini B : SPI NAND FLASH (128MB)
【Version option】
【SLC NAND FLASH】
[] Luckfox Pico Mini B with SLC NAND FLASH

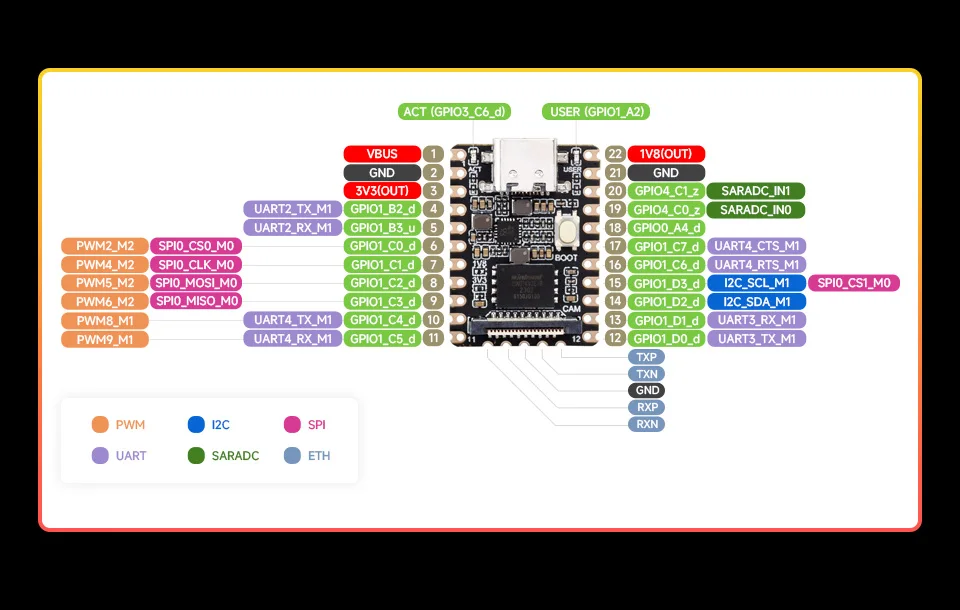

【Pin Definition】

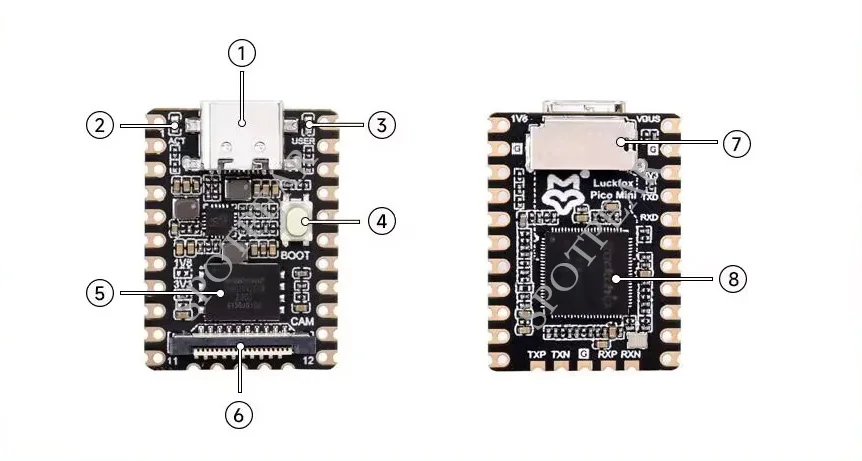

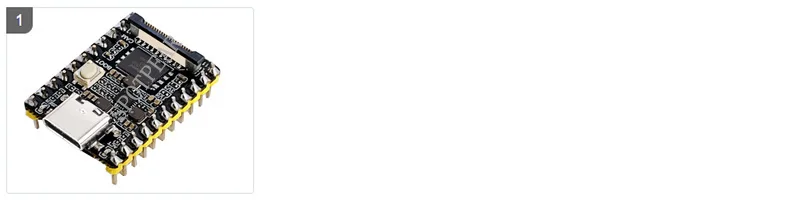

【Introduction Resources】
1. USB Type-C connector: for power supply and program burning
2. ACT-LED
3. USER-LED
4. BOOT button: Press it when powering on to enter download mode
5. SLC NAND FLASH: Luckfox Pico Mini B
6. CSI camera interface: MIPI CSI 2-lane
7. TF card slot
8. RV1103: Vision processor SoC with built-in ARM Cortex-A7 core

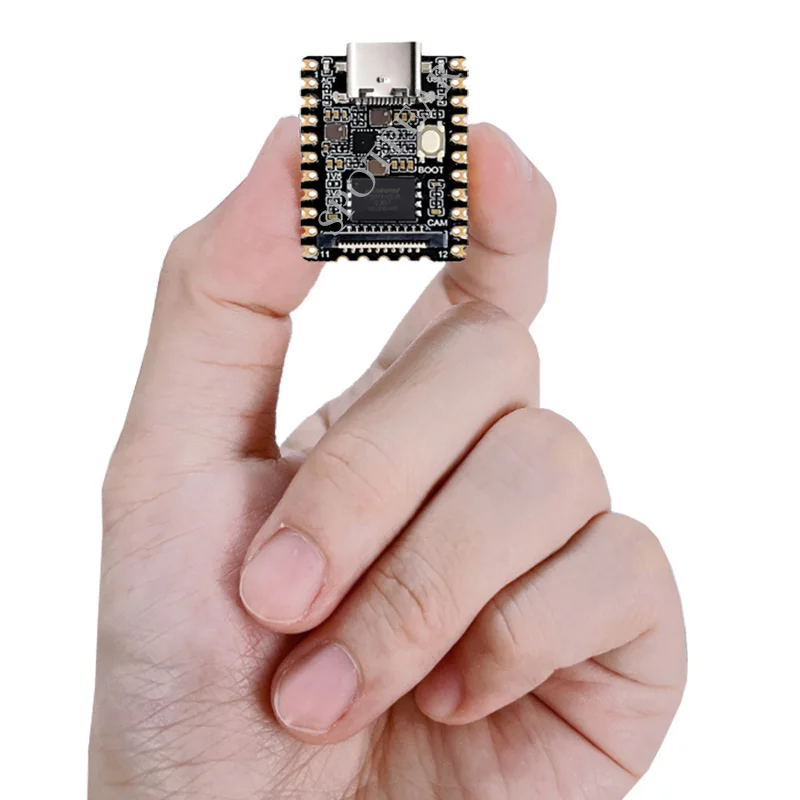

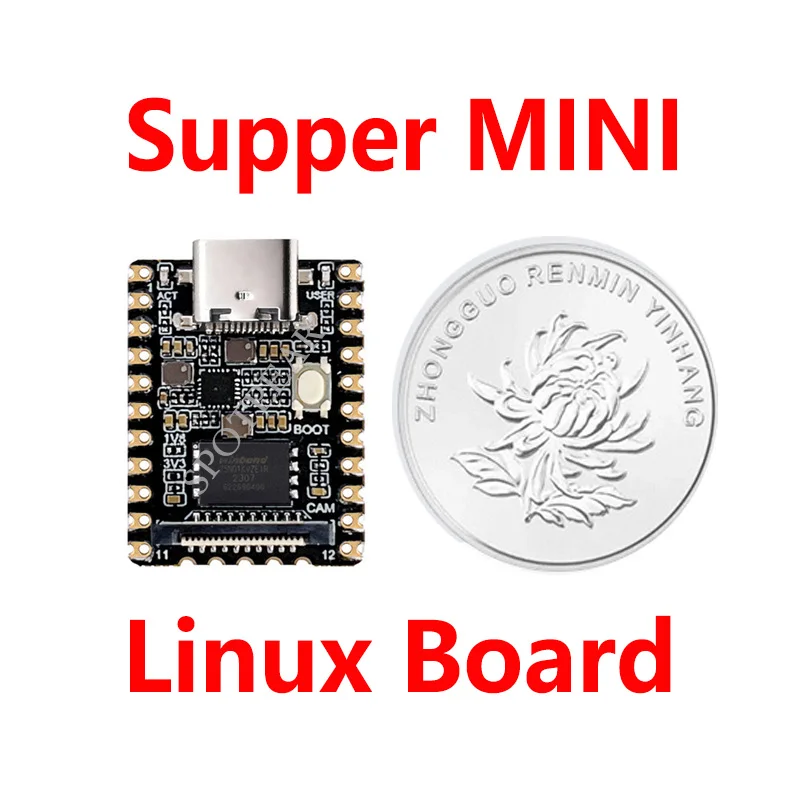

【Compact Size, Separate Adapter Board Design】
[] Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications

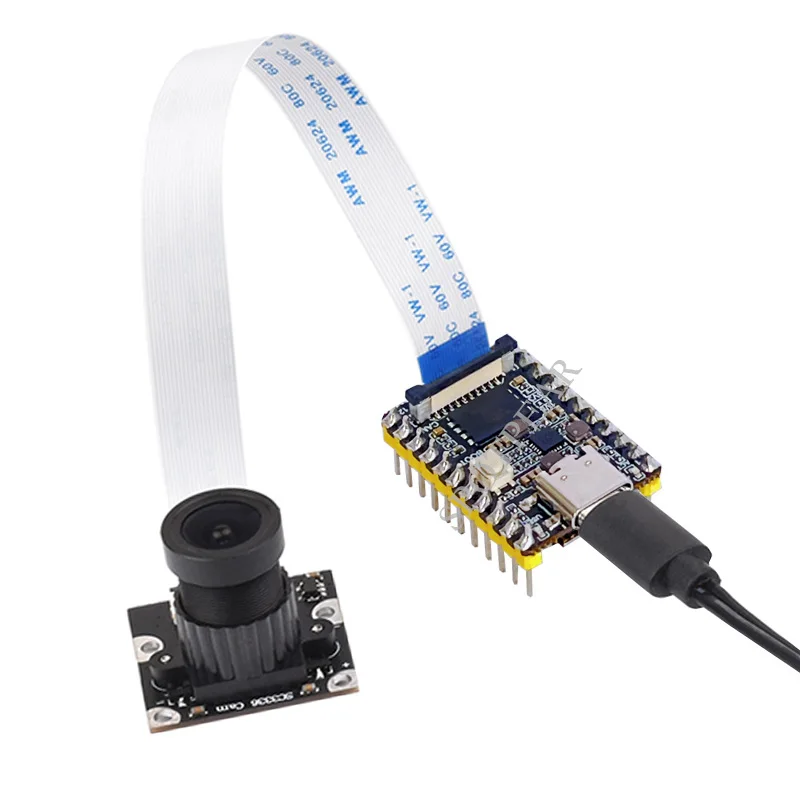

【Examples】
[]Do not include Camera

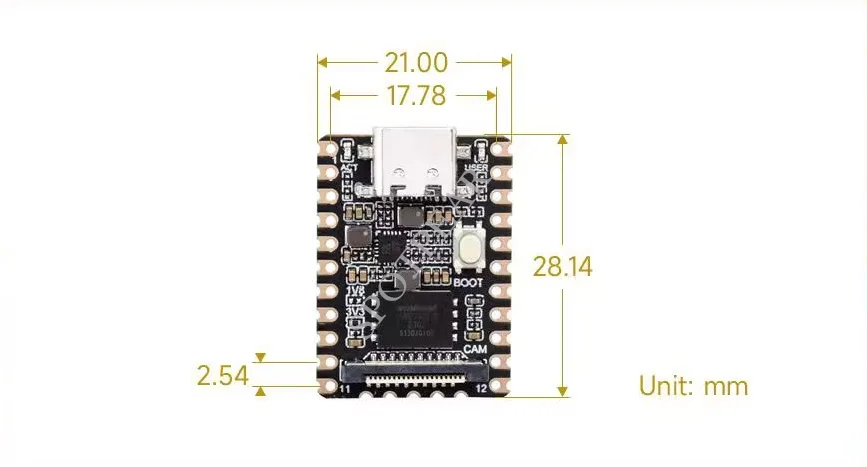

【Outline Dimensions】
[] Luckfox-Pico-Mini-A

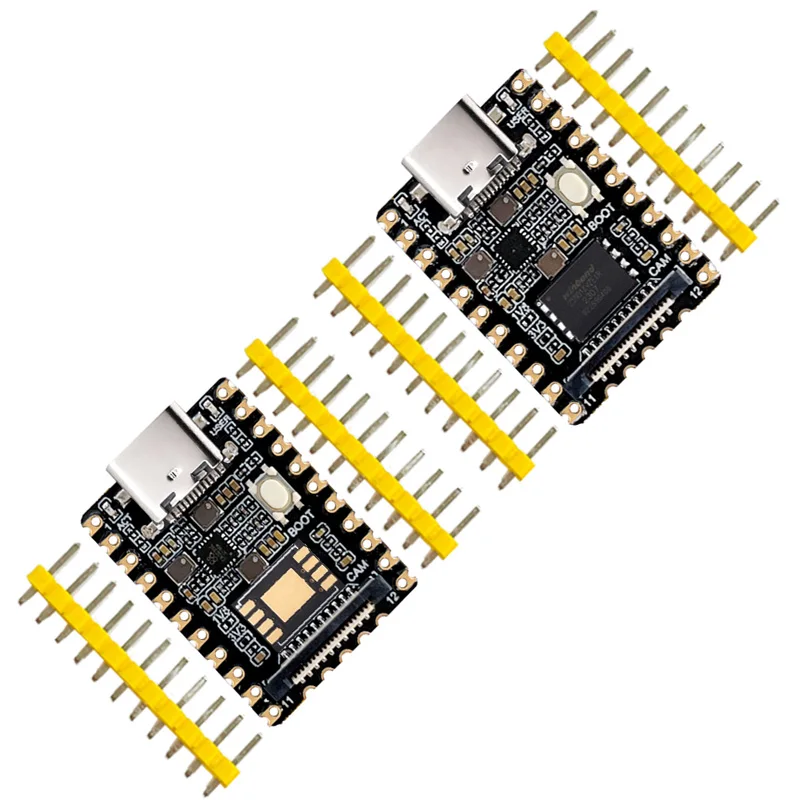

[] Luckfox-Pico-Mini-A-Soldered
[] Luckfox-Pico-Mini-B
[] Luckfox-Pico-Mini-B-Soldered
