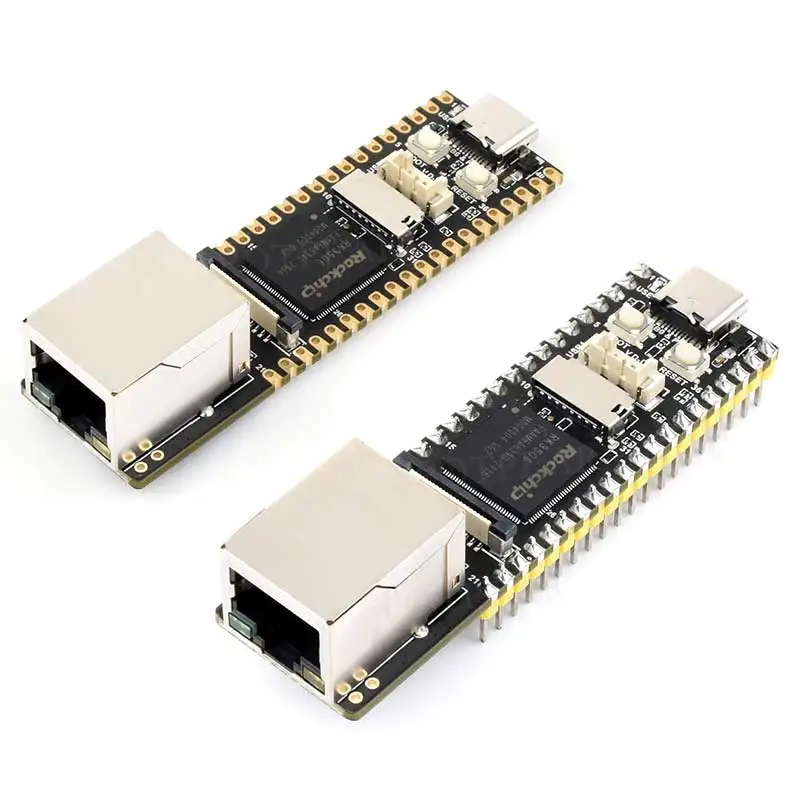

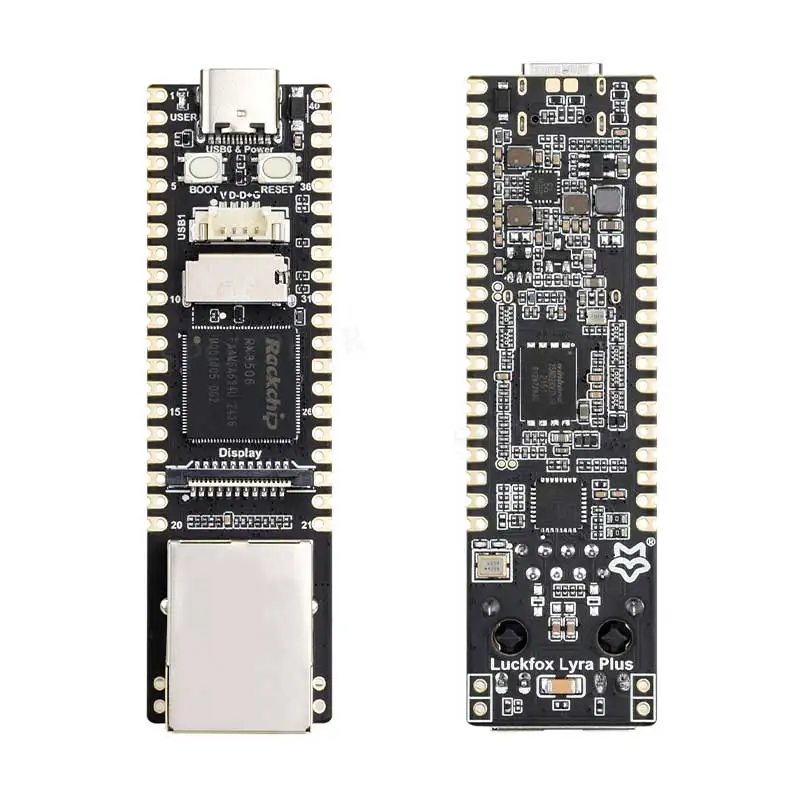

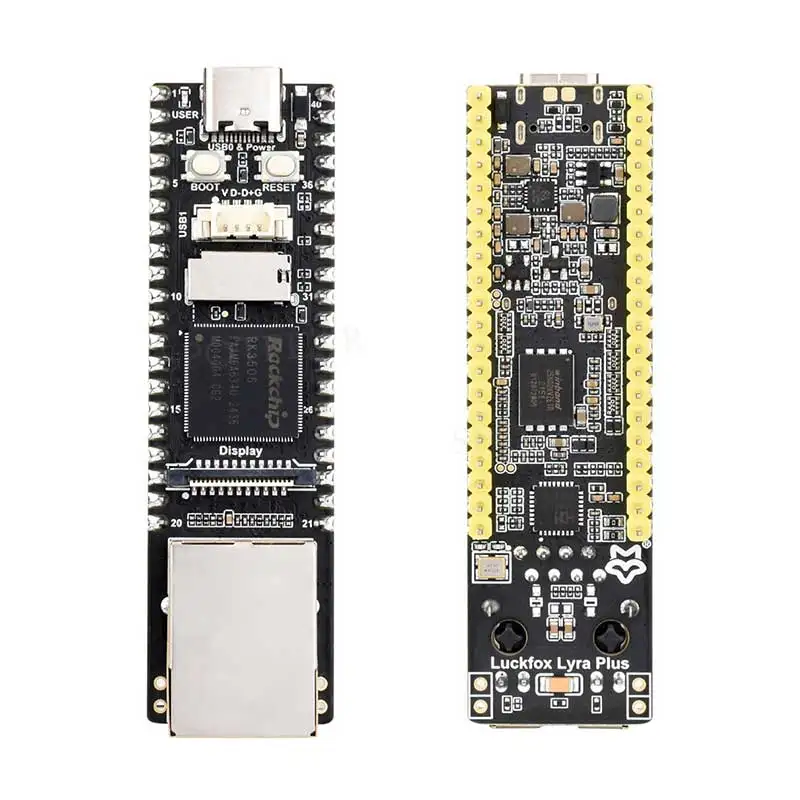

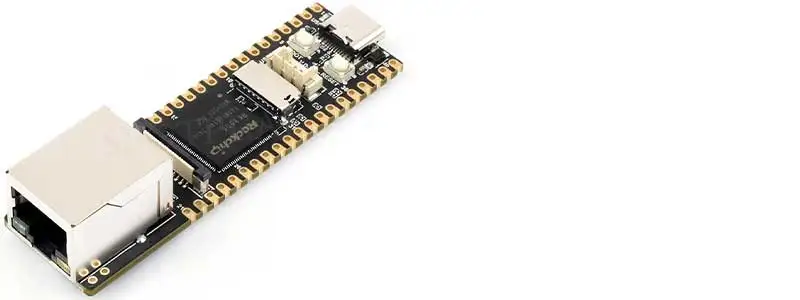

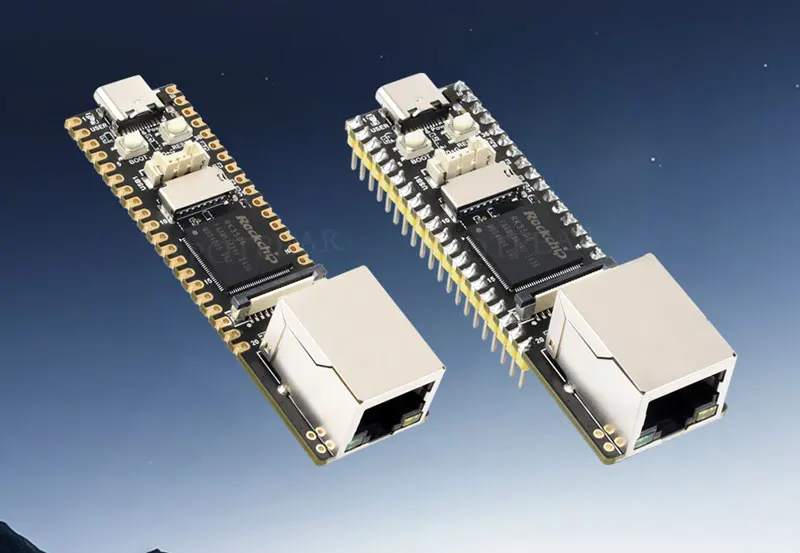

Luckfox Lyra Plus Flash-Boot RJ45 ETH versión RK3506G2 Rockchip Linux placa RK3506 para pantalla MIPI/DSI Cortex-A7

【First-level Authorized Agency Certificate】

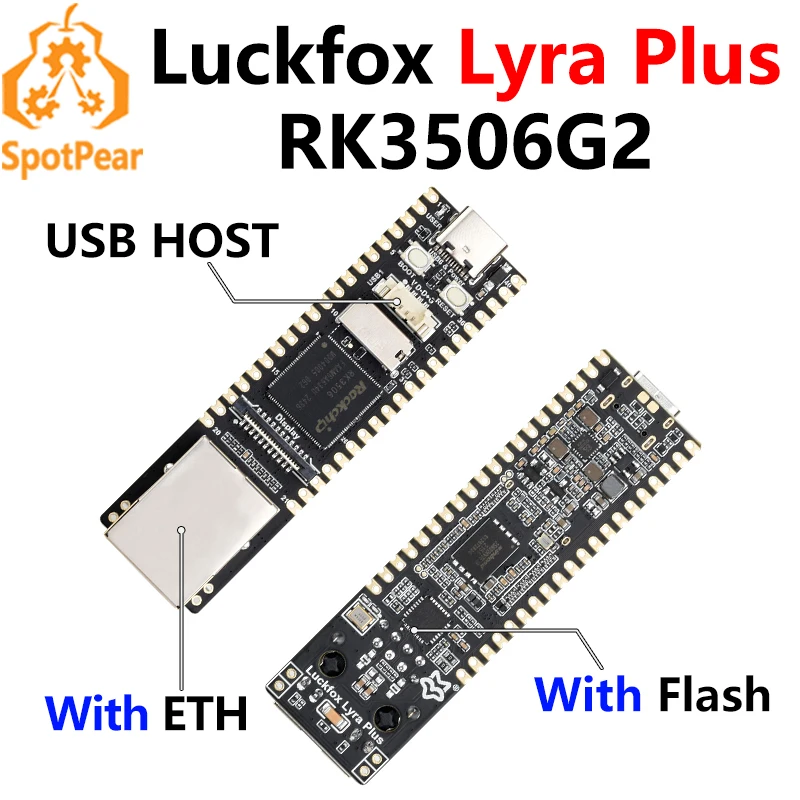

【Luckfox Lyra Plus】

Processor

Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0

Memory

128MB DDR3L

USB

USB OTG2.0 × 2

Screen interface

MIPI DSI 2-lane

GPIO

24 Rockchip Matrix IO pins

Ethernet port

10/100M Ethernet controller

Default storage medium

SPI NAND FLASH (256MB)

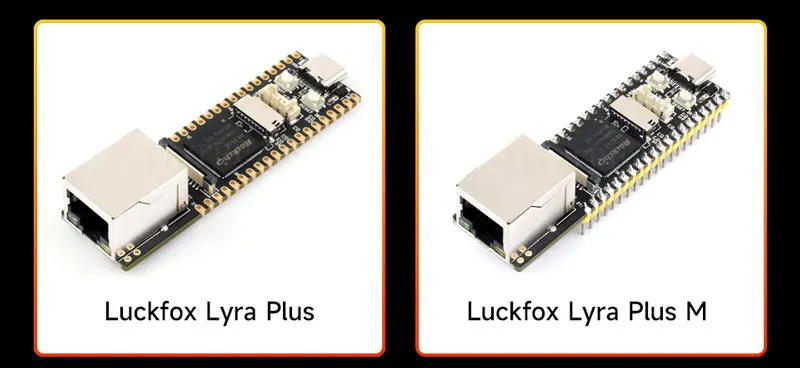

【Optional Versions】

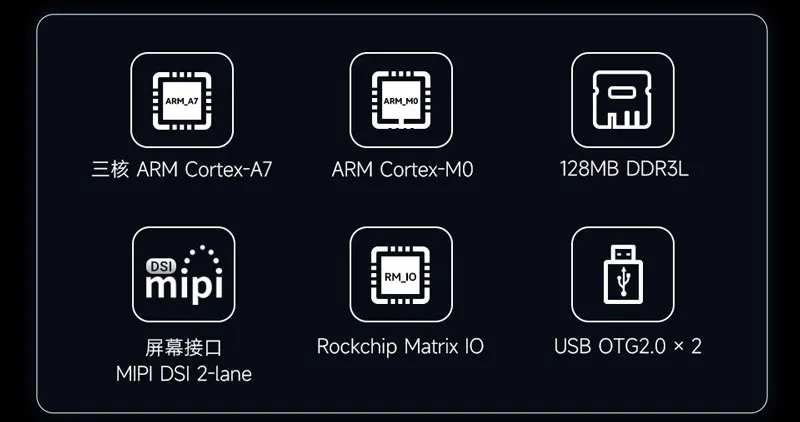

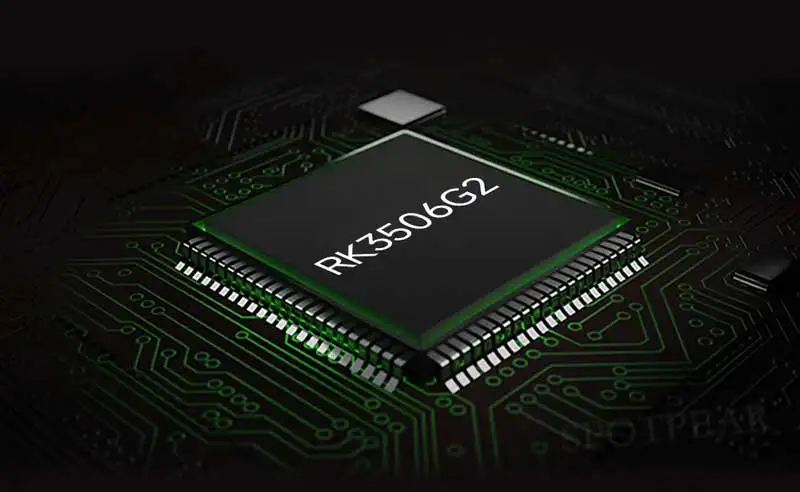

【Highly integrated, powerful performance】

[] Tri-core ARM Cortex-A7 32-bit core with integrated VFP, supporting single-precision and double-precision floating-point operations

[] Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configurations

[] Built-in 128MB DDRL3 to meet the application requirements of multi-core operation

[] The low-speed interface adopts Rockchip's Rockchip Matrix IO design, which allows a variety of multiplexing functions to share limited chip pins, making peripheral circuit adaptation more flexible

【Easier development】

[]

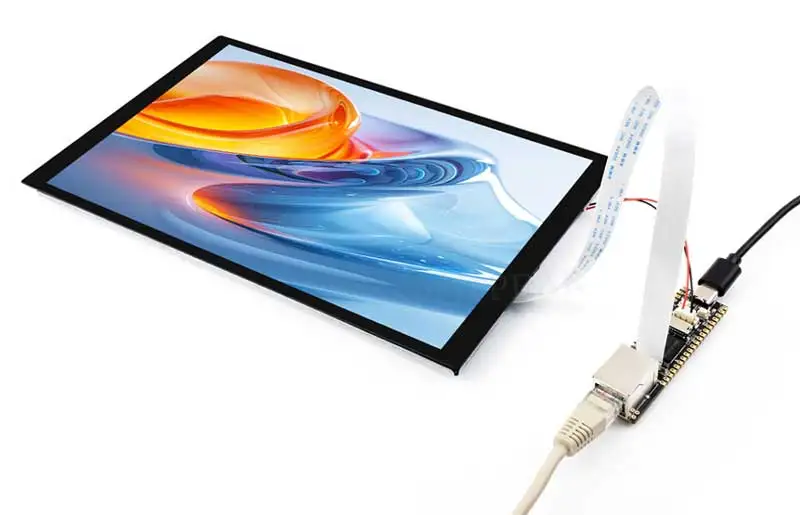

【MIPI DSI 2-lane interface】

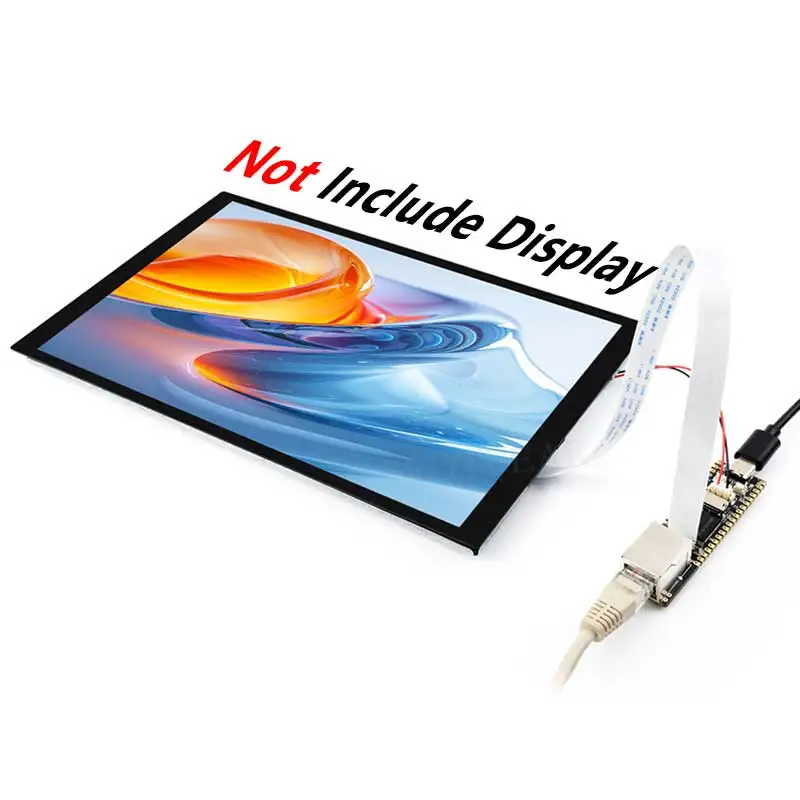

For display only, please refer to the configuration list for specific configuration.

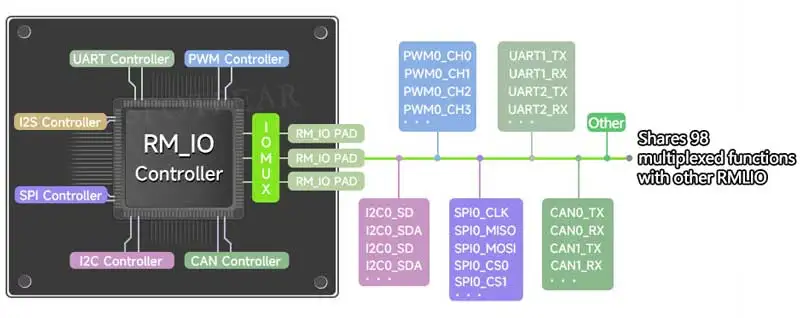

【Rockchip Matrix IO Pinout】

[]

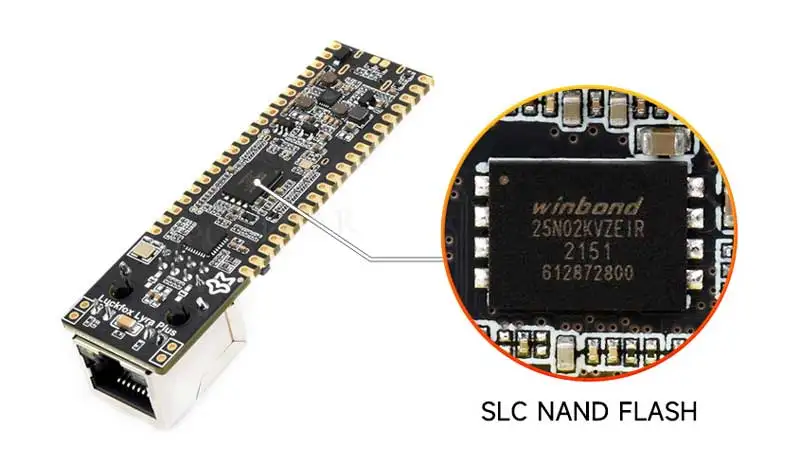

【SLC NAND FLASH】

[]

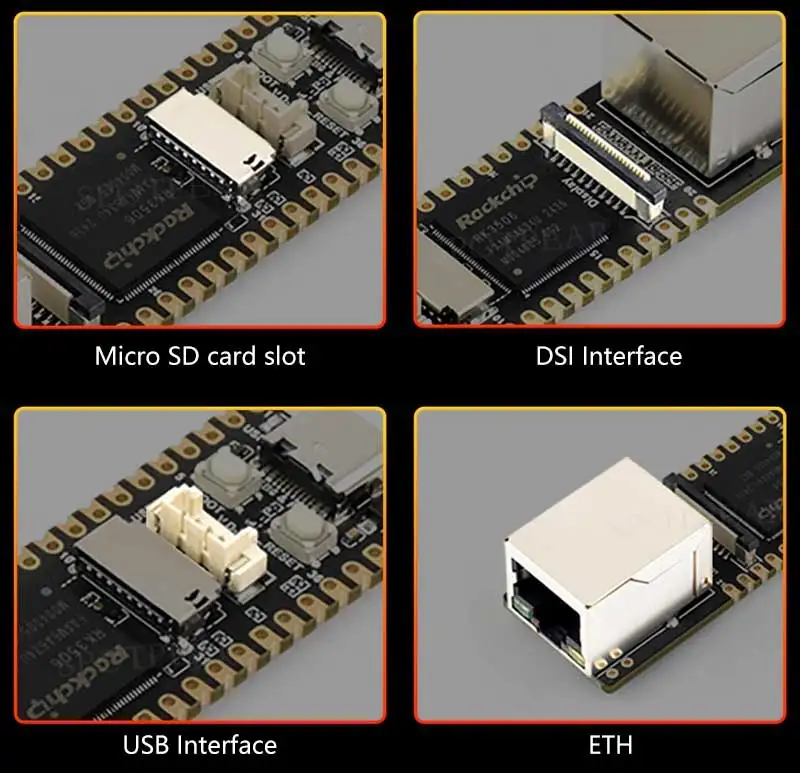

【More application

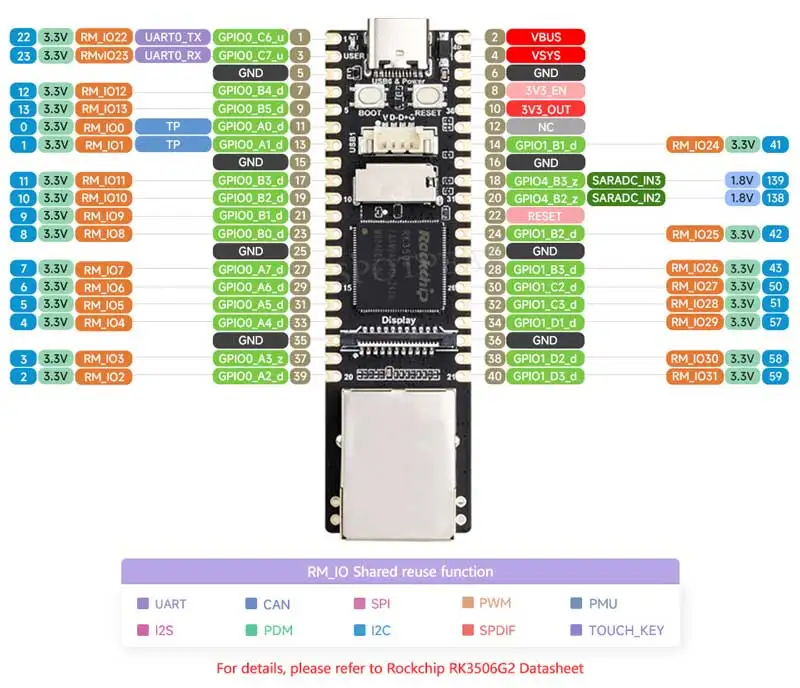

【Pin Definition】

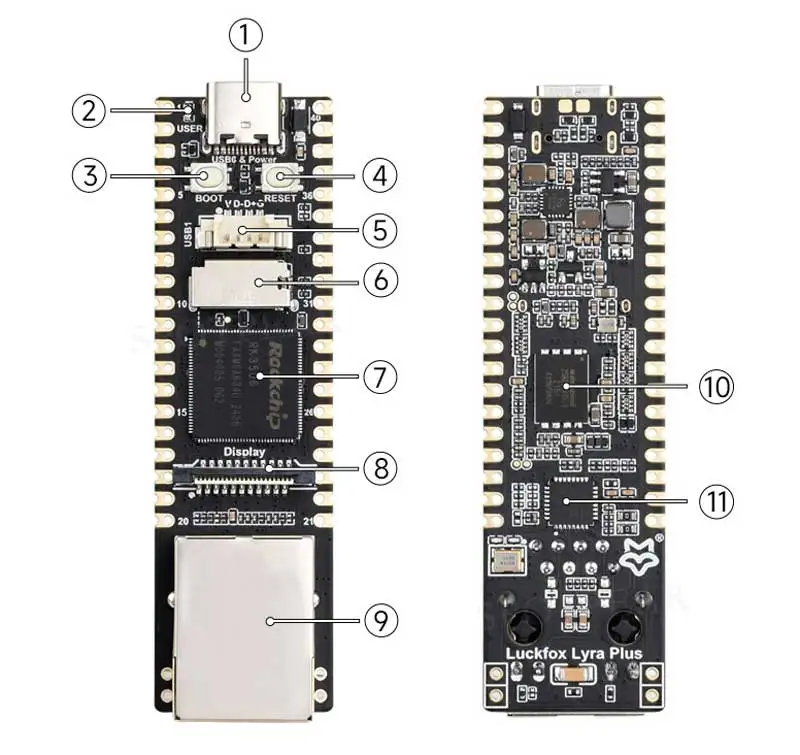

【Resource Overview

【Products

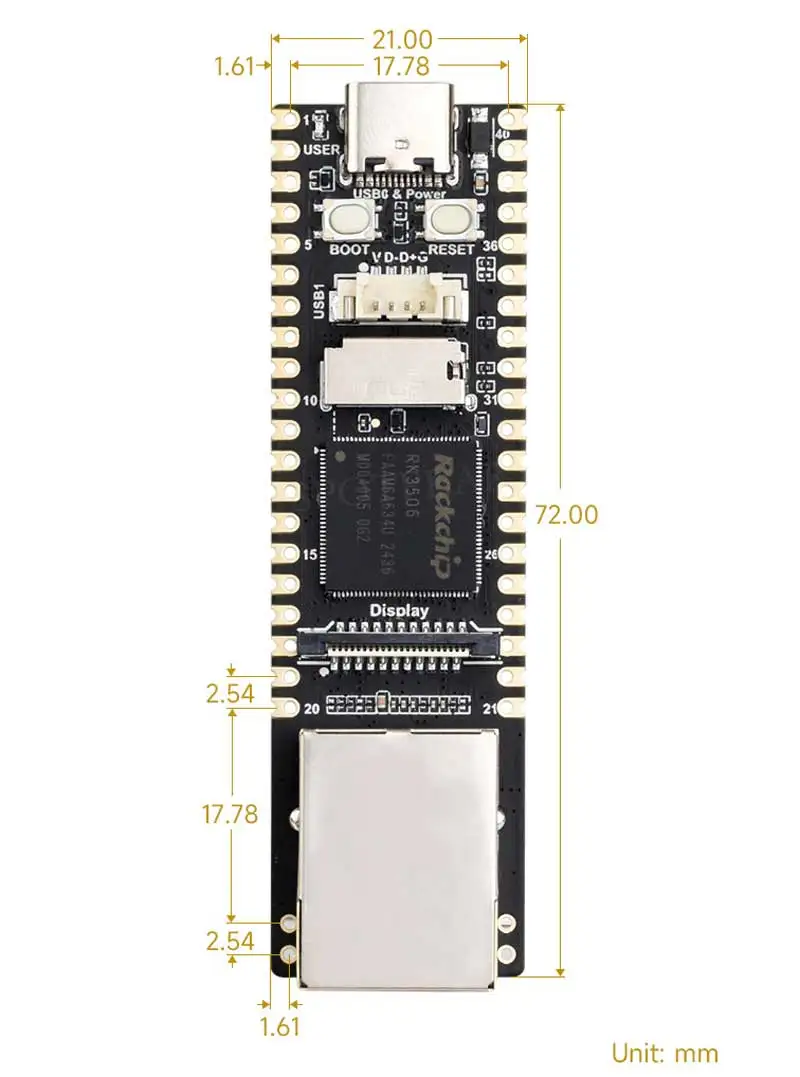

【Product size

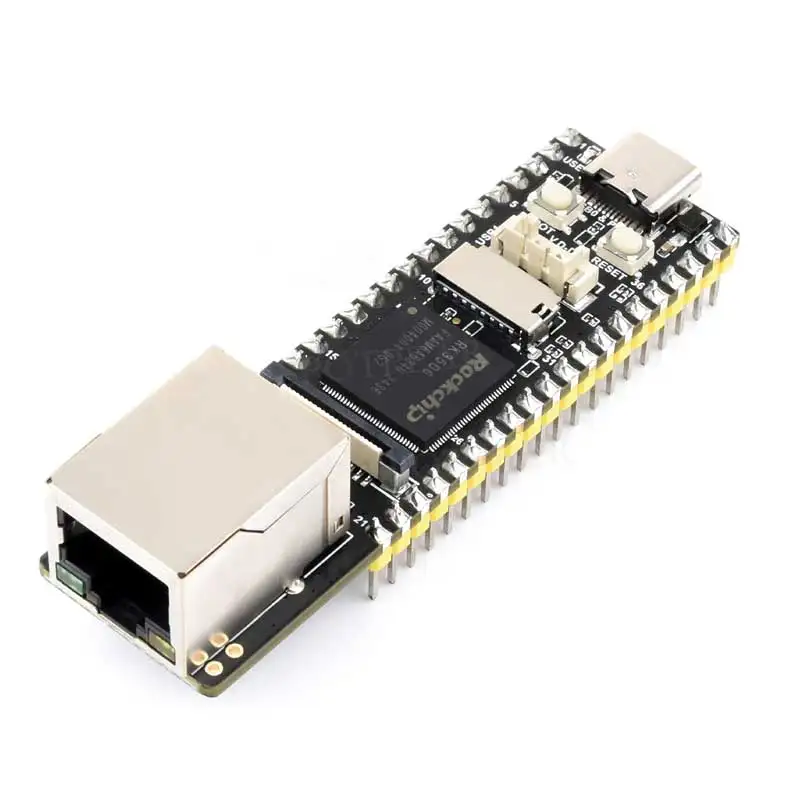

Luckfox Lyra Plus

Luckfox Lyra Plus M
