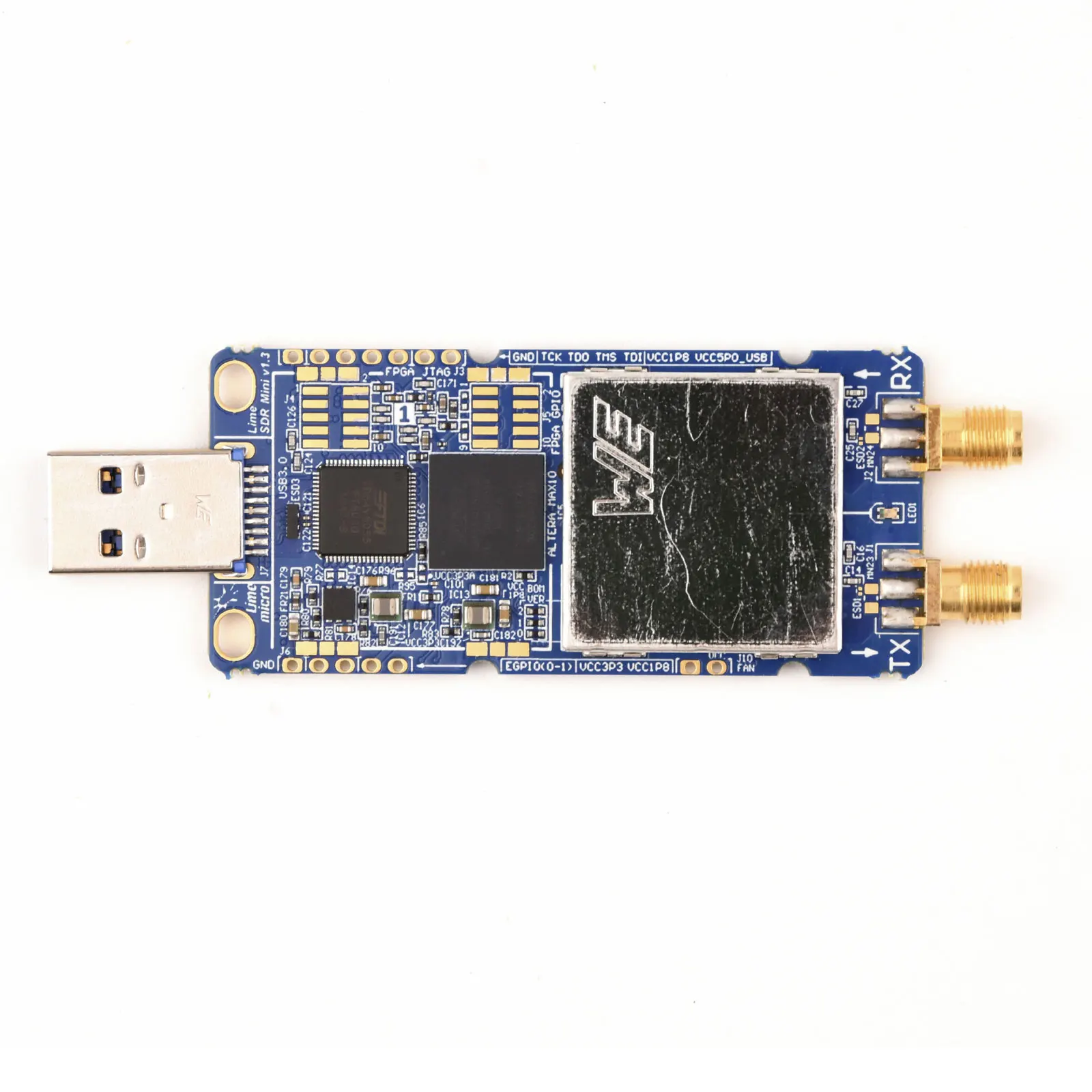

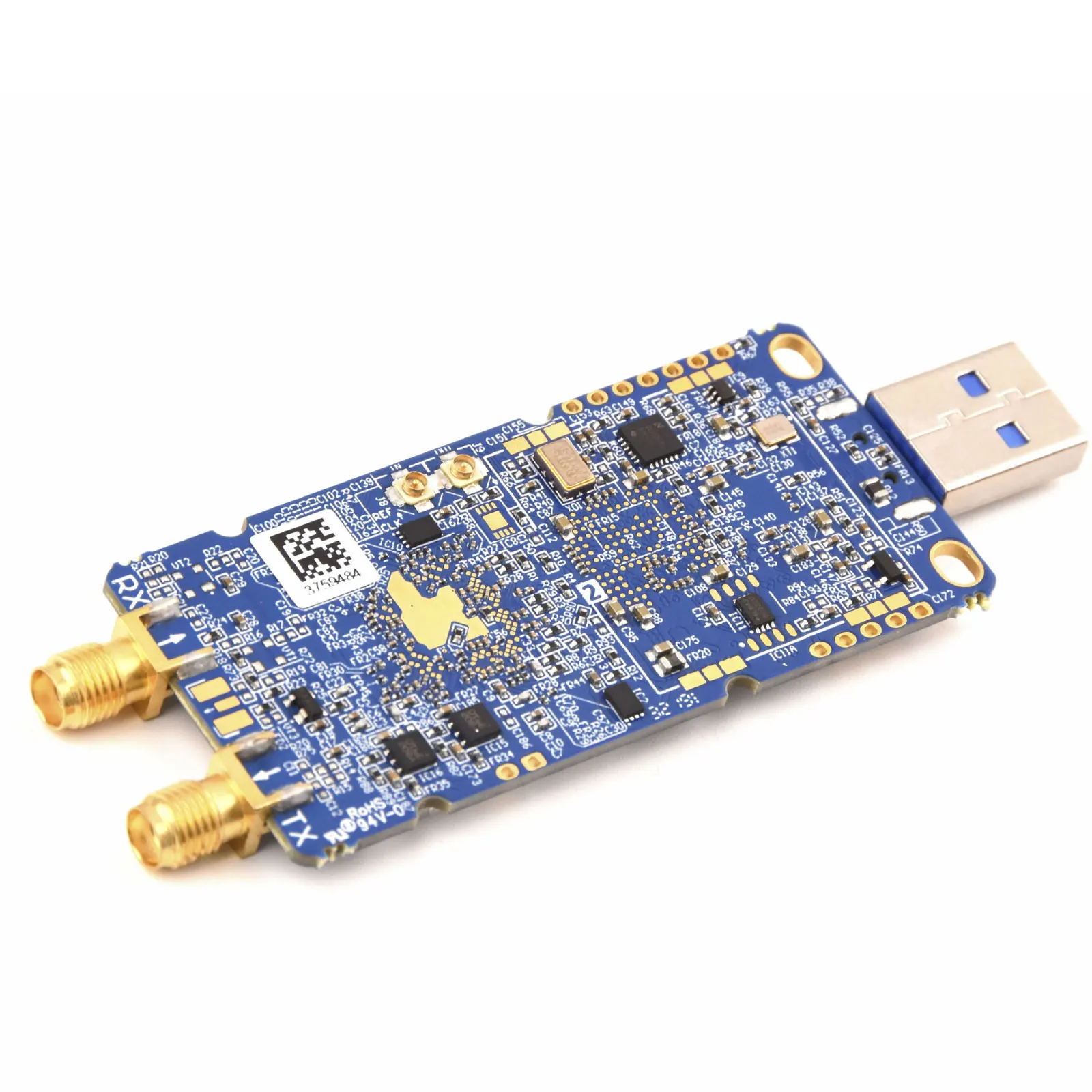

LimeSDR Mini 2.0 Version Software Defined Radio Transceiver Open Source Development Board
Product DescriptionDescription:
- The LimeSDR and LimeSDR Mini are members of the same family of software-defined radios. One does not replace the other. Rather, they are complementary.
- Simply put, the LimeSDR Mini is a smaller, less expensive version of the original LimeSDR. However, it still packs a punch - at its core, the LimeSDR Mini uses the same LMS7002M radio transceiver as its big sibling. The Mini has two channels instead of four and, by popular demand, SMA connectors instead of micro U.FL connectors.
Features & Specifications:
- RF transceiver: Lime Micro-systems LMS7002M
- FPGA: for Intel Altera MAX 10 (10M16SAU169C8G)
169-pin FBGA package
16 K Les
549 KB M9K memory
2,368 KB user flash memory
4 x fractional phase locked loops (PLLs)
45 x 18x18-bit multipliers
130 x general purpose input/output (GPIO)
Single supply voltage
Flash feature
FPGA configuration via JTAG
- EEPROM memory: 2 x 128 KB for RF transciever MCU firmware and data
- Flash memory: 1 x 4 MB flash memory for data
- General user inputs/outputs:
2 x dual color (red + green) LED
8 x FPGA GPIO pinheader (3.3 V)
- Connectivity:
USB 3.0 Type-A (FTDI FT601 controller)
2 x coaxial RF (SMA) connectors (each can be switched between high and low frequency bands)
U.FL connector for external clock source
FPGA GPIO headers
FPGA JTAG connector
- Clock system:
30.72 MHz onboard VCTCXO
Possibility to tune VCTCXO with onboard DAC
External clock input via U.FL connector
- Board dimensions: 69 mm x 31.4 mm
- Board weight: 20 grams
Package Included:
1*LimeSDR Mini 2.0 Version Open Source Development Board
