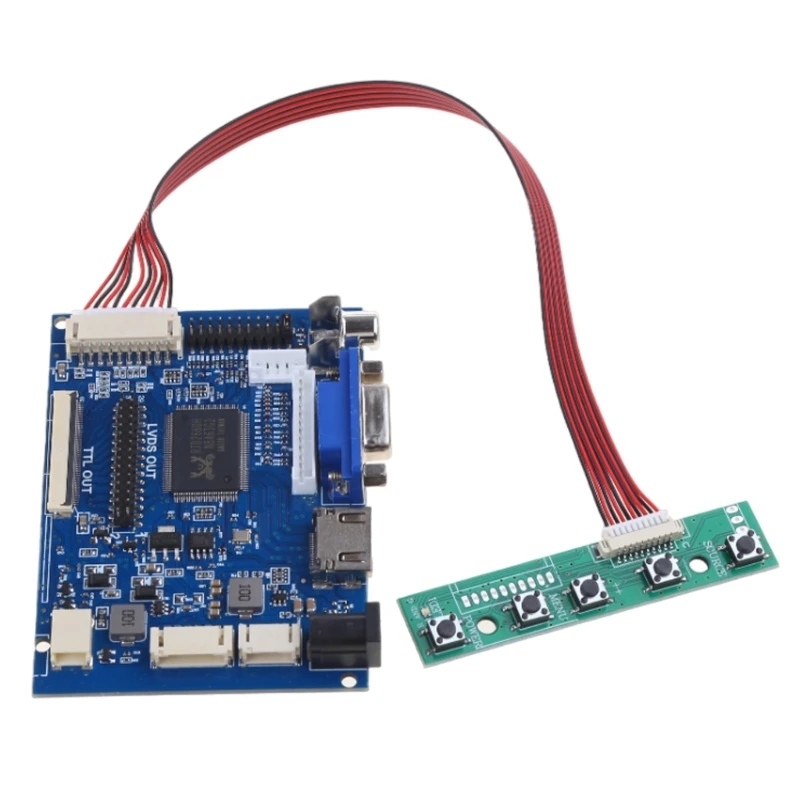

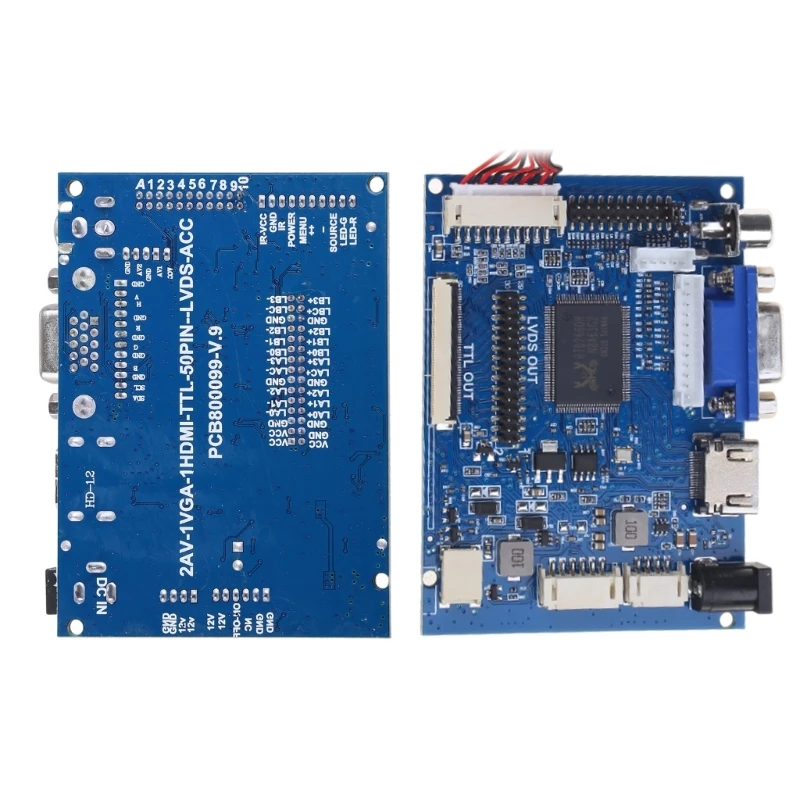

LCD Screen Controller AT070TN92 AT070TN94 Micro USB 50Pin Driver

Features:
OOTDTY
brand new and high quality
The board supports wide input and can work normally between 5v-24v.
Standard backlight 6pin which can be externally to high-voltage board
The driving board integrates LCD and LED backlight driving board
Standard LVDS output, which can support LCD screens of single 6, single 8, double 6, double 8 and other Standard for key board and support dual color LED display
With the LCD adapter board, it can also support 4.3, 5, 6, 7-inch, 40pin general screen. See at0543tn24v, 1 for the
The larger output display resolution of the board is 1920x1080. When the display resolution exceeds 1440x900, the heat sink needs to be added according to the working condition of the IC to reduce the working temperature of the IC)
The VGA part of this IC can directly input YPbPr which needs to be realized through software programThe driver board can add remote control function, which needs to be realized through software program

Specifications:
:50 PIN RGB
Input Port :DC005 Socket
Input V :5V~12V; Current :1A

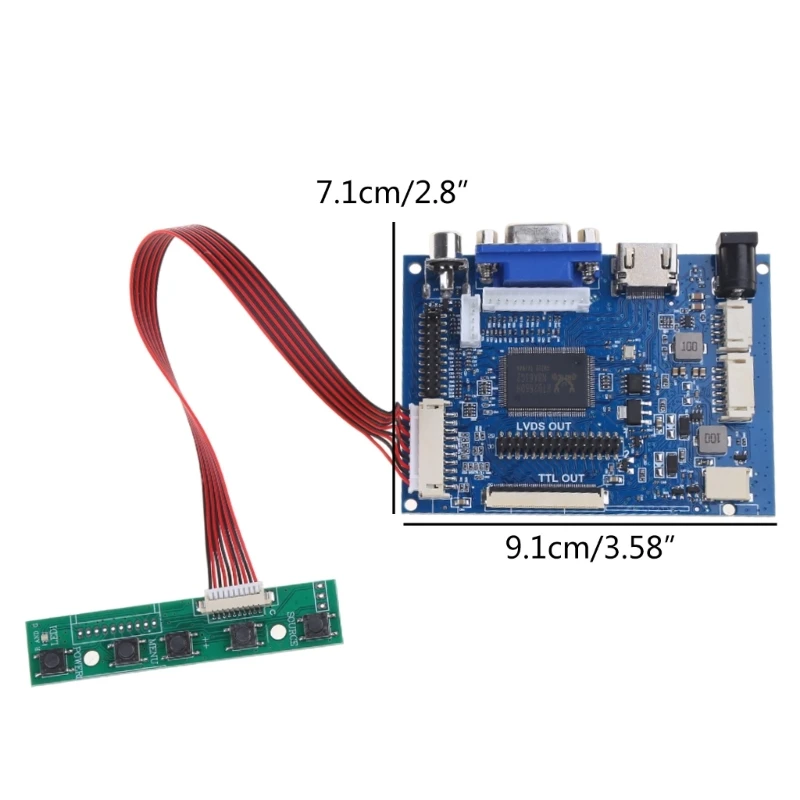

SIze: approx 91x71mm/3.58x2.79in
Input: 1 channel VGA input; 2-way ; channel of input,
and this IC supports hdmi1.2; 1-way reverse input
Support TTL output, Can support : AT070TN92, AT065TN14; AT080TN52 ; AT090TN12; AT090TN10
AT070TN90; AT070TN93 AT070TN94. TTL LCD with general 50pin
With the LCD adapter board, the following LCD screens can be supported:
Ej070na01-1024x600 resolution; Ej080na04b-1024x768 resolution; Zj070na01, universal 40pin high score LCD screen

Package Includes:
1 PC x Board

Note:
The x 480 AT070TN90 screen program is sent by default, and all subsequent consequences (program incompatibility) shall not be borne by our party.
Due to the problems of lighting effects and angles, there will be certain tolerances in the product, please understand.
Please allow 0-1cm error due to the manual measurment.
