KuWFi-conmutador Gigabit POE de 11 puertos, de 8 puertos conmutador Ethernet, 48V, para cámara IP/AP inalámbrico/CCTV, 100/1000M, 8 + 3 puertos

8*10/100mbps POE port,2*10/100/1000mbps UP-Link port,1*SPF port

250m Transmission Distance

Compatible with IEEE802.3AF/AT

Whole Power:120W(52V 2.8A)

All port supported by MDI/MDIX auto flip and self negotiation

Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.

Each port max. power supply reached 30W.

Application

Wireless Access Point

IP Camera

IP Phone

Computer Networks

Package List

Network switch*1

Power cable*1

User guide*1

Technicial Parameters:

Product

10(8+2+1) Port POE Switch (Built-in)

Model No.

1011GB

Power Supply

Built-in and External are available

Output Power

15.4W/30W

POE Port

1 to 8 support IEEE802.3AF/AT

Power Pin

Both 1/2+,3/6- and 4/5+7/8-

POE Type

End-span

Whole Power

≤120W (52V 2.8A)

Network Medium

10/100BASE-TX:5 class and above non shielded twisted pair

Power Distance

≤250m

Switch Capability

7.6Gbps

Data Distance

≤250m

Forwarding Mode

Store and forward

Forwarding Rate

10BASE-T:14880PPS/port

100BASE-tx:14800pps/port

MAC Address

MAC address table 1K

Port Function

Power priority mechanism, fast and forward, MAC automatic learning and aging

IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

LED Indicator

LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender

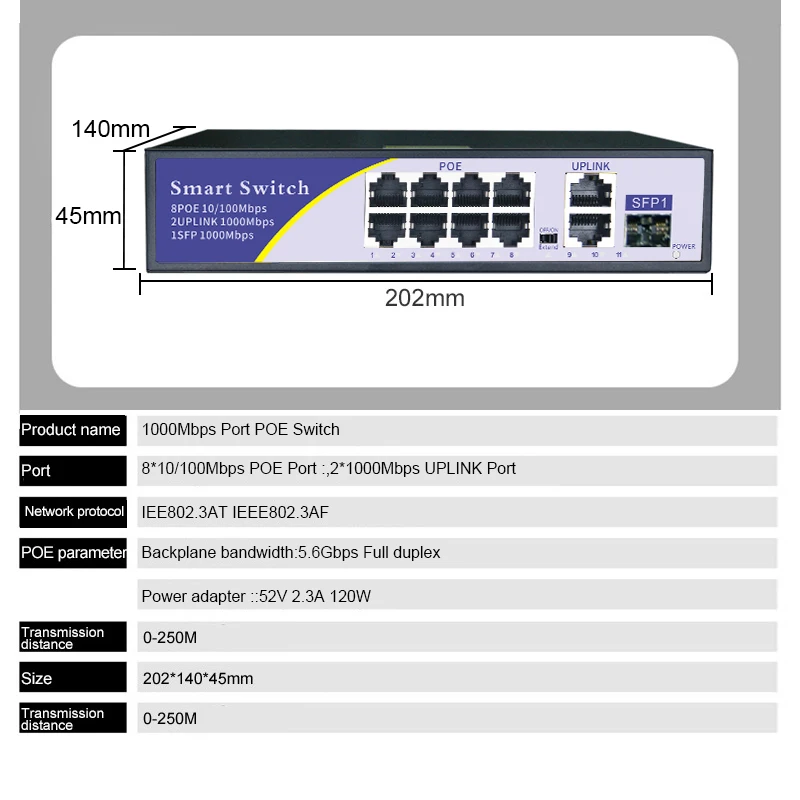

Size

202mm*140mm*45mm(L*W*H)

Warranty

2 years

Package

DJA color box& neutral box
