Our products provide the following special services
（1）1-year warranty period: If all routers have quality problems within 3 year, our store supports free return and replacement of new products.
（2）Three-month warranty period: For products other than routers, if quality problems occur within three months, our store supports free return and replacement of new products.
EU Plug is sent by default, other plug types are required, please contact the seller before purchase.
1.3KM distance,it mean point to point,
2.if you want to reach long distance and better signal ,we suggest that you buy 2pcs
3.Wifi signal is affected by many factors,such as trees, walls, buildings, trucks, etc., raw network signals, etc
4.if you buy one pcs ,it does not have package box,please do not worry damaged in transit,we pack it very well
Description

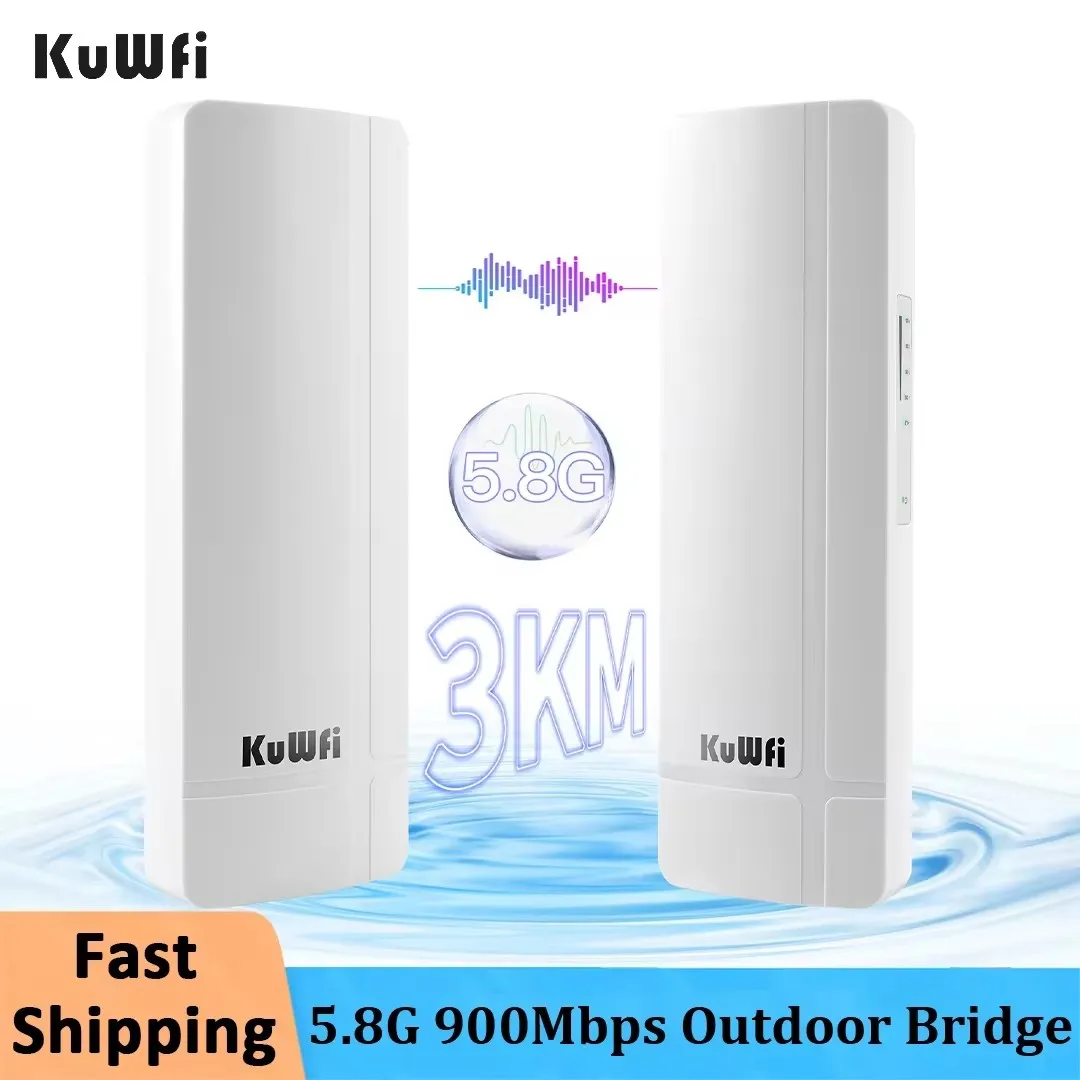

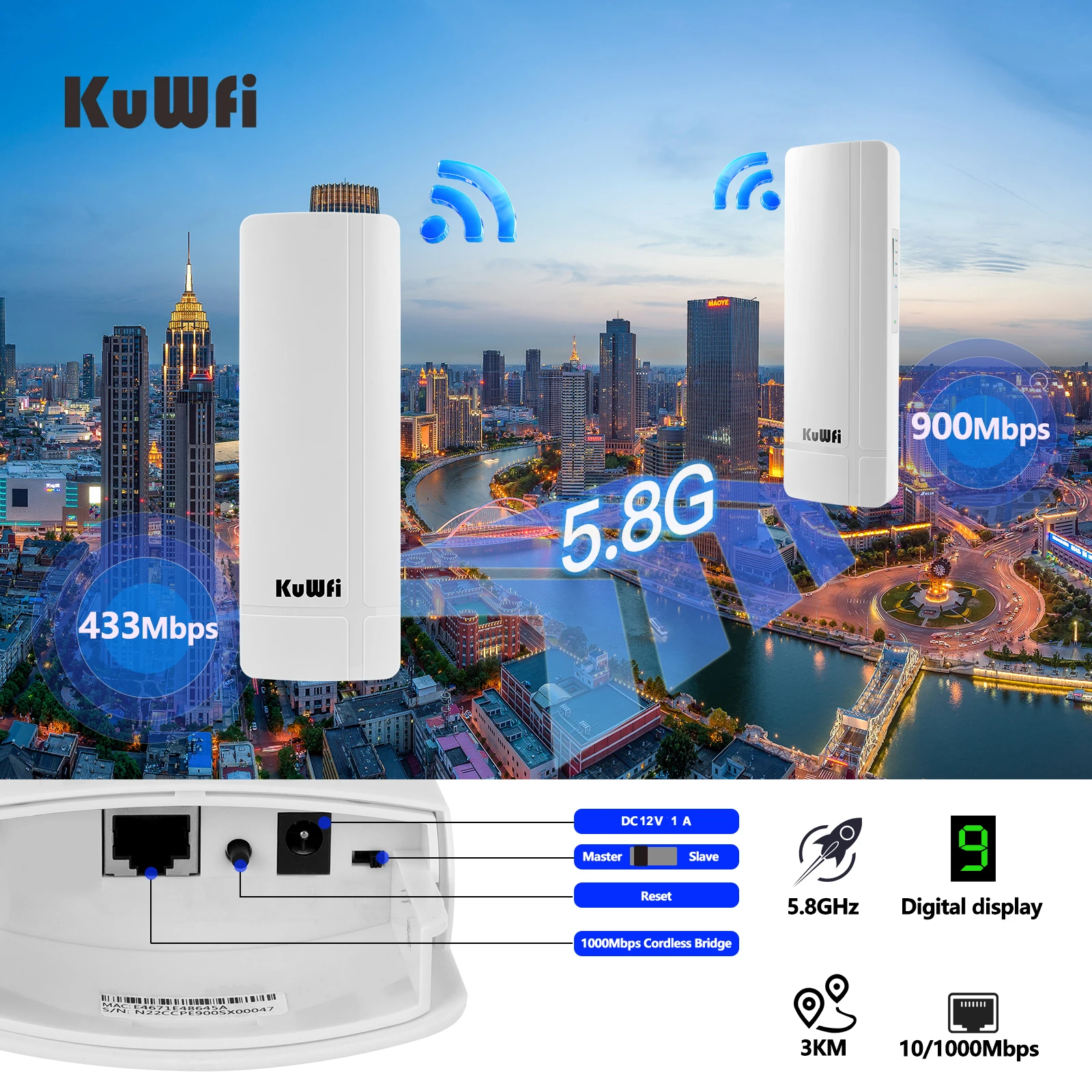

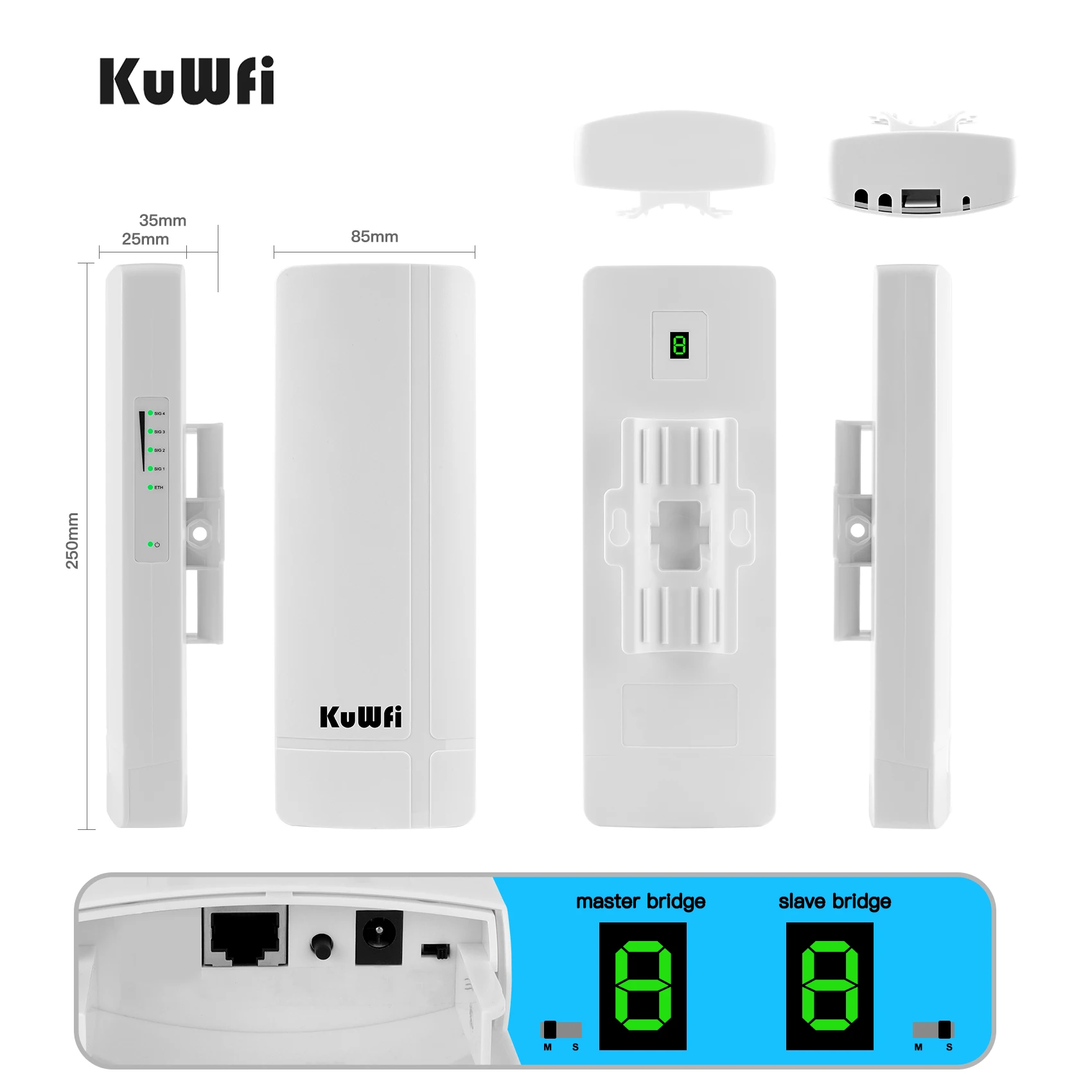

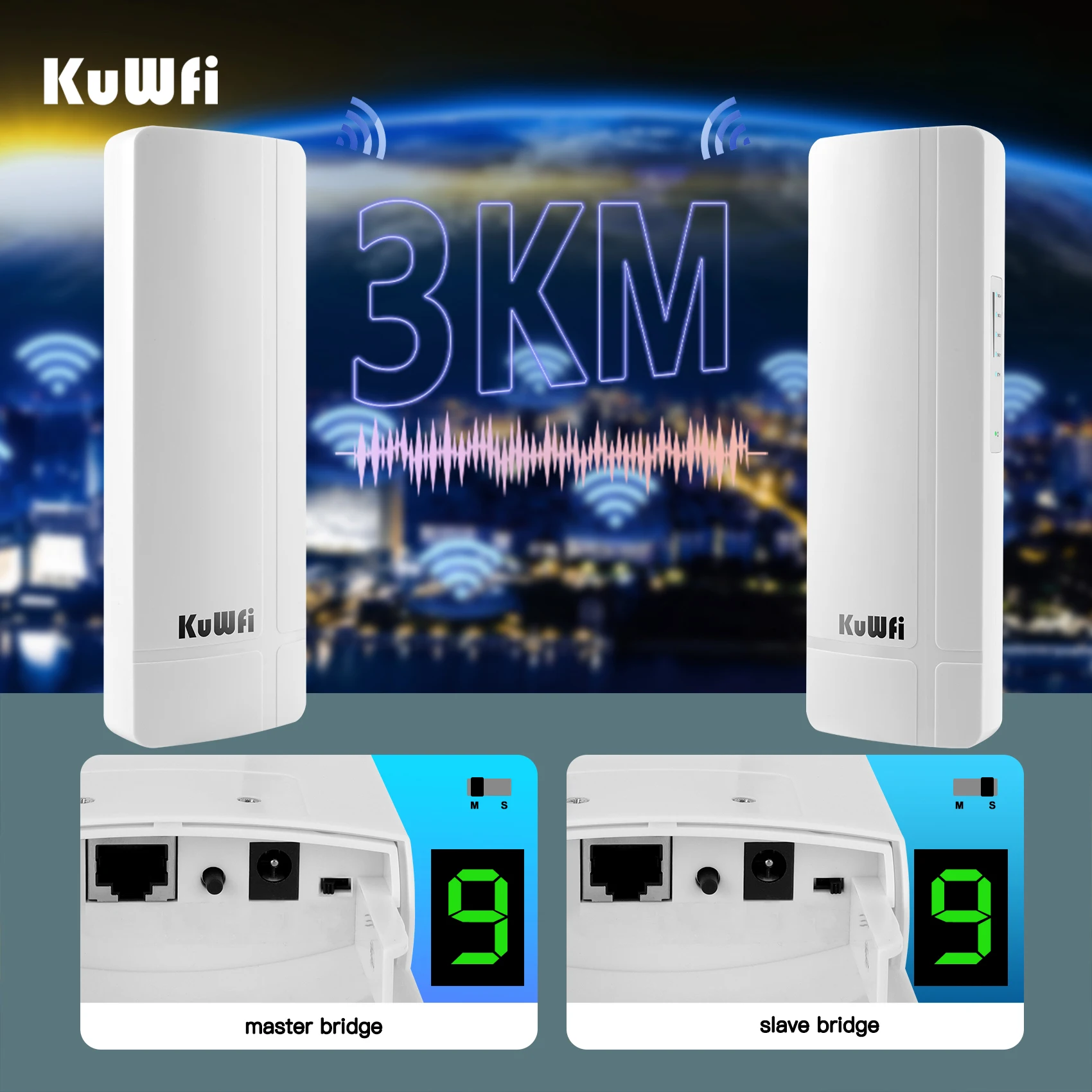

1N630 is a 802.11A/N/AN/AC 900Mbps outdoor bridge point to point with 3KM distance that support 5G full band. With LED digital display, its easy to complete point to (multiple)point matching without computer. Support 24V POE (up to 80m according to cable material) & 12V 1A DC power supply. It’s designed for video & data transmission in short and medium distance.
2.Support IEEE802.3az. When there is no addressable frame,the transceiver will enter low power consume mode, and if new frame comes, it will back to active mode instantly. According to the actual flow of the port, adjust energy consumption automatically, and switch fast between full speed & low consume mode,which save 30% power cost.
Main Features
Main Features:
Supports intelligent channel analysis and automatic optimal channel selection, with a maximum rate of 900Mbps.
The product supports universal relay mode and AP mode, with a wider range of user application scenarios.
Inbuilt 14dBi Dual Polarization HG Directional Panel Antenna, which can meet the wireless transmission within 3KM, and can realize the outdoor coverage and application of point-to-point and point-to-point.
Supports both POE 24V and DC 12V power supply.
Specification
64M RAM Inside 8MB Flash
1*10/100/1000Mbps WAN Port
Antenna： Inbuilt 14dBi Dual Polarization HG Directional Panel Antenna
Power :DC 12V 1A / POE 24V 1A
Note:

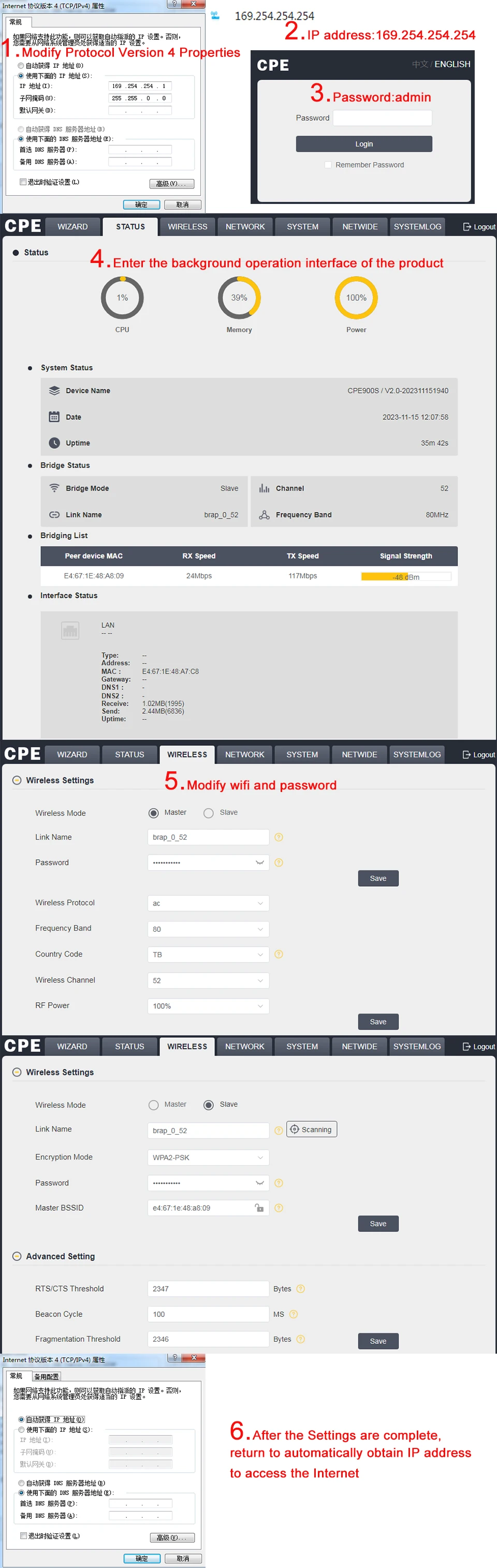

Master CPE: The CPE 1000M WAN port connect to POE adapter POE port, the POE WAN Port connect to PC network cable, and CPE 100M connect to other router should have internet service.
Slave CPE : The CPE 1000M WAN port conenct to POE adapter POE port, the POE WAN Port conenct to PC should have internet service.
Please do NOT use 100M to conenct POE, it will damage the device.
Shipping time and tracking
We use safe trackable shipping methods to ship parcels ,below is estimated delivery time for different countries :
Asian countries 7-10 days .
European countries 7-15 days .
United States 10-15 days .
American countries 15-25 days .
Brazil 15-45 days .
Warranty time and service
Customer service working hours:Beijing 9:30-18:30
Ship orders within 48 hours (except weekends)
The warranty period of the router is 1 year, and the warranty period of other products is 3 months
