Descripción

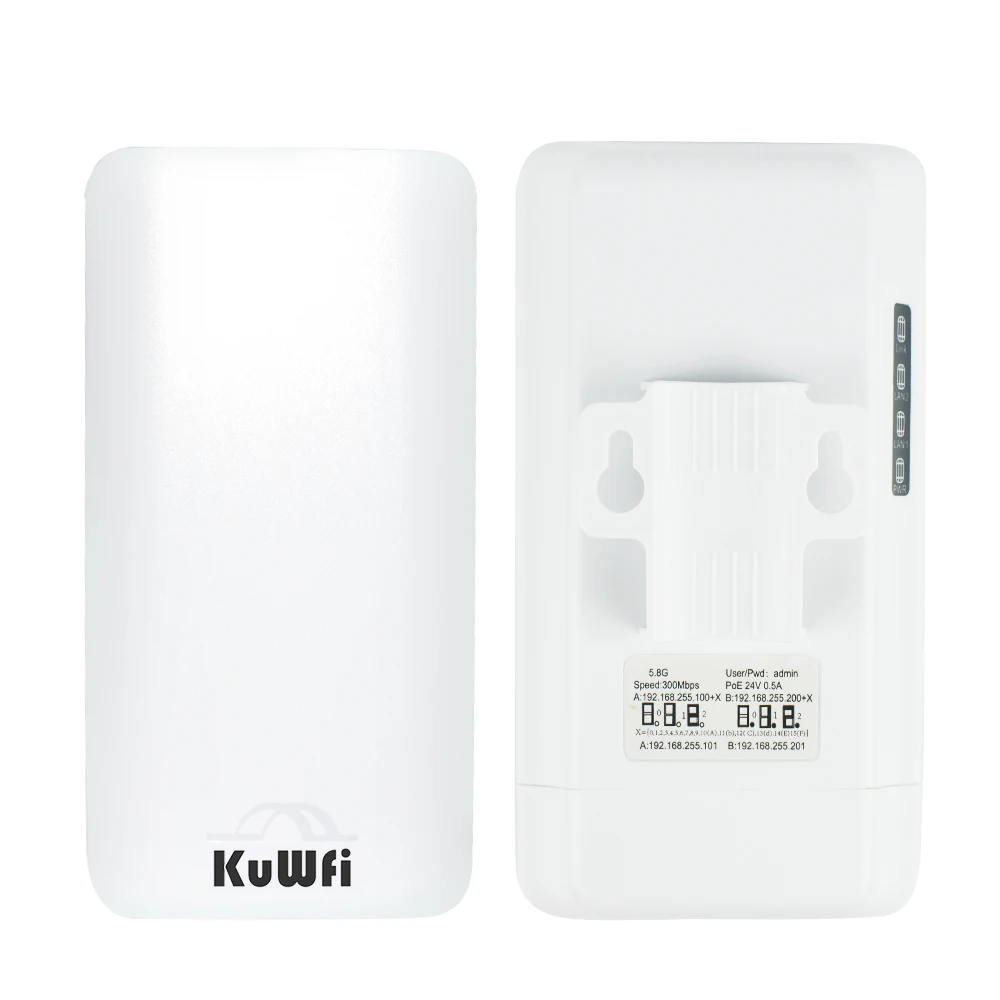

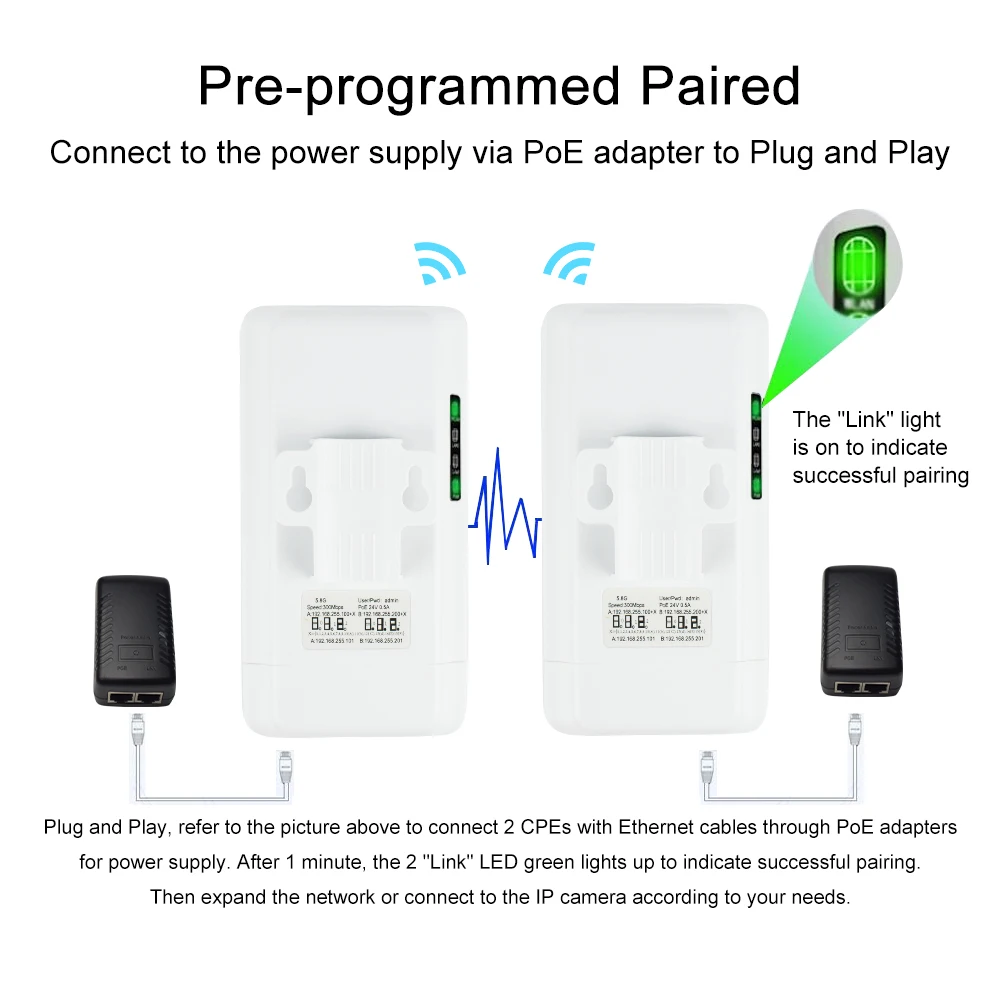

CPE352 is a wireless Ethernet bridge, Wi-Fi standard high-power industrial 5G outdoor CPE, combined with 300Mbps high speed in 5G, equipped with 2 10/100M LAN ports, the Ethernet data rate is 2 times faster than ordinary CPE, it makes more Over 50 end users can access it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks. It uses air as the medium for network data transmission to remote point-to-point or point-to-multipoint connections. Support 2KM transmission distance, two-way traffic up to 140M. CPE352 has intelligent network management and can be paired automatically.
Wireless Bridge Compliant with IEEE 802.11a/n, 5G, 300Mbps Data Rate* 1x 10/100M LAN Port* 500mW High Power, Built-in 12dBi MIMO Panel Antenna, Stronger Signal, Wider Wireless Coverage* Supports Passive PoE* With Built-in Function Firewall, IP Filter, URL Filter and MAC Filter* Compliant with IEEE 802.3az Standard, Beamforming, RF Power Conditioning and Frequency Analyzer for better use in different environments* Supports DDNS, VPN passthrough, port forwarding and DMZ Host* supports 64/128-bit WEP security, 128-bit WPA (TKIP/AES) security

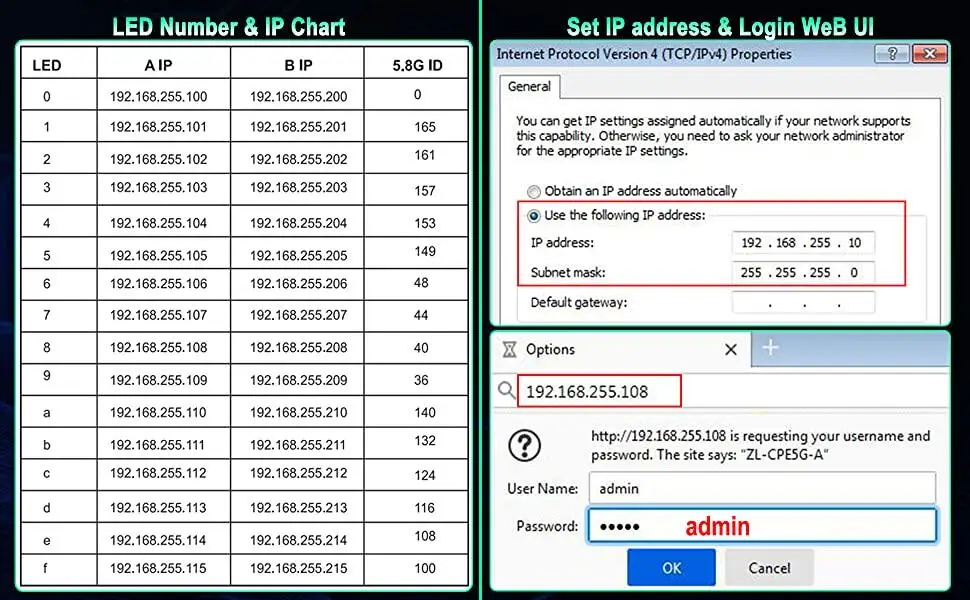

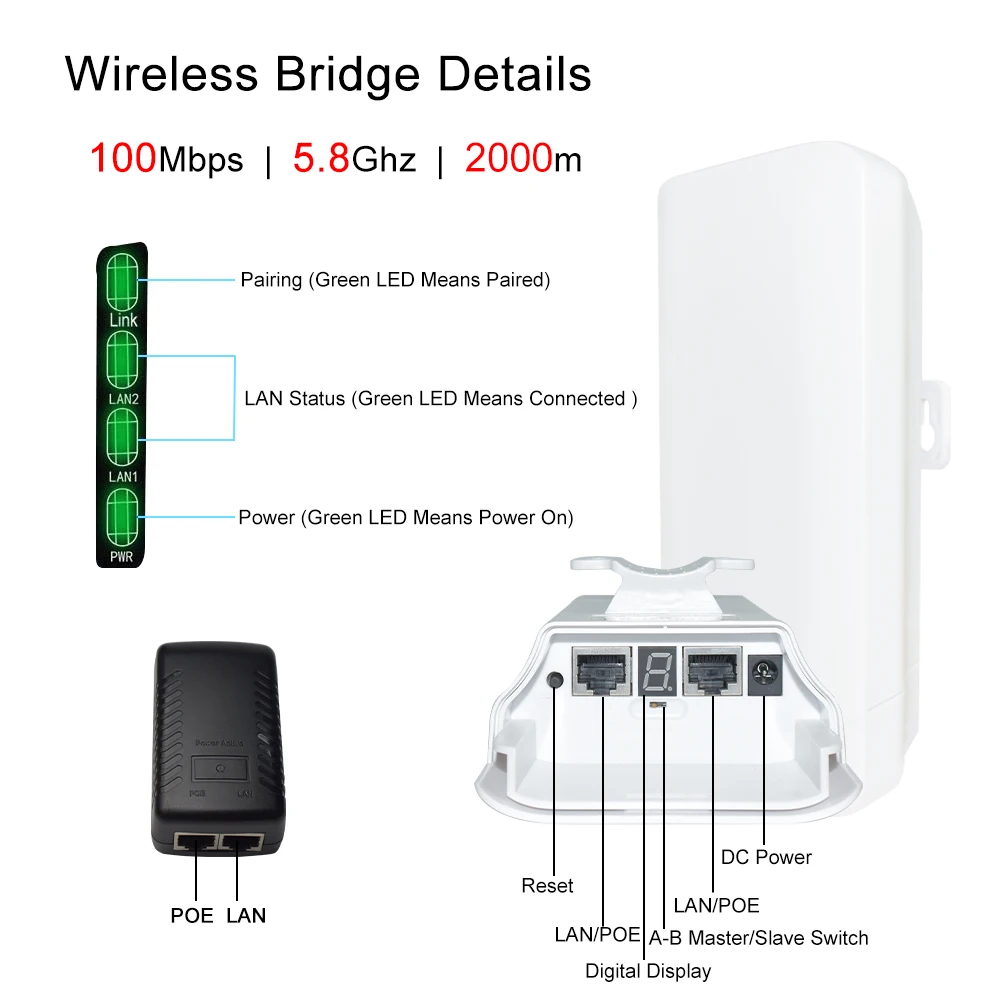

If you want to enter the setting page of the bridge, you need to enter the corresponding IP address according to the number displayed on the LED.
If you want to enter the setting page of the bridge, you need to enter the corresponding IP address according to the number displayed on the LED.
Chipset
AR9344
DRAM
DDR2 64MB
FLASH
8MB
Interface
10/100Mbps LAN*1
Data Rate
11a:54M,48M,36M,24M,18M,12M,9M,6Mbps
11n:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M,
28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4Mbps 433Mbps
Transmission Mode
DSSS
Modulation Mode
OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Wireless Standard
IEEE802.11a, IEEE802.11n ,IEEE802.3u
Protocal
CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5
Frequency
4900～6100MHz
Power Consumption
≤3W
Power
POE 24V 1A (Default)
POE 48V 0.5A (Optional)
RF
@25℃±2dB
802.11a
6-24Mbps
19±2dBm
36-48Mbps
19±2dBm
54Mbps
19±2dBm
802.11n
HT20
MCS 0-3
17±2dBm
MCS 4
17±2dBm
MCS 5
17±2dBm
MCS 6
17±2dBm
MCS 7
17±2dBm
HT40
MCS 0-3
16±2dBm
MCS 4
16±2dBm
MCS 5
16±2dBm
MCS 6
16±2dBm
MCS 7
16±2dBm
Sensitivity
802.11a
6Mbps ≤ -89； 54Mbps ≤ -68
802.11n
HT20
MCS 0 ≤ -86; MCS 7 ≤ -68
HT40
MCS 0 ≤ -83; MCS 7 ≤ -65
Antenna
Frequency
5180～5825MHz
Polarization direction
Vertical
DB
12 dBi
Management
WEB management
Support
Telnet
Support
Serial
Support
Security
MAC control
Support
Encryption
WEP Encryption 64/128bits,WPA,WPA2,802.1x
Work / Storage Environment
Working
-30～65℃
Storage
-50～80℃
Moisture
(non concentrated)
≤95%（non-condensing）
Size
260*115*75mm
Weight
0.45kg
Packing List
1* Outdoor CPE
1* 24V POE Power
1* Hose Clamp
