Specifications

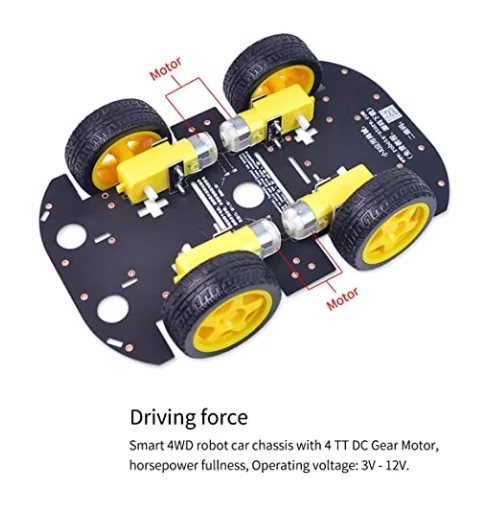

Smart 4WD robot car chassis with 4 TT DC Gear Motor, horsepower fullness, Operating voltage: 3V - 12V.
DC Motor Reduction Ratio: 1:48 (3V Motor No-load speed 125RPM).

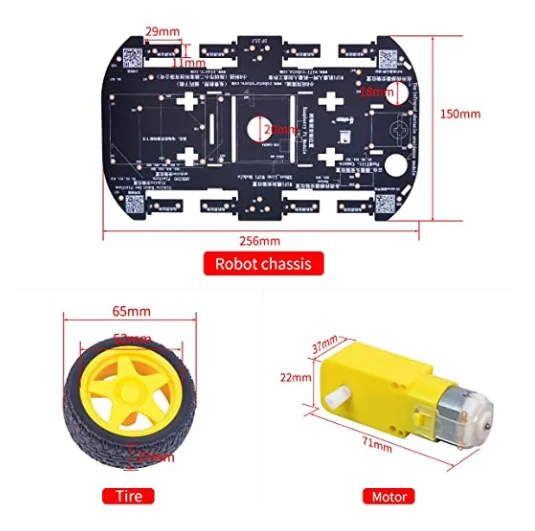

Robot chassis kit made of PCB material, Size:256*150*2MM, Maximum Load 500g.

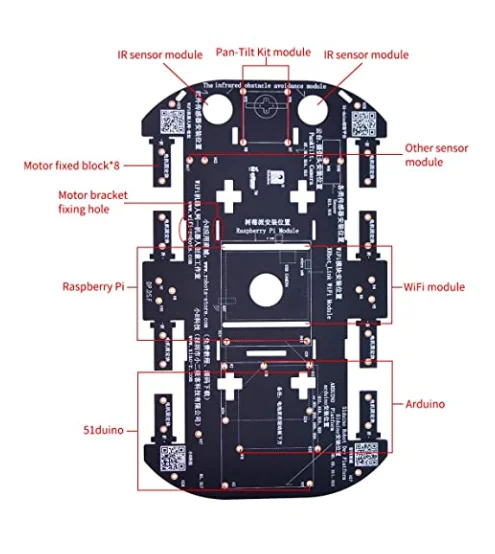

With many circuit mounting holes, users can add some micro-controller (such as Arduino/Raspberry Pi) and sensor modules to realize function of tracing, obstacle avoidance, distance testing, speed testing, wireless remote control.
This 4WD robot car chassis convenient installation, firm and reliable.
The robot chassis kit is a good platform for electronic enthusiasts or beginners to add micr-controller(such as Arduino/Raspberry pi) and some module to build their own robot car.
Feature:
Simple mechanical structure and easy installation.
Smart robot car with 4 TT DC Gear Motor and ideal for DIY.
Four motors + non-slip solid tires enables more powerful driving force.
Robot chassis kit made of strong PCB material, Size: 256*150*2MM, Maximum Load 500g.
Realizing functions of tracing, obstacle avoidance, distance testing, speed testing, wireless remote control when used with other devices.
Package Included:
1 xPCB car chassis Kit
4 x Gear motor
4 x Car tire
2 x screwdriver
Motor wire, some screw and nut
Note: This is only robot chassis kit, not include other robot parts(such controller boards, sensors, etc).
Extend 1
User can add micr-controller(such as Arduino/Raspberry pi) and some module on our robot chassis to build their own robot car.
Extend 2
Reserve IR sensor mounting holes, user can add IR sensor on the robot chassis to achieve line tracking.
Extend 3
You can add ultrasonic module on the platform to achieve obstacle avoidance. Keep your car away from collision and enjoy the fun.
