Product parameters

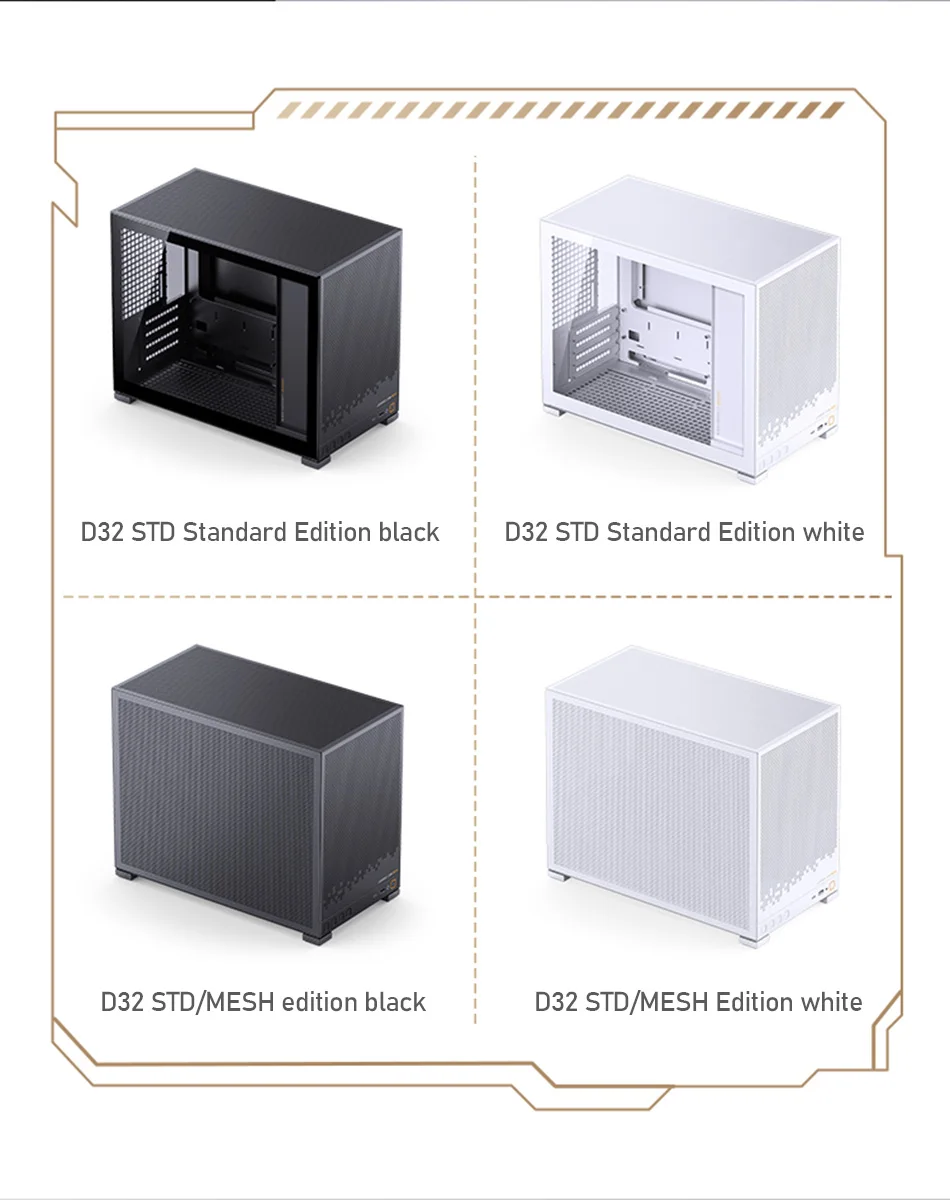

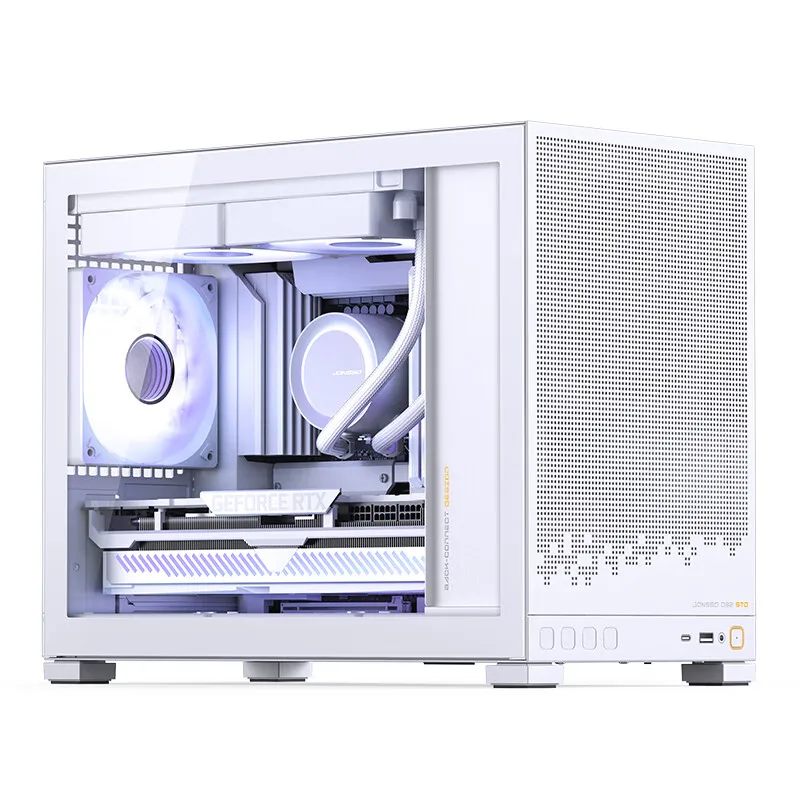

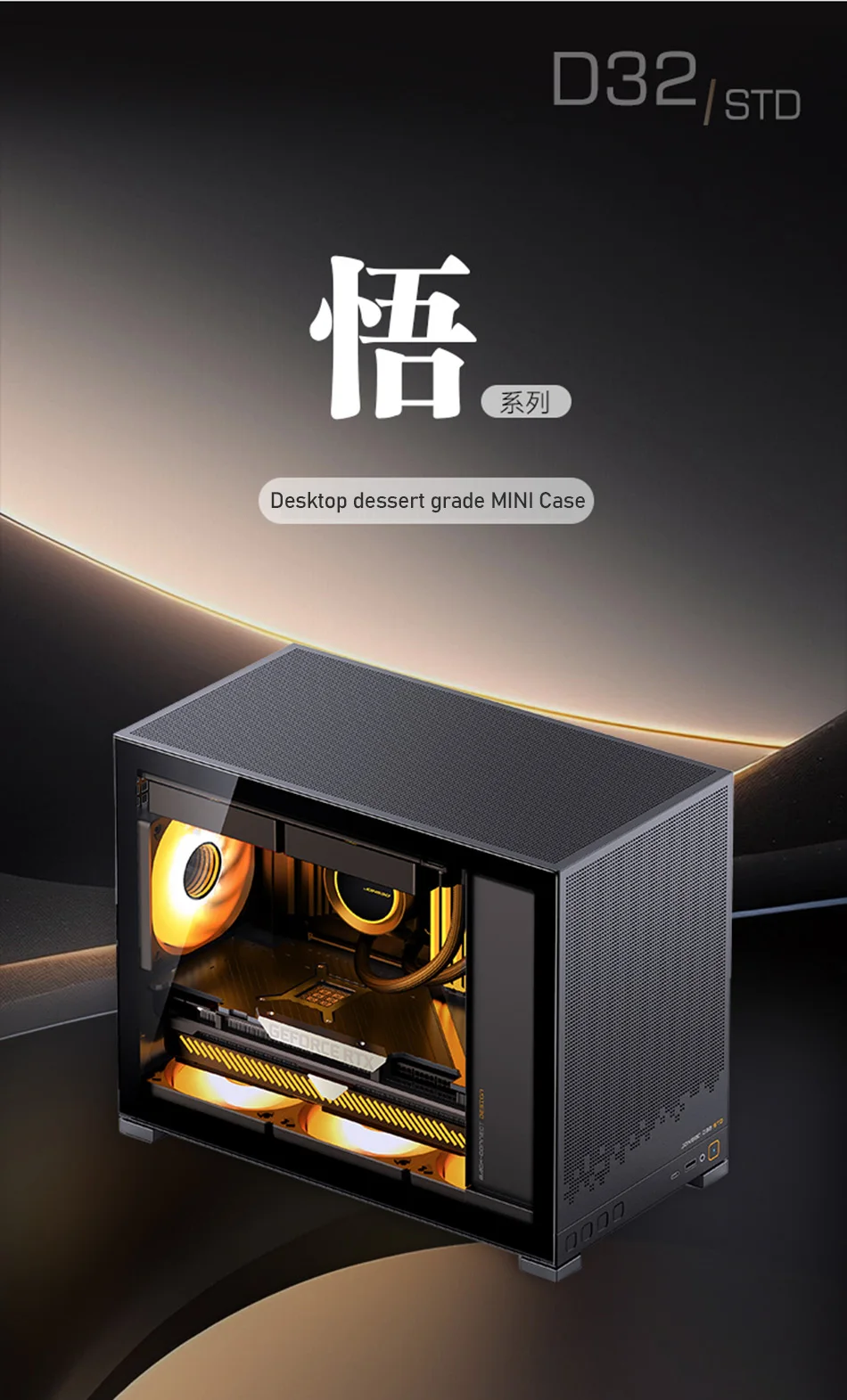

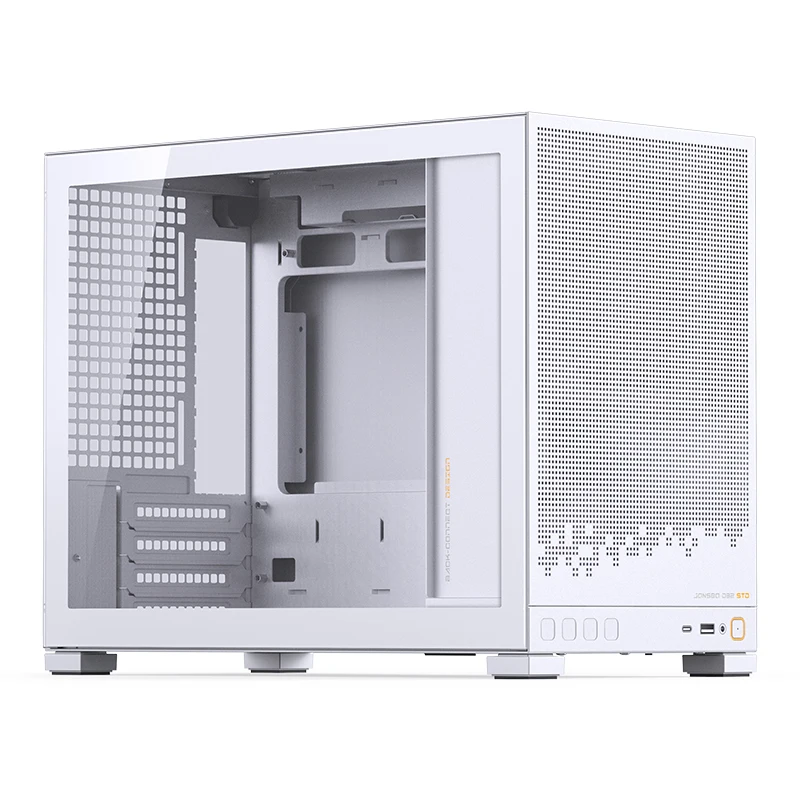

Product model: D32 STD
Color: Black/White

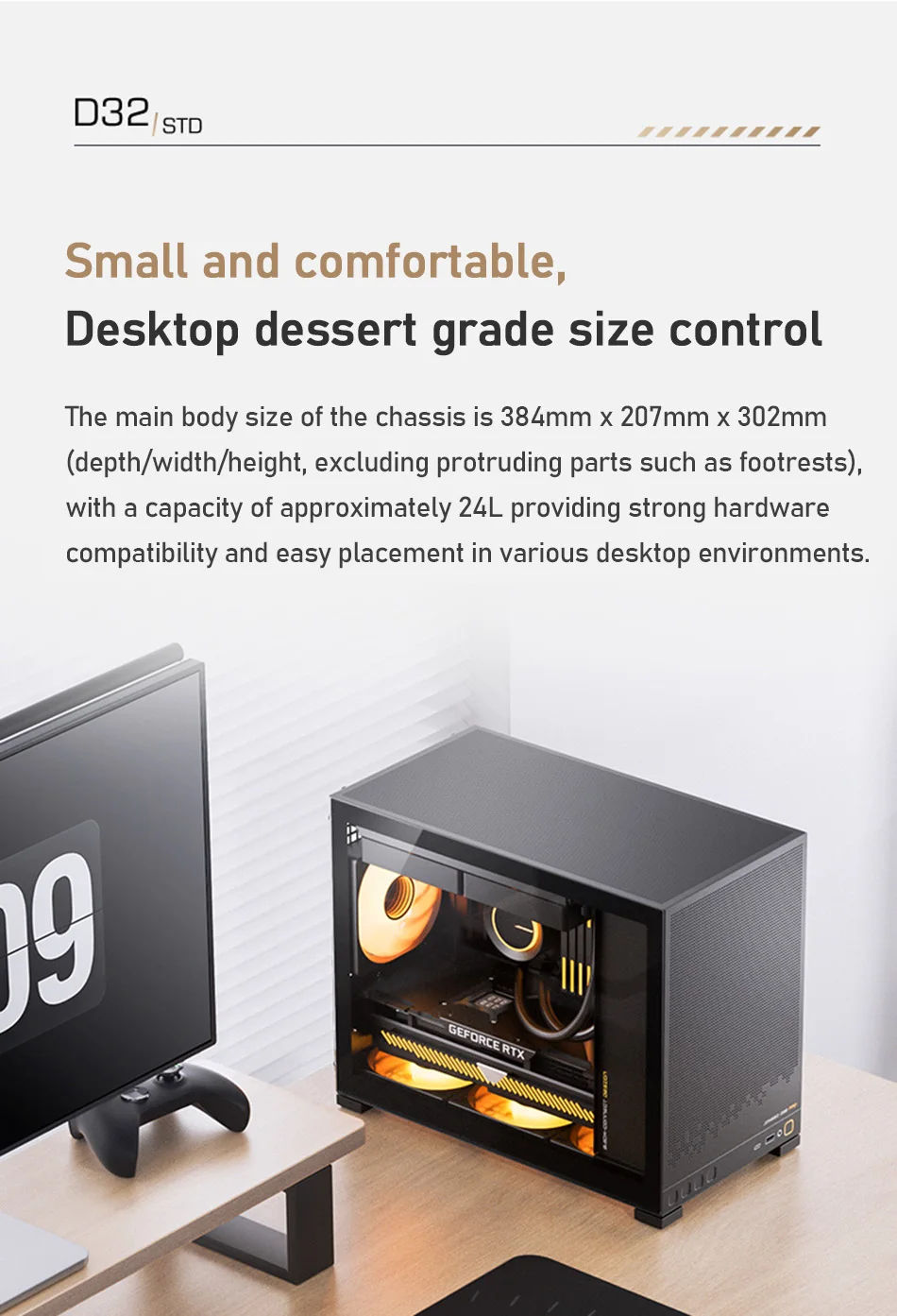

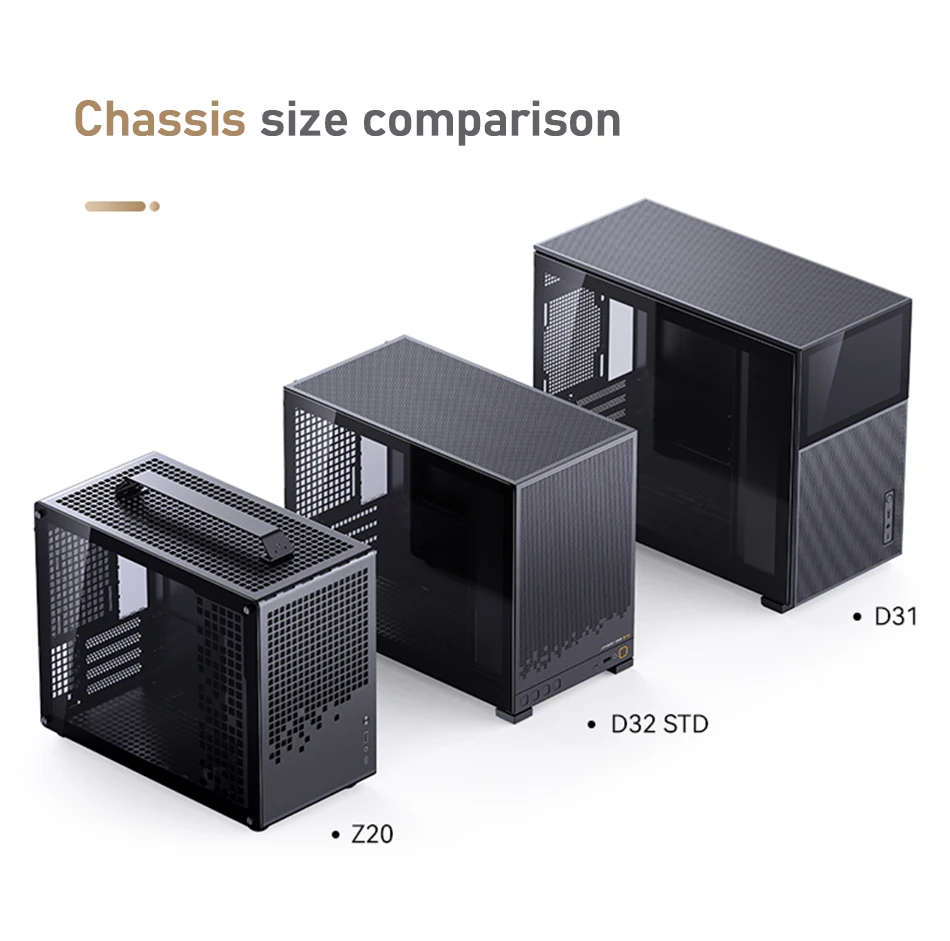

Chassis size (excluding protruding parts such as footrests): 384mm * 207mm * 302mm (depth/width/height)
Chassis size (including footrest and other dimensions): 395mm * 207mm * 314mm (depth/width/height)
Chassis material: SPCC steel plate (thickness 0.7mm+0.8mm)

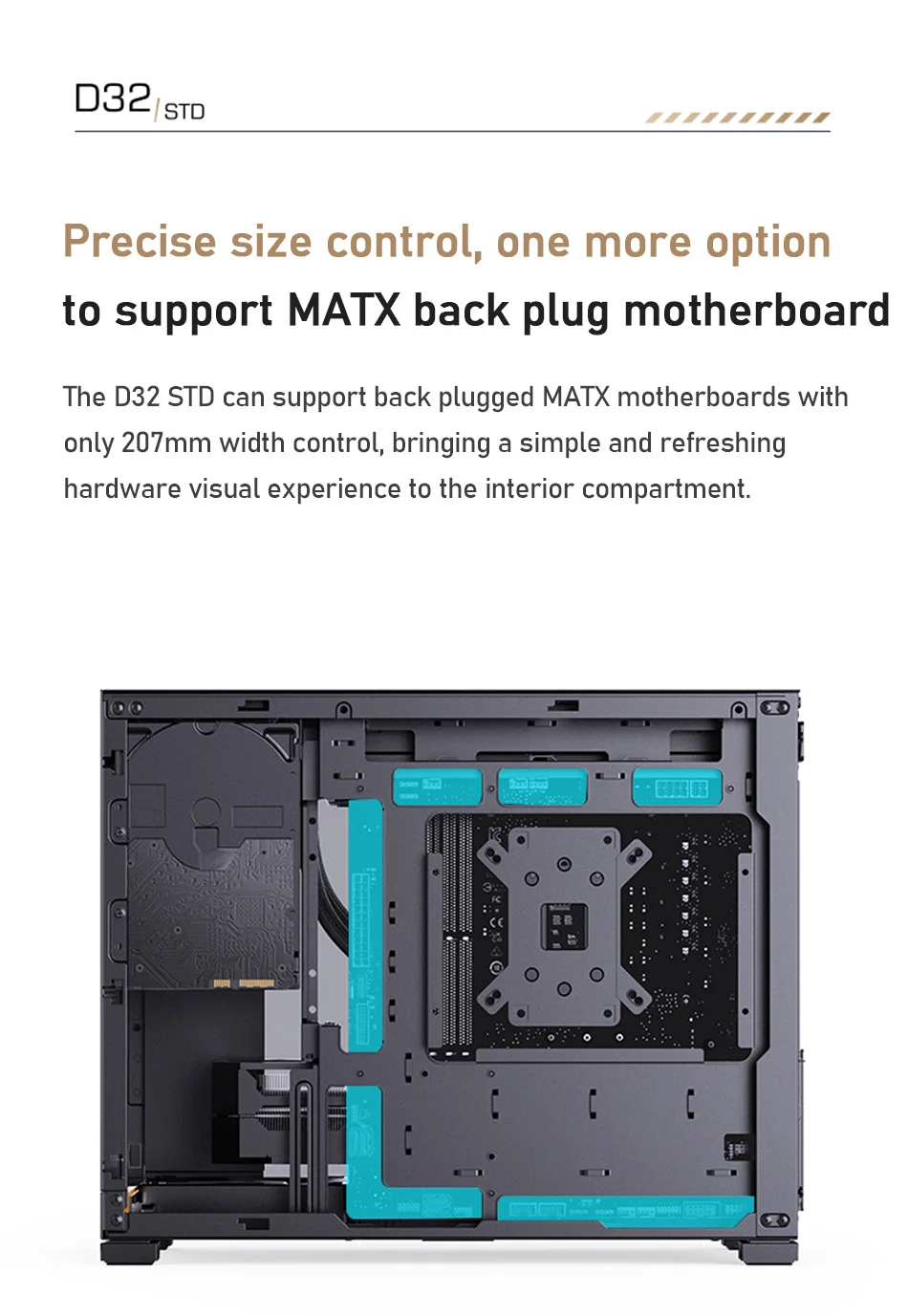

Compatible motherboards: MINI-ITX/MICRO-ATX standard/MICRO-ATX back plug type

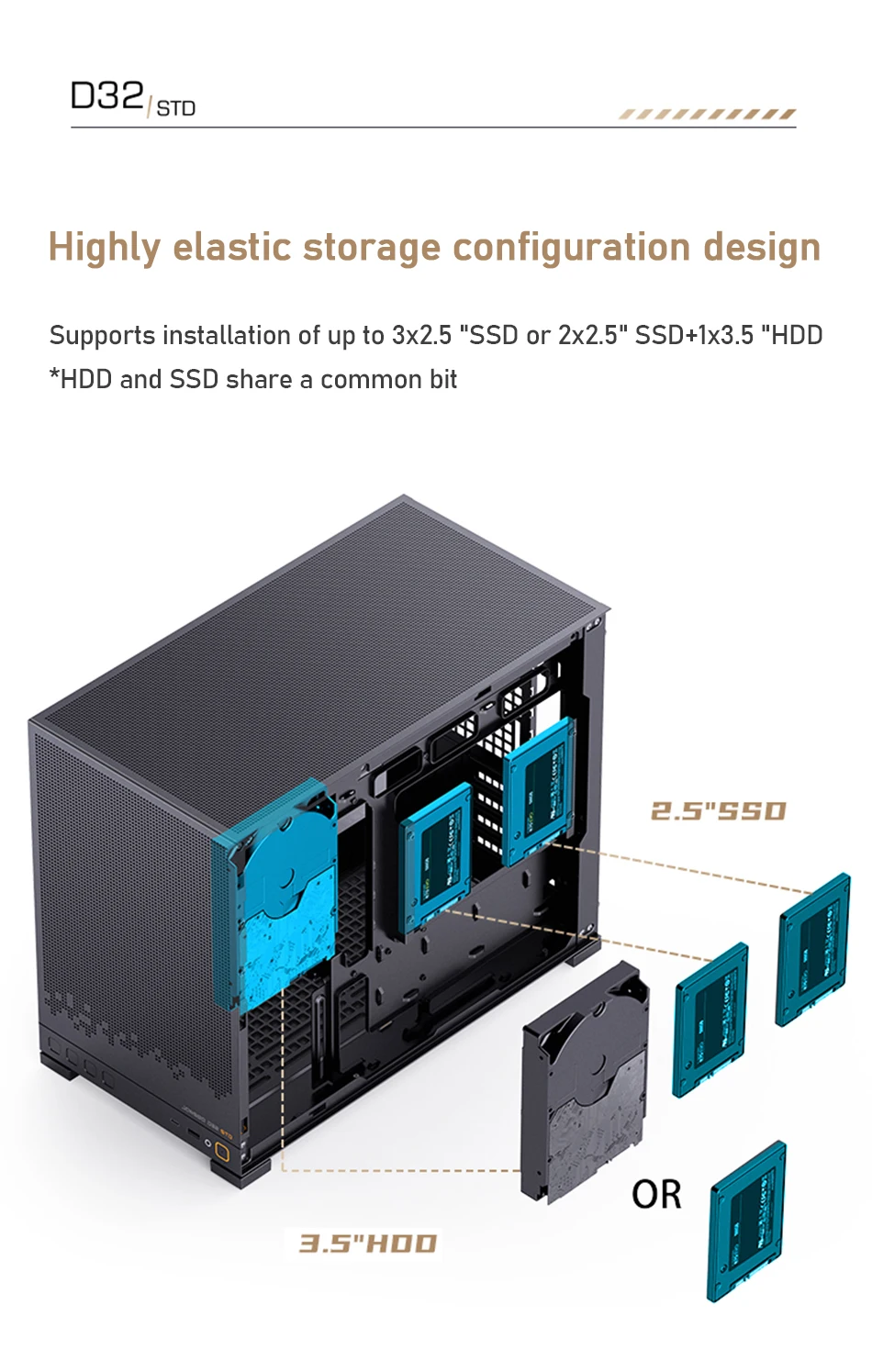

Drive bit: 2.5 "SSD: up to 3
3.5-inch HDD: up to 1 (shared with 1 2.5-inch mounting slot)

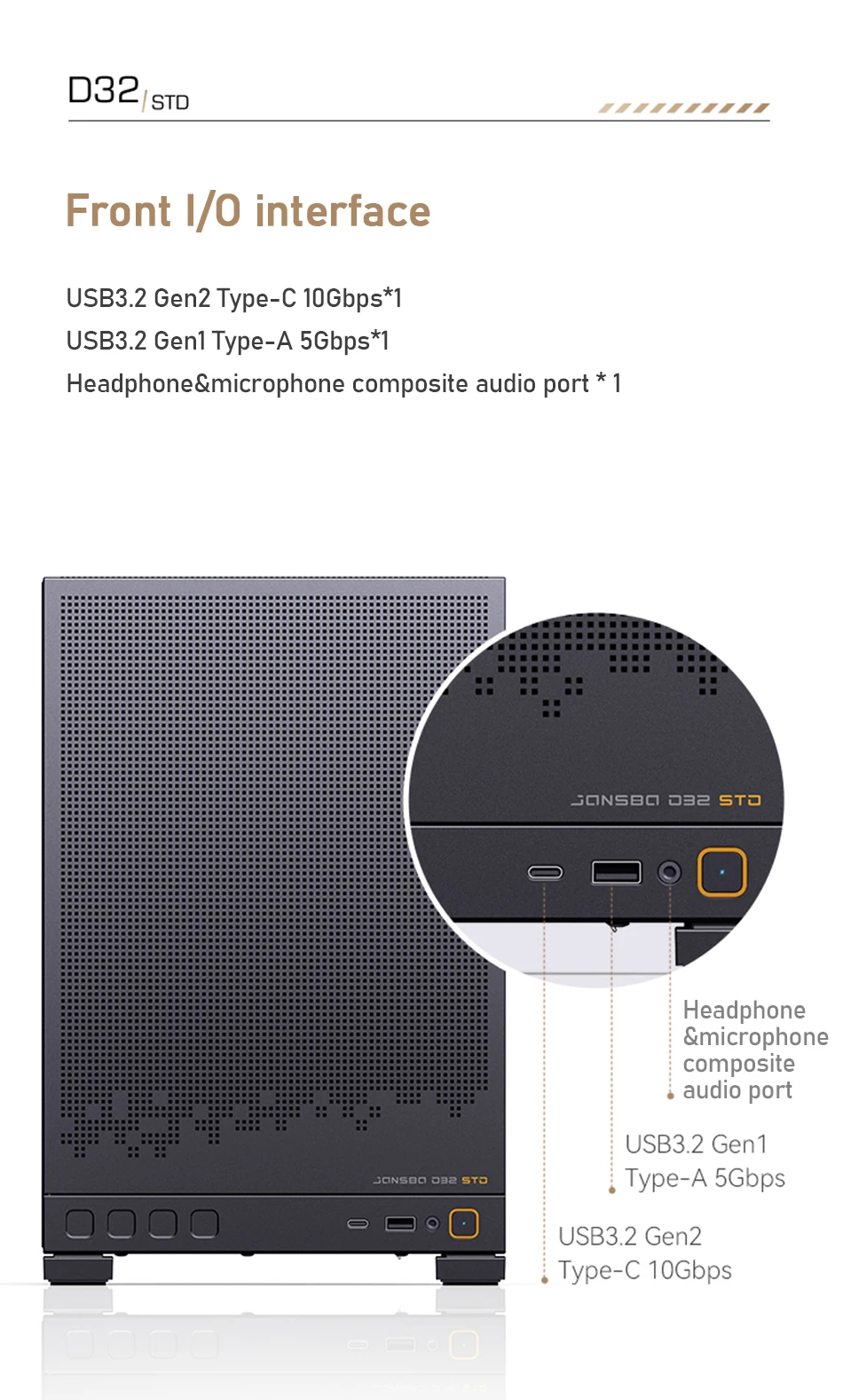

Front interface: USB 3.2 Gen 1 Type-A * 1/USB 3.2 Gen 2 Type-C * 1/AUDIO * 1&MIC * 1

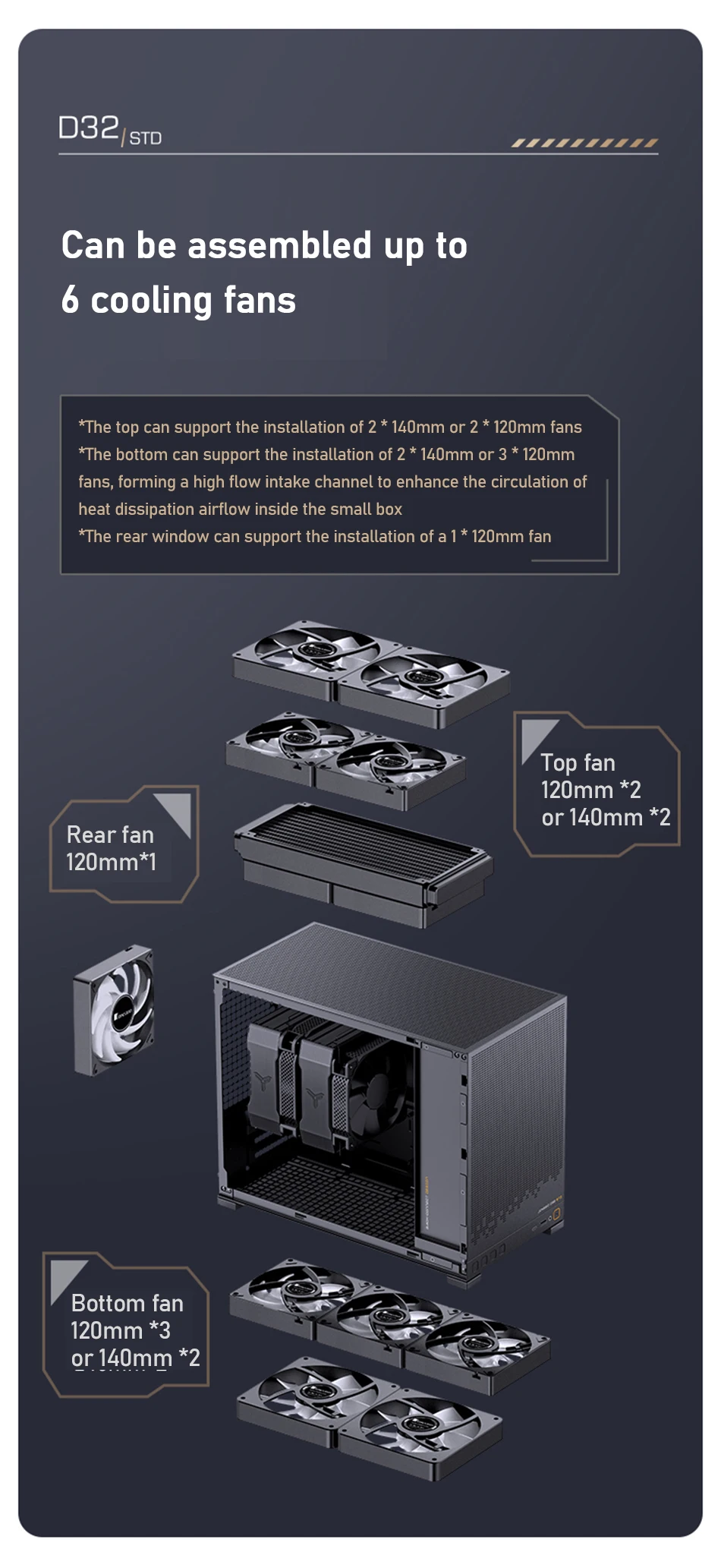

Fan: Top: 2 * 120mm/2 * 140mm; Rear: 1 * 120mm; Bottom: 3 * 120mm/2 * 140mm

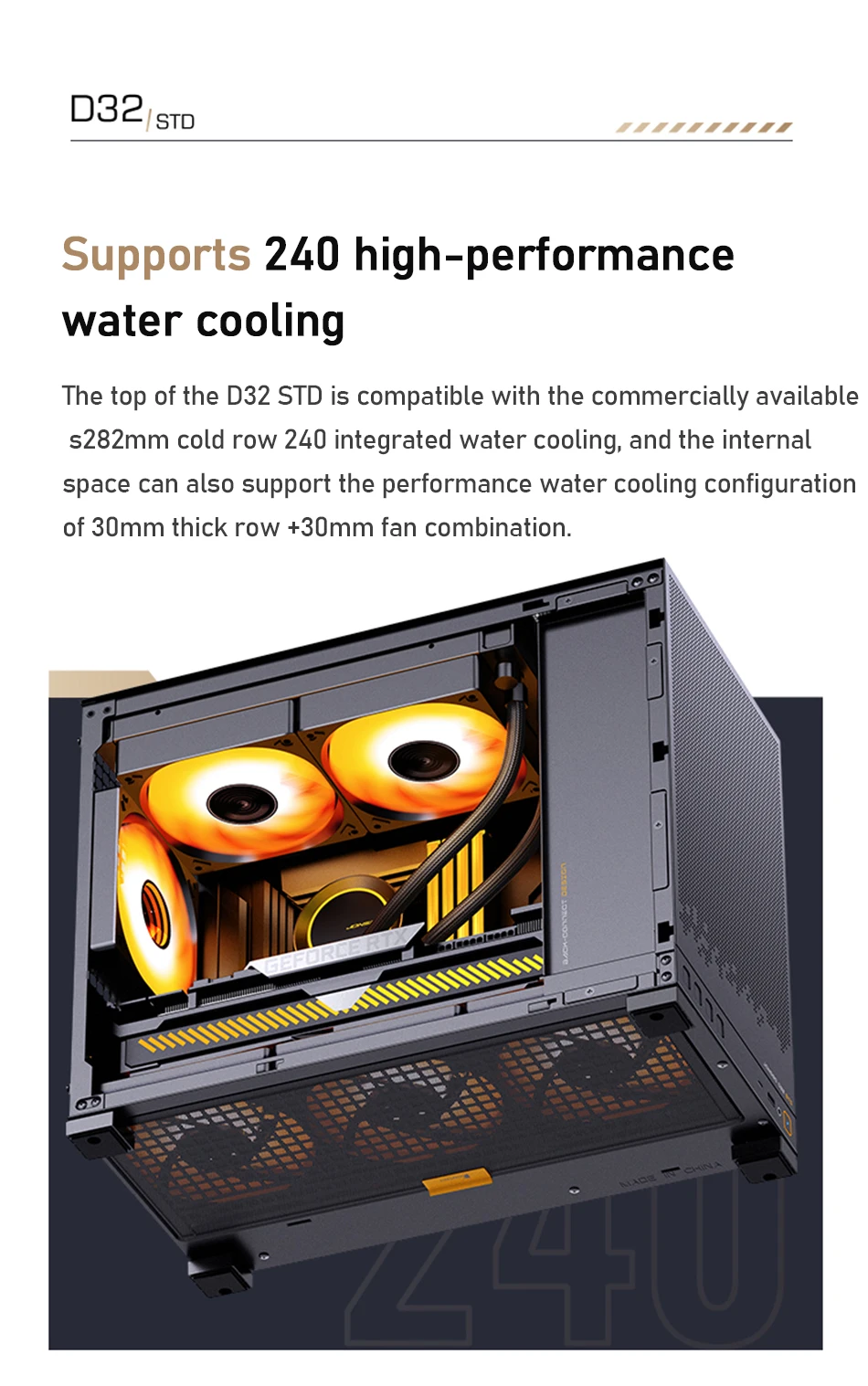

Water cooling support: top 240mm

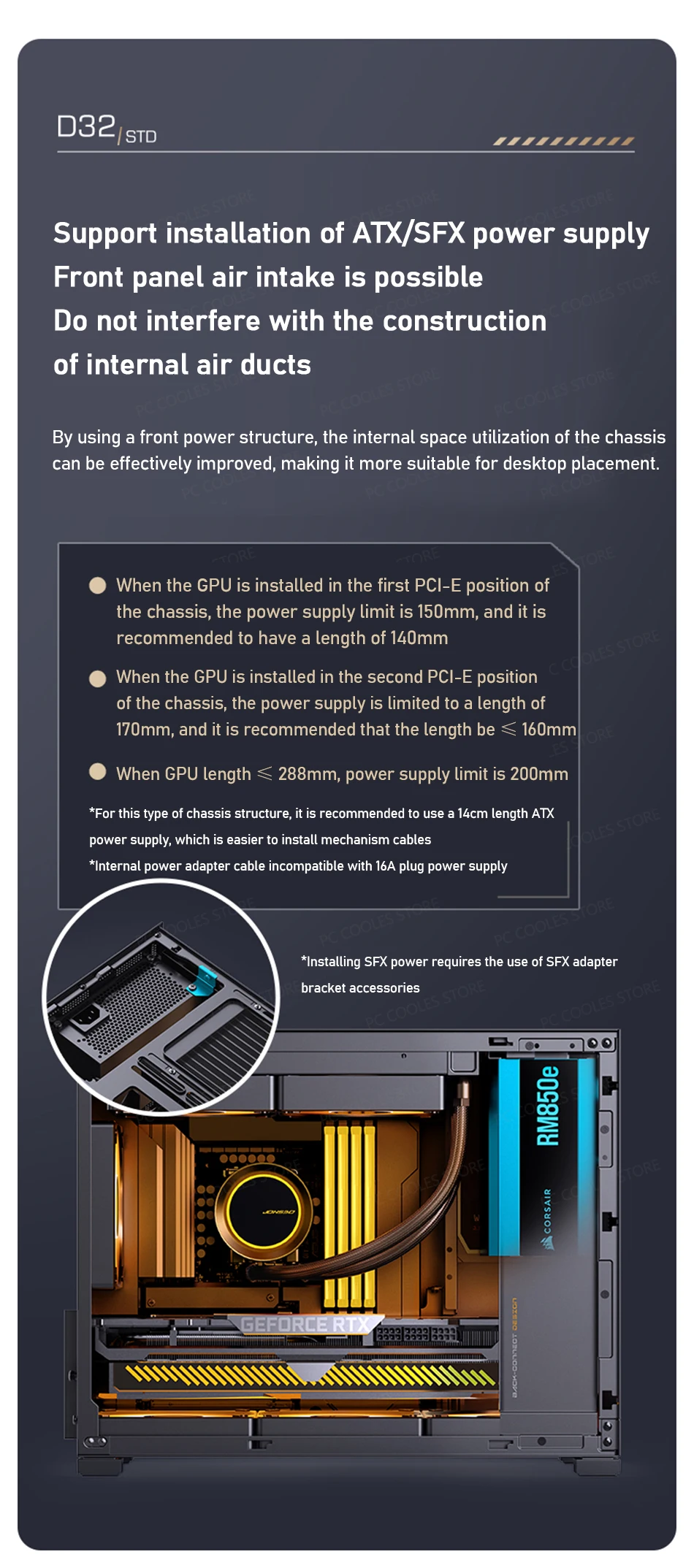

ATX PS2 power supply compatibility: (not compatible with 16A plug power supply)
When the GPU is installed in the first PCI-E position of the chassis, the power supply is limited to a length of 150mm, and it is recommended that the length be ≤ 140mm;
When the GPU is installed in the second PCI-E position of the chassis, the power supply is limited to a length of 170mm, and it is recommended that the length be ≤ 160mm* This installation position depends on the motherboard, please refer to the motherboard specifications
When GPU length ≤ 288mm, power supply limit is 200mm
SFX power supply compatibility: SFX/SFX-L

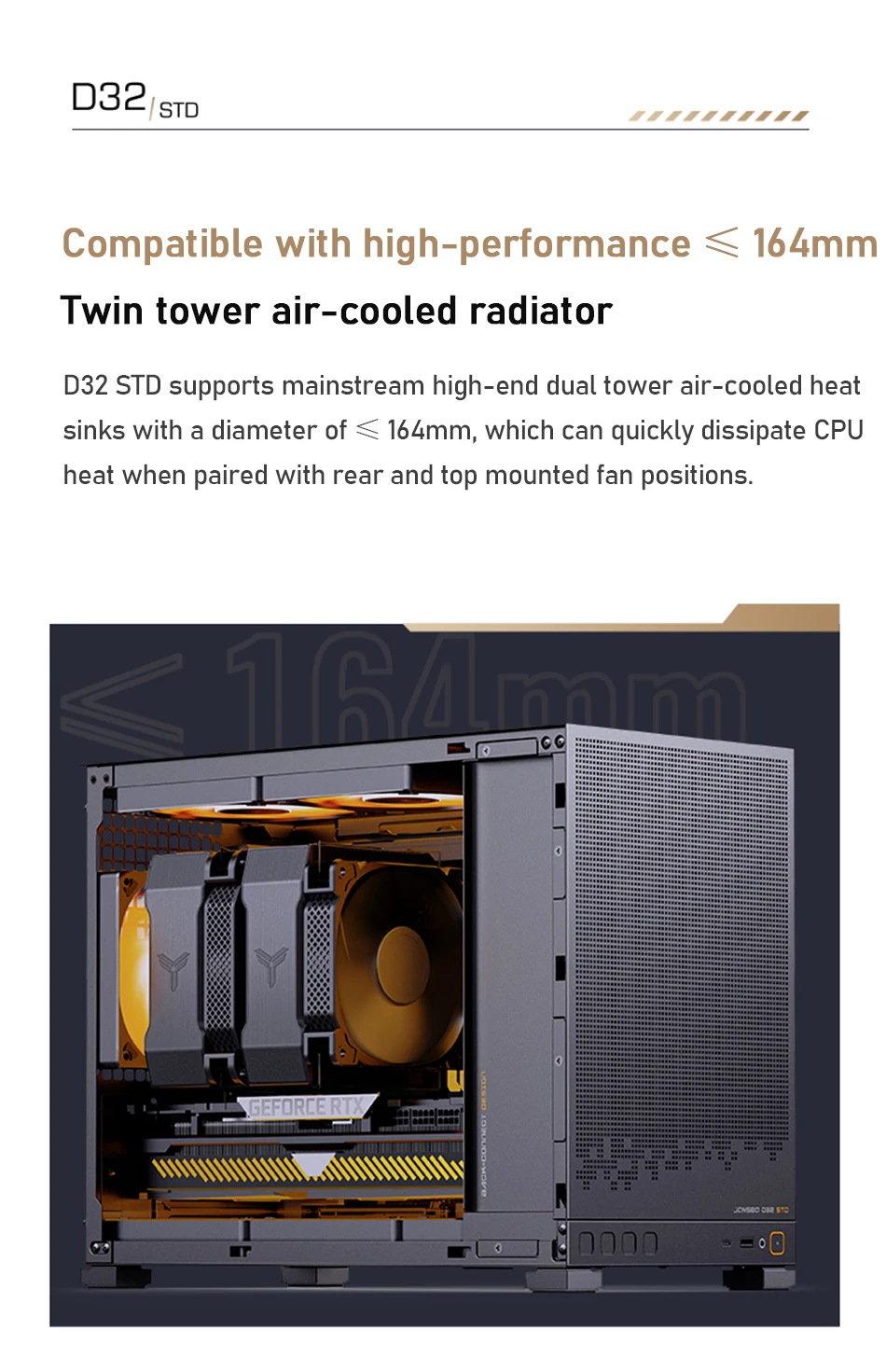

CPU heatsink support height: limited height 164mm (Intel CPU), limited height 163mm (AMD CPU)

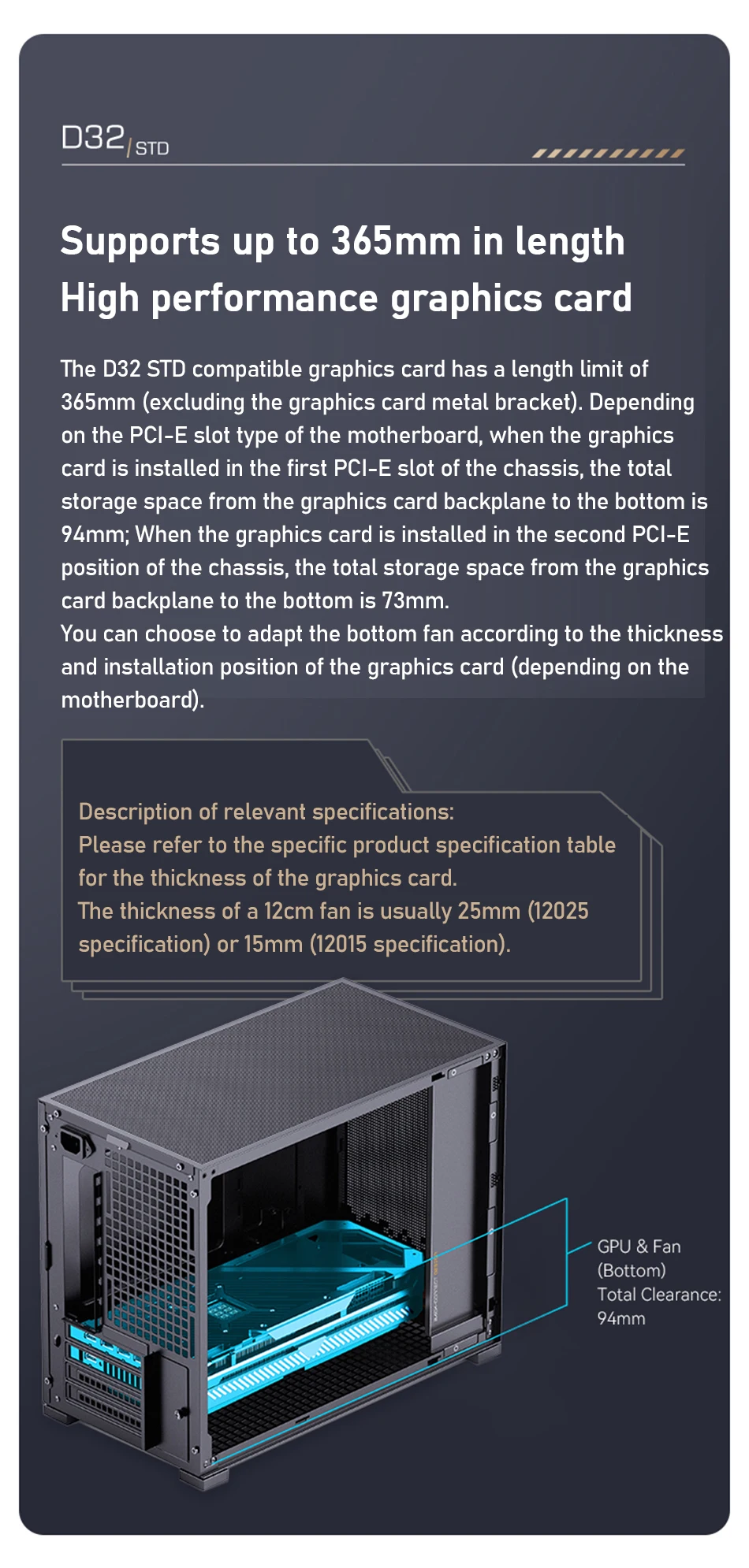

GPU compatible size: limited to 365mm in length
Weight: Net weight 4.5kg/Gross weight 5.5kg

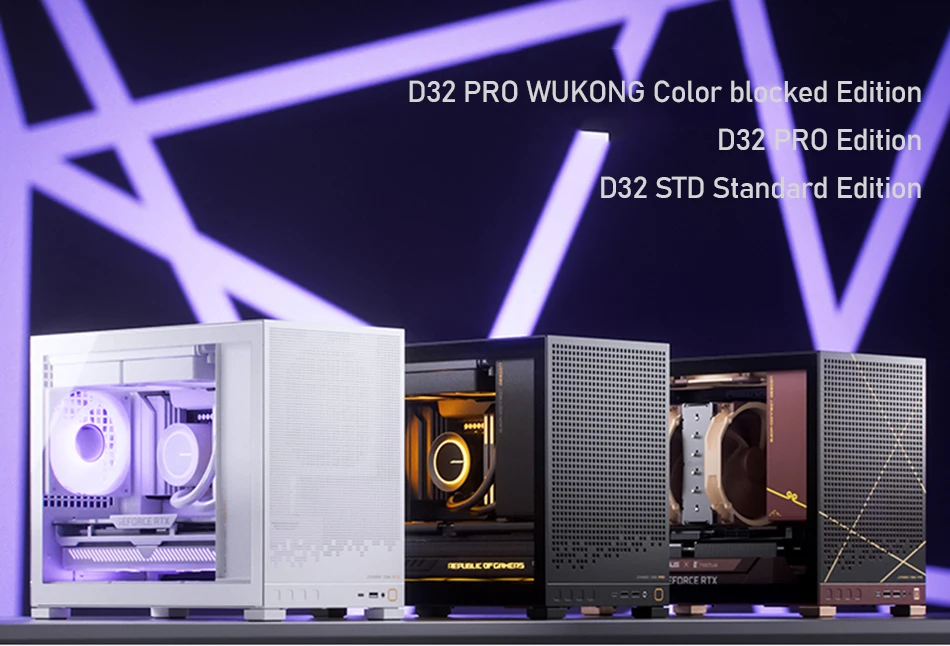

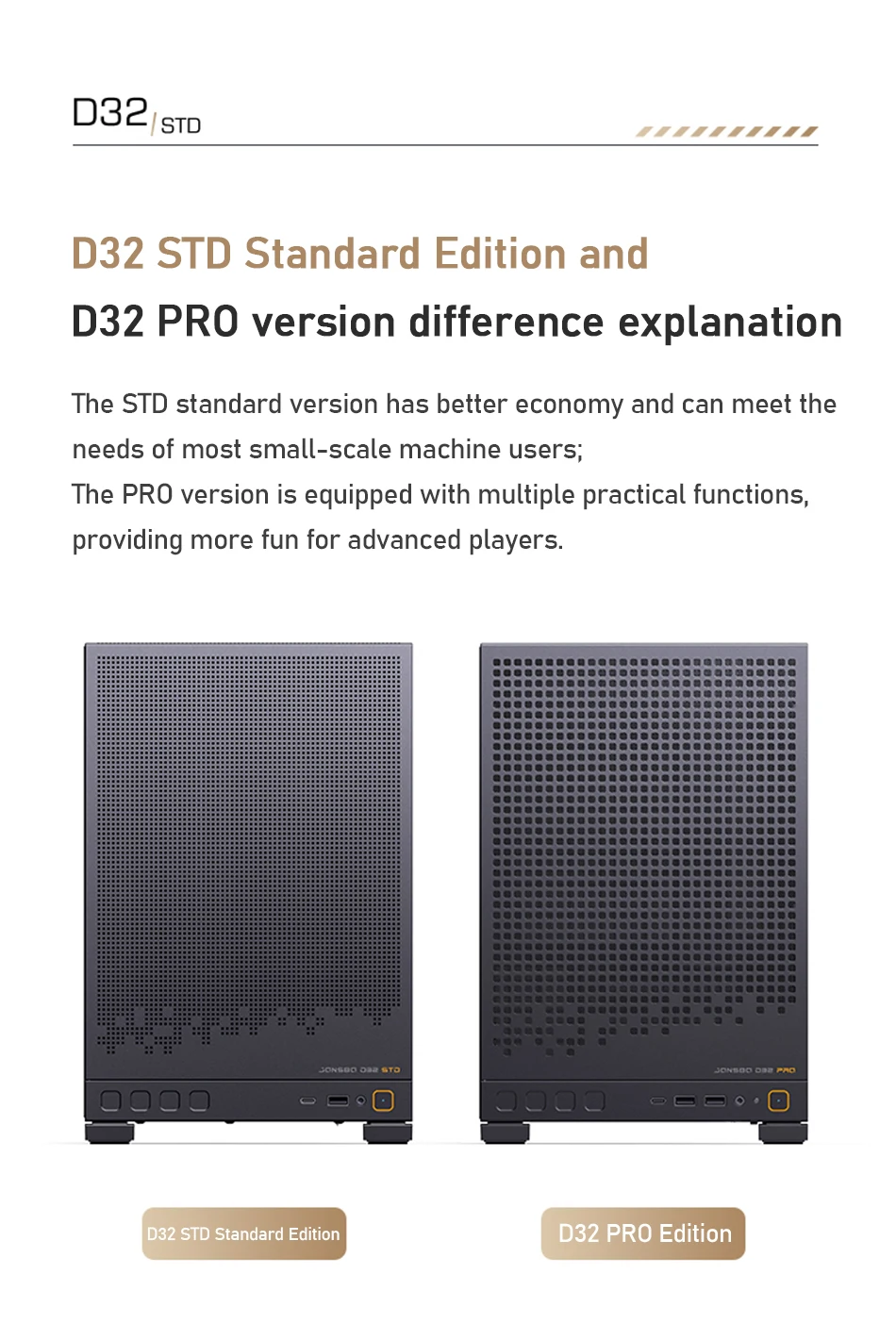

D32 PRO
Product model: D32 PRO
Color: Black/White
Chassis size (excluding protruding parts such as footrests): 384mm * 207mm * 302mm (depth/width/height)
Chassis size (including footrest and other dimensions): 395mm * 207mm * 314mm (depth/width/height)
Chassis material: SPCC steel plate (thickness 0.7mm+0.8mm)
Compatible motherboards: MINI-ITX/MICRO-ATX standard/MICRO-ATX back plug-in (chassis needs to be switched to B mode)
Drive bit: 2.5 "SSD: up to 4, the specific number that can be assembled depends on the remaining hardware configuration
3.5-inch HDD: up to 2 (shared with 2 2.5-inch mounting slots), the specific number of assemblies depends on the remaining hardware configuration
Front interface: USB 3.2 Gen 1 Type-A * 2/USB 3.2 Gen 2 Type-C * 1/AUDIO * 1&MIC * 1
Fan: Top: 2 * 120mm/2 * 140mm; Rear: 1 * 120mm; Bottom: 3 * 120mm/2 * 140mm, the specific assembly quantity depends on the other hardware configurations
Water cooling support: top 240mm
ATX PS2 power supply compatibility: (not compatible with 16A plug power supply)
When the GPU is installed in the first PCI-E position of the chassis, the power supply is limited to a length of 150mm, and it is recommended that the length be ≤ 140mm;
When the GPU is installed in the second PCI-E position of the chassis, the power supply is limited to a length of 170mm, and it is recommended that the length be ≤ 160mm* This installation position depends on the motherboard, please refer to the motherboard specifications
When GPU length ≤ 288mm, power supply limit is 200mm
SFX power supply compatibility: SFX/SFX-L
CPU heatsink support height: limited height 164mm (Intel CPU), limited height 163mm (AMD CPU)
GPU compatible size: limited to 365mm in length
Weight: Net weight 4.6kg/Gross weight 5.8kg
