Interruptor de flujo WS Prelucubado 35gf Interruptores lineales magnéticos Interruptor de teclado prelubricado para teclado de efecto Hall (10PCS)

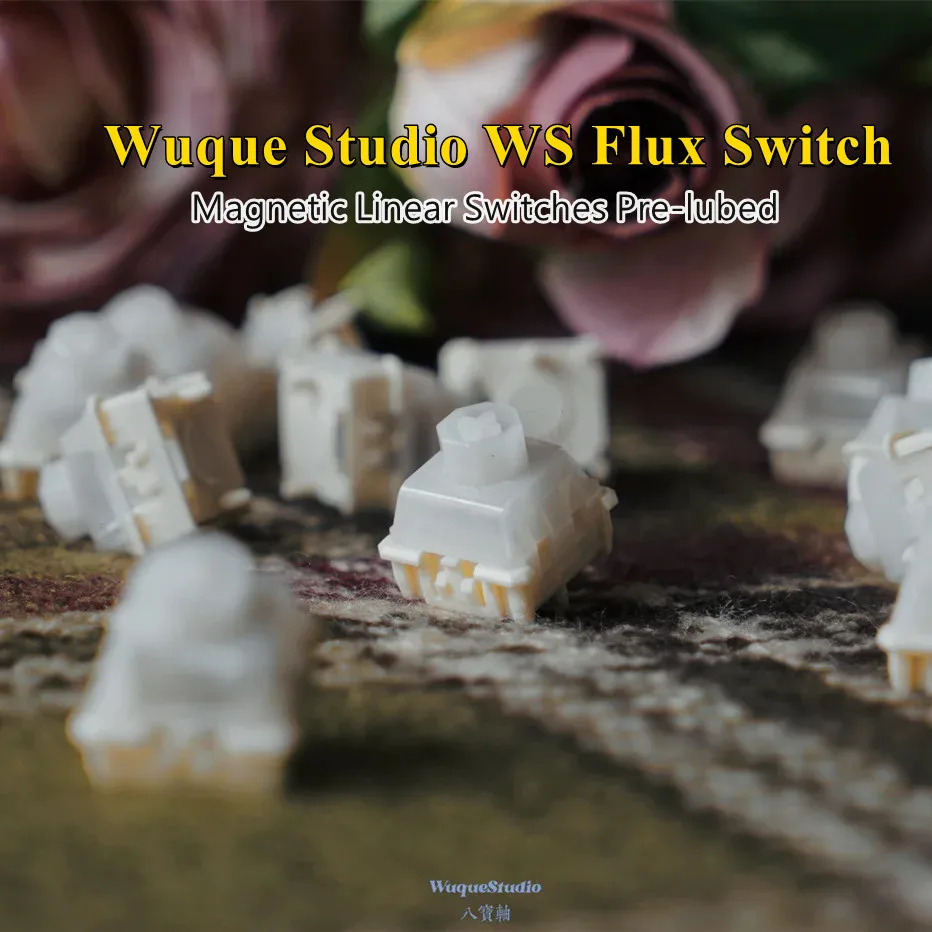

Wuque Studio WS Flux Switch Compatible with Hall Effect Keyboard (10Pcs)

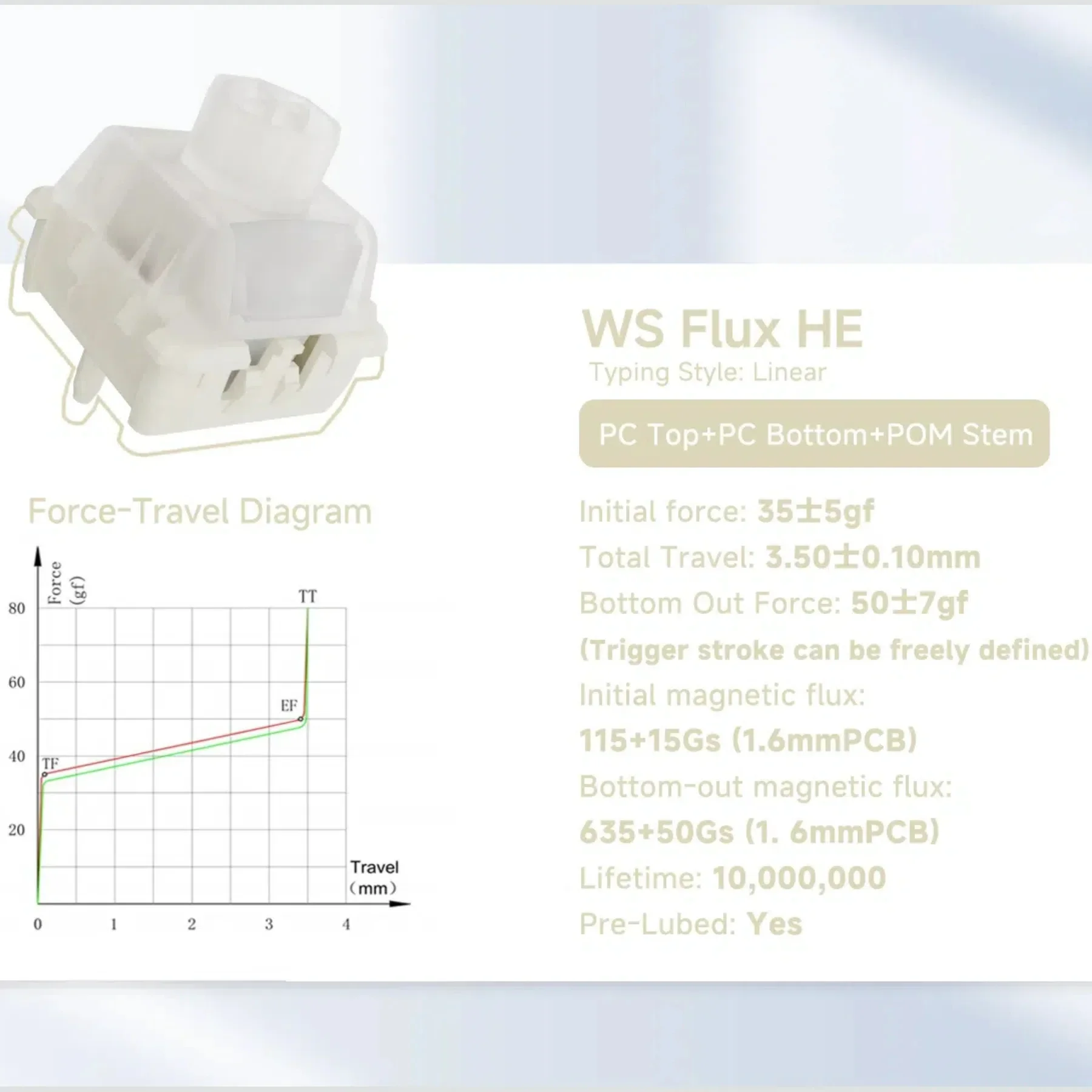

Magnet Switch-Linear | Factory lubed

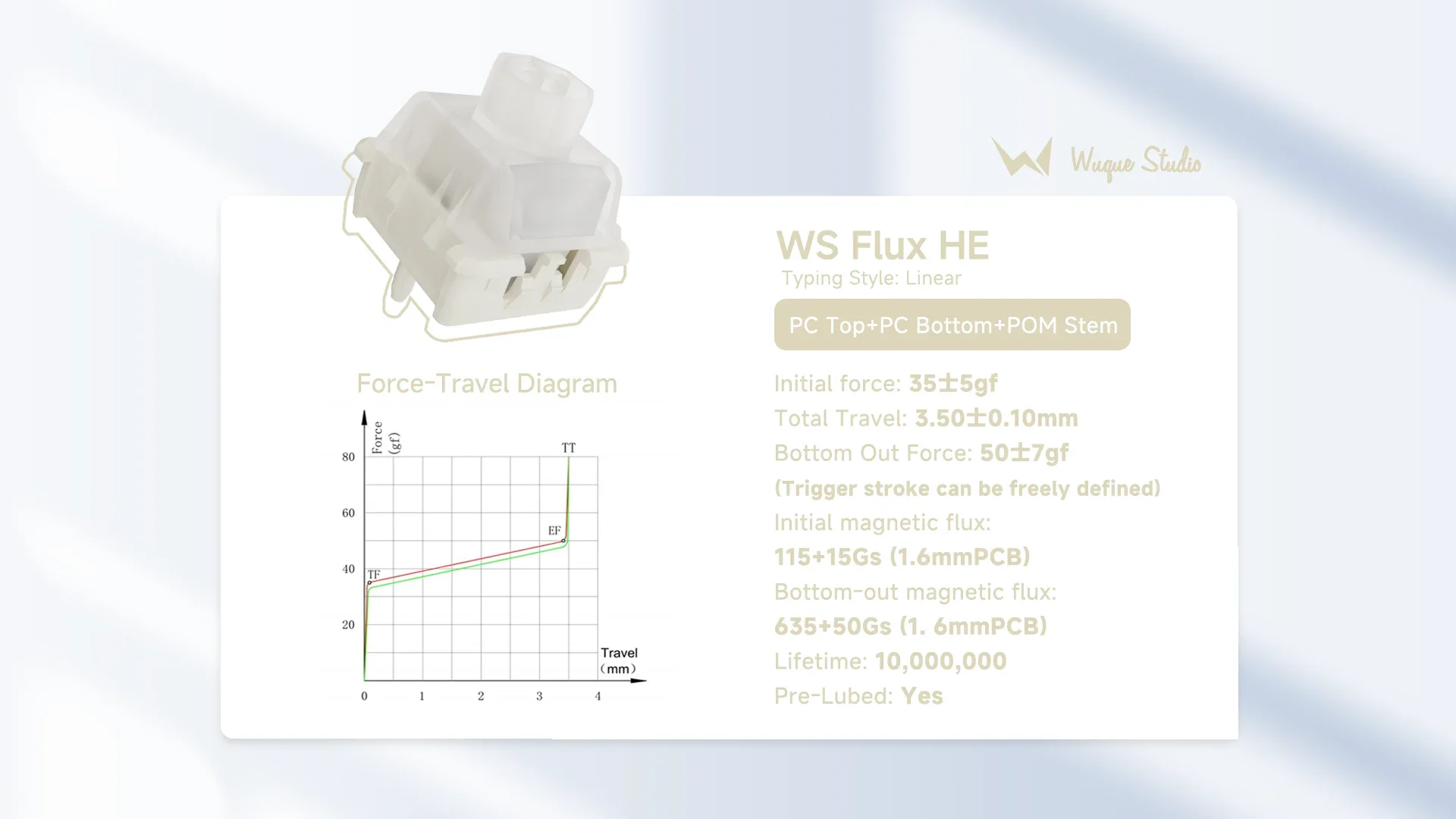

Type: Linear

Initial force: 35士5gf

Total Travel: 3.50士0.10mm

Bottom Out Force: 50士7gf

Trigger stroke can be freely defined

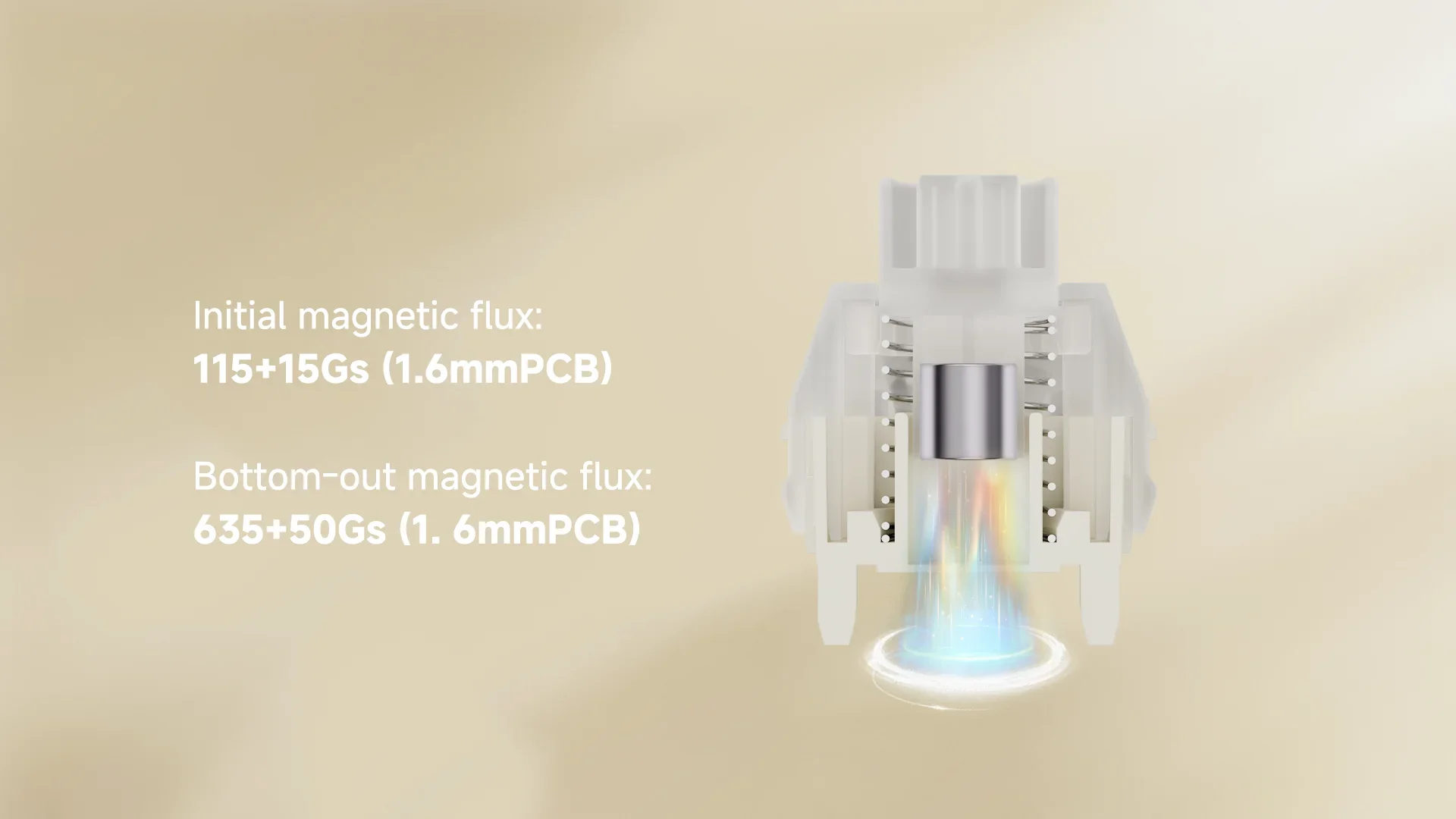

Initial magnetic flux: 115+15Gs (1.6mmPCB)

Bottom-out magnetic flux: 635+50Gs (1. 6mmPCB)

Lifetime: 100 million

Pre-Lubed: Yes

Features:

1 - Octagon Stem - Moving away from your typical rectangle design - the Eight-Sided Stem brings the minimum level of tolerance on every touch, from every position. Here, we've been able to create the most stable switch available

2 - T-Style Rail System - Implementing the new rail system works hand in hand with the new Stem. Together, the Stem and the Rail System work harmoniously in creating not only an extremely smooth experience, again, it also helps in creating the most stable switch.

3 - Four Point Rebound System - While not so obvious, the Four Point Rebound System continues the trend of creating stability and smoothness.

4 - Precision Lubing - Using top of the line machinery, we've been able to create a lube process that is extremely consistent across four points including the two rail systems, center core, and spring.

WS Flux Switch - Redefining Stability with Precision Structure

Octagonal Stabilizing Stem | Precision Dual T-Slide Rail Structure | Golden Four-Point Rebound Limiting | Powerful Magnetic Flux Design

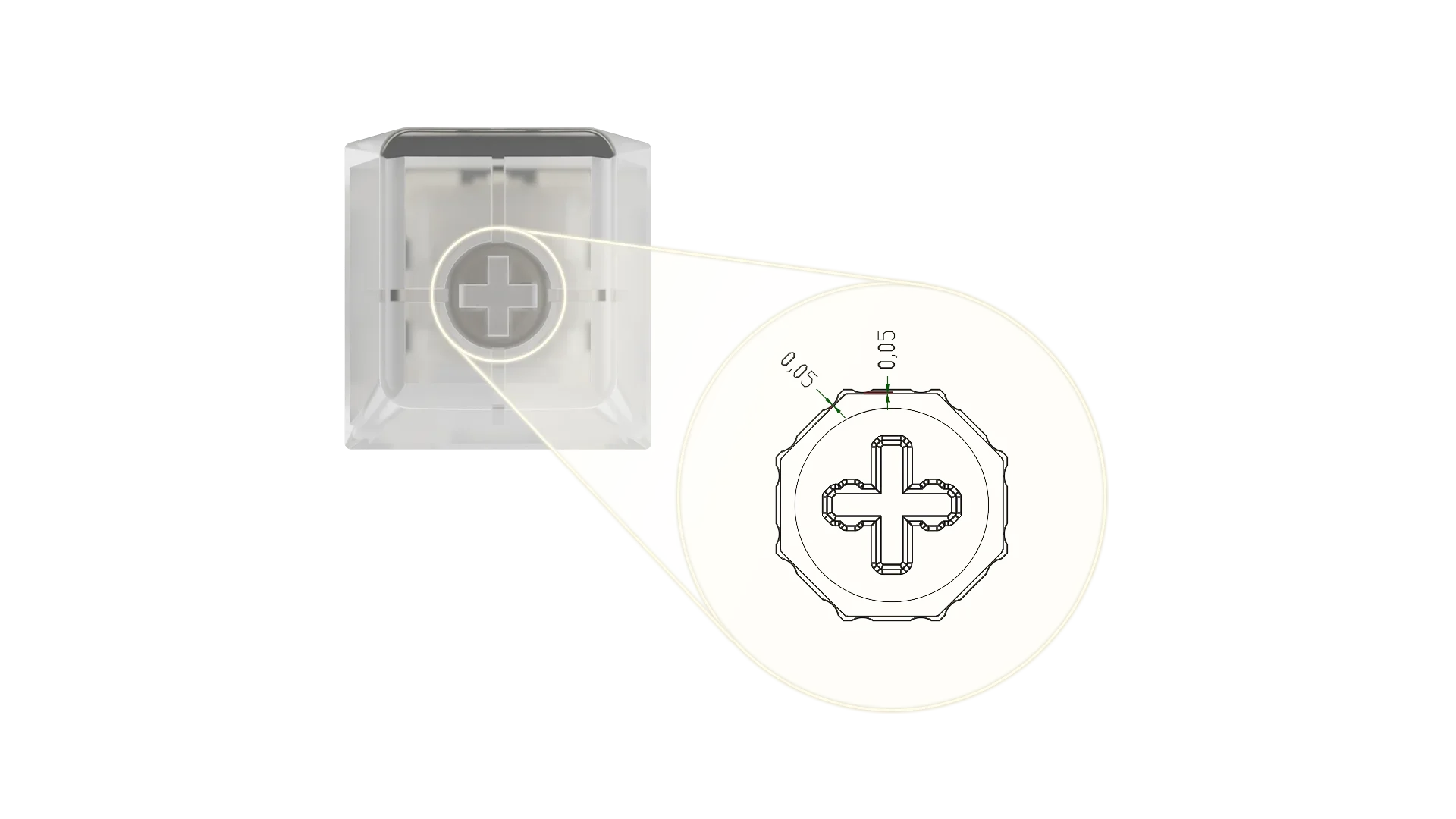

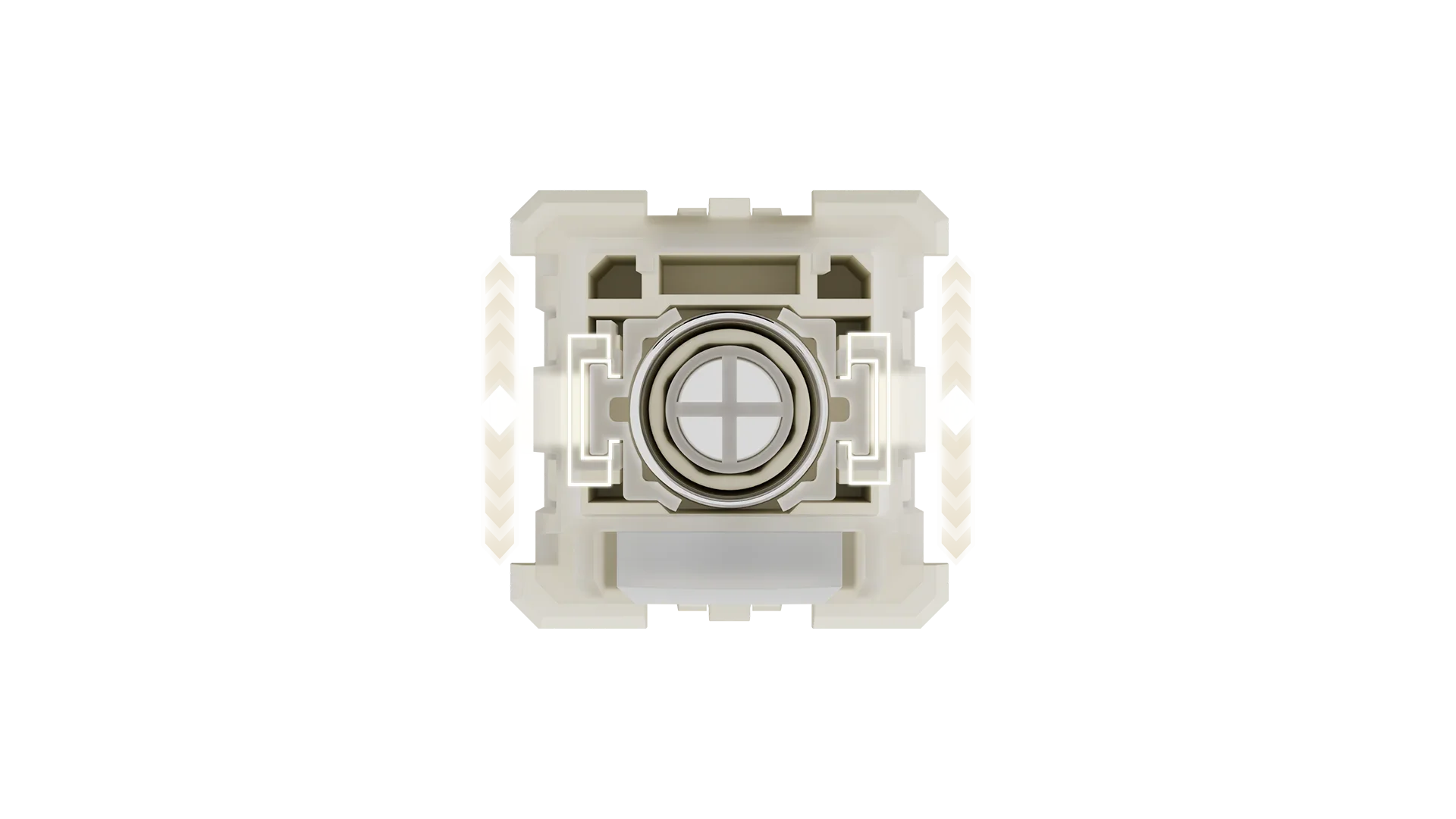

Octagonal Stabilizing Stem

Innovative octagonal stem design overcomes the 45° diagonal press deviation of traditional square switches, ensuring equal trigger distance for both vertical and diagonal presses.

Ultra-precision machining achieves 0.05mm uniform wobble clearance, delivering esports-grade accuracy for MOBA combos and rapid typing.

Precision Dual T-Slide Rail Structure

Simulating the dual T-slide rail structure of precision machinery, this design ensures ultra-smooth and stable keystrokes. This design minimizes noise and enhances tactile consistency.

Powerful Magnetic Flux Design

Equipped with oversized magnets measuring 3.6mm × 3.6mm and a gradient magnetic flux of 120Gs-640Gs. Paired with Hall sensor calibration, the triggering accuracy reaches 0.01mm, effectively reducing unintended presses and accidental activations.

Golden Four-Point Rebound Limiting

The four-point rebound limiting design significantly enhances the product’s balance, allowing for better control of initial precision.Whether for gaming or office use, you will experience more precise feedback, improving both work and gaming efficiency.
