Descripción

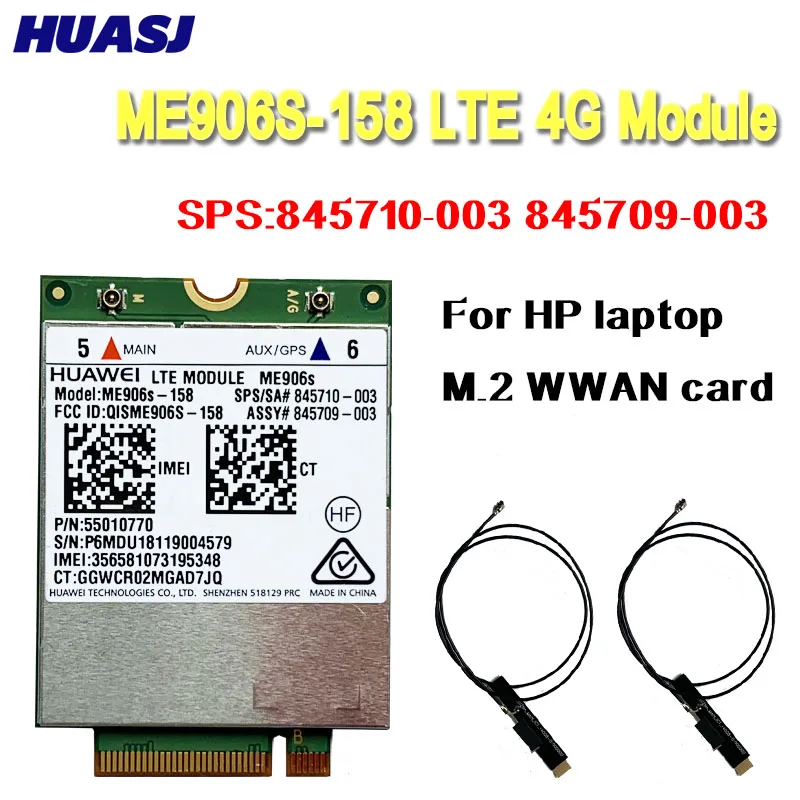

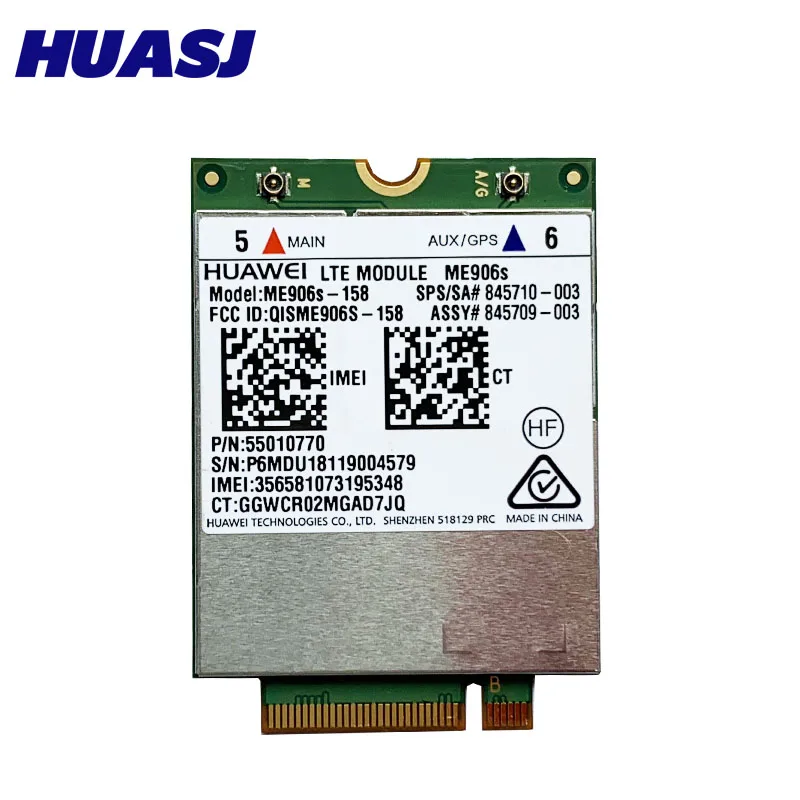

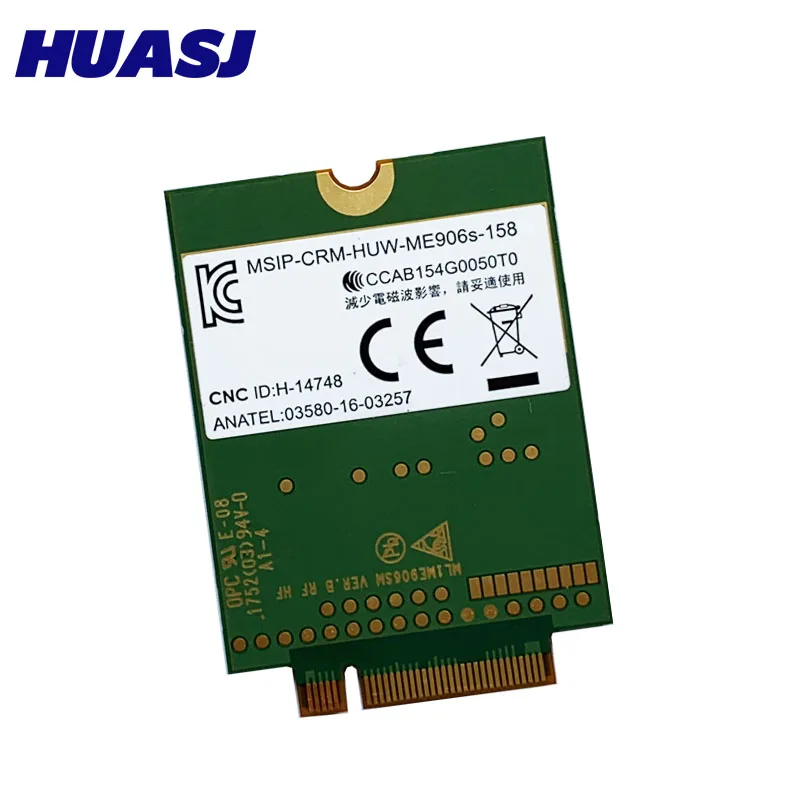

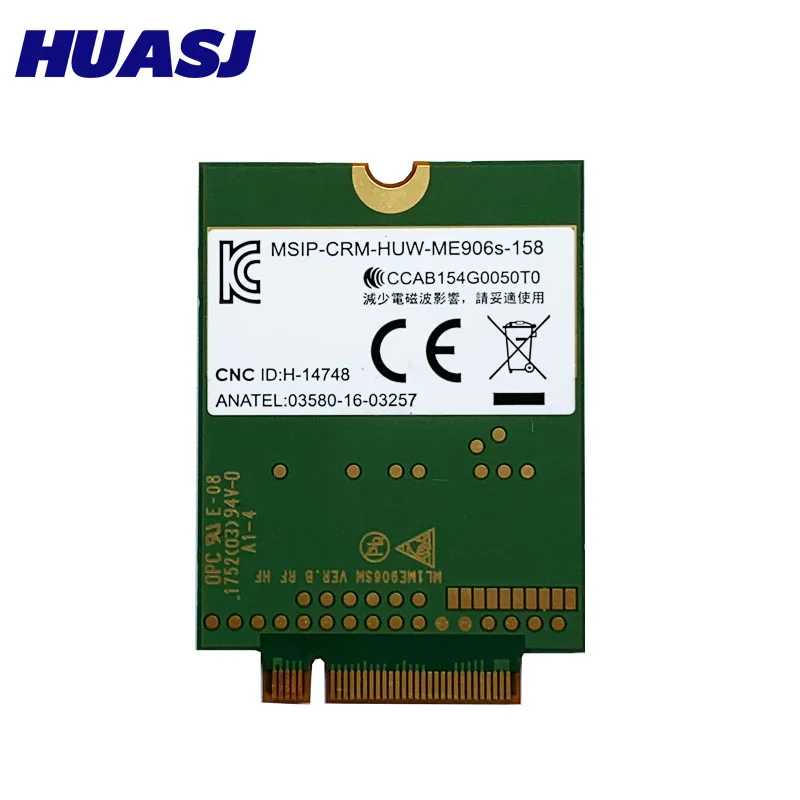

The ME906s Mobile Broadband Module is an embedded PCI Express M.2 WWAN card
Enable end users the flexibility to move to the Internet or corporate network at high speeds, including the "always on" feature.
Support for data services HSPA Evolution, HSPA, UMTS, EDGE, GPRS and SMS.
With a GPS receiver for positioning applications.
Data Services: GPRS: DL 85.6 KBIT / S UL85.6 BIT / S EDGE: DL236.8KBIT / S, UL236.8 KBIT / S WCDMA CS: DL64 KBIT / S, UL64 KBIT / S WCDMA PS: DL384 KBIT / S, UL 384 KBIT / S DC-HSPA +: DL42MBIT / S, UL 5.76 MBIT / S HSPA +: DL 21.6 MBIT / S, UL 5.76 MBIT / S LTE FDD 150 Mbit / s, UL 50 Mbit / s @ 20M BW cat3 Operating system: Windows7 Windows 8, Windows 8.1 Windows 10
WWAN card only, other accessories demos in the picture are not included!
specification:
Model: LT4132 / ME906S-158
SPS: 845710-001
AS: 845709-001
WCDMA / HSPA / HSUPA / HSPA +: 1, 2, 5, 8 bands, all bands are diverse
GSM / GPRS / EDGE: 850MHz / 900MHz / 1800MHz / 1900MHz
GPS / GLONASS: L1
Size: standard size
Quantity: 1 piece
note:
1. No retail packaging.
2. Due to manual measurement, please allow 0-1cm error. Please make sure you don't mind before bidding.
3. Due to differences between different displays, the image may not reflect the actual color of the project. Thank you!
The package includes:
1* Zhang WWAN card
2*2PCS M.2 Antenna
