Features & Specifications

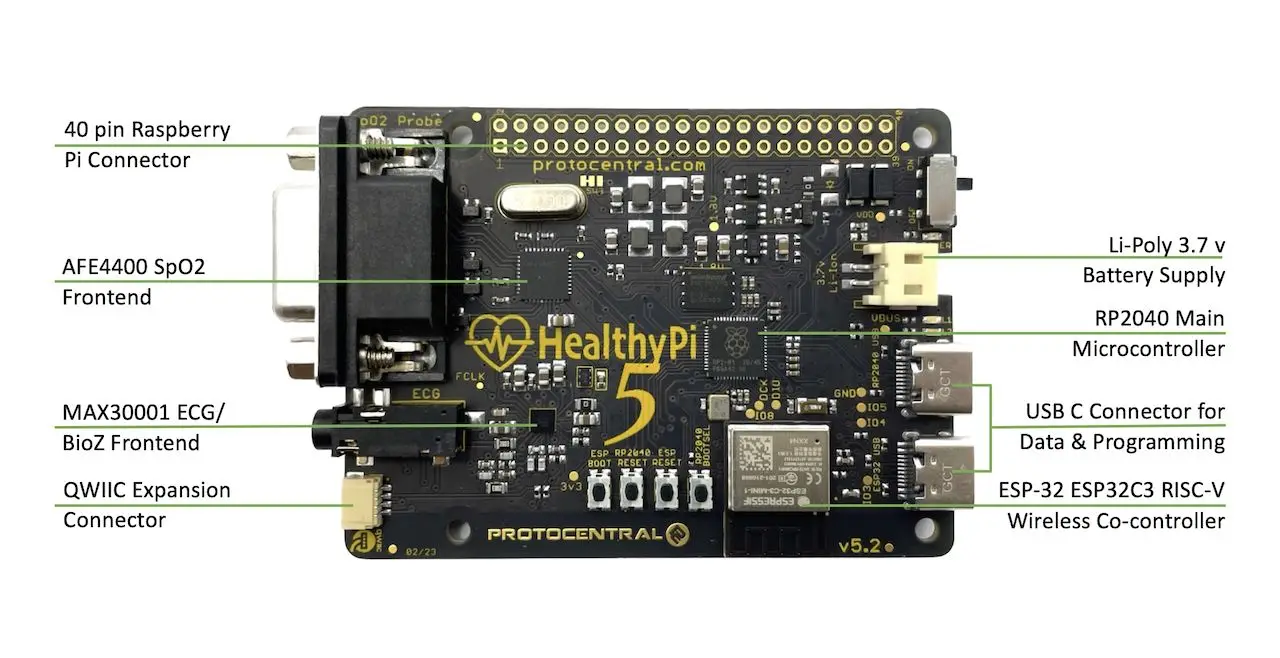

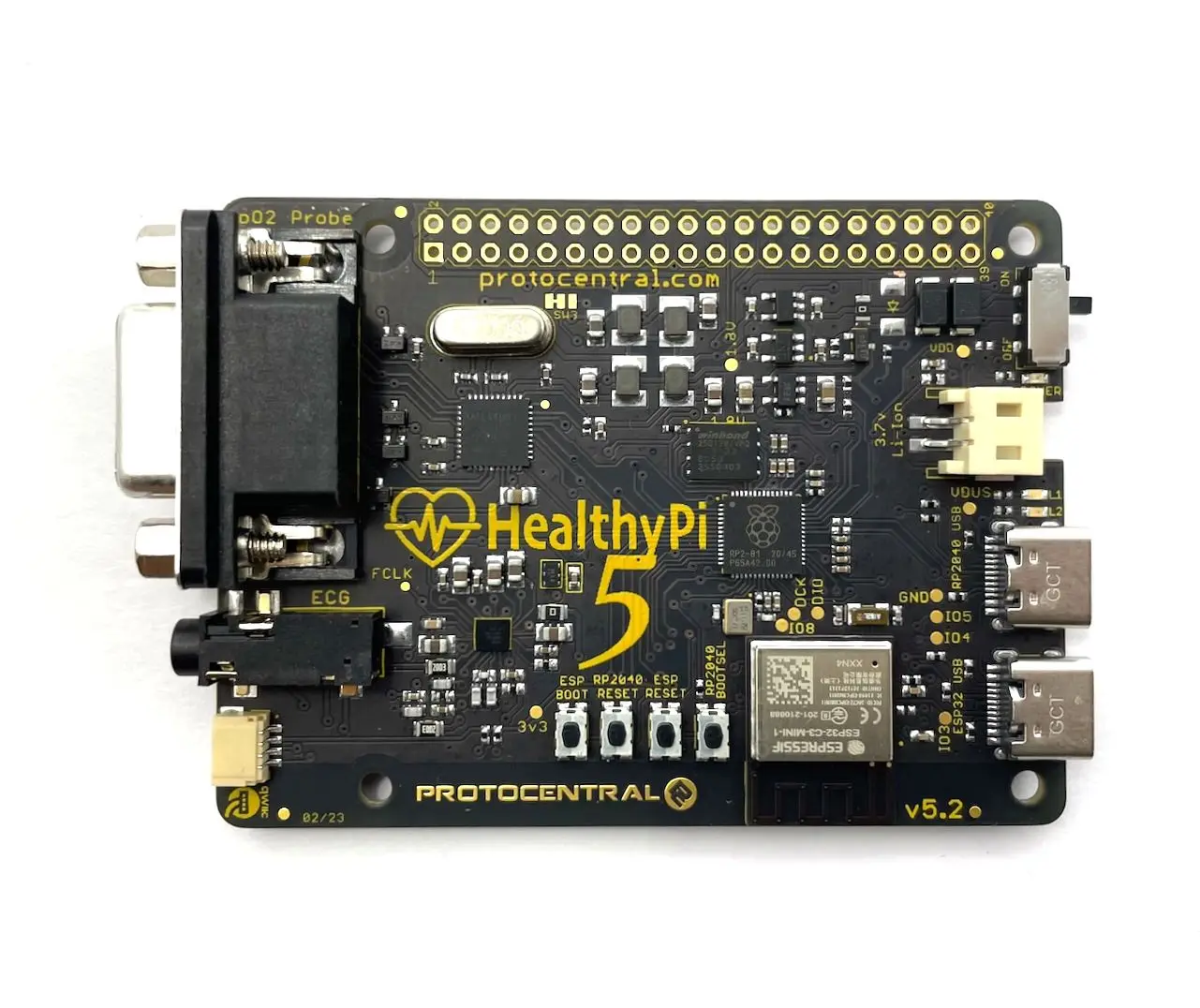

HealthyPi 5 Specs
RP2040 dual-core ARM Cortex M0 microcontroller
ESP32-C3 RISC-V module with BLE and Wi-Fi support
MAX30001 analog front end for ECG and respiration measurement
AFE4400 analog front end for PPG and SpO2
MAX30205 temperature sensor via onboard Qwiic/I²C connectors
40-pin Raspberry Pi HAT connector (also used to connect our Display module)
1x USB Type-C connector for communication with a computer and programming the RP2040
1x USB Type-C connector for programming and debugging the ESP32 module

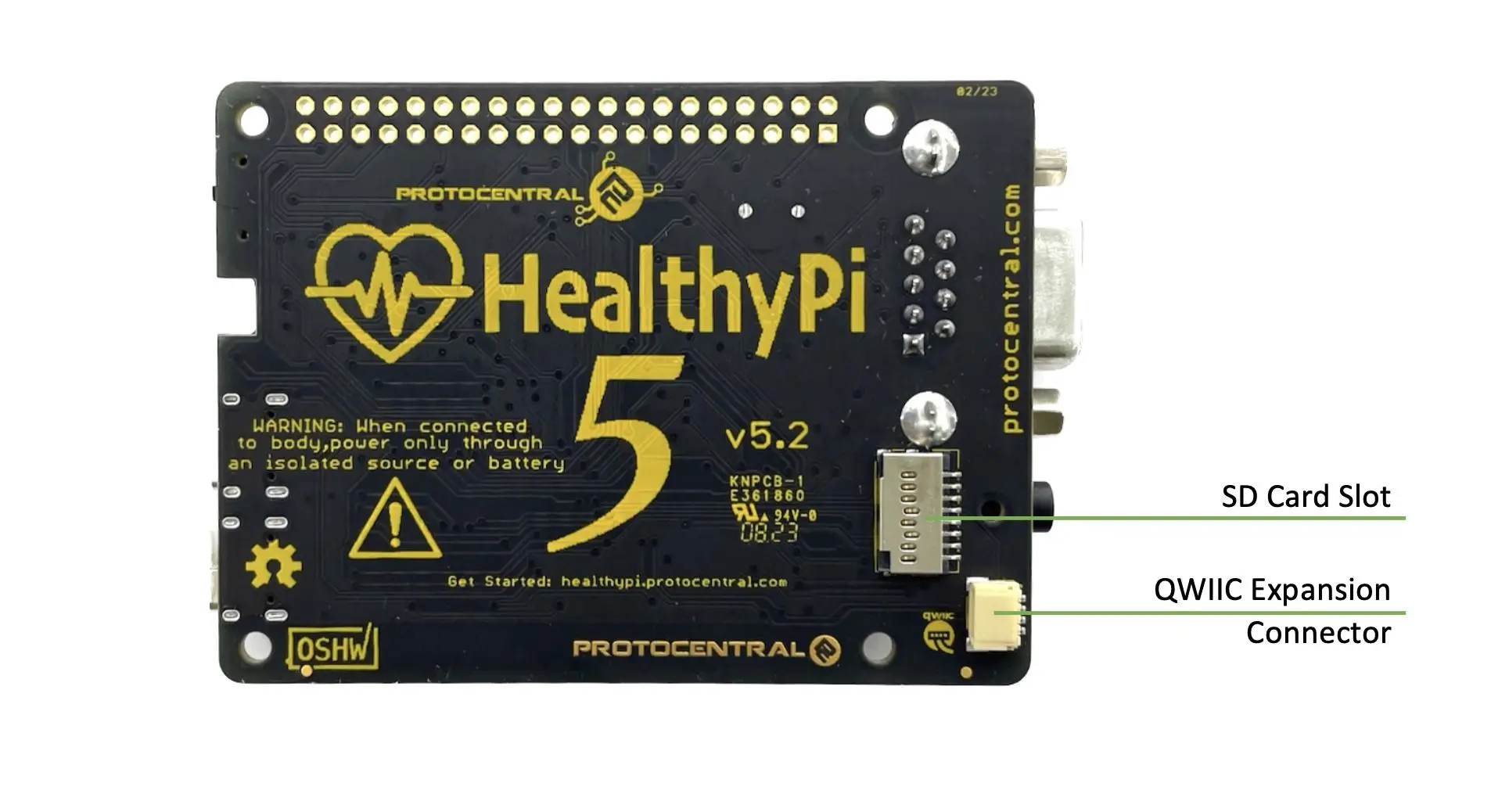

Onboard MicroSD card slot
On-board Li-Ion battery management with charging through USB
Built-in power-path management with automatic switching between battery and USB power
Dimensions: 75.5 x 56 x 17 mm

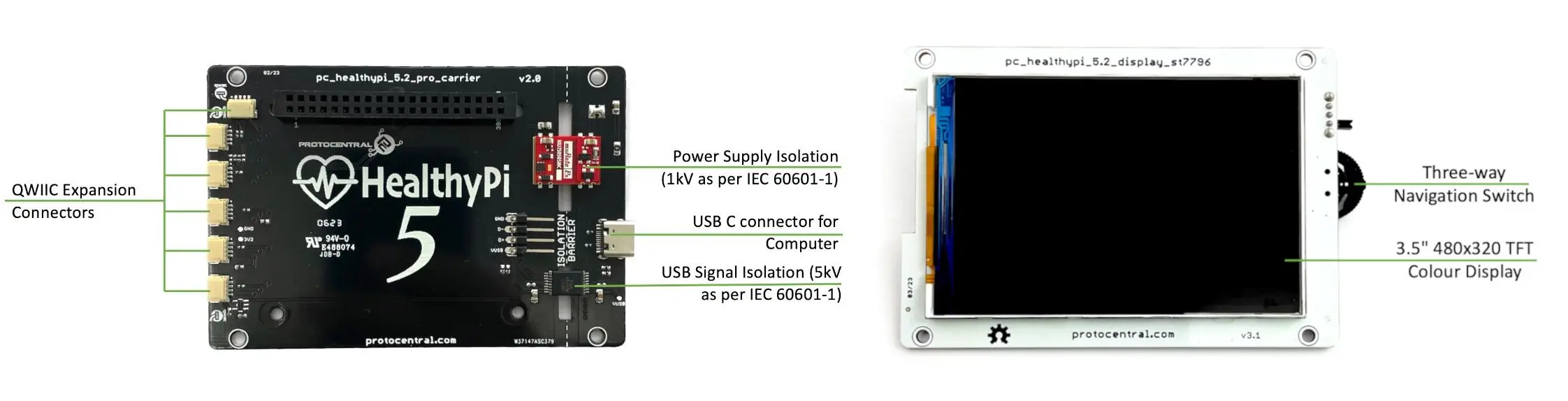

HealthyPi 5 Carrier Specs
USB power isolation (IEC 60101-1 1kV rated)
USB data-line isolation (IEC 60601-1 5 kV rated)
Five ESD-protected Qwiic ports for expansion
Interface to HealthyPi 5 through USB port and 40-pin header
Dimensions: 100 x 68 x 12 mm
HealthyPi 5 Display Specs
3.5”, 480*320 full-color TFT LCD for to visualize signals and display processed data
Tactile 3-way navigation switch for robust and simple use
Dimensions: 98 x 68 x 13.5 mm
Room for Expansion
The HealthyPi 5 Carrier board is Qwiic compatible. Sparkfun Electronics introduced the
