Description:

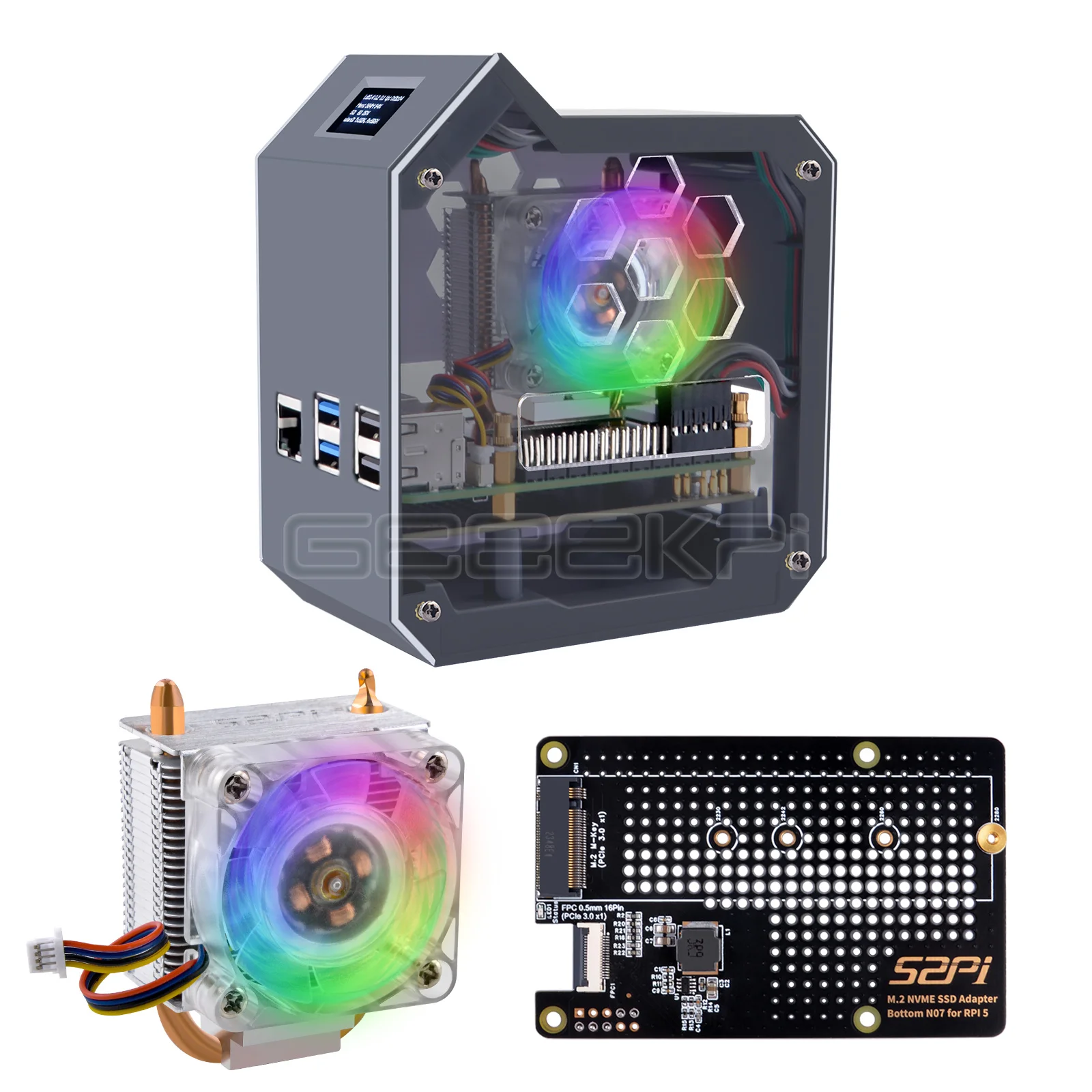

The Raspberry Pi 5 Minitower case is a specially designed enclosure for the Raspberry Pi 5, offering a sleek and compact housing solution. It features an integrated low-profile Ice Tower for efficient cooling and an N07 M.2 NVMe SSD M-key expansion board, which accommodates a variety of SSD sizes including 2230, 2242, 2260, and 2280. This expansion board connects to the Raspberry Pi 5 via the PCIe interface, supporting PCIe x1, and is designed to work seamlessly with the official Raspberry Pi OS once the PCIe is enabled for disk access.
Features:

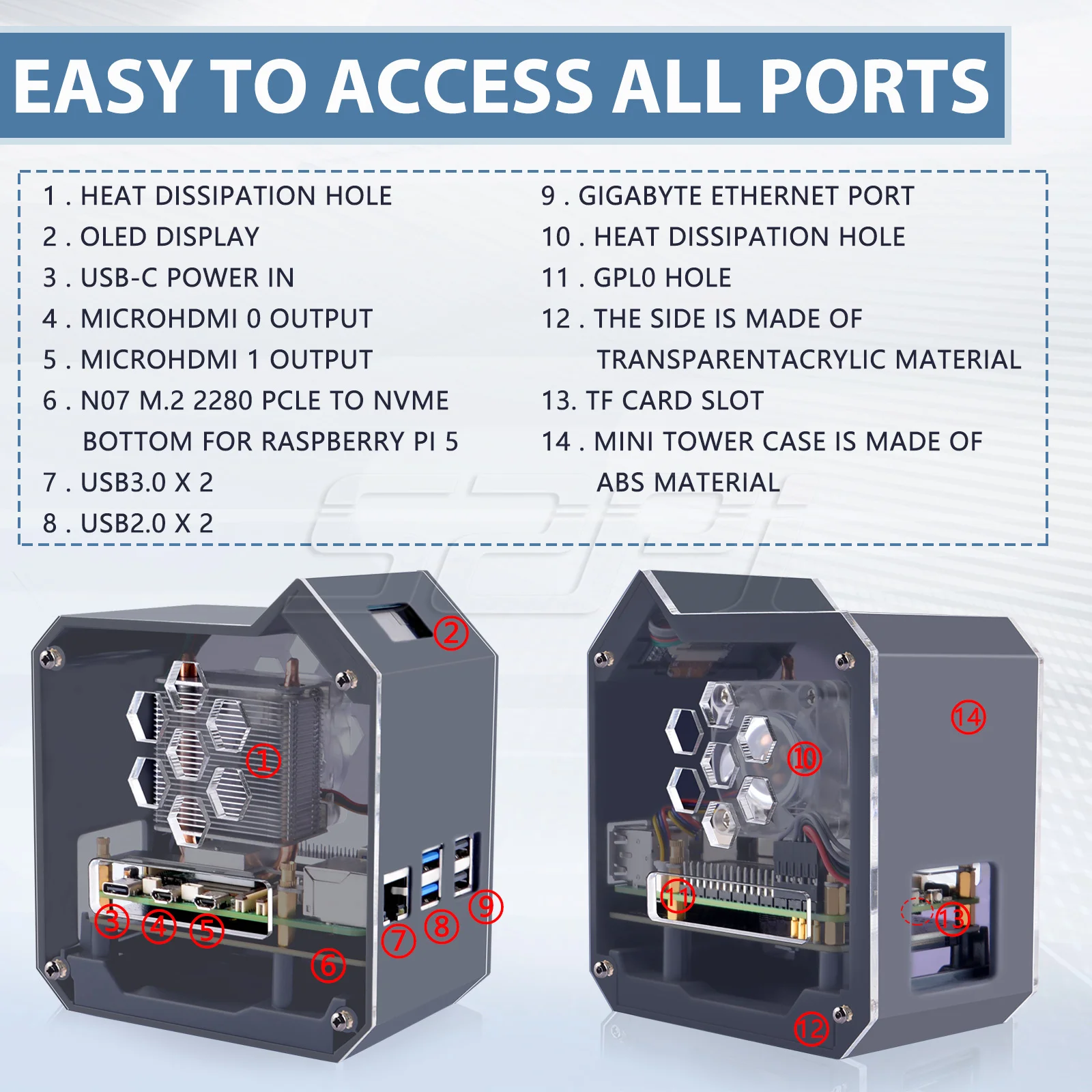

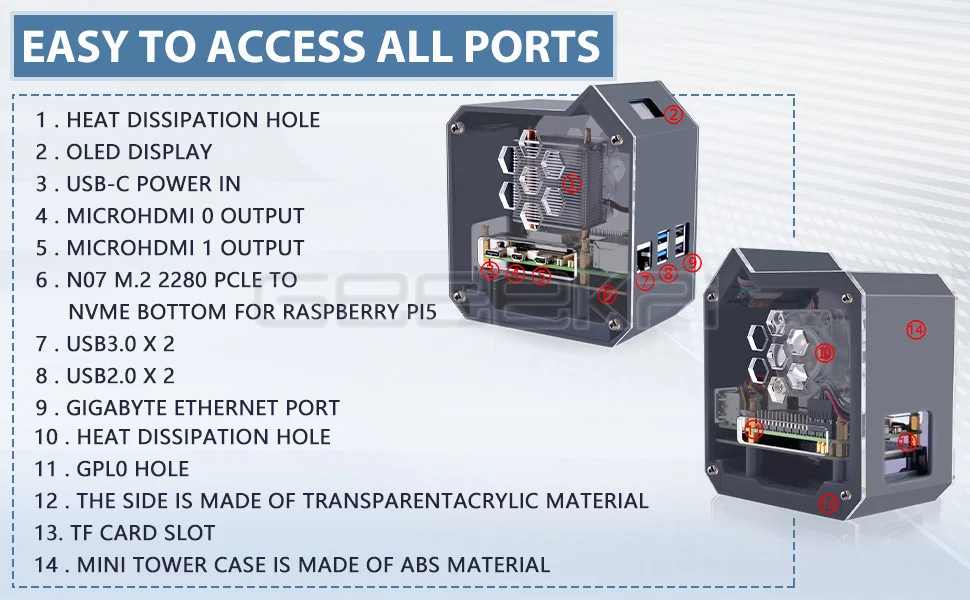

Custom-fit Minitower case for Raspberry Pi 5

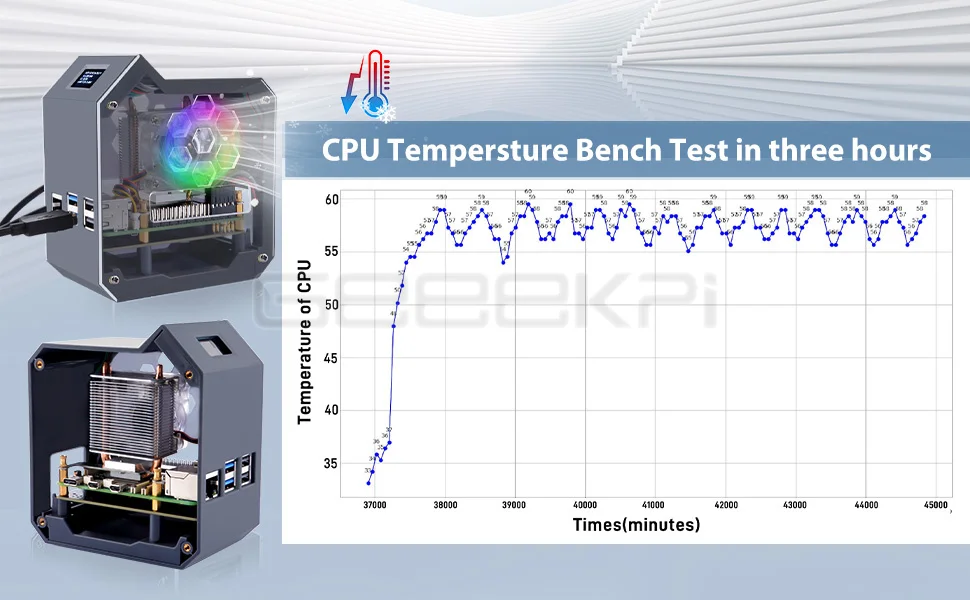

Low-profile Ice Tower for enhanced cooling performance
N07 M.2 NVMe SSD M-key expansion board
Supports M.2 NVMe SSD sizes: 2230, 2242, 2260, 2280
PCIe interface connection for SSD expansion
Compatibility with official Raspberry Pi OS and PCIe configuration
Bootable from the connected PCIe disk for faster startup

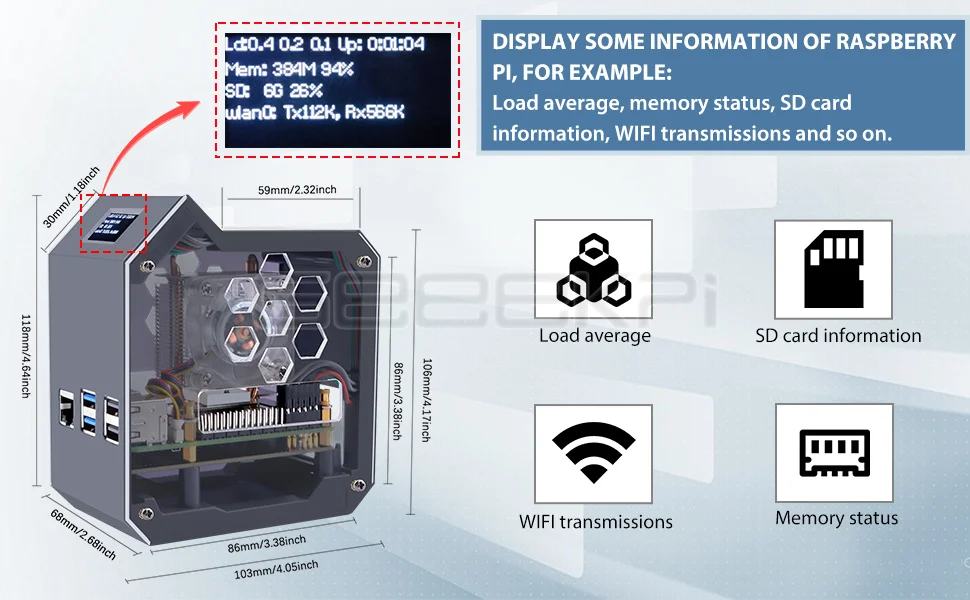

Integrated SSD1306-driven OLED display with a resolution of 128x64 pixels
Python library and code support for custom display configurations
Real-time system monitoring of load, memory, disk space, and network information
Specifications
Case Design: Minitower form factor, tailored for Raspberry Pi 5
Cooling Solution: Integrated low-profile Ice Tower for optimal thermal management
SSD Support: M.2 NVMe SSD with M-key, compatible with 2230, 2242, 2260, 2280 sizes
Interface: PCIe x1 for SSD expansion board connection
Operating System: Requires official Raspberry Pi OS with PCIe disk access configuration
Boot Capability: System can boot from the PCIe-connected disk
Display: OLED screen with 128x64 pixel resolution, driven by SSD1306
Programming: Requires Python library and custom Python code for display functionality

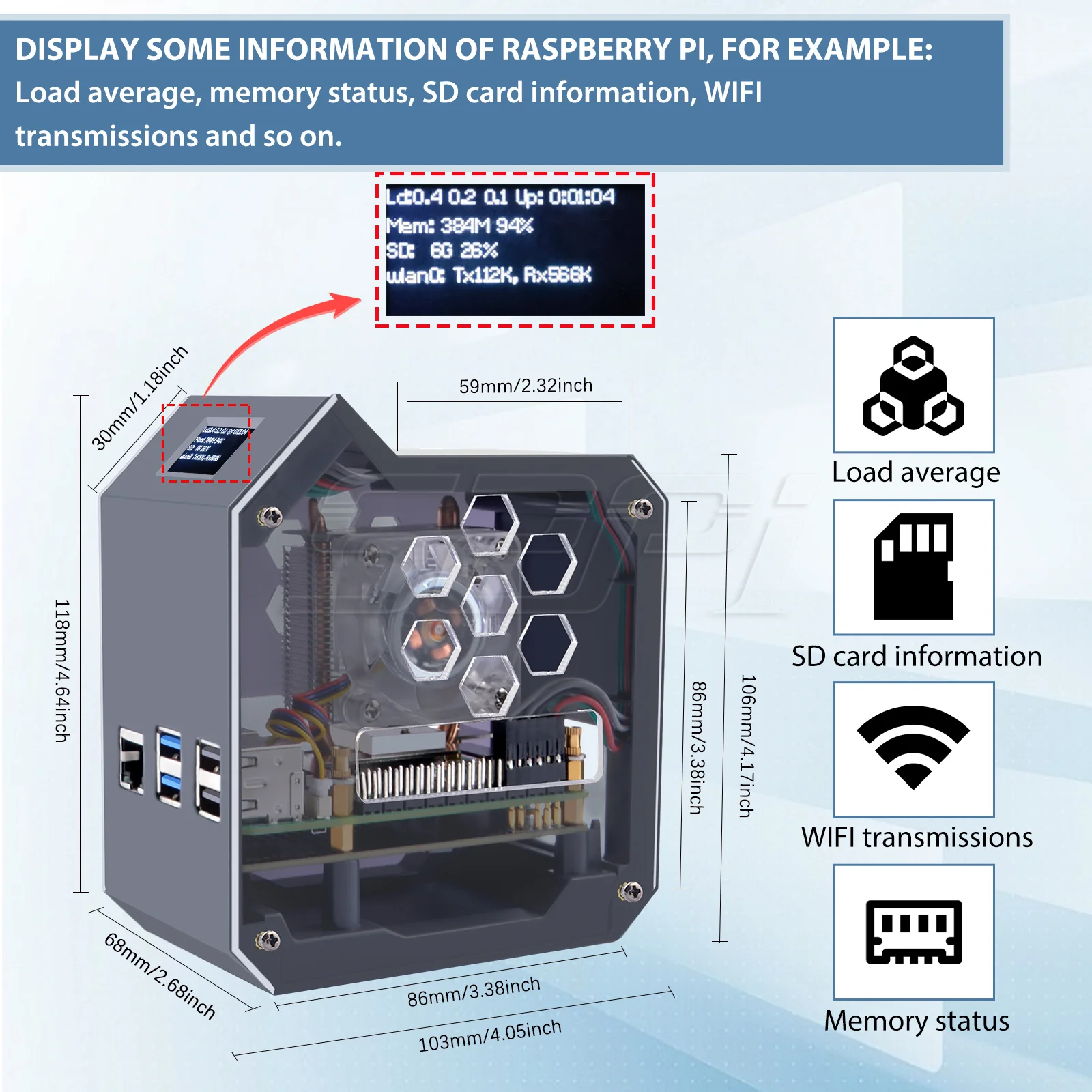

Monitoring Capabilities: Displays current system load, memory usage, disk capacity, and network status
Customization: Users can modify Python scripts to display additional information as desired
Technical Support:

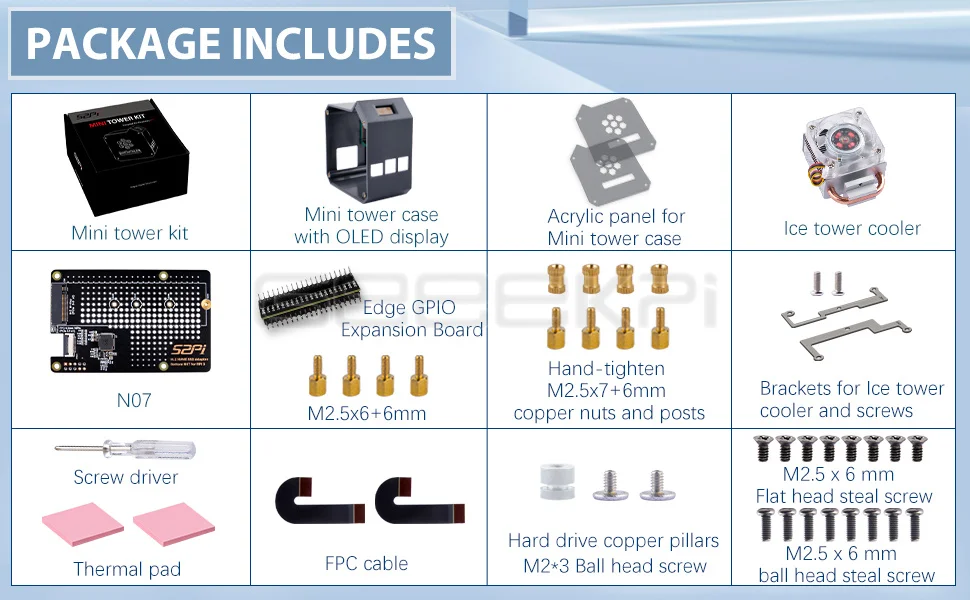

Package Includes:
NOTE: Raspberry Pi 5 is not included in the package, require additional purchase.
Gallery:
