Product Description:

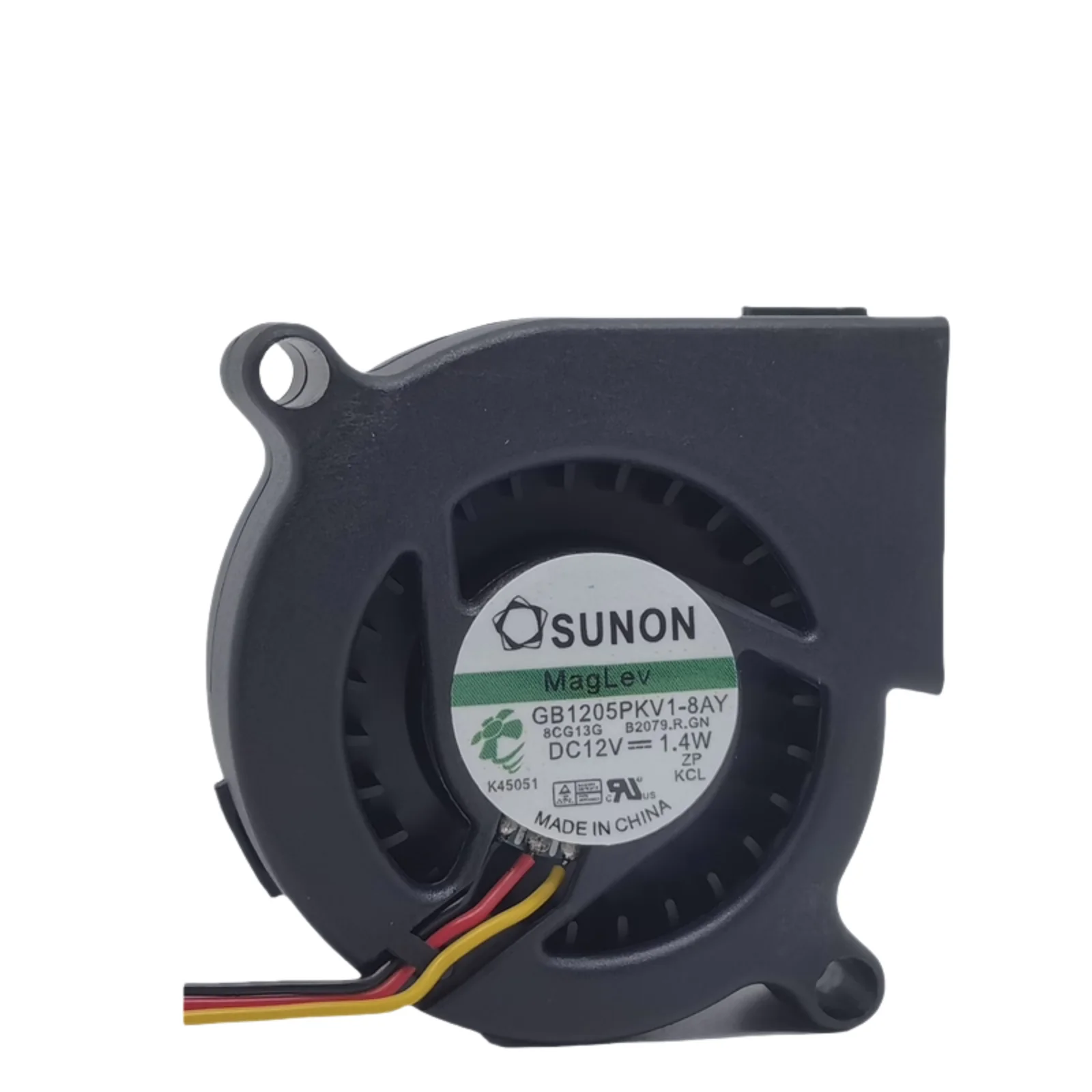

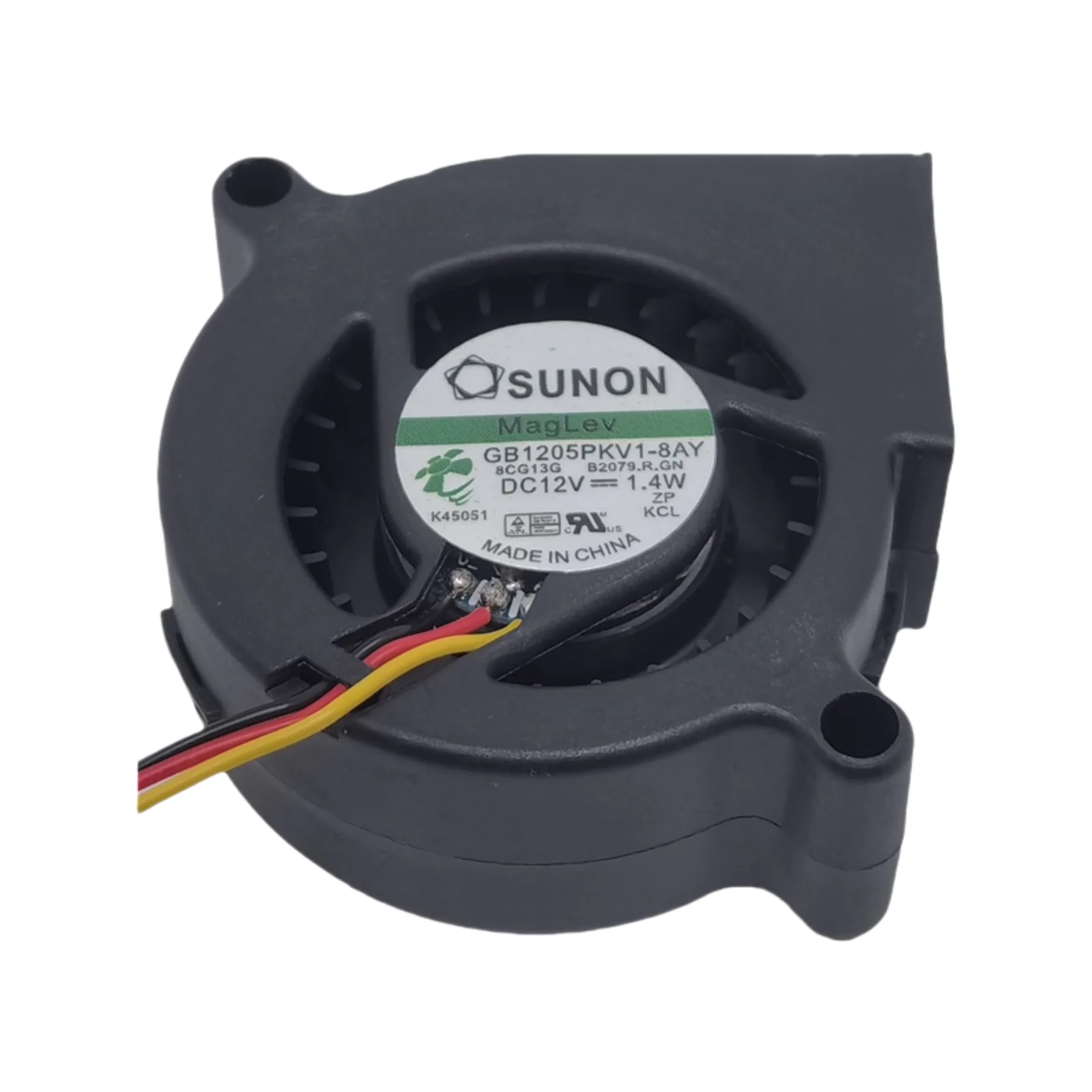

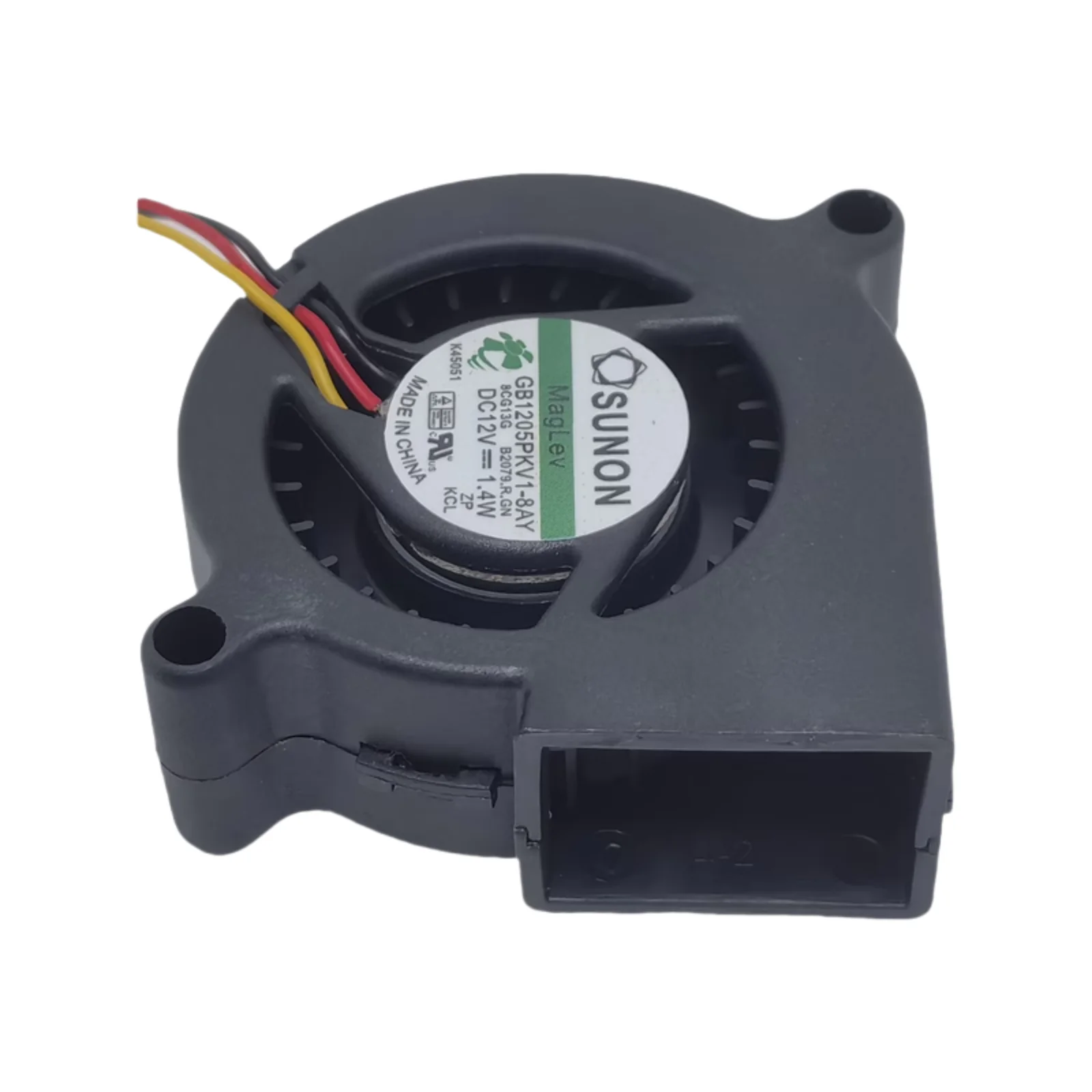

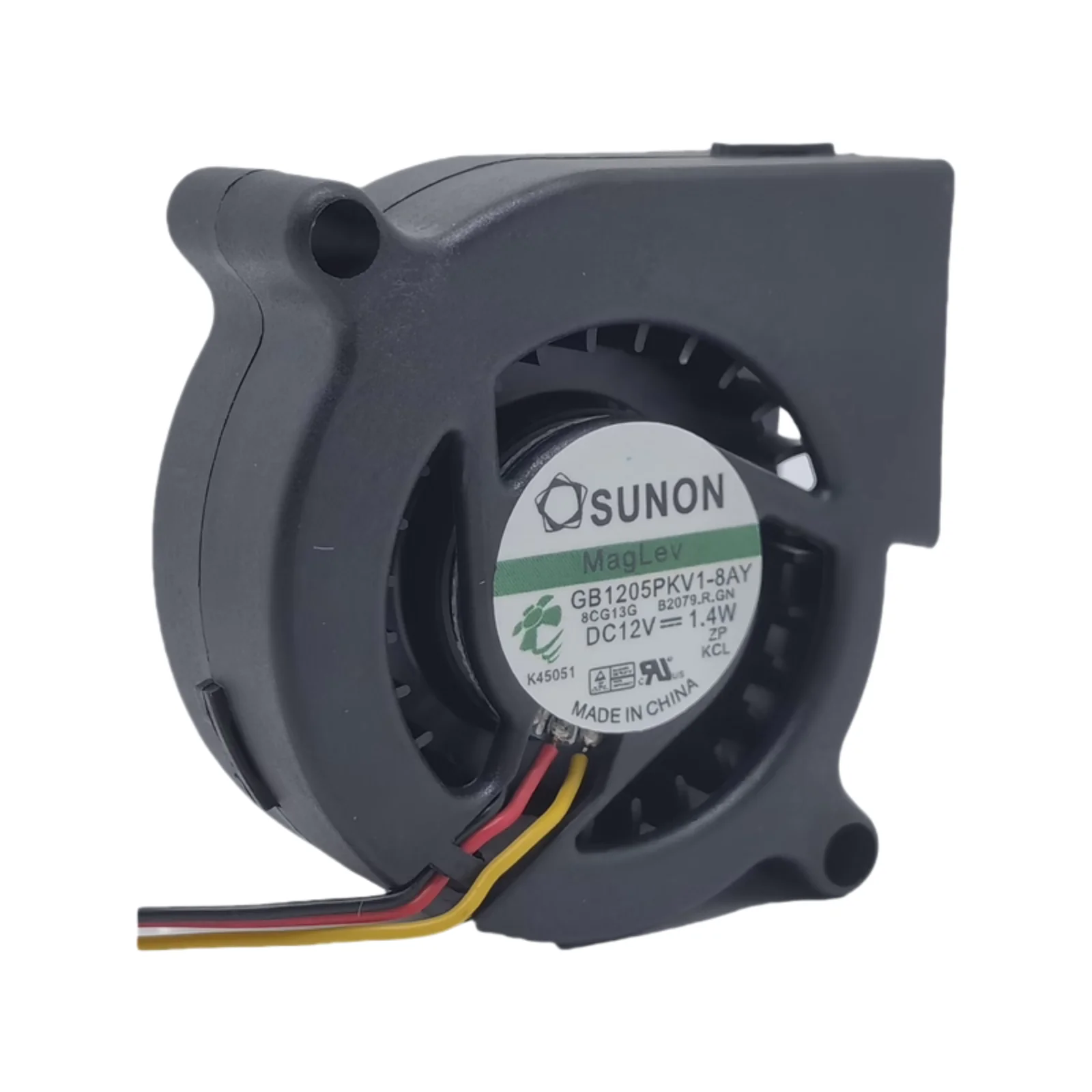

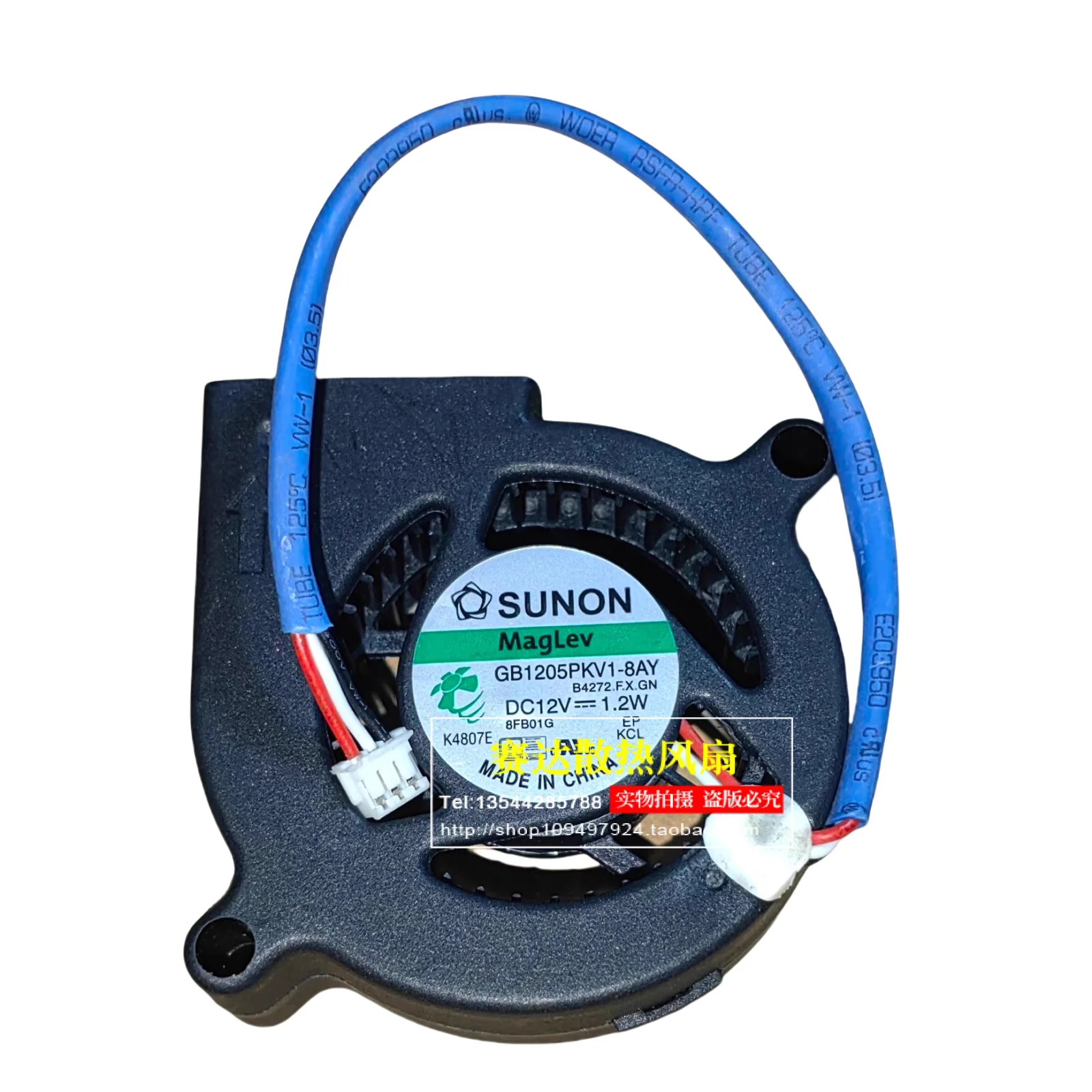

High-Performance Ultra-Quiet Centrifugal Fan
The GB1205PKV1-8AY is a 50x50x20mm DC centrifugal fan designed for projectors, LED stage lights, and precision cooling systems. With 4400 RPM speed and 4.9 CFM airflow, it delivers focused, high-pressure cooling while operating at an ultra-low noise level of 20dBA—ideal for noise-sensitive environments like studios and medical devices
.
Key Features:
✅ 4400 RPM & 4.9 CFM – Efficient centrifugal airflow design for targeted cooling in compact spaces.
✅ Whisper-Quiet (20dBA) – Among the quietest fans in its class, perfect for home theaters and offices.
✅ 100,000-Hour Lifespan – Dual ball bearings ensure durability for 24/7 operation
.
✅ Wide Voltage Range (5V–13.8V) – Compatible with variable power supplies and PWM control.
✅ 3-Pin Connector – Supports speed monitoring (tachometer signal) for smart cooling systems.
Technical Specifications:
Model: GB1205PKV1-8AY (OEM standard).
Size: 50x50x20mm (mounting hole spacing: 5.8cm).
Voltage: 12V DC (operational range: 5V–13.8V).
Current: 0.1A.
Power: 1.5W.
Speed: 4400 RPM (±10%).
Airflow: 4.9 CFM (0.14 m³/min).
Noise Level: 20 dB(A).
Bearing Type: Dual Ball.
Temperature Range: -10°C to +70°C.
Weight: 80g (approx.).
Applications:
✔ Projectors & LED Stage Lights – Prevents overheating in high-brightness systems.
✔ Medical Equipment – Silent cooling for diagnostic devices.
✔ Gaming PCs/Consoles – Compact cooling for GPUs or VR headsets.
✔ Industrial Control Panels – Rugged ventilation for enclosed cabinets.
Package Includes:
1x GB1205PKV1-8AY Centrifugal Fan.
