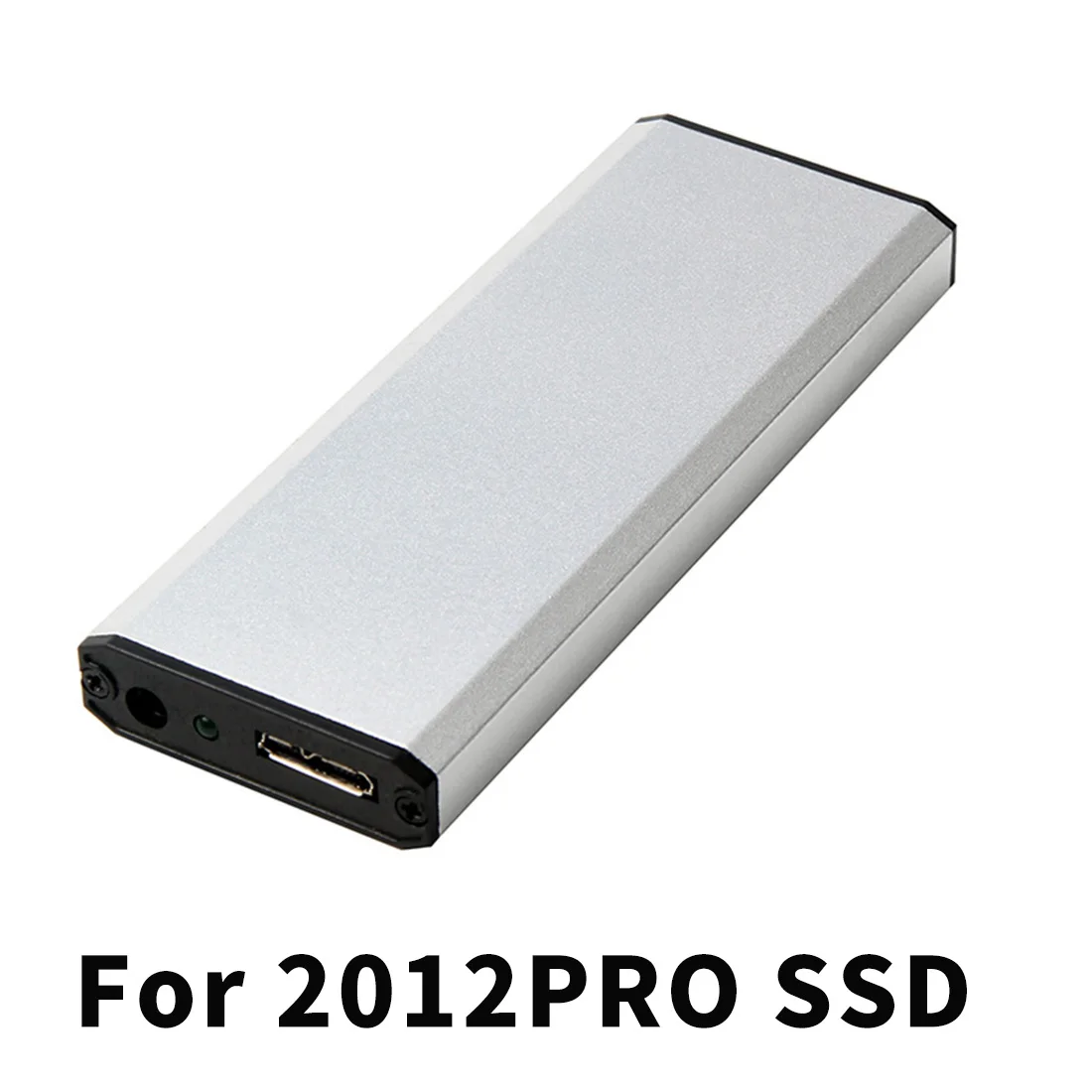

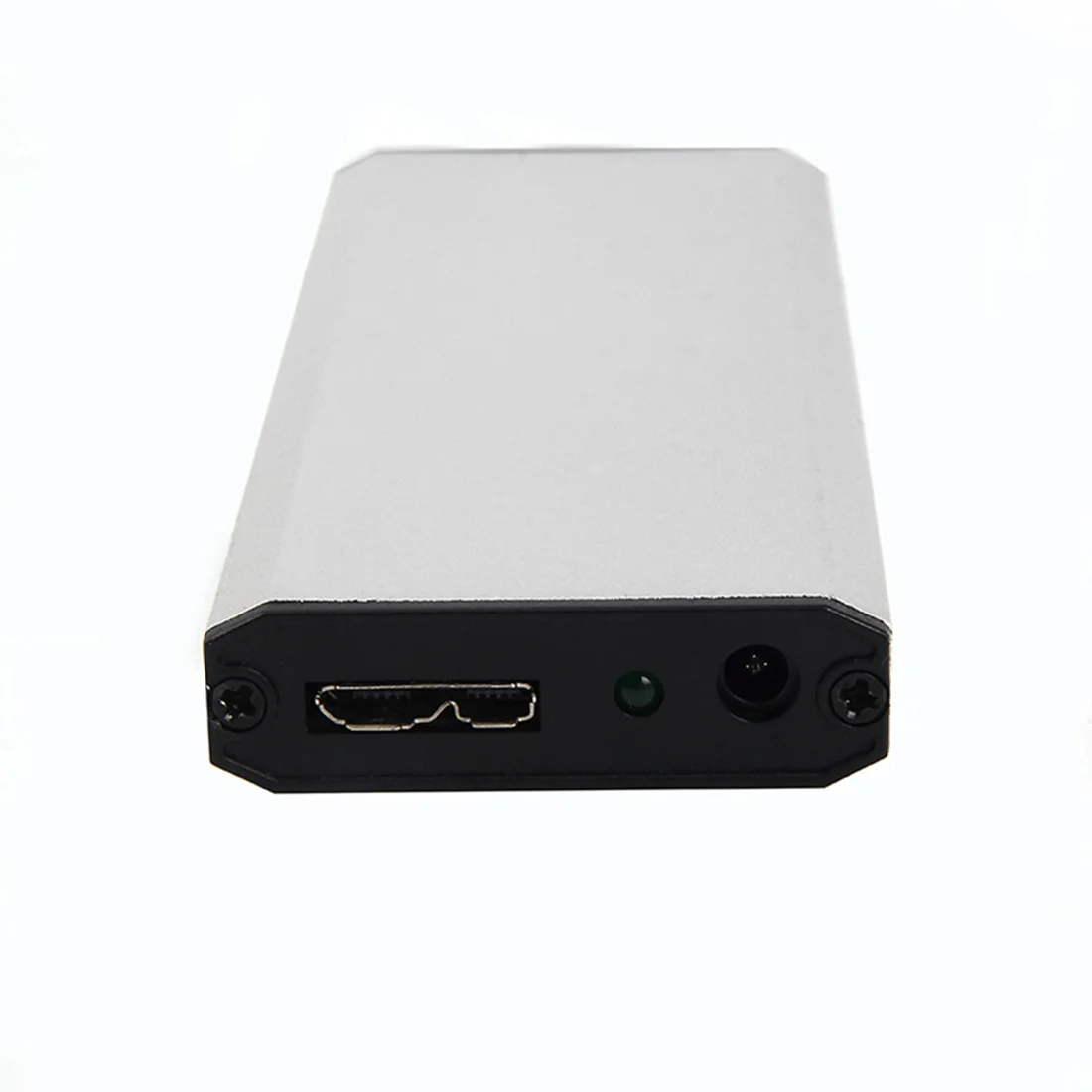

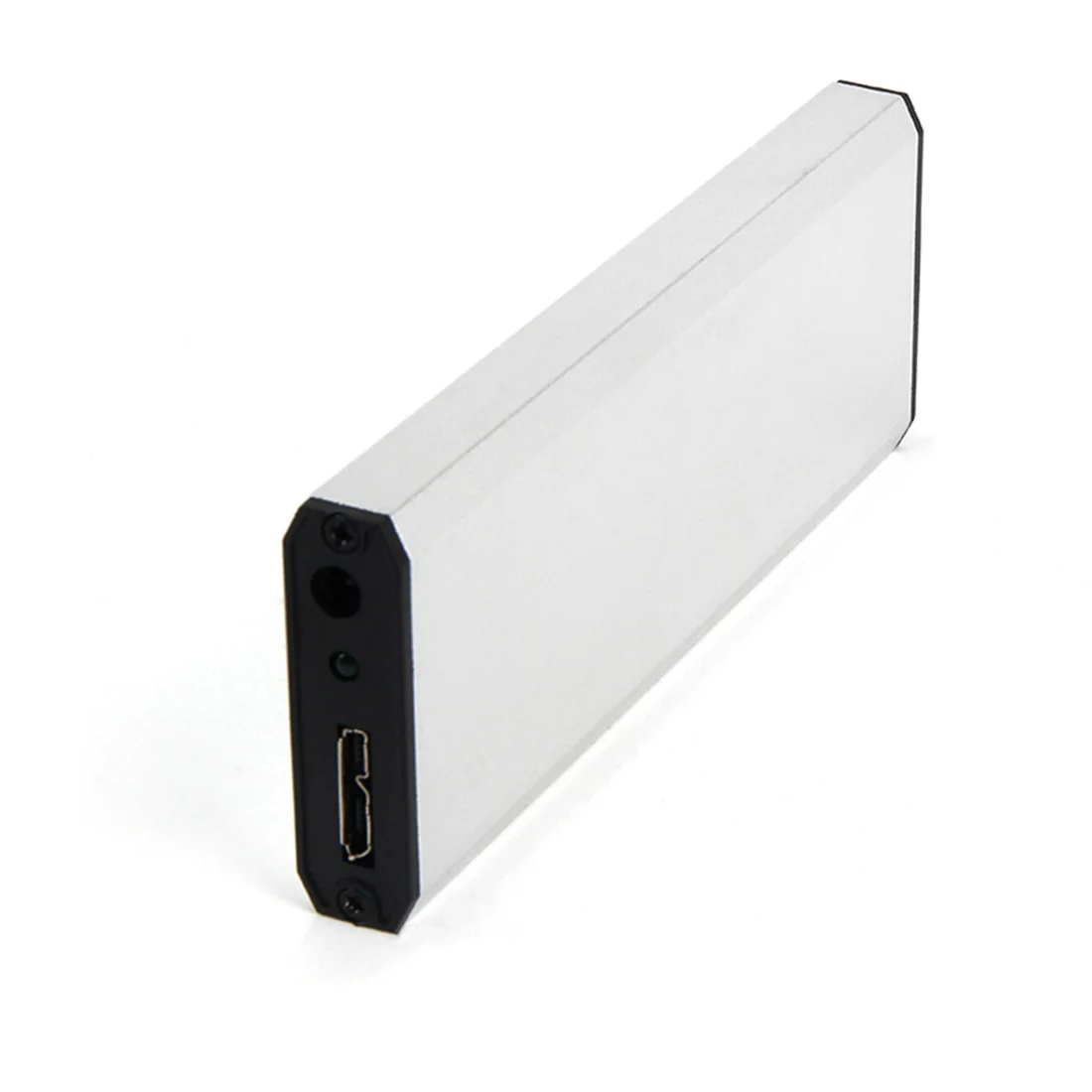

XT-XINTE High Quality Portable SSD Case Adapter USB 3.0 HDD Enclosure for 2012 MACBOOK PRO RETINA A1425 A1398 MC976 MD213 MD212 ME662 HDD Mobile Box
Note: If you use on IOS system, pls format your SSD on Window system firstly. Otherwise the SSD can't be recognized.
Feature:
1:Only support 7+17 PIN 2012 Mac-Book Pro A1425 A1398 MD212 MD213 MC975 MC976 ME662 ME664 ME665 SSD to USB 3.0 interface.
2:Supports more than Windows 2000 and Mac OS 10.7 operating system and don't require any software drives.
3:The main body is sturdy aluminum alloy metal housing,it is very light.
4:You can connect it to laptop or desktop.
5:SSD slot is DIY,but these had no influence on the application of the SSD.

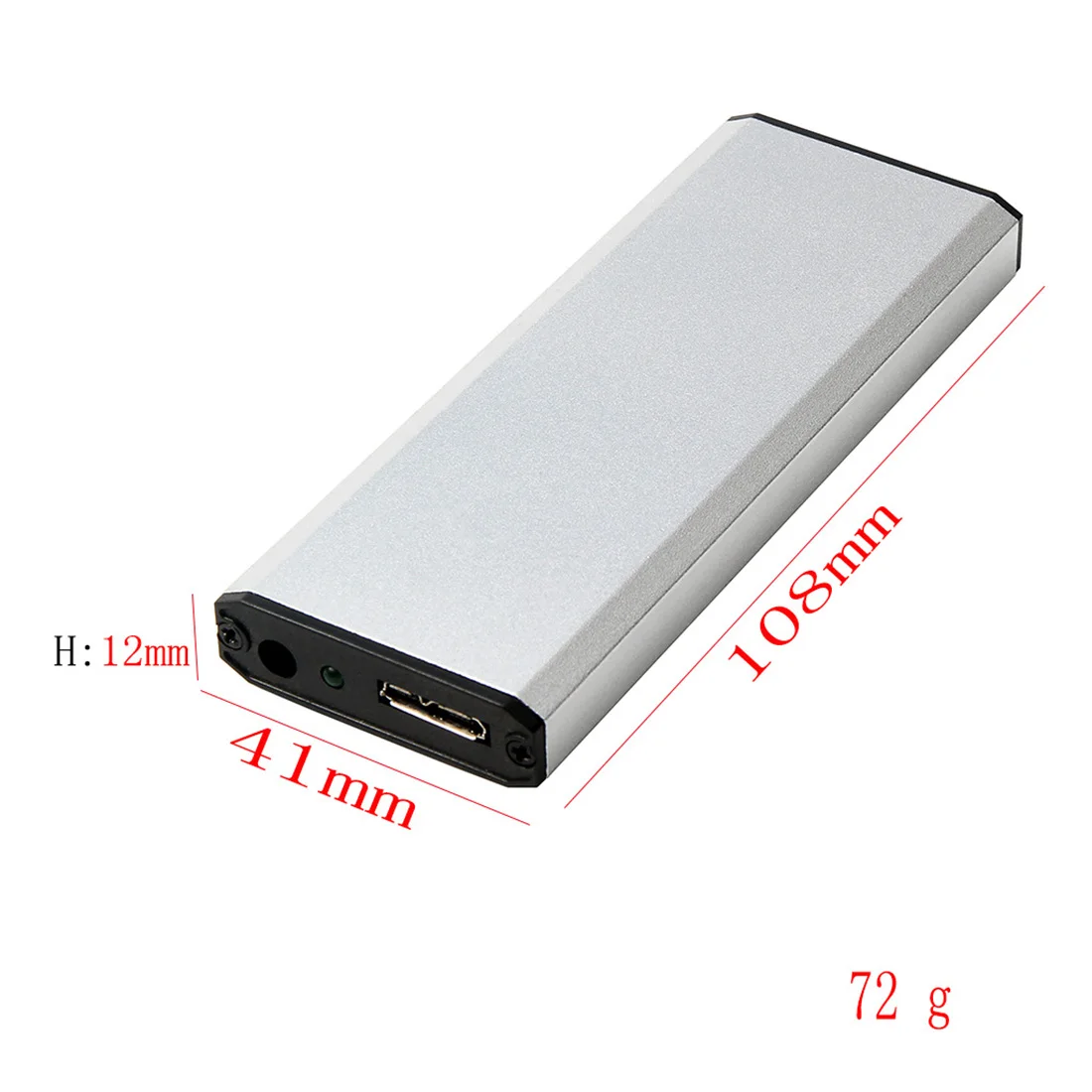

6:Size: 108*41*12mm
7.Don't support current 2.39A (Note)

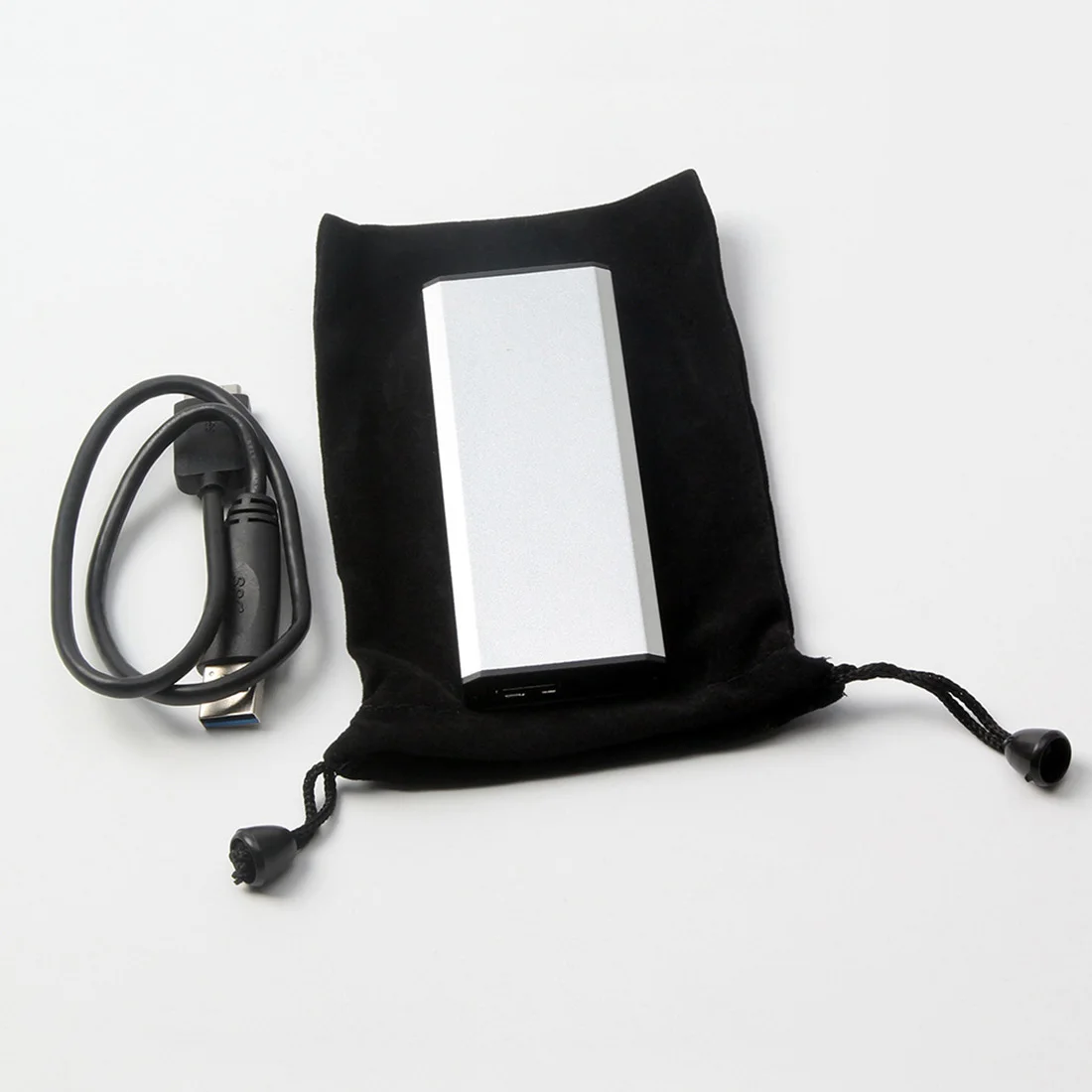

Package include:
SSD mobile hard disk box x1
USB 3.0 cable x1
About MacBook Air SSD interface standard:
1:2010 and 2011 Mac-Book Air SSD is 6+12 pin, only one side have contact,size is 109 mm*24 mm.

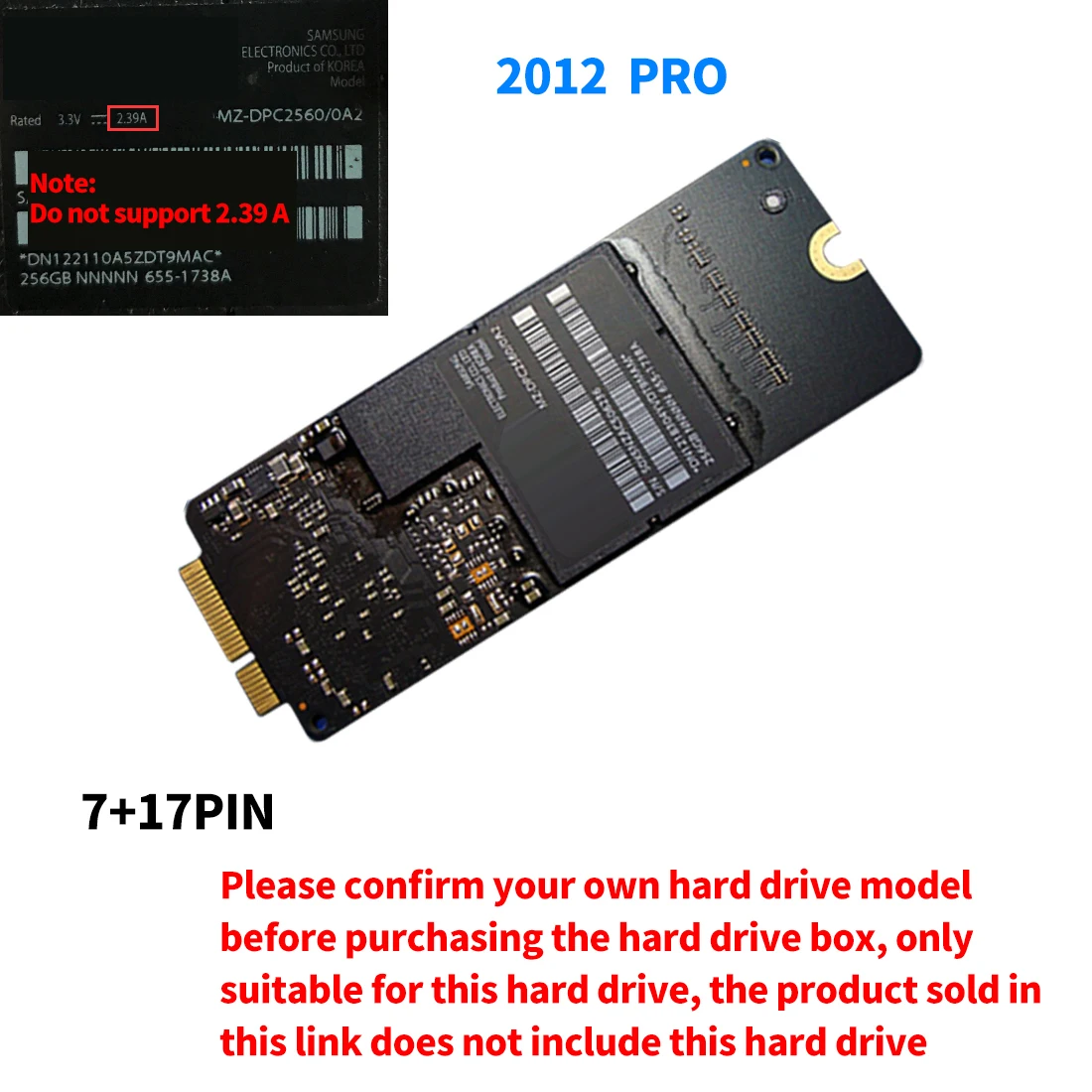

2:2012 Mac-Book Air SSD is 7+17 pin(the SSD slot is 8+18 pin,the gold finger of SSD there are two groups is connected,so the SSD is 17+7 pin), size is 109 mm*24 mm. 2012 Mac-Book Pro SSD is 7+17 pin(the SSD slot is 8+18 pin,the gold finger of SSD there are two groups is connected,so the SSD is 17+7 pin), size is 89 mm*33 mm.
3:2013 and 2014 Mac-Book Air SSD is both side have contact,one sid is 16+12 pin,the other side is 11+14 pin,size is 89 mm*24 mm.
Notice:
1:Please identify interface definition of your SSD.
2:Please note that the query rated current of SSD,compute maximum power supply current is 1A of USB 3.0 interface,if the USB port can't provide enough current to the ssd,the computer can't identify or work can't well because the power supply can't meet requirements.
3:Don't to use USB extension and HUB,because it will lead to insufficient power supply.
4:Data lines connected to the computer's USB port after the home for desktop.
5:The SSD work will release heat,the shell fells very hot,this is normal.
6:Mac OS and some digital camera system use disk format can't compatible with Microsoft system,new SSD if there is no partition,open the "my computer" can't see the ssd, please use the Disk Manager in Windows to delete the partitions or to create a new partition on the SSD.
7: Usb 3.0 cable there are black and blue,random delivery,not specified.
8:This product performance is being improved unceasingly, like has the change, not separate informs even slightly.Pictures for reference only, subject to our available products.
