Product details
Power: 6-7W
Voltage: DC230-235V
Current: ≤30mA
Lumen: 600-700LM

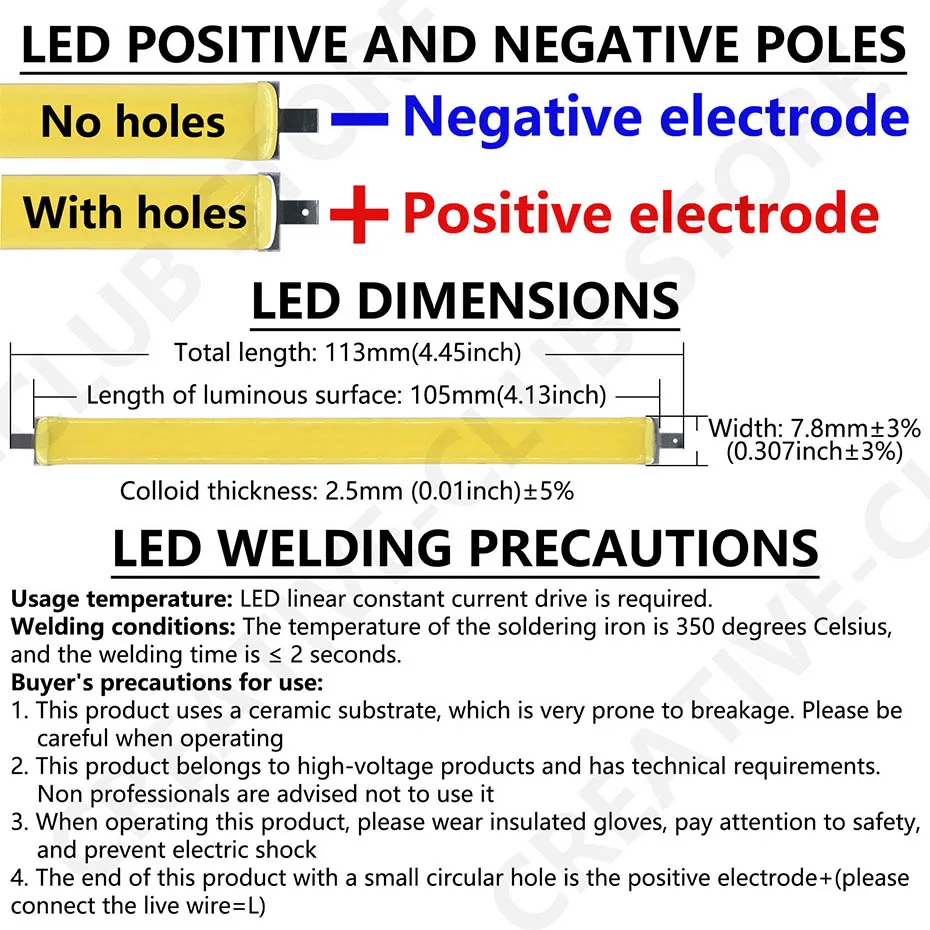

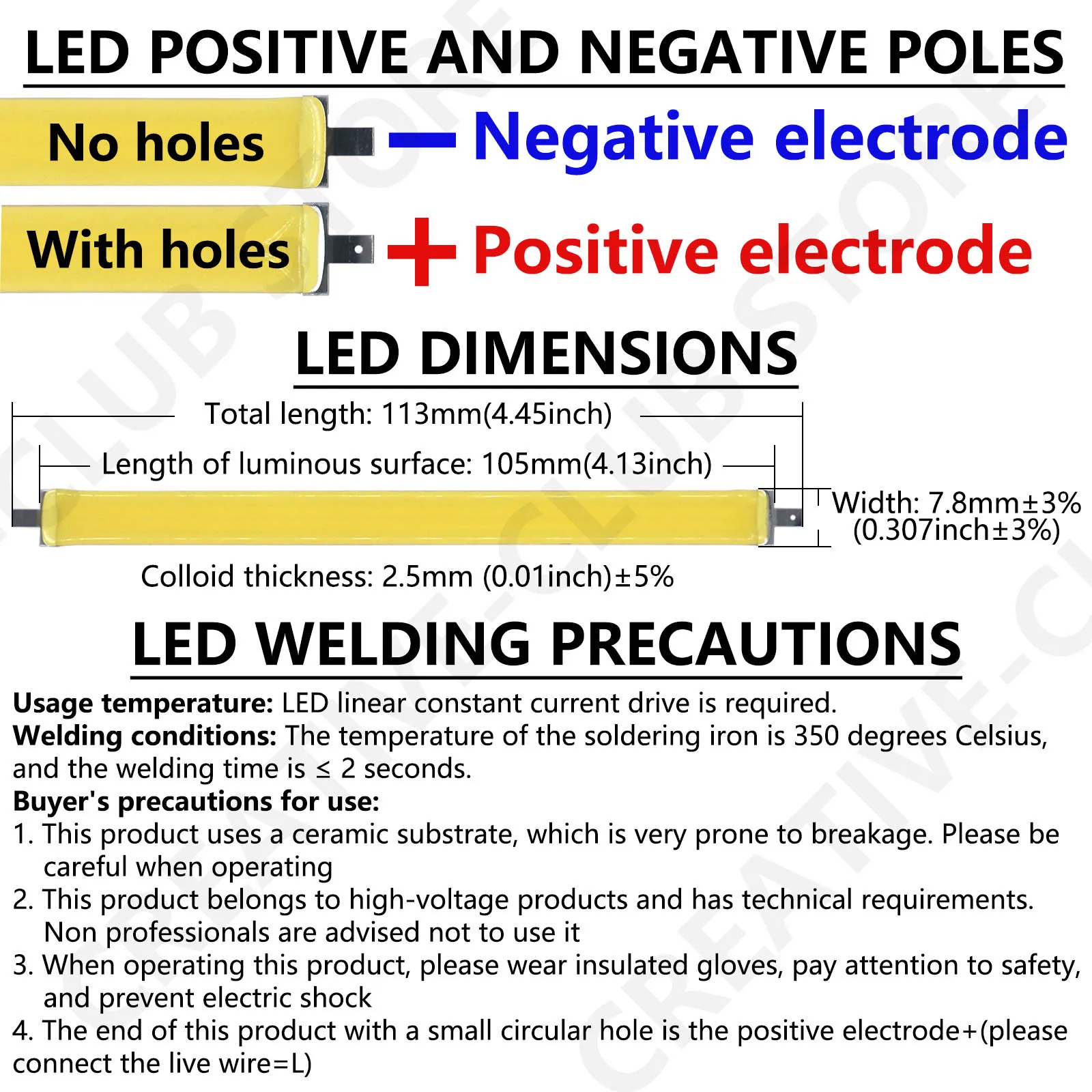

Length of luminous surface: 105mm(4.13inch)
Luminous angle: 180 degrees
Total length: 113mm(4.45inch)
Width: 7.8mm(0.307inch)±3%
Colloid thickness: 2.5mm(0.01inch)±5%
Series/parallel circuit: 88C/3B
Chip size: 13*28mil
Number of LED beads: 264pieces
Material: Ceramic substrate

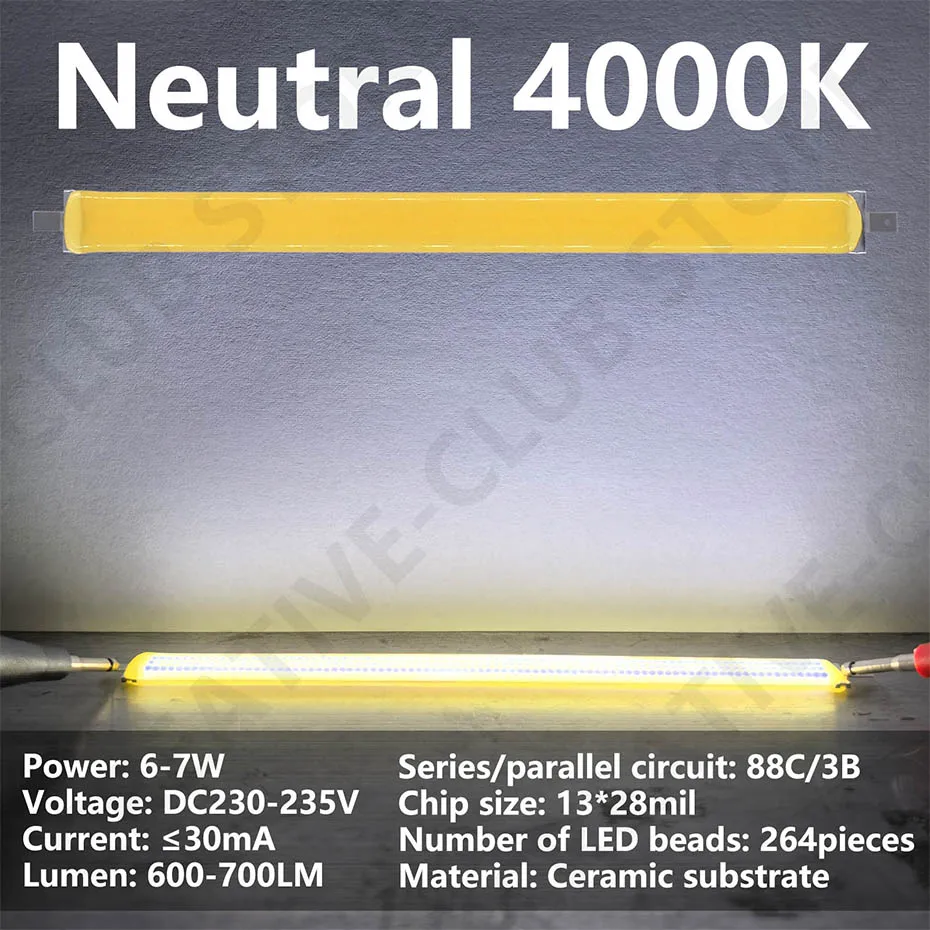

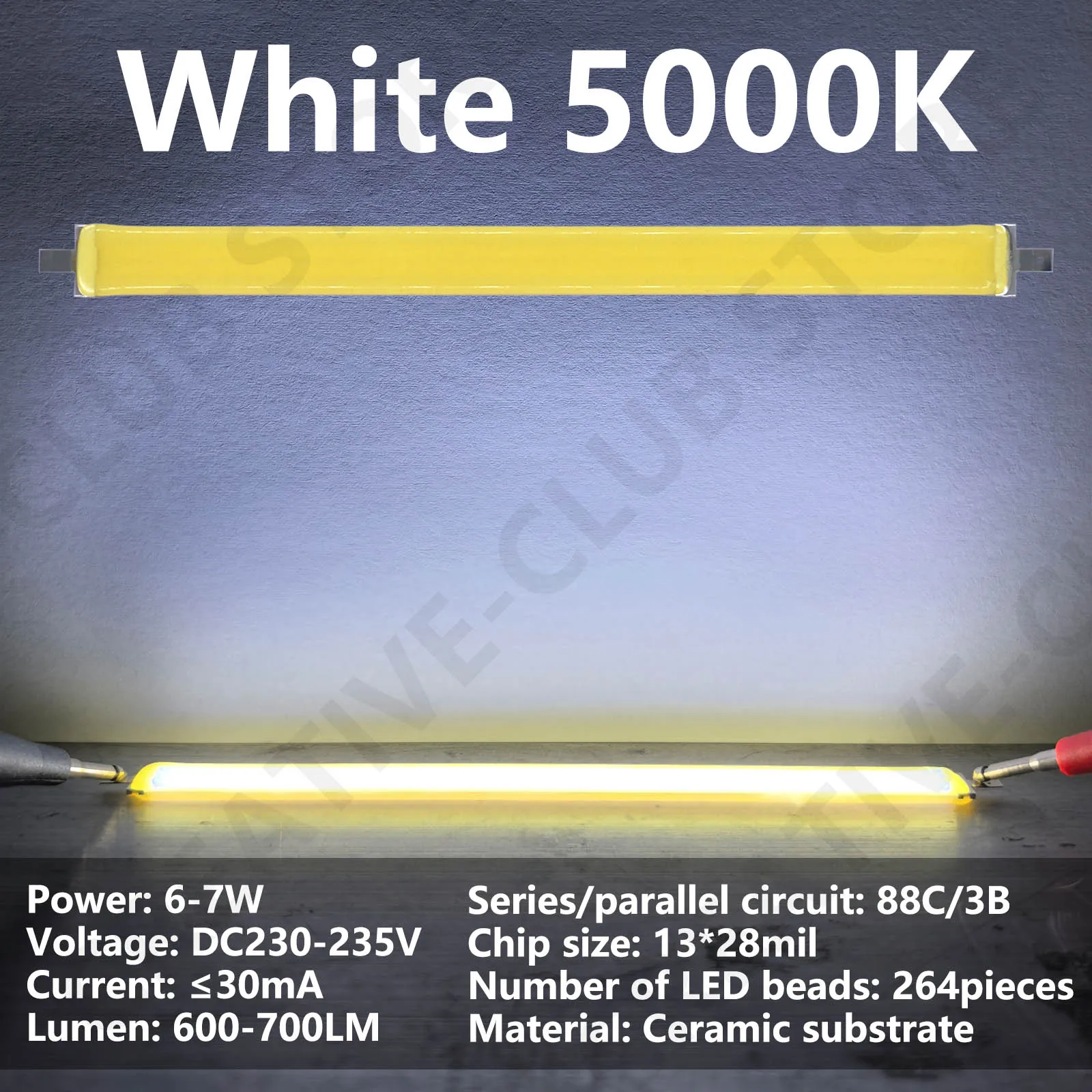

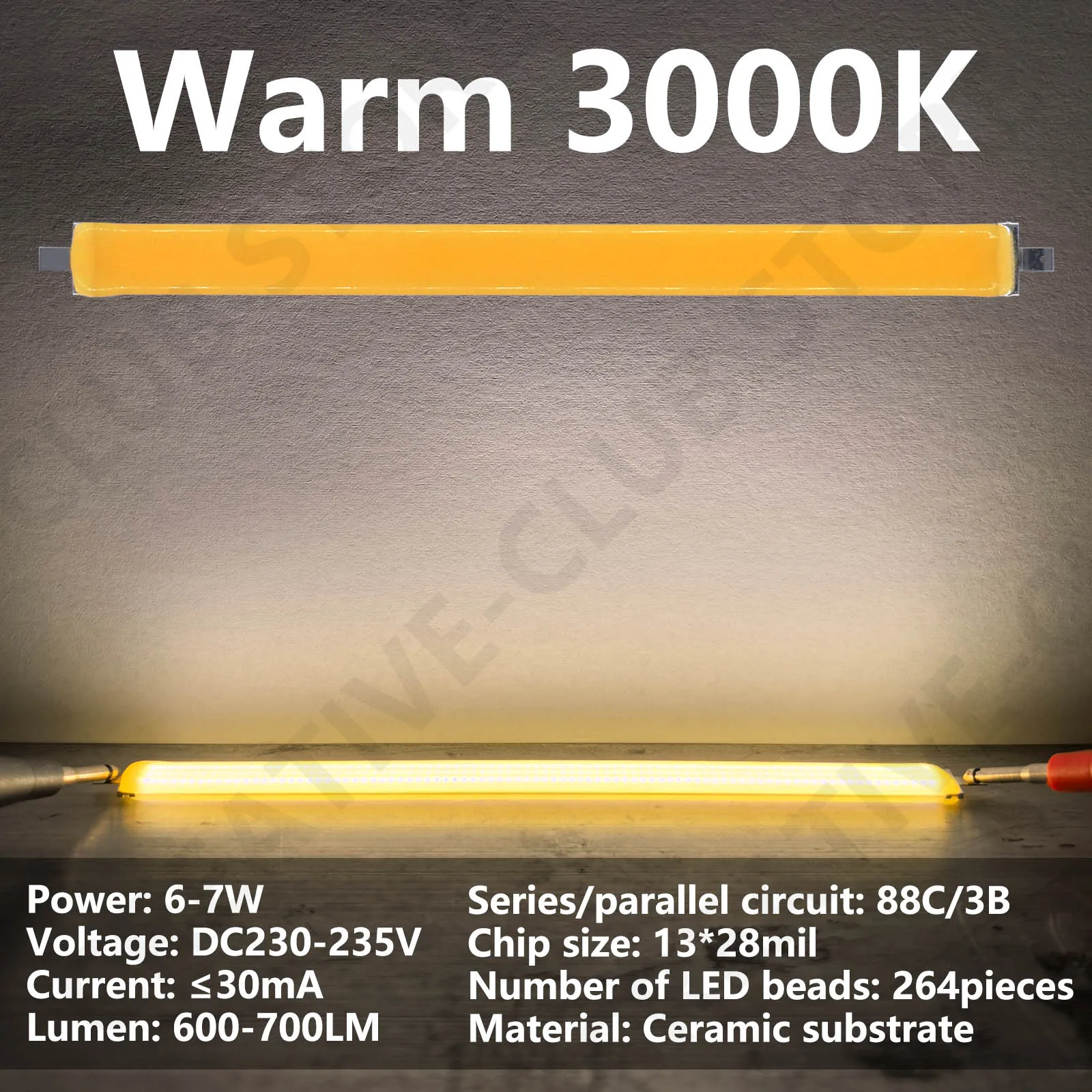

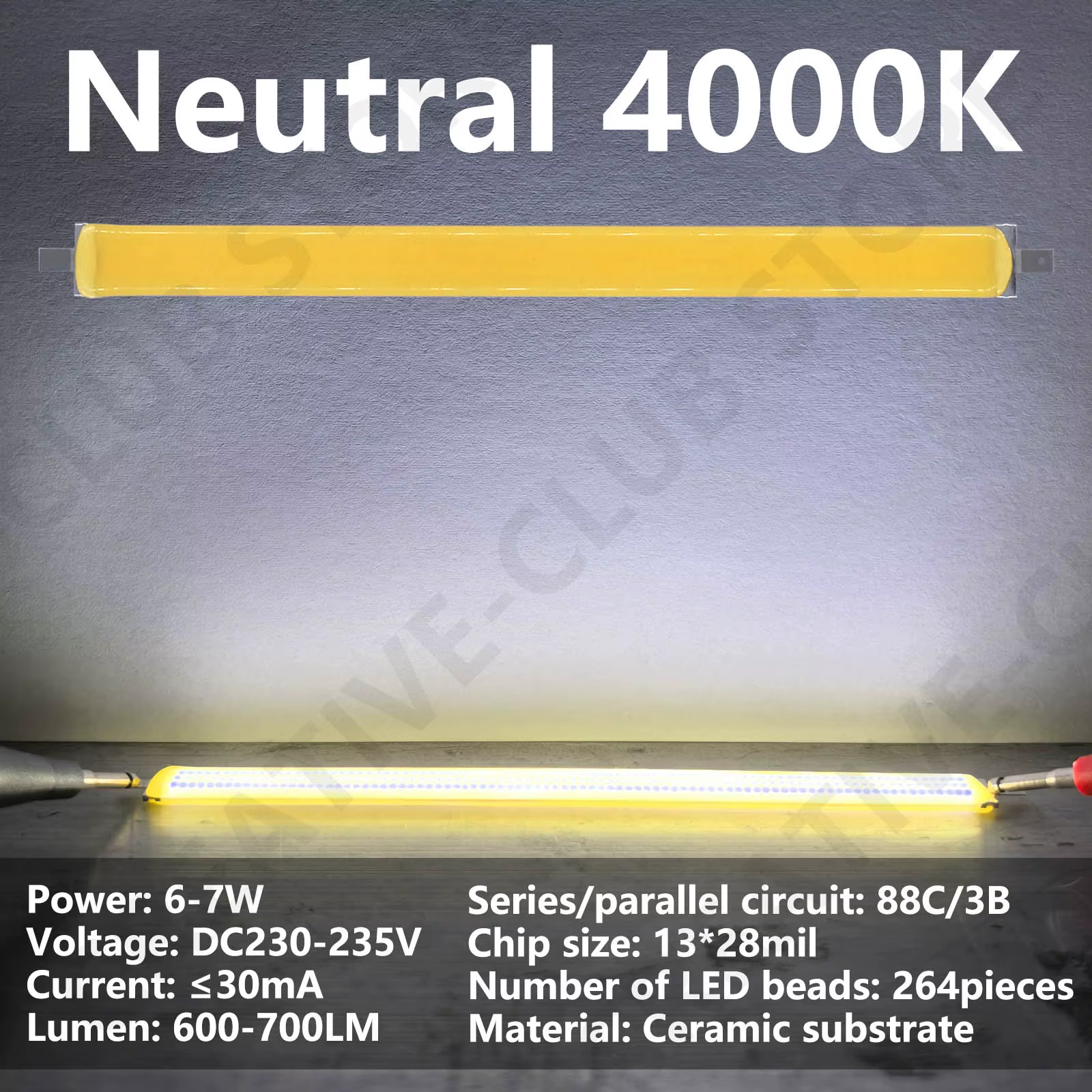

Color: White 5000K/Neutral White 4000K/Warm White 3000K

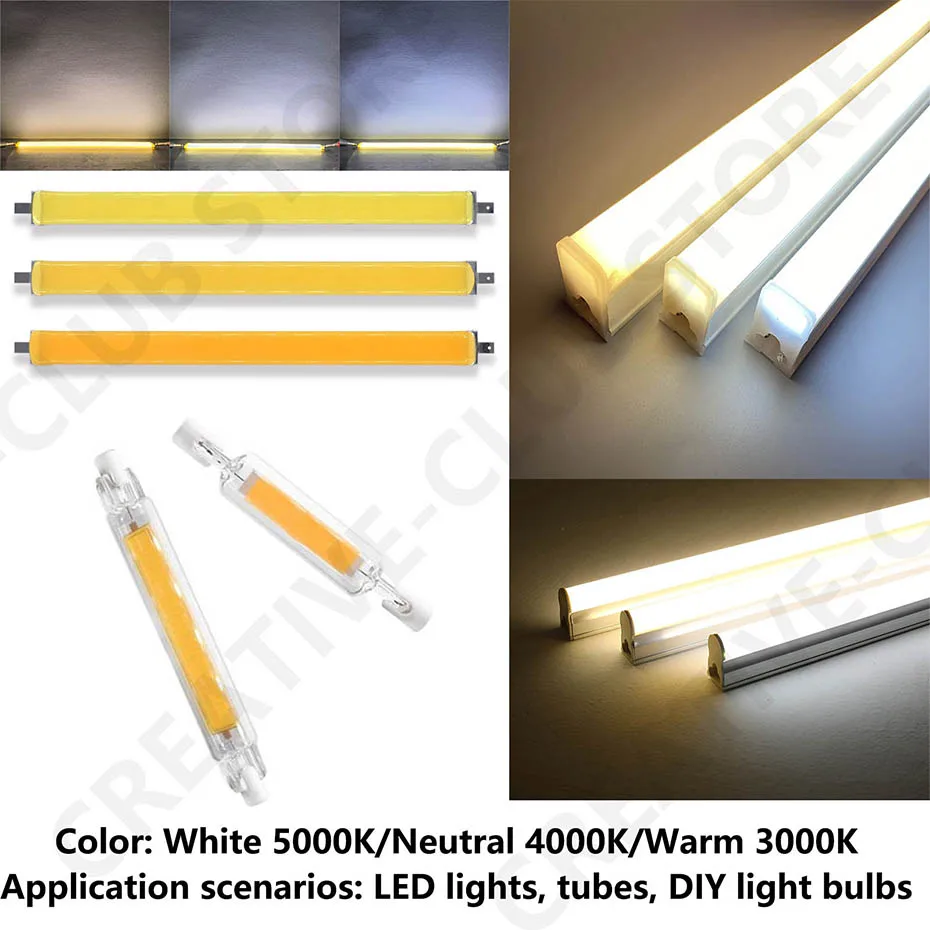

Application scenarios: LED lights, tubes, DIY light bulbs
Usage temperature: LED linear constant current drive is required.
Welding conditions: The temperature of the soldering iron is 350 degrees Celsius, and the welding time is ≤2 seconds.
Buyer's precautions for use:
1. This product uses a ceramic substrate, which is very prone to breakage. Please be careful when operating
2. This product belongs to high-voltage products and has technical requirements. Non professionals are advised not to use it
3. When operating this product, please wear insulated gloves, pay attention to safety, and prevent electric shock

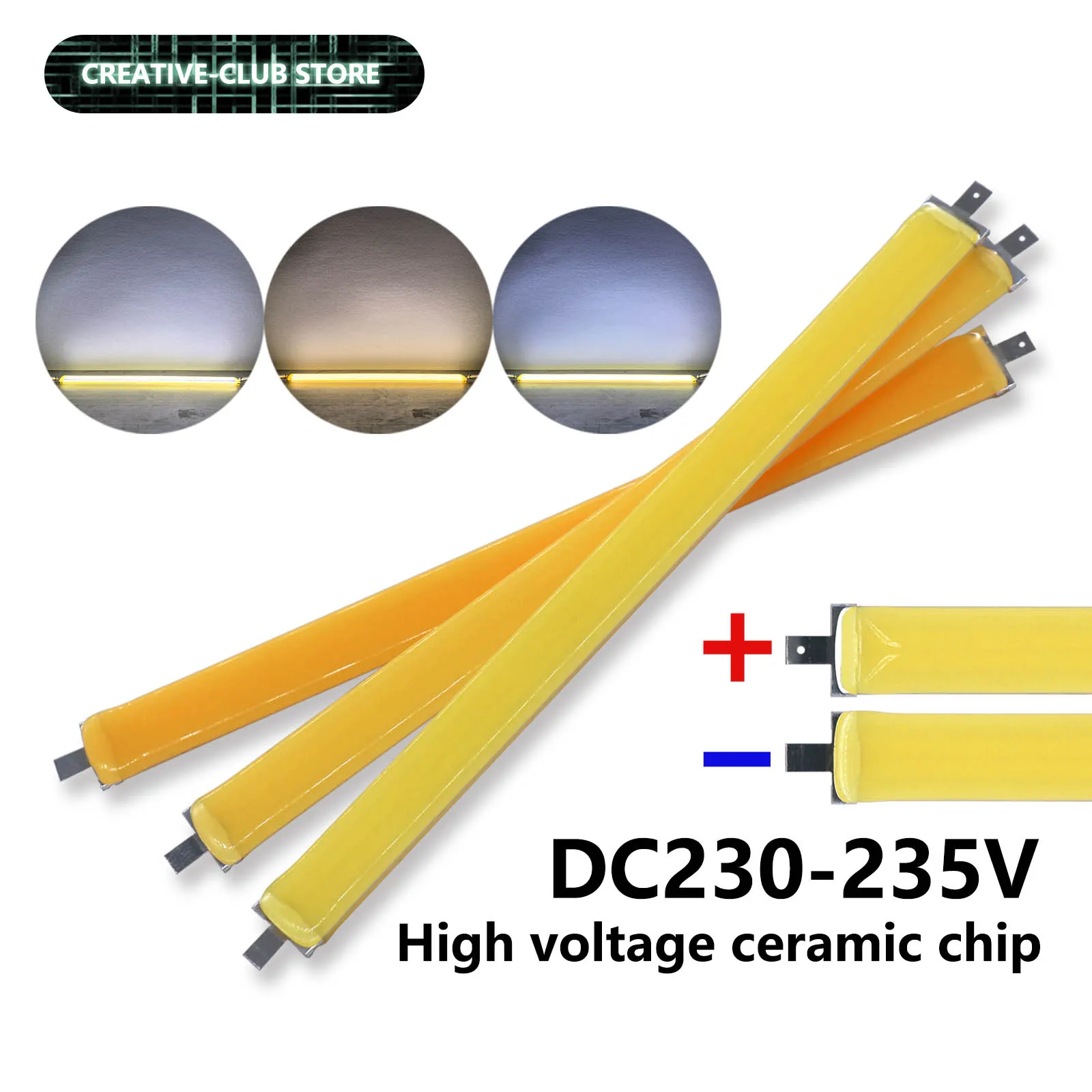

4. The end of this product with a small circular hole is the positive electrode+(please connect the live wire=L)
