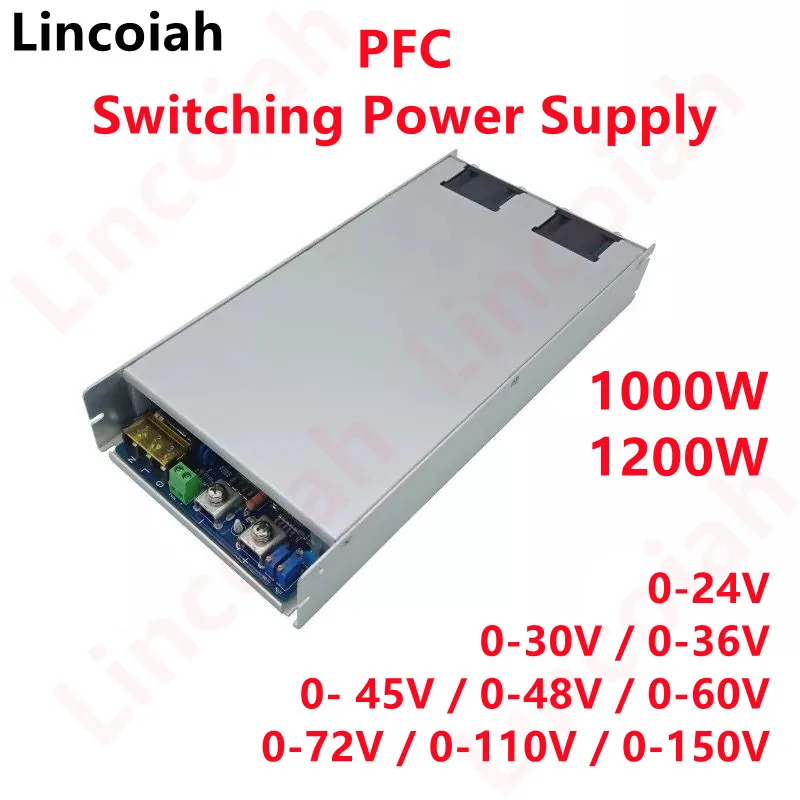

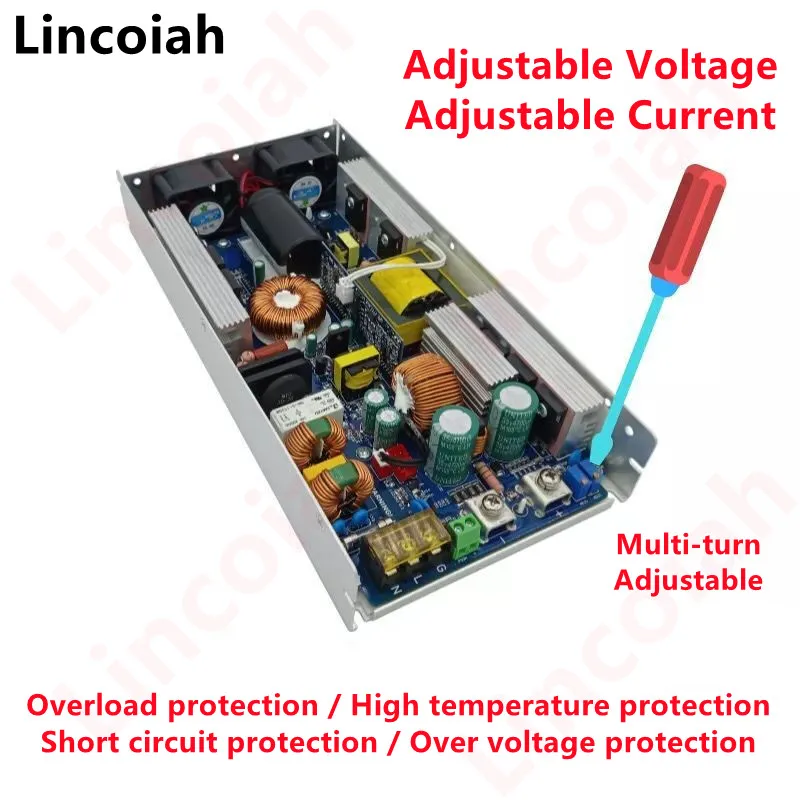

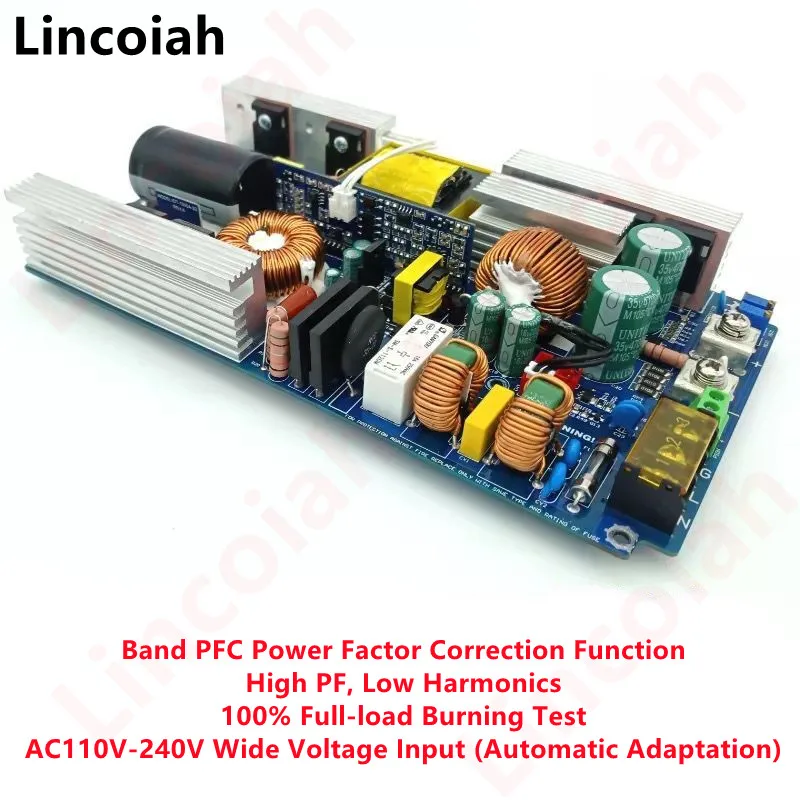

Fuente de alimentación conmutada PFC para Led, 0-24V, 30V, 36V, 45V, 48V, 60V, 72V, 110V, 150V, 1000W, 1200 V, 110V, CA/CC smps
124,23 €
194,11 €
Enlace proporcionado por:
Enviado desde:
Voltaje de salida:
Color:
Potencia:
Tensión de entrada:
Over load protection
Over voltage protection.
Short circuit protection
Over temperature protection.
More power exchange savings and less power wasting, it works more efficient.
PCB & Cover are manufactured with fireproofing materials.
Low ripple and noise.

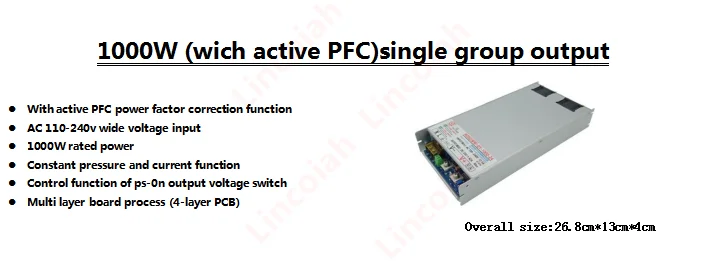

Model |
S-1200PFC |
|
INPUT |
AC input voltage range(V) |
AC 110V-240V |
Input current(A) |
5A/230VAC 10A/110VAC |
|
Frequency (Hz) |
50/60Hz |
|
Efficiency |
91%(230VACFull Load) |
|
Inrush current(A) |
AC 50A/230VAC 25A/110V |
|
Leakage current(mA) |
3.5mA/240VAC |
|
output |
Output Voltage(V) |
24V30V36V45V48V60V72V110V150V |

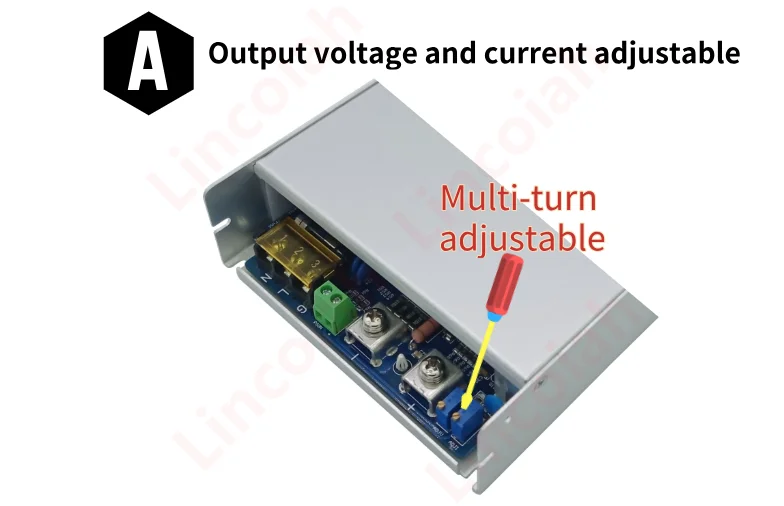

Voltage Regulation |
0V~Rated output voltage |
|
Rated Power(W) |
1000W/1200W |
|
Start time, hold-up time(ms) |
1500ms/230VAC |
|
Rise time(ms) |
50ms at Full Load |
|
Ripple/Noise(MVP-p) |
120mVp-p |
|
|
Environment |
working Temperature (°C) |
-20 centidegree to+60 centidegree |
Storage Temperature(°C) |
-25 centidegree to+85 centidegree |
|
Humidity |
20% to90%RH non condensing |
|
|
Protection |
Over voltage Protection |
115%-135% Rated output voltage |
Over load Protection |
110%-130% Auto recovery |
|
Short circuit Protection |
When the output terminal is short circuited, the power supply has no voltage output, and the power supply recovers the output voltage after the short circuit is removed |
|
Others |

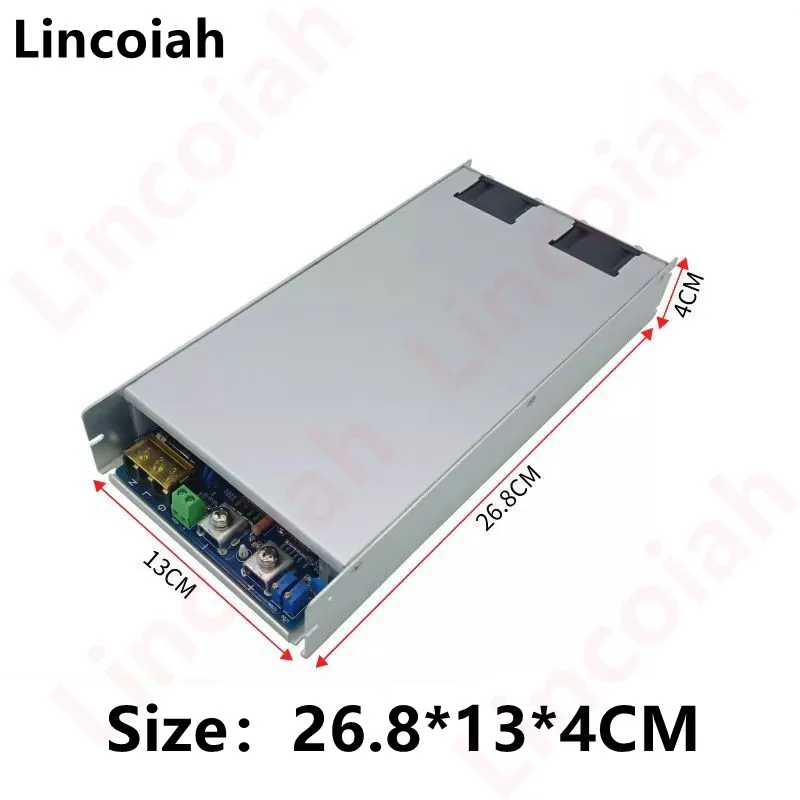

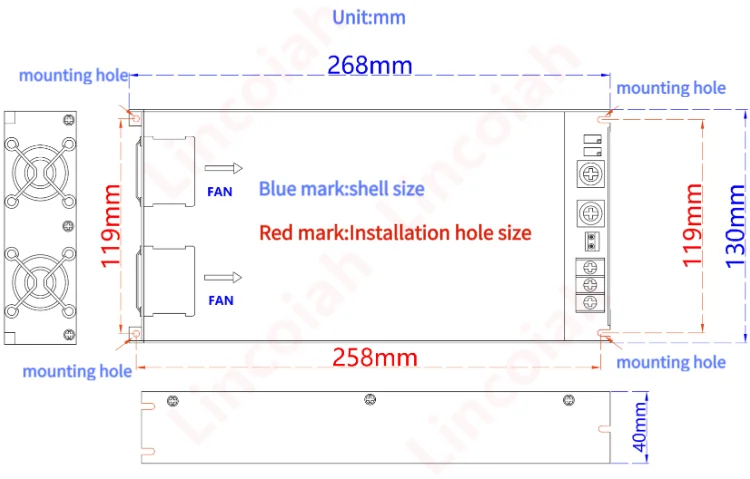

Size L*W*H(cm) |
26.8*13*4cm |
Brand |
Lincoiah |
