Specifications
Basic Specifications
SOC
RockChip RK3588S
CPU
Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55), 8nm lithography process, frequency up to 2.4GHz
GPU
ARM Mali-G610 MP4 quad-core GPU
Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
NPU
NPU computing power up to 6 TOPS
Support INT4/INT8/INT16 mixed operation,Support framework switching of TensorFlow / MXNet / PyTorch / Caffe
VPU
Video decoding:
8K@60fps H.265/VP9/AVS2
8K@30fps H.264 AVC/MVC
4K@60fps AV1
1080P@60fps MPEG-2/-1/VC-1/VP8
Video encoding:
8K@30fps encoding, support H.265 / H.264

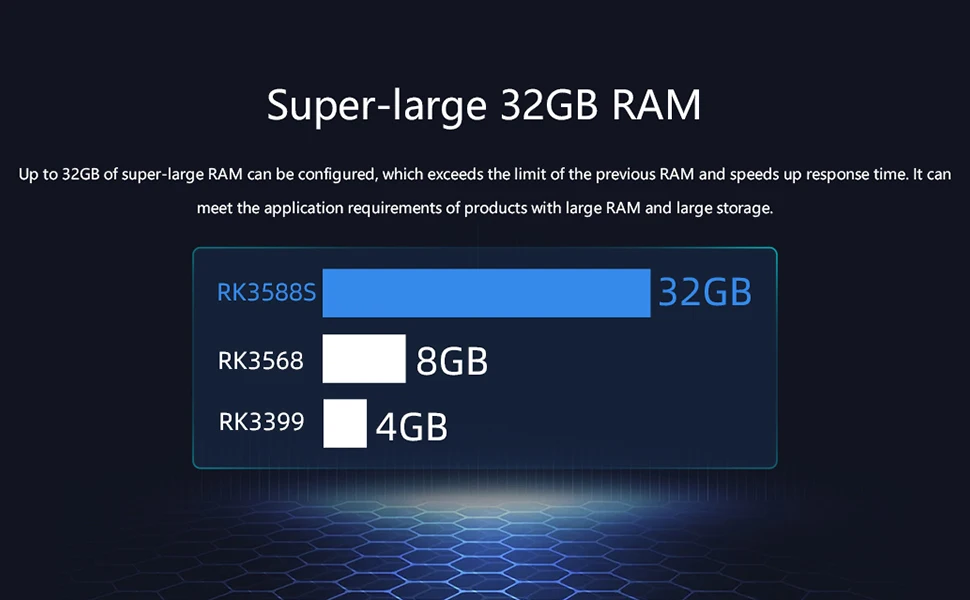

RAM
4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB optional)
Storage
16GB/32GB/64GB/128GB eMMC

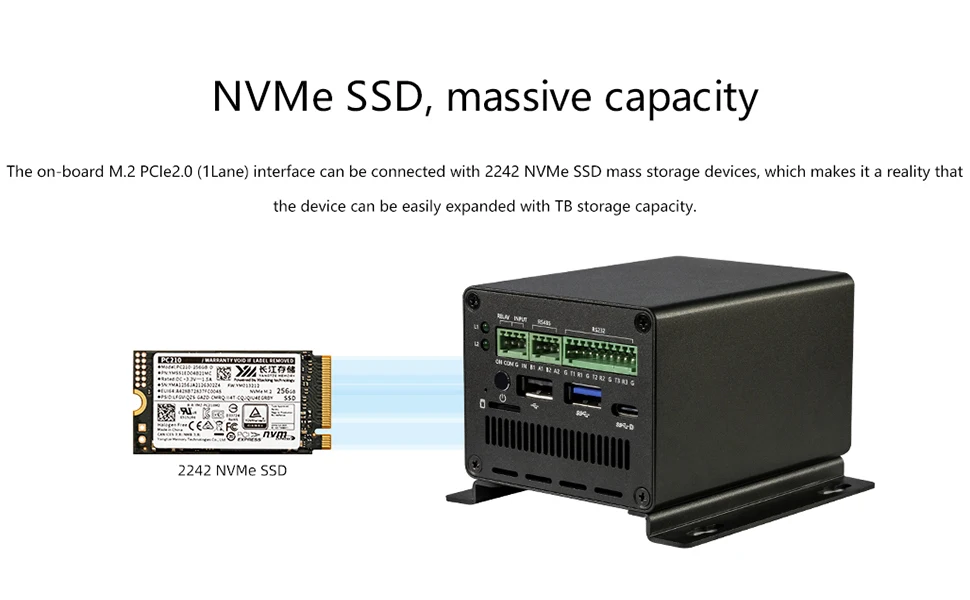

Storage Expansion
1 × M.2 slot is for 2242 SATA3.0 SSD (default), compatible with 2242 PCIe2.0 NVMe SSD
1 × TF Card
Hardware Specifications
Wireless Network
2.4GHz / 5GHz dual-band WiFi, 802.11 a/b/g/n/ac protocol,
Bluetooth 4.2 (support BLE)
Support 4G LTE wireless network

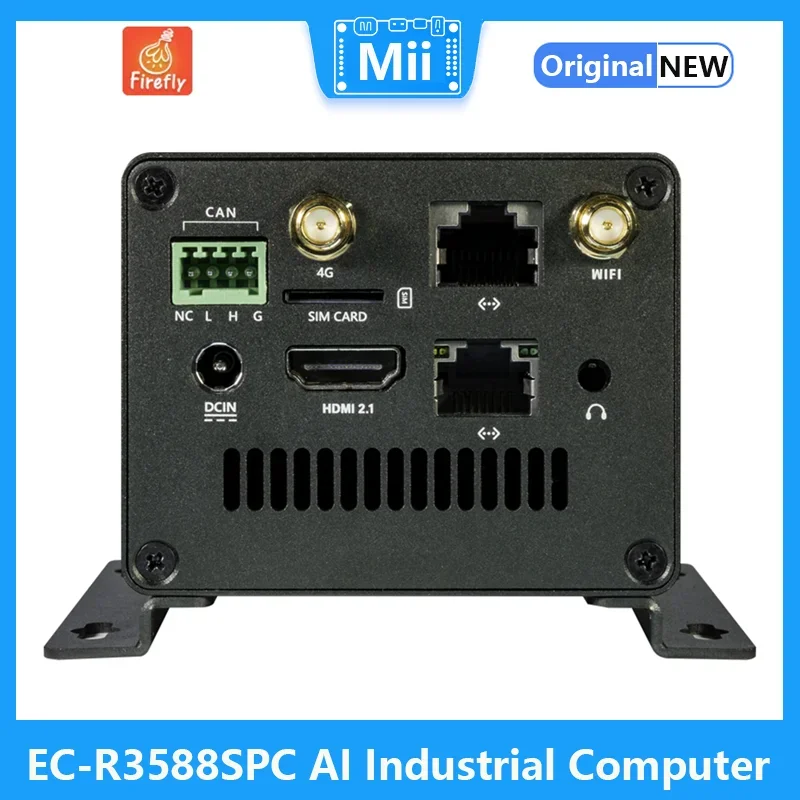

Ethernet
1 × 100Mbps Ethernet (RJ45)
1 × 1000Mbps Ethernet (RJ45)

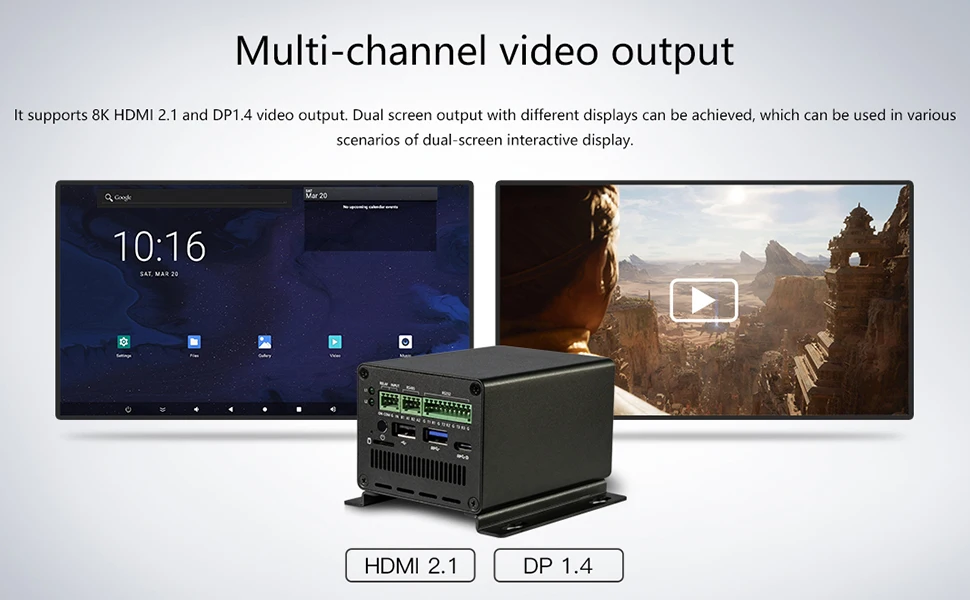

Video Output
1 × HDMI2.1 (8K@60fps or 4K@120fps)
1 × DP1.4 (8K@30fps)
*Support dual screen output with different displays
Audio Output
1 × 3.5mm audio jack (with Mic recording)
1 × HDMI2.1 audio output
1 × DP1.4 audio output

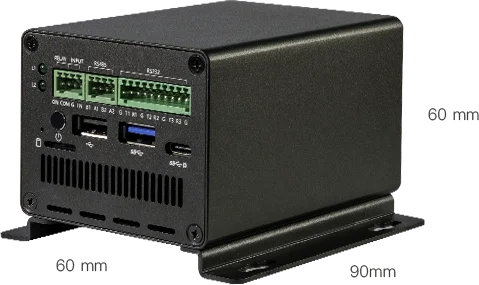

USB
1 × USB3.0 (current limit: 1A)
1 × USB2.0(current limit: 500mA)
1 × USB-C multi-function port (USB3.0 OTG / DP1.4) (current limit: 2A)

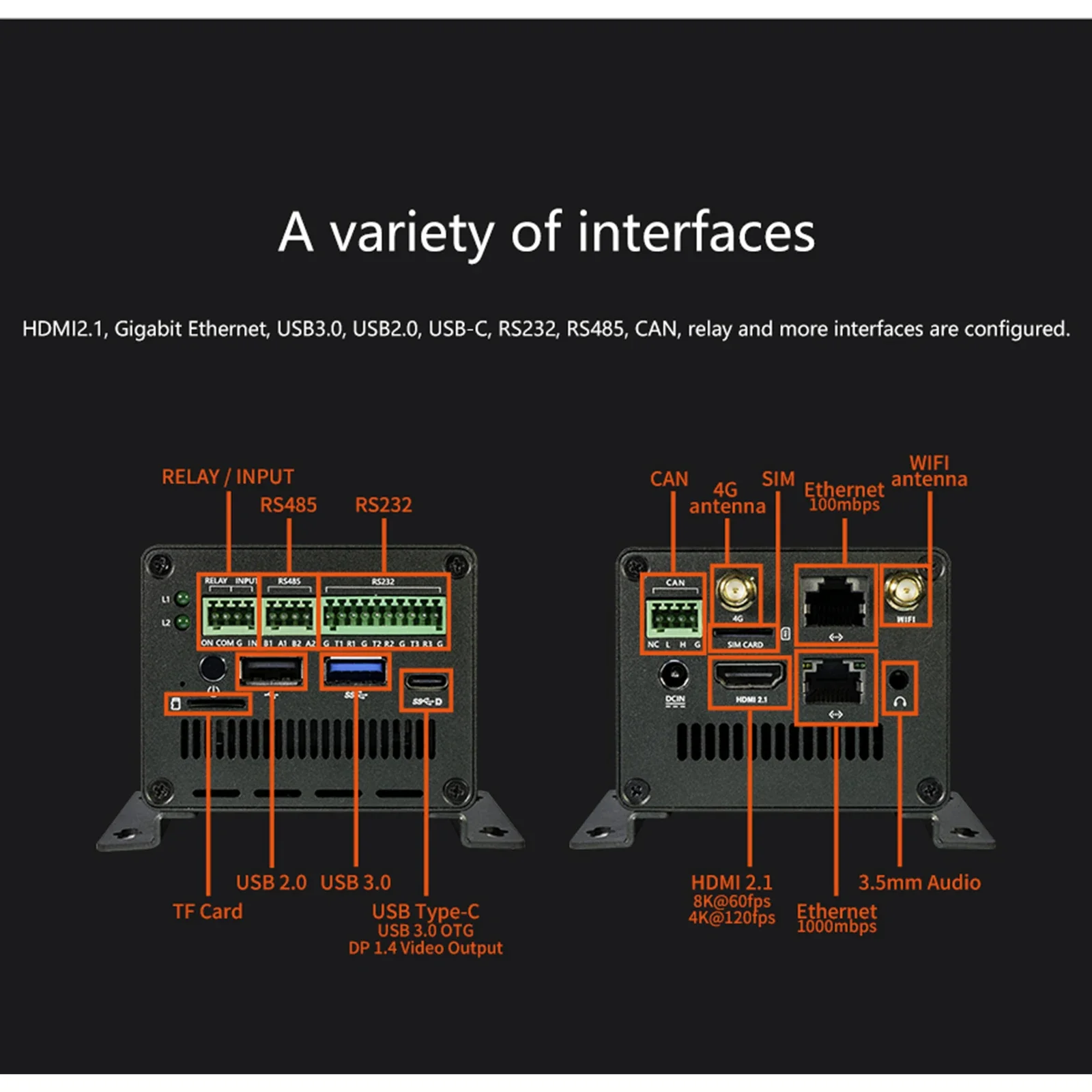

Other Interfaces
RS232, RS485, CAN, relay and more
Power
DC12V voltage input (DC5.5×2.1mm)
OS/Software
OS
Android 12.0, Ubuntu desktop and Server
General
Dimension
96.6 mm×72mm×64mm
Weight
≈0.45kg
Power Consumption
Idle: ≈0.42W (12V/35mA)
Typical: ≈2.25W (12V/190mA)
Max: ≈12W (12V/1000mA)
Environment
Operating Temperature: -20℃～60℃
Storage Temperature: -20℃～70℃
Storage Humidity: -40%～70 %
