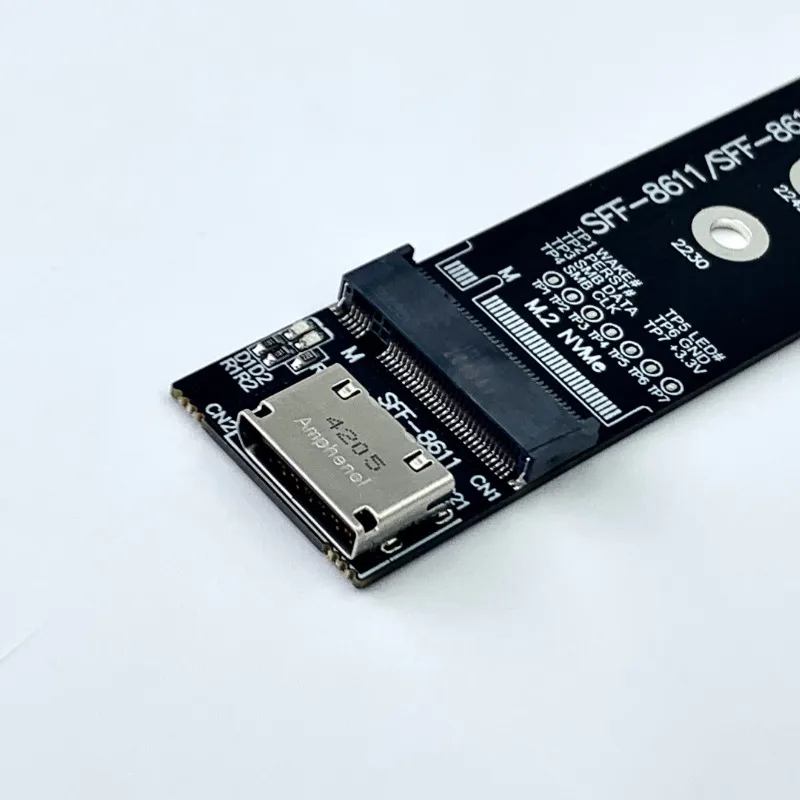

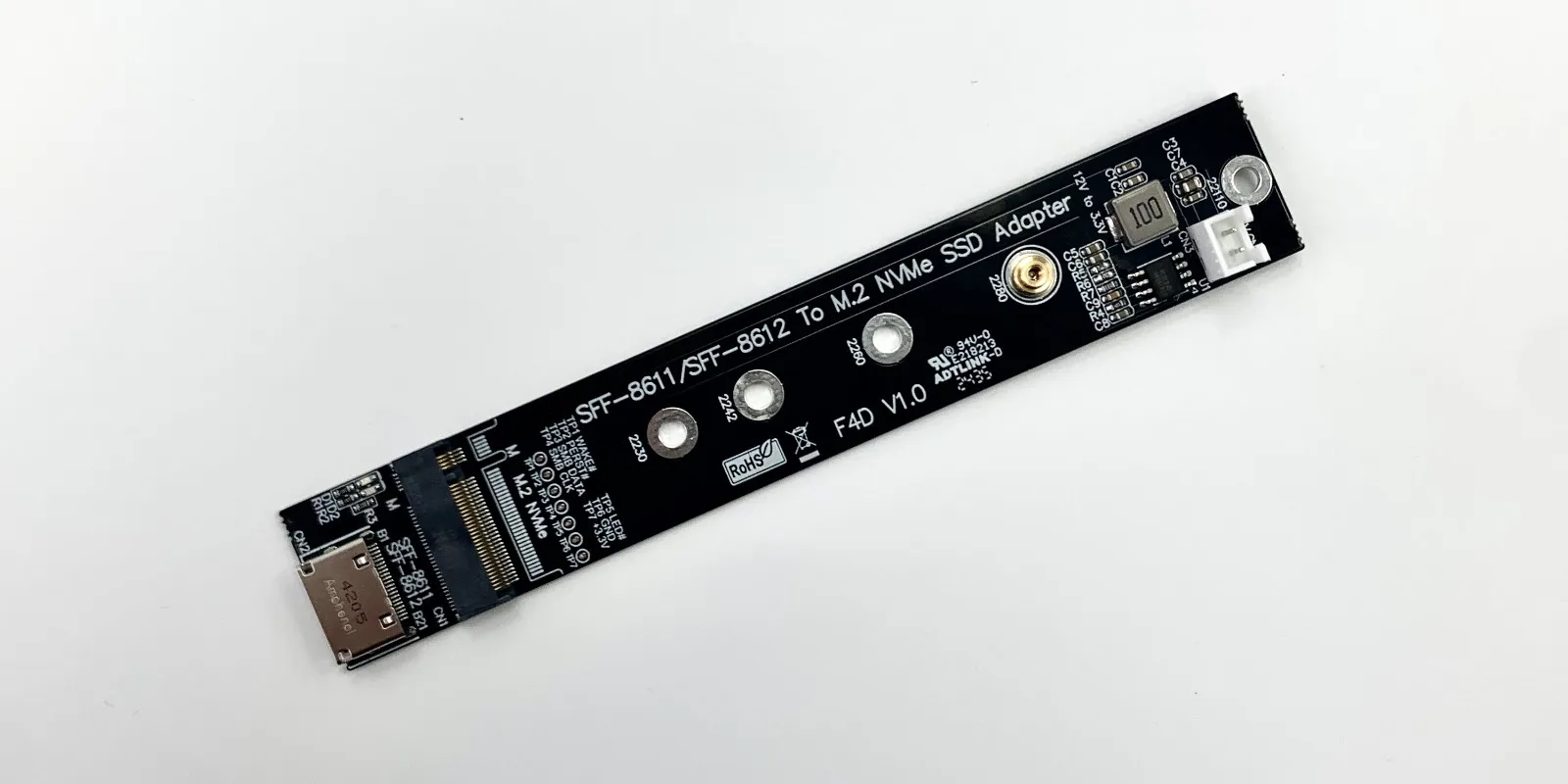

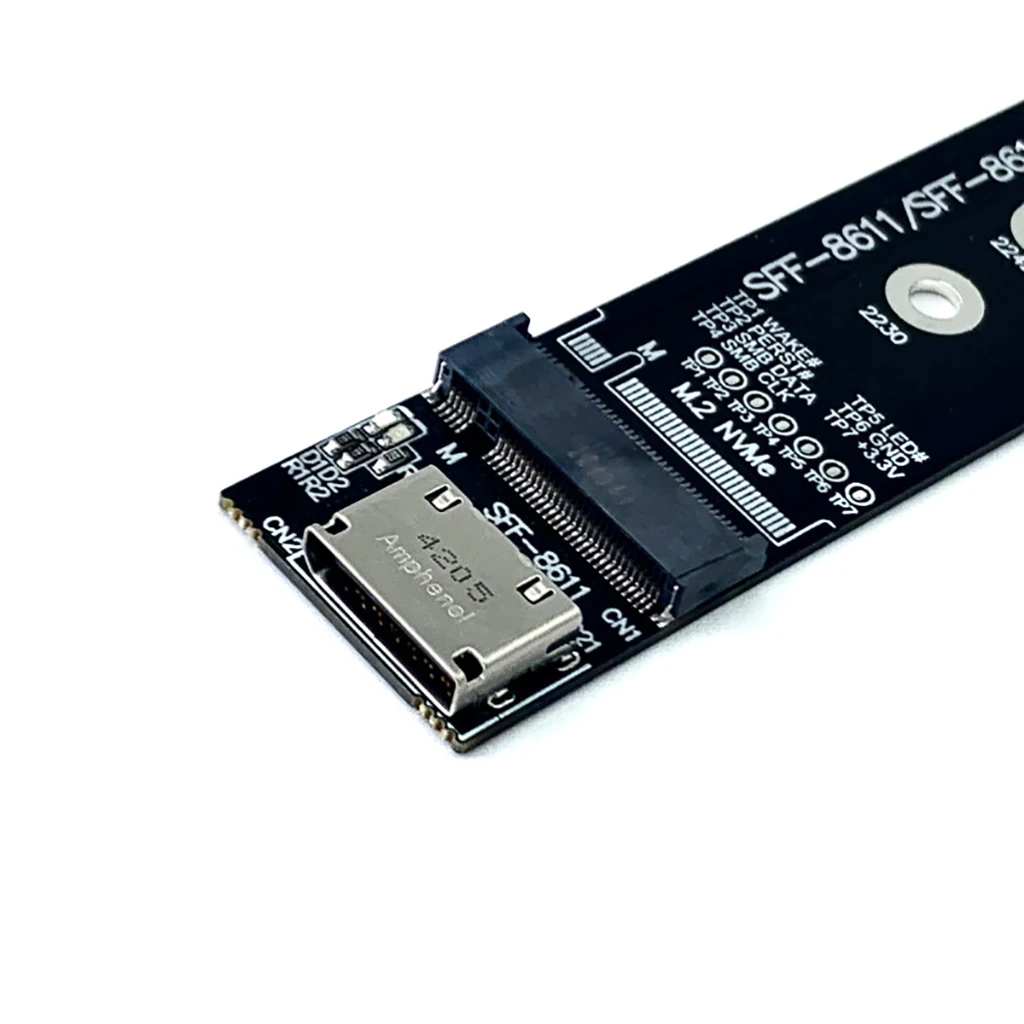

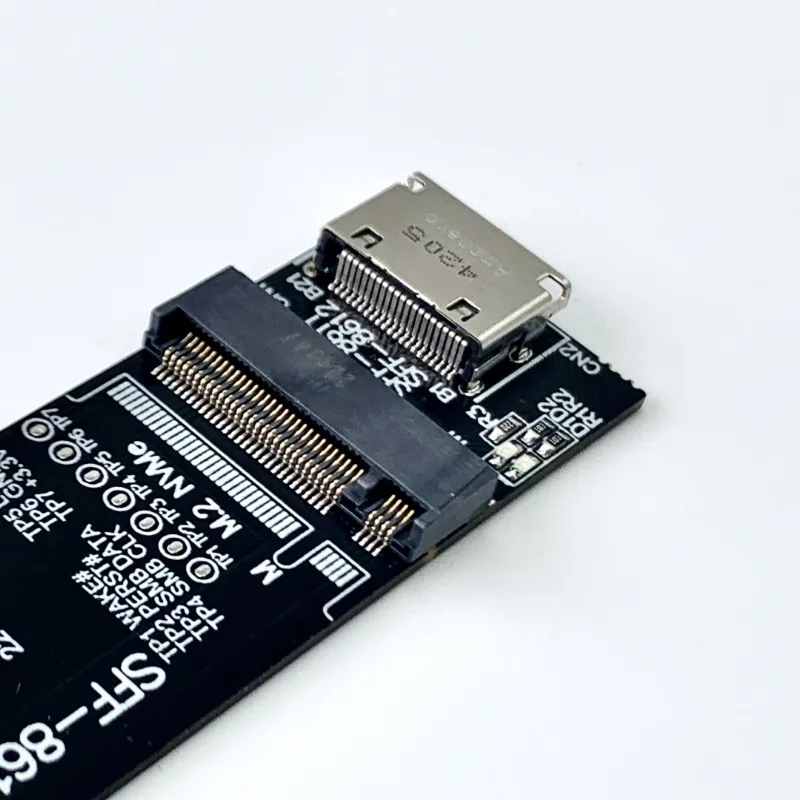

F4D For OCuLink SFF-8611/8612 to M.2 NVMe M-key 2230 2242 2260 2280 SSD Adapter Card PCIe 4.0 x4 Gen4 64Gbps Expansion Card
Product Model:F4D
Product Name：SFF-8611/8612 to M.2 NVMe M-key SSD adapter expansion card
Speed Bandwidth: PCIe 4.0 x4, Gen4 64Gbps, backward compatible with Gen3
Product Use:
Used to convert OCuLink interface to M.2 NVME interface for expansion use.
Purchasing tips:
Be sure to buy 1~2 samples to test and verify the correctness before purchasing large quantities.
Friendly reminder:
incorrect assembly or improper operation will burn your device,
limited to professional engineers specified purchase.
The specifications are as follows:

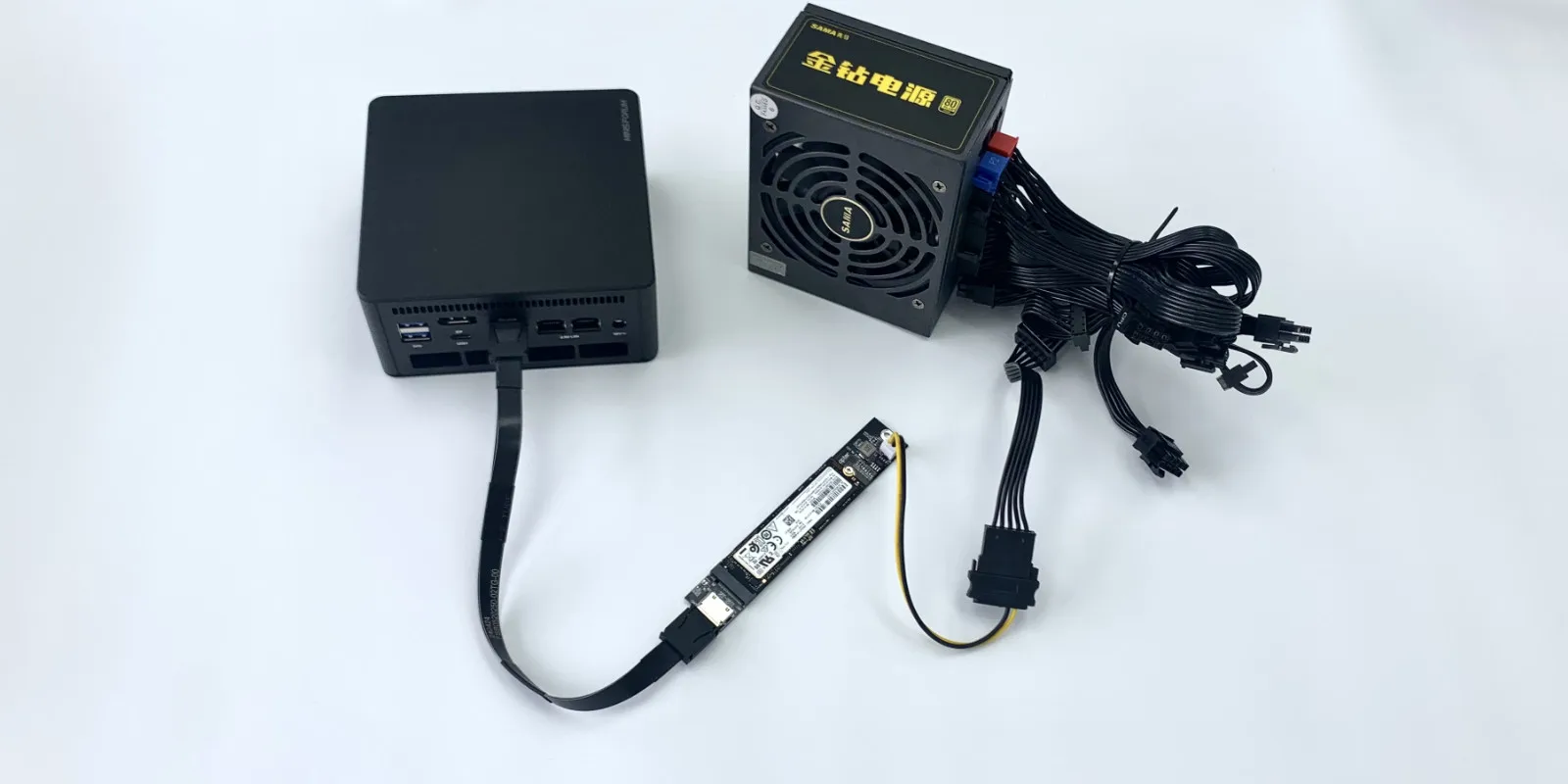

Accessory Note: Comes with a SATA 12V power adapter cable that must be connected for use.
Product advantages.
1, the product selection of high-quality materials, UL certified PCB board,
PCB workmanship precision, copper thickness thickened to 1oz, non-invariant,
colour and lustre yellow crystal semi-transparent does not whiten not black.
2, support PCIe 4.0 x4, compatible with Gen3.

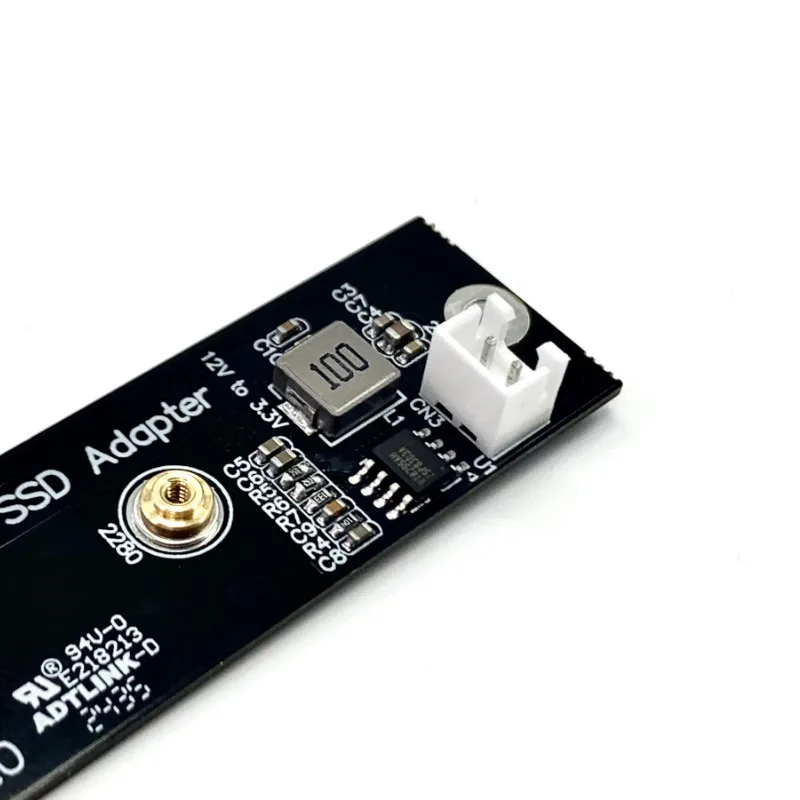

3, This product adopts DCDC chip, the advantages include stable power supply,
high efficiency and energy saving and over-current, over temperature and short
circuit protection function, while protecting the efficiency and stability of the system.

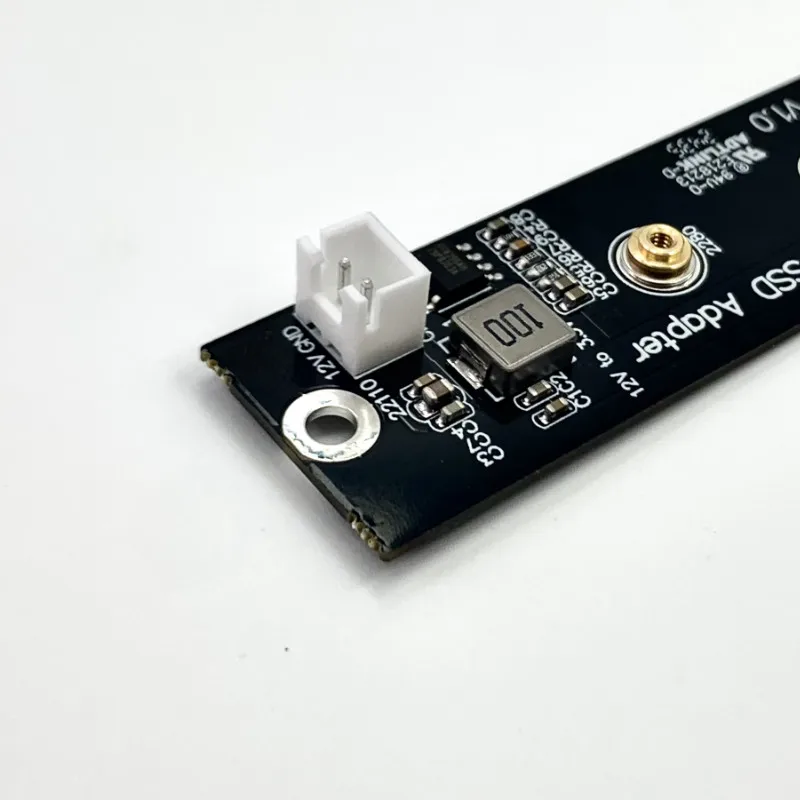

4, With SATA power adapter cable, widely compatible, 12V to 3.3V stable power supply.
Technical Question Summary.
Dose ADT model F4D support PCIe 4.0?
Our lab test can reach PCIe 4.0.
What kind of SSDs does F4D support?

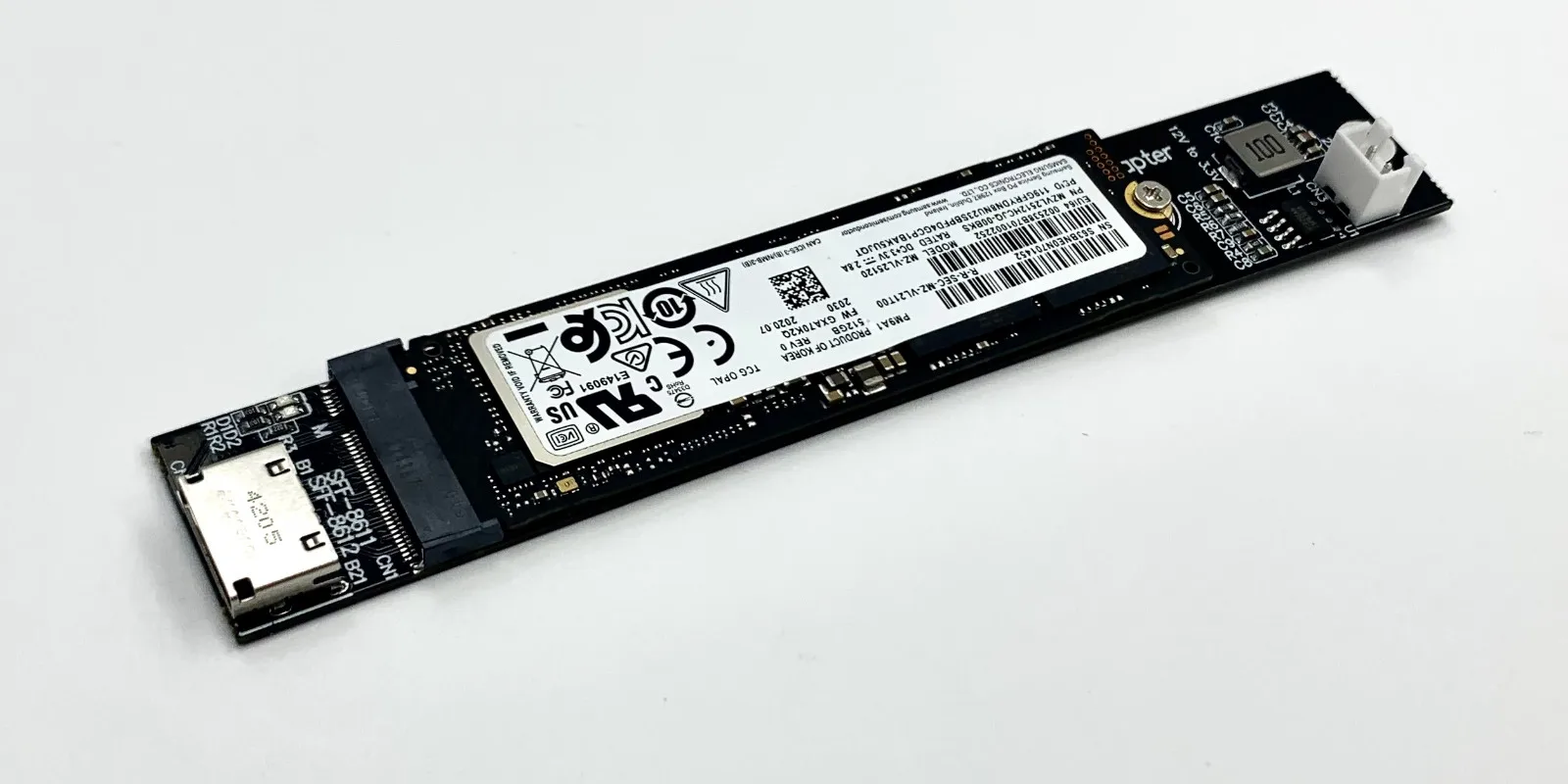

F4D supports 2230, 2242, 2260, 2280 M.2 NVME SSDs.
Download:
https://www.adt.link/product/F4D.html
Open 3D PDF files. Please use Adobe Reader DC software.
3D model files download http://www.adtlink.cn/download/ADT-F4D.zip

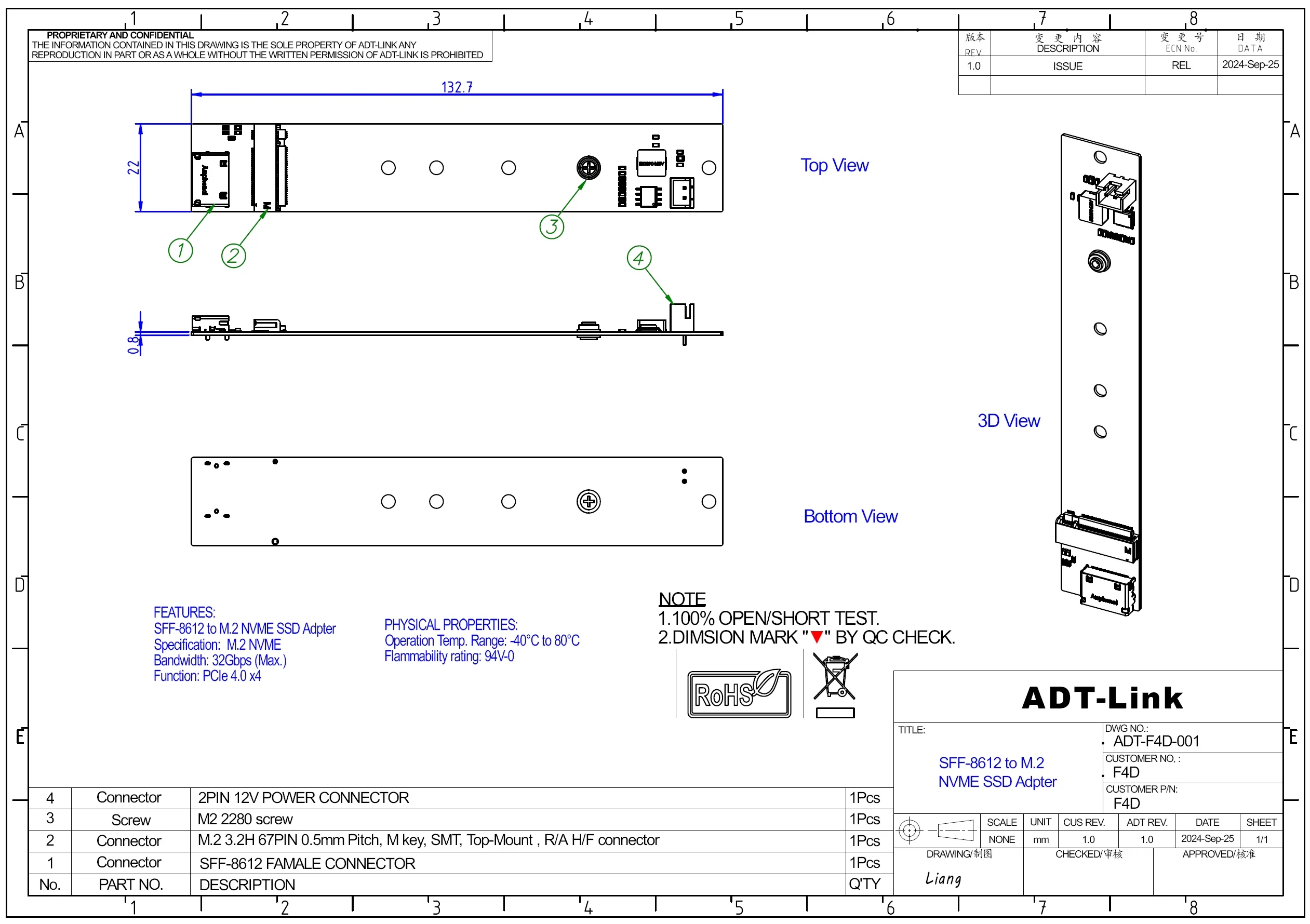

Specification files download http://www.adtlink.cn/download/ADT F4D specification 20240925.pdf
