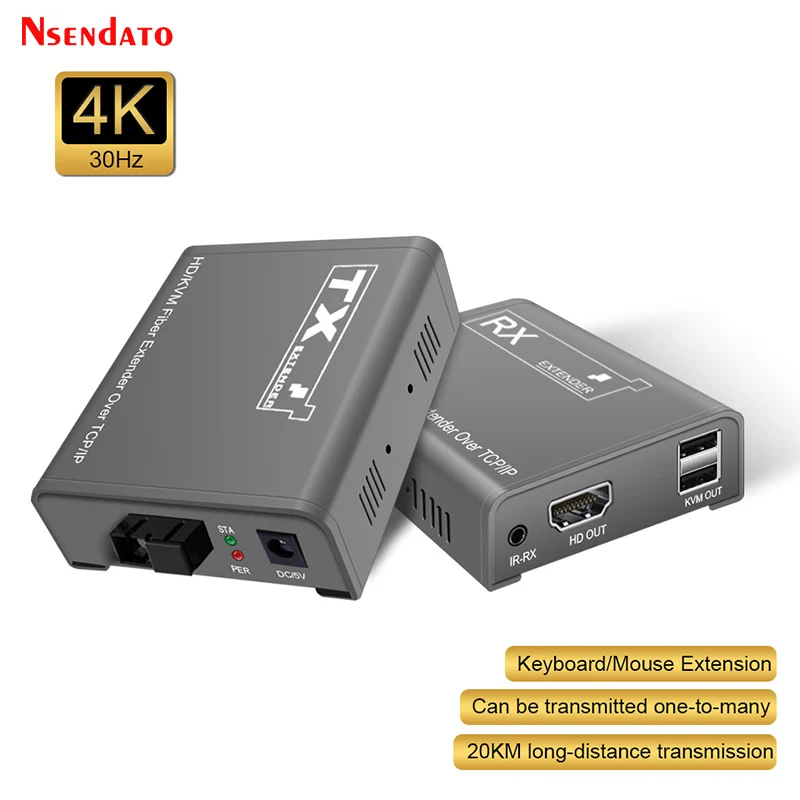

HDMI USB KVM Optical Extender 4K 20KM TCP/IP KVM Extender HDMI over SC FC Fiber USB 2.0 sharing keyboard mouse Switch With IR
Noted:the link have two version ,one is 4k@30hz,other with 1080p ,but the description for 4k@30hz,please contact us if you have any problem !!!!
Introduction
The extender provides extension of HD signals long distances over a single Fiber, it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:

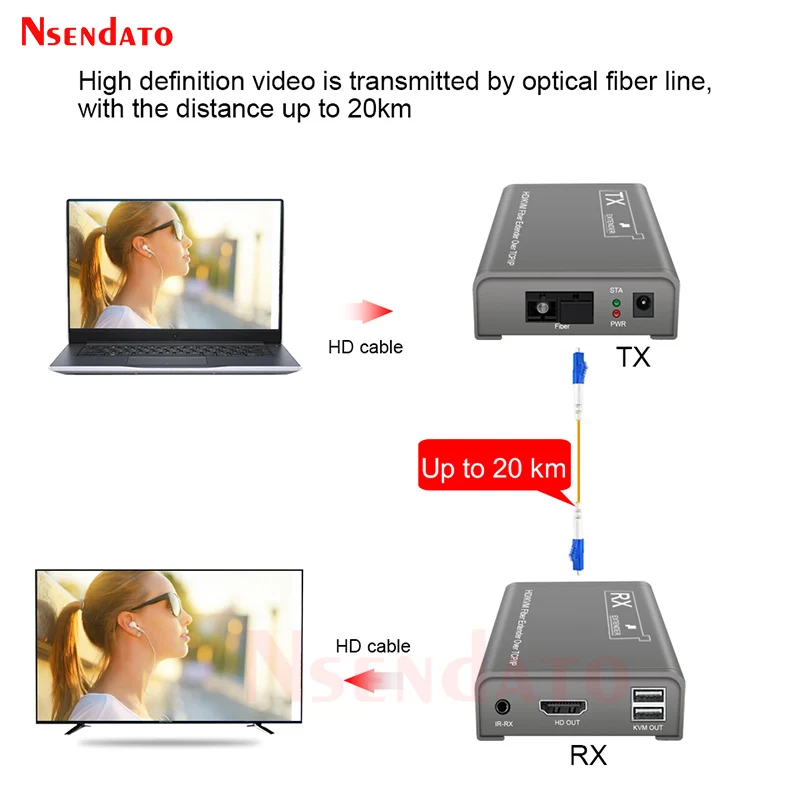

Transmits HD video and audio signals up to 20KM over a single Fiber
Support video resolution up to 4K@30Hz
Support video resolution up to 1920*1080P@60Hz
Support IR signal transmission(20KHz~60KHz)
Support keyboard and mouse
Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch , distribution function is realized
Compliance with HD V1.3 and For HDCP 1.2 standard
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable

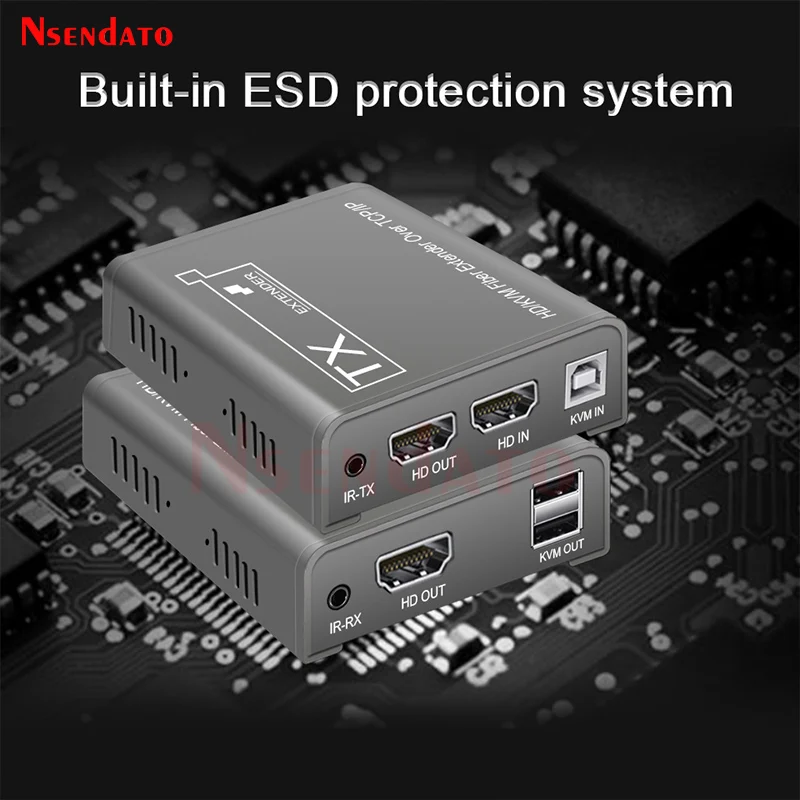

Built-in ESD protection system
Simple to install, plug and play
Specification
Standards:For HD V1.3; for HDCP 1.2
Maximum pixel clock:165MHz
Maximum data rate:6.75Gbps
Resolution:1920X1080P@60Hz
Connector:HD-A
Impedance:100Ω
PC:Type B USB interface; connect to pc;
K/M:connect USB keyboard and mouse;
Interface:3.5mm seat
IR frequency:20-60kHz
Fiber:Interface SC/FC
Fiber Model:Single mode
wavelength:Single mode 1310nm；1550nm
bandwidth:6.25Gbps
Transmission distance:default standard 20KM, MAX up to 80KM

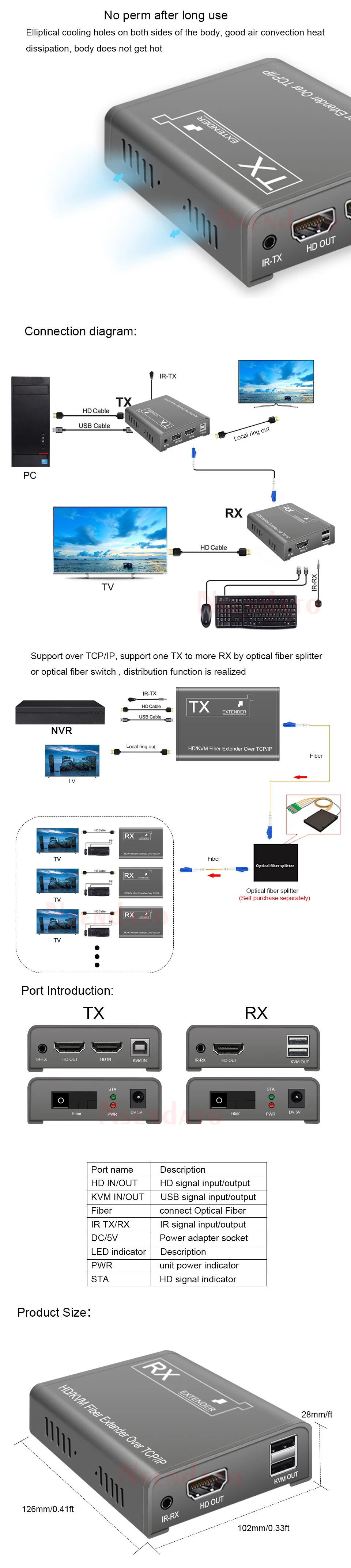

Installation Process:
1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
2.Connect an HD cable between the HD input port of transmitter and the HD output port of the video source
3.Connect the HD output port of receiver to the display device with HD cable, Connect the transmitter Fiber port to the receiver Fiber port using a single Optical fiber
4.Connect transmitter PC IN port to PC using mini USB cable

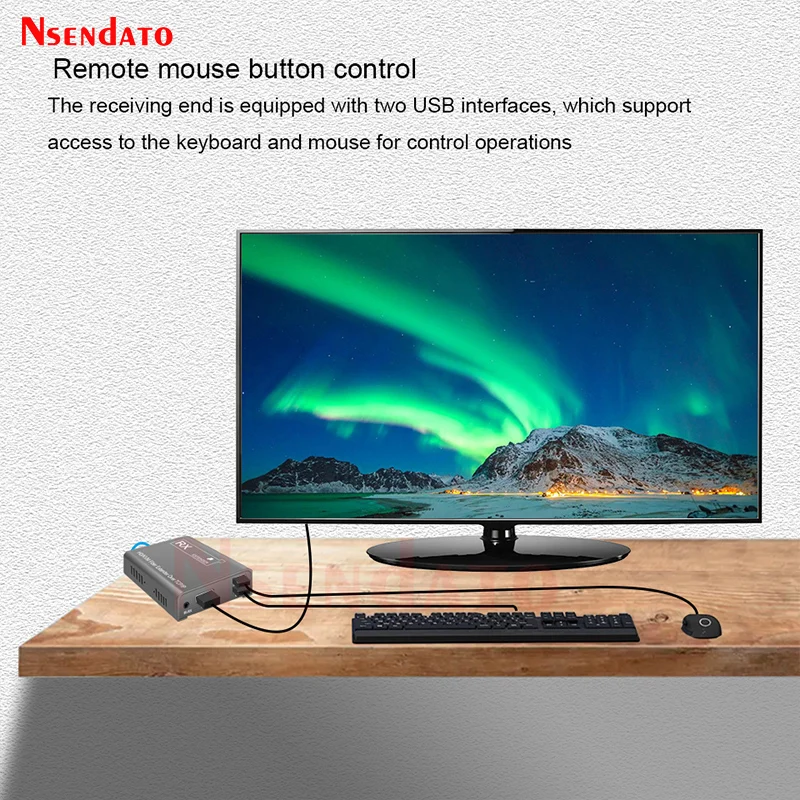

5.Connect USB keyboard and mouse to Receiver K/M port
6.Power on Transmitter and Receiver

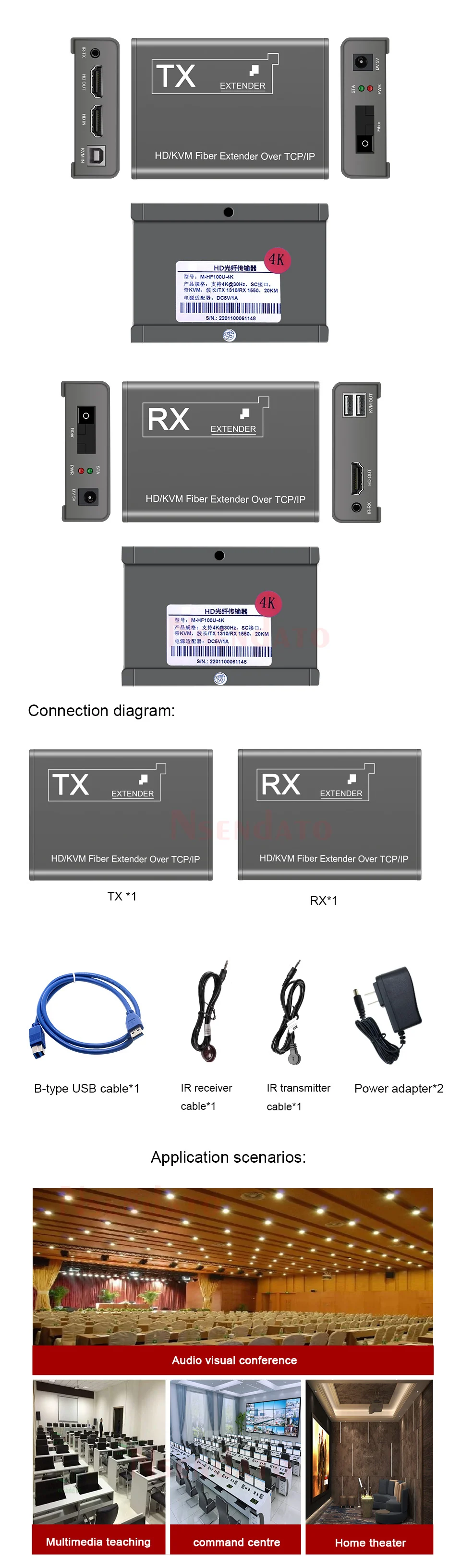

Package
HD transmitter
HD receiver
USB Cable
Power adapter
User manual
