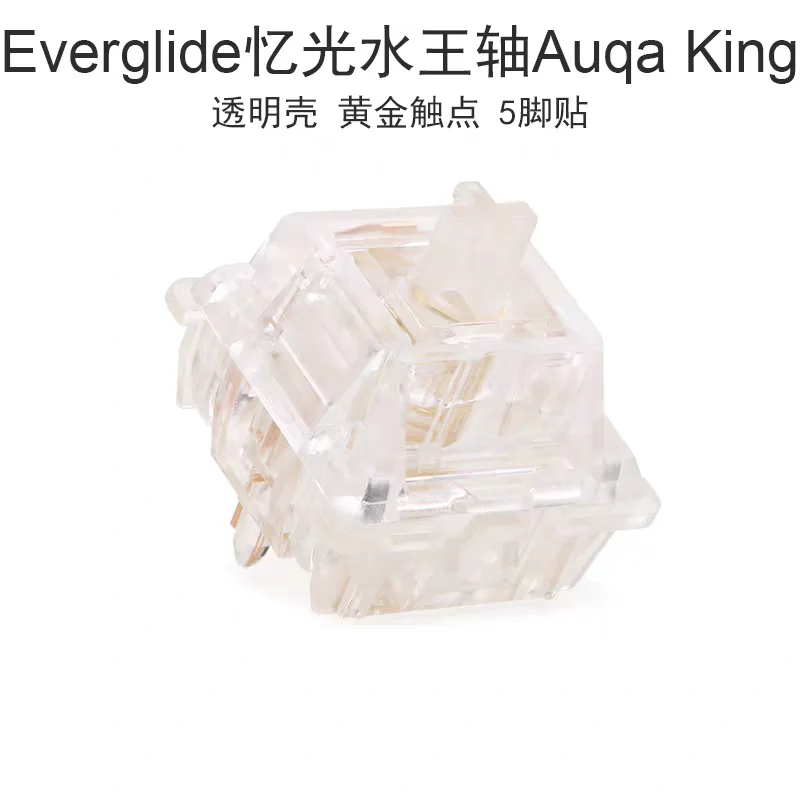

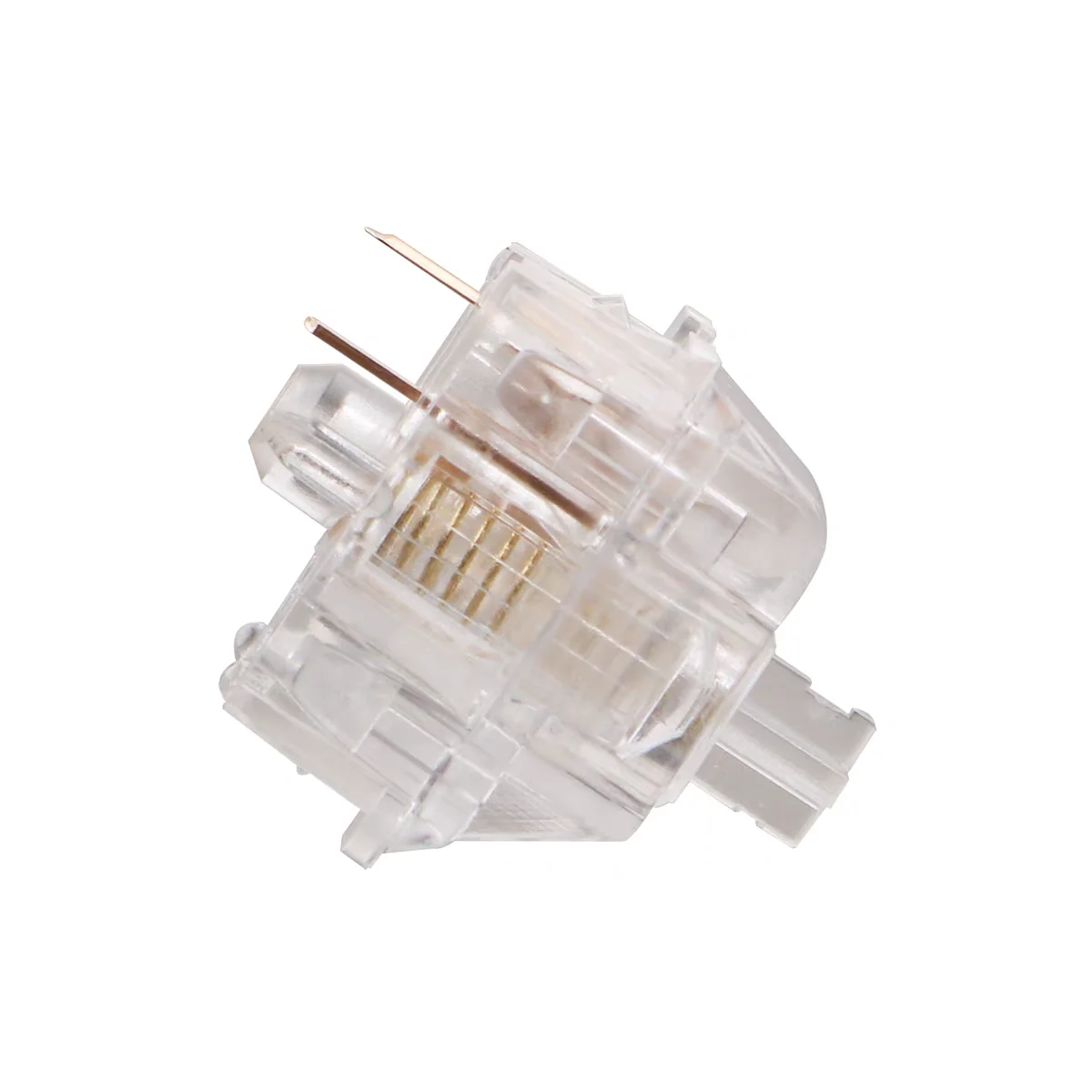

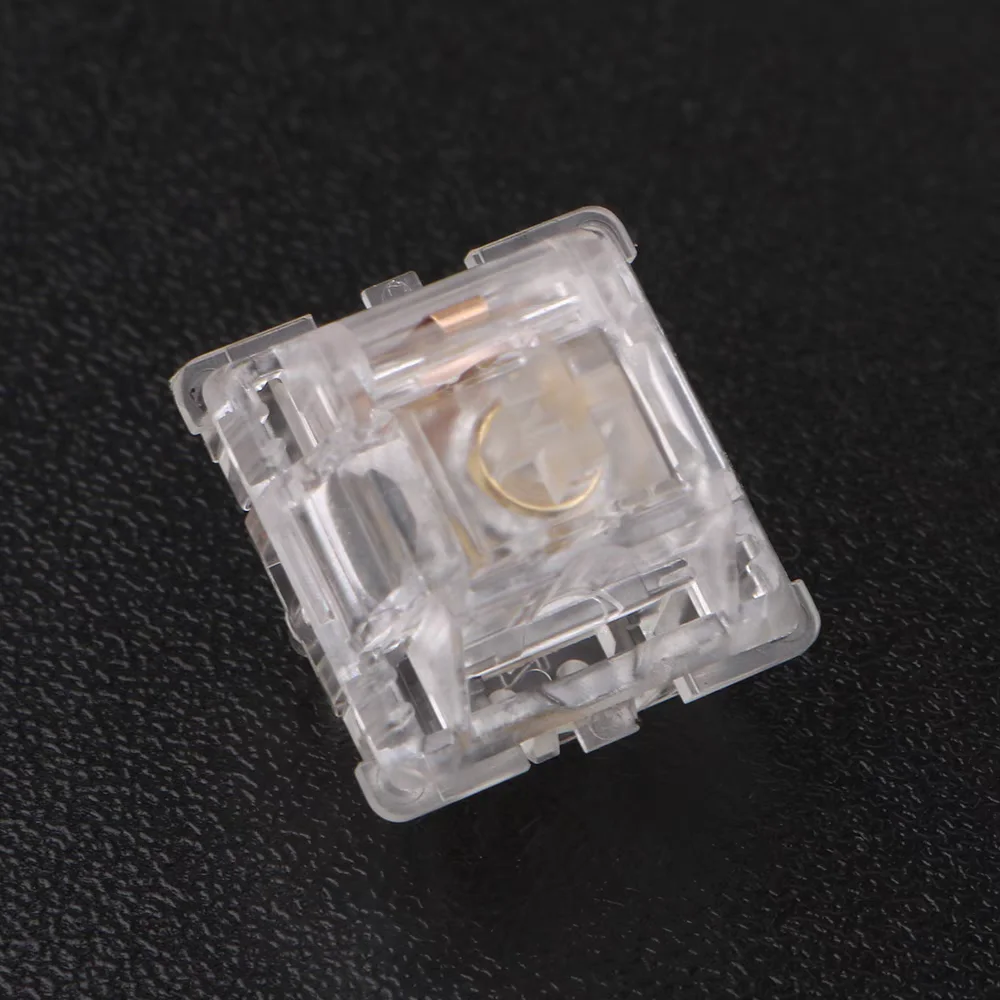

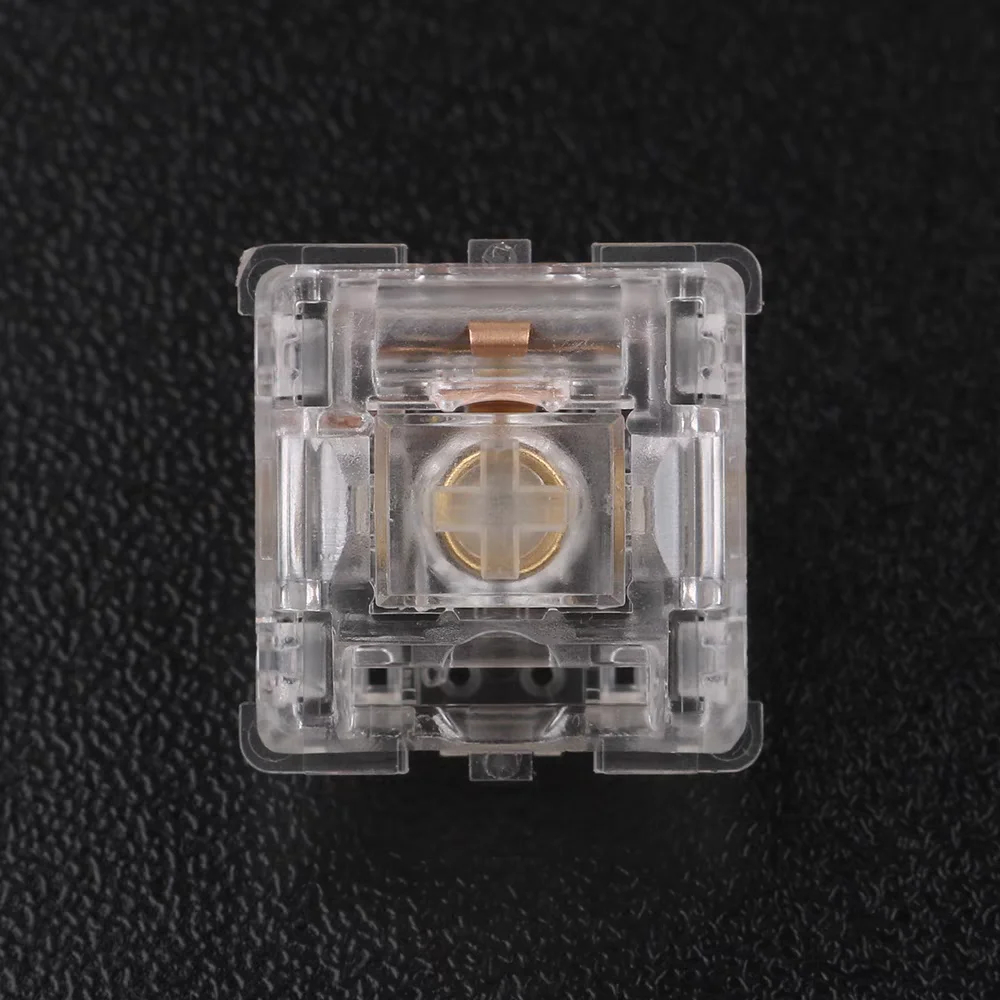

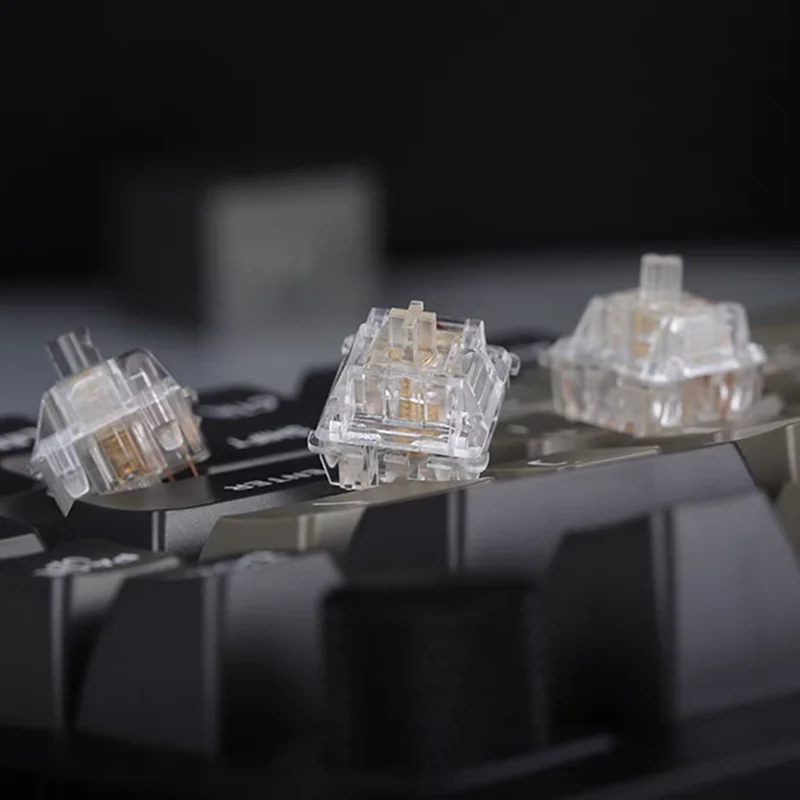

The ocean may be deep, but it's a smooth ride all the way down. Take a dive, and chances are, you'll see everything in front of you. The same holds true for Everglide's new Aqua King switches. With a total travel of 4 millimeters, these linear switches have a longer round trip than most other linear options—but with the same consistent resistance from start to finish. Where they standout is in their fully transparent housings, which elegantly reflect light—much like ocean water. Other components include a stainless steel spring with a gold plate, as well as gold alloy contacts for extra durability. Choose from three switch weights to fine-tune your feel, and select from three pack sizes to fit any board.

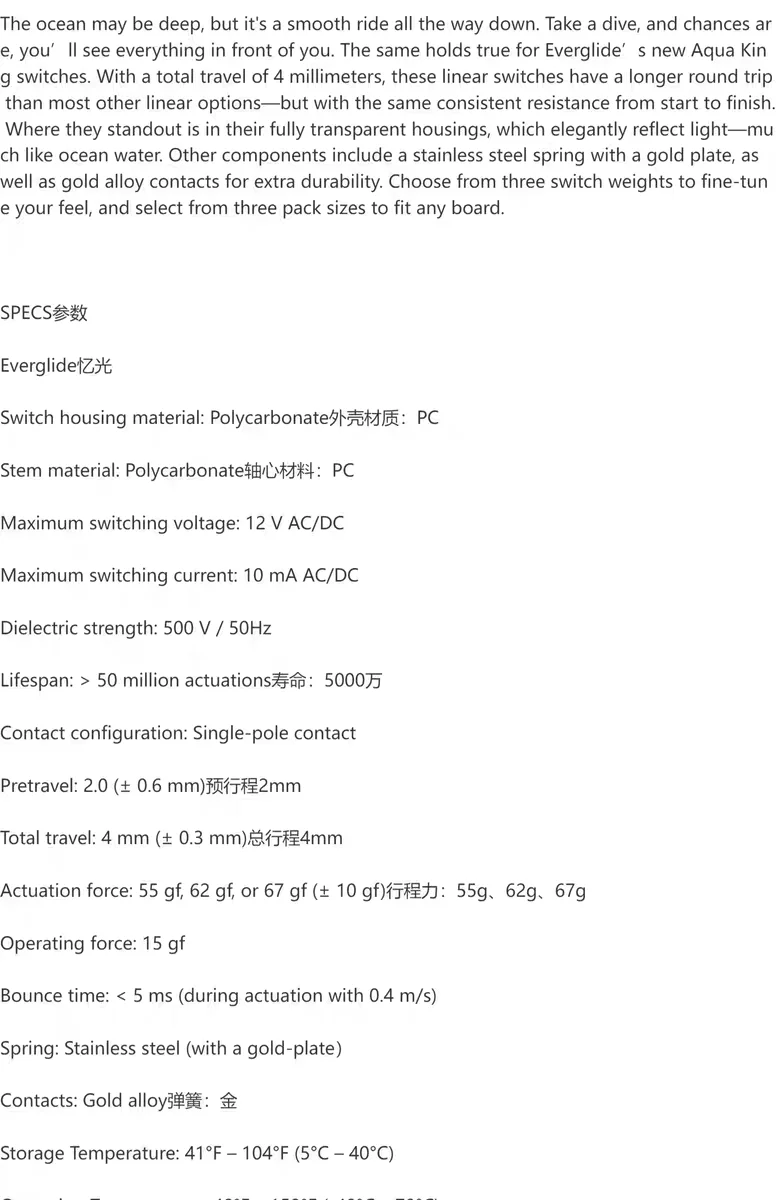

SPECS
Everglide
Switch housing material: Polycarbonate
Stem material: Polycarbonate
Maximum switching voltage: 12 V AC/DC
Maximum switching current: 10 mA AC/DC
Dielectric strength: 500 V / 50Hz
Lifespan: 50 million actuations
Contact configuration: Single-pole contact
Pretravel: 2.0 (± 0.6 mm)
Total travel: 4 mm (± 0.3 mm)
Actuation force: 55 gf, 62 gf, or 67 gf (± 10 gf)
Operating force: 15 gf
Bounce time: 5 ms (during actuation with 0.4 m/s)
Spring: Stainless steel (with a gold-plate）
Contacts: Gold alloy
Storage Temperature: 41°F – 104°F (5°C – 40°C)
Operating Temperature: -40°F – 158°F (-40°C – 70°C)
Pls pay attention: Aqua King Switch only, not including other things.
