【Overview】

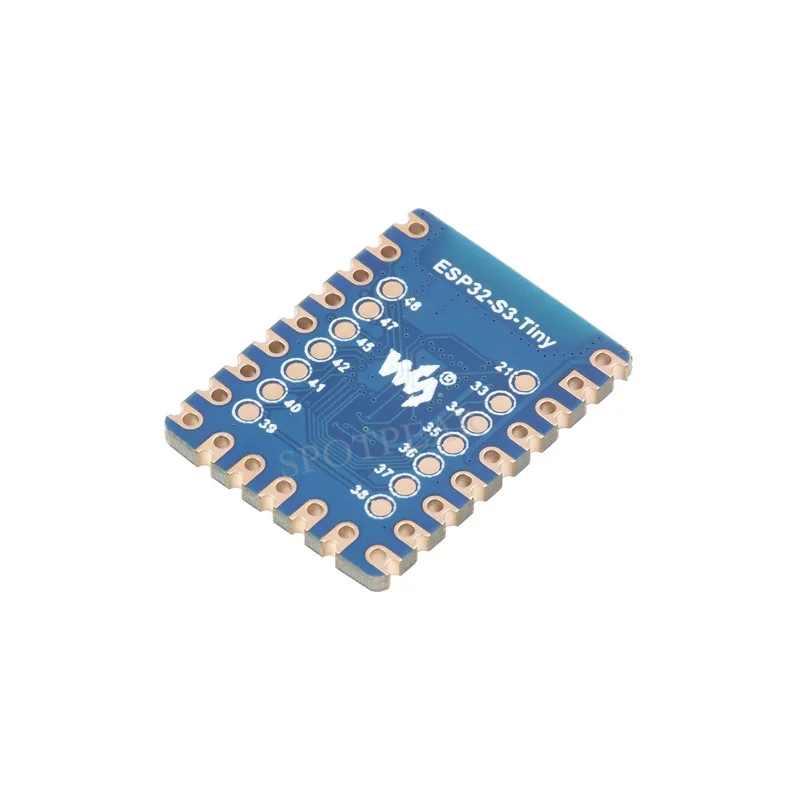

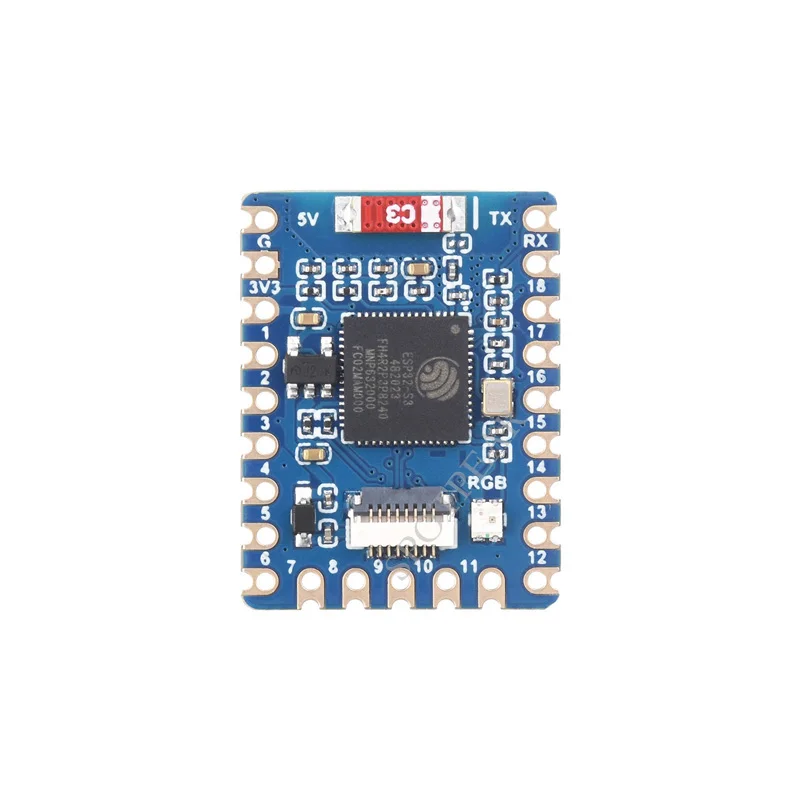

[] ESP32-S3 Mini Development Board, Based On ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, USB Port Adapter Board Optional
【Features】
[] Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
[] Built in 512KB of SRAM and 384KB ROM, onboard 2MB PSRAM and 4MB Flash memory
[] Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
[] Onboard FPC 8PIN connector, supports adapting USB Type-C port via adapter board
[] 34 × multi-function GPIO pins
[] Rich peripheral interfaces, including SPI, I2C, UART, ADC, and PWM, etc. to achieve various functions flexibly
[] Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

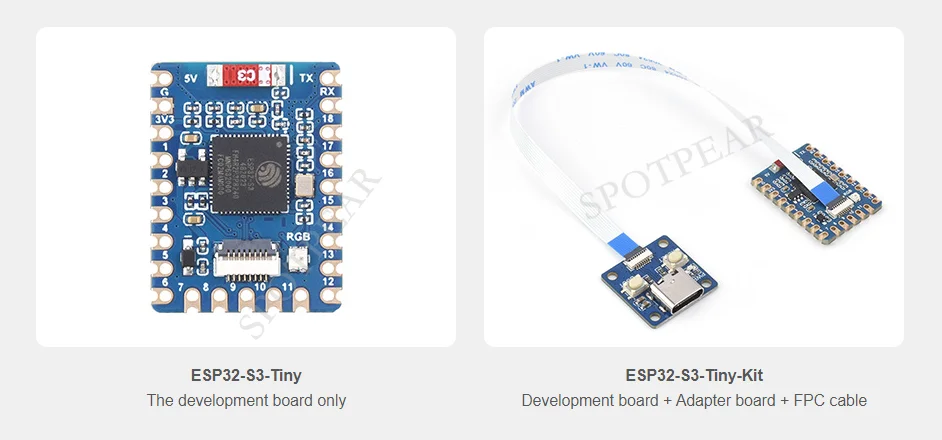

【Version Options】
【Designed For AIoT Applications】
[] Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz. Powerful AI Computing Capability & Reliable Security Features

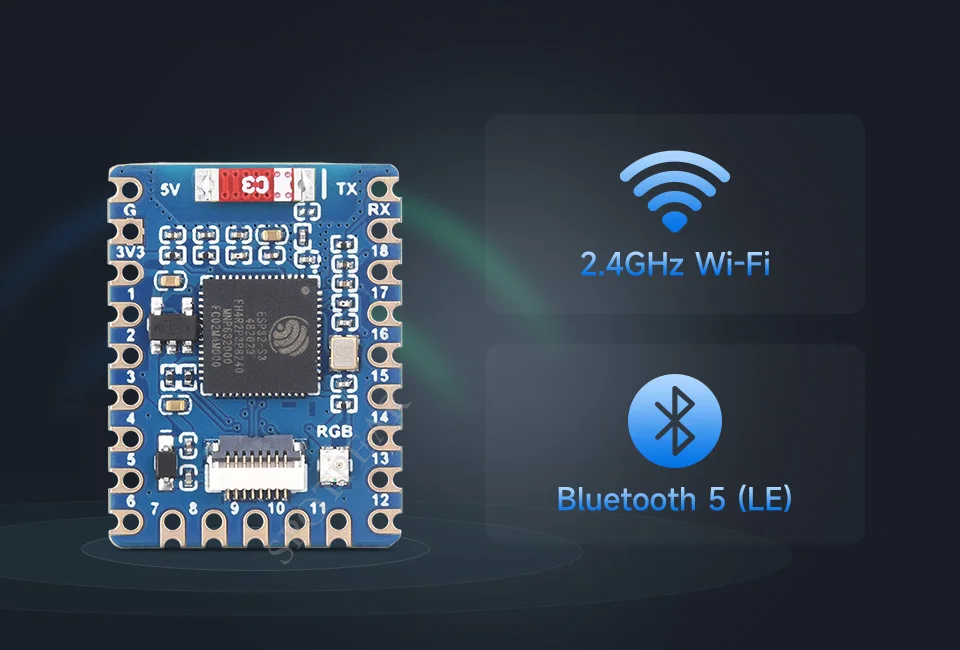

【WIFI And BLE 5 Support】
[] ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support. Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

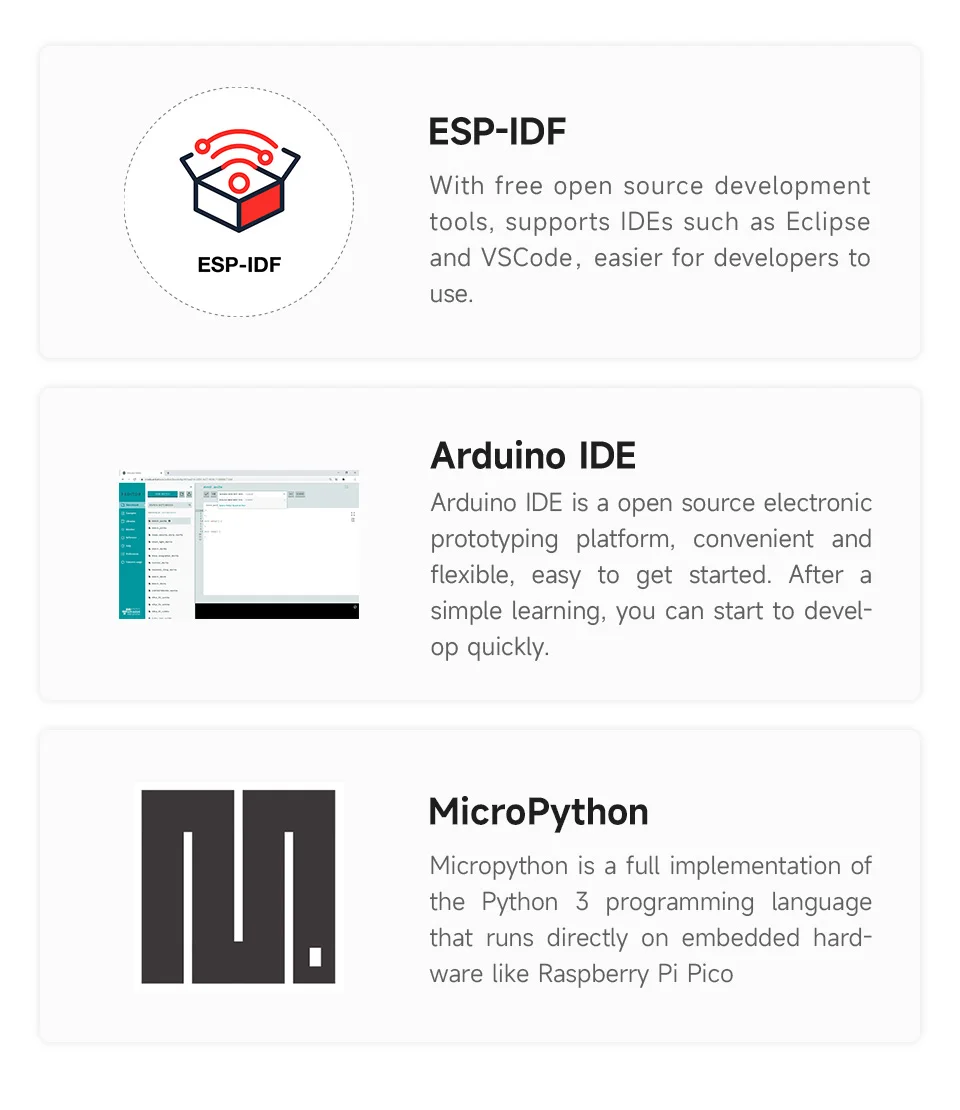

【Multi-Platform Support】
[] Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

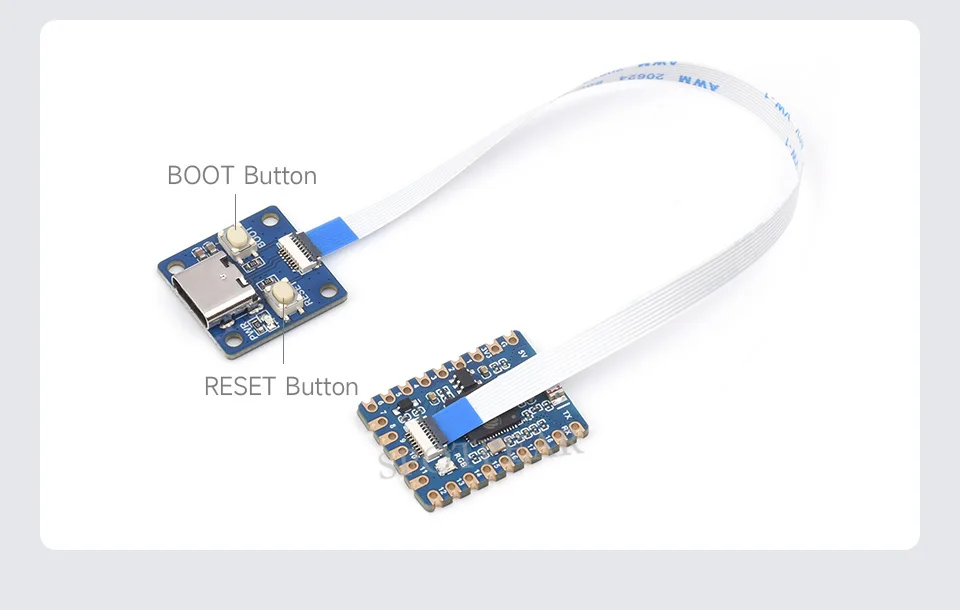

【Compact Size, Separate Adapter Board Design】
[] Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications
[] Adapting USB Type-C Port Via Adapter Board (Available In ESP32-S3-Tiny-Kit Version)

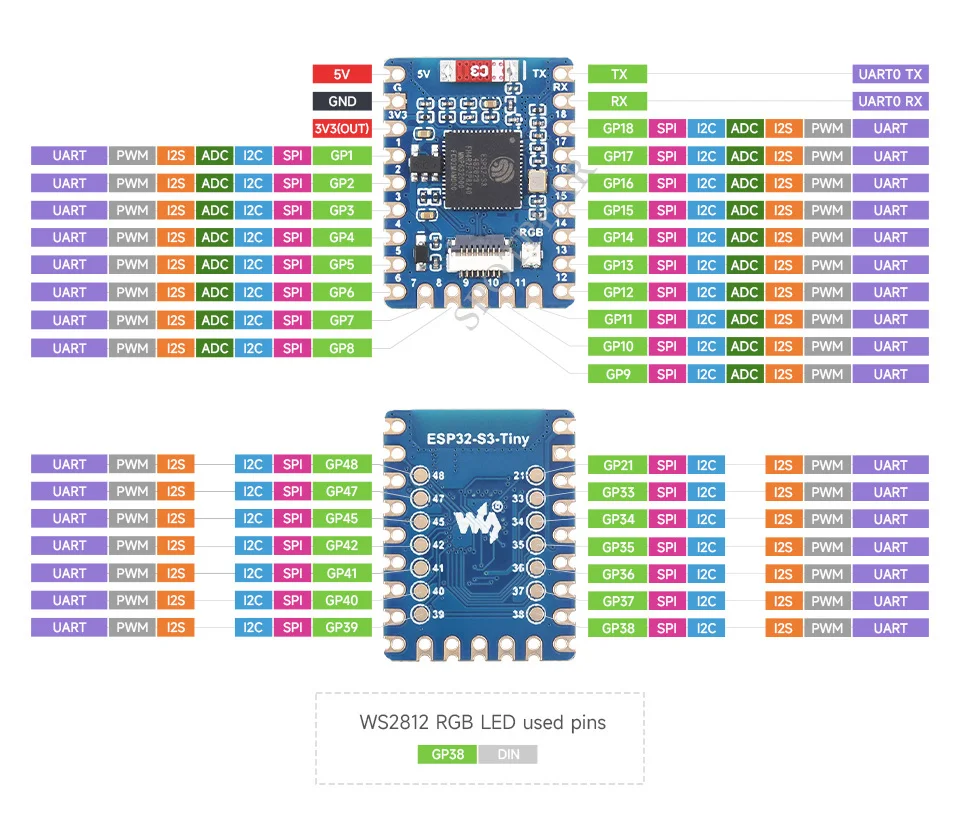

【34 X Multi-Function GPIO Pins】
[] Configurable Pin Function, Allows Flexible Development And Integration

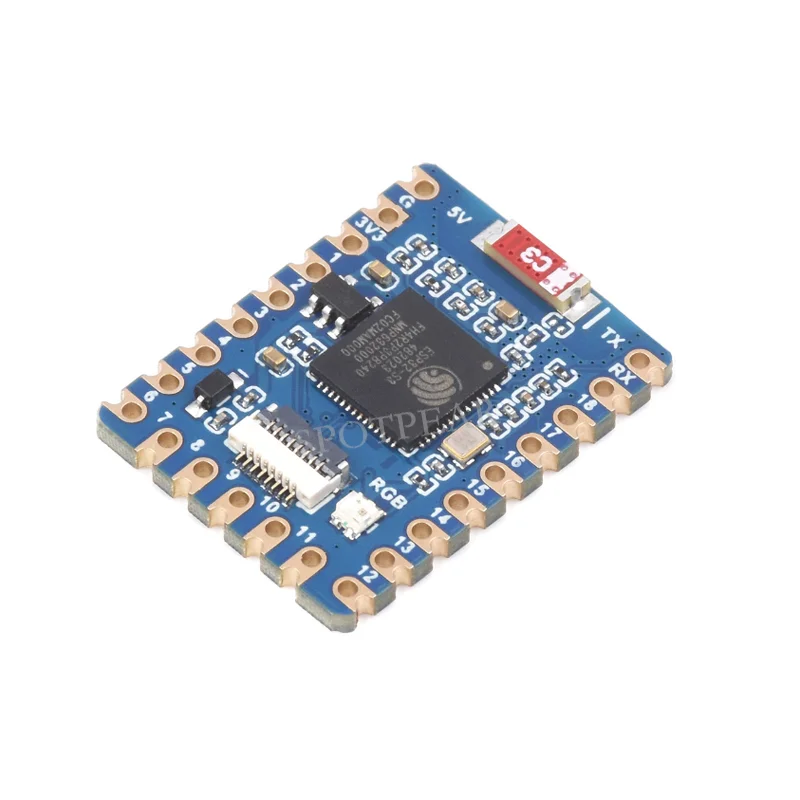

【What's On Board】
[] 1. ESP32-S3 : dual-core processor, up to 240MHz operating frequency
[] 2. ME6217C33M5G : low dropout LDO, 800mA (Max)
[] 3. FPC connector : 0.5mm pitch 8PIN
[] 4. WS2812 RGB LED
[] 5. GPIO pins
[] 6. USB Type-C Port
[] 7. Power indicator
[] 8. RESET button
[] 9. BOOT button

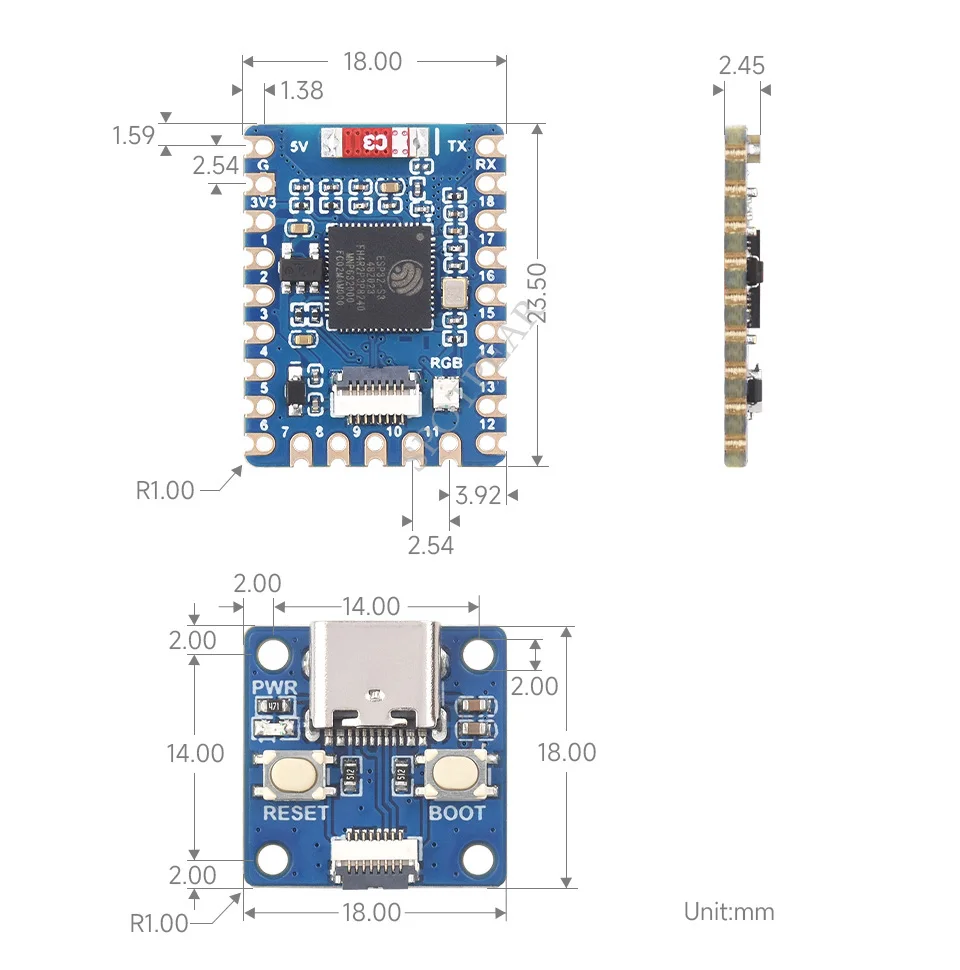

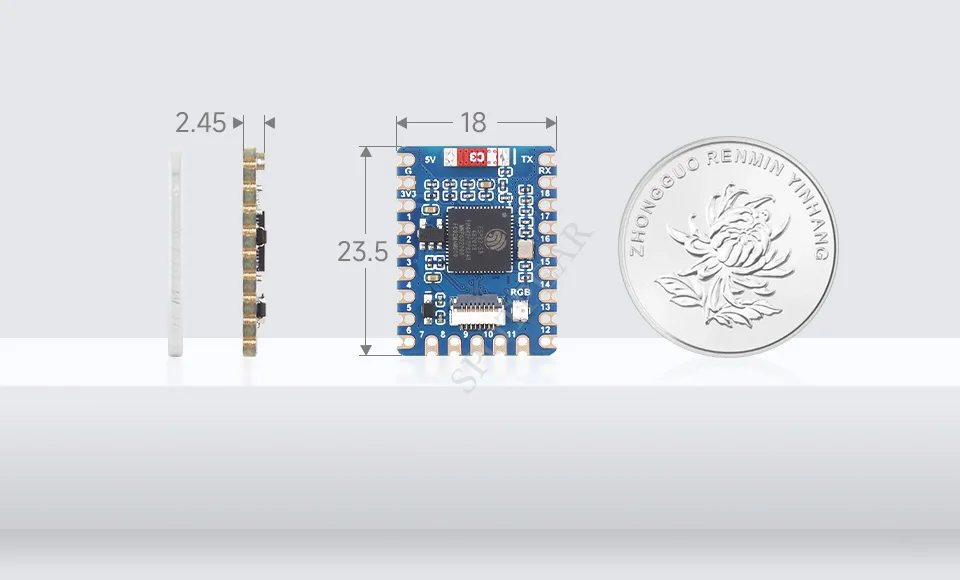

【Outline Dimensions】
[] ESP32-S3-Tiny x1

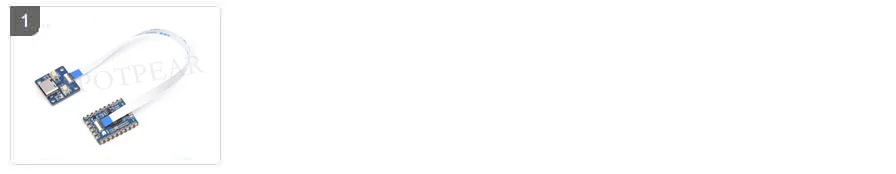

[] ESP32-S3-Tiny-Kit : ESP32-S3-Tiny with adapter board + FPC cable x1
