Embedded ST7796S Driver And FT6336U Capacitive Touch Control Chip

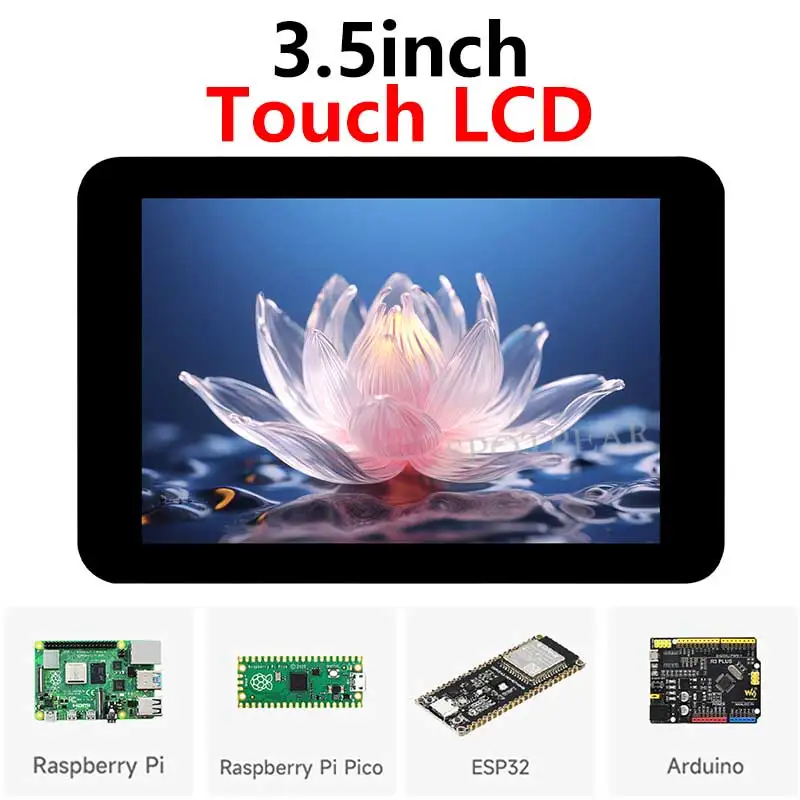

Comes with examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino
320×480 resolution, 262K colors, clear and colorful displaying effect

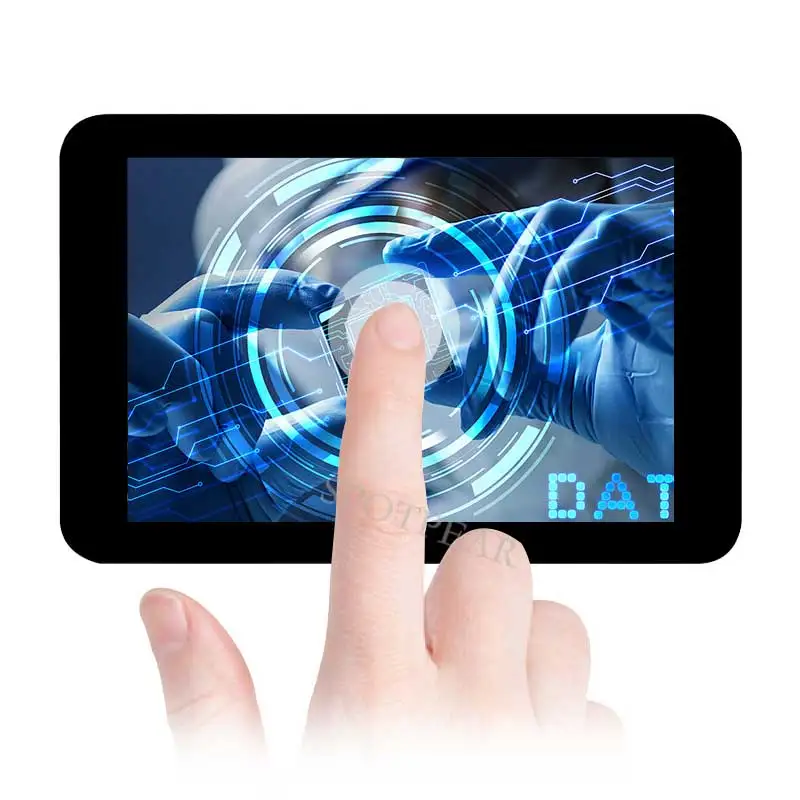

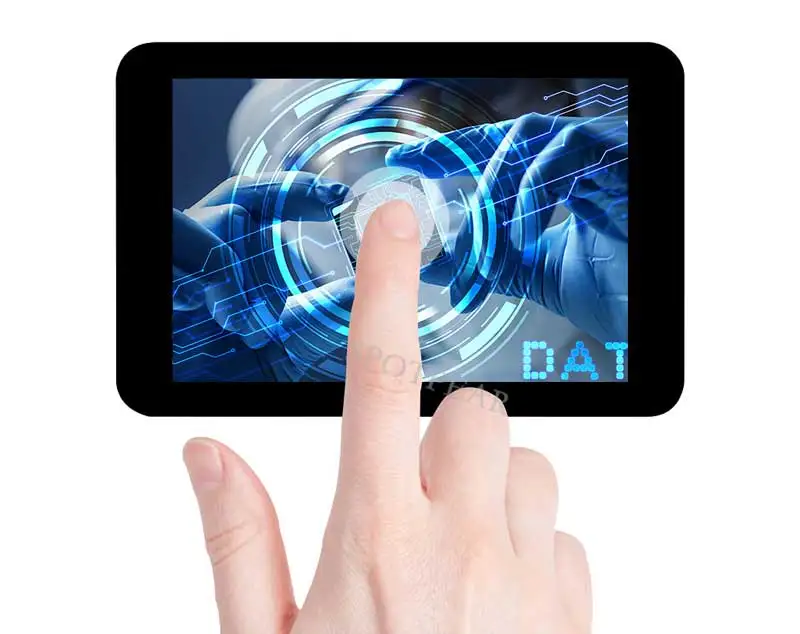

High touch screen transmittance, fast response and long lifetime
Embedded with ST7796S driver chip and FT6336U capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins

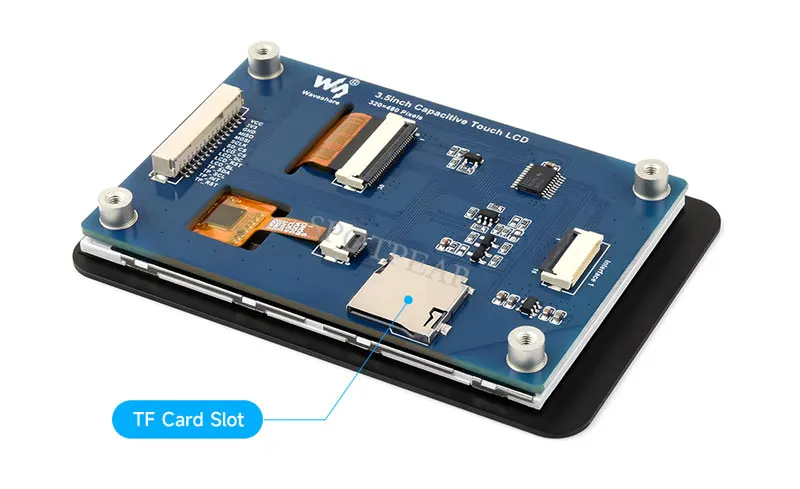

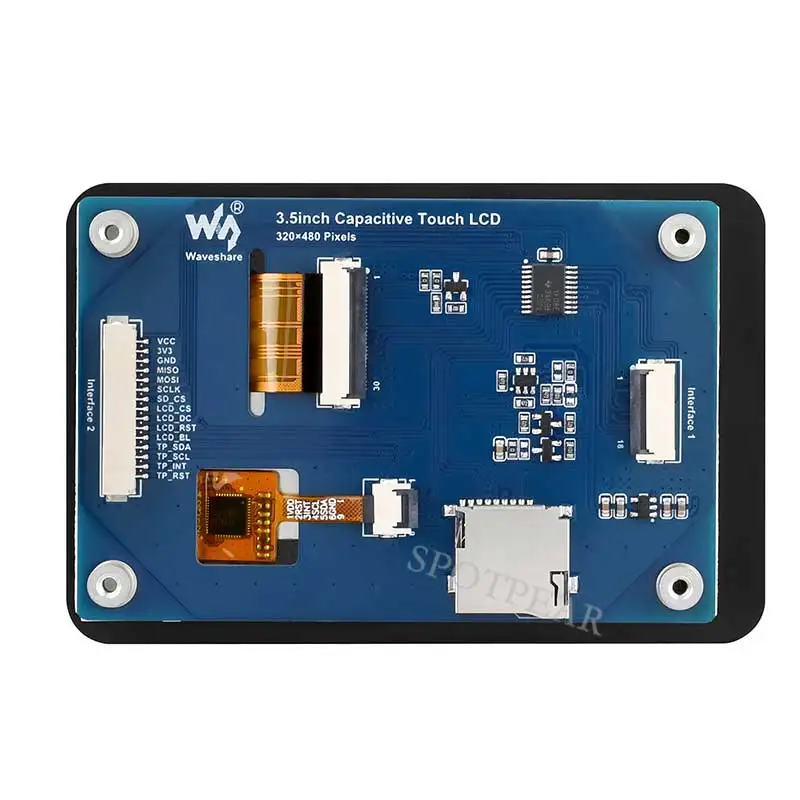

Onboard TF card slot for storing more pictures, videos, music, etc.
Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board

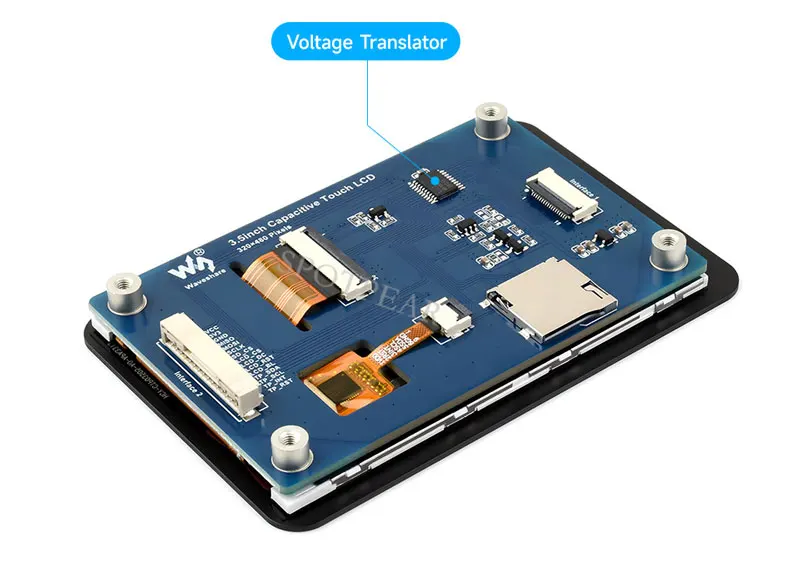

Onboard voltage translator, compatible with 3.3V / 5V operating voltage
Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)

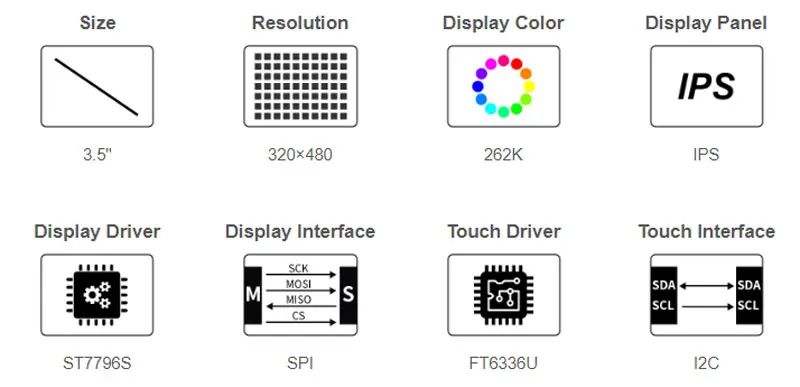

OPERATING VOLTAGE
3.3V / 5V
RESOLUTION
320 × 480 pixels
DISPLAY DRIVER
ST7796S
TOUCH DRIVER
FT6336U
DISPLAY INTERFACE
4-wire SPI
TOUCH INTERFACE
I2C
DISPLAY PANEL
IPS
TOUCH TYPE
Capacitive
PIXEL PITCH
0.051 × 0.153 (mm)
TOUCH POINTS
Two-point touch

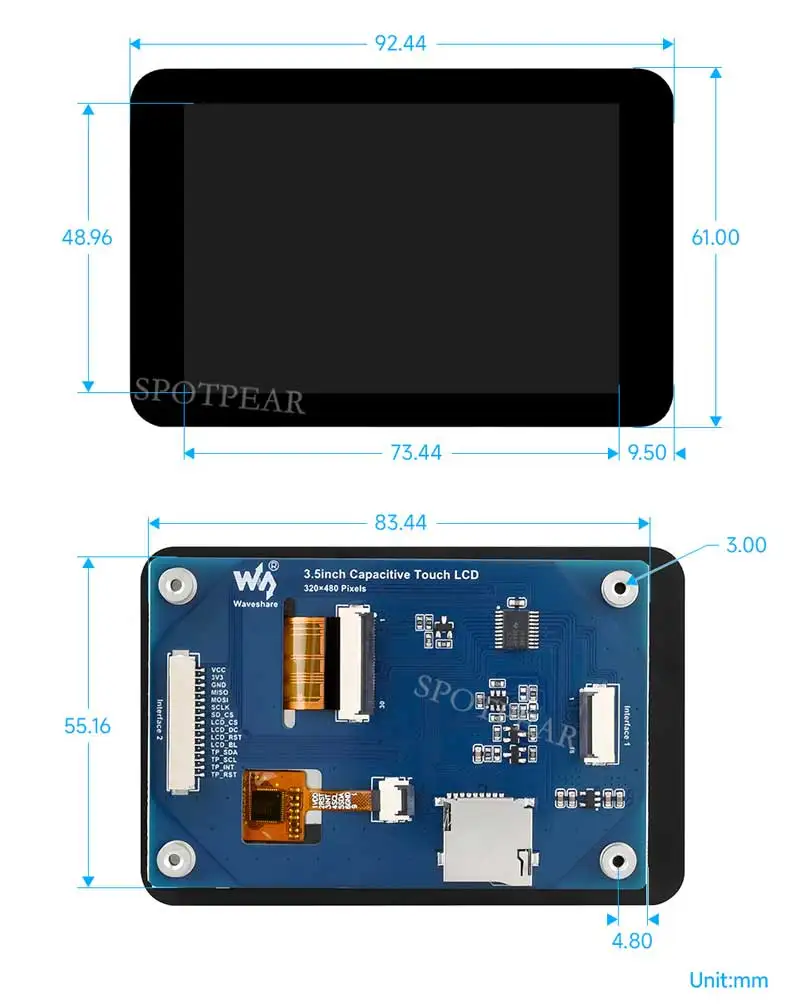

DISPLAY SIZE
48.96 × 73.44 (mm)
MODULE SIZE
61.00 × 92.44 (mm)

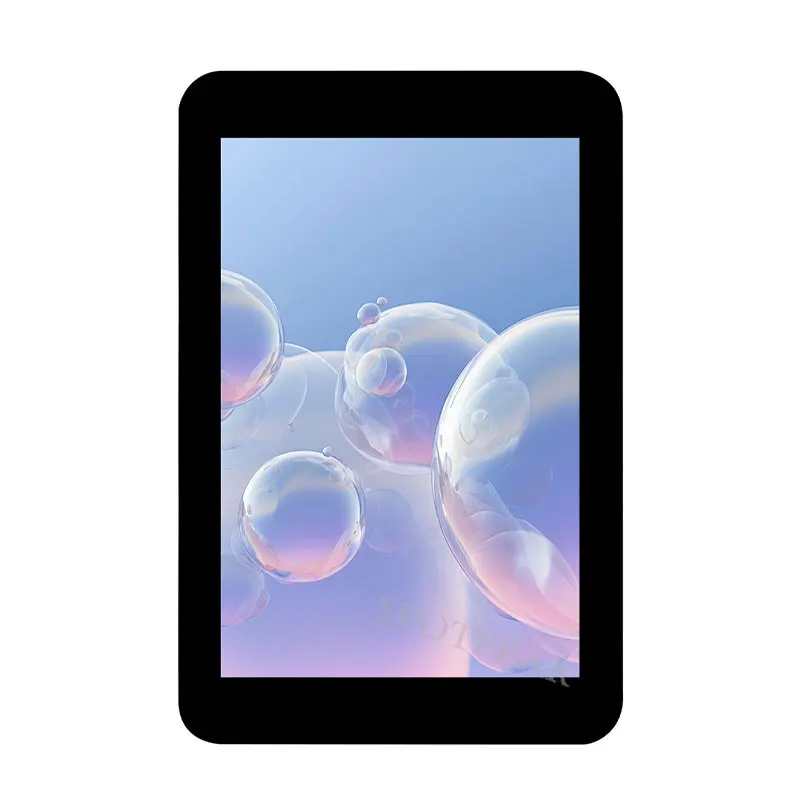

3.5inch Touch Display
Embedded With ST7796S Driver Chip And FT6336U Capacitive Touch Control Chip
Compatible With 3.3V / 5V Operating Voltage
For Storing More Pictures Or Files

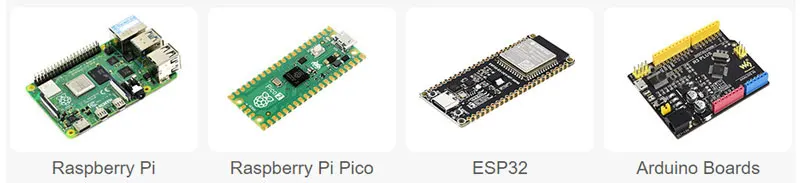

Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, With High Expansibility
SPI And I2C Control Interfaces

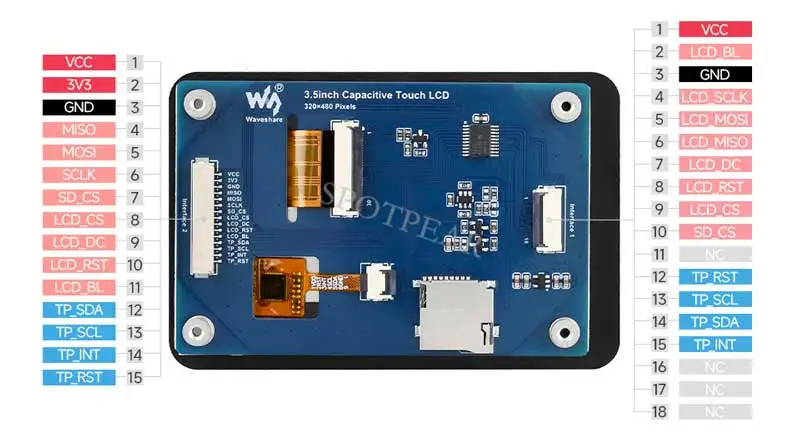

PIN
DESCRIPTION
15PIN
PIN NO.
18PIN
PIN NO.
VCC
Power (3.3V / 5V input)
1
1
3V3
Power (3.3V input)
2
NC
GND
Ground
3
3
MISO
SPI MISO pin
4
6
MOSI
SPI MOSI pin
5
5
SCLK
SPI CLK pin
6
4
SD_CS
TF card chip selection, low active
7
10
LCD_CS
LCD chip selection, low active
8
9
LCD_DC
LCD data/command selection (high for data, low for command)
9
7
LCD_RST
LCD reset pin, low active
10
8
LCD_BL
LCD backlight pin
11
2
TP_SDA
Touch panel data pin
12
14
TP_SCL
Touch panel clock pin
13
13
TP_INT
Touch panel interrupt pin
14
15
TP_RST
Touch panel reset pin, low active
15
12
Hardware Connection

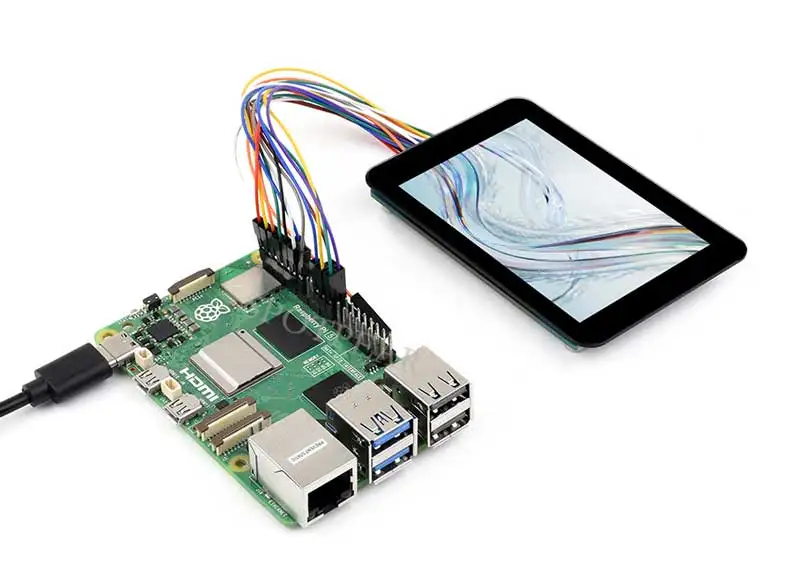

Connecting with Rasperry
Pi 5

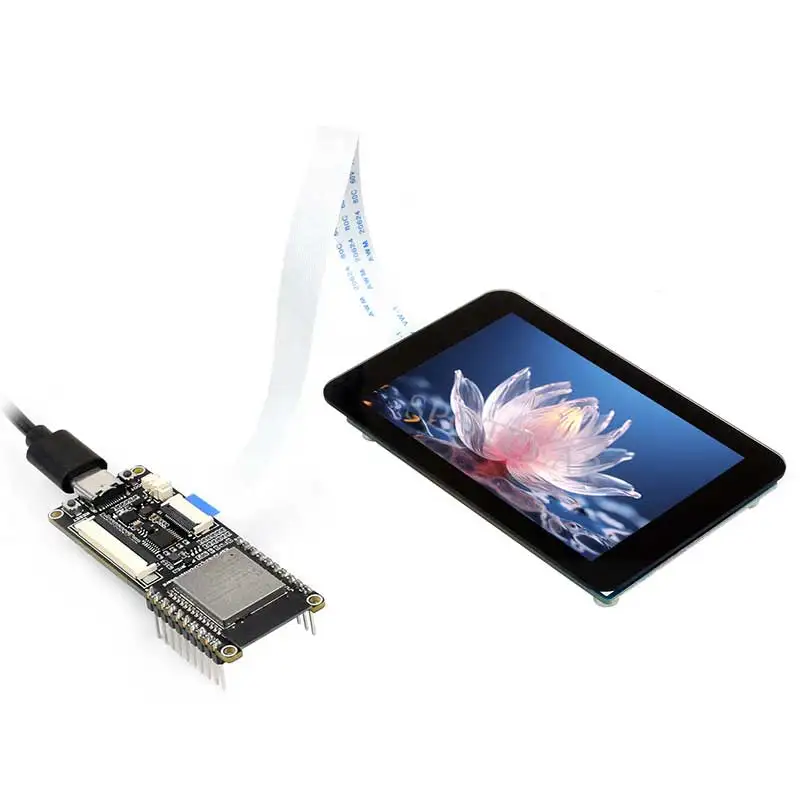

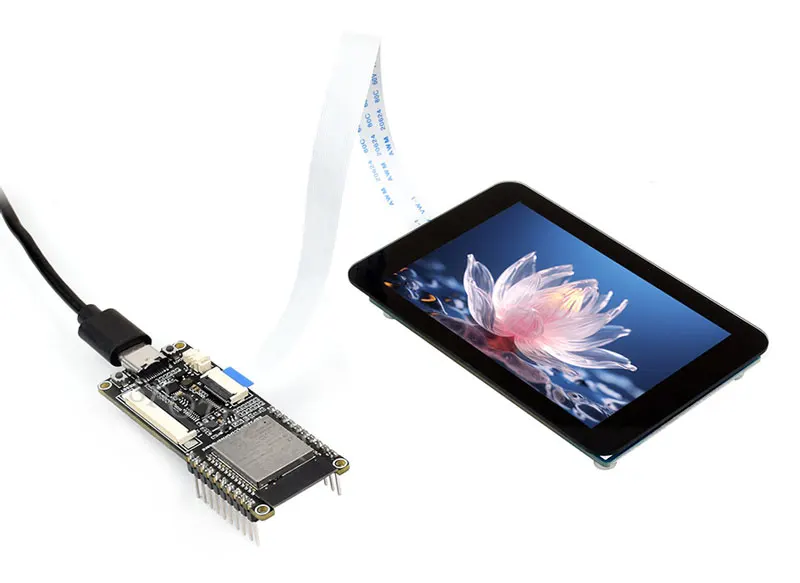

Connecting with ESP2-S3
* for reference only, the and

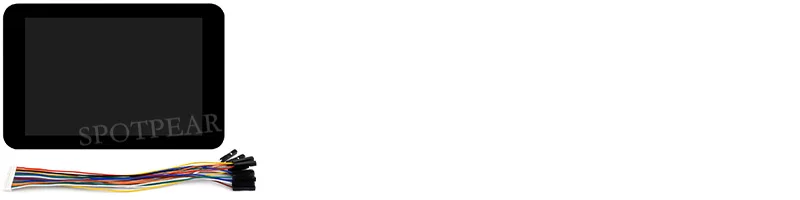

PACKAGE CONTENT
[] 3.5inch Capacitive Touch LCD
