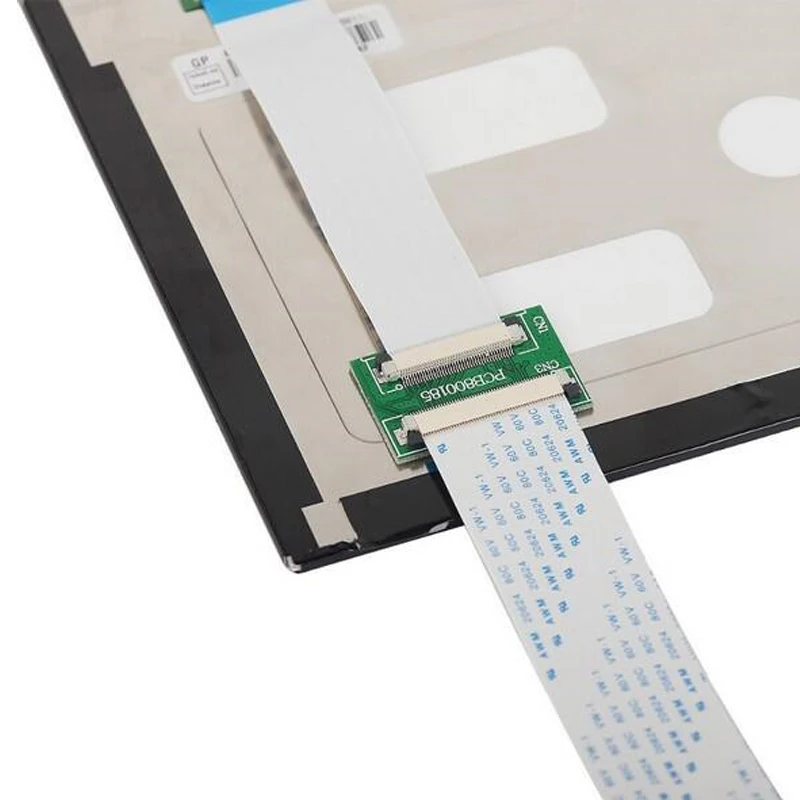

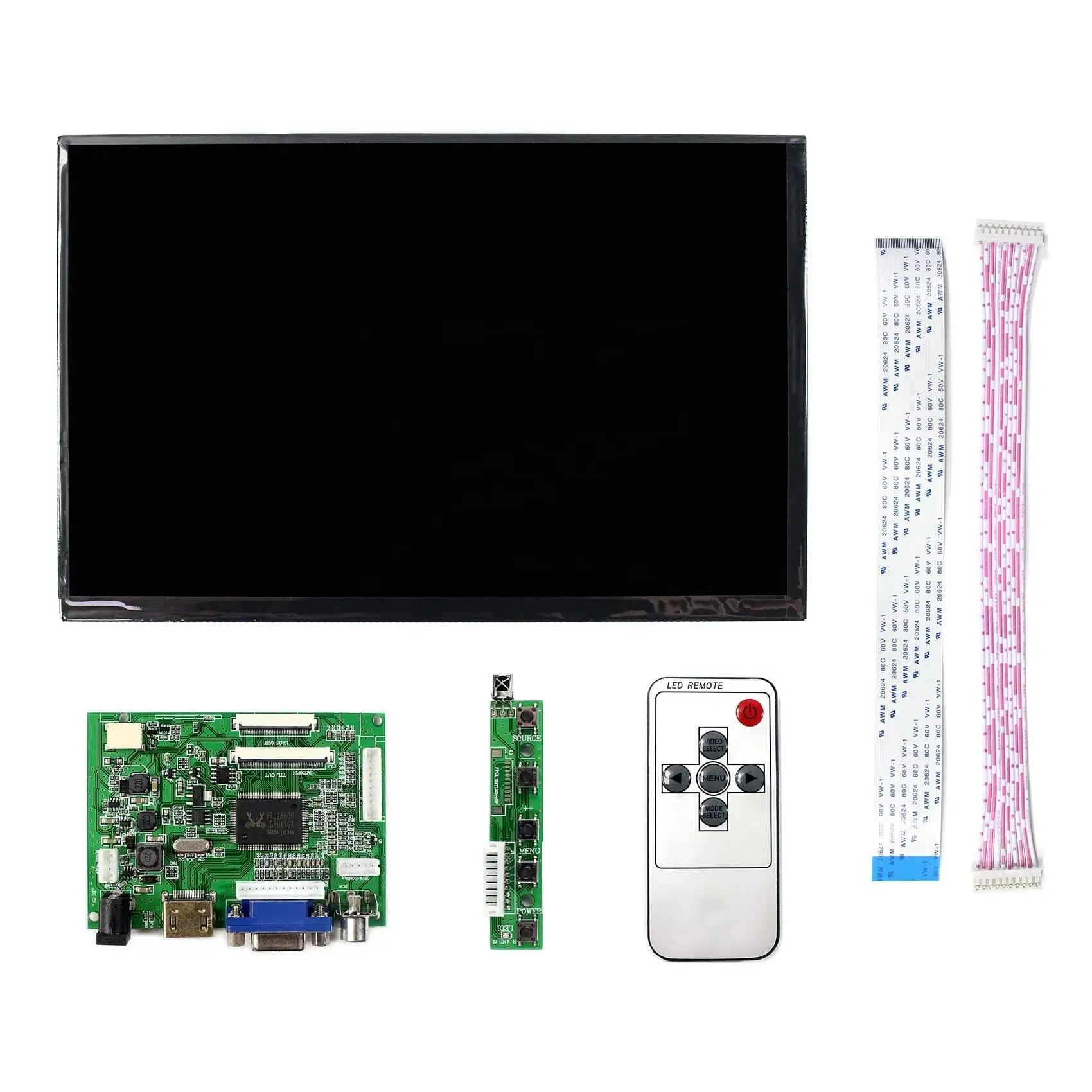

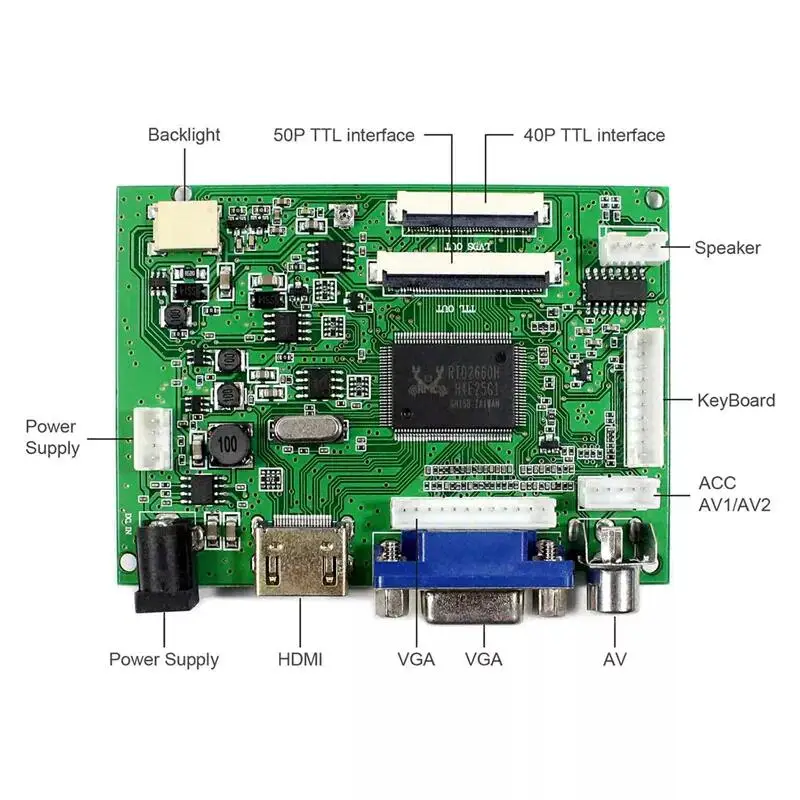

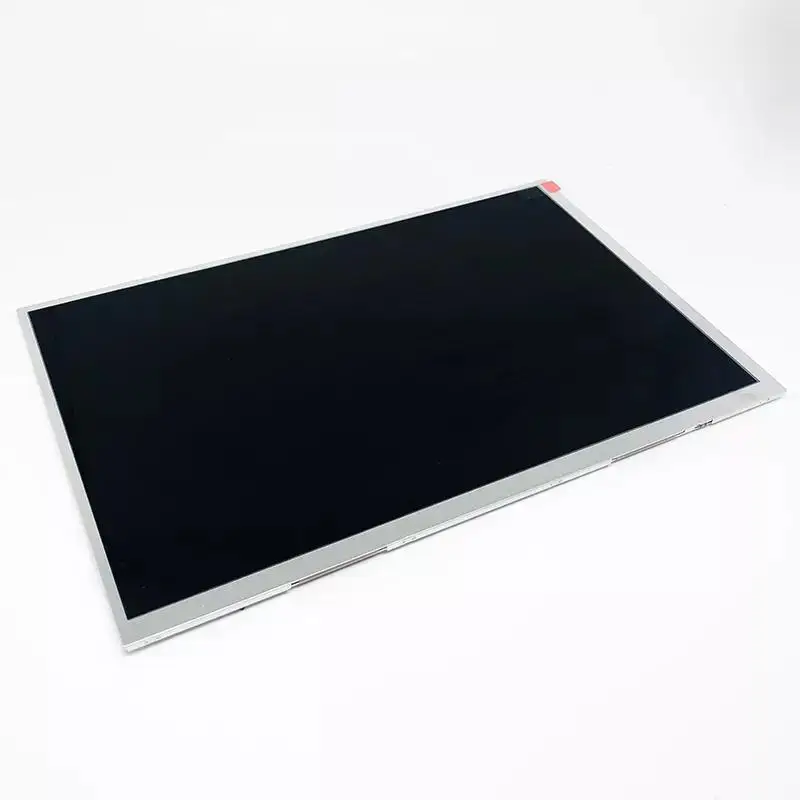

EJ101IA-01G 10.1 inch 1280x800 LCD Display screen + HDMI VGA 2AV Control Board Monitor LVDS 40 PIN Panel
*Product parameters：
Model: EJ101IA-01G
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Resolution 1280(RGB)×800 WXGA 149PPI
Pixel arrangement: RGB vertical bars
Display area: 216.96 (horizontal) × 135.6 (vertical) mm
Dimensions: 229.46 (horizontal) × 149.1 (vertical) × 4.66 (thickness) mm
Display brightness: 350 cd/m² (Typ.)
Contrast: 800:1 (Typ.) (Transmission)
Recommended viewing angle: full viewing angle
Response time: 10/15 (Typ.)(Tr/Td) ms
Viewing angle: 85/85/85/85 (Typ.) (CR≥10)
Display Mode: IPS, Normally Black, Transmissive
Support Color: 16.7M , 50% NTSC
Light source type: WLED [3S10P] , 15K hours, no driver
Weight: 183g (Typ.)
Suitable for: Tablets
Refresh rate: 60Hz
Touch function: no touch
Signal system: LVDS (1 ch, 8-bit) , terminal , 40 pins
Supply voltage: 2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL)
Maximum rated storage temperature: -20 ~ 70 °C Operating temperature: -10 ~ 60 °C
*Compatible Work With:10.1 Inch 1280X800 EJ101IA-01G
