Descripción

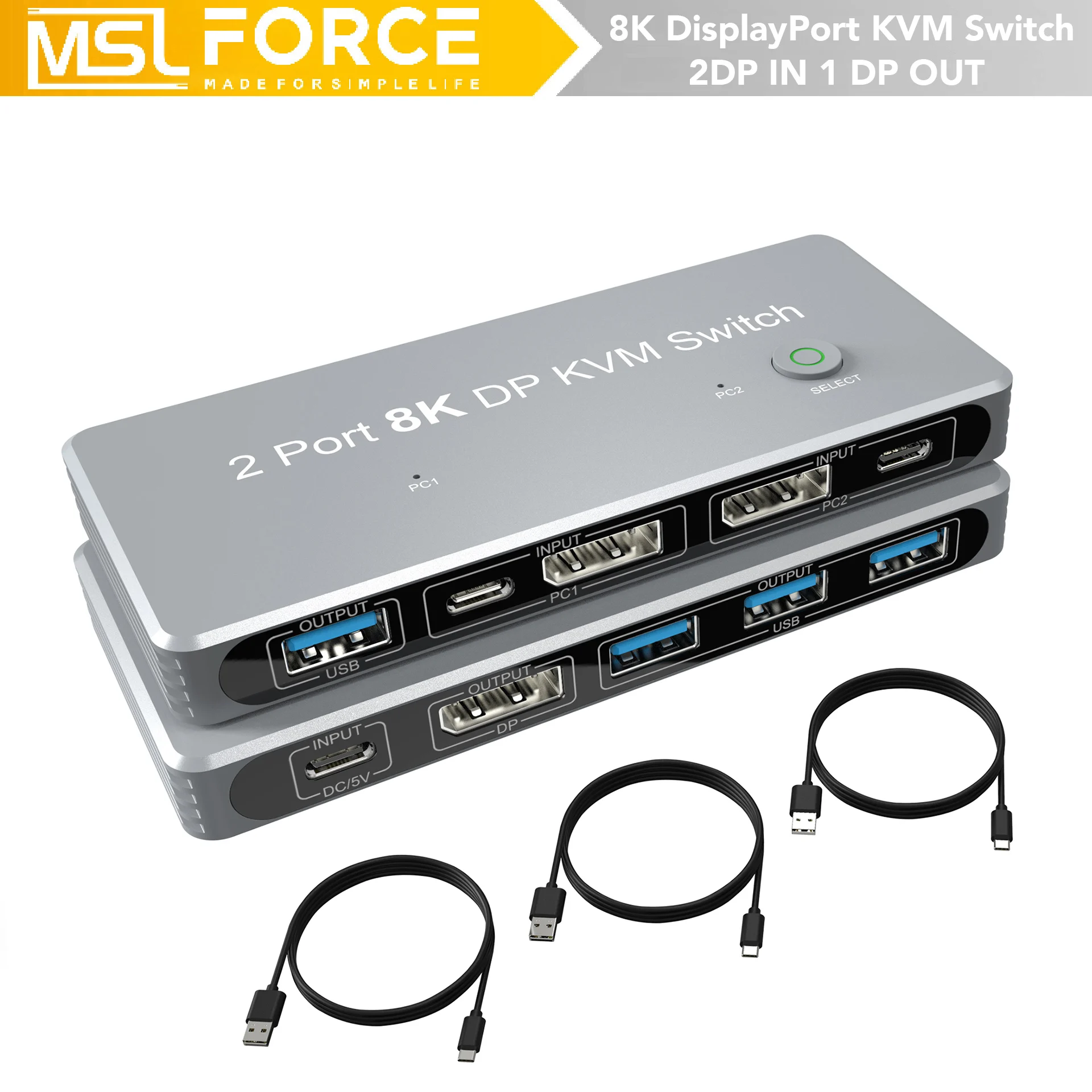

DisplayPort DP1.4 KVM Switcher, connecting USB Mouse, Keyboard, u-Disks, Printer, or other USB Devices.

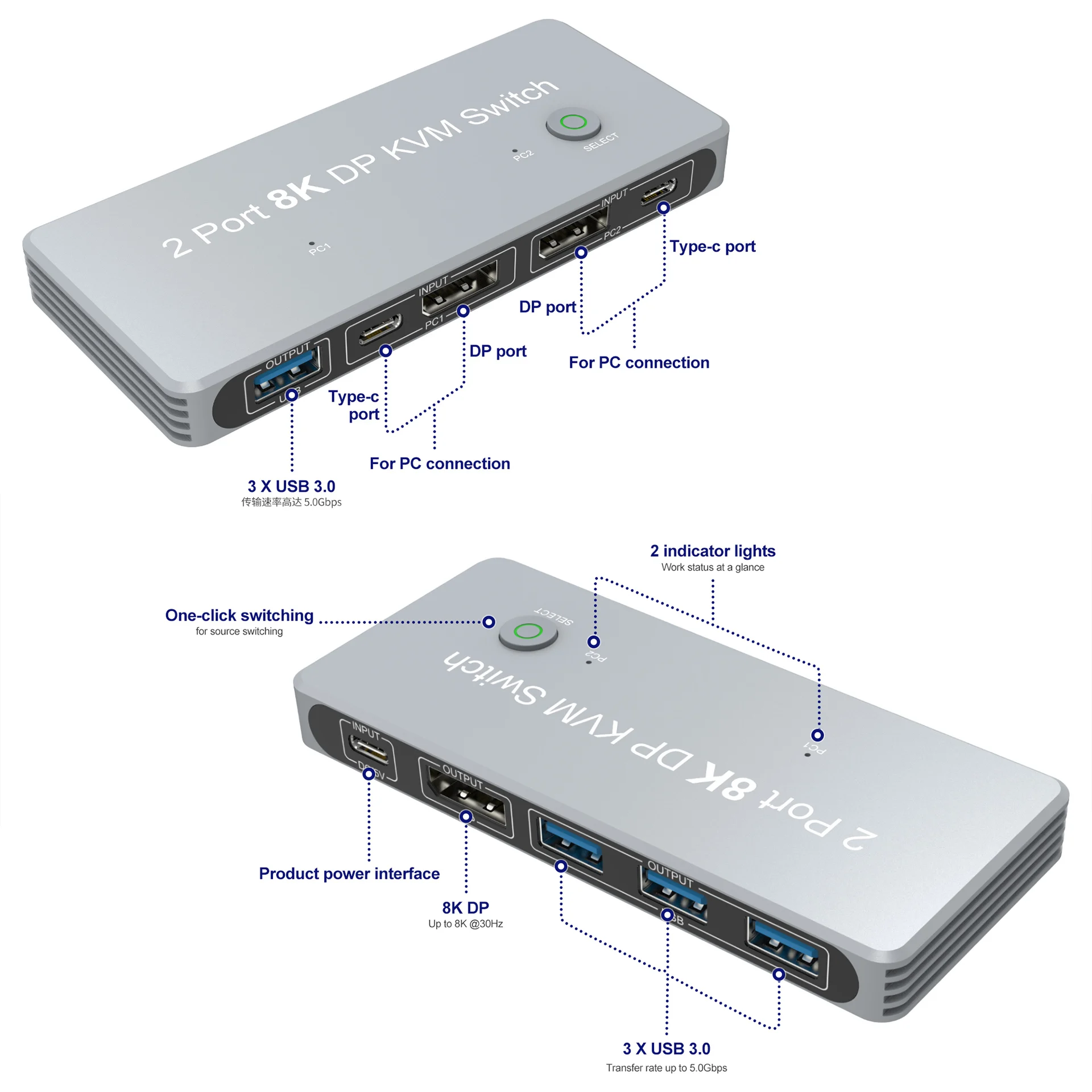

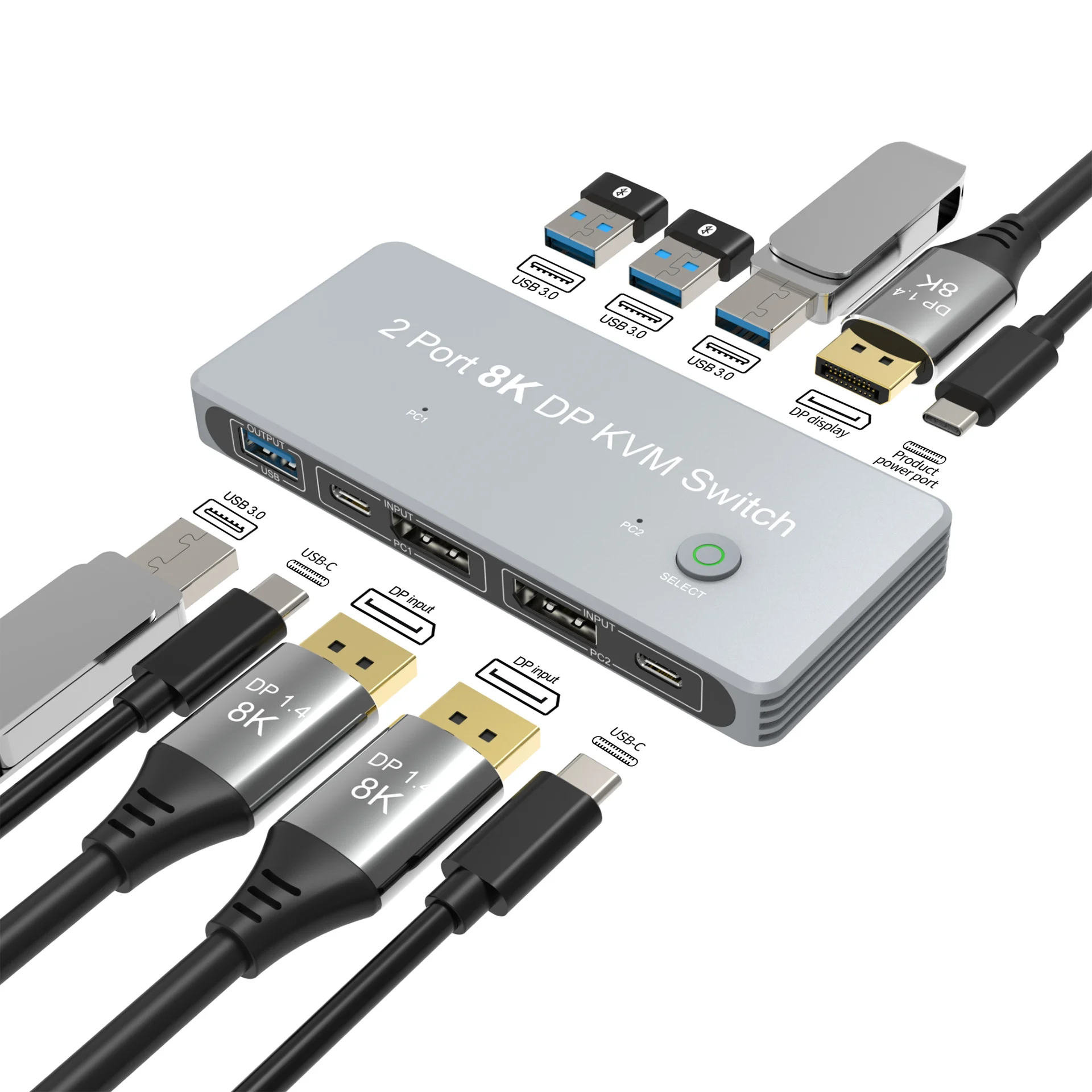

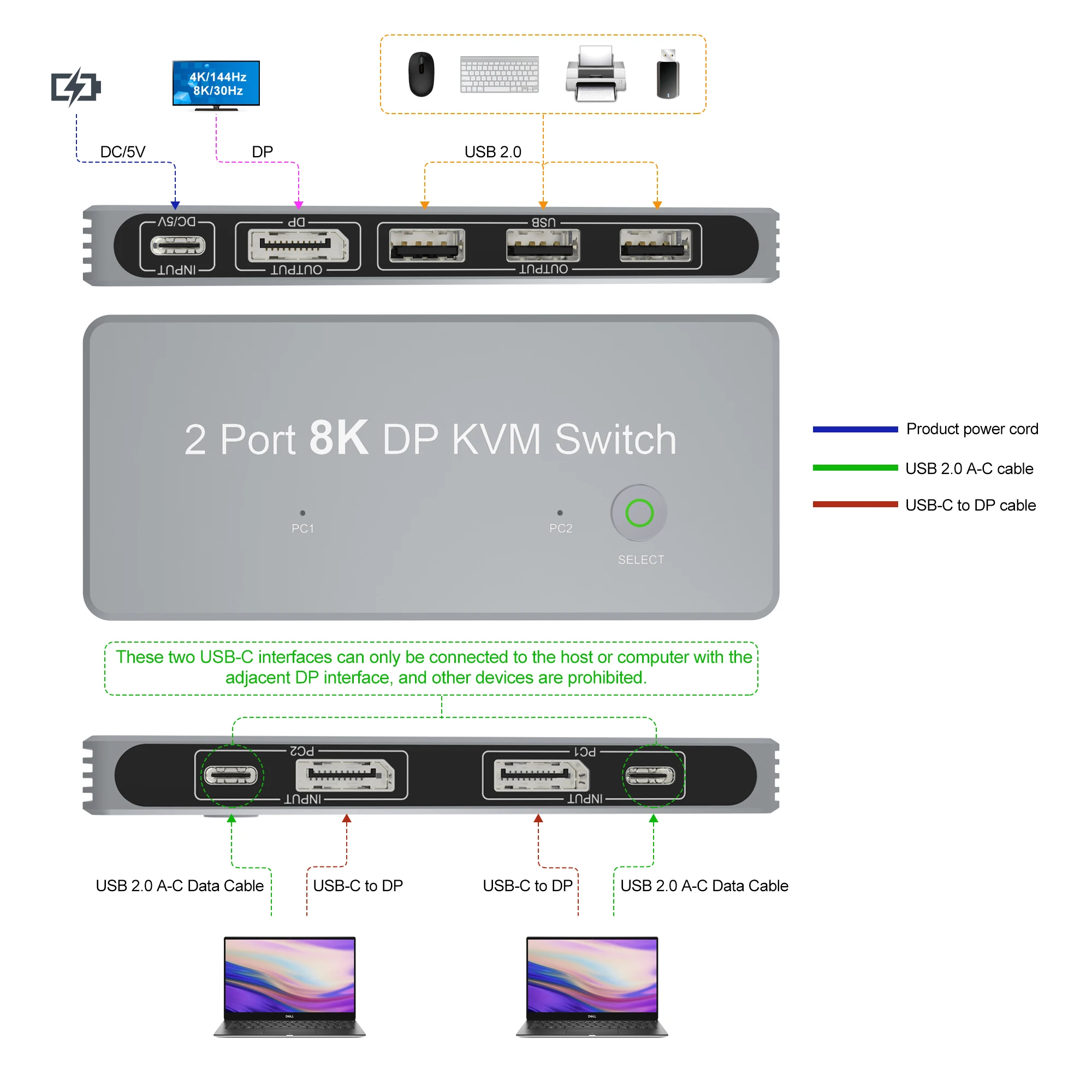

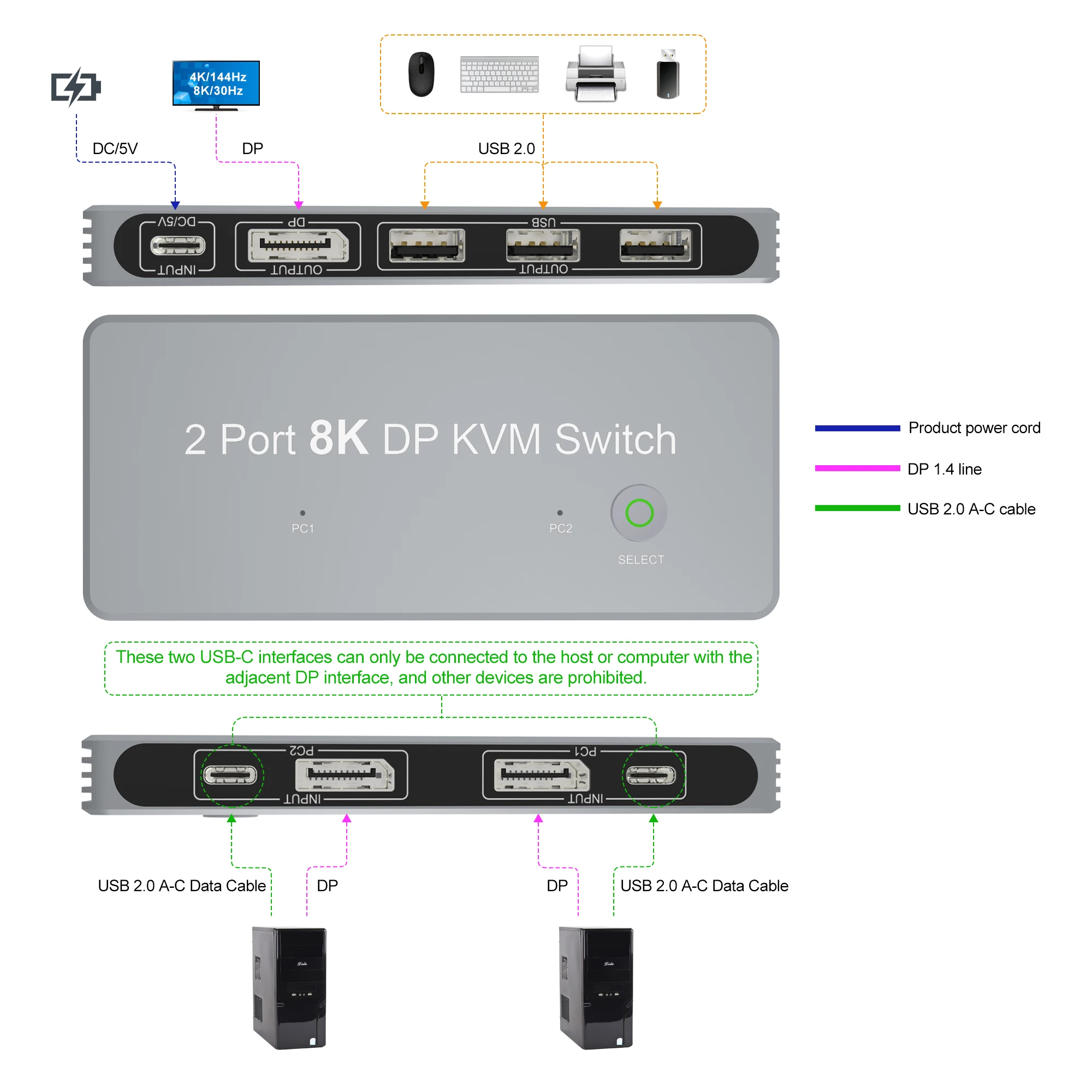

1:Connect the "Input PC1 and Input PC2"s Display Port to your two PCs via your own DisplayPort Cable(or USB-C to DisplayPort,Mini displayport to displayport cables)
2:Important Notes:Connect the USB-C Port beside the DisplayPort in the"Input PC1 and Input PC2"via our Supplied USB-A to USB-C cables to your PCs which had plugged DP cable in.Please note that the USB-A to USB-C cable can only be plugged into the computer with the DP cable connected, not other computers.
3:Connect the"DP Output"Port to your Monitors via your own DP to DP or DP to HDMI Cables.
4:Connect the "Input DC/5V"Port to your usb devices to power the switch via the Supplied USB-A to USB-C cable.Note:this is necessary,or the witch would not work.
5:Connect the 3xUSB2.0 Output to your USB Devices,like USB Mouse,USB Keyboard,USB Disks,USB Printer etc.
6:Press"Select"Button to switch between two DisplayPort PCs.If one PC's screen appears in the external Monitor,The corresponding LED indicator will show blue

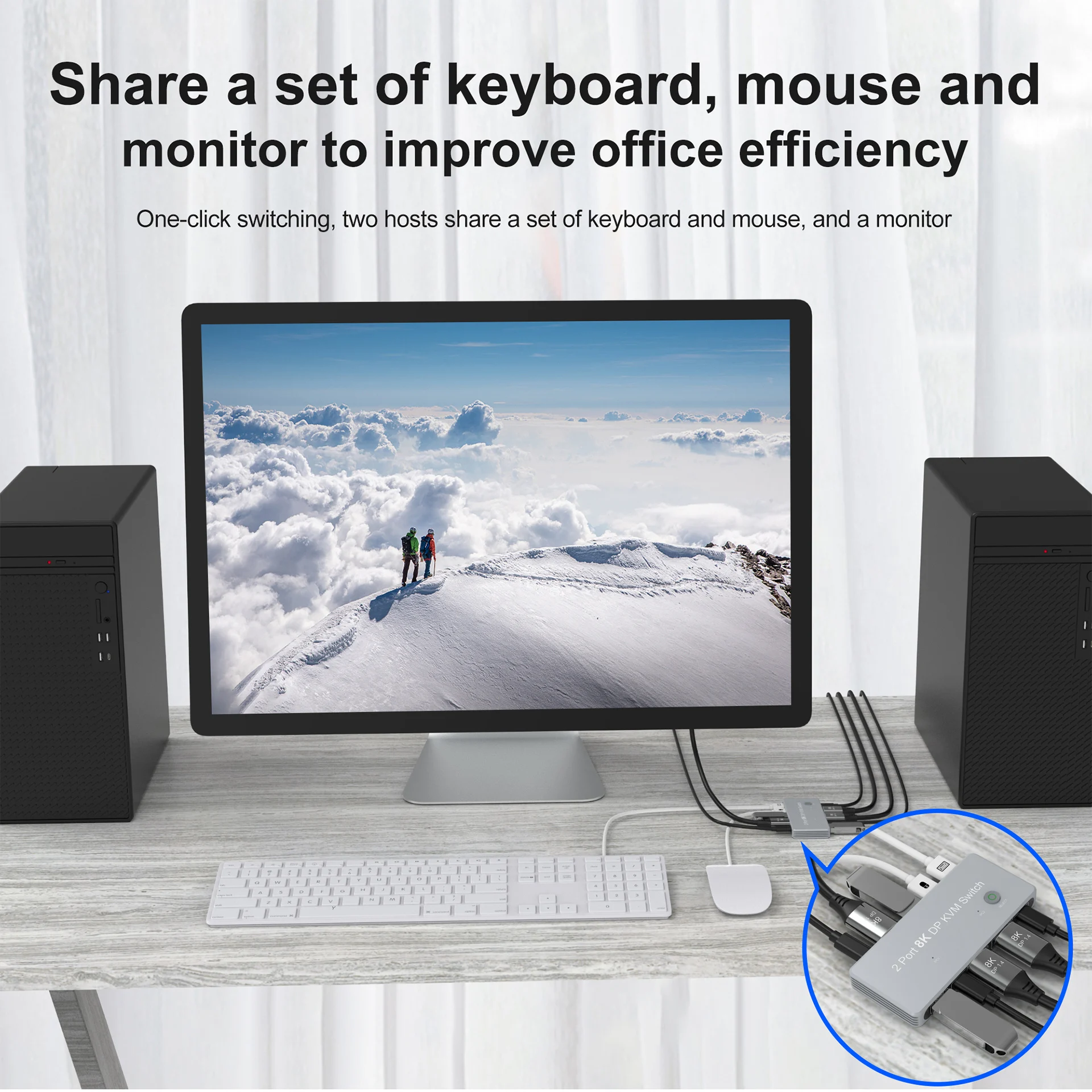

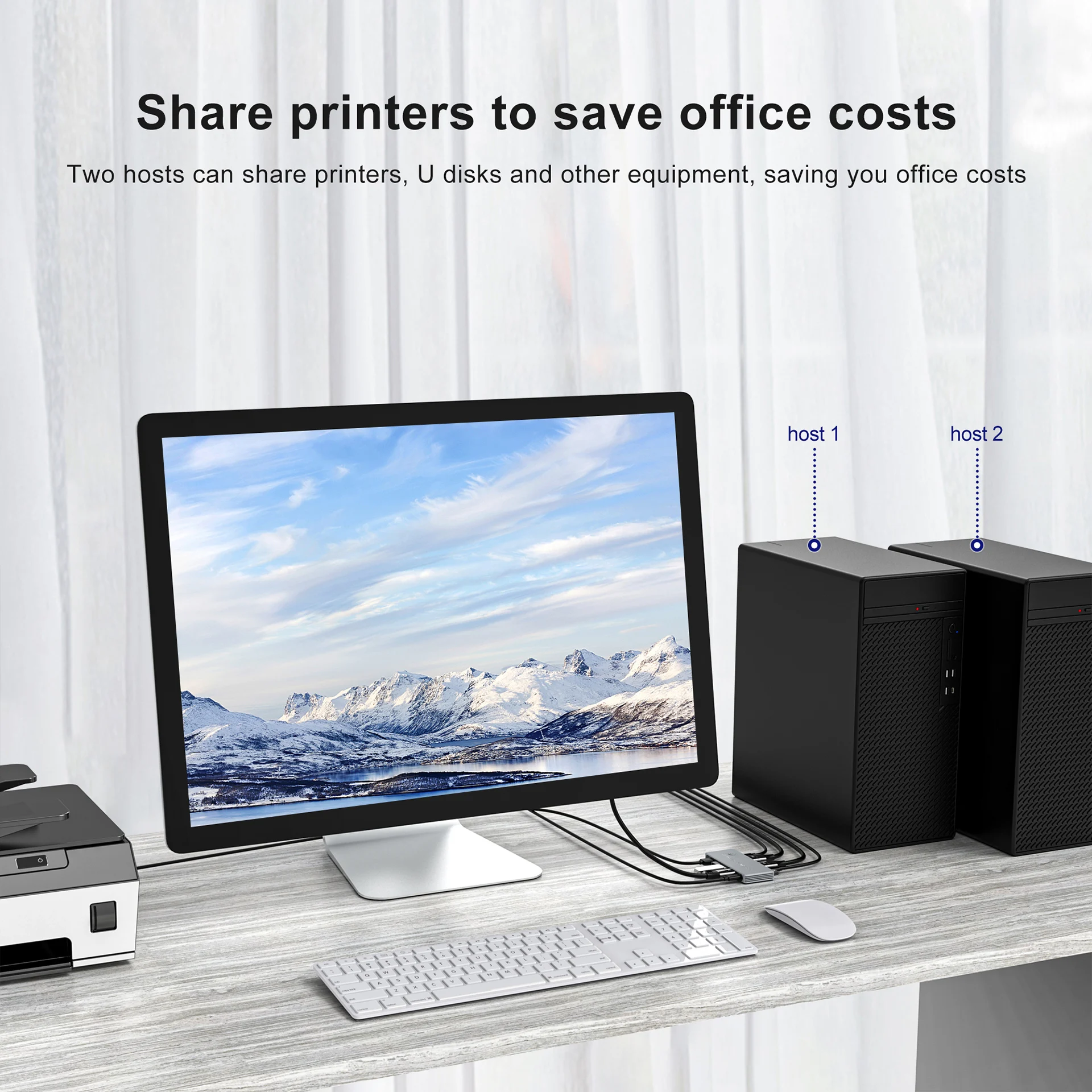

DP KVM Switcher,Two PC sharing one External DisplayPort Screen, Two PC sharing one set of USB Devices
